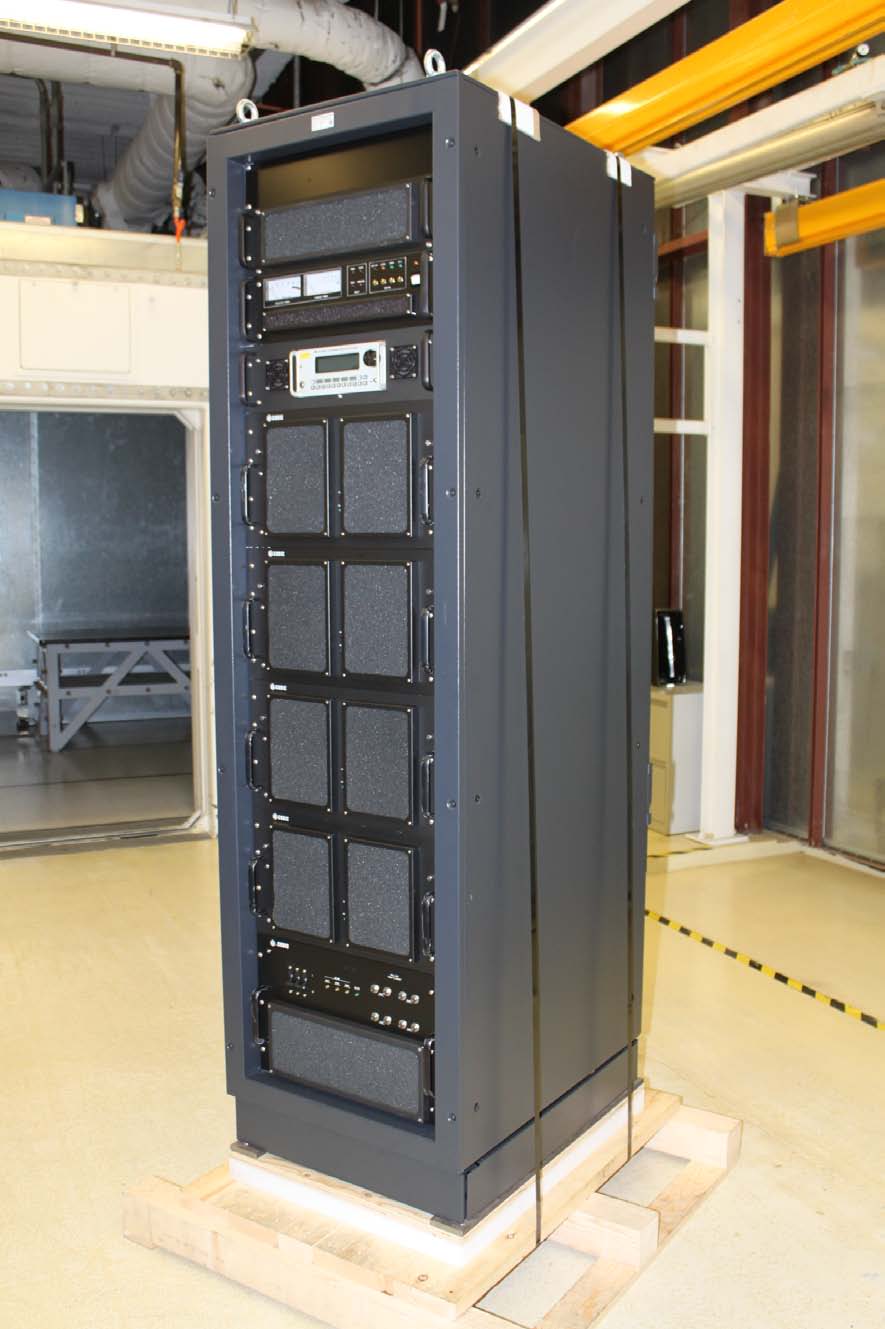

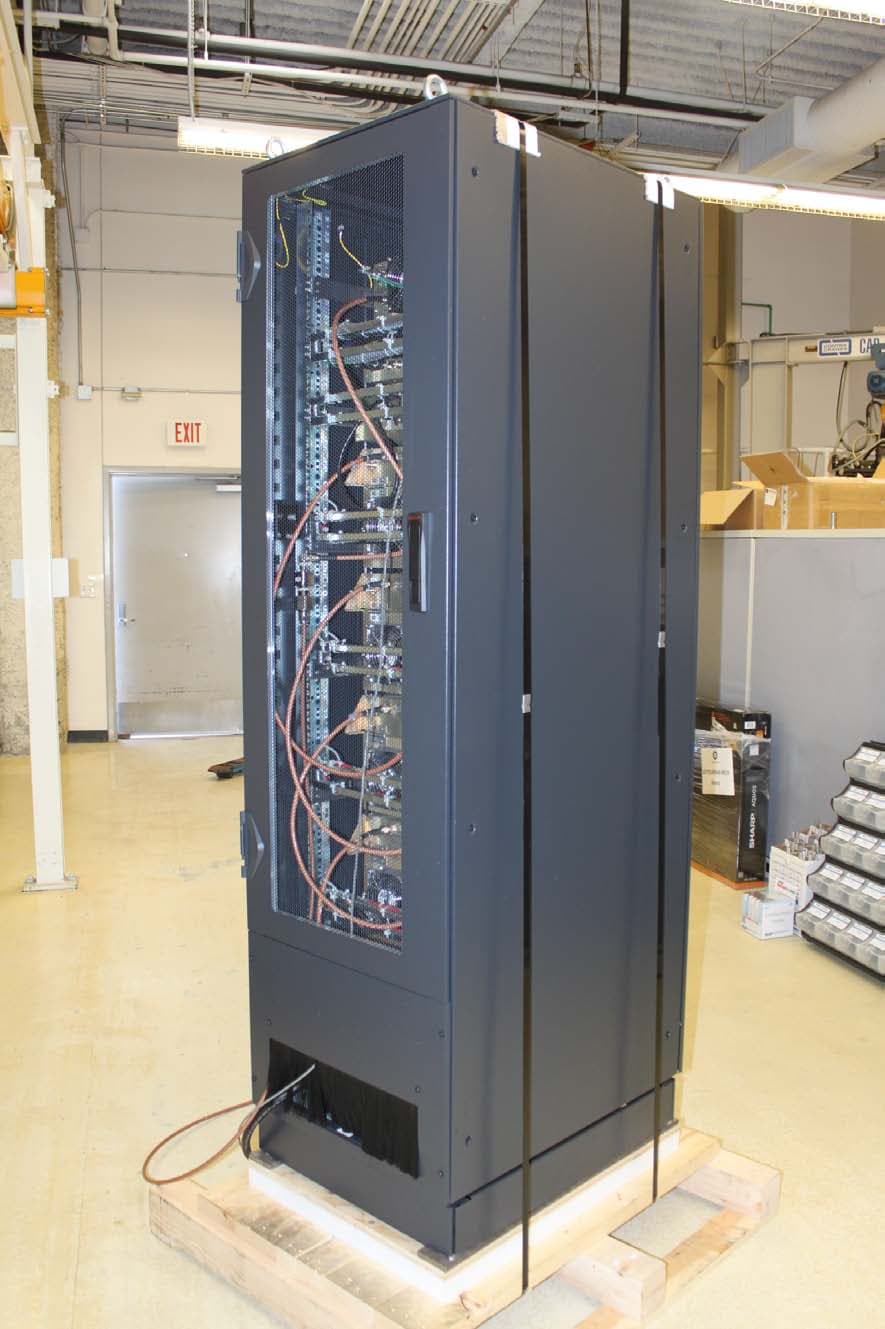

COM5000-8 POWER AMPLIFIER THE COM5000-8 IS A HIGH-EFFICIENCY CLASS AB AMPLIFIER WITH THE LINEARITY OF A CLASS A DESIGN. This amplifier is based on Silicon Power DMOS transistors that are specified for continuous operation (CW) at maximum rated power. The COM5000 is modular in design using basic building blocks in its four power amplifiers of 1.25 kW each. The output of each power amplifier passes through a selectable multiband low pass filter which is then summed by the output combiner. The amplifier incorporates a sophisticated microprocessor based controller which is used for normal “housekeeping” functions. The built-in T-4180 Exciter has RS-232 and RS-422 interfaces for connection to an external computer for remote control. Built-In Test (BIT) routines continuously monitor conditions within the amplifier and transmit status information upon request. The COM5000-8 has a built-in exciter (Cubic T-4180) and is FCC Part 87 certified.  www.cubic.com Enabling a Safer World • Modular Design • 5,000 Watts PEP and Average • 2.0 to 30 MHz • Automatic Level Control (ALC) • Operates into VSWRs up to 3:1 with graceful power reduction • VSWR Protection above 3:1 • Multiband Low Pass Filters • RS-232/422/485 Interfaces • Built-in T-4180 Exciter • FCC Part 87 Certified • Front Panel Forward and Reflected Power Meters Specifications • Frequency Range 2 to 30 MHz • Power Output 5,000 watts PEP and average (±0.5dB) with VSWR less than or equal to 1.3:1 • Power Input < 100mW PEP/average for rated power output • Input Impedance 50 ohm, 1.5:1 VSWR maximum • Gain Variation 1.5dB maximum over frequency range • VSWR Turndown Operates at reduced power from 1.3:1 to 3:1 VSWR Stable at any load; protected for infinite VSWR • 3rd Order IMD >32 dB below PEP • RF Noise At least 75 dBc/Hz below a 5 kW output reference level • Spurious Emissions -60 dBc or better within ±5% of the operating frequency. At least -80 dBc beyond ±5% from the operating frequency. • Harmonic Levels -63 dBc or better at rated power into a 50 ohm load • Frequency Change 20 ms maximum between any two frequencies Time • Key Control RF Power is within ±1 dB of steady state level in less than 10 ms after key ON. RF power is reduced by more than 50 dB within 5 ms after key OFF • Altitude Operating: 0 to 10,000 ft Nonoperating: 0 to 50,000 ft • Temperature Operating: 0°C to + 40°C at sea level; maximum temperature derated linearly to + 20°C at 10,000 ft Nonoperating: -40°C to + 70°C • Humidity 0 to 95% relative humidity, non-condensing • Cooling Forced air-internal fans. • Acoustic Noise 73 dBa • Power Supply Built in • AC Line Input 3 phase, 47 to 63 Hz 187-240 VAC at 50A maximum per phase or 373-457 VAC at 25A maximum per phase • Indicator LEDs System Controller Power Amplifier Modules Power Supply • Control RS-232/422/485 serial bus BIT parameters via serial bus • Dimensions 85.5” (217cm) (H) x 31.6” (80.3cm) (D) x 23.7” (60.2cm) (W) • Weight <800lb (< 363kg) 9333 Balboa Ave. • San Diego, California • USA • Phone 858-277-6780 • Fax 858-505-1523 Copyright 09/15 • CDA 11738_168 Enabling a Safer World

TECHNICAL SPECIFICATION An ISO 9001 Certified Company T-4180 HF DSP EXCITER HALF-RACK The T-4180 is a high performance computer- controlled 1.6 to 30 MHz HF DSP Exciter FEATURES •Frequency Range: 1.6 to 30 MHz •Incorporates digital signal processing (DSP) for greater linearity and spectral purity •User-friendly menu-driven display •Exceptional tuning speed, 2 msec typical, 4 msec maximum (10 MHz step) •Operating modes: LSB, USB, ISB, AM, FM, CW, FSK, FMfax, LSBfc, LSBpc, USBfc and USBpc •Integral post selector minimizes harmonic and spurious outputs •250 preprogrammable channels •Rugged construction - three individually shielded modules, in addition to the power supply •Surface mount technology for superior reliability •Outstanding MTBF: 15,000 hours over temperature •Full function remote control: RS-232 or RS-422 •BITE and BIT - isolation to the module level T-4180 HF DSP EXCITER HALF-RACK SPECIFICATION FREQUENCY Frequency Range: 1.6 to 30 MHz Tuning Step Size: adjustable 1 Hz to 10 MHz in decade steps Synthesizer Tuning Speed: (from receipt of last command byte until within 1 kHz of the final fre- quency): all modulation modes ∆f<100 kHz <1.0 msec, typical ∆f<1 MHz <1.5 msec, typical ∆f<10 MHz <2.0 msec, typical Sweep and Scan Speed: 100 channels per second Tuning Accuracy: Internal Standard TXCO: ±1 ppm of tuned frequency External Standard: equal to accuracy of external standard in ppm Internal/External Frequency Standard: 10 MHz MODULATION Modulation: LSB, USB, ISB, AM, FM, CW, FSK, FMfax, LSBfc, LSBpc, USBfc and USBpc Bandwidth may be automatically selected by modulation mode and modulation characteristic LSB, USB, 2-channel ISB and CW per MIL-STD-188-141A, Table I and Paragraph 5.2.7.1 plus Figure 5 AM - 6 kHz default or as selected. Amplitude Modulation up to 95% FM bandwidth automatically selected for specified modula- tion characteristics. Deviation up to 5 kHz Internal Modulation: 50 Hz - 6 kHz sine wave or white noise Emission Designators supported: A1A/A1B, A2A/A2B, A3E, B8E, F1A/F1B, F1C, F3E, H2A/H2B, H3E, J2A/J2B, J3E, R2A/R2B, & R3C/R3E RF SECTION Exciter Power Output: +27 dBm maximum Output Impedance: 50 ohms Output VSWR: 2:1 maximum RF On/Off Switching Speed: <80 μsec, 60 dB isolation, controlled by external TTL levels RF Filters: eight suboctave bandpass filters reduce harmonic content Automatic Level Control (RF): 0 to -60 dB level control from single RS-422 (dedicated from PA microcontroller) Manual Level Control (MLC): -33 to +27 dBm in 1 dB steps Phase Noise: Per MIL-STD-188- 141A, Paragraph 5.2.5 and Figure 3 fixed site, non-cosited Phase Stability: Exceeds MIL-STD-188-141A, Para- graph 5.2.4 Absolute Delay: 5 ms maximum Keying Characteristics: Attack Time Delay: 3 ms max to 90 percent of full steady state output Release Time Delay: 3 ms max to 10 percent of full steady state output Keying Time: Defined as time from “key down” to RF output or “key up” to reduce RF output NOISE AND DISTORTION In-band Noise: -105 dBc/Hz In-band Intermodulation Distortion (IMD): 50 dB below either tone of two equal signals producing +21 dBm PEP Spurious Broadband Emissions: per MIL-STD-188-141A, Para- graph 5.3.2.1 and Table II Harmonic Outputs: -55 dBc. All other discrete spurious are -80 dBc Carrier Suppression: -60 dBc for a single tone at +27 dBm signal output Unwanted sideband suppression: -60dB IF SECTION 1 st IF: 24 kHz, DSP generated, lowpass filter @ 80 kHz 2 nd IF: 456 kHz, Standard Filter BW is 18 kHz 3 rd IF: 40.456 MHz, Standard Filter BW = 22.5 kHz IF Filters: 51 DSP derived FIR filters provide bandwidths from 100 Hz to 16 kHz automatically chosen by modulation mode and modulation characteristics INPUT CHARACTERISTICS Unbalanced Audio Input Impedance: 150 ohms ±10% over 100 to 7000 Hz passband Audio Input Level: -45 to -15 dBm ref. 150 ohms Balanced Audio Input Impedance: 600 ohms, 0 dBm -20 dB to +10 dB Audio Level Control: automatic audio level control holds PEP audio at standard level ±1 dB over the 30 dB input range REMOTE CONTROL RS-232 and RS-422 available. All exciter operational parameters including SELCAL are remotely controllable BITE Fault isolation to the module level RELIABILITY MTBF: 15,000 hours. Calculated based on “Naval Sheltered” (NS) as defined in MIL-HKBK-217F MAINTAINABILITY Mean-Time-to-Repair (MTTR) of not more than 30 minutes at the module replacement level POWER REQUIREMENTS 90 - 260 VAC, 47 - 440 Hz, 60 watts max., switching mode power supply CONTROLS AND CONNECTORS Front Panel: Full alphanumeric display with full function keypad for entry of all parameters Control knob for selection of all numeric parameters Power Switch: toggle-type: Phone jack: 1/4 inch for micro- phone and/or key line input Rear Panel: Power Connector: IEC RF Output: BNC External Frequency Standard Input: BNC Audio Input: 15-pin Sub D PA Control: 15-pin Sub D Bus Control: 25-pin Sub D for RS-232 and RS-422 T-4180 HF DSP EXCITER HALF-RACK SPECIFICATION ENVIRONMENTAL DATA Operating High Temperature: MIL-STD-810E, Method 501.3, Procedure II, Table 501.3-I (ambi- ent air conditions), maximum test temperature 50°C, one cycle Operating Low Temperature: MIL-STD-810E, Method 502.3, Procedure II, Temperature 0°C Storage High Temperature: MIL-STD-810E, Method 501.3, Procedure I, 85°C, one cycle Storage Low Temperature: MIL-STD-810E, Method 502.3, Procedure I, Temperature -40°C for 12 hours Humidity: MIL-STD-810E, Method 507.3, Procedure I- Natural, Table 507.3-I, five cycles total Shock: MIL-STD-810E, Method 514.4, Procedure I, Category 9, Figure 514.4-15 EMI/EMC Equipment designed to intent of the applicable requirements of MIL-STD 461/462 as a guide DESIGN AND CONSTRUCTION Design and Construction: MIL-STD-2036, Paragraph 5.1.4 as a guideline Workmanship: MIL-HDBK-454, Guideline 9 Interchangeability: all identical units, assemblies and replacement parts are physically, electrically and functionally interchangeable DIMENSIONS AND WEIGHT Size: half 19-inch rack size: 8.45 inches (21.…
