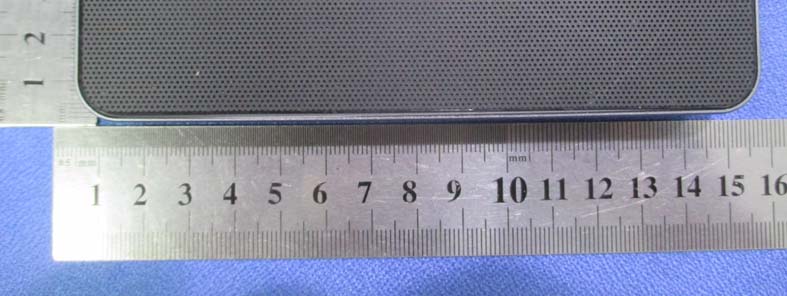

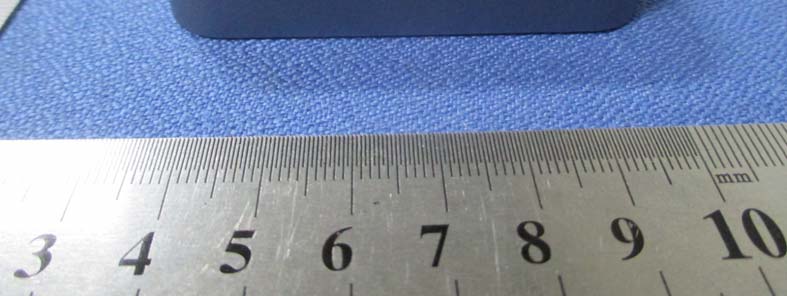

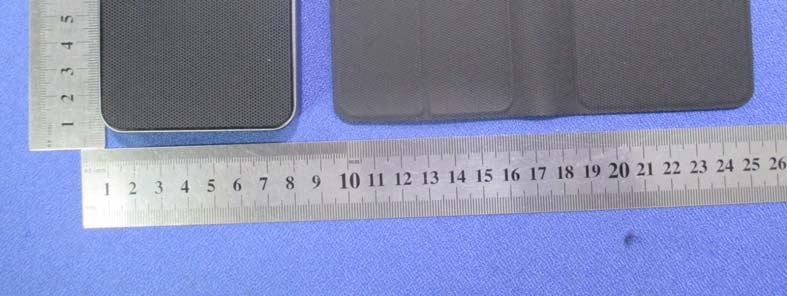

2AFVN-EXTSPKWireless Executive Speaker

989236_INS_Wireless Executive SpeakerInstructions Doc. Size: 270mm W x 115mm H Folded Size: 50mmW x 115mmHOutput at 100% Prints 1/1 Black Finishing: Trim to Crops; Accordion Fold: 5 folds Fold Fold Fold Fold LITHIUM-ION BATTERY WARNINGS This device contains a non-removable lithium-ionbattery. The battery must be recycled or disposed of properly . Contact your local waste management office for informationon battery recycling or disposal. FCC INFORMATION This equipmenthas been tested and found to comply with the limits for a Class B Digital Device, pursuant to P art 15 of the F C C Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipmentgenerates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception,which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of the following measures: tReorient or relocate the receiving antenna. tIncrease the distance between the equipmentand receiver. tConnect the equipmentto an outlet on a circuit different from that to which the receiver is concted. tConsult the dealer or an experienced radio/TV technician for help. This equipmentcomplies with P art 15 of the F C C Rules. Operation is subject to the following two conditions: 1.This equipmentmay not cause harmful interference. 2.This equipmentmust accept any interference received, including interf erence that may cause undesired operation. Modifications not authorized by the manufacturer may void the user’s authorityto operate this device. This equipmentcomplies with F C C R F radiation exposure limits set forth for an uncontrolledenvironment.This transmitter must not be co-located or operating in conjunctionwith any other antenna or transmitter. Wireless Executive Speaker FOR TABLETS AND SMARTPHONES Fold 989236 Merrimack, New Hampshire, USA 03054 8 0 0-8 46 -3 000tBr ookstone.com CARE AND STORAGE 1.To clean speaker, wipe with a soft, dry cloth. 2.Store speaker in a cool, dry location. SPECIFICATIONS Power Supply: 5V, 500mA Total Output: 5W Range: Class 2, up to 33 ft (10 m) Li-ion Re chargeable Battery: 700mAh Speaker: 1.57 in . , 4 Ohm Charging Time: Approx. 2.5 hours Battery Li fe: Approx. 5 hours Compatibility: Bluetooth ® 3.0 or a bove device with A2DP/ AVR C P The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SI G, Inc. and any use of such marks by Brookstone is under license. 989236_INS_Wireless Executive Speaker ONE (1) YEAR LIMITED WARRANTY Brookstone ® warrants this product against defects in materials and/or workmanship under normal use for a period of ONE (1) YEAR from the date of purchase by the original purchaser (“Warranty Period”). If a defect arises and a valid claim is received within the Warranty Period, at its option, Brookstone will either 1) repair the defect at no charge, using neworrefurbishedreplacementparts,or 2) replace the product with a new product that is at least functionally equivalent to the original product, or 3) provide a store credit in the amount of the purchase price of the original product. A replacement product or part, including a user-installable part installed in accordance with instructions provided by Brookstone, assumes the remaining warranty of the original product. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes Brookstone’s property. When a store credit is given, the original product must be returned to Brookstone and becomes Brookstone’s property. Obtaining Service:To obtain warranty service, call Brookstone Limited Warranty Service at 1-800-292-9819.Pleasebepreparedto describe the product that needs service and the nature of the problem. A purchase receipt is required. All repairs and replacements must be authorized in advance. Service options, parts availability and response times will vary. You are responsible for delivery and the cost of delivery of the product or any parts to the authorized service center for replacement, per our instructions. Limits and Exclusions:Coverage under this Limited Warranty is limited to the United States of America, including the District of Columbia and the U.S. Territories of Guam, Puerto Rico, and the U.S. Virgin Islands. This Limited Warranty applies only to products manufactured for Brookstone that can be identified by the “Brookstone” trademark, trade name, or logo affixed to them or their packaging. The Limited Warranty does not apply to any non- Brookstone products. Manufacturers or suppliers other than Brookstone may provide their own warranties to the purchaser, but Brookstone, in so far as permitted by law, provides these products “as is.” This warranty does not apply to: a) damage caused by failure to follow instructions relating to product’s use or the installation of components; b) damage caused by accident, abuse, misuse, fire, floods, earthquake or other external causes; c) damage caused by service performed by anyone who is not a representative of Brookstone; d) accessories used in conjunction with a covered product; e) a product or part that has been modified to alter functionality or capability; f) items intended to be periodically replaced by the purchaser during the normal life of the product including, without limitation, batteries or light bulbs; g) any product sold “asis”including,withoutlimitation,floor demonstration models and refurbished items; or h) a product that is used commercially or for a commercial purpose. BROOKSTONE SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRA…

Text truncated - open the document above for the full version.

Brookstone Purchasing, Inc. One Innovation Way, Merrimack, NH 03054 USA TEL: (603)577-8279 FAX: (603)577-8279 DATE 09-16-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AFVN-EXTSPK Product Name: Wireless Executive Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 09-16-2015 By: Frank Hu Signature Printed Title: Sr. Vice President On behalf of : Brookstone Purchasing, Inc. Telephone: (603)577-8279

Brookstone Purchasing, Inc. One Innovation Way, Merrimack, NH 03054 USA TEL: (603)577-8279 FAX: (603)577-8279 USB Port Statement FCC ID: 2AFVN-EXTSPK Date: Sept. 16, 2015 To whom it may concern: We, the undersigned, state that the device's (Model: 989236) USB port only used for charge, no any data transfer to PC. Sincerely, Frank Hu / Sr. Vice President

FCC ID Label Information 1. Label location: 2. FCC ID Label: Model: 989236 FCC ID: 2AFVN-EXTSPK FCCID Label Location

BT Antenna

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 97.58dBuV/m @3m Ant gain 0dBi; so Ant numeric gain=1 So pt={[10 (97.58/20) /10 6 x3] 2 /(30x1 )}x1000mW =1.72mW So (1.72mW/5mm)x √2.402GHz = 0.533<3 Then SAR evaluation is not required

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No.: CTL1509022542-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Tracy Qi (Manager) Product Name...............................: Wireless Executive Speaker Model/Type reference..................: 989236 Trade Mark....................................: Brookstone FCC ID...........................................: 2AFVN-EXTSPK Applicant’s name.........................: Brookstone Purchasing, Inc. Address of applicant...................: One Innovation Way, Merrimack, NH 03054 USA Test Firm.......................................: Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm...................: Floor 1- A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification.........................: Standard........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator..........................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF..............................: Dated 2011-01 Date of Receipt.............................: Sept. 11, 2015 Date of Test Date..........................: Sept. 11, 2015 - Sept. 14, 2015 Data of Issue.................................: Sept. 14, 2015 Result............................................: Positive Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 29 Report No.: CTL1509022542-WF T E S T R E P O R T Test Report No. : CTL1509022542-WF Sept. 14, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wireless Executive Speaker Model /Type : 989236 Applicant : Brookstone Purchasing, Inc. Address : One Innovation Way, Merrimack, NH 03054 USA Manufacturer CCA DESIGNING&MANUFACTURING LIMITED Address BLD 120-121TH, PINGHUAN IND.CITY PINGSHAN TOWN, SHENZHEN, 518118 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 29 Report No.: CTL1509022542-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.Equipment Under Test 5 2.2.Description of the Equipment under Test (EUT) 5 2.3.EUT operation mode 6 2.4.EUT configuration 6 2.5.Related Submittal(s) / Grant (s) 6 2.6.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2. Transmitter Radiated Unwanted Emissions and Bandedge 14 4.3.Occupied Bandwidth Measurement 20 5. ANTENNA REQUIREMENT ....................................................... 22 6.TEST SETUP PHOTOS OF THE EUT .......................................... 23 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 25 V1.0 Page 4 of 29 Report No.: CTL1509022542-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.10-2013 ANSI C63.4-2014 V1.0 Page 5 of 29 Report No.: CTL1509022542-WF 2. SUMMARY 2.1. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.2. Description of the Equipment under Test (EUT) The EUT (Wireless Executive Speaker) support Bluetooth function. Name of EUT Wireless Executive Speaker Model Number 989236 Antenna Type Internal BT CE Operation frequency 2402MHz-2480MHz BT Modulation Type GFSK,8DPSK,/4DQPSK(BT V3.0+EDR) Bluetooth BT V3.0+EDR Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 29 Report No.: CTL1509022542-WF 2.3. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / TM4 Charging and keeping TX power by battery The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down posi…

Text truncated - open the document above for the full version.
