2AFW6-T261band

、 3. Technical indicators Type T261 The RFID chip TI wireless products Working frequency 2433MHz~2445MHz Antenna -30dBm~1dBm Recognition distance （0-100）m，Depending on the antenna Battery 3.0V/CR2430 275mAh Material Silicon 4、How to use 1、Wear T261 on your wrist Put on the wristband with the screen facing up and the band wrapped around your wrist. Align the clasp along the band to 1.Product Features  Ultra-low power consumption, long service life;  Built-in high performance directional antenna；  Recognition distance, high sensitivity;  Support RSSI signal strength indicator; 2、Applications  School Paper management  Vehicle management  Asset Management  Personnel management  Production line management  Logistics and traceability management  Anti-counterfeiting tracking management  Location management T261 is an ultra-low-power, high-performance 2.4GHz active RFID tags, according to the preset time time to send a unique ID number, with a high receiver sensitivity, recognition distance and other characteristics, can replace the battery, support Strength Indication RSSI function . T261 Band find the holes where best fit the clasps. 2、Fasten T261 with clasp Squeeze both clasps into the holes on the wristband until you hear a click, indicating the band is securely fastened. FCC Caution. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Changes or modification warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between thee quipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. * RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

RF_160, Issue 03 Declaration of Authorization We Name: SHENZHEN IQI TECHNOLOGY CO,.LTD Address: No. Rm602, A Bldg., Smart Valley Technology Park, Yintian Street, Xixiang, Bao'an District . City: Shenzhen Country:  China  Declare that: Name Representative of agent: ...Bovey Yang.......... (1) Agent Company name:  Shenzhen STS Test Services Co., Ltd. . Address:  1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Bao’ an District.. City: Shenzhen .. Country  China . is authorized to apply for Certification of the following product(s): Product description:  band  Type designation:  T261  Trademark:  N/A . on our behalf. Date: 09/22/2015.. City:  Shenzhen.. Name: Kim Guan .. (2) Function: ...Deputy General Manager ......................... Signature:  . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: SHENZHEN IQI TECHNOLOGY CO,.LTD Address: No. Rm602, A Bldg., Smart Valley Technology Park, Yintian Street, Xixiang, Bao'an District City: Shenzhen Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AFW6-T261 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 09/22/2015 Name and signature of applicant: kim Guan Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

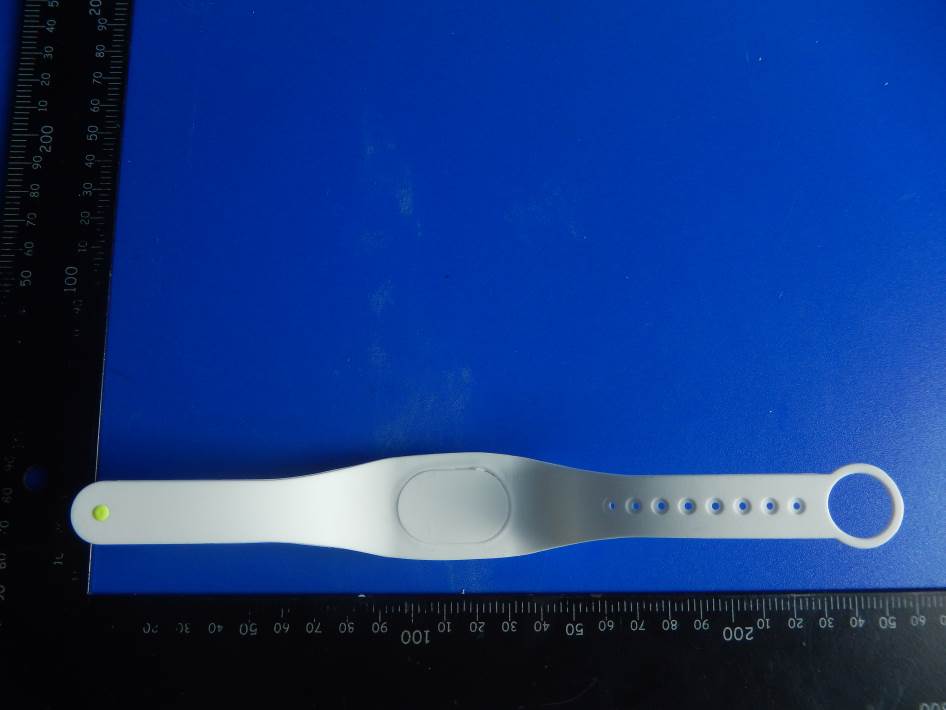

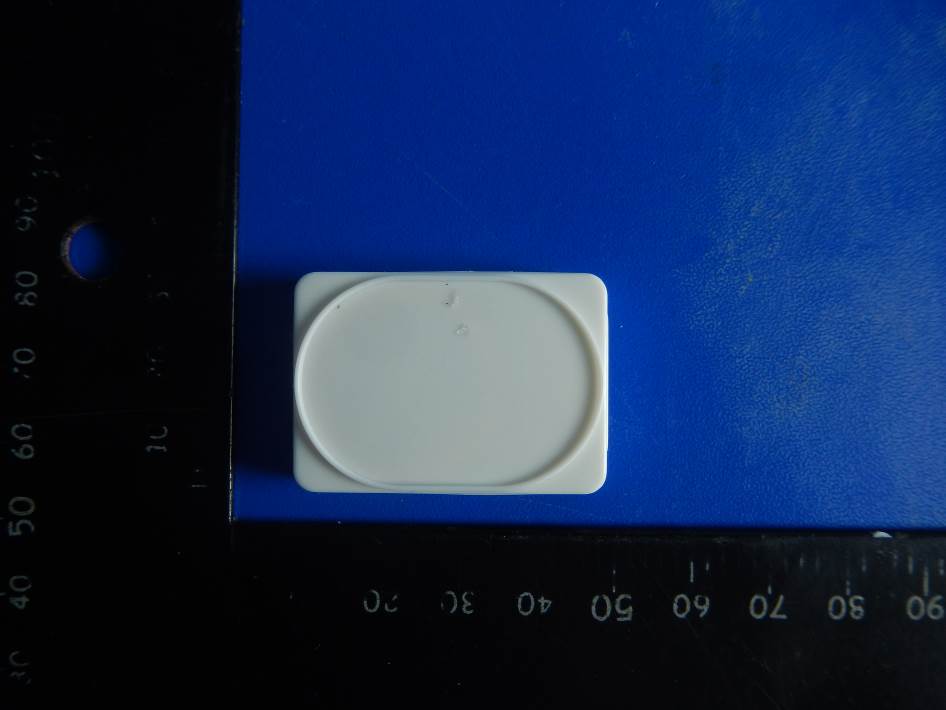

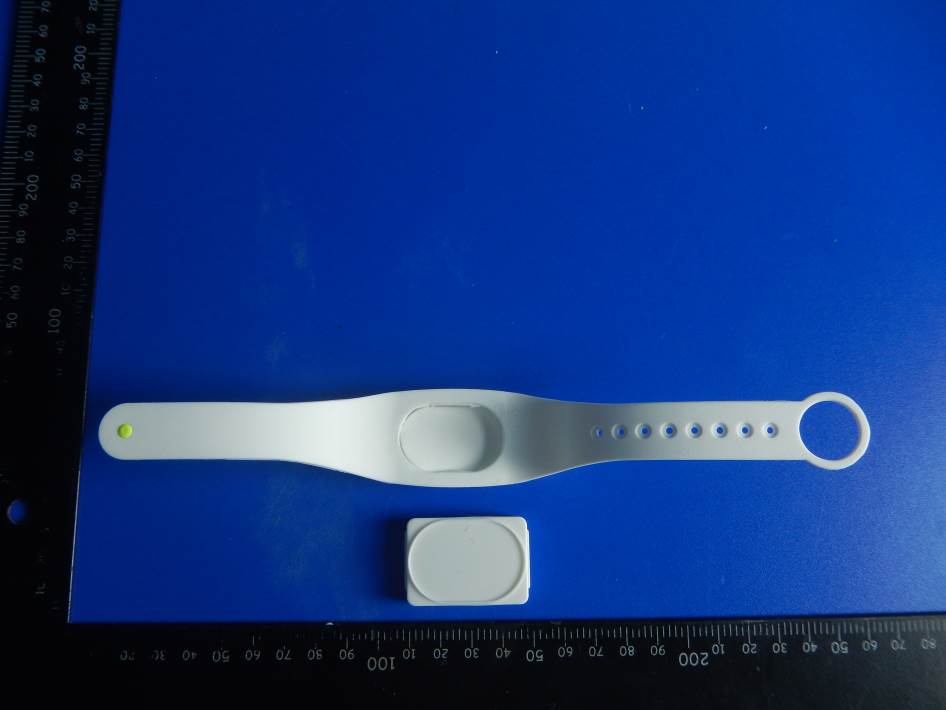

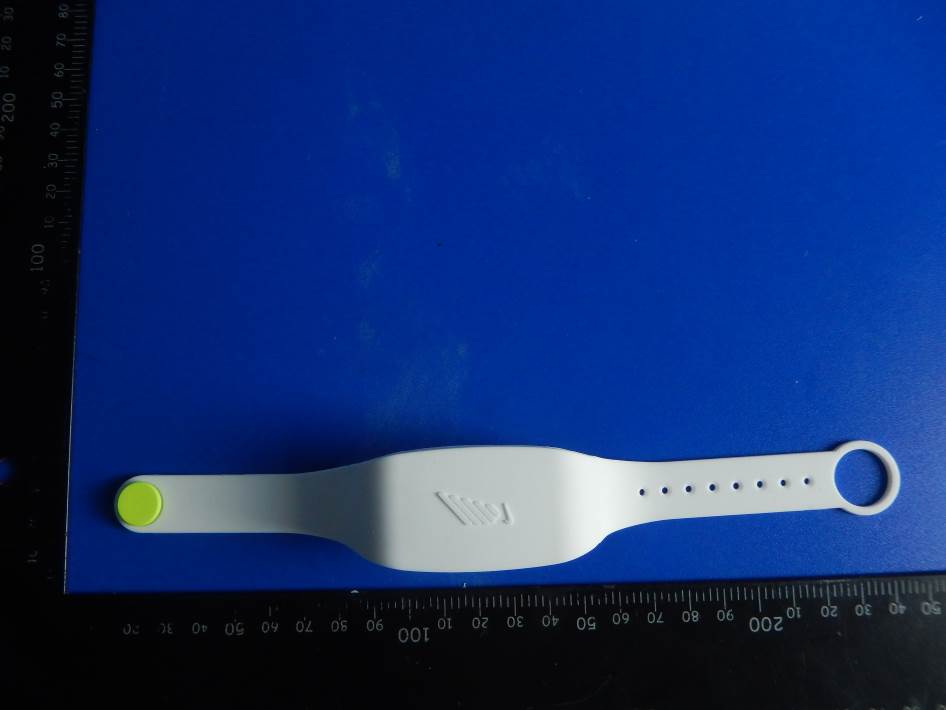

Project No: STS1509037 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1509037 Photo 3 Photo 4 Project No: STS1509037 Photo 5

Label band Model name: T261 FCC ID: 2AFW6-T261 label

Project No: STS1509037 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1509037 Photo 3 Photo 4 TX ANTENNA Project No: STS1509037 Photo 5 Photo 6 Project No: STS1509037 Photo 7

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS1509037F01 Issued for SHENZHEN IQI TECHNOLOGY CO.,LTD. No. Rm602, A Bldg., Smart Valley Technology Park, Yintian Street, Xixiang, Bao'an District, Shenzhen, China Product Name: band Brand Name: N/A Model No.: T261 Series Model: N/A FCC ID: 2AFW6-T261 Test Standard: FCC Part 15.249 S T L A B S Page 2 of 30 Report No.: STS1509037F01 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN IQI TECHNOLOGY CO.,LTD. Address ................................. : No. Rm602, A Bldg., Smart Valley Technology Park, Yintian Street, Xixiang, Bao'an District, Shenzhen, China Manufacture's Name ............ : SHENZHEN IQI TECHNOLOGY CO.,LTD. Address ................................. : No. Rm602, A Bldg., Smart Valley Technology Park, Yintian Street, Xixiang, Bao'an District, Shenzhen, China Product description Product name ............................ : band Model and/or type reference : T261 Serial Model .............................. : N/A Standards ............................. : FCC Part15.249 Test procedure ............................... : ANSI C63.10: 2013 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, thidocument may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 10 Sep. 2015 ~17 Sep. 2015 Date of Issue .......................................... : 18 Sep. 2015 Test Result .............................................. : Pass Testing Engineer : (Jin Ming) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of 30 Report No.: STS1509037F01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 5 1.2 MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3. EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.2 TEST PROCEDURE 12 3.3 TEST SETUP 12 3.4 EUT OPERATING CONDITIONS 12 3.5 TEST RESULTS 13 4. RADIATED EMISSION MEASUREMENT 14 4.1 RADIATED EMISSION LIMITS 14 4.2 TEST PROCEDURE 15 4.3 TEST SETUP 16 4.4 EUT OPERATING CONDITIONS 16 4.5 TEST RESULTS 17 4.6 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 21 5. CONDUCTED SPURIOUS AND BAND EDGE EMISSION 22 5.1 REQUIREMENT 22 5.2 TEST PROCEDURE 22 5.3 TEST SETUP 22 5.4 EUT OPERATION CONDITIONS 22 5.5 TEST RESULTS 23 6. FUNDAMENTAL AND HARMONICS RADIATED EMISSION 26 6.1 APPLIED PROCEDURES / LIMIT 26 6.2 TEST PROCEDURE 26 6.3 TEST SETUP 27 Page 4 of 30 Report No.: STS1509037F01 Table of Contents Page 6.4 EUT OPERATING CONDITIONS 28 6.5 TEST RESULTS 28 7. ANTENNA REQUIREMENT 29 7.1 STANDARD REQUIREMENT 29 7.2 EUT ANTENNA 29 Page 5 of 30 Report No.: STS1509037F01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.249) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.249 (a) Fundamental and Harmonics Radiated Emission PASS -- 15.249 (d) Radiated Spurious Emission PASS -- 15.249 (d) Conducted Spurious and Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 TEST FACTORY Shenzhen STS Test Services Co., Ltd. Add. : 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China CNAS Registration No.: L7649; FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission (9KHz-150KHz) ±2.88dB 2 Conducted Emission (150KHz-30MHz) ±2.67dB 3 RF power,conducted ±0.70dB 4 Spurious emissions,conducted ±1.19dB 5 All emissions,radiated(<1G) 30MHz-200MHz ±2.83dB 6 All emissions,radiated(<1G) 200MHz-1000MHz ±2.94dB 7 All emissions,radiated(>1G) ±3.03dB 8 Temperature ±0.5°C 9 Humidity ±2% Page 6 of 30 Report No.: STS1509037F01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment band Trade Name N/A Model Name T261 Serial Model N/A Model Difference N/A Product Description The EUT is a band Operation Frequency: 2433~2445 MHz Modulation Type: GFSK Number Of Channel 4 Antenna Designation: Please see Note 3. Antenna Gain (dBi) 1 dbi Channel List Please refer to the Note 2. Battery Rated Voltage: 3.0V capacity :275mAh Hardware version number V1.3 Software versioning number V1.0 Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Channel List Channel Frequenc y (MHz) Channel Frequenc y (MHz) Channel Frequenc y (MHz) Channel Frequency (MHz) 01 2433 02 2437 03 2441 04 2445 3. Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) NOTE A N/A N/A PCB Antenna N/A 1 ANT Page 7 of 30 Report No.: STS1509037F01 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission chara…
