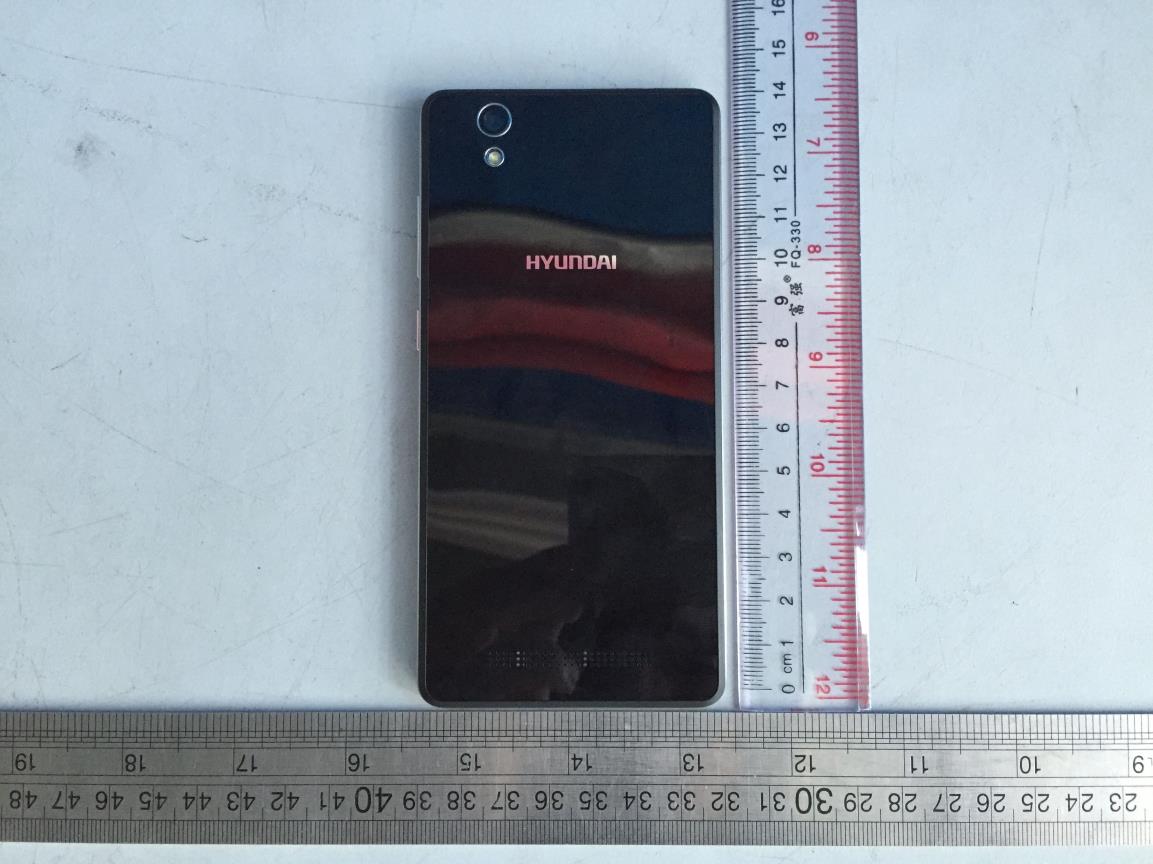

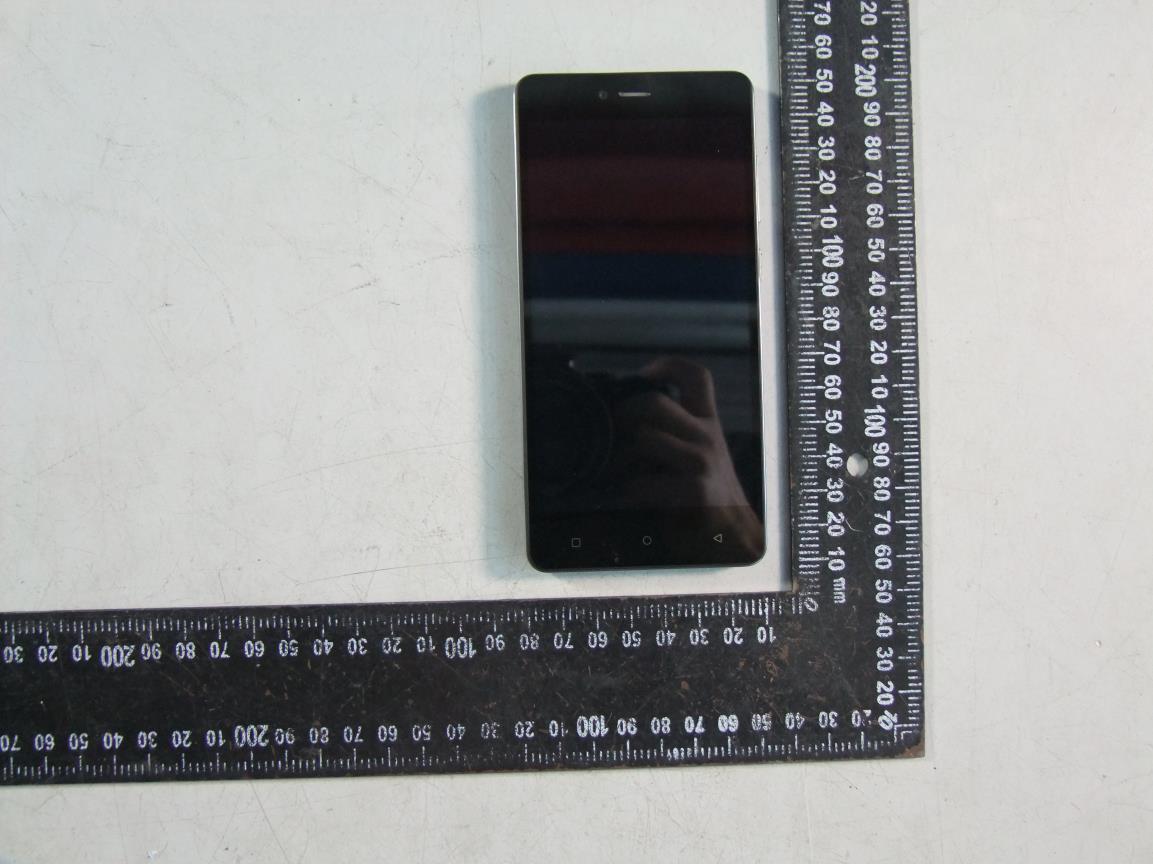

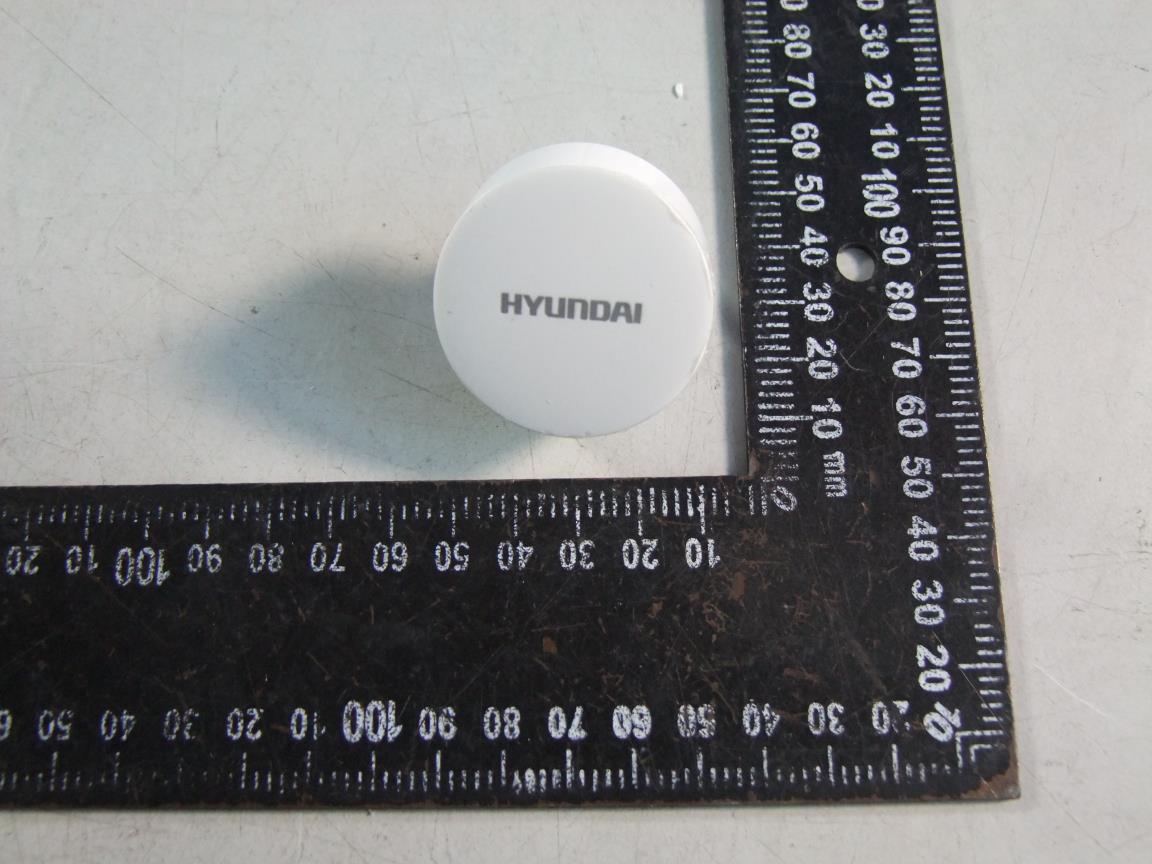

2AFWFHY1-5237Mobile Phone

Mobile Phone HY1-5237 User Manual 1 1. For your safety Please read this manual before using the cell phone to ensure safe and proper use. SWITCH OFF IN HOSPITALS Please abide by relevant provisions or regulations. Please turn off your mobile phone near medical equipment. SWITCH OFF WHEN REFUELING Don’t use the phone at a refueling point. Don’t use near fuel or chemicals. MICRO SIM CARDS AND SD CARD ARE PORTABLE Keep your phone, phone parts and accessories out of children’s reach. BATTERY Please do not destroy or damage the battery, it can be dangerous and cause fire. Please do not throw battery in fire to avoid hazard. When battery cannot be used, please dispose in safe environment. Do not try to dismantle the battery. If the battery or the charger is broken or old, please stop using them, and replace with certified genuine battery USE QUALITY EQUIPMENT Use authorized equipment to avoid danger ROAD SAFETY COMES FIRST Give full attention while driving, Park before using your phone. Please follow traffic rules of local city town. INTERFERENCE All wireless devices may be susceptible to cause interference, which could affect performance. SWITCH OFF IN AIRCRAFT Wireless devices can cause interference in aircraft. It’s not only dangerous but also illegal to use mobile phone in an aircraft. 2. Learn about the phone Overview 2 Function Keys Keys Function Power key (Right side of the phone) a) Press to Turns on/off the screen. b) Press and Hold to power off the phone or reboot. Volume key (Right side of the phone) a) Press when call is in progress, increase or decrease the volume, when the phone is ringing, silences the ringer. On the home screen when no call in progress, increase or decrease the ringtone volume or sets the phone to the silent instead of ringing. In other applications, controls the volume of music, spoken directions and other audio. b) Press and hold to quickly increasing ringtone volume to maximum or minimum. Recent task key Tap to open the list of recent used apps. Home key Tap to return to Home screen. Back key Tap to return to the previous screen. 3. Before using The phone is a Dual SIM mobile allowing you to use the facility of two networks. To insert SIM card(s): 3 Insert SIM card and SD card 1. Switch off the mobile phone and remove the rear cover and battery. 2. Insert the SIM cards & SD card correctly in the card slot(s). 3. Finally insert the battery and replace the rear cover of the mobile phone. ✓ Note: 1. The SIM card is a small part. Please keep away from Children to avoid swallowing the card by accident. 2. Please do not touch the metal surface of SIM card and away from electromagnetic field to avoid damage data. Charge the Battery Charge the battery before using it. Connect the USB cable to the USB power adaptor, and then plug the end of the USB cable into the USB Port. 4. Getting started Basic Function 1. Turn on the phone Press and hold a while of power key to turn on the phone. 2. Turn off the phone Long press the power key until a menu will show. Choose “Power off’’ to turn off the phone. 3. Reboot the phone Long press the power key until a menu will show. Choose “Reboot’’ to restart the phone. 4. Lock the screen Option 1: Press the power key to turn off the screen and lock it Option 2: The screen will auto lock if you don't use the phone for a while. 5. Unlock the screen Press the power key, and then slide to top for unlocking. Home screen The Home screen is your starting point to access all the features on your phone. It displays application icons, widgets, and other features. You can customize the Home 4 screen with different wallpaper and display the items you want. • Status Bar At the top of the screen, it displays the time, signal, battery information, and icons for notifications that you’ve received. • Notification Center Swipe down from the top edge to see more detail of the new notification, such as messaging, missed call, Wi-Fi connection. Tap the notification and drag to left or right to delete it. • Control Center Swipe up from the bottom edge. In the control center, it’s quick to access to Torch, Fake call, Calculator, and Camera. You can also adjust the brightness and turn on / off Airplane mode, WLAN, Data connection, Bluetooth, Location, Rotate screen, Vibrate, Voice, Extreme mode, Customize screenshot. • Desktop Menu Slide to top on the touch screen to open the desktop main. You can change the Launcher Theme & Wallpaper, edit desktop. It’s quick to access to Desktop Settings, System Settings and Search. 5 • Move an application Touch & hold the icon you want to move. Drag the icon to move or cross at the edge of the screen to move into another screen. • Uninstall an application Touch & hold the icon you want to uninstall. The top / bottom of the icon will appear “Uninstall”. Tap it to uninstall. • Creating a folder Drag an icon on the top of another one to create a folder. Open the folder and then touch & hold the folder name to rename it. Touch screen The main way to control Android™ 5.0 features is by using your finger to touch icons, buttons, menu items, the onscreen keyboard, and other items on the touch screen. • Touch: To act on items on the screen, such as application and settings icons, to type letters and symbols using the onscreen keyboard, or to press onscreen buttons, you simply touch them with your finger. • Touch & hold: Touch & hold an item on the screen by touching it and not lifting your finger until an action occurs. • Drag: Touch & hold an item for a moment and then, without lifting your finger, move your finger on the screen until you reach the target position. You drag items on the Home screen to reposition them and you drag to open the Notification panel. • Swipe or slide: To swipe or slide, you quickly move your finger across the surface of the screen, without pausing when you first touch (so you don’t drag an item instead). For example, you slide the screen up or down to scroll a list, and in some Calendar views you swip…

Text truncated - open the document above for the full version.

Gionee Communication Equipment Co.,Ltd. 21/F,Times Technology Building,No. 7028,Shennan Avenue,Futian District,Shenzhen,China ! ! Letter of Confidentity ! Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ! Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Gionee Communication Equipment Co.,Ltd. would like the following documents regarding this submission for FCC ID: 2AFWFHY1-5237 to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, ! ! For and Behalf of: ! ! ! ! ! ! Printed Name: Joy Lin / Certification Engineer ! ! Applicant’s Company: Gionee Communication Equipment Co.,Ltd. address : 21/F,Times Technology Building,No. 7028,Shennan Avenue,Futian District,Shenzhen,China

Gionee Communication Equipment Co.,Ltd. 21/F,Times Technology Building,No. 7028,Shennan Avenue,Futian District,Shenzhen,China ! FCC Authorization ! Date:2015-9-16 ! FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 ! Subject: Agent Authorization ! To whom it may concern: ! We Gionee Communication Equipment Co.,Ltd. , the undersigned, Hereby authorizes Lin Yixiang of Shenzhen Academy of Metrology and Quality Inspection to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Chen Silin or Shenzhen Academy of Metrology and Quality Inspection our behalf shall have the same effect as our own action. ! We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, ! ! ! Printed Name: Joy Lin / Certification Engineer ! ! Applicant’s Company: Gionee Communication Equipment Co.,Ltd. address : 21/F,Times Technology Building,No. 7028,Shennan Avenue,Futian District,Shenzhen,China

! Statements Date (22/09/2015) Dear Sir or Madam, We, Gionee Communication Equipment Co.,Ltd. Address: 21/F,Times Technology Building,No. 7028,Shennan Avenue,Futian District,Shenzhen,China ! Hereby to confirm that our device, FCC ID: 2AFWFHY1-5237,. Its cover can be removed during package and the FCC ID is readily visible when users open the product box. Sincerely, ! ! For and Behalf of: EMC Laboratory Manager: Joy Lin Telephone Number: +86-755-83296718 Email: [email protected]

Ultra Latitude M_IMEI:865901026000001 S_IMEI:865901026000009 S/N:H1L1527000001 FCC ID: 2AFWFHY1-5237 Ultra Latitude M_IMEI:865901026000001 S_IMEI:865901026000009 S/N:H1L1527000001 FCC ID: 2AFWFHY1-5237

SAR TEST REPORT For Mobile Phone Model Number:HY1-5237 FCC ID: 2AFWFHY1-5237 Report Number : WT158004129 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection National Digital Electronic Product Testing Center Site Location : NETC Building, No.4 Tongfa Road, Xili Town, Nanshan District, Shenzhen, Guangdong, China Tel : 0086-755-86928965 Fax : 0086-755-86009898-31396 Web : www.smq.com.cn Email : [email protected] Report No.: WT158004129 Page 2 of 67 Test report declaration Applicant : Gionee Communication Equipment Co.,Ltd. Address : 21/F,Times Technology Building,No. 7028,Shennan Avenue,Futian District,Shenzhen,China Manufacturer : Gionee Communication Equipment Co.,Ltd. Address : 21/F,Times Technology Building,No. 7028,Shennan Avenue,Futian District,Shenzhen,China EUT Description : Mobile Phone Model No : HY-5237 Trade mark : HYUNDAI FCC ID : 2AFWFHY1-5237 Test Standards: ANSI Std C95.1-1992，IEEE Std 1528-2003, IEEE Std 1528a-2005, KDB941225 D01, KDB941225 D06, KDB447498 D01,KDB648474 D04,KDB248227 D01,KDB 865664 D01,KDB865664 D02,KDB690783 D01 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the compliance of the applicable standards stated above. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The results documented in this report only apply to the tested sample, under the conditions and modes of operation as described herein. The test report shall not be reproduced in part without written approval of the laboratory. Project Engineer: Date: Sep 10.2015 (Zhou Li) Checked by: Date: Sep 10.2015 (Lin Yixiang) Approved by: Date: Sep 10.2015 (Lin Bin) Report No.: WT158004129 Page 3 of 67 TABLE OF CONTENTS TEST REPORT DECLARATION ........................................................................................................ 2 1. REPORTED SAR SUMMARY .................................................................................................. 5 1.3 Ratings and System Details .................................................................................................... 6 1.4 Product Function and Intended Use ........................................................................................ 8 1.5 Test specification(s) ................................................................................................................ 8 1.6 List of Test and Measurement Instruments ....................................................................... 9 2. GENERAL INFORMATION ..................................................................................................... 10 2.1. Report information ........................................................................................................ 10 2.2. Laboratory Accreditation and Relationship to Customer ....................................... 10 3. SAR MEASUREMENT SYSTEM CONFIGURATION....................................................... 11 3.1. SAR Measurement Set-up ............................................................................................... 11 3.2. Probe description.......................................................................................................... 12 3.3. Phantom description .................................................................................................... 13 3.4. Device holder description ............................................................................................ 14 4. SAR MEASUREMENT PROCEDURE.................................................................................. 15 4.1. Scanning procedure ......................................................................................................... 15 5. SYSTEM VERIFICATION PROCEDURE ............................................................................. 19 5.1. Tissue Verification .......................................................................................................... 19 6. SAR MEASUREMENT VARIABILITY AND UNCERTAINTY ............................................ 23 7. TEST CONFIGURATION ........................................................................................................ 24 8. TUNE-UP LIMIT ...................................................................................................................... 34 9. MEASUREMENT RESULTS .................................................................................................. 37 9.1. Conducted Power ......................................................................................................... 37 9.2. SAR measurement Results ........................................................................................ 47 9.3. GSM 850 SAR results.................................................................................................. 49 9.4. GSM 1900 SAR results ............................................................................................... 50 9.5. UMTS Band II SAR results ......................................................................................... 51 9.6. UMTS Band V SAR results ......................................................................................... 52 9.7. LTE Band 4 SAR results ............................................................................................. 53 9.8. LTE Band 17 SAR results ........................................................................................... 54 9.9. WIFI SAR results .......................................................................................................... 55 9.10. Repeated SAR results ............................................................................................. 56 10. EXPOSURE POSITIONS CONSIDERATION ..................................................................... 57 10.1. Multiple Transmitter Evaluation .........................................................…

Text truncated - open the document above for the full version.

Report No.: WT158004129 Page 1 of 14 APPENDIX A: SYSTEM CHECKING SCANS Report No.: WT158004129 Page 2 of 14 SystemPerformanceCheck-D750 for Head Date:2015.08.31 DUT: Dipole 750 MHz D750V3; Type: D750V3 SN:1103; Communication System: CW; Communication System Band: D750 (750.0 MHz); Frequency: 750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.96 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:  Probe: ES3DV3 - SN3203; ConvF(8.54, 8.54, 8.54); Calibrated: 2014.11.03.;  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn876; Calibrated: 2015.03.09.  Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1504  Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Head/Dipole750/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 53.222 V/m; Power Drift = 0.00 dB Fast SAR: SAR(1 g) = 2.13 mW/g; SAR(10 g) = 1.33 mW/g Maximum value of SAR (interpolated) = 2.52 W/kg Head/Dipole750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.222 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 3.557 mW/g SAR(1 g) = 2.13 mW/g; SAR(10 g) = 1.31 mW/g Maximum value of SAR (measured) = 2.52 W/kg 0 dB = 2.52 W/kg = 8.02 dB W/kg Report No.: WT158004129 Page 3 of 14 SystemPerformanceCheck-D750 for Body Date:2015.08.31 DUT: Dipole 750 MHz D750V2; Type: D750V3 SN:1103; Communication System: CW; Communication System Band: D750 (750.0 MHz); Frequency: 750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.97 mho/m; ε r = 55.46; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:  Probe: ES3DV3 - SN3203; ConvF(6.75, 6.75, 6.75); Calibrated: 2014.11.03.;  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn876; Calibrated: 2015.03.09.  Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1504  Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Body/Dipole 750MHz /Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 54.872 V/m; Power Drift = 0.01 dB Fast SAR: SAR(1 g) = 2.38 mW/g; SAR(10 g) = 1.35 mW/g Maximum value of SAR (interpolated) = 3.02 W/kg Body/Dipole 750MHz /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.872 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 4.270 mW/g SAR(1 g) = 2.24 mW/g; SAR(10 g) = 1.3 mW/g Maximum value of SAR (measured) = 3.03 W/kg 0 dB = 3.02 W/kg = 9.61 dB W/kg Report No.: WT158004129 Page 4 of 14 SystemPerformanceCheck-D835 for Head Date:2015.08.28 DUT: Dipole 835 MHz D835V2; Type: D835V2 SN:4d141; Communication System: CW; Communication System Band: D835 (835.0 MHz); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.89 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:  Probe: ES3DV3 - SN3203; ConvF(8.54, 8.54, 8.54); Calibrated: 2014.12.19.;  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn876; Calibrated: 2015.03.09.  Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1504  Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Head/Dipole835 /Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 53.502 V/m; Power Drift = 0.01 dB Fast SAR: SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.55 mW/g Maximum value of SAR (interpolated) = 2.54 W/kg Head/Dipole835 /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.502 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.605 mW/g SAR(1 g) = 2.46 mW/g; SAR(10 g) = 1.63 mW/g Maximum value of SAR (measured) = 2.56 W/kg 0 dB = 2.54 W/kg = 8.11 dB W/kg Report No.: WT158004129 Page 5 of 14 SystemPerformanceCheck-D835 for Body Date:2015.08.28 DUT: Dipole 835 MHz D835V2; Type: D835V2 SN:4d141; Communication System: CW; Communication System Band: D835 (835.0 MHz); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.98 mho/m; ε r = 56.1; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:  Probe: ES3DV3 - SN3203; ConvF(8.68, 8.68, 8.68); Calibrated: 2014.12.19.;  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn876; Calibrated: 2015.03.09.  Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1504  Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Body/Dipole835 /Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 52.361 V/m; Power Drift = -0.04 dB Fast SAR: SAR(1 g) = 2.42 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (interpolated) = 2.62 W/kg Body/Dipole835 /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.361 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 3.682 mW/g SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.61 W/kg 0 dB = 2.62 W/kg = 8.36 dB W/kg Report No.: WT158004129 Page 6 of 14 SystemPerformanceCheck-D1750 for Head Date:2015.08.28 DUT: Dipole 1750 MHz D1750V2; Type: D1750V2 SN:1108; Communication System: CW; Communication System Band: D1750 (1750.0 MHz); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1750 MHz; σ = 1.42 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:  Probe: ES3DV3 - SN3203; ConvF(5.41, 5.41, 5.41); Calibrated: 2014.12.19.;  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn876; Calibrated: 2015.03.09.  Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1504  Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Head/Dipole1750MHz/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.5…

Text truncated - open the document above for the full version.

Appendix B. MEASUREMENT SCANS Report No.: WT158004129 Page 2 of 23 Date: 2015.08.28. HY1-5237 GSM850 Head Right Cheek Mid Medium: HSL850 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.41, 9.41, 9.41); Calibrated: 2014.07.22.; Electronics: DAE4 Sn876; Calibrated: 2015.03.09. GSM 850_Right Cheek/Mid/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 8.885 V/m; Power Drift = -0.07 dB Fast SAR: SAR(1 g) = 0.198 mW/g; SAR(10 g) = 0.137 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.209 W/kg GSM 850_Right Cheek/Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.885 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.235 mW/g SAR(1 g) = 0.206 mW/g; SAR(10 g) = 0.171 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.213 W/kg 0 dB = 0.209 W/kg = -13.58 dB W/kg Report No.: WT158004129 Page 3 of 23 Date: 2015.08.28. HY1-5237 GPRS850 Body Hotspot Right Side Mid Medium: MSL850 Communication System: GPRS 4 Tx slots; Communication System Band: Exported from older format (data unavailable - please correct).; Frequency: 836.6 MHz;Duty Cycle: 1:2.08 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.98 mho/m; ε r = 56.1; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: ES3DV3 - SN3203; ConvF(6.2, 6.2, 6.2); Calibrated: 2014.12.19.; Electronics: DAE4 Sn876; Calibrated: 2015.03.09. GPRS 850_Right_edge/Mid/Area Scan (51x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 8.885 V/m; Power Drift = -0.07 dB Fast SAR: SAR(1 g) = 0.663 mW/g; SAR(10 g) = 0.443 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.711 W/kg GPRS 850_Right_edge/Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.885 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.927 mW/g SAR(1 g) = 0.656 mW/g; SAR(10 g) = 0.449 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.706 W/kg 0 dB = 0.711 W/kg = -2.97 dB W/kg Report No.: WT158004129 Page 4 of 23 Date: 2015.08.28. HY1-5237 GSM850 Body Worn Rear Mid Medium: MSL850 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.98 mho/m; ε r = 56.1; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: ES3DV3 - SN3203; ConvF(6.2, 6.2, 6.2); Calibrated: 2014.12.19.; Electronics: DAE4 Sn876; Calibrated: 2015.03.09. GSM 850_Back 15mm/Mid/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 8.885 V/m; Power Drift = -0.07 dB Fast SAR: SAR(1 g) = 0.385 mW/g; SAR(10 g) = 0.272 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.407 W/kg GSM 850_Back 15mm/Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.885 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.478 mW/g SAR(1 g) = 0.386 mW/g; SAR(10 g) = 0.302 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.402 W/kg 0 dB = 0.407 W/kg = -7.82 dB W/kg Report No.: WT158004129 Page 5 of 23 Date: 2015.09.01. HY1-5237 GSM1900 Head Right Cheek Mid Medium: HSL1900 Communication System: Generic GSM; Communication System Band: PCS 1900 (1850.0 - 1910.0 MHz); Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(8.09, 8.09, 8.09); Calibrated: 2015.07.24.; Electronics: DAE4 Sn876; Calibrated: 2015.03.09. 1900_Left GSM Head/1900 GSM Cheek-Mid/Area Scan (51x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 4.447 V/m; Power Drift = -0.06 dB Fast SAR: SAR(1 g) = 0.211 mW/g; SAR(10 g) = 0.121 mW/g Maximum value of SAR (interpolated) = 0.240 W/kg 1900_Left GSM Head/1900 GSM Cheek-Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.447 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.417 mW/g SAR(1 g) = 0.209 mW/g; SAR(10 g) = 0.109 mW/g Maximum value of SAR (measured) = 0.227 W/kg 0 dB = 0.240 W/kg = -12.40 dB W/kg Report No.: WT158004129 Page 6 of 23 Date: 2015.08.31. HY1-5237 GPRS1900 Body Hotspot Bottom Side High Medium: MSL1900 Communication System: GPRS 2 Tx slots; Communication System Band: PCS 1900 (1850.0 - 1910.0 MHz); Frequency: 1909.8 MHz;Duty Cycle: 1:4.1 Medium parameters used: f = 1909.8 MHz; σ = 1.51 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(8.25, 8.25, 8.25); Calibrated: 2015.07.24.; Electronics: DAE4 Sn876; Calibrated: 2015.03.09. 1900_GPRS/GPRS1900 10mm Faceup-High 2/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 24.396 V/m; Power Drift = -0.08 dB Fast SAR: SAR(1 g) = 0.928 mW/g; SAR(10 g) = 0.464 mW/g Maximum value of SAR (interpolated) = 1.11 W/kg 1900_GPRS/GPRS1900 10mm Faceup-High 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.396 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 1.689 mW/g SAR(1 g) = 0.949 mW/g; SAR(10 g) = 0.488 mW/g Maximum valu…

Text truncated - open the document above for the full version.

Report No.: WT158004129 Page 1 of 36 APPENDIX C: RELEVANT PAGES FROM PROBE CALIBRATION REPORT(S) Report No.: WT158004129 Page 2 of 36 Report No.: WT158004129 Page 3 of 36 Report No.: WT158004129 Page 4 of 36 Report No.: WT158004129 Page 5 of 36 Report No.: WT158004129 Page 6 of 36 Report No.: WT158004129 Page 7 of 36 Report No.: WT158004129 Page 8 of 36 Report No.: WT158004129 Page 9 of 36 Report No.: WT158004129 Page 10 of 36 Report No.: WT158004129 Page 11 of 36 Report No.: WT158004129 Page 12 of 36 Report No.: WT158004129 Page 13 of 36 Report No.: WT158004129 Page 14 of 36 Report No.: WT158004129 Page 15 of 36 Report No.: WT158004129 Page 16 of 36 Report No.: WT158004129 Page 17 of 36 Report No.: WT158004129 Page 18 of 36 Report No.: WT158004129 Page 19 of 36 Report No.: WT158004129 Page 20 of 36 Report No.: WT158004129 Page 21 of 36 Report No.: WT158004129 Page 22 of 36 Report No.: WT158004129 Page 23 of 36 Report No.: WT158004129 Page 24 of 36 Report No.: WT158004129 Page 25 of 36 Report No.: WT158004129 Page 26 of 36 Report No.: WT158004129 Page 27 of 36 Report No.: WT158004129 Page 28 of 36 Report No.: WT158004129 Page 29 of 36 Report No.: WT158004129 Page 30 of 36 Report No.: WT158004129 Page 31 of 36 Report No.: WT158004129 Page 32 of 36 Report No.: WT158004129 Page 33 of 36 Report No.: WT158004129 Page 34 of 36 Report No.: WT158004129 Page 35 of 36 Report No.: WT158004129 Page 36 of 36

Report No.: WT158004129 Page 1 of 53 APPENDIX D: RELEVANT PAGES FROM DAE& DIPOLE VALIDATION KIT REPORT(S) Report No.: WT158004129 Page 2 of 53 Report No.: WT158004129 Page 3 of 53 Report No.: WT158004129 Page 4 of 53 Report No.: WT158004129 Page 5 of 53 Report No.: WT158004129 Page 6 of 53 Report No.: WT158004129 Page 7 of 53 Report No.: WT158004129 Page 8 of 53 Report No.: WT158004129 Page 9 of 53 Report No.: WT158004129 Page 10 of 53 Report No.: WT158004129 Page 11 of 53 Report No.: WT158004129 Page 12 of 53 Report No.: WT158004129 Page 13 of 53 Report No.: WT158004129 Page 14 of 53 Report No.: WT158004129 Page 15 of 53 Report No.: WT158004129 Page 16 of 53 Report No.: WT158004129 Page 17 of 53 Report No.: WT158004129 Page 18 of 53 Report No.: WT158004129 Page 19 of 53 Report No.: WT158004129 Page 20 of 53 Report No.: WT158004129 Page 21 of 53 Report No.: WT158004129 Page 22 of 53 Report No.: WT158004129 Page 23 of 53 Report No.: WT158004129 Page 24 of 53 Report No.: WT158004129 Page 25 of 53 Report No.: WT158004129 Page 26 of 53 Report No.: WT158004129 Page 27 of 53 Report No.: WT158004129 Page 28 of 53 Report No.: WT158004129 Page 29 of 53 Report No.: WT158004129 Page 30 of 53 Report No.: WT158004129 Page 31 of 53 Report No.: WT158004129 Page 32 of 53 Report No.: WT158004129 Page 33 of 53 Report No.: WT158004129 Page 34 of 53 Report No.: WT158004129 Page 35 of 53 Report No.: WT158004129 Page 36 of 53 Report No.: WT158004129 Page 37 of 53 Report No.: WT158004129 Page 38 of 53 Report…

Text truncated - open the document above for the full version.
