Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
-F.BY ⊤ใ䶦䄡ᬻΓ -F.BY -F.BY Head 䩭 1.59W/Kg 䩛 1g 䩜 / 1.586 W/Kg ( 10g ) Body 䩭 0.365W/Kg 䩛 1g 䩜 / 0. 349 W/Kg ( 10g ) India 1g SAR Limit 䩛 1.6 W/kg 䩜 Europe 10g SAR Limit ( 2.0W/kg ) Le Max Quick Start Guide FCC ID:2AFWMLEMAX Protecting your hearing when using a headset To prevent possible hearing damage, do not listen at high volume levels for long periods.Disposal and recycling information Correct Disposal of this product. This marking indicates that this product should not be disposal with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.Charger safety Charger shall be installed near the equipment and shall be easily accessible Users have to use the connection to USB interfaces with USB 2.0 version or higher. Battery safetyCaution Risk of explosion if battery replaced aced by an incorrect type. Dispose of used batteries according to the instructions. Voltage Range: 3. 6 V ~ 4.2V Operating environmentPlease make sure the temperature for charger and device will not be higher than 35°C and lower than 0°C ጳ)%.* ҅˲ਡ ǡٝ࠵Ǻ ǂጾਡ δʌϠƗ˅، 4*.ӵஊКӵऐฌਓḧ̩ԻΎၹ Ԇӂ /BOP4*.֗.JDSP 4*.ӵḙଣКξҝᄊ4*.ӵԻᑟ͘૯ڮ০ᄊǍԩѣӵऐḙ.*4࠲ӵnj࡛ଌᝏ᭧యʾnjᝈయܱᎶКӵऐǍ ڀӵऐ࠲ӵऐଣڀΟ᭧ᄊଣയ˗Ǎڀӵऐᄰᒰᜂ ࠀ զ҂4*.ӵऐᩚࠀᄊܦ׃֭ԁԻǍ ڕྡй͡Оҗ ࣑Ղ༏ํา 4*.ӵ߷ᜉ ˞̀̚Ԫ ̆ࠝᄊ˭ၷগ̉ᐏᎪҬḙឰો̿ʾ൦ᰡฌвࣳᄆै˭࣑Ղḧฌв˭࣑Ղḧੈᄊ˭ᄆैฌвᤥહႍ᭧གѤþฌвÿᎶ࣑Ղࠛᆊ༏ํา࣑ՂᤉКੈᄊ˭ႍ᭧Ǎᄆैੈᄊ˭ḧੈᄊ˭ག ѤþΎၹࣃద࣑Ղᄆैÿ ᣥК࣑Ղࠛ֗ᆊᤉКੈᄊ˭ ḕᄆैੇҪḖ 0.896 0. 244 FCC ID:2AFWMLEMAX 15 15 1 1 DEVICE OVERVIEW 2. GETTING STARTED POWERING ON/ OFF THE DEVICE Turning On the Device After installing the SIM card/s and charging the battery, you are now ready to turn on your device. Long press and hold the Power Key to turn on the device. The first screen that appears is known as the home/idle Screen. Drag the lock icon sidewards to unlock the screen. If the screen turns off, then short press the Power Key to turn on the display. Turning Off the Device Press and hold the Power Key. A pop-up window appears, select Power off. Select OK to confirm. 3 3. SYSTEM GUIDE 3.1 MAIN SCREEN OPERATING Notification Panel The table below lists various icons that might appear on the notification Panel of the device. 3.2 USING YOUR PHONE Enter main menu In idle mode press the key to enter the main menu on the desktop and press the (Home) key to return. Enter sub menu In the main menu click the icon to select the sub menu,press the Back key to return to the previous menu ,and press the Home key to return to the Home screen. 3.3 CALLING To Make Calls If the icon appears on the screen, then you can make or receive calls. To make a call, please follow the steps mentioned below: Tap , enter the phone number using the on-screen keyboard. Tap to delete a wrong number. Tap and hold it to erase the entire number. After entering phone number, tap . To end the call, tap 3.4 MESSAGING For using your device for sending and receiving of SMS (Short Message Service) and MMS (Multimedia Message Service), go to Main Menu and then select Messaging. Creating a Message Tap Compose new message. In To field; enter the recipient’s phone number. Type message in the Type to compose field. Tap to Send. Receiving and Managing Messages When you send and receive messages to or from a contact, these messages are grouped as a message thread. A message thread looks like an exchanged conversation. MULTIMEDIA MESSAGE A Multimedia message or MMS can contain letters, an image, an audio or video file. To create and send a MMS, please follow the steps mentioned below: Enter the Main Menu, select Messaging. Tap Compose new message. Select Menu > Add subject. In the To field, enter the recipient’s phone number or email address and enter the Subject. To insert a picture or video file, etc, tap . To insert text, tap Type to compose, and then enter your message. 5 3.5 CONTACTS You can save information such as name, phone numbers, etc. for each contact listed in your Contacts menu. To add a Contact Enter the Main Menu select Contacts. Tap add to contacts . Store the contact to SIM card or Phone contact. You can fill out as many or as little fields as you’d like for the contact. Tap Done to save the contact. 3.6 BROWSER The Browser is the tool which enables you to access the Internet. 4. HOME SCREEN 4.1 CUSTOMIZING SCREEN The device features a touchscreen with idle displays and access to utilities at just one-touch. So swipe right or left to navigate through various screens accessing your favorite features without entering the main menu. Each screen can be customized by adding various widgets, shortcuts and folders. Shortcuts In order to add a shortcut on the screen: Long press on the desired application to add on the screen. Widgets Save time with live updates right on Home screen and get all of your personalized updates at one place. Setting the wallpaper You can customize the wallpaper of your Home screen with default wallpaper or with pictures taken from your device. Long press the Menu Key > Wallpapers. Rotating Your Mobile Phone Screen The orientation of most screens will change to landscape or portrait view when you rotate your phone sideways. On the Home screen, tap > Settings > Display > Auto-rotate screen to disable this function. 7 5. MULTIMEDIA Your device features various multimedia options, such as Music Player, Camera and Video Player. 5.1 FILE MANAGER You can browse, open and manage the data saved in the Device and Memory card by accessing the File Manager sub-menu. The device provides a certain space for users to manage files and supports the T-Flash card. You can use the file browser to conveniently manage various directories and files on the T-Fla…
Text truncated - open the document above for the full version.

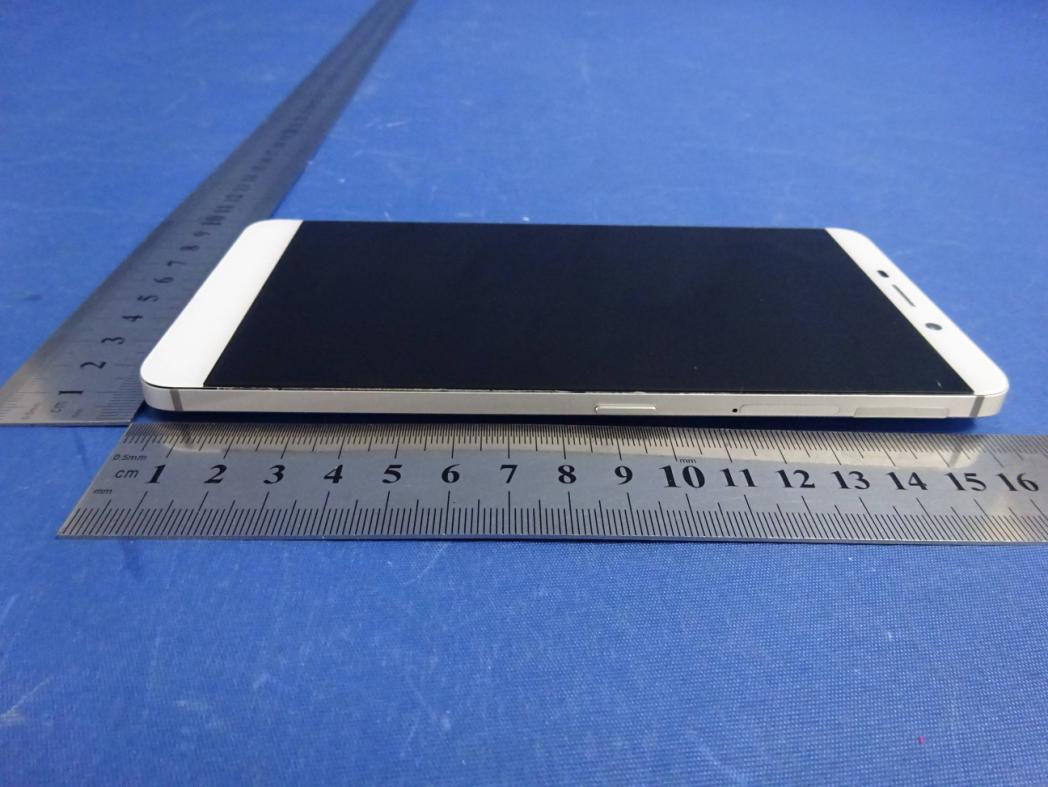

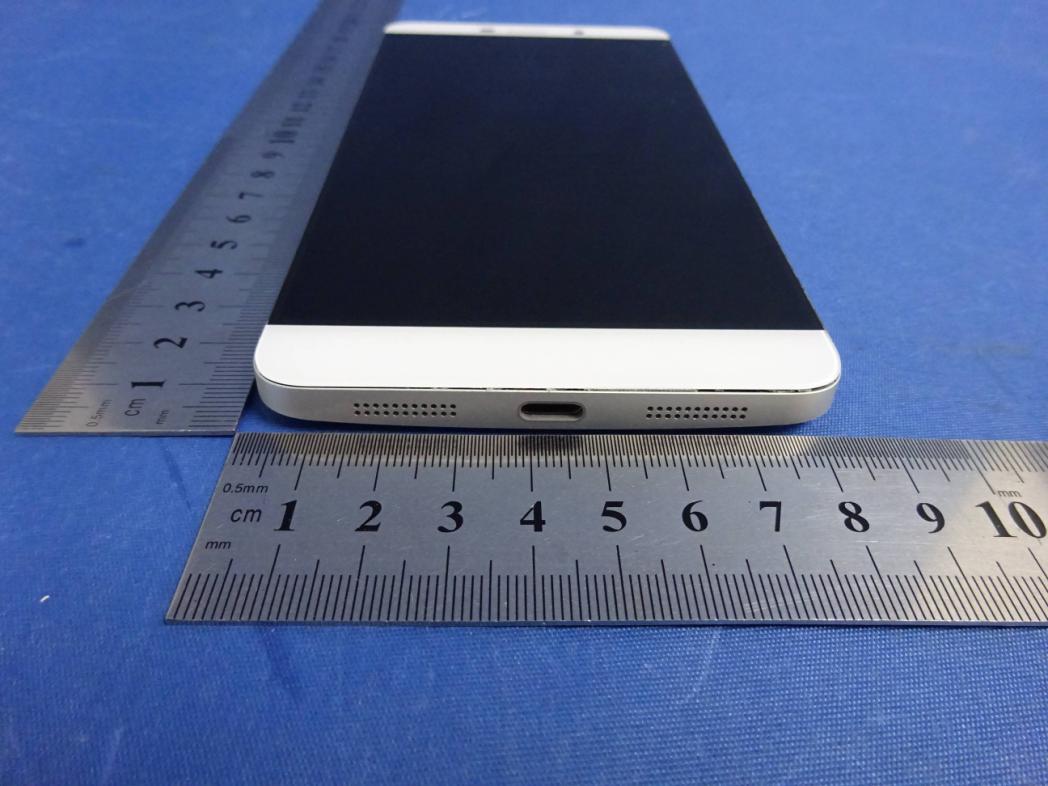

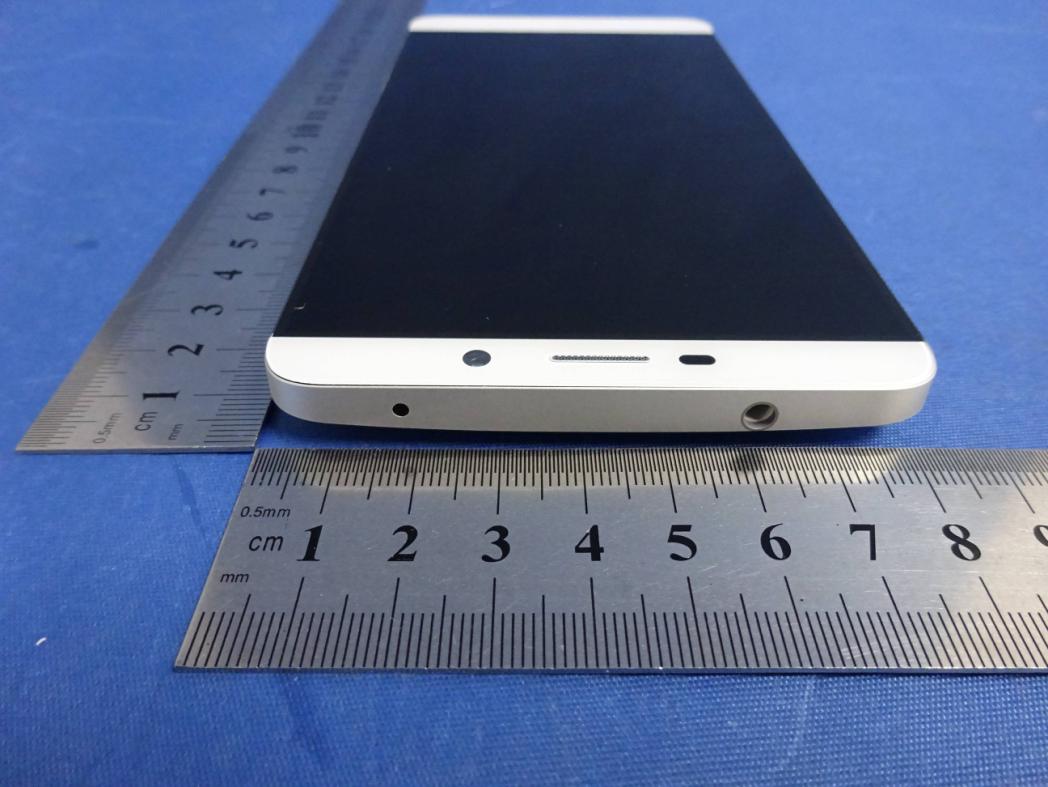

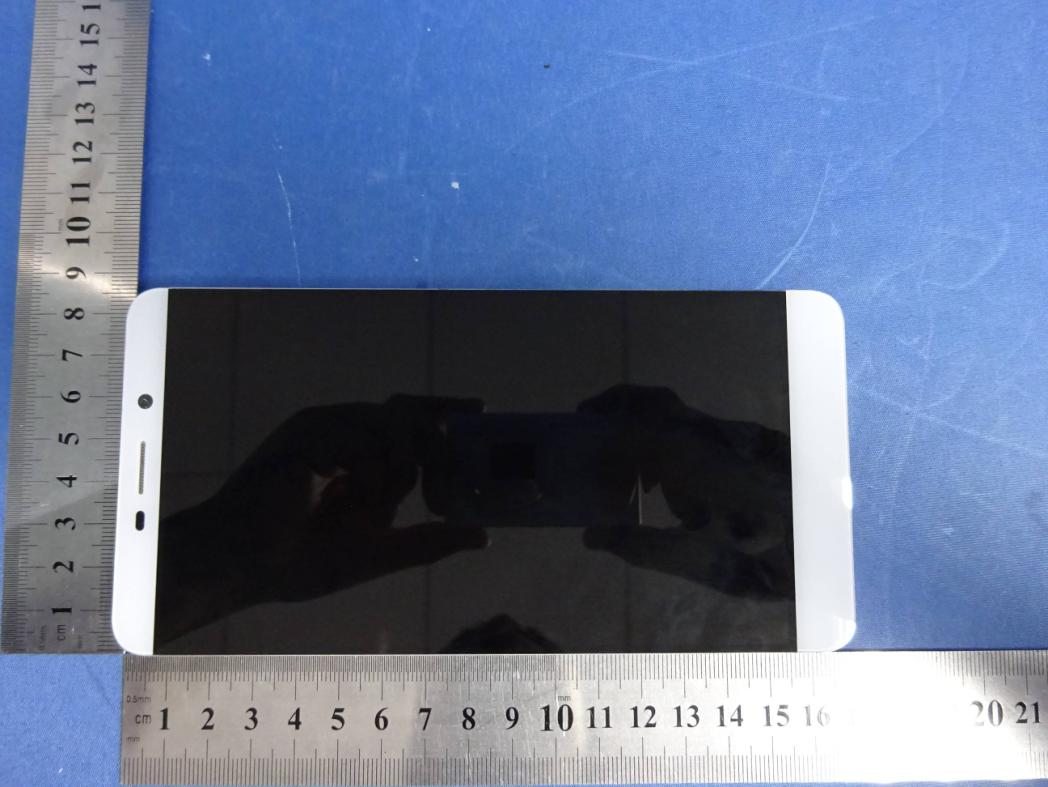

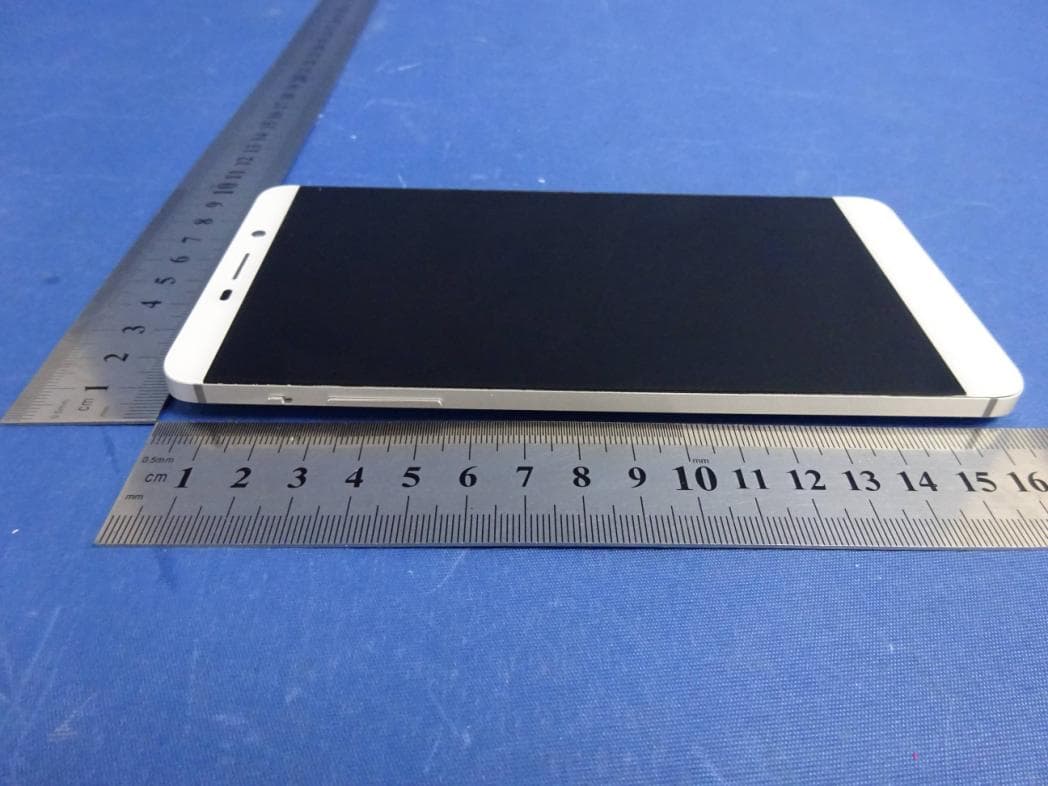

APPENDIX B – External of EUT Page 1 of 4 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Photo 1 Appearance of EUT Photo 2 Appearance of EUT APPENDIX B – External of EUT Page 2 of 4 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Photo 3 Appearance of EUT Photo 4 Appearance of EUT APPENDIX B – External of EUT Page 3 of 4 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Photo 5 Appearance of EUT Photo 6 Appearance of EUT APPENDIX B – External of EUT Page 4 of 4 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Photo 7 Appearance of EUT
MAX1镭雕-海外版版本:4.3制作:孙坤时间:2015.09.16 MAX1 MAX1镭雕-海外版 2015-09-164.3 后壳镭雕 v2.0 镭雕内容变更 v3.0 镭雕字体间距变更 镭雕灰度参见样品 其它尺寸公差范围:±0.2mm 英文及数字字体:Gulim 3pt 线宽:0.07±0.02mm 1.0mm v4.0 镭雕公司名称变更 v4.1 镭雕公司名称变更 48.8mm 7.0mm 2.5mm 1.3mm v4.2 CE 等图标变大 5.0mm 1.0mm v4.3 增加FCC ID认证、乐视LOGO

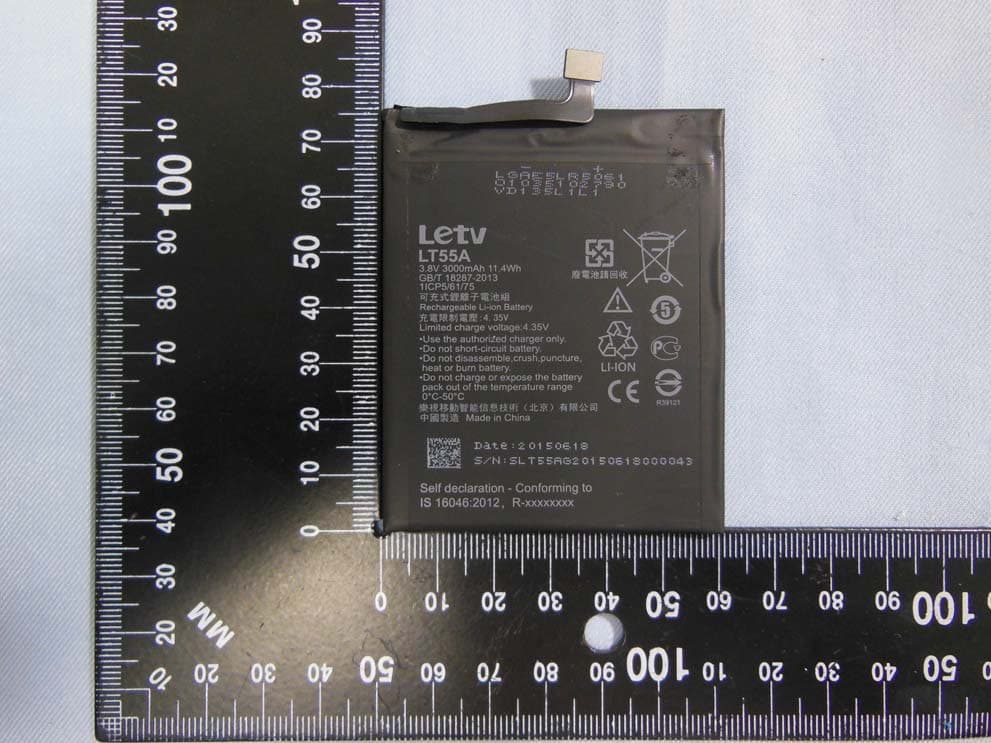

APPENDIX C – Internal of EUT Page 1 of 4 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Photo 1 Inside of EUT Photo 2 Inside of EUT APPENDIX C – Internal of EUT Page 2 of 4 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Photo 3 Inside of EUT Photo 4 Inside of EUT APPENDIX C – Internal of EUT Page 3 of 4 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Photo 5 Inside of EUT Photo 6 Inside of EUT APPENDIX C – Internal of EUT Page 4 of 4 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Photo 7 Inside of EUT Photo 8 Inside of EUT
SAR TEST REPORT For TD LTE digital mobile phone Model Number: Le Max FCC ID: 2AFWMLEMAX Report Number : WT158005435 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection National Digital Electronic Product Testing Center Site Location : NETC Building, No.4 Tongfa Road, Xili Town, Nanshan District, Shenzhen, Guangdong, China Tel : 0086-755-86928965 Fax : 0086-755-86009898-31396 Web : www.smq.com.cn Email : [email protected] Report No.: WT158005435 Page 2 of 69 Test report declaration Applicant : Lemobile Information Technology (Beijing) Co., Ltd Address : WENHUAYING NORTH (No.1, LINKONG 2nd St), GAOLIYING, SHUNYI DISTRICT, BEIJING, CHINA Manufacturer : Lemobile Information Technology (Beijing) Co., Ltd Address : WENHUAYING NORTH (No.1, LINKONG 2nd St), GAOLIYING, SHUNYI DISTRICT, BEIJING, CHINA EUT Description : TD LTE digital mobile phone Model No : Le Max Trade mark : Letv FCC ID : 2AFWMLEMAX Test Standards: IEEE Std 1528-2013, KDB941225 D01, KDB941225 D05, KDB941225 D06, KDB447498 D01,KDB648474 D04,KDB248227 D01,KDB 865664 D01,KDB865664 D02,KDB690783 D01 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the compliance of the applicable standards stated above. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The results documented in this report only apply to the tested sample, under the conditions and modes of operation as described herein. The test report shall not be reproduced in part without written approval of the laboratory. Project Engineer: Date: Oct 28.2015 (Zhou Li) Checked by: Date: Oct 28.2015 (Lin Yixiang) Approved by: Date: Oct 28.2015 (Lin Bin) Report No.: WT158005435 Page 3 of 69 TABLE OF CONTENTS TEST REPORT DECLARATION ........................................................................................................ 2 1. REPORTED SAR SUMMARY .................................................................................................. 5 1.3 Ratings and System Details .................................................................................................... 6 1.4 Product Function and Intended Use ........................................................................................ 8 1.5 Test specification(s) ................................................................................................................ 8 1.6 List of Test and Measurement Instruments ....................................................................... 9 2. GENERAL INFORMATION ..................................................................................................... 10 2.1. Report information ........................................................................................................ 10 2.2. Laboratory Accreditation and Relationship to Customer ....................................... 10 3. SAR MEASUREMENT SYSTEM CONFIGURATION....................................................... 11 3.1. SAR Measurement Set-up ............................................................................................... 11 3.2. Probe description.......................................................................................................... 12 3.3. Phantom description .................................................................................................... 13 3.4. Device holder description ............................................................................................ 14 4. SAR MEASUREMENT PROCEDURE.................................................................................. 15 4.1. Scanning procedure ......................................................................................................... 15 5. SYSTEM VERIFICATION PROCEDURE ............................................................................. 19 5.1. Tissue Verification .......................................................................................................... 19 6. SAR MEASUREMENT VARIABILITY AND UNCERTAINTY ............................................ 23 7. TEST CONFIGURATION ........................................................................................................ 24 8. TUNE-UP LIMIT ...................................................................................................................... 34 9. MEASUREMENT RESULTS .................................................................................................. 37 9.1. Conducted Power ......................................................................................................... 37 9.2. SAR measurement Results ........................................................................................ 47 9.3. GSM 850 SAR results.................................................................................................. 49 9.4. GSM 1900 SAR results ............................................................................................... 50 9.5. UMTS Band II SAR results ......................................................................................... 51 9.6. UMTS Band V SAR results ......................................................................................... 52 9.7. LTE Band 4 SAR results ............................................................................................. 53 9.8. LTE Band 17 SAR results ........................................................... 错误!未定义书签。 9.9. WIFI SAR results .......................................................................................................... 54 9.10. Repeated SAR results ............................................................................................. 55 10. EXPOSURE POSITIONS CONSIDERATION ..................................................................... 59 10.1. Multiple Transmitter Evaluation .......................................................................…
Text truncated - open the document above for the full version.
Report No.: WT158005435 Page 1 of 14 APPENDIX A: SYSTEM CHECKING SCANS Report No.: WT158005435 Page 2 of 14 SystemPerformanceCheck-D835 for Head Date: 2015.09.28 DUT: Dipole 835 MHz D835V2; Type: D835V2 SN:4d141; Communication System: CW; Communication System Band: D835 (835.0 MHz); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.91 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: Probe: ES3DV3 - SN3203; ConvF(6.55, 6.55, 6.55); Calibrated: 2014.12.19.; Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn876; Calibrated: 2015.03.09. Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1504 Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Head/Dipole835 /Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 52.933 V/m; Power Drift = -0.01 dB Fast SAR: SAR(1 g) = 2.32 mW/g; SAR(10 g) = 1.52 mW/g Maximum value of SAR (interpolated) = 2.51 W/kg Head/Dipole835 /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.933 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.527 mW/g SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.5 mW/g Maximum value of SAR (measured) = 2.50 W/kg 0 dB = 2.51 W/kg = 7.98 dB W/kg Report No.: WT158005435 Page 3 of 14 SystemPerformanceCheck-D835 for Body Date: 2015.09.28 DUT: Dipole 835 MHz D835V2; Type: D835V2 SN:4d141; Communication System: CW; Communication System Band: D835 (835.0 MHz); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.99 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: Probe: ES3DV3 - SN3203; ConvF(6.2, 6.2, 6.2); Calibrated: 2014.12.19.; Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn876; Calibrated: 2015.03.09. Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1504 Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Body/Dipole835/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 55.902 V/m; Power Drift = -0.52 dB Fast SAR: SAR(1 g) = 2.55 mW/g; SAR(10 g) = 1.67 mW/g Maximum value of SAR (interpolated) = 2.76 W/kg Body/Dipole835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.902 V/m; Power Drift = -0.52 dB Peak SAR (extrapolated) = 3.791 mW/g SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 2.69 W/kg 0 dB = 2.76 W/kg = 8.82 dB W/kg Report No.: WT158005435 Page 4 of 14 SystemPerformanceCheck-D1900 for Head Date: 2015.09.29 DUT: Dipole 1900 MHz D1900V2; Type: D1900V2 SN:5d162; Communication System: CW; Communication System Band: D1900 (1900.0 MHz); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: Probe: ES3DV4 - SN3881; ConvF(7.96, 7.96, 7.96); Calibrated: 2015.07.24.; Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn876; Calibrated: 2015.03.09. Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1504 Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Head/Dipole1900 /Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 87.529 V/m; Power Drift = 0.06 dB Fast SAR: SAR(1 g) = 10 mW/g; SAR(10 g) = 5.27 mW/g Maximum value of SAR (interpolated) = 11.5 W/kg Head/Dipole1900 /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 87.529 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 19.113 mW/g SAR(1 g) = 9.94 mW/g; SAR(10 g) = 5.02 mW/g Maximum value of SAR (measured) = 11.1 W/kg 0 dB = 11.5 W/kg = 21.24 dB W/kg Report No.: WT158005435 Page 5 of 14 SystemPerformanceCheck-D1900 for Body Date: 2015.09.29 DUT: Dipole 1900 MHz D1900V2; Type: D1900V2 SN:5d162; Communication System: CW; Communication System Band: D1900 (1900.0 MHz); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.5 mho/m; ε r = 53.0; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: Probe: ES3DV4 - SN3881; ConvF(7.6, 7.6, 7.6); Calibrated: 2015.07.24.; Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn876; Calibrated: 2015.03.09. Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1504 Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Body/Dipole1900/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 87.333 V/m; Power Drift = 0.06 dB Fast SAR: SAR(1 g) = 11 mW/g; SAR(10 g) = 5.38 mW/g Maximum value of SAR (interpolated) = 13.0 W/kg Body/Dipole1900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 87.333 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 21.434 mW/g SAR(1 g) = 10.9 mW/g; SAR(10 g) = 5.54 mW/g Maximum value of SAR (measured) = 12.7 W/kg 0 dB = 13.0 W/kg = 22.31 dB W/kg Report No.: WT158005435 Page 6 of 14 SystemPerformanceCheck-D2450 for Head Date: 2015.09.30 DUT: Dipole 2450 MHz D2450V2; Type: D2450V2 SN:818; Communication System: CW; Communication System Band: D2450 (2450.0 MHz); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.82 mho/m; ε r = 39.0; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: Probe: ES3DV3 - SN3203; ConvF(4.55, 4.55, 4.55); Calibrated: 2014.12.19.; Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn876; Calibrated: 2015.03.09. Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:xxxx Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Head/Dipole2450 /Area Scan (91x161x1): Interpolated grid: dx=1.500 mm, dy=1.500 m…
Text truncated - open the document above for the full version.
Report No.: WT158005435 Page 1 of 22 Appendix B. MEASUREMENT SCANS Report No.: WT158005435 Page 2 of 22 Date: 2015.09.28 Le Max GSM850 Head Right Cheek Mid Medium: HSL900 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.91 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: ES3DV3 - SN3203; ConvF(6.55, 6.55, 6.55); Calibrated: 2014.12.19.; Electronics: DAE4 Sn876; Calibrated: 2015.03.09. GSM 850_Right Cheek/Mid/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 2.952 V/m; Power Drift = 0.09 dB Fast SAR: SAR(1 g) = 0.036 mW/g; SAR(10 g) = 0.023 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.0412 W/kg GSM 850_Right Cheek/Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.952 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.045 mW/g SAR(1 g) = 0.035 mW/g; SAR(10 g) = 0.025 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.0402 W/kg 0 dB = 0.0412 W/kg = -27.71 dB W/kg Report No.: WT158005435 Page 3 of 22 Date: 2015.09.28 Le Max GPRS850 Body Hotspot Back Side Mid Medium: MSL900 Communication System: GPRS 3 Tx slots; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:2.77 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.99 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: ES3DV3 - SN3203; ConvF(6.2, 6.2, 6.2); Calibrated: 2014.12.19.; Electronics: DAE4 Sn876; Calibrated: 2015.03.09. GSM 850_Back/Mid/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 9.384 V/m; Power Drift = 0.11 dB Fast SAR: SAR(1 g) = 0.213 mW/g; SAR(10 g) = 0.132 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.240 W/kg GSM 850_Back/Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.384 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.435 mW/g SAR(1 g) = 0.243 mW/g; SAR(10 g) = 0.137 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.253 W/kg 0 dB = 0.240 W/kg = -12.40 dB W/kg Report No.: WT158005435 Page 4 of 22 Date: 2015.10.10. Le Max GSM850 Body Worn Back Side Mid Medium: MSL900 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.99 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: ES3DV3 - SN3203; ConvF(6.2, 6.2, 6.2); Calibrated: 2014.12.19.; Electronics: DAE4 Sn876; Calibrated: 2015.03.09. GSM 850_Back 15mm/Mid/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 9.384 V/m; Power Drift = 0.11 dB Fast SAR: SAR(1 g) = 0.082 mW/g; SAR(10 g) = 0.051 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.0928 W/kg GSM 850_Back 15mm/Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.384 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.151 mW/g SAR(1 g) = 0.091 mW/g; SAR(10 g) = 0.053 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.0908 W/kg 0 dB = 0.0928 W/kg = -20.65 dB W/kg Report No.: WT158005435 Page 5 of 22 Date: 2015.09.29 Le Max GSM1900 Head Right Cheek High Medium: HSL1900 Communication System: Generic GSM; Communication System Band: PCS 1900 (1850.0 - 1910.0 MHz); Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.42mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.96, 7.96, 7.96); Calibrated: 2015.07.24.; Electronics: DAE4 Sn876; Calibrated: 2015.03.09. 1900_Right GSM Head/1900 GSM Cheek-High/Area Scan (51x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 9.951 V/m; Power Drift = -0.05 dB Fast SAR: SAR(1 g) = 0.823 mW/g; SAR(10 g) = 0.442 mW/g Maximum value of SAR (interpolated) = 0.972 W/kg 1900_Right GSM Head/1900 GSM Cheek-High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.951 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 2.216 mW/g SAR(1 g) = 0.819 mW/g; SAR(10 g) = 0.380 mW/g Maximum value of SAR (measured) = 0.850 W/kg 0 dB = 0.972 W/kg = -0.25 dB W/kg Report No.: WT158005435 Page 6 of 22 Date: 2015.09.29. Le Max GSM1900 Body Hotspot Right Side Mid Medium: MSL1900 Communication System: GPRS 2 Tx slots; Communication System Band: PCS 1900 (1850.0 - 1910.0 MHz); Frequency: 1850.2 MHz;Duty Cycle: 1:4.1 Medium parameters used: f = 1850.2 MHz; σ = 1.5 mho/m; ε r = 53.0; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.6, 7.6, 7.6); Calibrated: 2015.07.24.; Electronics: DAE4 Sn876; Calibrated: 2015.03.09. 1900_GPRS/GPRS1900 10mm Right-Mid/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 17.606 V/m; Power Drift = -0.07 dB Fast SAR: SAR(1 g) = 0.441 mW/g; SAR(10 g) = 0.247 mW/g Maximum value of SAR (interpolated) = 0.496 W/kg 1900_GPRS/GPRS1900 10mm Right-Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.606 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.726 mW/g SAR(1 g) = 0.432 mW/g; SAR(10 g) = 0.244 mW/g Maximum value of SAR (measured) = 0.4…
Text truncated - open the document above for the full version.
Report No.: WT158005435 Page 1 of 42 APPENDIX C: RELEVANT PAGES FROM PROBE CALIBRATION REPORT(S) Report No.: WT158005435 Page 2 of 42 Report No.: WT158005435 Page 3 of 42 Report No.: WT158005435 Page 4 of 42 Report No.: WT158005435 Page 5 of 42 Report No.: WT158005435 Page 6 of 42 Report No.: WT158005435 Page 7 of 42 Report No.: WT158005435 Page 8 of 42 Report No.: WT158005435 Page 9 of 42 Report No.: WT158005435 Page 10 of 42 Report No.: WT158005435 Page 11 of 42 Report No.: WT158005435 Page 12 of 42 Report No.: WT158005435 Page 13 of 42 Report No.: WT158005435 Page 14 of 42 Report No.: WT158005435 Page 15 of 42 Report No.: WT158005435 Page 16 of 42 Report No.: WT158005435 Page 17 of 42 Report No.: WT158005435 Page 18 of 42 Report No.: WT158005435 Page 19 of 42 Report No.: WT158005435 Page 20 of 42 Report No.: WT158005435 Page 21 of 42 Report No.: WT158005435 Page 22 of 42 Report No.: WT158005435 Page 23 of 42 Report No.: WT158005435 Page 24 of 42 Report No.: WT158005435 Page 25 of 42 Report No.: WT158005435 Page 26 of 42 Report No.: WT158005435 Page 27 of 42 Report No.: WT158005435 Page 28 of 42 Report No.: WT158005435 Page 29 of 42 Report No.: WT158005435 Page 30 of 42 Report No.: WT158005435 Page 31 of 42 Report No.: WT158005435 Page 32 of 42 Report No.: WT158005435 Page 33 of 42 Report No.: WT158005435 Page 34 of 42 Report No.: WT158005435 Page 35 of 42 Report No.: WT158005435 Page 36 of 42 Report No.: WT158005435 Page 37 of 42 Report No.: WT158005435 Page 38 of 42 Report No.: WT158005435 Page 39 of 42 Report No.: WT158005435 Page 40 of 42 Report No.: WT158005435 Page 41 of 42 Report No.: WT158005435 Page 42 of 42
Report No.: WT158005435 Page 1 of 60 APPENDIX D: RELEVANT PAGES FROM DAE& DIPOLE VALIDATION KIT REPORT(S) Report No.: WT158005435 Page 2 of 60 Report No.: WT158005435 Page 3 of 60 Report No.: WT158005435 Page 4 of 60 Report No.: WT158005435 Page 5 of 60 Report No.: WT158005435 Page 6 of 60 Report No.: WT158005435 Page 7 of 60 Report No.: WT158005435 Page 8 of 60 Report No.: WT158005435 Page 9 of 60 Report No.: WT158005435 Page 10 of 60 Report No.: WT158005435 Page 11 of 60 Report No.: WT158005435 Page 12 of 60 Report No.: WT158005435 Page 13 of 60 Report No.: WT158005435 Page 14 of 60 Report No.: WT158005435 Page 15 of 60 Report No.: WT158005435 Page 16 of 60 Report No.: WT158005435 Page 17 of 60 Report No.: WT158005435 Page 18 of 60 Report No.: WT158005435 Page 19 of 60 Report No.: WT158005435 Page 20 of 60 Report No.: WT158005435 Page 21 of 60 Report No.: WT158005435 Page 22 of 60 Report No.: WT158005435 Page 23 of 60 Report No.: WT158005435 Page 24 of 60 Report No.: WT158005435 Page 25 of 60 Report No.: WT158005435 Page 26 of 60 Report No.: WT158005435 Page 27 of 60 Report No.: WT158005435 Page 28 of 60 Report No.: WT158005435 Page 29 of 60 Report No.: WT158005435 Page 30 of 60 Report No.: WT158005435 Page 31 of 60 Report No.: WT158005435 Page 32 of 60 Report No.: WT158005435 Page 33 of 60 Report No.: WT158005435 Page 34 of 60 Report No.: WT158005435 Page 35 of 60 Report No.: WT158005435 Page 36 of 60 Report No.: WT158005435 Page 37 of 60 Report No.: WT158005435 Page 38 of 60 Report No.: WT158005435 Page 39 of 60 Report No.: WT158005435 Page 40 of 60 Report No.: WT158005435 Page 41 of 60 Report No.: WT158005435 Page 42 of 60 Report No.: WT158005435 Page 43 of 60 Report No.: WT158005435 Page 44 of 60 Report No.: WT158005435 Page 45 of 60 Report No.: WT158005435 Page 46 of 60 Report No.: WT158005435 Page 47 of 60 Report No.: WT158005435 Page 48 of 60 Report No.: WT158005435 Page 49 of 60 Report No.: WT158005435 Page 50 of 60
Report Number: 68.950.15.289.01 Page 1 of 188 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch …
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 14 | 27 | 2.51 GHz - 2.68 GHz | 90.00 mW | 17M9W7D | 14.68 Hz |

mobile phone
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
