2AFXB-H1HURJ Deodorizing Toilet Core

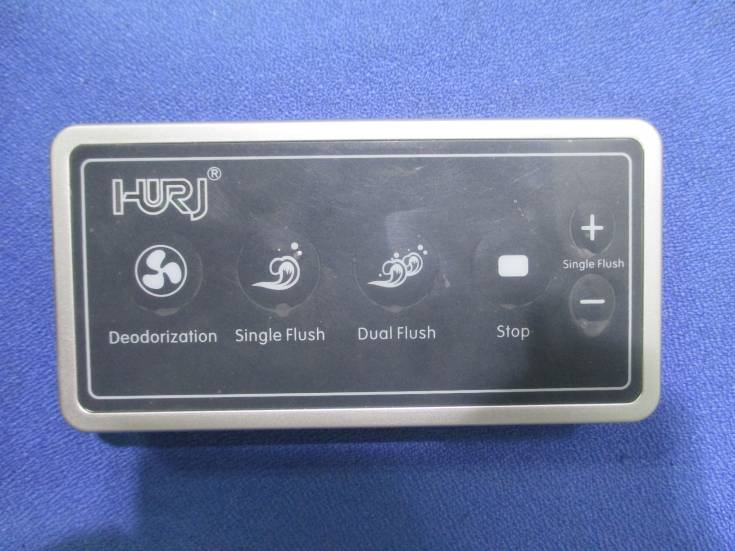

User Manual HURJ Deodorizing Tolilet Core Model: H1 FRONT 1. Deodorization: Press this button, Deodorization motor will startup. 2. Single Flush: Press this button, Drain valve will work and flush. 3. Dual Flush: After press Deodorization button, then press this button, Deodorization motor will stop and Drain valve will work and flush. 4. Stop: Press this button, Deodorization motor will stop. 5. +: Press this button, can increase flush time. 6. -: Press this button, can reduce flush time. Back 1. out-board support 2. Power: battery (2*AAA) Work Frequency: 433.92MHz Work temperature : -20-50 o c Standby current: < 30uA operating current:<10mA Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Xiamen Huierjie Sanitary Ware Technology Co.,Ltd. may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

       Series Models Description   !"# $ %& $' ($)                  !"#$% & '  (  )  & '   ) &*+  , )-./   0&  1 , )-#!2#  !+ 3 3! ( 4  55 5   06   7   8 (! 9 0:; 0< 0   are electrically identical, only model name is different for marketing requirement. only color and model name

FCC ID Label Information 1. Label location: 2. FCC ID Label: Model: H1 FCC ID: 2AFXB-H1 FCCID Label Location

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.231 Report Reference No......................: CTL1508242457-WF Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Sep. 14, 2015 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: Xiamen Huierjie Sanitary Ware Technology Co.,Ltd. Address.............................................: Room 705, Tower B, Jianye Building, No.96 Xiangxing Road, Torch High-tech Industrial Park (Xiang’an), Xiamen, P.R.C. Test specification: Standard ...........................................: FCC Part 15.231: Periodic operation in the band 40.66–40.70 MHz and above 70 MHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : HURJ Deodorizing Toilet Core Trade Mark .......................................: HURJ Models/Type reference.....................: H1, G1 Modulation .......................................: ASK Work Frequency...........................: 433.92MHz Antenna Type..............................: internal FCC ID .............................................: 2AFXB-H1 Result................................................: Positive Nice Nong V1.0 Page 2 of 25 Report No.: CTL1508242457-WF T E S T R E P O R T Test Report No. :CTL1508242457-WF Sep. 14, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : HURJ Deodorizing Toilet Core Model /Type : H1 Listed Models G1 Difference Description Only the color and model's name is different Applicant : Xiamen Huierjie Sanitary Ware Technology Co.,Ltd. Address : Room 705, Tower B, Jianye Building, No.96 Xiangxing Road, Torch High-tech Industrial Park (Xiang’an), Xiamen, P.R.C. Manufacturer : Xiamen Huierjie Sanitary Ware Technology Co.,Ltd. Address : Room 705, Tower B, Jianye Building, No.96 Xiangxing Road, Torch High-tech Industrial Park (Xiang’an), Xiamen, P.R.C. Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 25 Report No.: CTL1508242457-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 5 2.5.EUT configuration 5 2.6.Related Submittal(s) / Grant (s) 5 2.7.Modifications 5 2.8.Test Result Summary 5 3. TEST ENVIRONMENT............................................................... 6 3.1.Address of the test laboratory 6 3.2.Test Facility 6 3.3.Environmental conditions 6 3.4.Configuration of Tested System 6 3.5.Statement of the measurement uncertainty 7 3.6.Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1.Conducted Emissions Test 9 4.2.Fundamental Emissions 11 4.3.Radiated Emission Test 13 4.4.Occupied Bandwidth 16 4.5.Duty Cycle 17 4.6.Transmission Requirement 18 5. ANTENNA REQUIREMENT ....................................................... 19 6.TEST SETUP PHOTOS OF THE EUT .......................................... 20 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 21 V1.0 Page 4 of 25 Report No.: CTL1508242457-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.231: Periodic operation in the band 40.66–40.70 MHz and above 70 MHz. ANSI C63.10-2013 ANSI C63.4-2014 V1.0 Page 5 of 25 Report No.: CTL1508242457-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Aug. 30, 2015 Testing commenced on : Aug. 30, 2015 Testing concluded on : Sep. 10, 2015 2.2.Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.0V from battery(2*AAA) 2.3. Short description of the Equipment under Test (EUT) The EUT is a HURJ Deodorizing Toilet Core work at 433.92MHz. For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer ƽ - supplied by the lab 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: 2AFXB-H1 filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. 2.7. Modifications No modifications were implemented to meet testing criteria. 2.8. Test Result Summary Test Item Test Requirement Standard Paragrph Result Transmission requirementFCC part15 Section 15.23…
