2AFXU-MD903A1Wireless ED Module_9 series

MA903A1 Wireless AP Module_9 series Copyright © by M 2 Communcation, Inc. All rights reserved. This document is the sole and exclusive property of M 2 Communication, Inc. Not to be distributed or divulged without prior written agreement. Feature Highlights
Low supply operation: 2.4V – 3.6V
Compact size: 35.5mm x 37.5 mm, ideal for embedded system integration such as access point
Low-power consumption
Using M2C patented Platanus™ platform for smart-networking application
ARM Cortex-M0 up to 32MHz clock rate, with embedded 128 KB flash memory and 1MB SRAM
Frequency range: 903~927MHz
Data bandwidth: up to 500kbps
High receiver sensitivity: -96dBm at 500kbps
Integrated power amplifier up to 11dBm
Pre-matched RF front-end, reducing design hassles
Support UART and GPIOs as interface with other LAN modules in the embedded system
Supports 128-node “star” and 16000-node “tree” network infrastructure. Applications
Comply with FCC Part 15C
Innovative turn-key solution for ultra-low power wireless link
Remote control systems
Wireless sub-metering (plug)
Home automation
Wireless sensor network
Telemedicine service
Wireless lighting control
Smart rack for logistics system Descriptions Overview MA903A1 is an easy-to-integrate Access Point embedded module for hosting ultra-low-power wireless-link application. With state-of-the-art Platanus TM protocol and networking kit, large network (up to 16000 nodes) can be easily formed. Equipped with ISM-band RF operated at 868MHz/915MHz bands and popular ARM 32-bit MCU along with embedded flash memory and SRAM, MA903A1 is an ideal embedded solution for system integrator to develop wireless applications with no worry about design hassles, both wireless and networking. Easy to Integrate and Use Designed as the embedded module, MA903A1 has only the board area of 35.5mm x 37.5mm, compact enough for most embedded system design. A pre-matched 50 ohm port is ready to be used with on-board or external antenna. The RF matched network is calibrated to optimize the RF performance when the module is shipped, saving the design hassles for application designers. There are total 50 stamp pads on MA903A1 with multiple digital interfaces: UART, GPIOs, and JTAGS. This brings the design flexibility to end applications that MA903A1 is easy to interface with other LAN modules. Through the robust wireless link, controlled/collected information from End Device (ME10WM010) can be easily sent to the upper application layers and devices. Datasheet v1.0 MA903A1 2014/01 Copyright © by M 2 Communication Inc. Page 2 of 22 Ready-to-go Sub-GHz Radio Link with Excellent Reliability T he wireless link utilizes the sub-GHz radio band, requiring no special licenses (free-ISM) and certification. MA903A1 comply with the ETSI EN 300 220 and FCC part 15 regulations. Compared to the crowded 2.4GHz band, sub-GHz radio link, given the similar power level, allows better distance and penetration especially in the hostile indoor environment. In particular, with WiFi and Bluetooth crowding the 2.4GHz band these days, MA903A1 is immune from all 2.4GHz interference and delivers the reliable wireless link. With the data rate of 500kbps in 2FSK, the bandwidth use efficiency is 16x better than 2.4GHz Zigbee (2MHz). MA903A1 can deliver the link budget up to 107dB (TX maximum p ower: 11dBm, RX Sensitivity level: -96dBm) without adding external components. The Line-of-Sight (LOS) link distance is over 300 meters*. * tested with 63-byte payload with PER of 1%. This may be variable depending on test environment Robust Two-way Networking MA903A1 uses a built-in protocol Platanus TM to support “two-way” networking, saving the SI’s design headache of linking large amounts of wireless nodes. Used with ME10WM010 (End Device), MA903A1 can support two types of network hierarchies: STAR and TREE (as shown below). When MA903A1 is configured in STAR networking, up to 128 nodes can be supported. When MA903A1 is configured in TREE network, up to 16000 nodes can be supported. Asymmetrical downlink and uplink are supported to balance between network reliability and response time, and the programmable network parameters can be used to optimize for each use scenario. Figure 1. STAR configuration Figure2. TREE configuration Upper Layer Connectivity MA903A1 is shipped with the UART interface and the managing software library. Thus the upper-layer devices, such as TCP/IP gateway, can easily access MA903A1 in the network, as the Access Point to the private network, to exchange data “interactively” via the Ethernet or WiFi. This makes the cloud- based application developer easy to hook up with the privately-own network when building with MA903A1. Figure 3. Network Structure Datasheet v1.0 MA903A1 2014/01 Copyright © by M 2 Communication Inc. Page 3 of 22 Ideal Platform for Low-power Application Development MA903A1 is powered by ARM Cortex MCU with clock up to 32MHz with embedded 128K-Byte flash and 1M-Byte SRAM, to support built-in Platanus TM networking library from M2C and for peripherals. For details, please refer to the associated documentation. Using Platanus TM protocol with M2C MA903A1 (Access Point) and/or MR1001 (Router), the formed network can achieve ultra-low power consumption for battery-friendly applications. The network acts in the cellular-like behavior, with sleep time configurable from 5 seconds up to 90 seconds. Details of power consumption can be referred to the datasheet of ME10WM010. Pin Diagram & Components Placement Figure4. Pin diagram Datasheet v1.0 MA903A1 2014/01 Copyright © by M 2 Communication Inc. Page 4 of 22 Figure5. Pin diagram Datasheet v1.0 MA903A1 2014/01 Copyright © by M 2 Communication Inc. Page 5 of 22 Table of Contents 1 Electrical Characteristics ................................................................................... 6 2 Pin Out ................................................................................................................. 9 3 Memory ..............…

Text truncated - open the document above for the full version.

MD903A1 Wireless ED Module_9 series Copyright © by M 2 Communcation Inc. All rights reserved. This document is the sole and exclusive property of M 2 Communication, Inc. Not to be distributed or divulged without prior written agreement. Feature Highlights
Low voltage operation: 2.0V – 3.6V
Compact size: 4cm x 2cm, ideal for embedded system
Low-power consumption
Lengthened battery life when used in M2C Platanus™ platform
ARM Cortex-M0 up to 32MHz clock rate, with embedded 128 KB flash memory and 16 KB SRAM
Frequency range: 903~927MHz
Data bandwidth: up to 500kbps
High receiver sensitivity: -96dBm at 500kbps
Integrated power amplified up to 3.96dBm
Support I 2 C, UART, SPI, Fast IRQ and GPIOs for control interface
Up to 4-channel, 12-bit ADC available for sensor interface
Pre-matched RF front-end, reducing design hassles
Ready-to-go Access point with TCP/IP gateway and Router are available (sold separately)
Supports 128-node “star” and 16000-node “tree” network infrastructure. Applications
Comply with FCC Part 15C
Low-cost solution for ultra-low power wireless link
Remote control systems
Wireless sub-metering (plug)
Home automation
Wireless sensor network
Telemedicine service
Wireless lighting control
Smart rack system Descriptions Overview MD903A1 is an easy-to-integrate low-power module for wireless-link application. With state-of-the-art Platanus TM protocol and networking kit, large network (up to 16000 nodes) can be easily formed. Equipped with ISM-band RF operated at 903~927MHz bands and popular ARM Cortex M0 32-bit MCU along with embedded flash memory and SRAM, MD903A1 is an ideal embedded solution for system integrator to develop wireless applications with no worry about design hassles. Easy to Integrate and Use Designed as the LAN module, MD903A1 has only the board area of 4cm x 2cm, compact enough for most embedded system design. An on-board antenna has been built (with option to be connected to the external antenna) and the RF matched network is calibrated to optimize the RF performance when the module is shipped, saving the design hassles for application designers. There are total 27 stamp pads on MD903A1 with multiple digital/analog interfaces: 1x I2C, 1xSPI, 2xUART, 29xGPIOs, 1x Fast Interrupt, 3xPWMs and also up to 4-channel 12bit-ADC. This brings the design flexibility to end applications that MD903A1 is easy to interface with peripheral controls and sensors. Through the robust wireless link, controlled/collected information can be easily exchanged with the upper application layers. User Guide V1.0 MD903A1 2014/01 Copyright © by M 2 Communication Inc. Page 2 of 25 Ready-to-go Sub-GHz Radio Link with Excellent Reliability T he wireless link utilizes the sub-GHz radio band, requiring no special licenses (free-ISM) and certification. MD903A1 comply with the FCC part 15C regulations. Compared to the crowded 2.4GHz band, sub-GHz radio link allows better distance and penetration especially in the hostile indoor environment. In particular, with WiFi and Bluetooth packed the 2.4GHz band these days, MD903A1 is immune from the 2.4GHz interference and delivers the reliable wireless link. With the data rate of 500kbps in 2FSK, the bandwidth use efficiency is 16x better than 2.4GHz Zigbee (2MHz). MD903A1 can deliver the link budget up to 107dB (TX maximum power: 11dBm, RX Sensitivity level : -96dBm) without external adding components. The Line-of-Sight (LOS) link distance is over 300 meters. Robust Two-way Networking MD903A1 has a built-in protocol Platanus TM to support “two-way” networking, saving the SI’s design headache of linking large amounts of wireless nodes. When used with MA901A1 (Access Point), MD903A1 can support two types of network hierarchies: STAR and TREE (as shown below). When MD903A1 is configured in STAR networking, up to 250 nodes can be supported. When MD903A1 is configured in TREE network, up to 16000 nodes can be supported. Asymmetrical downlink and uplink are supported to balance between network reliability and response time, and the programmable network parameters can be used to optimize for each use scenario. Figure 1 is START network, figure 2 is TREE network. Figure 1. STAR configuration Figure2. TREE configuration TCP/IP Connectivity Each MD903A1 is assigned a 4-byte MAC address, and assigned a unique network ID when joining a network. M2C’s MA901A1 (Access Point) has already been shipped with the TCP/IP gateway and the managing software library. Thus the upper-layer application layer can access each MD903A1 in the network to exchange data “two-way” via the Ethernet or WiFi. This makes the cloud-based application developer easy to hook up with the privately-own network when building with MD903A1. Figure 3. Network Structure User Guide V1.0 MD903A1 2014/01 Copyright © by M 2 Communication Inc. Page 3 of 25 Ideal Platform for Low-power Application Development M D903A1 is powered by ARM Cortex-M0 with clock up to 32MHz with embedded 128K-Byte flash and 16K-Byte SRAM, to support built-in Platanus TM networking library from M2C and for peripherals, such as GPIO controls or serial data interfaces. The function calls for Platanus TM can be linked to the main program during elaboration to enable the wireless accessibility. The command library is available for development. For details, please refer to the associated documentation. Used with patented Platanus TM protocol used with M2C MA901A1 (Access Point) and/or MR1001 (Router), MD903A1 can achieve ultra-low power consumption for battery-friendly applications. The network acts in the cellular-like behavior, with sleep time configurable from 5 seconds up to 90 seconds. The reference average power consumption is as below. This only reflects the wireless link, excluding the peripherals. Sleep Time Reference Average Current Consumption 5 seconds 36.8 μA 30 seconds 15.2 μA 90 seconds 9.5 μA Pin Diagram & Components Placement Figure4. Pin diagram User Guide V1.0 MD903A1 2014/01 Copyright © by M 2 C…

Text truncated - open the document above for the full version.

Page No. : 31 Module Approval Request Letter Date: 2015/10/27 Subject: Module Approval FCC ID: 2AFXU-MD903A1 To Whom It May Concern: We, Sporton International Inc., are authorized by M2Communication, Inc. to have their state-of-the-art Wireless ED Module_9 series approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip A7128. 3. The requirement of power supply regulation: The part number of the power regulator is A7128. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

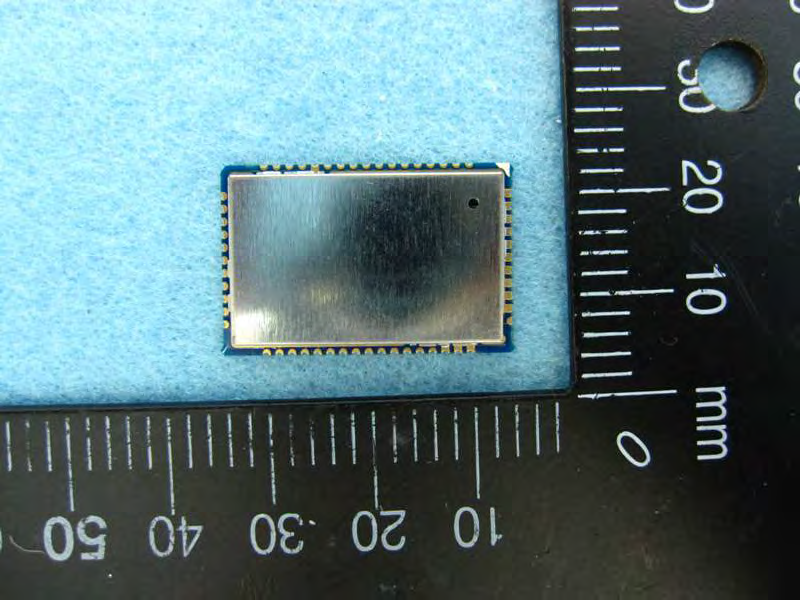

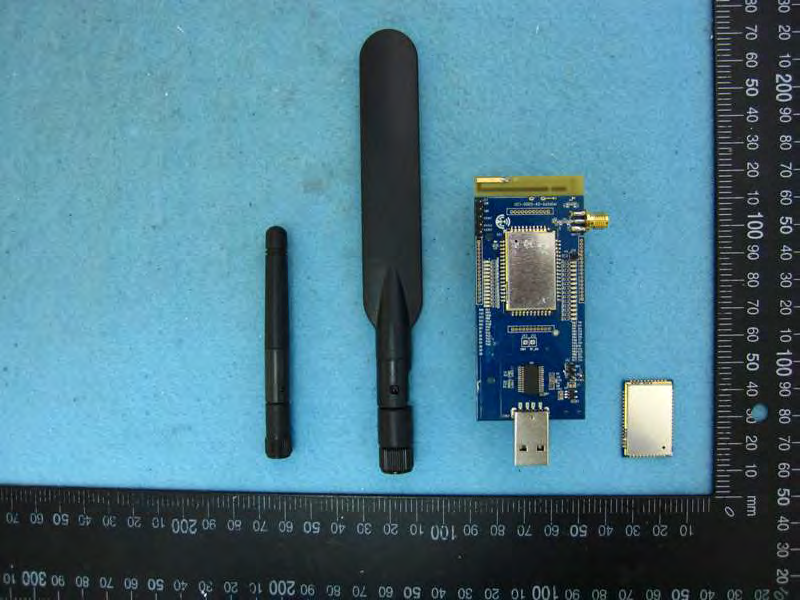

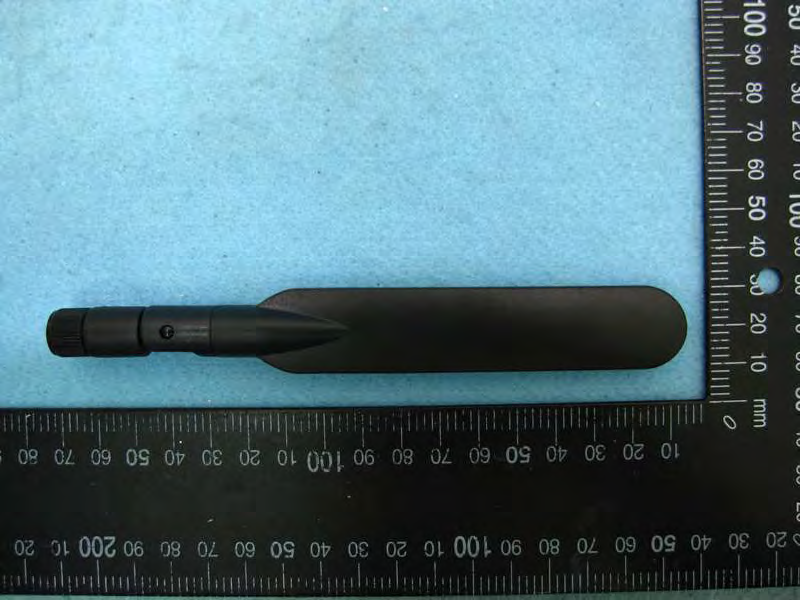

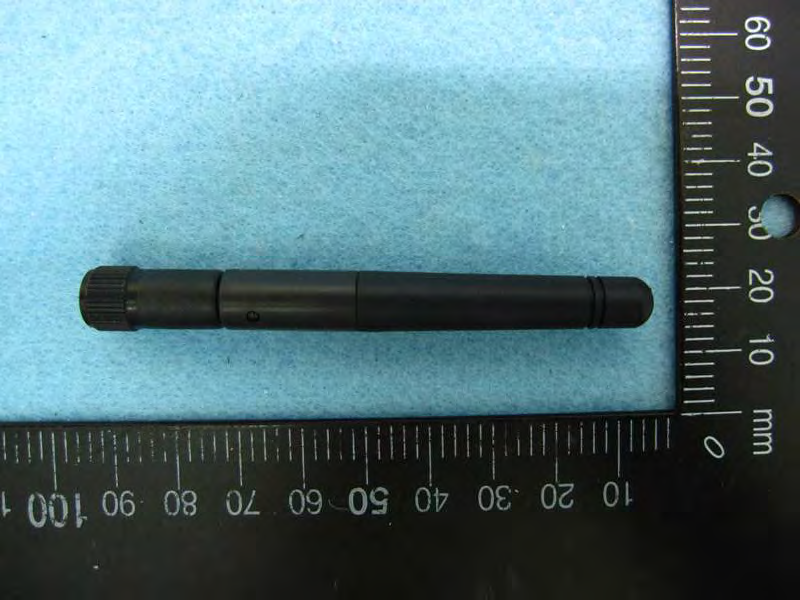

Report No.: 582817 SPORTON International Inc. PAGE NUMBER : 1 of 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2015 FAX : 886-3-327-0973 Photographs of EUT Ant. 1 (PIFA Ant.) EUT Test Fixture Report No.: 582817 SPORTON International Inc. PAGE NUMBER : 2 of 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2015 FAX : 886-3-327-0973 Ant.2 (Dipole Ant.) Report No.: 582817 SPORTON International Inc. PAGE NUMBER : 3 of 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2015 FAX : 886-3-327-0973 Ant.3 (Dipole Ant.) Report No.: 582817 SPORTON International Inc. PAGE NUMBER : 4 of 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2015 FAX : 886-3-327-0973

Label: Label Here

Report No.: 582817 SPORTON International Inc. PAGE NUMBER : 1 of 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.: 582817 SPORTON International Inc. PAGE NUMBER : 2 of 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2015 FAX : 886-3-327-0973 Report No.: 582817 SPORTON International Inc. PAGE NUMBER : 3 of 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2015 FAX : 886-3-327-0973 Report No.: 582817 SPORTON International Inc. PAGE NUMBER : 4 of 4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2015 FAX : 886-3-327-0973

Report No.: FA582817 Report Format Version: 01 Page No. : i of ii FCC ID : 2AFXU-MD903A1 Issued Date : Oct. 02, 2015 Table of Contents 1. GENERAL DESCRIPTION.................................................................................................................................... 1 1.1. EUT General Information .....................................................................................................................................................................1 1.2. Testing Location..................................................................................................................................................................................1 2. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................... 2 2.1. Limit of Maximum Permissible Exposure ..............................................................................................................................................2 2.2. MPE Calculation Method ....................................................................................................................................................................3 2.3. Calculated Result and Limit................................................................................................................................................................3 Report No.: FA582817 Report Format Version: 01 Page No. : ii of ii FCC ID : 2AFXU-MD903A1 Issued Date : Oct. 02, 2015 History of This Test Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FA582817 Rev. 01 Initial issue of report Oct. 02, 2015 Report No.: FA582817 Report Format Version: 01 Page No. : 1 of 3 FCC ID : 2AFXU-MD903A1 Issued Date : Oct. 02, 2015 1. GENERAL DESCRIPTION 1.1. EUT General Information RF General Information Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 902 ~ 928 MHz 903 ~ 927 MHz 2FSK 1.2. Testing Location Testing Location HWA YA ADD : No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL : 886-3-327-3456 FAX : 886-3-327-0973 JHUBEI ADD : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. TEL : 886-3-656-9065 FAX : 886-3-656-9085 Report No.: FA582817 Report Format Version: 01 Page No. : 2 of 3 FCC ID : 2AFXU-MD903A1 Issued Date : Oct. 02, 2015 2. MAXIMUM PERMISSIBLE EXPOSURE 2.1. Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density Report No.: FA582817 Report Format Version: 01 Page No. : 3 of 3 FCC ID : 2AFXU-MD903A1 Issued Date : Oct. 02, 2015 2.2. MPE Calculation Method The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   2.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure Antenna Type : Dipole Antenna Conducted Power for 2FSK: 11.32dBm Average Output Power Distance (cm) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 20 903 2.00 1.5849 11.3200 13.5519 0.004275 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company M2Communication Inc. Applicant Address 4F-3, No.32, Gaotie 2nd Rd., Zhubei City, Hsinchu County 302 Taiwan (R.O.C.) FCC ID 2AFXU-MD903A1 Manufacturer’s company Might Electronic CO. LTD., Taiwan Manufacturer Address No. 40, 2nd Neighborhood, Yuanshan Vil., Xinfeng Township, Hsinchu County 304, Taiwan, R.O.C. Product Name Wireless ED Module_9 series Brand Name M2Communication Inc. Model No. MD903A1 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 902 ~ 928 MHz Received Date Aug. 28, 2015 Final Test Date Sep. 24, 2015 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart C and KDB558074 D01 v03r03. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR582817 Report Format Version: Rev. 01 Page No. : i of ii FCC ID: 2AFXU-MD903A1 Issued Date : Oct. 02, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................6 3.9. EUT Operation during Test ...................................................................................................................................................................6 3.10. Duty Cycle ..........................................................................................................................................................................................6 3.11. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ..................................................................................................................................................... 9 4.1. Maximum Conducted Output Power Measurement ...........................................................................................................................9 4.2. Power Spectral Density Measurement ..............................................................................................................................................11 4.3. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................16 4.4. Radiated Emissions Measurement ....................................................................................................................................................22 4.5. Band Edge Emissions Measurement .................................................................................................................................................35 4.6. Antenna Requirements .....................................................................................................................................................................45 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 46 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 47 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A8 Report No.: FR582817 Report Format Version: Rev. 01 Page No. : ii of ii FCC ID: 2AFXU-MD903A1 Issued Date : Oct. 02, 2015 History of This Test …

Text truncated - open the document above for the full version.

Report No.: FR582817 FCC ID: 2AFXU-MD903A1 Page No. : A1 of A8 Appendix A. Test Photos Report No.: FR582817 FCC ID: 2AFXU-MD903A1 Page No. : A2 of A8 1. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR582817 FCC ID: 2AFXU-MD903A1 Page No. : A3 of A8 Test Configuration: 30MHz~1GHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR582817 FCC ID: 2AFXU-MD903A1 Page No. : A4 of A8 CLOSE-UP VIEW Report No.: FR582817 FCC ID: 2AFXU-MD903A1 Page No. : A5 of A8 Test Configuration: Above 1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR582817 FCC ID: 2AFXU-MD903A1 Page No. : A6 of A8 CLOSE-UP VIEW Report No.: FR582817 FCC ID: 2AFXU-MD903A1 Page No. : A7 of A8 Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR582817 FCC ID: 2AFXU-MD903A1 Page No. : A8 of A8 CLOSE-UP VIEW
