2AFXYAL-DX310-NZZigBee Dimming Converter

AL-DX310-NZ ZigBee Dimming Converter <Main Function> ZigBee Communication Dimming Control (0-10V) <AL-DX310-NZ> Features AL-DX310-NZ - Dimming control of a lighting by ZigBee communication. The way of communication * ZigBee - 2.4GHz / 2Mbps - Point to Point Repeating Function * 0-10V Dimming Control - Dimming control of Lightings or converter(SMPS) by 0-10V output voltage level change. Operating Temperature -10 °C ~ 50 °C Operating Voltage DC 12V 2 Description LightON ® AL-DX310-NZ is the converter which can control the dimming of lightings by 0-10V level control. The 0-10V level can be changed by ZigBee telecommunication. AL-DX310-NZ Function Antenna Radio wave Transmit and Receive (2.4GHz/Helical Antenna) 0-10V output and Power Connection External DC 12V Input 0-10V Voltage Output 3 0-10V Output and Power Connection Antenna Description of Connection Terminal 1 Input Power Connection Connect the DC Power line to the Ground and DC12V Connection Point. 2 0-10V Signal Line Connect 0-10V dimming signal line to the 0-10V connection Point. - ZigBee Dimming Converter is Self-power device. So, it absolutely needs external power. 4 12V N/C 0-10V GROUND Cautions A Warning on Self-Repairs This product should only be handled by an approved electrician with training about our products. For your safety, please do not try to disassemble and repair this product yourself. Prohibition of Putting Foreign Materials This product should only be handled by an approved electrician with training about our products. For your safety, please do not try to disassemble and repair this product yourself. Be careful not to enter the foreign materials. If any foreign materials is input, cut off the power and remove it immediately. Shock Damage When installing this product please make sure that the main power is turned off. Please do not knock against this product with sharp or heavy objects. This may cause an electric shock or fire hazard. Technical Support Product of ABI SYSTEMS Co,. Ltd.  ZigBee Dimming Converter  Model Name: LightON ® AL-DX310-NZ  Input Power: DC 12V / 1A Head Office #308 ACE Techno Tower 8, 11, Digital-ro 33-gil, Guro-gu, Seoul, 08380, Repbulic of KOREA Phone : +82-2-2025-7591 Fax: +82-2-2025-7592 Email: [email protected] Web: www.lighton.co.kr / www.abisys.co.kr ※ Information in this document, including URL, and other internet Web site references, is subject to change without notice. 130408 Ver. 1.0 ABIsystems FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected. • Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The antennas used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this equipment near water. 6) Do not using near any heat sources such as radiators, heat resisters, stove, or other equipment that produce heat. European CE notice to users and product statements This product is CE marked according to the provisions of the R&TTE Directive(99/5/EC). Hereby, ABIsystems Co.,Ltd. declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information, please contact http:// www.abisys.co.kr ABIsystems Co.,Ltd. 308 (ACE Techno Tower 8), 11, Digital-ro 33-gil, Guro-gu, Seoul, Korea Tel: +82-2-2025-7591 Fax: +82-2-2025-7592 URL: www.abisys.co.kr CONTACT INFORMATION Manufacturer Address : 308 (ACE Techno Tower 8), 11, Digital-ro 33-gil, Guro-gu, Seoul, Korea To locate in- country ABIsystems Co.,Ltd., distributors of the ZigBee Dimming Converter please refer to the ABIsystems Co.,Ltd. Website http://www.abisys.co.kr These distributor(s) represent local contacts for this product. CORPORATE HEADQUARTERS: ABIsystems Co.,Ltd. 308 (ACE Techno Tower 8), 11, Digital-ro 33-gil, Guro-gu, Seoul, Korea Tel: +82-2-2025-7591 Fax: +82-2-2025-7592 Web: http://www.abisys.co.kr This device complies with Industry Canada license-exempt RSS standard(s). Operation is Subject to the following two condition: (1) this device may not cause interference ,and (2) this device must accept any interference, including interference that may cause undesired operation of the device. EUROPEAN UNION “DECLARATION OF CONFORMITY…

Text truncated - open the document above for the full version.

ABIsystems Co.,Ltd. 308 (ACE Techno Tower 8), 11, Digital-ro 33-gil, Guro-gu, Seoul, Korea Tel: +82-2-2025-7591, Fax: +82-2-2025-7592 www.abisys.co.kr LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize Standard Engineering Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2AFXYAL-DX310-NZ. including signing of all documents relating to these matters. Any and all acts carried out by Standard Engineering Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from ABIsystems Co.,Ltd. Standard Engineering Co., Ltd. (Contact Person) Contact name: Soon Ho, Kim Position: Deputy Manager Phone: 82-41-663-9436 E-mail: [email protected] Date : September 14, 2015 Sincerely, Sanhong, Kim / CEO Company name: ABIsystems Co.,Ltd. Phone: +82-2-2025-7591 Fax: +82-2-2025-7592 E-mail: [email protected]

FCC, Request for non-disclosure Date: September 14, 2015 Page 1 of 1 ABIsystems Co.,Ltd. 308 (ACE Techno Tower 8), 11, Digital-ro 33-gil, Guro-gu, Seoul, Korea Subject: Request for confidentiality FCC ID: 2AFXYAL-DX310-NZ Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ☑ Block Diagrams ☑ Operational Description ☑ Schematic Diagrams the above materials contain trade secrets and pr oprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. <Date> September 14, 2015 <City> Seoul <Name and signature of applicant> Sanhong, Kim / CEO

ABIsystems Co.,Ltd. 308 (ACE Techno Tower 8), 11, Digital-ro 33-gil, Guro-gu, Seoul, Korea Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: 2AFXYAL-DX310-NZ, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Test Laboratory : Standard Engineering Co. Ltd. 145, Hwanggeumteo-gil, Eumam-myeon, Seosan-si, Chungcheongnam-do, Republic of Korea 356-844 Regards, Signature: Name/Title: Sanhong, Kim / CEO Company Name: ABIsystems Co.,Ltd. Brand Name : N/A Address: 308 (ACE Techno Tower 8), 11, Digital-ro 33-gil, Guro-gu, Seoul, Korea TEL : +82-2-2025-7591 FAX : +82-2-2025-7592 Email : [email protected]

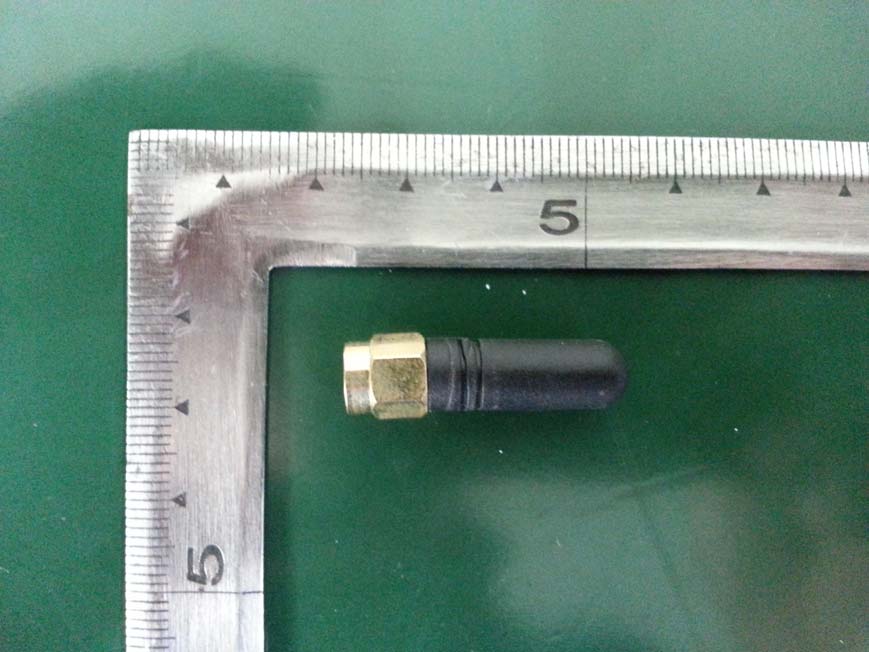

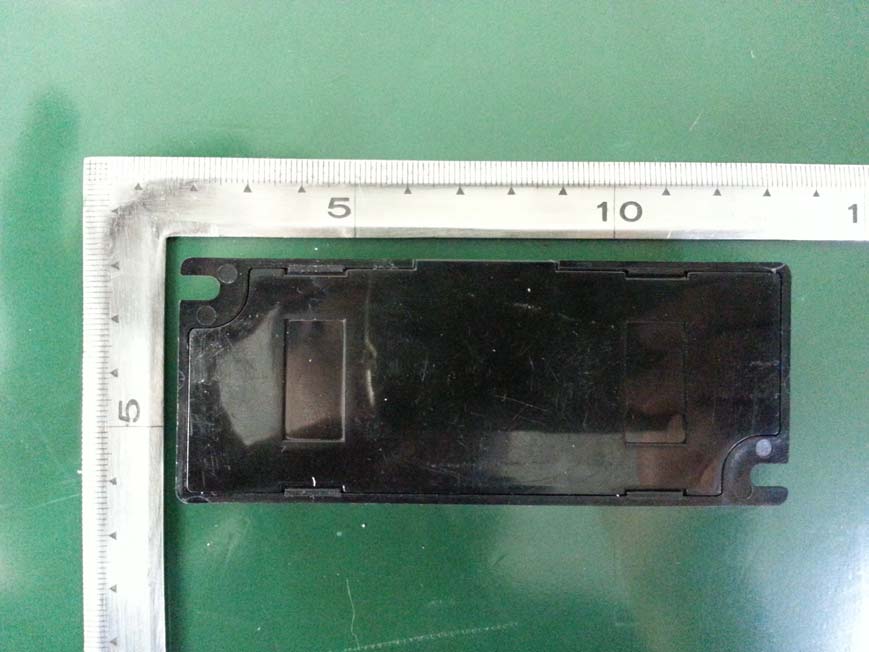

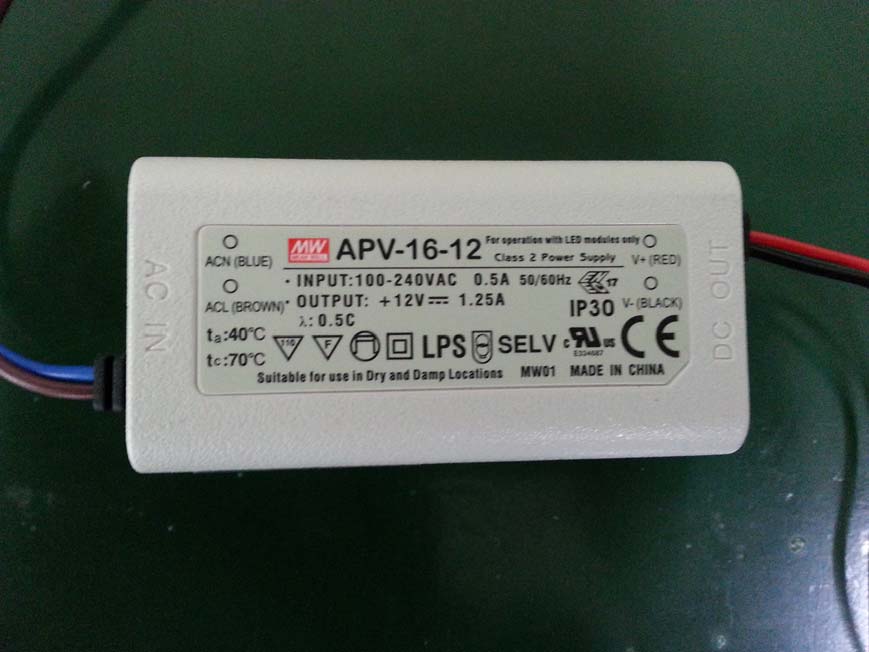

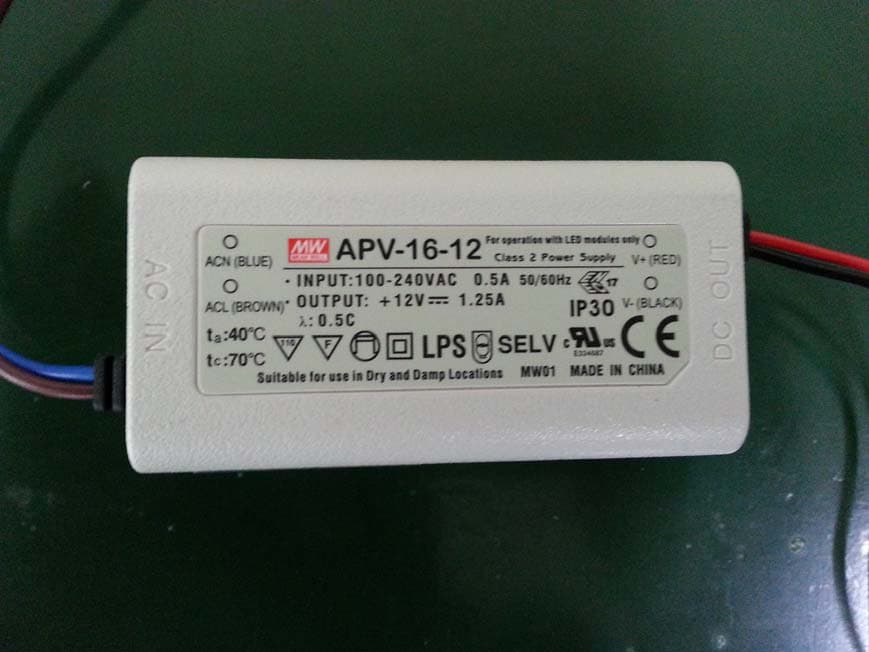

Photo 1: Exterior Photographs Top Bottom Side 1 Side 2 Side 3 Side 4 Adapter Antenna

Label Information 1. Label Location 2. Label Drawing Made in Korea ZigBee Dimming Converter Model : AL-DX310-NZ FCC ID : 2AFXYAL-DX310-NZ ABIsystems Co.,Ltd. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received. including interference that may cause undesired operations. Label position 50mm 30mm

Interior view of EUT Internal Photos View of Main PCB(Top) View of Main PCB(Bottom) View of Zigbee Module (Top) View of Zigbee Module (Bottom)

STANDARD ENGINEERING FCC ID : 2AFXYAL-DX310-NZ Report Number : STD-FCC-15048 Page 1/47 1. Applicant Name : ABIsystems Co.,Ltd. Brand Name : N/A Address : 308 (ACE Techno Tower 8), 11, Digital-ro 33-gil, Guro-gu, Seoul, Korea FCC ID : 2AFXYAL-DX310-NZ 2. Products Name : ZigBee Dimming Converter Model No. : AL-DX310-NZ Variant Model No. : N/A Manufacturer ABIsystems Co.,Ltd. Address 308 (ACE Techno Tower 8), 11, Digital-ro 33-gil, Guro-gu, Seoul, Korea 3. Test Standard: 47 CFR Part 15, Subpart C 4. Test Method: ANSI C63.10-2009 5. Test Result: PASS 6. Dates of Test: September 03, 2015 to September 07, 2015 7. Date of Issue: September 10, 2015 8. Test Laboratory: Standard Engineering Co. Ltd. FCC Designation Number : 624439 TEST REPORT Tested by Approved by SoonHo, Kim / Test Engineer SeongSeok, Seo / Compliance Engineer This report may not be reproduced without the full written consent of Standard Engineering Laboratory. Standard Engineering Co. Ltd. 377-11, Sinjang-ri, Eumam-myeon, Seosan-si, ChoongNam 356-844, South Korea Tel. : 82-41-663-9436, Fax : 82-41-663-9434 www.stdeng.com STANDARD ENGINEERING FCC ID : 2AFXYAL-DX310-NZ Report Number : STD-FCC-15048 Page 2/47 1. Test Summary TestTest RequirementTest methodResult Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 2009 PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 2009 PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(3) ANSI C63.10:2009 Section 6.2 PASS 6dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(2) ANSI C63.10 2009 Section 6.2 PASS Power Spectral Density 47 CFR Part 15, Subpart C Section 15.247 (e) ANSI C63.10,2009 Section 6.11.2 PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10:2009 Clause 7.7.10 PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10:2009 Clause 7.7.10 PASS Radiated Spurious Emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10:2009 Clause 6.12 PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10:2009 Clause 6.12 PASS STANDARD ENGINEERING FCC ID : 2AFXYAL-DX310-NZ Report Number : STD-FCC-15048 Page 3/47 2. TABLE OF CONTENTS 1. Test Summary...........................................................................................................................................................2 2. Table of Contents....................................................................................................................................................3 3. General Information...............................................................................................................................................4 3.1 Client Information............................................................................................................................................4 3.2 General Description of E.U.T........................................................................................................................4 3.3 Details of E.U.T..................................................................................................................................................4 3.4 Operation Frequency each of channel.....................................................................................................5 3.5 Description of Support Units ......................................................................................................................5 3.6 Abnormalities from Standard Conditions...............................................................................................5 3.7 Other Information Requested by the Customer..................................................................................5 3.8 Test Location.....................................................................................................................................................5 4. Equipment Used during Test..............................................................................................................................6 5. Test Results and Measurement Data...............................................................................................................7 5.1 Antenna Requirement....................................................................................................................................8 5.2 Conducted Peak Output Power..................................................................................................................9 5.3 6dB Occupy Bandwidth...............................................................................................................................11 5.4 Power Spectral Density...............................................................................................................................14 5.5 Band-edge for RF Conducted Emissions..............................................................................................17 5.6 RF Conducted Spurious Emissions..........................................................................................................19 5.7 Radiated Spurious Emissions....................................................................................................................23 5.7.1Harmonic and other spurious emissions........................................................................................27 5.7.1.1 Test at Lowest Channel in transmitting status..........................................................................27 5.7.1.2 Test at middle Channel in transmitting status..........................................................................30 5.7.1.3 Test at Highest Channel in transmitting status........................................................................33 5.8 Band Edge (Radiated Emission)...........................................................…
