2AFYE-JHM-821Shutter Camera

JHM-821 Method of use 1： Bluetooth Shutter The instructions *Smartphone software system upgrade may guide system timer is not compatible with connection equipment ON 1-2 is 822；ON 3 is 821； 2： Positive: 1, the camera button, 2, LED lamp; On the back: 1, the battery cover; 3： model ：JHM-821 Connection mode: bluetooth 3.0 Link frequency：2.4GHz~2.4835GHz distance ：10M Working voltage ：3.0V Working current ：0.8mA Sleep current ：1.6~2uA Battery capacity ：120mA Product size ：40*25*26.5mm， The service life of the battery：3~6months， N.W：11g Color ：black 、 4： Method of use Link A. open the wave switch, power light flashing blue regularly LED light into the code, Timer will automatically search condition, (shutdown method and way, boot) B. open the connection of the smart phone bluetooth switch/smart devices, bluetooth search C. to find a bluetooth device name "Shutter Camera", click the timer and the connection of intelligent equipment can be made After the connection is successful, bluetooth self-timer blue links will put out lights said success; Taking pictures In different systems of intelligent mobile phone/smart devices, using the timer will automatic identification system, just press the same photograph photo press buttons This product is compatible with Android 4.2.2 and iOS 6.0 above intelligent equipment system! FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Dongguan Jinhongmei Electronics Co., Ltd Address: 4~5/F., Block A, No.9 Hebeiling Road 2, Guanjintou Village, Fenggang Town, Dongguan City, G.D., China Tel: 0769-87861858 Fax: 0769-82832883 2015-09-21 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2AFYE-JHM-821 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : sunny.luo / General manager Contact information / address : 4~5/F., Block A, No.9 Hebeiling Road 2, Guanjintou Village, Fenggang Town, Dongguan City, G.D., China Tel: 0769-87861858 Fax: 0769-82832883

Dongguan Jinhongmei Electronics Co., Ltd 4~5/F., Block A, No.9 Hebeiling Road 2, Guanjintou Village, Fenggang Town, Dongguan City, G.D.,China Product Similarity Declaration FCC ID: 2AFYE-JHM-821 DATE: Sep 18, 2015 To Whom It May Concern, We , Dongguan Jinhongmei Electronics Co., Ltd, hereby declare that our product (Shutter Camera) Model Number: JHM-821, JHM-822 PCB board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. The Please contact me if you have any question. Sincerely yours, Dongguan Jinhongmei Electronics Co., Ltd sunny Luo /General Manager Fax: 0769-82832883 Tel: 0769-87861858 E-mail: [email protected]

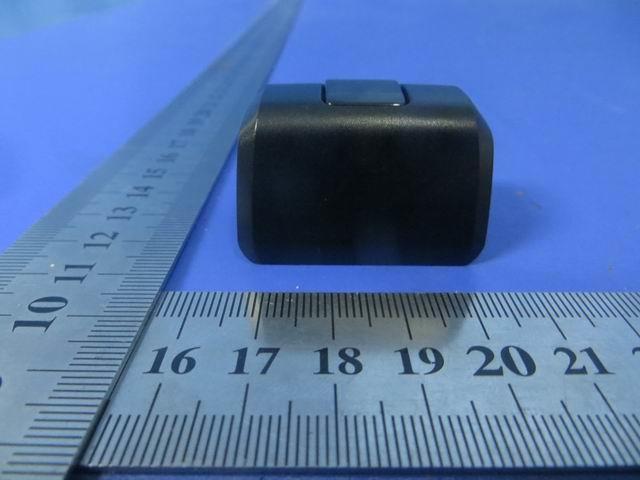

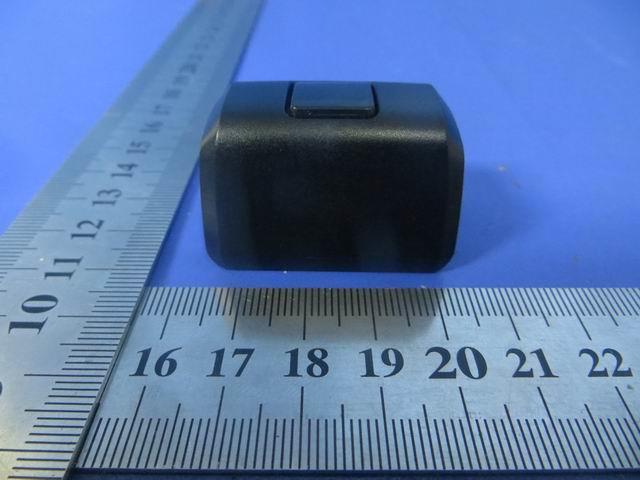

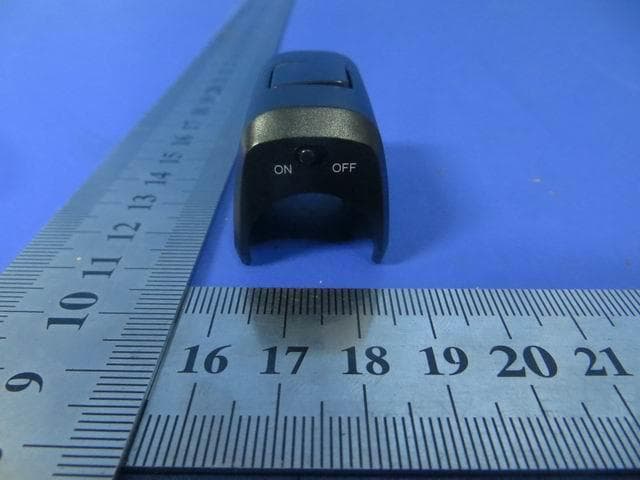

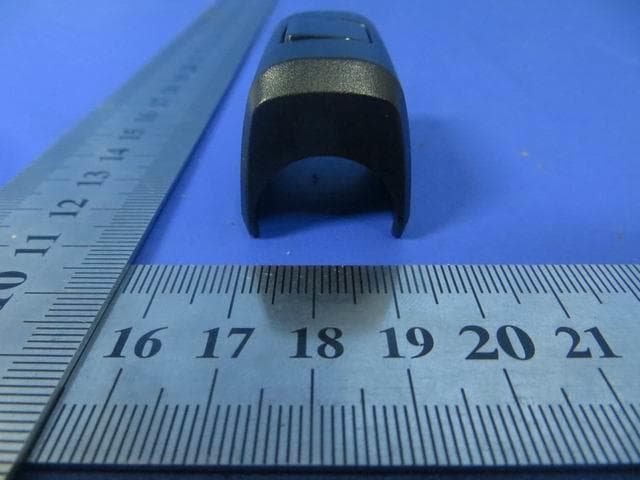

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFYE-JHM-821 Report No.: LCS1508271582E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFYE-JHM-821 Report No.: LCS1508271582E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFYE-JHM-821 Report No.: LCS1508271582E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFYE-JHM-821 Report No.: LCS1508271582E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AFYE-JHM-821 Report No.: LCS1508271582E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size:L:3.0cm*W:2.0cm Shutter Camera Model No.: JHM-821 FCC ID: 2AFYE-JHM-821 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFYE-JHM-821 Report No.: LCS1508271582E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFYE-JHM-821 Report No.: LCS1508271582E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AFYE-JHM-821 Report No.: LCS1508271582E ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 FCC RF Exposure Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Portable Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v05r02 FCC Part 2 §2.1093 Evaluation method According to KDB447498 D01 General RF Exposure Guidance v05r01Section 4.3.1 Standalone SAR test exclusion considerations:“ Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AFYE-JHM-821 Report No.: LCS1508271582E ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Conducted Power Results Bluetooth Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 00 2402 0.85 39 2441 0.37 78 2480 0.56 π/4-DQPSK 00 2402 -1.15 39 2441 -0.44 78 2480 -0.31 8-DPSK 00 2402 -1.25 39 2441 -0.67 78 2480 -1.85 Manufacturing tolerance Bluetooth GFSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 -1.0 Tolerance ±(dB) 2.0 2.0 2.0 8-DPSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.450 5 1.0 1.259 0.4<3.0 Yes π/4-DQPSK 2.450 5 0.0 1.000 0.3<3.0 Yes 8-DPSK 2.450 5 0.0 1.000 0.3<3.0 Yes Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v05r02. .......................END OF REPORT.........................

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AFYE-JHM-821 Report No.: LCS1508271582E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 46 FCC TEST REPORT FOR Dongguan Jinhongmei Electronics Co., Ltd Shutter Camera Model No.: JHM-821 Additional Model No.: Please refer to page 5. Prepared for : Dongguan Jinhongmei Electronics Co., Ltd Address : 4~5/F., Block A, No.9 Hebeiling Road 2, Guanjintou Village, Fenggang Town, Dongguan City, G.D., China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 27, 2015 Number of tested samples : 1 Serial number : Prototype Date of Test : August 27, 2015 – September 10, 2015 Date of Report : September 10, 2015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AFYE-JHM-821 Report No.: LCS1508271582E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 46 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2014 Report Reference No. ............... : LCS1508271582E Date of Issue ................................. : September 10, 2015 Testing Laboratory Name .......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Dongguan Jinhongmei Electronics Co., Ltd Address ......................................... : 4~5/F., Block A, No.9 Hebeiling Road 2, Guanjintou Village, Fenggang Town, Dongguan City, G.D., China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.247): 2014 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : Shutter Camera Trade Mark ................................... : OEM Model/ Type reference .................. : JHM-821 Ratings .......................................... : DC 3V by battery (160mAh) Result ......................................... : Positive Compiled by: Supervised by: Approved by: Kyle Yin/ File administrators Glin Lu/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AFYE-JHM-821 Report No.: LCS1508271582E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 46 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1508271582E September 10, 2015 Date of issue Type / Model........................... : JHM-821 EUT......................................... : Shutter Camera Applicant............................... : Dongguan Jinhongmei Electronics Co., Ltd Address.................................. : 4~5/F., Block A, No.9 Hebeiling Road 2, Guanjintou Village, Fenggang Town, Dongguan City, G.D., China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Dongguan Jinhongmei Electronics Co., Ltd Address................................... : 4~5/F., Block A, No.9 Hebeiling Road 2, Guanjintou Village, Fenggang Town, Dongguan City, G.D., China Telephone............................... : / Fax.......................................... : / Factory................................... : Dongguan Jinhongmei Electronics Co., Ltd Address................................... : 4~5/F., Block A, No.9 Hebeiling Road 2, Guanjintou Village, Fenggang Town, Dongguan City, G.D., China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AFYE-JHM-821 Report No.: LCS1508271582E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 46 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ......................................................................................................... 5 1.1 Description of Device (EUT) .................................................................................................................. 5 1.2 Support equipment List ............................................................................................................................ 5 1.3 External I/O Cable .................................................................................................................................... 5 1.4 Description of Test Facility ...................................................................................................................... 6 1.5 Statement of The Measurement Uncertainty ..............…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFYE-JHM-821 Report No.:LCS1508271582E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 TEST SETUP PHOTOGRAPHS 1.Photo of Radiated Measurement Below 1G Above 1G
