2AFZ6K5011WIRELESS LENS CONTROL SYSTEM

Version:
V1.00 April,
2015 Wireless
Lens
Control
System User Guide SCU-1 3 RECORD: STBY LIM: FS CAL MENU Features Components Setup Menu Contents User Guide Wireless
Lens
Control
System 1. Please read the instructions carefully before use. 2. Keep ngers away from the gear when the motor is working to avoid possible injury. 3. Keep the motor gear set against the lens gear and tighten the motor lock screw when mounting motors. 4. Re-calibrate the motor every time after changing lens and motor position to avoid possible damage to lens. 5. Hand control unit and receiver box must be set at the same channel to achieve wireless transmission. 6. Make sure the battery is fully-charged before updating software. Do not turn off the power or turn off the system during updating. 7. Operation Environment: Operation Temperature: -20-- 50°C, Humidity: 20% --90% RH (non-condensing) Caution: User Guide Wireless
Lens
Control
System 1. Silent motor, precision speed reduction mechanism 2. Modular design and zoom extension module 3. Wireless module with ISM 2.4M frequency range 4. Work with all most cameras' REC/STOP ‘button 5. 1.56"OLED screen, readable under sunlight 6. Software update via miniSD card 7. Lightweight and compact 8. Calibrating and setting limit on both ends of lens automatically 9. Two control modes: wireless control and cable control 10. Control of ENG lens 11. Compatible with Movcam auto follow focus system-- AcFocus 12. Ergonomical design, easy to operate A:Features Features User Guide Wireless
Lens
Control

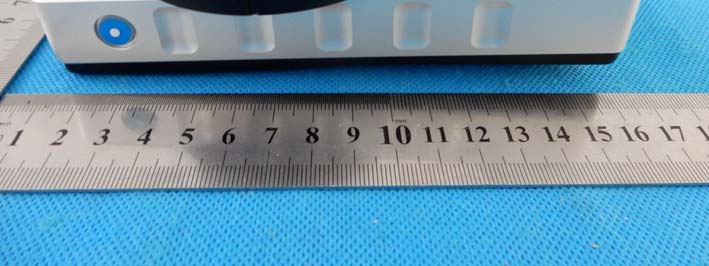

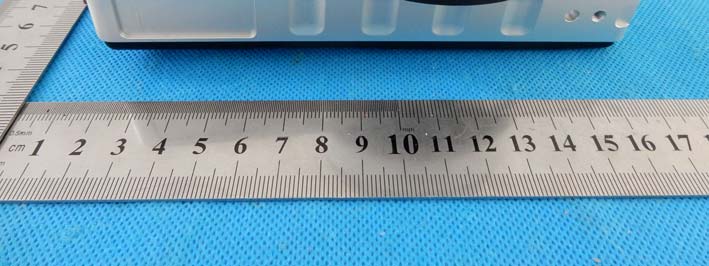

System Components 1. Single Axis Hand Control Unit SCU-1 Technical Data Wireless Module: Frequency: ISM2.4M Transmission delay: less than 12ms Indoor transmission distance: 30m Outdoor transmission distance: 200m Memory Card: miniSD card Battery: SONY NP-F570/F550 7.4V 2600mAh Power: 12v---24V Power Consumption: 150mA, 7.2V Screen: 1.54" OLED screen, Visible in sunlight Measurements: length:156mm Width:84mm Height:75.5mm Weight(without battery):435g SCU-1 3 RECORD: STBY LIM: CAL MENU B: Components User Guide Wireless
Lens
Control

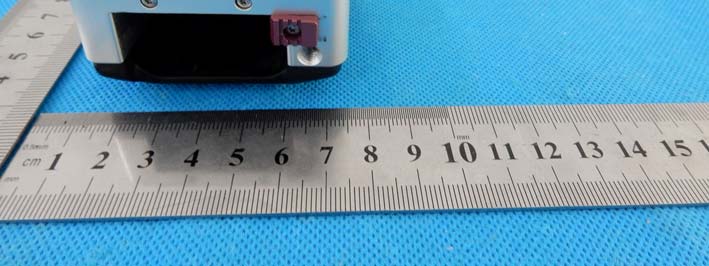

System 2. Receiver Box Module MRS-1 Cameras MRS-1 can control:: ARRI:ARIXA,AMIRA,ARIXA MINI, SONY:F5/F55，FS700，FS7， RED:EPIC,SCARLET, CANON:C500/C300/C100 BLACK MAGIC:BMCC,BMPCC, Wireless Module Transmission Delay: less than 12ms Indoor transmission distance: 30m Outdoor transmission distance: 200m Volt Range: 12V-24V Power supply: ＞2 A Screen: 0.48" OLED, Visible in sunlight Measurements Length:79mm Width:83mm Height:29.5mm Weight:175g User Guide Wireless
Lens
Control
System 3. UM-1 Motor Motor is very quiet. It uses precision speed reduction mechanism to ensure smooth operation. Press the button to change direction of motor. Press and hold for 3 seconds, the motor calibrates automatically. 4. ZOOM extension module ZSU-1 (Optional) It uses pressure sensor, which is extremely sensitive and ideal for precision control. 5. Extension Motor Drive Modules MD-I/ MD-Z (Optional) ere are 2 extension motor drive modules: MD-I and MD-Z, corresponding to IRIS and ZOOM of lens. When 2 modules are required, one must be MD-I and the other MD-Z. Two of the same module cannot be used together. 6. Accessories Motor cable: CRM-1 CAN cable: CAN-1 Power cable: PWD-1 Strap User Guide Wireless
Lens
Control
System 1 2 3 4 5 6 7 8 10 11 12 11 12 SCU-1 3 RECORD: STBY LIM: CAL MENU 1 2 3 4 6 6 7 8 9 5 10 9 9 Limit
Button Start
/
Stop Marking
Disc Hand
Knob OLED
Display
Screen Function
Buttons Battery
Cartridge Battery
Cartridge
Lock UP
/
Down
Button Power
Switch USB/miniSD
CARD MBUS User Guide Wireless
Lens
Control
System SETUP 1. First install motor to standard 15mm or 19mm rod. Make sure the motor gear is securely set against the lens gear. Tighten the motor lock screw. Make sure that motor gear is not positioned at the limit point of the lens gear. 2.Mount the wireless receiver box Secure the wireless receiver box properly and turn the antenna upward to enhance the wireless transmission. 3.Connect motor and wireless receiver via RCM-1; Plug PWD-1 to receiver box. 4.Turn on the receiver Press and hold ON/OFF button for 3 seconds Set the wireless module at the same channel as the control unit. C:SETUP SCU- 1 MD -Z MOT- Z MRS- 1 MOT- F MBUS MULTI CHANNEL a b b c User Guide Wireless
Lens
Control
System CAN cable: CAN-1 Motor cable: CRM-1 Power cable: PWD-1 abc 5. Install battery for hand control unit Insert fully-charged battery into battery cartridge 6.Turn on the Hand Control Unit Press and hold ON/OFF button for 3 seconds. 7.Set wireless module at the same channel as the receiver. 8. Motor Calibration Press and hold " CAL" button for 3 seconds, motor starts calibrating automatically. User Guide Wireless
Lens
Control
System Limit Set Limit button makes focus change easily between point A and point B. How to Set: Turn handwheel/ handknob to expected focus point A, press limit button to set. e screen display will show: LIM: FA. en, turn handwheel / handknob to expected focus point B, press limit button to set again. e screen will read : LIM: FAB. us limit set is completed and focus is set between Point A and Point B. How to Cancel Limit Set: Press the limit button, then limit set is cancelled. FSFAFAB User Guide Wireless
Lens
Control
System 1. Turn-on Press and hold ON/OFF button for 3 seconds to turn on the system and enter home menu, where intensity of the wireless module, frequency, battery capacity and camera status are all displayed. 2. Motor Calibrating Press and hold "CAL" button for 3 seconds to start automatic calibrating. D:Menu Menu User Guide Wireless
Lens
Control
System 3. Enter Menu Press "Menu" button to enter home page 4. Switch wireless module channel Select "RF Channel” Press "UP" or "DOWN" buttons to select a range of channels from 1 to 9. Turn on/ Turn off wireless module. Press "Mode" button to turn on or turn off wireless module. ON 2 BackMode RF
Channel Control Setup Motor Setup BackEnter User Guide Wireless
Lens
Control
System 5. Select “Control Setup”, Pres…
