2AFZBZU15ZUS

ZU15 1. General This specification defines the performance characteristic of an DC/DC Car charger. Car charger must comply with all the requirements of the specifications and drawing herein. . 2. Electrical Performance and Tests 2.1 Input Rated input voltage: Vdc 12V Frequency: N/A Current: 2500mAmax@ 12Vdc Standby power: < 0.1W Rating input load power: 27Wmax. Starting time: < 1S@ 12Vdc Io = 100% load 2.2 Output Voltage: 5.0V ± 5% Current: Smart 4.8A max. for Iusb1+ Iusb2. Ripple & noise: 120mVP-Pmax @ full load Note: 20MHz bandwidth ripple & noise is measured by using 0.1uF C.C . & 10uF E.C. bypassed at the output connector. 2.3 Short circuit protection No damage to this power supply when output shorted to ground. When the short-circuited is removed, the adapter shall promptly recover its normal operation. 3. Mechanical Tests and Requirements 3.1 Drop test Drop height: 1.0m above 50mm hardwood. Method: Total 6 times. Drop one time for each of the 6 case surfaces. Expected result: After drop test, the unit should still operate properly. Small nick or slight deformation may be accepted. 4. Environmental Conditions 4.1 Operating temperature 0°C ~ +40°C 4.2 Storage temperature -20°C ~ +60°C 4.3 Humidity 90% RH Non-condensing 5. Mechanical Drawing 5.1 Dimension: 83.71mm x 18.01mm 5.2 Drawing 5.2.1 Switch adapter unit: FCC Caution:Anychanges ormodifications not expressly approved bythe partyresponsible forcompliancecouldvoidthe user's authoritytooperate this equipment. This devicecomplieswithPart15 of theFCC Rules.Operationissubject tothefollowingtwo conditions:(1)This devicemaynotcause harmfulinterference,and(2)thisdevicemust accept anyinterferencereceived,includinginterference thatmaycauseundesiredoperation. NOTE:This equipment has been testedandfound to complywith thelimitsfor a ClassB digitaldevice,pursuant toPart15 of theFCC Rules. Theselimits are designedto providereasonable protectionagainstharmfulinterferencein a residentialinstallation.This equipment generates, uses and canradiateradiofrequency energyand,if notinstalledandusedin accordancewith theinstructions,maycause harmful interferencetoradiocommunications. However,thereis noguaranteethatinterferencewillnot occurin a particularinstallation. Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningthe equipment off and on, the useris encouraged to trytocorrect the interference byone ormore of the followingmeasures: FCC RF RadiationExposureStatement: This equipmentcomplieswithFCCradiationexposurelimitssetforthfor an uncontrolled environmentEndusersmustfollowthespecific operatinginstructionsforsatisfying RF exposurecompliance.This transmittermust not be collocatedor operatinginconjunctionwith anyother antenna or transmitter. The devicehas beenevaluatedtomeet general RF exposurerequirement.Thedevicecanbe usedinportableexposureconditionwithoutrestriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 No NDA Inc 2015/9/15 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, No NDA Inc hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description: ZUS model name: ZU15 FCC ID: 2AFZBZU15 Sincerely, Client’s signature Client’s name / title : Jia Li / Manager Contact information / address: 828 Bryant Street, Palo Alto,CA 94301,USA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526- 1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 No NDA Inc 2015/9/15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AFZBZU15 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Jia Li / Manager Contact information / address: 828 Bryant Street, Palo Alto,CA 94301,USA

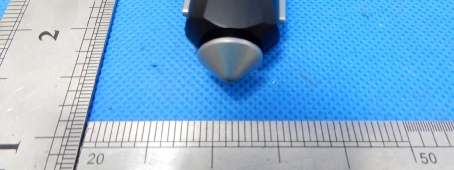

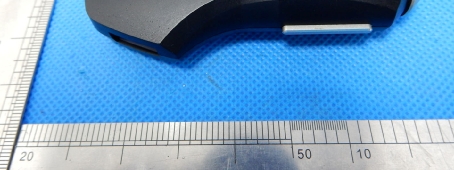

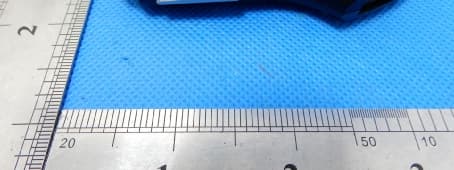

Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page1 of 4 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page2 of 4 Photo 3 Photo 4

Model: ZU15 FCC ID: 2AFZBZU15 No NDA Inc

Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page3 of 4 Photo 5 Photo 6 Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page4 of 4 Photo 7 Photo 8 BT ANT

Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15090261 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 1 of 30 FCC Part 15C Test Report FCC ID: 2AFZBZU15 Product Name: ZUS Trademark: N/A Model Name : ZU15 Prepared For : No NDA Inc Address : 828 Bryant Street, Palo Alto,CA 94301,USA Prepared By : Shenzhen BCTC Technology Co., Ltd. Address : No.101,Yousong Road,Longhua New District, Shenzhen,China Test Date: Sep. 10 – Sep. 17, 2015 Date of Report : Sep. 17, 2015 Report No.: BCTC-15090261 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15090261 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 2 of 30 VERIFICATION OF COMPLIANCE Applicant’s name ................. : No NDA Inc Address ................................. : 828 Bryant Street, Palo Alto,CA 94301,USA Manufacture's Name ............ : No NDA Inc Address ................................. : 828 Bryant Street, Palo Alto,CA 94301,USA Product description Product name ............................ : ZUS Trademark: N/A Model Name: ZU15 Test procedure FCC Part15.249 Standards ANSI C63.10-2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Test Result.............................................. : Pass Testing Engineer : (Eric Yang) Technical Manager : (Sophia Lee) Authorized Signatory : (Carson. Zhang) Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15090261 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 3 of 30 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 8 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 11 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 12 3.1.5 EUT OPERATING CONDITIONS 12 3.1.6 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 14 3.2.1 RADIATED EMISSION LIMITS 14 3.2.2 TEST PROCEDURE 15 3.2.3 DEVIATION FROM TEST STANDARD 15 3.2.4 TEST SETUP 16 3.2.5 EUT OPERATING CONDITIONS 17 3.2.6 TEST RESULTS 18 4 . BANDWIDTH TEST 22 4.1 APPLIED PROCEDURES / LIMIT 22 4.1.1 TEST PROCEDURE 22 4.1.2 DEVIATION FROM STANDARD 22 4.1.3 TEST SETUP 22 4.1.4 EUT OPERATION CONDITIONS 22 4.1.5 TEST RESULTS 23 5 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 26 5.1 DEVIATION FROM STANDARD 27 5.2 TEST SETUP 27 5.3 EUT OPERATION CONDITIONS 27 5.4 TEST RESULTS 27 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15090261 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 4 of 30 Table of Contents Page 6 . ANTENNA REQUIREMENT 28 6.1 STANDARD REQUIREMENT 28 6.2 EUT ANTENNA 28 7 . EUT TEST PHOTO 29 8 . EUT PHOTO 30 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15090261 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 5 of 30 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.249) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.249 Fundamental &Radiated Spurious Emission Measurement PASS 15.249 Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 TEST FACILITY Shenzhen BCTC Technology Co., Ltd. Add.:No.101,Yousong Road,Longhua New District, Shenzhen,China FCC Registration No.:187086 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15090261 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 6 of 30 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment ZUS Trade Name N/A Model Name ZU15 Serial Model N/A Model Difference N/A Product Description Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Bluetooth:: Bluetooth 4.0 Number Of Channel: 40 CH Antenna Designation: Please see Note 3. Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Power Supply DC12V Battery N/A Connecting I/O Port(s) Please refer to the User's Manual hardware version -- Software version -- Serial number -- Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 10 2422 20 2442 30 2462 01 2404 11 2424 21 2444 31 2464 02 2406 12 2426 22 2446 32 2466 03 2408 13 2428 23 2448 33 2468 04 2410 14 2430 24 2450 34 2470 05 2412 15 2432 25 2452 35 2472 06 2414 16 2434 26 2454 36 2474 07 2416 17 2436 27 2456 37 2476 08 2418 18 2438 28 2458 38 2478 09 2420 19 2440 29 2460 39 2480 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15090261 FCC Report Tel: 400-788-9558 0755-3301…

Text truncated - open the document above for the full version.

Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15090261 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 29 of 30 7. EUT TEST PHOTO Radiated Measurement Photos
