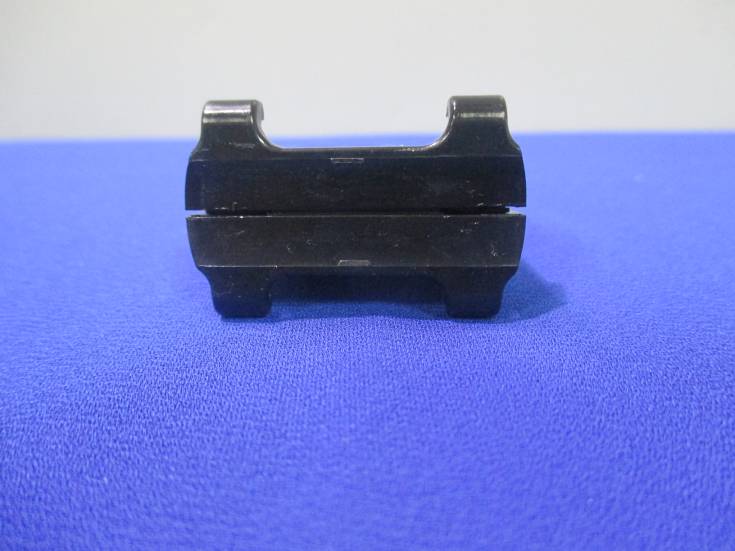

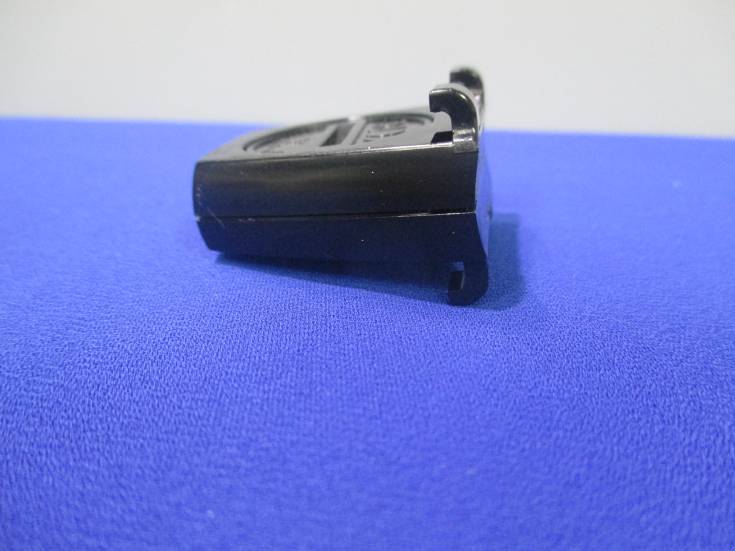

2AFZMSR-WS10sensor

USER MANUAL Raptor V1.0 2.4G Digital Wireless System Thank you for choosing Shanren products We focus on developing intelligent professional cycling equipment This manual includes instructions for the installation and use of the Shanren intelligent bicycle accessories as well as the warranty information. Please read this carefully and save it for future reference. If you do not understand the information in this manual or you have a question about our product that this manual does not cover, please contact us. Contents ·Safety and general guidelines ·Accessories List ·Installation ·Screen illustrations ·Initialization/Reset ·How to use ·Specifications ·Warranty Card General guidelines and warning ·Please read the safety instructions carefully and keep it for future reference. ·Be aware of all warnings and instruction signs marked on the products. ·In order to protect your eyes, do not look directly into any light. ·Keep out of the reach of children. ·Always keep the product away from moisture or getting wet. ·Take ample care to never drop the product. ·Always keep this product away from all kinds of heat sources. ·In order to avoid electric shock, do not use any kind of plug without it being earthed. ·Do not insert objects or pour liquid into this product through any apertures on bezels. ·Do not attempt to repair the product yourself or by any other unqualified person. ·Contact a dealer near you for service. ·Ware a helmet and reflective vest while riding. Always comply to local laws and regulations. ·As a precaution, always inform others of your intended whereabouts before setting out. 1 Accessories list 1. Main Unit(BLC) 2. Bracket 3. USB Wire 4. Speed Sensor 5. Magnet 6. Sensor Rubber Ring 7. Bracket Rubber Ring Main Unit Bracket Speed Sensor Magnet USB Wire Bracket Rubber RingSensor Rubber Ring 2 Installation Click! 1.Position the bracket to the handlebar on either side of the stem 2.Fit the bracket on handlebar with rubber ring 3.Aim the main unit toward the base 4.Slide the main unit into the bracket until it snaps up 3 5.Mount the wheel sensor on the fork blade 6.Remove the magnet and install on the spoke, facing the 'sensor' mark. 7.Adjust the magnet until it is 3-5mm from the sensor, then tighten it. 4 Screen illustrations Time and calorie symbols Speed and distance symbols Battery power indicator Charging indicator Bicycle light work mode indicator Speed and distance display Time and calorie display Hour K calorie Speed and distance unit 5 Initialization/Reset Press and hold the “MODE” and “SET” buttons for more than 2 seconds to enter the initial setting Tire size 700c x 38mm 700c x 35mm 700c x 32mm 700c x 30mm 700c x 28mm 700c x 25mm 700c x 23mm 700c x 20mm 700c Tubulari 650c x 23mm 650c x 20mm Wheel circumference(mm) 2180 2168 2155 2145 2136 2124 2105 2074 2130 1990 1945 Tire size 27”x 1-1/4” 27”x 1-1/8” 26”x 2.3” 26”x 2.25” 26”x 2.1” 26”x 2.0” 26”x 1.9”/1.95” 26”x 1.75” 26”x 1.5” 26”x 1.25” 26”x 1.0” 24”x 1.9”/1.95” 20”x 1-1/4” 16”x 2.0” 16”x 1.95” 16”x 1.5” Wheel circumference(mm) 2161 2155 2135 2115 2095 2074 2055 2035 1985 1953 1913 1916 1618 1253 1257 1206 ͧ2ͨSelect kilometers/miles: Press SET and select KM/H or MPH; press MODE to confirm. ͧ3ͨSet body weight: Press SET to set weight, press MODE to confirm. SelectConfirmSelectConfirm *Choose KM/H the body weight unit is KG, select MPH the body weight unit is LB. ͧ4ͨSet clock: Press SET to set the time, press MODE to confirm. SelectConfirm ͧ5ͨSearching for speed sensor: The sensor was synchronized with this unit before shipment, search the sensor ID only when a sensor is used or after sensor battery (CR2032) replacement. Press MODE button to complete setting, the main unit start to work. The screen will display ‘Pair’ when the main unit is waiting for the speed sensor signal. If it connects successfully, the screen will display ‘SUCC’and main unit will start performing its functions If the connection times out, the main unit will enter the working state. ConnectingConnected SelectConfirm ͧ1ͨSet wheel circumference: Press SET to preset values.There are 4 presets for each wheel setting, press MODE to confirm. 6 How to use Press and hold the ON/OFF button for more than 3 second to start. The screen flashes the following data when main unit is in motion: ͧ1ͨ [SPEED] Current speed is updated on every second ͧ2ͨ Five stages battery indicator. ͧ3ͨ Charging indicator͹ Indicates when charging status ͧ4ͨ Bike light work mode indicator. ͧ5ͨ [TIME] Clock time is displayed as ‘hh:mm:ss’ 24 hours format. * 1.When main unit display [TRIP], press SET button more than 2 seconds, trip riding time,trip distance and average speed data are cleared at the same time. 2.When main unit display [CAL]ͫpress SET button more than 2 seconds, calories data is cleared. 3.When main unit display [TRIP DISTANCE], press MODE button more than 2 seconds, trip distance data, trip riding time, average speed are cleared at the same time. 4.When main unit display [TOP SPEED]ͫpress MODE button more than 2 seconds, top speed data is cleared. Press SET button switch the measurement data Press MODE button switch the measurement data Press ON/OFF button switch the bicycle light mode 7 Clock Trip riding time Total riding time Calories Speed Top speed Average speed Trip distance Total distance High Low Off Battery status Charging status Main unit can be charged by 5V 1A power adapter or power bank. Bike light work mode $CVVGT[ECRCEKV[Ů  $CVVGT[ECRCEKV[Ů  $CVVGT[ECRCEKV[Ů  $CVVGT[ECRCEKV[Ů  $CVVGT[ECRCEKV[Ů $CVVGT[ECRCEKV[ Bike light work mode / battery / charging status High Low Power saving mode Main unit will go into power saving mode ,clock and battery status are displayed,which has not received any signal from sensor for 240 seconds. Press any key to restart. Power on/off Press ON/OFF button more than 3 seconds, main unit power off. If main unit power off, press ON/OFF button more than 3 seconds,main unit restart. +HDCVVGT[…

Text truncated - open the document above for the full version.

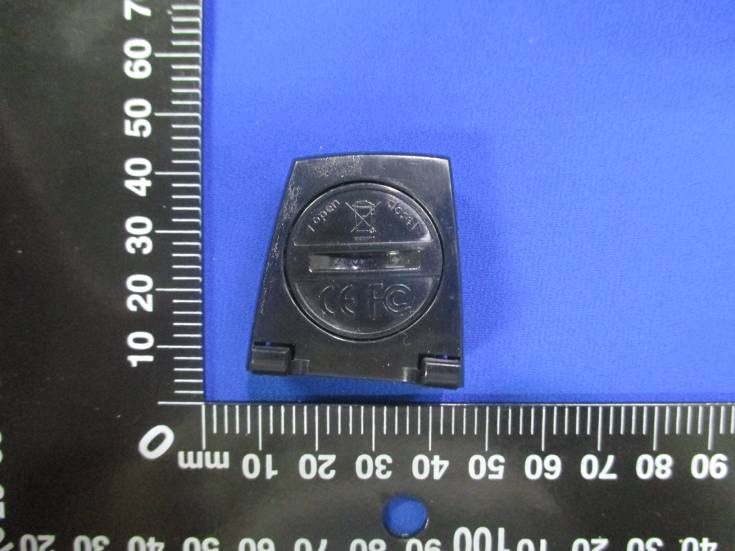

FCC ID Label Information 1. Label location: 2. FCC ID Label: FCC ID: 2AFZMSR-WS10 FCCID Label Location

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 94.01dBuV/m @3m Ant gain 0dBi; so Ant numeric gain=1 So pt={[10 (94.01/20) /10 6 x3] 2 /(30x1)}x1000mW = 0.76mW So (0.76mW/5mm)x √2.452GHz = 0.24<3 Then SAR evaluation is not required

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No.: CTL1504170881-WF02 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Tracy Qi (Manager) Product Name...............................: sensor Model/Type reference..................: SR-WS10 Trade Mark....................................: SHANREN FCC ID...........................................: 2AFZMSR-WS10 Applicant’s name.........................: SHENZHEN SHANREN TECHNOLOGY CO.,LTD Address of applicant...................: 7S, Baisha Technology Industrial Park, 3011 Shahe West Road, Nanshan District, Shenzhen, Guangdong, China Test Firm.......................................: Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm...................: Floor 1- A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification.........................: Standard........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator..........................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF..............................: Dated 2011-01 Date of Receipt.............................: Sept. 10, 2015 Date of Test Date..........................: Sept. 10, 2015 - Sept. 21, 2015 Data of Issue.................................: Sept. 21, 2015 Result............................................: Positive Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 25 Report No.: CTL1504170881-WF02 T E S T R E P O R T Test Report No. :CTL1504170881-WF02 Sept. 21, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : sensor Model /Type : SR-WS10 Applicant : SHENZHEN SHANREN TECHNOLOGY CO.,LTD Address : 7S, Baisha Technology Industrial Park, 3011 Shahe West Road, Nanshan District, Shenzhen, Guangdong, China Manufacturer : SHENZHEN SHANREN TECHNOLOGY CO.,LTD Address : 7S, Baisha Technology Industrial Park, 3011 Shahe West Road, Nanshan District, Shenzhen, Guangdong, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 25 Report No.: CTL1504170881-WF02 Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.Equipment Under Test 5 2.2.Description of the Equipment under Test (EUT) 5 2.3.EUT operation mode 6 2.4.EUT configuration 6 2.5.Related Submittal(s) / Grant (s) 6 2.6.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2. Transmitter Radiated Unwanted Emissions and Bandedge 12 4.3.Occupied Bandwidth Measurement 18 5. ANTENNA REQUIREMENT ....................................................... 20 6.TEST SETUP PHOTOS OF THE EUT .......................................... 21 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 22 V1.0 Page 4 of 25 Report No.: CTL1504170881-WF02 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.10-2013 ANSI C63.4-2014 V1.0 Page 5 of 25 Report No.: CTL1504170881-WF02 2. SUMMARY 2.1. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz ƽ 12 V DC o 24 V DC o Other (specified in blank below) 2.2. Description of the Equipment under Test (EUT) TheEUT (sensor) support Bluetooth function. Name of EUT sensor Model Number SR-WS10 Antenna Type Internal Operation frequency 2422MHz-2478MHz Modulation Type GFSK Channel List: Channel Frequency (MHz) Channel Frequency (MHz) 01 2422 17 2456 02 2431 18 2457 03 2432 19 2460 04 2435 20 2461 05 2436 21 2462 06 2438 22 2463 07 2440 23 2466 08 2441 24 2468 09 2442 25 2469 10 2443 26 2472 11 2444 27 2474 12 2446 28 2475 13 2447 29 2476 14 2452 30 2477 15 2454 31 2478 16 2455 For more details, refer to the user’s manual of the EUT. Serial number: Prototype 3.0VDC from internal battery Integral V1.0 Page 6 of 25 Report No.: CTL1504170881-WF02 2.3. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down position (X, Z axis). The following data show only with the worst case setup. The worst case of X axis was reported. Based on client request, all normal using modes of the normal function were tested but only the worst test data of the worst mode is reported by this report. Remark: The worst case mode is TM1(1Mbps) reported for unwanted emission and band edge test. 2.4. EUT confi…

Text truncated - open the document above for the full version.
