2AFZNCPU-C40Reader

Parts list 1- card reader ( 30cm cable) 2- back plate 3- wallboardscrew Recommend 1-10 -core screened cable (Wiegandsignal cable, shielded wire),22 24AWG 2- DC 12V power supply 3- Metal or plastic 86 junction box (Propose to place magnetic fabric with same size underneath of the reader if installing with a metal junction box) Installation schematic First floor is fixed on 86 junction box, as shown in Figure 1. Figure 1 Wiring In accordance with the card reader terminal definition, communication lines and junction box for the card reader connects communication lines. Connection definitions: Line colorDescription Red +12V Black GND Green Wieganddata 0 White Wieganddata 1 Yellow Buzzer entry Brown Green (GRN) LED input Purple Red (RED) LED input Blue Tamper output Orange Do not use Metal Shielding Install the reader to the back plate Put the reader onto the back plate and fasten the screws at the bottom, as shown in Figure 2. Figure 2 Power and test Connect the communication cable from the junction box to the controller, the reader will blink and tweet when the power is on. After startup is complete, LED lights will be kept on, and buzzer will have stopped. At this point, can put the IC card onto the front of the reader and test the swiped, as shown in Figure 3. FCC Caution. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526- 1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 HID CHINA LIMITED 2015-09-22 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, HID CHINA LIMITED hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description: Reader model name : CPU-C40 FCC ID: 2AFZNCPU-C40 Sincerely, Client’s signature: HID CHINA LIMITED Client’s name / title : Flaming / Engineer Contact information / address: Unit 1503, 15/F, East Tower, Chuangxin Science & Technology Plaza Phase II, Tian An Cyber Park, Fu Tian District,Shenzhen, P.R.C

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526- 1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 HID CHINA LIMITED 2015-09-22 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AFZNCPU-C40 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Flaming / Engineer Contact information / address: Unit 1503, 15/F, East Tower, Chuangxin Science & Technology Plaza Phase II, Tian An Cyber Park, Fu Tian District,Shenzhen, P.R.C

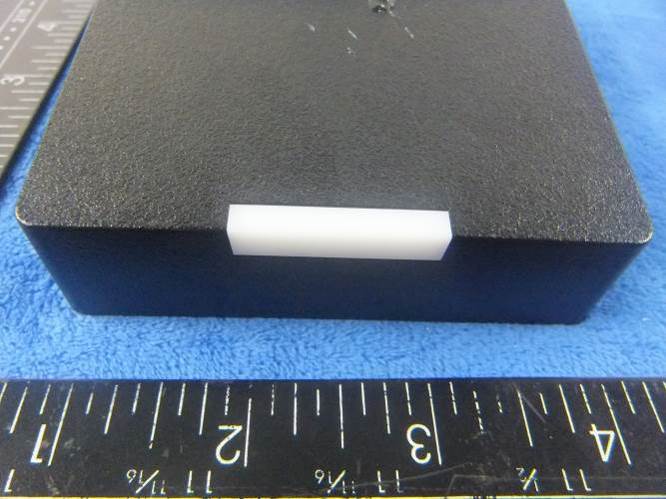

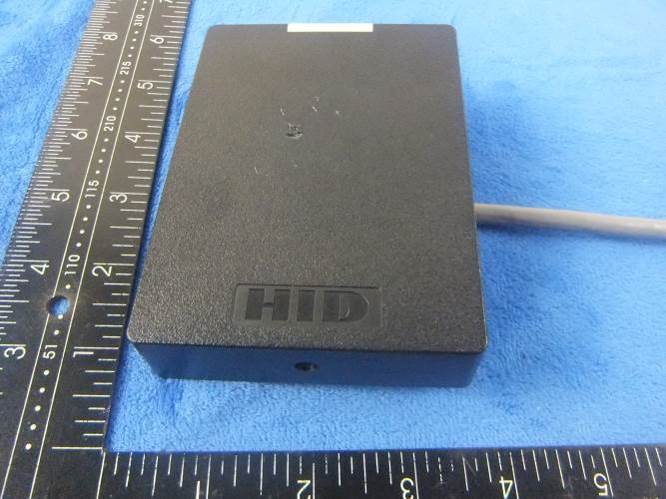

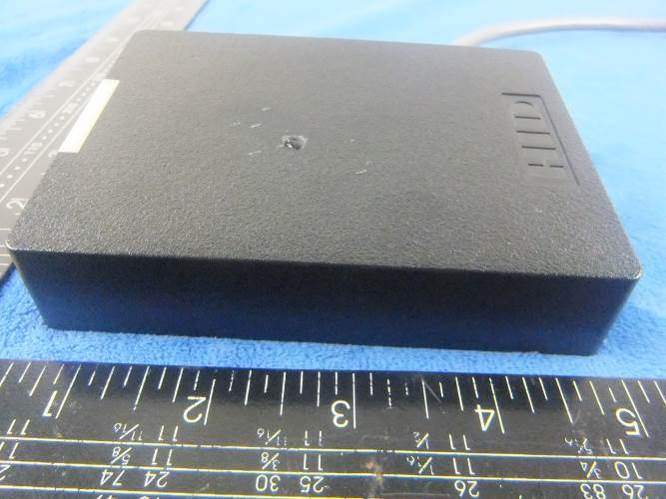

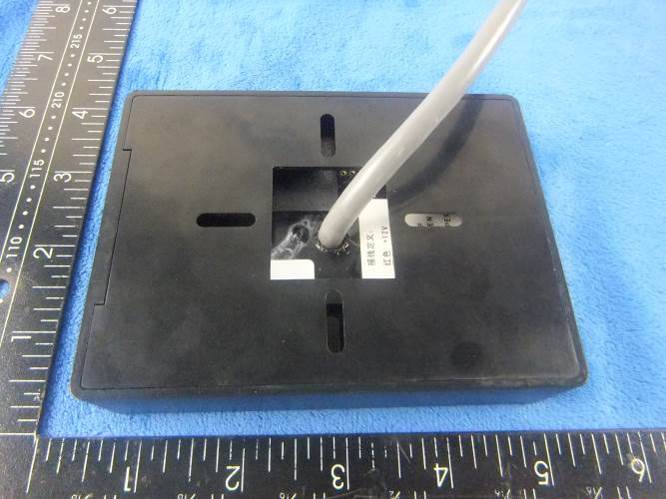

Test Report No. 15070525-FCC-R1 Page 27 of 35 Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph: EUT External Photo EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

Rated VoltageDC 12V Rated Current110mA ModelCPU-C40 HID China Limited 2515C401001 READER FCC ID 2AFZNCPU-C40

Test Report No. 15070525-FCC-R1 Page 28 of 35 Annex B.ii. Photograph: EUT Internal Photo EUT - Uncover Front View 1 EUT - Uncover Front View 2 Mainboard - Front View Mainboard - Rear View Antenna View

RF TEST REPORT Report No.: 15070525-FCC-R1 Supersede Report No.:N/A Applicant HID China Limited Product Name Reader Model No. CPU-C40 Serial No. N/A Test Standard FCC Part 15.225: 2014; ANSI C63.10: 2013 Test Date August 08 to September 24.2015 Issue Date October 13, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Winnie Zhang Test Engineer David Huang Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report No. 15070525-FCC-R1 Page 2 of 35 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report No. 15070525-FCC-R1 Page 3 of 35 This page has been left blank intentionally. Test Report No. 15070525-FCC-R1 Page 4 of 35 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 7 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 8 6.1 ANTENNA REQUIREMENT ..................................................................................................................................... 8 Test Report No. 15070525-FCC-R1 Page 5 of 35 1. Report Revision History Report No. Report Version Description Issue Date 15070525-FCC-R2 NONE Original August 31, 2015 15070525-FCC-R2 V1 Adding to Test Radiated Emission (30-1GHz) September 24, 2015 2. Customer information Applicant Name HID China Limited Applicant Add Unit 1503, 15/F, East Tower, Chuangxin Science & Technology Plaza Phase II, Tian An Cyber Park, Fu Tian District,Shenzhen, P.R.C. Manufacturer HID China Limited Manufacturer Add Unit 1503, 15/F, East Tower, Chuangxin Science & Technology Plaza Phase II, Tian An Cyber Park, Fu Tian District,Shenzhen, P.R.C. 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report No. 15070525-FCC-R1 Page 6 of 35 4. Equipment under Test (EUT) Information Description of EUT: Reader Main Model: CPU-C40 Serial Model: N/A Date EUT received: August 07, 2015 Test Date(s): August 08 to September 24.2015 Equipment Category： DXX Antenna Gain: 0dBi Type of Modulation: RFID: ASK RF Operating Frequency (ies): RFID: 13.56MHz Number of Channels: RFID: 1CH (ASK Input Power: 12V Trade Name : GPRS Multi-slot class N/A Port: Power& USB Port FCC ID: 2AFZNCPU-C40 Test Report No. 15070525-FCC-R1 Page 7 of 35 5. Test Summary The product was tested in accordance with the following specifications. All testing has been performed according to below product classification: FCC Rules Description of Test Result 15.203 Antenna Requirement Pass 15.215(c) 20 dB Bandwidth&99% Occupied Bandwidth Pass 15.225(a), 15.225(b), 15.225(c) Field Strength Measurement Pass 15.207(a) Conducted Emissions Pass 15.225(d),15.209 Radiated Emissions(Tx) Pass 15.225(e) Frequency Stability Pass Test Report No. 15070525-FCC-R1 Page 8 of 35 6. Measurements, Examination And Derived Results 6.1 Antenna Requirement Applicable Standard According to § 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the user of a standard antenna jack or electrical connector is prohibited. The structure and application of the EUT were analyzed to determine compliance with section §15.203 of the rules. §15.203 state that the subject device must meet the following criteria: a. Antenna must be permanently attached to the unit. b. Antenna must use a unique type of connector to attac…

Text truncated - open the document above for the full version.

Test Report No. 15070525-FCC-R1 Page 29 of 35 Annex B.iii. Photograph: Test Setup Photo Conducted Emissions Test Setup – Front View Conducted Emissions Test Setup – Side View Radiated Spurious Emissions Test Setup 1MHz- 30MHz Radiated Spurious Emissions Test Setup 30MHz- 1GHz
