2AFZT-L1Intelligent micro laser projection

Horizontal angle a = 42.5°Vertical angle b = 25.0° User's Manual Projection Angles options. FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 ILLUMINANCE(CANTON) Co.,LTD. 2015/09/21 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ___ ILLUMINANCE(CANTON) Co.,LTD. _hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： Intelligent micro laser projection Trade Name： LTV Model Name： L1 Serial Model： N/A FCC ID： 2AFZT-L1 Sincerely, Client’s name / title : Zou Ping / Manager Contact information / address : Room 17B, 17th floor, building A, central avenue, No.2002 BaoYuan Road,XiXiang, Bao'an disrict, Shenzhen, Guangdong, P. R. China.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 ILLUMINANCE(CANTON) Co.,LTD. 2015/09/21 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AFZT-L1 We hereby request confidential treatment of information accompanying this application as outlined below: - . Block Diagram - Schematics - Operational Description - FCC SW SECURITY DESCRIPTION in LTC list. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Zou Ping / Manager Contact information / address : Room 17B, 17th floor, building A, central avenue, No.2002 BaoYuan Road,XiXiang, Bao'an disrict, Shenzhen, Guangdong, P. R. China.

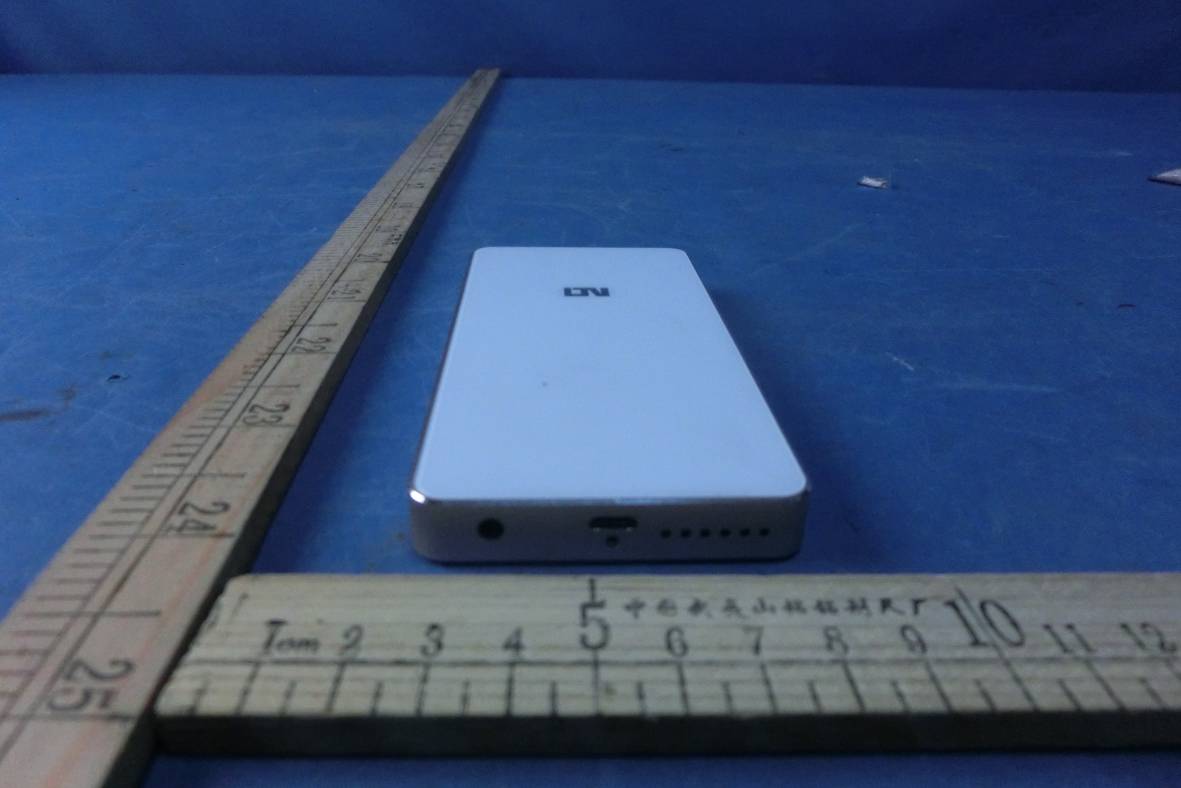

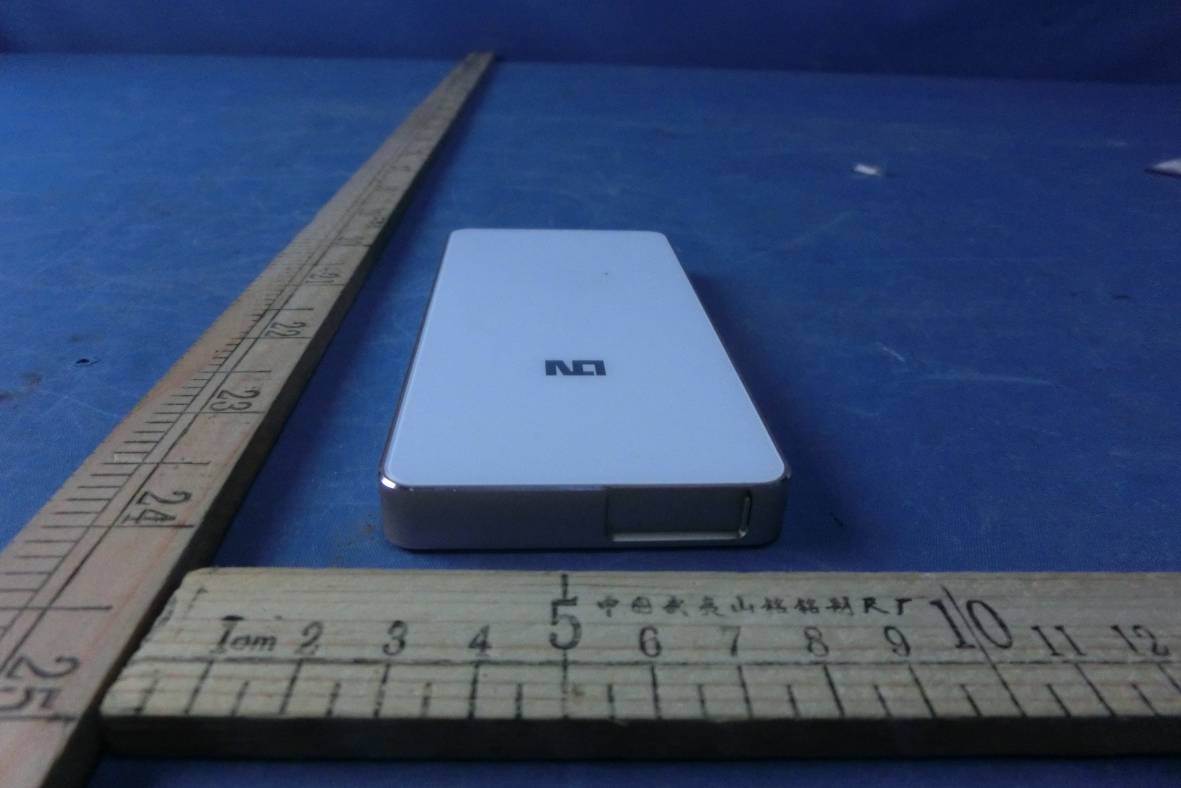

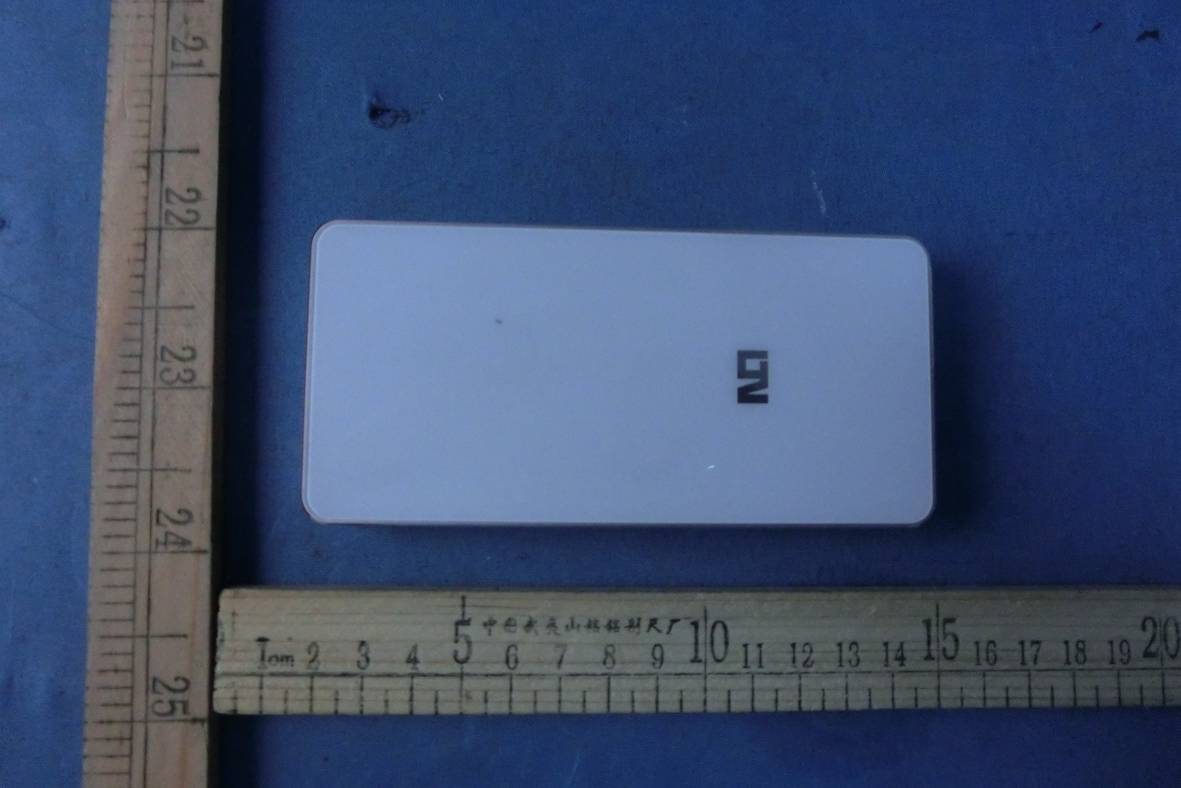

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 BT/WIFI Ant Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17

FCC ID: 2AFZT-L1 FCC §15.247 (i), §2.1091 – RF Exposure FCC ID:2AFZT-L1 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna TEST RESULTS FCC ID: 2AFZT-L1 WIFI: Test Channe Frequency Maximum output power. Antenna port Maximum output power (PK) (AV) (MHz) (dBm) (dBm) mW TX 802.11b Mode CH01 2412 16.54 13.25 21.135 CH06 2437 16.25 13.36 21.677 CH11 2462 16.33 13.29 21.330 TX 802.11g Mode CH01 2412 15.36 13.01 19.999 CH06 2437 15.28 13.05 20.184 CH11 2462 15.58 13.21 20.941 TX 802.11n/20M Mode CH01 2412 14.16 12.41 17.418 CH06 2437 14.24 12.36 17.219 CH11 2462 14.36 12.02 15.922 Test Channe Frequency Maximum output power. Antenna port Maximum output power (PK) (AV) (MHz) (dBm) (dBm) mW TX 802.11a Mode CH149 5745 9.76 7.02 5.035 CH157 5785 9.52 7.37 5.458 CH165 5825 9.67 7.24 5.297 TX 802.11 n20 Mode CH149 5745 9.31 6.42 4.385 CH157 5785 9.35 6.48 4.446 CH165 5825 9.16 6.22 4.188 Te s t Channe Frequency Maximum output power. Antenna port Maximum output power (PK) (AV) (MHz) (dBm) (dBm) mW TX 802.11a Mode CH36 518013.11 11.31 13.521 CH40 520013.02 11.12 12.942 CH48 524013.25 11.33 13.583 TX 802.11 n20M Mode CH36 518012.75 10.54 11.324 CH40 520012.97 10.02 10.046 CH48 524012.84 10.36 10.864 FCC ID: 2AFZT-L1 BT 1Mbps Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 -2.272 0.593 CH39 2441 -1.646 0.685 CH78 2480 -1.599 0.692 2Mbps CH00 2402 -2.540 0.557 CH39 2441 -1.898 0.646 CH78 2480 -1.805 0.660 3Mbps CH00 2402 -2.512 0.561 CH39 2441 -1.914 0.644 CH78 2480 -1.828 0.656 BLE Te s t Channe Frequency Maximum Conducted Output Power(PK) Maximum Conducted Output Power(PK) (MHz) (dBm) mW CH00 2402 7.25 5.309 CH19 2440 7.36 5.445 CH39 2480 7.12 5.152 Mode Range Maximum peak output power (dBm) Output power (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 802.11b 12~14 13 19.95 1(1.26) 0.0050 1 Pass 802.11g 12~14 12 15.85 1(1.26) 0.0040 1 Pass 802.11n-HT20 11~13 12 15.85 1(1.26) 0.0040 1 Pass 5.8G 802.11a 6~8 8 6.31 1(1.26) 0.0016 1 Pass 802.11n 20 5~7 7 5.01 1(1.26) 0.0013 1 Pass 5.2G 802.11a 10~12 12 15.85 1(1.26) 0.0040 1 Pass 802.11n 20 10~12 11 12.59 1(1.26) 0.0032 1 Pass BT -3~-1 -1 0.79 1(1.26) 0.0002 1 Pass BLE 6~8 8 6.31 1(1.26) 0.0016 1 Pass

FCC RADIO TEST REPORT FCC ID:2AFZT-L1 Product： Intelligent micro laser projection Trade Name： LTV Model Name： L1 Serial Model： N/A Report No.： NTEK-2015NT07162286F5 Prepared for ILLUMINANCE(CANTON) Co.,LTD. Room 17B, 17th floor, building A, central avenue, No.2002 BaoYuan Road, XiXiang, Bao'an disrict, Shenzhen, Guangdong, P. R. China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 55 Report No.: NTEK-2015NT07162286F5 TEST RESULT CERTIFICATION Applicant’s name ........ ILLUMINANCE(CANTON) Co.,LTD. Address ........................ Room 17B, 17th floor, building A, central avenue, No.2002 BaoYuan Road,XiXiang, Bao'an disrict, Shenzhen, Guangdong, P. R. China Manufacture's Name ... ILLUMINANCE(CANTON) Co.,LTD. Address ........................ Room 17B, 17th floor, building A, central avenue, No.2002 BaoYuan Road,XiXiang, Bao'an disrict, Shenzhen, Guangdong, P. R. China Product description Product name .................Intelligent micro laser projection Model and/or type reference ..................... L1 Serial Model .................... N/A Standards .................... FCC Part15.407 01 Oct. 2014 Test procedure ................ ANSI C63.10-2013 and KDB 789033 D01 v01r04 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ...................................... Date (s) of performance of tests ....... 16 Jul. 2015 ~01 Sep. 2015 Date of Issue ..................................... 01 Sep. 2015 Test Result ......................................... Pass Testing Engineer : (Allen Liu) Technical Manager : (Brown Lu) Authorized Signatory : (Sam Chen) Page 3 of 55 Report No.: NTEK-2015NT07162286F5 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 23 3.2.1 RADIATED EMISSION LIMITS 23 3.2.2 TEST PROCEDURE 24 3.2.3 DEVIATION FROM TEST STANDARD 24 3.2.4 TEST SETUP 25 3.2.5 EUT OPERATING CONDITIONS 26 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 27 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 28 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 30 4 . POWER SPECTRAL DENSITY TEST 31 4.1 APPLIED PROCEDURES / LIMIT 31 4.1.1 TEST PROCEDURE 31 4.1.2 DEVIATION FROM STANDARD 31 4.1.3 TEST SETUP 31 4.1.4 EUT OPERATION CONDITIONS 32 4.1.5 TEST RESULTS 33 5 . 26 DB & 99% EMISSION BANDWIDTH 37 5.1 APPLIED PROCEDURES 37 5.1.1 TEST PROCEDURE 37 Page 4 of 55 Report No.: NTEK-2015NT07162286F5 Table of Contents Page 5.1.2 EUT OPERATION CONDITIONS 37 5.1.3 TEST RESULTS 38 6 . PEAK OUTPUT POWER TEST 42 6.1 APPLIED PROCEDURES / LIMIT 42 6.1.1 TEST PROCEDURE 42 6.1.2 DEVIATION FROM STANDARD 42 6.1.3 TEST SETUP 42 6.1.4 EUT OPERATION CONDITIONS 42 6.1.5 TEST RESULTS 43 7 . OUT OF BAND EMISSIONS 44 7.1 DEVIATION FROM STANDARD 44 7.2 TEST SETUP 44 7.3 EUT OPERATION CONDITIONS 44 7.4 TEST RESULTS 45 8 . PEAK EXCURSION RATIO 48 8.1 APPLIED PROCEDURES / LIMIT 48 8.1.1 TEST PROCEDURE 48 8.1.2 DEVIATION FROM STANDARD 48 8.1.3 TEST SETUP 48 8.1.4 EUT OPERATION CONDITIONS 48 8.1.5 TEST RESULTS 49 9 . ANTENNA REQUIREMENT 53 9.1 STANDARD REQUIREMENT 53 9.2 EUT ANTENNA 53 10 . EUT TEST PHOTO 54 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 55 Report No.: NTEK-2015NT07162286F5 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark FCC §15.207 AC Power Line Conducted EmissionsPASS FCC §15.209(a), 15.407(b) Spurious Radiated Emissions PASS FCC §15.407(a) 26 dB and 99% Emission Bandwidth PASS FCC §407(a)(1) Peak Output Power Measurement PASS FCC §2.1051, §15.407(b) Band Edges PASS FCC §15.407(a)(1) Power Spectral Density PASS FCC §15.407(a)(6) Peak Excursion Ratio PASS FCC §2.1051, §15.407(b) Spurious Emissions at Antenna Terminals PASS FCC §15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 55 Report No.: NTEK-2015NT07162286F5 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 55 Report No.: NTEK-2015NT07162286F5 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Intelligent micro laser projection Trade Name LTV Model Name L1 Serial Model N/A Model Difference N/A Product Description Operation Frequency: 802.11a/n(20):5180 MHz ~ 5240 MHz Modulation Type: O…

Text truncated - open the document above for the full version.

Page 72 of 73 Report No.:NTEK-2015NT07162286F2 11. EUT TEST PHOTO Radiated Measurement Photos Page 73 of 73 Report No.:NTEK-2015NT07162286F2 CONDUCTED EMISSION Photos
