2AFZZ1212UG

Xiaomi Communications Co., Ltd.

Mobile Phone

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Aug 14, 2022
Application Purpose: Original Equipment
Date of Application: Jul 14, 2022
Equipment Note: Mobile Phone
Frequency Range: 3470.01000000 - 3529.98000000
Company: Xiaomi Communications Co., Ltd.
Country: China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

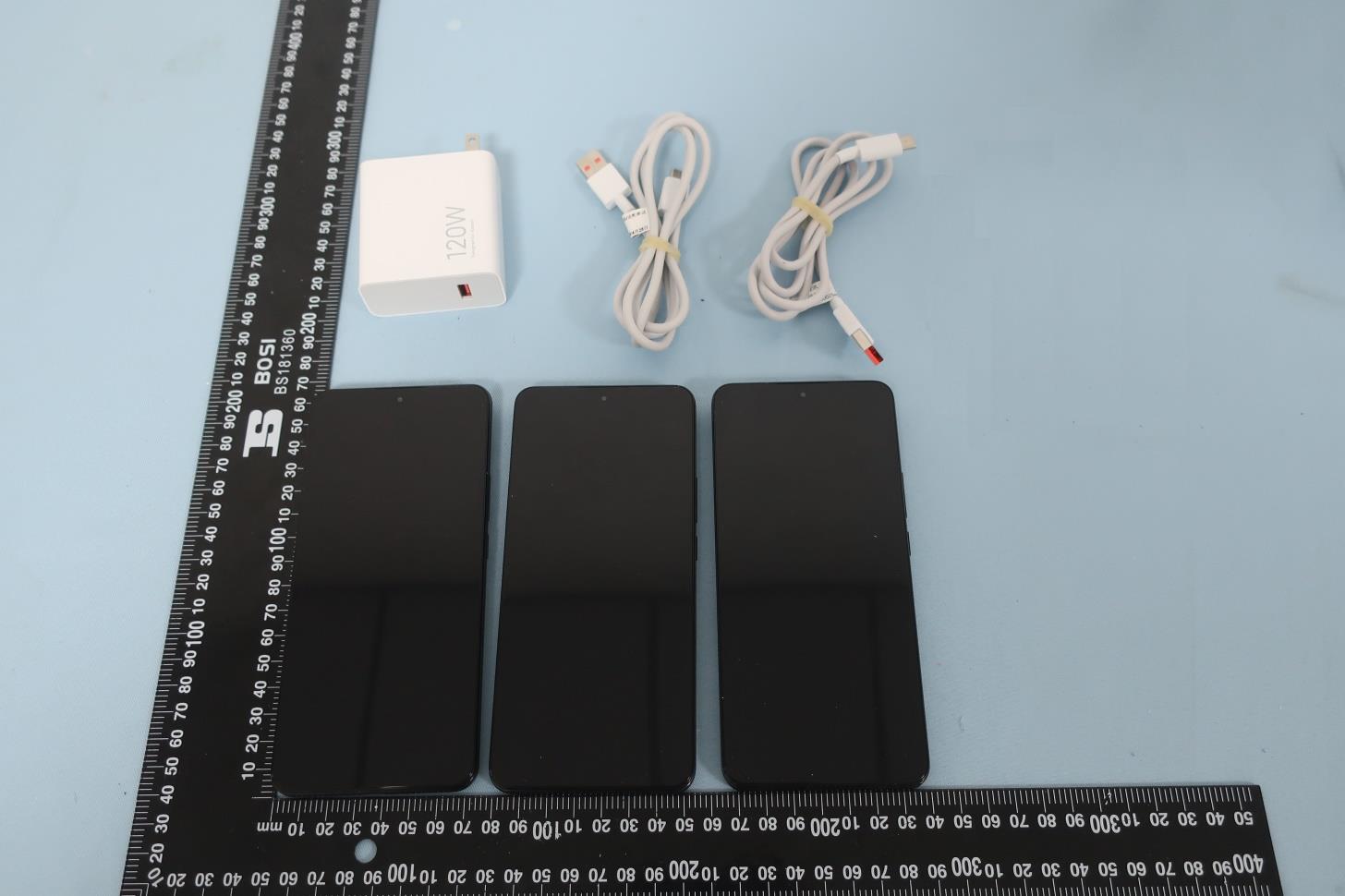

External Photos

ID Label/Location Info

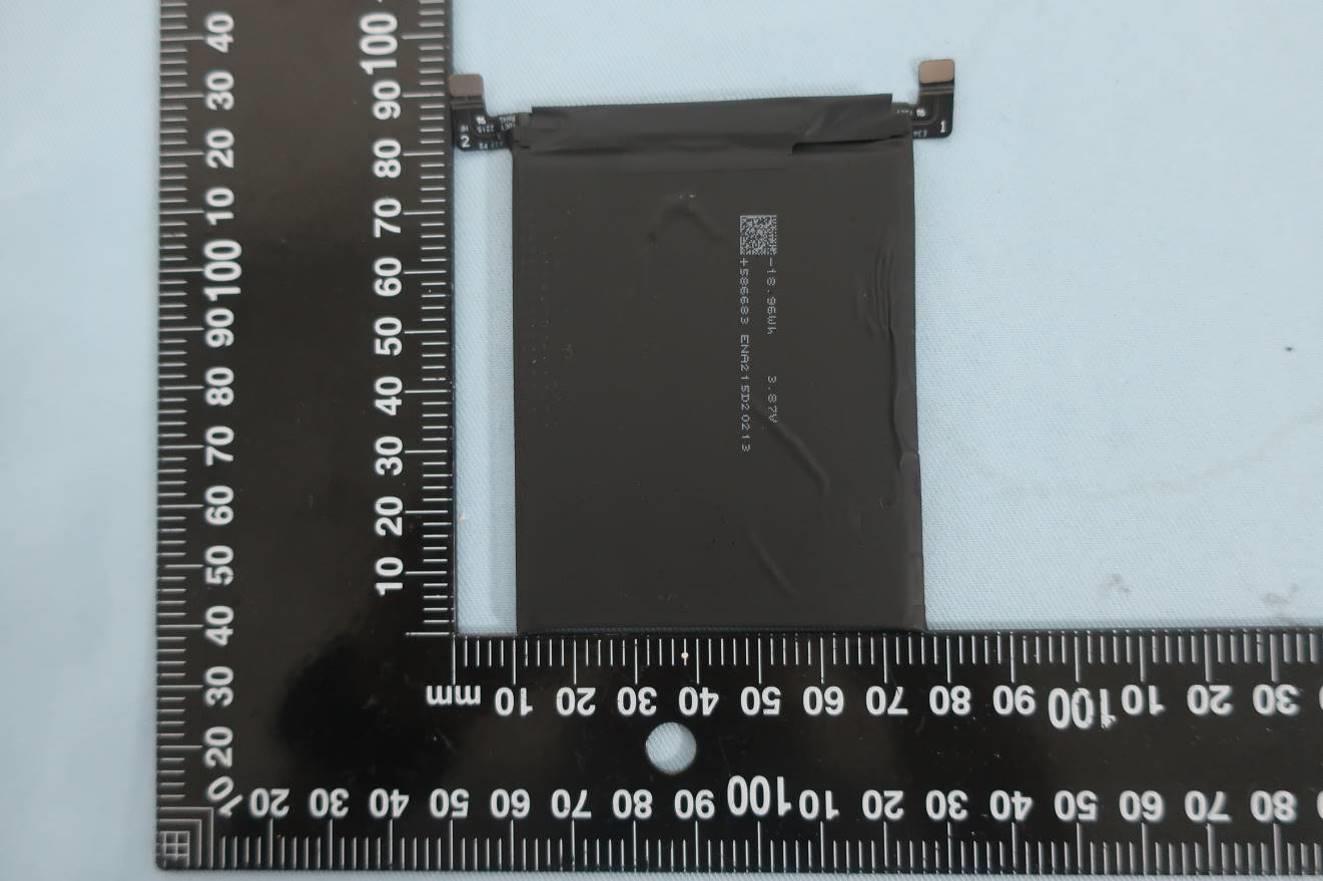

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
64	27	3.47 GHz - 3.53 GHz	147.60 mW	37M9W7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output Power is EIRP and ERP for above and below 1 GHz, respectively, except for Part 90 LTE Band 26 emissions, which are conducted. SAR compliance for body-worn operating configurations is limited to belt-clips and holsters that have no metallic components in the assembly and cause the device to operate with the minimum separation distance of 1.5 cm, as described in this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), simultaneous transmission and product specific (10g SAR) exposure conditions are 1.08 W/kg, 1.07 W/kg, 1.09 W/kg, 1.54 W/kg and 2.58 W/kg, respectively. This device supports LTE of 1.4, 3, 5, 10, 15 and 20 MHz bandwidth modes for FDD LTE Bands 2, 4, 25 and 66; LTE of 5, 10, 15 and 20 MHz bandwidth modes for FDD LTE Band 7; LTE of 1.4, 3, 5 and 10 MHz bandwidth modes for FDD LTE Bands 5 and 12; LTE of 5 and 10 MHz bandwidth modes for FDD LTE Bands 13 and 17; LTE of 1.4, 3, 5, 10 and 15 MHz bandwidth modes for FDD LTE Band 26; and LTE of 5, 10, 15 and 20 MHz bandwidth modes for TDD LTE Bands 38, 41 and 42. Certification of LTE band 42 operations is limited to the 3.45 GHz segment under Part 27.5(o). This device also supports LTE uplink carrier aggregation as described in this filing. This device also supports Frequency Range 1 5G NR modes of 5, 10, 15, and 20 MHz bandwidth for FDD Band n5; 5, 10, 15, 20, 30 and 40 MHz bandwidth for FDD Band n66; 5, 10, 15, 20, 25, 30 and 40 MHz bandwidth modes for FDD Band n7; 10, 15, 20, 30 and 40 MHz bandwidth modes for TDD Band n38; 20, 30, 40, 50, 60, 70, 80, 90 and 100 MHz bandwidth modes for TDD Band n41; and 10, 15, 20, 30, 40, 50, 60, 70, 80, 90 and 100 MHz bandwidth modes for TDD Bands n77 and n78. Certification of 3GPP 5G NR band n77/n78 operations is limited to the 3.45 GHz segment under Part 27.5(o) and the 3.7 GHz segment under Part 27.5(m). Stand Alone and Non-Stand Alone Frequency Range 1 5G NR ENDC modes are supported by this device, as described in this filing. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for U.S. operations.
