2AFZZ1317GMobile Phone with GSM, WCDMA, LTE, 5GNR, Bluetooth, WiFi and NFC

Redmi Note 12 5G Quick Start Guide SAT. 16 AUG. 02 48 Volume Buttons Power Button USB Type-C Port Nano-SIM Nano-SIM Nano-SIM Micro SD Thank you for choosing Redmi Note 12 5G Long press the power button to turn on the device. Follow the on-screen instructions to configure the device. For more information, visit our official website: www.mi.com/global/service/userguide MIUI Redmi Note 12 5G comes pre-installed with MIUI, our customized Android-based OS which provides frequent updates and user-friendly features based on suggestions from over 200 million active users worldwide. For more information, please visit en.miui.com About SIM: Please do not insert non-standard SIM cards into the SIM card slot. They may damage the SIM card slot. WARNING: Do not disassemble this device. WEEE Special precautions must be taken to safely dispose of this product. This marking indicates that this product may not be discarded with other household waste in the EU. To prevent harm to the environment or human health from inappropriate waste disposal, and to promote sustainable reuse of material resources, please recycle responsibly. To safely recycle your device, please use return and collection systems or contact the retailer where the device was originally purchased. To view our Environmental Declaration, please refer to the following link: www.mi.com/en/about/environment CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS. To prevent possible hearing damage, do not listen at high volume levels for long periods. Additional safety information and precautions can be accessed at the following link: www.mi.com/en/certification Important Safety Information Read all safety information below before using your device: • Use of unauthorized cables, power adapters, or batteries can cause fire explosion, electric shock, pose other risks, or damage the device. • This device’s operating temperature range is 0°C to 40°C. Using this device in an environment outside of this temperature range may damage the device. • If your device is provided with a built-in battery, to avoid damaging the battery or the device, do not attempt to replace the battery yourself. • Charge this device only with the included or authorized cable and power adapter. Use only authorized accessories which are compatible with your device. • After charging is complete, disconnect the adapter from both the device and the power outlet. Do not charge the device for more than 12 hours. • The battery must be recycled or disposed of separately from household waste. Mishandling the battery may cause fire or explosion. Dispose of or recycle the device, its battery, and accessories according to your local regulations. • Do not disassemble, hit, crush, or burn the battery. If the battery appears deformed or damaged, stop using it immediately. -Do not short circuit the battery, as this may cause overheating, burns, or other injury. -Do not place the battery in a high-temperature environment. -Overheating may cause explosion. -Do not disassemble, hit, or crush the battery, as this may cause the battery to leak, overheat, or explode. -Do not burn the battery, as this may cause fire or explosion. • User shall not remove or alter the battery. Removal or repair of the battery shall only be done by an authorized repair center of the manufacturer. • Keep your device dry. • Do not try to repair the device yourself. If any part of the device does not work properly, contact Mi customer support or bring your device to an authorized repair center. • Connect other devices according to their instruction manuals. Do not connect incompatible devices to this device. • For AC/DC adapters, the socket-outlet shall be installed near the equipment and shall be easily accessible. Safety Precautions • Observe all applicable laws and rules restricting use of mobile phones in specific situations and environments. • Do not use your phone at petrol stations or in any explosive atmosphere or potentially explosive environment, including fueling areas, below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air may contain chemicals or particles such as grain, dust, or metal powders. Obey all posted signs to turn off wireless devices such as your phone or other radio equipment. Turn off your mobile phone or wireless device when in a blasting area or in areas requiring “two-way radios” or “electronic devices” to be turned off to prevent potential hazards. • Do not use your phone in hospital operating rooms, emergency rooms, or intensive care units. Always comply with all rules and regulations of hospitals and health centers. If you have a medical device, please consult your doctor and the device manufacturer to determine whether your phone may interfere with the device’s operation. To avoid potential interference with a pacemaker, always maintain a minimum distance of 15 cm between your mobile phone and the pacemaker. This can be done by using your phone on the ear opposite to your pacemaker and not carrying your phone in a breast pocket. To avoid interference with medical equipment, do not use your phone near hearing aids, cochlear implants, or other similar devices. • Observe all aircraft safety regulations and turn off your phone on board aircraft when required. • When driving a vehicle, use your phone in accordance with relevant traffic laws and regulations. • To avoid being struck by lightning, do not use your phone outdoors during thunderstorms. • Do not use your phone to make calls while it is charging. • Do not use your phone in places with high humidity, such as bathrooms. Doing so may result in electric shock, injury, fire, and charger damage Security Statement Please update your phone’s operating system using the built-in software update feature, or visit any of our authorized service outlets. Updating software through other means may damage the device or result in data loss, securit…

Text truncated - open the document above for the full version.

Redmi Note 12 5G Safety Information Contents English 01 Français 03 Italiano 05 Español 07 Deutsch 09 Nederlands 11 Português (Portugal) 13 Polski 15 Ελληνικά 17 Magyar 19 Česky 21 Română 23 Українська 25 Srpski 27 EN EU Regulations RED Declaration of Conformity Xiaomi Communications Co., Ltd. hereby declares that this GSM / GPRS / EDGE / UMTS / LTE / 5G NR Digital Mobile Phone with Bluetooth and Wi-Fi 22111317G is in compliance with the essential requirements and other relevant provisions of the RE Directive 2014/53/ EU. The full text of the EU declaration of conformity is available at the following internet address: www.mi.com/en/certification RF Exposure Information (SAR) This device is in compliance with Specific Absorption Rate (SAR) limits for general population/uncontrolled exposure (Localized 10-gram SAR for head and trunk, limit: 2.0W/ kg) specified in Council Recommendation 1999/519/EC, ICNIRP Guidelines, and RED (Directive 2014/53/EU). During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands and placed in positions that simulate RF exposure during use against the head with no separation and near the body with a separation of 5 mm. SAR compliance for body operation is based on a separation distance of 5 mm between the unit and the human body. This device should be carried at least 5 mm away from the body to ensure RF exposure level is compliant or lower than the reported level. When attaching the device near the body, a belt clip or holster should be used which does not contain metallic components and allows a separation of at least 5 mm to be maintained between the device and the body. RF exposure compliance was not tested or certified with any accessory containing metal worn on the body, and use of such an accessory should be avoided. Certification Information (Highest SAR) SAR 10 g limit: 2.0 W/Kg, SAR Value: Head: 0.680 W/Kg, Body: 0 . 9 1 1 W/Kg (5 mm distance). Frequency Bands and Power This mobile phone offers the following frequency bands in EU areas only and maximum radio-frequency power: GSM 900: 35.5 dBm GSM 1800: 32.5 dBm WCDMA band 1/8: 25.7 dBm LTE band 1/3/7/8/20/28/38/40/41: 25.7 dBm 5G NR band n1/n3/n7/n8/n20/n28/n38/n40/n41: 26 dBm , 5G NR band n77/ n78: 29 dBm Bluetooth: 20 dBm Wi-Fi 2.4 GHz band: 20 dBm Wi-Fi 5 GHz: 5150 to 5250MHz: 23 dBm, 5250 to 5350 MHz: 20 dBm, 5470 to 5725 MHz: 20 dBm, 5725 to 5850 MHz: 14 dBm NFC: 13.56 MHz < 42 dBuA/m at 10m 5G connection depends on country, carrier, and user environment. FCC Regulations This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy. The exposure standard for wireless devices employs a unit of measurement known as Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. For body-worn operation, this device has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and positions the device a minimum of 1.5 cm from the body. RF exposure compliance with any body-worn accessory that contains metal was not tested and certified, and use of such body-worn accessory should be 01 avoided. Any accessory used with this device for body-worn operation must keep the device a minimum of 1.5 cm away from the body. FCC Note Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. E-label This device has an electronic label for certification information. To access it, please go to Settings > About phone > Certification, or open Settings and type “Certification” into the search bar. Instructions for Factory reset Path: Settings > About phone > Factory reset You can quickly erase the local data on the device via “”Factory reset””. Data to be erased includes: Accounts, Contacts, Photos and videos, Apps, Backups, SD card data and Other items on this device. Model: 22111317G 2211 indicates that this product will be launched after 202211. 02

XiaomiCommunicationsCo.,Ltd. #019,9thFloor,Building6,33Xi'erqiMiddleRoad,Haidian District,Beijing,China100085 Tel:01060606666 Date:November2,2022 We,XiaomiCommunicationsCo.,Ltd.,declarethatthisEUT (FCCID:2AFZZ1317G)doesn'thaveAdHocModefunctionon"non-US/Canada frequencies".Inaddition,thefrequencyselectionfeatureisdisabledbyfirmwarefor devicesmarketedtotheUS/Canada.ForDTSpartofthisdevice,onlychannels1~11 willbeusedinNorthAmerica.Countrycodeselectionisdisabled. Shouldyouhaveanyquestionsorcommentsregardingthismatter,pleasehavemy bestattention. Sincerelyyours, ____ ContactPerson:Zengqingyao E-mail:[email protected]

Rev.1/1/03 XiaomiCommunicationsCo.,Ltd. #019,9thFloor,Building6,33Xi'erqiMiddleRoad,HaidianDistrict,Beijing,China100085 Tel:01060606666 Date:November2,2022 FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2AFZZ1317G, PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: Schematics BlockDiagram PartsList OperationDescription TuneupProcedure Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthisapplication andallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrantforthis application. Sincerely ________________________ ContactPerson:Zengqingyao E-mail:[email protected] Rev.1/1/03

XiaomiCommunicationsCo.,Ltd. #019,9thFloor,Building6,33Xi'erqiMiddleRoad,HaidianDistrict,Beijing,China100085 Tel:01060606666 Date:November2,2022 PowerofAttorney Towhomitmayconcern, PleasebenotifiedthatI,qingyaozeng,havedesignatedSamuelPenginShenzhenBalun TechnologyCo.,Ltd.asthepersonbeingresponsibleforthisprojectandtosigntheform731and otherdocumentation. AnyandallactscarriedoutbySamuelPenginShenzhenBalunTechnologyCo.,Ltd.onthe mattersofrelatingtoallprocessesrequiredintheFCCapprovalandanycommunicationneeded withthenationalauthority,shallhavethesamelegalauthorityasactsonourownbehalf. Wefurthercertifiesthatneithertheapplicantnoranypartytothisapplication,asdefinedin47CFR Ch.1.2002(b),issubjecttoadenialtoFederalbenefits,thatincludeFCCbenefits,pursuantto section5301oftheAnti-DrugAbuseActof1998,21U.S.C862. Thisauthorizationislimitedtotheproductofasfollowing: FCCID:2AFZZ1317G Ifyouhaveanyacknowledgementandresponse,pleasesendittoShenzhenBalunTechnologyCo., Ltd.directly. Shouldyouhaveanyquestionsorcommentsregardingthismatter,pleasehavemybestattention. Sincerelyyours, ____ ContactPerson:Zengqingyao E-mail:[email protected]

1/1 XiaomiCommunicationsCo.,Ltd. #019,9thFloor,Building6,33Xi'erqiMiddleRoad,HaidianDistrict,Beijing,China100085 Tel:01060606666 Date:November2,2022 FederalCommunicationsCommission AuthorizationandEvaluationDivision RE:CertificationApplication FCCID:2AFZZ1317G ToWhomItMayConcern, Pursuanttosections0.457and0.459ofCFR47,PublicNoticeDA04-1705oftheCommission’s policyandtoavoidprematurereleaseofsensitiveinformationpriortomarketingorreleaseofthe producttothepublic,theapplicantrequeststhefollowingdocumentscontainedinthiscertification applicationbetemporarilywithheldfrompublicdisclosureforaninitialperiodof180days: ExternalPhotos InternalPhotos Testset-upphotos UsersManual Theapplicationcontainstechnicalinformation,whichXiaomiCommunicationsCo.,Ltd.deems tobetradesecretsandproprietary.Ifmadepublic,theinformationmightbeusedtothe disadvantageoftheapplicantinthemarketplace. TheApplicantunderstandsthatpursuanttoRule0.457,disclosureofthisApplicationandall accompanyingdocumentationwillnotbemadebeforethedateoftheGrantforthisapplication Sincerely, ____ ContactPerson:Zengqingyao E-mail:[email protected]

XiaomiCommunicationsCo.,Ltd. #019,9thFloor,Building6,33Xi'erqiMiddleRoad,Haidian District,Beijing,China100085 Tel:01060606666 Statement We,XiaomiCommunicationsCo.,Ltd.,statesthatourdevice: FCCID: 2AFZZ1317G ThehardwaresupportsLTEband40butitwillbedisabledbysoftwareandarenot availableinUSmarket. Zengqingyao [email protected]

XiaomiCommunicationsCo.,Ltd. UNIIDeclarationLetter WehavedeclaredbelowfeaturedforFCCequipmentauthorization,deviceFCCID:2AFZZ1317G, (1)DFSDevice--Master,ClientwithRadardetectioncapability, Clientwithoutradardetectioncapability,N/A (2)Active/PassiveScanning,adhocmodeaccesspointcapability FrequencyBand (MHz) ActiveScanning (thedevicecan transmitaprobe (beacon)) passivescanning (wherethedevice is canlistenonly withno probes) AdHocMode capability Accesspoint capability 2412–2462MHzYes,NoYes,NoYes,NoYes,No 5150–5250MHzYes,NoYes,NoYes,NoYes,No 5250–5350MHzYes,NoYes,NoYes,NoYes,No 5470–5725MHzYes,NoYes,NoYes,NoYes,No 5725–5850MHzYes,NoYes,NoYes,NoYes,No (3)Countrycodeselectionability-Yes,No Ifno,plsexplainhowwasimplemented:useMicrosoftnetworkutility (4)Meet15.202requirement-Yes,No, plscheckbelow: Amasterdeviceisdefinedasadeviceoperatinginamodeinwhichithasthecapabilityto transmitwithoutreceivinganenablingsignal.Inthismodeitisabletoselectachannelandinitiatea networkbysendingenablingsignalstootherdevices Aclientdeviceisdefinedasadeviceoperatinginamodeinwhichthetransmissionsofthedevice areundercontrolofthemaster.Adeviceinclientmodeisnotabletoinitiateanetwork. (5)Forclientdevicesthathavesoftwareconfigurationcontroltooperateindifferentmodes(active scanninginsomeandpassivescanninginothers)indifferentbands(deviceswithmultipleequipment classesorthosethatoperateonnon-DFSfrequencies)ormodulardeviceswhichconfigurethemodes ofoperationsthroughsoftware,theapplicationmustprovidesoftwareandoperationsdescriptionon howthesoftwareand/orhardwareisimplementedtoensurethatproperoperationsmodescannot bemodifiedbyenduseroraninstaller. Apply,NoApply, (Ifapply,plshelptoprovideexplanationonhowitwasimplement(Byhardwareorsoftware,andhowsoftwarewascontrolled) Theactiveorpassivemodewascontrolledbysoftware.Fornon-DFSfrequencyusedactivescanning,forDFSfrequencywas switchedtopassivescanningbysoftwareMechanism Ifyouhaveanyquestions,pleasefeelfreetocontactmeattheaddressshownbelow. Yourssincerely, Signatory ContactPerson:Zengqingyao E-mail:[email protected]

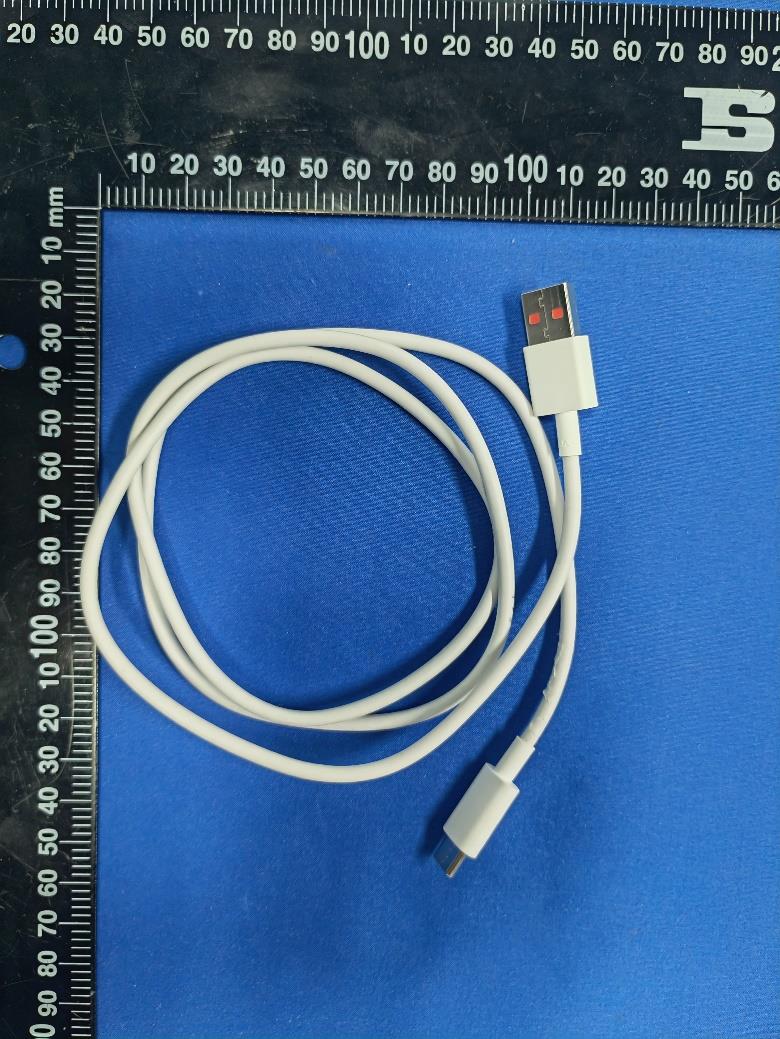

Report No.: BL-SZ2290497-AW 1 / 6 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2290497-AW 2 / 6 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Report No.: BL-SZ2290497-AW 3 / 6 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-SZ2290497-AW 4 / 6 Accessory-Power Adapter MDY-12-EA (USA Plug) CLOSE-UP Report No.: BL-SZ2290497-AW 5 / 6 Accessory-USB Cable 1 Accessory- USB Cable 2 Report No.: BL-SZ2290497-AW 6 / 6 Ancillary Equipment Ancillary Equipment 1 Li-Polymer Battery 1 Brand Name MI Model No. BN5J Serial No. N/A Capacitance Rated: 4900mAh/18.9Wh Typical: 5000mAh/19.3Wh Rated Voltage 3.87 Vdc Limited Voltage 4.45 Vdc Manufacturer Zhuhai CosMX Battery Co., Ltd. Ancillary Equipment 2 Li-Polymer Battery 2 Brand Name MI Model No. BN5J Serial No. N/A Capacitance Rated: 4900mAh/18.9Wh Typical: 5000mAh/19.3Wh Rated Voltage 3.87 Vdc Limited Voltage 4.45 Vdc Manufacturer Dongguan Amperex Technology Limited Ancillary Equipment 3 Power Supply Unit 1 Brand Name MI Model No. MDY-12-EA (USA Plug) Supplier AoHai Rated Input 100-240Vac, 50/60Hz, 0.7A Rated Output 5.0 Vdc, 3.0A/ 9.0 Vdc, 3A/ 12 Vdc, 2.25A/ 20 Vdc, 1.35A/ 11 Vdc, 3A max (33.0W Max) Ancillary Equipment 4 USB Cable 1 Model No. K23230 Length (Approx.) 1.0 m Ancillary Equipment 5 USB Cable 2 Model No. B23230 Length (Approx.) 1.0 m Note 1: Letter in () means plug type. Note 2: All batteries are tested, only the worst data of BN5J (Zhuhai CosMX Battery Co., Ltd.) shown in this report. Note 3: All USB cable are tested, only the worst data of K23230 shown in this report.

Label&LabelLocation E-Label LabelLocation Thisdevicehasanelectroniclabelforcertificationinformation. Toaccessit,pleasegotoSettings>Aboutphone>Certification,oropenSettingsandtype “Certification”intothesearchbar.

TEST EXCLUSION CONSIDERATION Antenna Front Side(mm) Back Side(mm) Left Edge(mm) Right Edge(mm) Top Edge(mm) Bottom Edge(mm) Ant.1 <25 <25 <25 <25 >25 <25 Ant.2 <25 <25 <25 >25 <25 >25 Ant.3 <25 <25 <25 <25 <25 >25 Ant.4 <25 <25 <25 >25 <25 >25 Ant.5 <25 <25 >25 <25 <25 >25 Ant.6 <25 <25 <25 >25 >25 <25 Note: 1.Per KDB 941225 DO6, When the overall length and width of a device is > 9 cm *5 cm, a test separation distance of 10 mm is required for hotspot mode SAR measurements and hotspot mode SAR is measured for all edges and surfaces of the device with a transmitting antenna located within 25 mm from that surface or edge. Antenna Support Bands Antenna 1 GSM850/900/1800/1900, WCDMA 1/2/4/5/8, LTE B1/3/4/7/38/40/41, SA n1/3/5/7/8/20/28/38/40/41, NSA n1/3/5/7/8/20/28/38/40/41 Antenna 2 LTE B1/2/3/4/5/7/8/20/28/38/40/41, SA n1/3/7/38/40/41/77/78, NSA n1/3/7/28/38/40/41 Antenna 3 SA/NSA n77/78 Antenna 4 GSM850/900/1800/1900, WCDMA 1/2/4/5/8, LTE B1/3/4/7/8/20/28/38/40/41, SA/NSA n1/3/5/7/8/20/28/38/40/41 Antenna 5 LTE B1/3/7/38/40/41, SA/NSA n1/3/7/38/40/41/77/78 Antenna 6 SA n77/78, NSA 1/3/7/38/40/41 Antenna 7 WIFI2.4G/5G, BT Sensor Layout The Detailed Antenna Locations are shown in the following figure. As shown in the above figure and the table below, there are 7 antennas embedded in the phone. We use Qualcomm's Asdiv technology to switch WWAN cellular and Sub6G antennas. It can transmit from either Top Antenna (UAT) or Bottom Antenna (LAT) or Side antenna, but they can’t transmit simultaneously. It has embedded three capacitive proximity sensors for the power reduction of both bottom antenna (LAT) and top antenna (UAT) and Side antenna in order to comply with SAR requirement.

Report No.: BL-SZ2290497-AI 1 / 11 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW ANTENNA 2: LTE B1/2/3/4/5/7/8/20/28/38/40/41 SA n1/3/7/38/40/41/77/78 NSA n1/3/7/28/38/40/41 ANTENNA 4: GSM 850/900/1800/1900 WCDMA 1/2/4/5/8 LTE B1/3/4/7/8/20/28/38/40/41 SA/NSA n1/3/5/7/8/20/28/38/40/41 ANTENNA3: SA/NSA n77/78 ANTENNA 7: WIFI 2.4G/5G, BT ANTENNA1: GSM 850/900/1800/1900 WCDMA 1/2/4/5/8 LTE B1/3/4/7/38/40/41 SA n1/3/5/7/8/20/28/38/40/41 NSA n1/3/5/7/8/20/28/38/40/41 ANTENNA 6: SA n77/78 NSA 1/3/7/38/40/41 ANTENNA 5: LTE B1/3/7/38/40/41 SA/NSA n1/3/7/38/40/41/77/78 Report No.: BL-SZ2290497-AI 2 / 11 EUT UNCOVER VIEW EUT UNCOVER VIEW Report No.: BL-SZ2290497-AI 3 / 11 MAIN BOARD TOP VIEW (WITH SHIELDING) MAIN BOARD REAR VIEW (WITH SHIELDING) b Report No.: BL-SZ2290497-AI 4 / 11 MAIN BOARD TOP VIEW (WITHOUT SHIELDING) c MAIN BOARD REAR VIEW (WITHOUT SHIELDING) Report No.: BL-SZ2290497-AI 5 / 11 SUB BOARD TOP VIEW SUB BOARD REAR VIEW Report No.: BL-SZ2290497-AI 6 / 11 Battery 1 Photo (TOP) Battery Photo 1 (REAR) Report No.: BL-SZ2290497-AI 7 / 11 Battery 2 Photo (TOP) Battery Photo 2 (REAR) Report No.: BL-SZ2290497-AI 8 / 11 MAIN ANT 1 CLOSE VIEW MAIN ANT 2 CLOSE VIEW Report No.: BL-SZ2290497-AI 9 / 11 MAIN ANT 3 CLOSE VIEW MAIN ANT 4 CLOSE VIEW Report No.: BL-SZ2290497-AI 10 / 11 MAIN ANT 5 CLOSE VIEW MAIN ANT 6 CLOSE VIEW Report No.: BL-SZ2290497-AI 11 / 11 MAIN ANT 7 CLOSE VIEW

1 / 25 Antenna Performance Description Applicant: Xiaomi Communications Co., Ltd Product description: Mobile Phone Model Name: 22111317G FCC ID: 2AFZZ1317G Test date: 2022/09 /28 2 / 25 1. Antenna information Antenna Model Name Antenna Pattern Antenn a Type Manufacturer Test party of Antenna gain ANT1 QN6335A FPC PIFA Antenna Kun Shan Innowave Communication Technology Co., Ltd. Kun Shan Innowave Communication Technology Co., Ltd. ANT4 QN6335A FPC PIFA Antenna Kun Shan Innowave Communication Technology Co., Ltd. Kun Shan Innowave Communication Technology Co., Ltd. ANT2 QN6335A FPC PIFA Antenna Kun Shan Innowave Communication Technology Co., Ltd. Kun Shan Innowave Communication Technology Co., Ltd. ANT6 QN6335A FPC PIFA Antenna Kun Shan Innowave Communication Technology Co., Ltd. Kun Shan Innowave Communication Technology Co., Ltd. ANT3 QN6335A FPC PIFA Antenna Kun Shan Innowave Communication Technology Co., Ltd. Kun Shan Innowave Communication Technology Co., Ltd. 3 / 25 ANT5 QN6335A FPC PIFA Antenna Kun Shan Innowave Communication Technology Co., Ltd. Kun Shan Innowave Communication Technology Co., Ltd. ANT7 QN6335A FPC PIFA Antenna Kun Shan Innowave Communication Technology Co., Ltd. Kun Shan Innowave Communication Technology Co., Ltd. ANT NFC QN6335A FPC+Ferrite Loop Antenna Kun Shan Innowave Communication Technology Co., Ltd. Kun Shan Innowave Communication Technology Co., Ltd. 4 / 25 2、Test data (ANT1) band Eff（dB） Antenna Gain (dBi) 2G GSM850 (824-849，869-894) -8.9 -4.3 GSM900（880-915，925-960） -8.2 -3 GSM1800（1710-1785，1905-1880） -3.6 1.4 GSM1900（1850-1910，1930-1990） -5.6 -1.1 3G WCDMA B1（1920-1980，2110- 2170） -6.6 -2.1 WCDMA B2（1850-1910，1930-1990） -5.6 -1.1 WCDMA B4（1710-1785，2110- 2155） -3.6 1.4 WCDMA B5 (824-849，869-894) -8.9 -4.3 WCDMA B8（880-915，925-960） -8.2 -3 4G TTE FDD 1: （1920-1980，2110- 2170） -6.6 -2.1 TTE FDD 2: （1850-1910，1930- 1990） -5.6 -1.1 TTE FDD 3: （1710-1785，1905- 1880） -3.6 1.4 TTE FDD 4: （1710-1785，2110- 2155） -3.6 1.4 5 / 25 TTE FDD 5: (824-849，869-894) -8.9 -4.3 TTE FDD 7: (2500-2570，2620- 2690) -6 -1.4 TTE FDD 8: （880-915，925-960） -8.2 -3 TTE FDD 20: (832-862，791-821) -8.3 -3.7 TTE FDD 28: （703-748,758-803） -9.4 -5.1 TTE TDD 38:（2570-2620） -5.8 -1.3 TTE TDD 40: （2300-2400） -6.5 -1.7 TTE TDD 41: （2496-2690） -5.8 -1.3 5G N1（1920-1980，2110-2170） -6.6 -2.1 N3（1710-1785，1905-1880） -3.6 1.4 N5 (824-849，869-894) -8.9 -4.3 N7 (2500-2570，2620-2690) -6 -1.4 N8（880-915，925-960） -8.2 -3 N20 (832-862，791-821) -8.3 -3.7 N28（703-748,758-803） -9.4 -5.1 N38（2570-2620） -5.8 -1.3 N40（2300-2400） -6.5 -1.7 N41（2496-2690） -5.8 -1.3 6 / 25 ANT1 S11&SMTTH ANT1 directional diagram Frequency B8 Frequency B3 7 / 25 Frequency B41/38 Frequency B2 Frequency B4 8 / 25 Frequency B5 Frequency B20 Frequency B28 9 / 25 Frequency B1 Frequency B40 ANT4 band Eff（dB） Antenna Gain (dBi) 2G GSM850 (824-849，869-894) -10.9 -6 GSM900（880-915，925-960） -10.1 -4.9 GSM1800（1710-1785，1905-1880） -6.7 -2.8 GSM1900（1850-1910，1930-1990） -5 -1.8 3G WCDMA B1（1920-1980，2110-2170） -5.2 -1.6 WCDMA B2（1850-1910，1930-1990） -5 -1.8 WCDMA B4（1710-1785，2110-2155） -6.7 -2.8 WCDMA B5 (824-849，869-894) -10.9 -6 10 / 25 WCDMA B8（880-915，925-960） -10.1 -4.9 4G TTE FDD 1: （1920-1980，2110-2170） -5.2 -1.6 TTE FDD 2: （1850-1910，1930-1990） -5 -1.8 TTE FDD 3: （1710-1785，1905-1880） -6.7 -2.8 TTE FDD 4: （1710-1785，2110-2155） -6.7 -2.8 TTE FDD 5: (824-849，869-894) -10.9 -6 TTE FDD 7: (2500-2570，2620-2690) -5.4 -0.4 TTE FDD 8: （880-915，925-960） -10.1 -4.9 TTE FDD 20: (832-862，791-821) -10.3 -5.3 TTE FDD 28: （703-748,758-803） -10.6 -6.6 TTE TDD 38:（2570-2620） -5.7 -0.8 TTE TDD 40: （2300-2400） -4.8 0.5 TTE TDD 41: （2496-2690） -5.7 -0.8 5G N1（1920-1980，2110-2170） -5.2 -1.6 N3（1710-1785，1905-1880） -6.7 -2.8 N5 (824-849，869-894) -10.9 -6 N7 (2500-2570，2620-2690) -5.4 -0.4 N8（880-915，925-960） -10.1 -4.9 N20 (832-862，791-821) -10.3 -5.3 N28（703-748,758-803） -10.6 -6.6 N38（2570-2620） -5.7 -0.8 11 / 25 N40（2300-2400） -4.8 0.5 N41（2496-2690） -5.7 -0.8 ANT4 S11&SMTTH ANT4 directional diagram Frequency B8 12 / 25 Frequency B5 Frequency B3 Frequency B28 Frequency B20 13 / 25 Frequency B1 Frequency B2 Frequency B40 14 / 25 Frequency B41 ANT2 band Eff（dB） Antenna Gain (dBi) 4G TTE FDD 1: （1920-1980，2110- 2170） -9.1 -3.8 TTE FDD 2: （1850-1910，1930- 1990） -9.1 -4.4 TTE FDD 3: （1710-1785，1905- 1880） -9.1 -4.5 TTE FDD 7: (2500-2570，2620- 2690) -7.9 -3.3 TTE FDD 20: (832-862，791-821) -16.7 -13.1 15 / 25 TTE TDD 38:（2570-2620） -7.9 -3 TTE TDD 40: （2300-2400） -9.2 -3.9 TTE TDD 41: （2496-2690） -7.9 -3 5G N38（2570-2620） -7.9 -3 N41（2496-2690） -7.9 -3 N77 （3300-4200） -6.9 -2.2 N78 （3300-3800） -7.4 -3.2 ANT2S11&SMITH 16 / 25 ANT2 directional diagram Frequency B20 Frequency B41 Frequency B40 Frequency B1 17 / 25 Frequency B2 Frequency B3 Frequency N77/78 18 / 25 ANT6 band Eff（dB） Antenna Gain (dBi) N77 （3300-4200） -9.6 -4.3 N78 （3300-3800） -8.8 -3.8 ANT6S11&SMITH ANT6 directional diagram 19 / 25 ANT5 band Eff （dB） Antenna Gain (dBi) 5G N38（2570-2620） -7.8 -4.4 N41（2496-2690） -7.8 -4.4 N77 （3300- 4200） -7 -2.2 N78 （3300- 3800） -7.3 -2.1 ANT5S11&SMITH 20 / 25 ANT6 directional diagram Frequency N41 Frequency N38 21 / 25 Frequency N77/78 22 / 25 ANT3 band Eff （dB） Antenna Gain (dBi) 5G N77 （3300-4200） -6 -2.2 N78 （3300-3800） -6.2 -2.5 ANT3 directional diagram Frequency 77/78 23 / 25 ANT7 band Eff（dB） Antenna Gain (dBi) 2.4G(2.4-2.5GHZ) -5.2 0.5 5G (5.15-5.25GHz) -3.7 1 5G (5.25-5.35GHz) -4.3 0.7 5G (5.47-5.725GHz) -4.4 0.3 5G (5.725-5.85GHz) -4.1 0.55 ANT7 directional diagram Frequency WIFI2.4 Frequency WIFI5G 24 / 25 25 / 25 3、 Main Test Instruments Name Manufacturer Model name Serial Number Cal., Date Exp., Date E5071B KEYSIGHT E5071B EQ60215 2022-4-21 2023-4-20 4、Test Site Shanghai End of Test Report

Report No.: BL-SZ2290497-402 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 29 Web: www.titcgroup.com Template No.: TRP-FCC 15.225 (2022-04-02) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China TEST REPORT Applicant: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 Equipment Type: Mobile Phone Model Name: 22111317G Brand Name: Redmi FCC ID: 2AFZZ1317G Test Standard: 47 CFR Part 15 Subpart C Test Date Sep. 27, 2022 ~ Oct. 13, 2022 Date of Issue: Nov. 03, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Sijie Zheng Checked by: Xia Long Approved by: Liao Jianming (Technical Director) _______________ _______________ _______________ Report No.: BL-SZ2290497-402 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 29 Web: www.titcgroup.com Template No.: TRP-FCC 15.225 (2022-04-02) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Revision History Version Issue Date Revisions Rev. 01 Nov. 03, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................ 4 1.1 Test Laboratory ....................................................................................................................... 4 1.2 Test Location ...................................…
