2AFZZ1320GMobile Phone (5G NR/LTE/WCDMA/GSM/BT/WIFI/NFC)

POCO X5 Pro 5G Quick Start Guide Contents English 02 Italiano 04 Español 06 Deutsch 08 Nederlands 10 Português (Portugal) 12 Polski 14 Ελληνικά 16 Magyar 18 Česky 20 Română 22 Українська 24 Srpski 26 Français 28 SAT. 16 AUG. 02 48 01 Thank you for choosing POCO X5 Pro 5G Long press the power button to turn on the device. Follow the on-screen instructions to configure the device. For more information, visit our official website: www.mi.com/global/service/userguide MIUI (for POCO) POCO X5 Pro 5G comes pre-installed with MIUI (for POCO), our customized Android- based OS which provides frequent updates and user-friendly features based on suggestions from over 200 million active users worldwide. For more information, please visit en.miui.com About SIM: Please do not insert non-standard SIM cards into the SIM card slot. They may damage the SIM card slot. WARNING: Do not disassemble this device. WEEE Special precautions must be taken to safely dispose of this product. This marking indicates that this product may not be discarded with other household waste in the EU. To prevent harm to the environment or human health from inappropriate waste disposal, and to promote sustainable reuse of material resources, please recycle responsibly. To safely recycle your device, please use return and collection systems or contact the retailer where the device was originally purchased. To view our Environmental Declaration, please refer to the following link: www.mi.com/en/about/environment CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS. To prevent possible hearing damage, do not listen at high volume levels for long periods. Additional safety information and precautions can be accessed at the following link: www.mi.com/en/certification Important Safety Information Read all safety information below before using your device: • Use of unauthorized cables, power adapters, or batteries can cause fire explosion, electric shock, pose other risks, or damage the device. • This device’s operating temperature range is 0°C to 40°C. Using this device in an environment outside of this temperature range may damage the device. • If your device is provided with a built-in battery, to avoid damaging the battery or the device, do not attempt to replace the battery yourself. • Charge this device only with the included or authorized cable and power adapter.Use only authorized accessories which are compatible with your device. • After charging is complete, disconnect the adapter from both the device and the power outlet. Do not charge the device for more than 12 hours. • The battery must be recycled or disposed of separately from household waste. Mishandling the battery may cause fire or explosion. Dispose of or recycle the device, its battery, and accessories according to your local regulations. • Do not disassemble, hit, crush, or burn the battery. If the battery appears deformed or damaged, stop using it immediately. -Do not short circuit the battery, as this may cause overheating, burns, or other injury. -Do not place the battery in a high-temperature environment. -Overheating may cause explosion. -Do not disassemble, hit, or crush the battery, as this may cause the battery to leak, overheat, or explode. -Do not burn the battery, as this may cause fire or explosion. • User shall not remove or alter the battery. Removal or repair of the battery shall only be done by an authorized repair center of the manufacturer. • Keep your device dry. • Do not try to repair the device yourself. If any part of the device does not work properly, contact Mi customer support or bring your device to an authorized repair center. • Connect other devices according to their instruction manuals. Do not connect incompatible devices to this device. • For AC/DC adapters, the socket-outlet shall be installed near the equipment and shall be easily accessible. Safety Precautions • Observe all applicable laws and rules restricting use of mobile phones in specific situations and environments. • Do not use your phone at petrol stations or in any explosive atmosphere or potentially explosive environment, including fueling areas, below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air may contain chemicals or particles such as grain, dust, or metal powders. Obey all posted signs to turn off wireless EN 02 devices such as your phone or other radio equipment. Turn off your mobile phone or wireless device when in a blasting area or in areas requiring “two-way radios” or “electronic devices” to be turned off to prevent potential hazards. • Do not use your phone in hospital operating rooms, emergency rooms, or intensive care units. Always comply with all rules and regulations of hospitals and health centers. If you have a medical device, please consult your doctor and the device manufacturer to determine whether your phone may interfere with the device’s operation. To avoid potential interference with a pacemaker, always maintain a minimum distance of 15 cm between your mobile phone and the pacemaker. This can be done by using your phone on the ear opposite to your pacemaker and not carrying your phone in a breast pocket. To avoid interference with medical equipment, do not use your phone near hearing aids, cochlear implants, or other similar devices. • Observe all aircraft safety regulations and turn off your phone on board aircraft when required. • When driving a vehicle, use your phone in accordance with relevant traffic laws and regulations. • To avoid being struck by lightning, do not use your phone outdoors during thunderstorms. • Do not use your phone to make calls while it is charging. • Do not use your phone in places with high humidity, such as bathrooms. Doing so may result in electric shock, injury, fire, and charger damage. Security Statement Please update your phone’s operating system using the built-in software update feature, or visit any o…

Text truncated - open the document above for the full version.

POCO X5 Pro 5G Safety Information English 01 Italiano 03 Español 05 Deutsch 07 Nederlands 09 Português (Portugal) 11 Polski 13 Ελληνικά 15 Magyar 17 Česky 19 Română 21 Українська 23 Srpski 25 Français 27 Contents EN EU Regulations RED Declaration of Conformity Xiaomi Communications Co., Ltd. hereby declares that this GSM / GPRS / EDGE / UMTS / LTE / 5G NR Digital Mobile Phone with Bluetooth and Wi-Fi 22101320G is in compliance with the essential requirements and other relevant provisions of the RE Directive 2014/53/ EU. The full text of the EU declaration of conformity is available at the following internet address: www.mi.com/en/certification RF Exposure Information (SAR) This device is in compliance with Specific Absorption Rate (SAR) limits for general population/uncontrolled exposure (Localized 10-gram SAR for head and trunk, limit: 2.0W/ kg) specified in Council Recommendation 1999/519/EC, ICNIRP Guidelines, and RED (Directive 2014/53/EU). During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands and placed in positions that simulate RF exposure during use against the head with no separation and near the body with a separation of 5 mm. SAR compliance for body operation is based on a separation distance of 5 mm between the unit and the human body. This device should be carried at least 5 mm away from the body to ensure RF exposure level is compliant or lower than the reported level. When attaching the device near the body, a belt clip or holster should be used which does not contain metallic components and allows a separation of at least 5 mm to be maintained between the device and the body. RF exposure compliance was not tested or certified with any accessory containing metal worn on the body, and use of such an accessory should be avoided. Certification Information (Highest SAR) SAR 10 g limit: 2.0 W/Kg, SAR Value: Head: 0.99 W/Kg, Body: 0.99 W/Kg (5 mm distance). Frequency Bands and Power This mobile phone offers the following frequency bands in EU areas only and maximum radio-frequency power: GSM 900: 35.5 dBm GSM 1800: 32.5 dBm WCDMA band 1/8: 25.7 dBm LTE band 1/3/7/8/20/28/38/40/41 : 25.7 dBm 5G NR band n1/n3/n7/n8/n20/n28/n38/n40/n41/n77: 26 dBm, 5G NR band n78: 29 dBm Bluetooth: 20 dBm Wi-Fi 2.4 GHz band: 20 dBm Wi-Fi 5 GHz: 5150 to 5250MHz: 23 dBm, 5250 to 5350 MHz: 20 dBm, 5470 to 5725 MHz: 20 dBm, 5725 to 5850 MHz: 14 dBm NFC: 13.56 MHz < 42 dBuA/m at 10m 5G connection depends on country, carrier, and user environment. FCC Regulations This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy. The exposure standard for wireless devices employs a unit of measurement known as Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. For body-worn operation, this device has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and positions the device a minimum of 1.5 cm from the body. RF exposure compliance with any body-worn accessory that contains metal was not tested and certified, and use of such body-worn accessory should be 01 avoided. Any accessory used with this device for body-worn operation must keep the device a minimum of 1.5 cm away from the body. FCC Note Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. E-label This device has an electronic label for certification information. To access it, please go to Settings > About phone > Certification, or open Settings and type “Certification” into the search bar. Instructions for Factory reset Path: Settings > About phone > Factory reset You can quickly erase the local data on the device via “”Factory reset””. Data to be erased includes: Accounts, Contacts, Photos and videos, Apps, Backups, SD card data and Other items on this device. Model: 22101320G 2210 indicates that this product will be launched after 202210. 02 IT Normative UE Dichiarazione di conformità RED Xiaomi Communications Co., Ltd. con la presente dichiara che il telefono cellulare digitale GSM/GPRS/EDGE/UMTS/LTE / 5G NR con Bluetooth e Wi-Fi 22101320G è conforme ai requisiti essenziali e alle altre disposizioni pertinenti della direttiva RED 2014/53/UE. Il testo completo della Dichiarazione di conformità UE è disponibile sul seguente sito Web: www. mi.…

Text truncated - open the document above for the full version.

RF_160, Issue 04 Xiaomi Communications Co., Ltd. Declaration of Authorization We Name: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China City: Beijing Country: China Declare that: Name Representative of agent: Well Wei Agent Company name: SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd Branch Address: South of No. 6 Plant, No. 1, Runsheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Mobile Phone Type designation: 22101320G Trademark: POCO FCC ID: 2AFZZ1320G on our behalf. Sincerely yours, Contact Person: Zengqingyao Applicant: Xiaomi Communications Co., Ltd. Phone: 010-60606666-8088 E-Mail: [email protected] Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Tel: 010 6060 6666 ; Fax: 010 6060 6666 Date: November 7, 2022 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: 2AFZZ1320G To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. ⚫ Schematic Diagram ⚫ Block Diagram ⚫ Part List ⚫ Operational Description ⚫ Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ___ _ Zengqingyao [email protected]

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Tel: 010 6060 6666 ; Fax: 010 6060 6666 Statement We, Xiaomi Communications Co., Ltd., Model name: 2AFZZ1320G, FCC ID: 2AFZZ1320G, states that our device is a GSM/WCDMA/LTE/5G NR Mobile Phone with WLAN 2.4GHz(Channel 1~11)/5GHz/NFC, Bluetooth functionality. The hardware supports LTE Band 40&NR Band n40, but they will be disabled by software and are not available in US market. ___ _ Zengqingyao [email protected]

Xiaomi Communications Co.,Ltd #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2AFZZ1320G (1) DFS Device -- Master, Client with Radar detection capability , ■ Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 2422 – 2452 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 5745 – 5825 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 5755 – 5795 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 5180 – 5240 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 5190 – 5230 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 5260 – 5320 MHz Yes, ■ No ■ Yes, No Yes, ■ No Yes, ■ No 5270 – 5310 MHz Yes, ■ No ■ Yes, No Yes, ■ No Yes, ■ No 5500 – 5700 MHz Yes, ■ No ■ Yes, No Yes, ■ No Yes, ■ No 5510 – 5670 MHz Yes, ■ No ■ Yes, No Yes, ■ No Yes, ■ No (3) Country code selection ability - Yes , ■ No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement - ■ Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices ■ A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , ■ No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Xiaomi Communications Co., Ltd. Printed Name:Zengqingyao Position：Certification Director

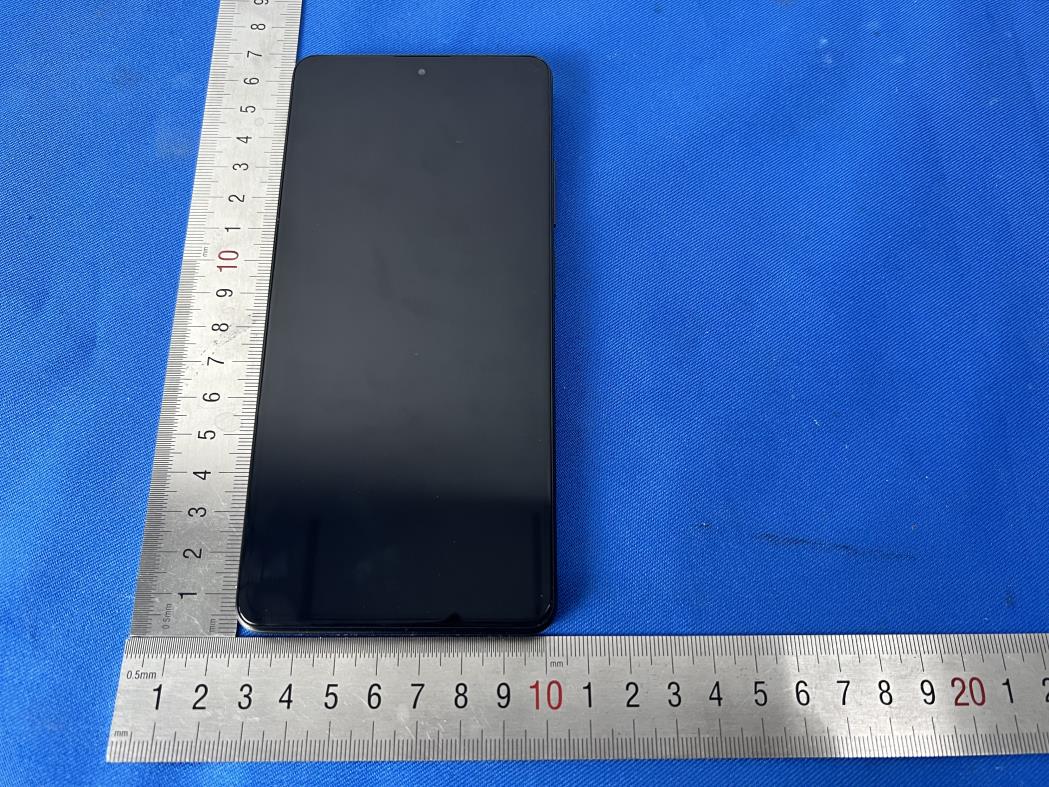

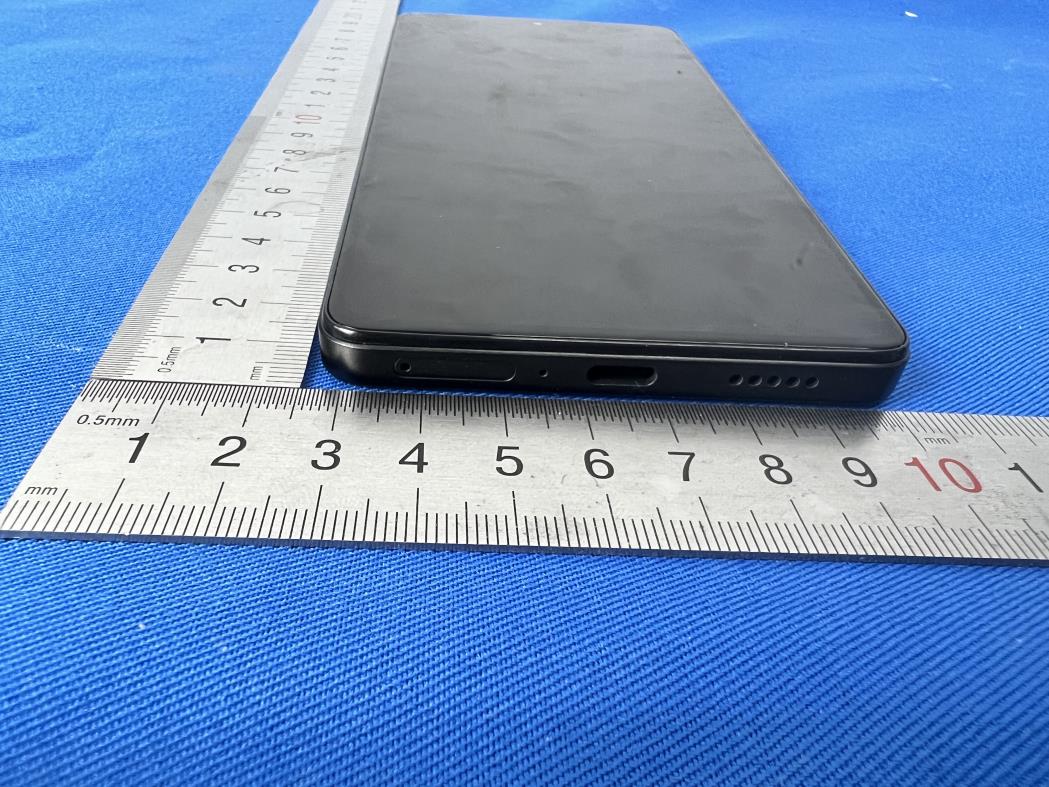

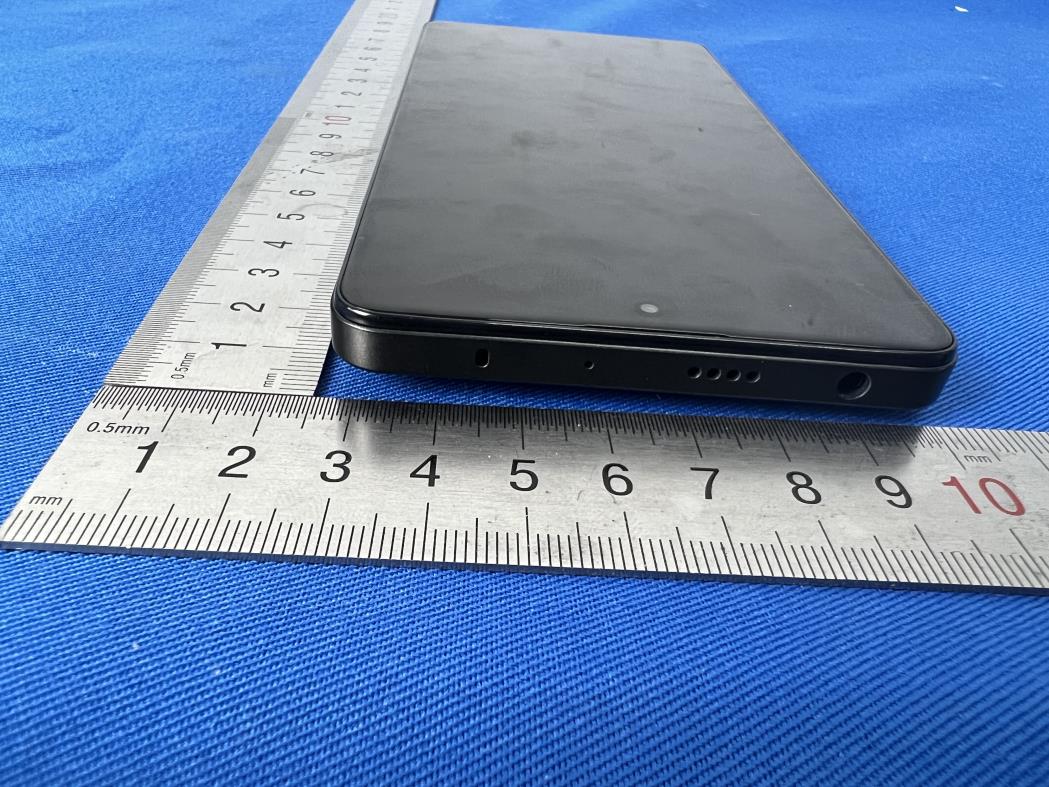

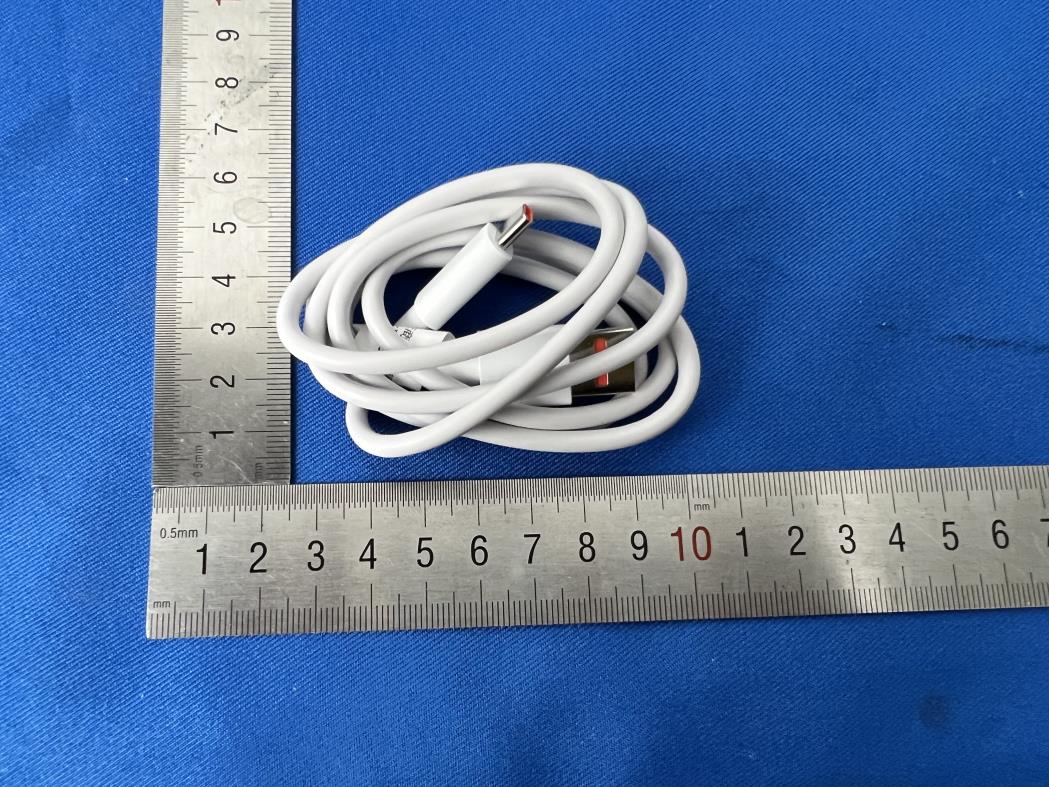

Page 1 of 5 1 Photographs - EUT Constructional Details Model No.(EUT): 22101320G FCC ID: 2AFZZ1320G Page 2 of 5 Page 3 of 5 Page 4 of 5 Model Name: MDY-12-EJ Brand Name: MI Input: 100-240V~,50/60Hz,1.7A, Normal Output: 5.0V 3.0A Fast Output: 5.0V-20.0V 6.2-3.25A(67W Max) Page 5 of 5 Model Name: B26260 Brand Name: MI

Page 1 of 6 1 Photographs - EUT Constructional Details Model No.(EUT): 22101320G FCC ID: 2AFZZ1320G ANT location Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Page 6 of 6 Model Name: BP4K Rated capacity: 4900mAh Manufacturer: Zhejiang Sunwoda Electronic Co., Ltd.

Report No.: SEWM2209000168RG09 AppendixA DetailedSystemCheckResults 1.SystemPerformanceCheck SystemPerformanceCheck835MHzHead SystemPerformanceCheck1750MHzHead SystemPerformanceCheck1900MHzHead SystemPerformanceCheck2450MHzHead SystemPerformanceCheck2600MHzHead SystemPerformanceCheck3500MHzHead SystemPerformanceCheck3700MHzHead SystemPerformanceCheck3900MHzHead SystemPerformanceCheck5.25GhzHead SystemPerformanceCheck5.6GhzHead SystemPerformanceCheck5.75GhzHead Date: 2022-09-30 Test Laboratory: SGS-SAR Lab System Performance Check 835 MHz Head DUT: D835V2; Type: Dipole; Serial: 4d256 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL835;Medium parameters used: f = 835 MHz; σ = 0.904 S/m; ε = 40.365; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration: Probe: EX3DV4 -  SN3962; ConvF(9.8, 9.8, 9.8); Calibrated: 2022-05-26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 1; Type: SAM; Serial: 1410 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=15mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.03 W/kg Body/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.59 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 3.72 W/kg SAR(1 g) = 2.5 W/kg; SAR(10 g) = 1.65 W/kg Maximum value of SAR (measured) = 3.16 W/kg 0 dB = 3.16 W/kg = 5.00 dBW/kg Date: 2022-10-06 Test Laboratory: SGS-SAR Lab System Performance Check 835 MHz Head DUT: D835V2; Type: Dipole; Serial: 4d256 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL835;Medium parameters used: f = 835 MHz; σ = 0.89 S/m; ε = 41.464; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration: Probe: EX3DV4 -  SN3962; ConvF(9.8, 9.8, 9.8); Calibrated: 2022-05-26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 1; Type: SAM; Serial: 1410 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=15mm, Pin=250mW/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.79 W/kg Body/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.80 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.75 W/kg SAR(1 g) = 2.58 W/kg; SAR(10 g) = 1.68 W/kg Maximum value of SAR (measured) = 3.23 W/kg 0 dB = 3.23 W/kg = 5.09 dBW/kg Date: 2022-10-03 Test Laboratory: SGS-SAR Lab System Performance Check 1750 MHz Head DUT: D1750V2; Type: Dipole; Serial: 1105 Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL1750;Medium parameters used: f = 1750 MHz; σ = 1.409 S/m; ε = 40.081; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration: Probe: EX3DV4 -  SN3962; ConvF(8.48,8.48, 8.48); Calibrated: 2022-05-26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 1; Type: SAM; Serial: 1410 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=250mW/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 12.2 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.03 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 18.7 W/kg SAR(1 g) = 9.23 W/kg; SAR(10 g) = 4.81 W/kg Maximum value of SAR (measured) = 15.7 W/kg 0 dB = 15.7 W/kg = 11.96 dBW/kg Date: 2022-10-11 Test Laboratory: SGS-SAR Lab System Performance Check 1750 MHz Head DUT: D1750V2; Type: Dipole; Serial: 1105 Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL1750;Medium parameters used: f = 1750 MHz; σ = 1.397 S/m; ε = 40.046; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration: Probe: EX3DV4 -  SN3962; ConvF(8.48,8 .48,8 .48); Calibrated: 2022-05-26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 1; Type: SAM; Serial: 1410 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=250mW/Area Scan (6x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 12.4 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 83.35 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 17.3 W/kg SAR(1 g) = 9.25 W/kg; SAR(10 g) = 4.9 W/kg Maximum value of SAR (measured) = 14.2 W/kg 0 dB = 14.2 W/kg = 11.52 dBW/kg Date: 2022-10-02 Test Laboratory: SGS-SAR Lab System Performance Check 1900 MHz Head DUT: D1900V2; Type: Dipole; Serial: 5d114 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL1900;Medium parameters used: f = 1900 MHz; σ = 1.405 S/m; ε = 40.177; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration: Probe: EX3DV4 -  SN3962; ConvF(8.16, 8.16, 8.16); Calibrated: 2022-05-26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 1; Type: SAM; Serial: 1410 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=250mW/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 13.0 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.60 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 19.3 W/kg SAR(1 g) = 10.4 W/kg; SAR(10 g) = 5.39 W/kg Maximum value of SAR (measured) = 16.2 W/kg 0 dB = 16.2 W/kg = 12.10 dBW/kg Date: 2022-10-04 Test Laboratory: SGS-SAR Lab System Performance Check 1900 MHz Head DUT: D1900V2; Type: Dipole; Serial: 5d114 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL1900;Medium parameters used: f = 1900 MHz; σ = 1.367 S/m; ε = 39.947; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration: Probe: EX…

Text truncated - open the document above for the full version.

ReportNo.:SEWM2209000168RG09 AppendixB DetailedTestResults 1.GSM GSM850forHead&Body GSM1900forHead&Body 2.WCDMA WCDMABandIIforHead&Body WCDMABandIVforHead&Body WCDMABandVforHead&Body 3.LTE LTEBand2forHead&Body LTEBand5forHead&Body LTEBand7forHead&Body LTEBand38forHead&Body LTEBand41forHead&Body 4.5GNR 5GNRn5forHead&Body 5GNRn7forHead&Body 5GNRn38forHead&Body 5GNRn41forHead&Body 5GNRn77forHead&Body 5GNRn78forHead&Body 5.WIFI WIFI2.4GforHead&Body WIFI5GforHead&Body 6.BT BTforHead&Body Date: 2022-09-30 Test Laboratory: SGS-SAR Lab 22101320G GSM850 GSM 190CH Right cheek DUT: 22101320G; Type: Mobile Phone; Serial: 869168060037426 Communication System: UID 0, GSM Only Communication System (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL835;Medium parameters used: f = 837 MHz; σ = 0.906 S/m; ε r = 40.296; ρ = 1000 kg/m 3 Phantom section: Right Section DASY 5 Configuration:  Probe: EX3DV4 - SN3962; ConvF(9.8, 9.8, 9.8); Calibrated: 2022-05-26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 1; Type: SAM; Serial: 1410  DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.06 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.40 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 0.749 W/kg; SAR(10 g) = 0.465 W/kg Maximum value of SAR (measured) = 1.15 W/kg 0 dB = 1.15 W/kg = 0.61 dBW/kg Date: 2022-09-30 Test Laboratory: SGS-SAR Lab 22101320G GSM850 GSM 190CH Back side 15mm DUT: 22101320G; Type: Mobile Phone; Serial: 869168060037426 Communication System: UID 0, GSM Only Communication System (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL835;Medium parameters used: f = 837 MHz; σ = 0.906 S/m; ε r = 40.296; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration:  Probe: EX3DV4 - SN3962; ConvF(9.8, 9.8, 9.8); Calibrated: 2022-05-26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 1; Type: SAM; Serial: 1410  DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.202 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.28 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.217 W/kg SAR(1 g) = 0.159 W/kg; SAR(10 g) = 0.122 W/kg Maximum value of SAR (measured) = 0.198 W/kg 0 dB = 0.198 W/kg = -7.03 dBW/kg Date: 2022-09-30 Test Laboratory: SGS-SAR Lab 22101320G GSM850 GPRS 2TS 190CH Back side 10mm DUT: 22101320G; Type: Mobile Phone; Serial: 869168060037426 Communication System: UID 0, GPRS/EGPRS Mode(2up) Communication System (0); Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium: HSL835;Medium parameters used: f = 837 MHz; σ = 0.906 S/m; ε r = 40.296; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration:  Probe: EX3DV4 - SN3962; ConvF(9.8, 9.8, 9.8); Calibrated: 2022-05-26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 1; Type: SAM; Serial: 1410  DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.365 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.62 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.777 W/kg SAR(1 g) = 0.327 W/kg; SAR(10 g) = 0.188 W/kg Maximum value of SAR (measured) = 0.351 W/kg 0 dB = 0.351 W/kg = -4.55 dBW/kg Date: 2022-10-02 Test Laboratory: SGS-SAR Lab 22101320G GSM1900 GSM 810CH Right cheek DUT: 22101320G; Type: Mobile Phone; Serial: 869168060037426 Communication System: UID 0, GSM Only Communication System (0); Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL1900;Medium parameters used: f = 1910 MHz; σ = 1.416 S/m; ε r = 40.108; ρ = 1000 kg/m 3 Phantom section: Right Section DASY 5 Configuration:  Probe: EX3DV4 - SN3962; ConvF(8.16, 8.16, 8.16); Calibrated: 2022-05-26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 1; Type: SAM; Serial: 1410  DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.866 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.860 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.39 W/kg SAR(1 g) = 0.668 W/kg; SAR(10 g) = 0.322 W/kg Maximum value of SAR (measured) = 1.05 W/kg 0 dB = 1.05 W/kg = 0.21 dBW/kg Date: 2022-10-02 Test Laboratory: SGS-SAR Lab 22101320G GSM1900 GSM 661CH Back side 15mm DUT: 22101320G; Type: Mobile Phone; Serial: 869168060037426 Communication System: UID 0, GSM Only Communication System (0); Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900;Medium parameters used: f = 1880 MHz; σ = 1.394 S/m; ε = 40.269; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration: Probe: EX3DV4 -  SN3962; ConvF(8.…
