2AFZZ16AGMobile Phone (LTE/WCDMA/GSM/BT/WIFI/NFC)

Redmi Note 12 Pro Quick Start Guide Contents English 02 Français 04 Italiano 07 Español 09 Deutsch 11 Nederlands 14 Português (Portugal) 16 Polski 18 Ελληνικά 20 Magyar 22 Česky 24 Română 26 Українська 28 Srpski 30 SAT. 16 AUG. 02 48 Nano- SIM Nano-SIM Micro SD 01 Thank you for choosing Redmi Note 12 Pro Long press the power button to turn on the device. Follow the on-screen instructions to configure the device. For more information, visit our official website: www.mi.com/global/service/userguide MIUI Redmi Note 12 Pro comes pre-installed with MIUI, our customized Android-based OS which provides frequent updates and user-friendly features based on suggestions from over 200 million active users worldwide. For more information, please visit en.miui.com About SIM: Please do not insert non-standard SIM cards into the SIM card slot. They may damage the SIM card slot. WARNING: Do not disassemble this device. WEEE Special precautions must be taken to safely dispose of this product. This marking indicates that this product may not be discarded with other household waste in the EU. To prevent harm to the environment or human health from inappropriate waste disposal, and to promote sustainable reuse of material resources, please recycle responsibly. To safely recycle your device, please use return and collection systems or contact the retailer where the device was originally purchased. To view our Environmental Declaration, please refer to the following link: www.mi.com/en/about/environment CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS. To prevent possible hearing damage, do not listen at high volume levels for long periods. Additional safety information and precautions can be accessed at the following link: www.mi.com/en/certification Important Safety Information Read all safety information below before using your device: • Use of unauthorized cables, power adapters, or batteries can cause fire explosion, electric shock, pose other risks, or damage the device. • This device’s operating temperature range is 0°C to 40°C. Using this device in an environment outside of this temperature range may damage the device. • If your device is provided with a built-in battery, to avoid damaging the battery or the device, do not attempt to replace the battery yourself. • Charge this device only with the included or authorized cable and power adapter.Use only authorized accessories which are compatible with your device. • After charging is complete, disconnect the adapter from both the device and the power outlet. Do not charge the device for more than 12 hours. • The battery must be recycled or disposed of separately from household waste. Mishandling the battery may cause fire or explosion. Dispose of or recycle the device, its battery, and accessories according to your local regulations. • Do not disassemble, hit, crush, or burn the battery. If the battery appears deformed or damaged, stop using it immediately. -Do not short circuit the battery, as this may cause overheating, burns, or other injury. -Do not place the battery in a high-temperature environment. -Overheating may cause explosion. -Do not disassemble, hit, or crush the battery, as this may cause the battery to leak, overheat, or explode. -Do not burn the battery, as this may cause fire or explosion. • User shall not remove or alter the battery. Removal or repair of the battery shall only be done by an authorized repair center of the manufacturer. • Keep your device dry. • Do not try to repair the device yourself. If any part of the device does not work properly, contact Mi customer support or bring your device to an authorized repair center. • Connect other devices according to their instruction manuals. Do not connect incompatible devices to this device. • For AC/DC adapters, the socket-outlet shall be installed near the equipment and shall be easily accessible. Safety Precautions • Observe all applicable laws and rules restricting use of mobile phones in specific situations and environments. • Do not use your phone at petrol stations or in any explosive atmosphere or potentially explosive environment, including fueling areas, below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air may contain chemicals or particles such as grain, dust, or metal powders. Obey all posted signs to turn off wireless devices such as your phone or other radio equipment. Turn off your mobile phone EN 02 or wireless device when in a blasting area or in areas requiring “two-way radios” or “electronic devices” to be turned off to prevent potential hazards. • Do not use your phone in hospital operating rooms, emergency rooms, or intensive care units. Always comply with all rules and regulations of hospitals and health centers. If you have a medical device, please consult your doctor and the device manufacturer to determine whether your phone may interfere with the device’s operation. To avoid potential interference with a pacemaker, always maintain a minimum distance of 15 cm between your mobile phone and the pacemaker. This can be done by using your phone on the ear opposite to your pacemaker and not carrying your phone in a breast pocket. To avoid interference with medical equipment, do not use your phone near hearing aids, cochlear implants, or other similar devices. • Observe all aircraft safety regulations and turn off your phone on board aircraft when required. • When driving a vehicle, use your phone in accordance with relevant traffic laws and regulations. • To avoid being struck by lightning, do not use your phone outdoors during thunderstorms. • Do not use your phone to make calls while it is charging. • Do not use your phone in places with high humidity, such as bathrooms. Doing so may result in electric shock, injury, fire, and charger damage. Security Statement Please update your phone’s operating system using the built-in software update feature, …

Text truncated - open the document above for the full version.

Redmi Note 12 Pro Safety Information Contents English 01 Français 03 Italiano 05 Español 07 Deutsch 09 Nederlands 11 Português (Portugal) 13 Polski 15 Ελληνικά 17 Magyar 19 Česky 21 Română 23 Українська 25 Srpski 27 EN EU Regulations RED Declaration of Conformity Xiaomi Communications Co., Ltd. hereby declares that this GSM / GPRS / EDGE / UMTS / LTE Digital Mobile Phone with Bluetooth and Wi-Fi 2209116AG is in compliance with the essential requirements and other relevant provisions of the RE Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.mi.com/en/certification RF Exposure Information (SAR) This device is in compliance with Specific Absorption Rate (SAR) limits for general population/uncontrolled exposure (Localized 10-gram SAR for head and trunk, limit: 2.0W/ kg) specified in Council Recommendation 1999/519/EC, ICNIRP Guidelines, and RED (Directive 2014/53/EU). During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands and placed in positions that simulate RF exposure during use against the head with no separation and near the body with a separation of 5 mm. SAR compliance for body operation is based on a separation distance of 5 mm between the unit and the human body. This device should be carried at least 5 mm away from the body to ensure RF exposure level is compliant or lower than the reported level. When attaching the device near the body, a belt clip or holster should be used which does not contain metallic components and allows a separation of at least 5 mm to be maintained between the device and the body. RF exposure compliance was not tested or certified with any accessory containing metal worn on the body, and use of such an accessory should be avoided. Certification Information (Highest SAR) SAR 10 g limit: 2.0 W/Kg, SAR Value: Head: 0.701 W/Kg, Body: 0.960 W/Kg (5 mm distance). Frequency Bands and Power This mobile phone offers the following frequency bands in EU areas only and maximum radio-frequency power: GSM 900: 35.5 dBm GSM 1800: 32.5 dBm WCDMA band 1/8: 25.7 dBm LTE band 1/3/7/8/20/28/38/40/41 : 25.7 dBm Bluetooth: 20 dBm Wi-Fi 2.4 GHz band: 20 dBm Wi-Fi 5 GHz: 5150 to 5250MHz: 23 dBm, 5250 to 5350 MHz: 20 dBm, 5470 to 5725 MHz: 20 dBm, 5725 to 5850 MHz: 14 dBm NFC: 13.56 MHz < 42 dBuA/m at 10m FCC Regulations This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy. The exposure standard for wireless devices employs a unit of measurement known as Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. For body-worn operation, this device has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and positions the device a minimum of 1.0 cm from the body. RF exposure compliance with any body-worn accessory that contains metal was not tested and certified, and use of such body-worn accessory should be avoided. Any accessory used with this device for body-worn operation must keep the device a minimum of 1.0 cm away from the body. FCC Note Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 01 Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. E-label This device has an electronic label for certification information. To access it, please go to Settings > About phone > Certification, or open Settings and type “Certification” into the search bar. Instructions for Factory reset Path: Settings > About phone > Factory reset You can quickly erase the local data on the device via “”Factory reset””. Data to be erased includes: Accounts, Contacts, Photos and videos, Apps, Backups, SD card data and Other items on this device. Model: 2209116AG 2209 indicates that this product will be launched after 202209. 02 FR Réglementations européennes Déclaration de conformité RED Xiaomi Communications Co., Ltd. déclare par la présente que ce téléphone mobile numérique GSM/GPRS/EDGE/UMTS/LTE avec Bluetooth et Wi-Fi 2209116AG est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive RE 2014/53/ UE. L'intégralité de la déclaration de conformité pour l'UE est disponible à l'adresse suivante : www.mi.com/en/certification Informations sur l'exposition aux radiofréquences (DAS) Cet appareil est conforme au débit d'absorption spécifique…

Text truncated - open the document above for the full version.

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District,Beijing,China100085 Tel: 010 6060 6666 Date: August 30, 2022 Power of Attorney To whom it may concern, Please be notified that I, qingyao zeng, have designated Samuel Peng in Shenzhen Balun Technology Co., Ltd. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Samuel Peng in Shenzhen Balun Technology Co., Ltd. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: 2AFZZ16AG If you have any acknowledgement and response, please send it to Shenzhen Balun Technology Co., Ltd. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact Person: Zengqingyao E-mail: [email protected]

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District,Beijing,China100085 Tel: 010 6060 6666 Date: August 30, 2022 We, Xiaomi Communications Co., Ltd. , declare that this EUT (FCC ID: 2AFZZ16AG) doesn't have Ad Hoc Mode function on "non-US/Canada frequencies". In addition, the frequency selection feature is disabled by firmware for devices marketed to the US/Canada. For DTS part of this device, only channels 1~11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact Person: Zengqingyao E-mail: [email protected]

Rev. 1/1/03 Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District,Beijing,China100085 Tel: 010 6060 6666 Date: August 30, 2022 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AFZZ16AG, Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Contact Person: Zengqingyao E-mail: [email protected]

Xiaomi Communications Co., Ltd. UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2AFZZ16AG, (1) DFS Device -- Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz Yes, No Yes, No Yes, No Yes, No 5150 – 5250 MHz Yes, No Yes, No Yes, No Yes, No 5250 – 5350 MHz Yes, No Yes, No Yes, No Yes, No 5470 – 5725 MHz Yes, No Yes, No Yes, No Yes, No 5725 – 5850 MHz Yes, No Yes, No Yes, No Yes, No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) The active or passive mode was controlled by software. For non-DFS frequency used active scanning, for DFS frequency was switched to passive scanning by software Mechanism If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Contact Person: Zengqingyao E-mail: [email protected]

1/1 Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District,Beijing,China100085 Tel: 010 6060 6666 Date: August 30, 2022 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : 2AFZZ16AG To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: ⚫ External Photos ⚫ Internal Photos ⚫ Test set-up photos ⚫ Users Manual The application contains technical information, which Xiaomi Communications Co., Ltd. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, ____ Contact Person: Zengqingyao E-mail: [email protected]

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District,Beijing,China100085 Tel: 010 6060 6666 Statement We, Xiaomi Communications Co., Ltd. , states that our device: FCC ID: 2AFZZ16AG The hardware supports LTE band40 but it will be disabled by software and are not available in US market. Zengqingyao [email protected]

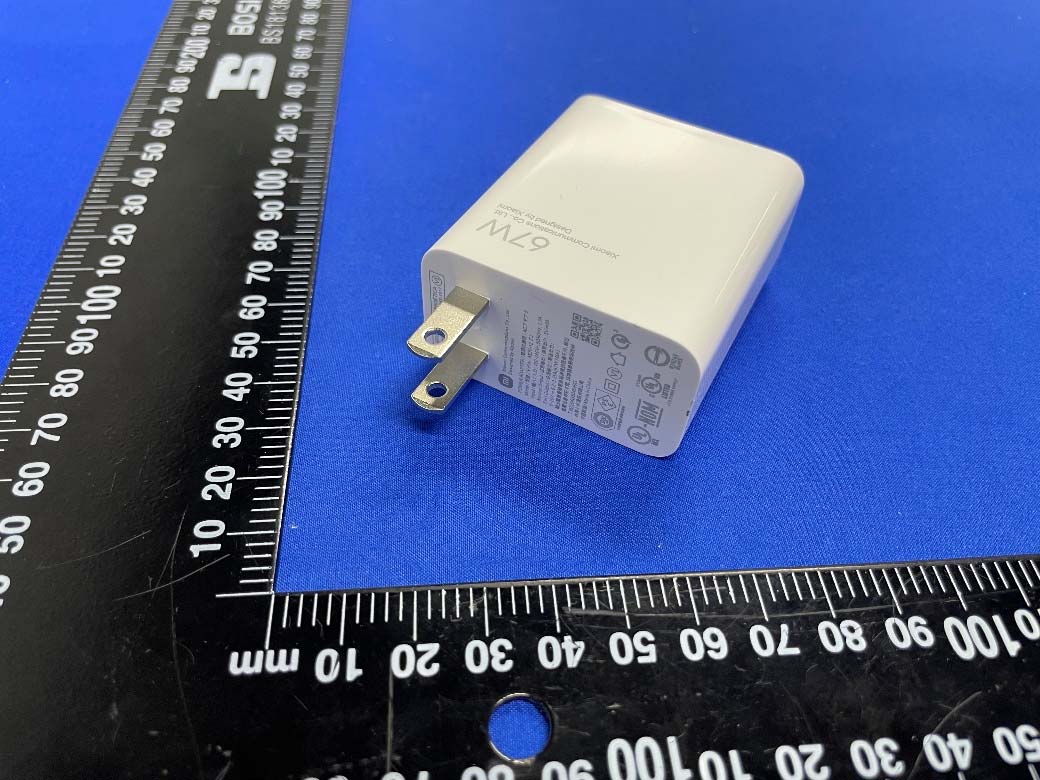

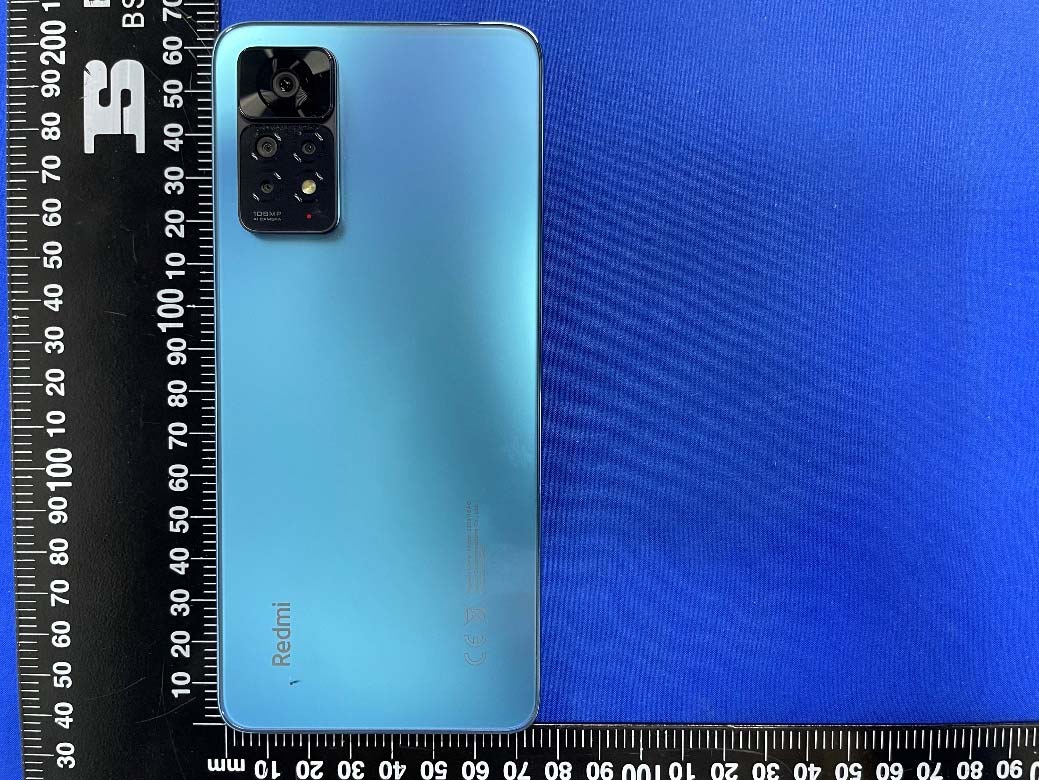

Report No.: BL-SZ2270591-AW 1 / 6 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2270591-AW 2 / 6 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Report No.: BL-SZ2270591-AW 3 / 6 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-SZ2270591-AW 4 / 6 Accessory-Power Adapter (MDY-12-EJ-Salcomp) CLOSE-UP Report No.: BL-SZ2270591-AW 5 / 6 Accessory-USB Cable Report No.: BL-SZ2270591-AW 6 / 6 Ancillary Equipment Ancillary Equipment 1 Li-Polymer Battery Brand Name MI Model No. BN5E Serial No. N/A Capacitance Rated: 4900mAh/18.9Wh Typical: 5000mAh/19.3Wh Rated Voltage 3.87 Vdc Limited Voltage 4.45 Vdc Manufacturer Dongguan Amperex Technology Limited Ancillary Equipment 2 Power Supply Unit 1 Brand Name MI Model No. MDY-12-EJ (USA Plug) Supplier Salcomp Rated Input 100-240Vac, 50/60Hz, 1.7A Rated Output 5.0 Vdc, 3.0A 5.0-20 Vdc, 6.2-3.25A (67W Max) Ancillary Equipment 3 USB Cable Model No. H26250 Length (Approx.) 1.0 m Note: Letter in () means plug type.

Electronic labeling

Report No.: BL-SZ2270591-AI 1 / 8 EUT INTERNAL PHOTOS EUT UNCOVER VIEW 1 EUT UNCOVER VIEW 2 ANTENNA 6: WLAN/BT ANTENNA 0: GSM 850/900/1800/1900 WCDMA Band 1/2/4/5/8 LTE Band 1/2/3/4/5/7/8/20/28/66/38/40/41 ANTENNA 4: GSM 850/900/1800/1900 WCDMA Band 1/2/4/5/8 LTE Band 1/2/3/4/5/7/8/20/28/66/38/40/41 ANTENNA 7: NFC Report No.: BL-SZ2270591-AI 2 / 8 EUT UNCOVER VIEW 3 MAIN BOARD TOP VIEW (WITH SHIELD COVER) Report No.: BL-SZ2270591-AI 3 / 8 MAIN BOARD REAR VIEW (WITH SHIELD COVER) MAIN BOARD TOP VIEW (WITHOUT SHIELD COVER) Report No.: BL-SZ2270591-AI 4 / 8 MAIN BOARD REAR VIEW (WITHOUT SHIELD COVER) SECONDARY BOARD TOP VIEW Report No.: BL-SZ2270591-AI 5 / 8 SECONDARY BOARD REAR VIEW MAIN ANT 0 CLOSE VIEW Report No.: BL-SZ2270591-AI 6 / 8 MAIN ANT 4 CLOSE VIEW BT WIFI ANT 6 CLOSE VIEW Report No.: BL-SZ2270591-AI 7 / 8 NFC ANT 7 CLOSE VIEW BATTERY (FRONT) 0 Report No.: BL-SZ2270591-AI 8 / 8 BATTERY 1 (REAR)

Ant.6 Ant.4 Ant.0 ANT.2 NFC Antenna Support Bands Ant.0 GSM:900/1800 WCDMA:1/5/8 LTE FDD:1/3/5/7/8/20/28 LTE TDD:38/40/41 Ant.4 GSM:900/1800 WCDMA:1/5/8 LTE FDD:1/3/5/7/8/20/28 LTE TDD:38/40/41 Ant.6 WIFI: 2.4G/5G BT:2.4G ANT.2 (RX only) LTE FDD:1/2/3/4/7 /66 LTE TDD:38/40/41 Back side

Report No.: BL-SZ2270591-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 161 Web: www.titcgroup.com Template No.: TRP-FCC DASY-Phone (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 Equipment Type: Mobile Phone Model Name: 2209116AG Brand Name: Redmi FCC ID: 2AFZZ16AG Test Standard: FCC 47 CFR Part 2.1093 (refer section 3.1) Maximum SAR: Head (1 g@0mm): 1.07 W/kg Body-worn (1 g@10mm): 0.68 W/kg Hotspot (1 g@10mm): 0.92 W/kg Specific (10 g@0mm): 2.42 W/kg Test Date Aug. 05, 2022 – Aug. 19, 2022 Date of Issue: Sep. 07, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Zhang Jiwei Checked by: Zong Liyao Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-SZ2270591-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 161 Web: www.titcgroup.com Template No.: TRP-FCC DASY-Phone (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Sep. 07, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................ 5 1.1 Test Laboratory ....................................................................................................................... 5 1.2 Test Location ........................................................................................................................... 5 1.3 Test Environment Condition .................................................................................................... 5 2 PRODUCT INFORMATION ........................................................................................................... 6 2.1 Applicant Information ............................................................................................................... 6 2.2 Manufacturer Information ........................................................................................................ 6 2.3 Factory Information ................................................................................................................. 6 2.4 General Description for Equipment under Test (EUT).............................................................. 6 2.5 Ancillary Equipment ................................................................................................................. 6 2.6 Technical Information .............................................................................................................. 7 3 SUMMARY OF TEST RESULT...................................................................................................... 9 3.1 Test Standards ........................................................................................................................ 9 3.2 Device Category and SAR Limit ............................................................................................ 10 3.3 Test Result Summary ............................................................................................................ 11 3.4 Test Uncertainty .................................................................................................................... 13 4 MEASUREMENT SYSTEM ......................................................................................................... 14 4.1 Specific Absorption Rate (SAR) Definition ............................................................................. 14 4.2 DASY SAR System ............................................................................................................... 15 5 SYSTEM VERIFICATION ............................................................................................................ 23 5.1 Purpose of System Check ..................................................................................................... 23 5.2 System Check Setup ............................................................................................................. 23 6 TEST POSITION CONFIGURATIONS ......................................................................................... 24 6.1 Head Exposure Conditions .................................................................................................... 24 Report No.: BL-SZ2270591-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 161 Web: www.titcgroup.com Template No.: TRP-FCC DASY-Phone (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 6.2 Body-worn Position Conditions .............................................................................................. 26 6.3 Hotspot Mode Exposure Position Conditions ......................................................................... 27 6.4 Product Specific 10g Exposure Consideration ....................................................................... 27 7 MEASUREMENT PROCEDURE ................................................................................................. 28 7.1 Measurement Process Diagram ............................................................................................ 28 7.2 SAR Scan General Requirement ........................................................................................... 29 7.3 Measurement Procedure ....................................................................................................... 30 7.4 Area & Zoom Scan Procedure ............................................................................................... 30 8 CONDUCTED RF OUPUT POWER ......................................................…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2270591-701 1 / 78 CALIBRATION REPORT F.1 E-Field Probe (EX3DV4 - SN:7607) Report No.: BL-SZ2270591-701 2 / 78 Report No.: BL-SZ2270591-701 3 / 78 Report No.: BL-SZ2270591-701 4 / 78 Report No.: BL-SZ2270591-701 5 / 78 Report No.: BL-SZ2270591-701 6 / 78 Report No.: BL-SZ2270591-701 7 / 78 Report No.: BL-SZ2270591-701 8 / 78 Report No.: BL-SZ2270591-701 9 / 78 Report No.: BL-SZ2270591-701 10 / 78 Report No.: BL-SZ2270591-701 11 / 78 Report No.: BL-SZ2270591-701 12 / 78 Report No.: BL-SZ2270591-701 13 / 78 Report No.: BL-SZ2270591-701 14 / 78 Report No.: BL-SZ2270591-701 15 / 78 Report No.: BL-SZ2270591-701 16 / 78 Report No.: BL-SZ2270591-701 17 / 78 Report No.: BL-SZ2270591-701 18 / 78 Report No.: BL-SZ2270591-701 19 / 78 Report No.: BL-SZ2270591-701 20 / 78 Report No.: BL-SZ2270591-701 21 / 78 Report No.: BL-SZ2270591-701 22 / 78 Report No.: BL-SZ2270591-701 23 / 78 F.2 Data Acquisition Electronics (DAE4 - SN:878) Report No.: BL-SZ2270591-701 24 / 78 Report No.: BL-SZ2270591-701 25 / 78 Report No.: BL-SZ2270591-701 26 / 78 F.3 835 MHz Dipole Report No.: BL-SZ2270591-701 27 / 78 Report No.: BL-SZ2270591-701 28 / 78 Report No.: BL-SZ2270591-701 29 / 78 Report No.: BL-SZ2270591-701 30 / 78 Report No.: BL-SZ2270591-701 31 / 78 Report No.: BL-SZ2270591-701 32 / 78 D835V2 Dipole impedance and return loss Validation Meas. Results Current Meas. Previous Meas. Max. Deviation Meas. Data 2022.05.16 2021.05.17 / Return Loss(dB) -32.412 -30.852 5.06% Impedance 50.497 Ω - 2.356 jΩ 52.638 Ω - 1.305 jΩ -2.141Ω (Real part) Return Loss for Head TSL Impedance for Head TSL Report No.: BL-SZ2270591-701 33 / 78 F.4 1750 MHz Dipole Report No.: BL-SZ2270591-701 34 / 78 Report No.: BL-SZ2270591-701 35 / 78 Report No.: BL-SZ2270591-701 36 / 78 Report No.: BL-SZ2270591-701 37 / 78 Report No.: BL-SZ2270591-701 38 / 78 Report No.: BL-SZ2270591-701 39 / 78 D1750V2 Dipole impedance and return loss Validation Meas. Results Current Meas. Previous Meas. Max. Deviation Meas. Data 2022.05.16 2021.05.17 / Return Loss(dB) -30.021 -35.465 -15.35% Impedance 51.965Ω - 2.004 jΩ 50.117Ω + 1.684 jΩ 1.848Ω (Real part) Return Loss for Head TSL Impedance for Head TSL Report No.: BL-SZ2270591-701 40 / 78 F.5 1900 MHz Dipole Report No.: BL-SZ2270591-701 41 / 78 Report No.: BL-SZ2270591-701 42 / 78 Report No.: BL-SZ2270591-701 43 / 78 Report No.: BL-SZ2270591-701 44 / 78 Report No.: BL-SZ2270591-701 45 / 78 Report No.: BL-SZ2270591-701 46 / 78 D1900V2 Dipole impedance and return loss Validation Meas. Results Current Meas. Previous Meas. Max. Deviation Meas. Data 2022.05.19 2021.05…

Text truncated - open the document above for the full version.
