2AFZZC3LVG

Xiaomi Communications Co., Ltd.

Mobile Phone (LTE/WCDMA/GSM/BT/WIFI)

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 15, 2020
Application Purpose: Original Equipment
Date of Application: Jul 14, 2020
Equipment Note: Mobile Phone (LTE/WCDMA/GSM/BT/WIFI)
Frequency Range: 2412.00000000 - 2462.00000000
Company: Xiaomi Communications Co., Ltd.
Country: China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

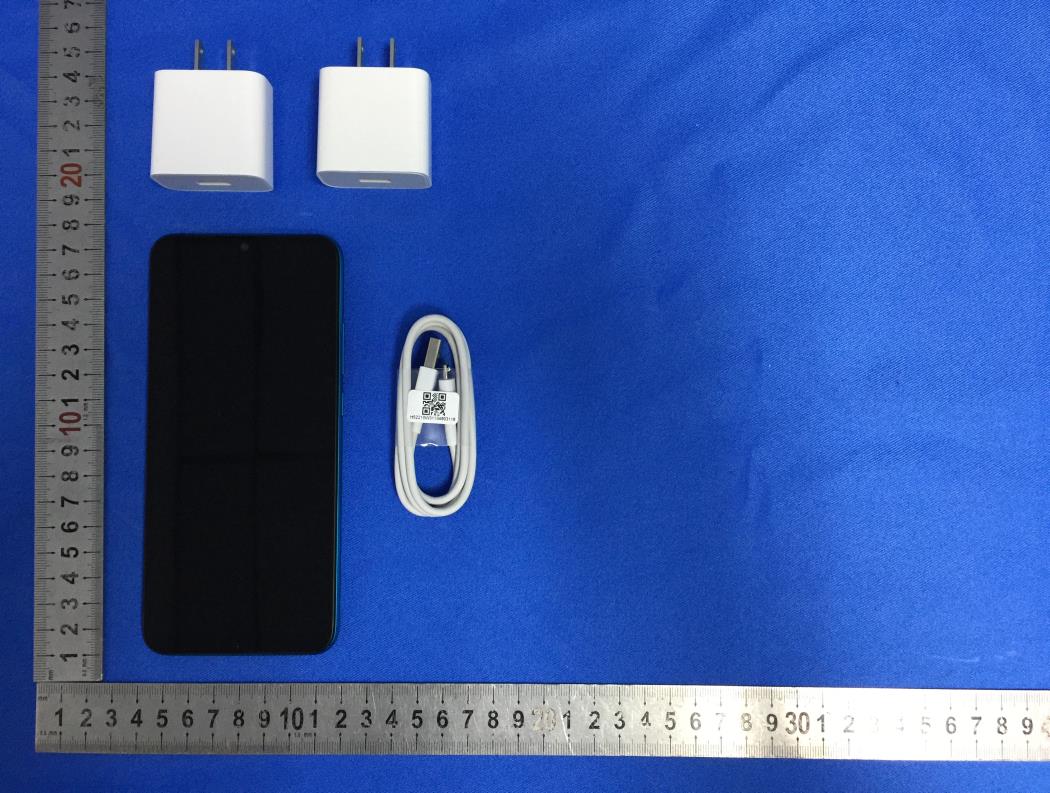

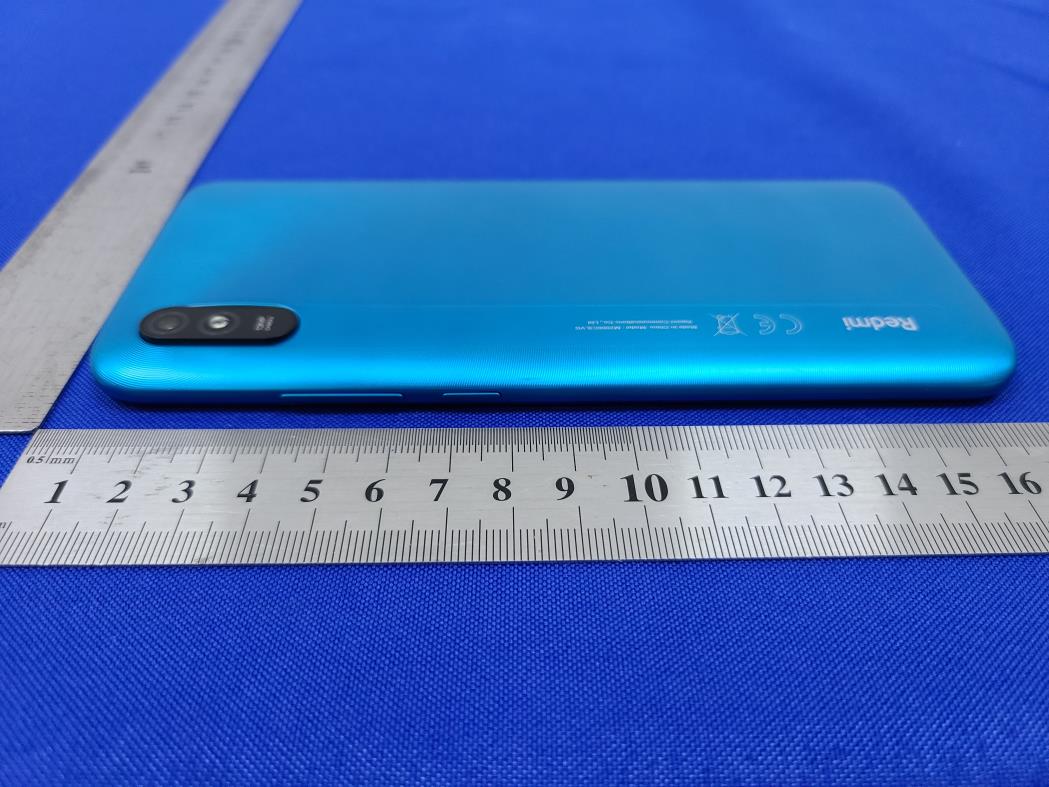

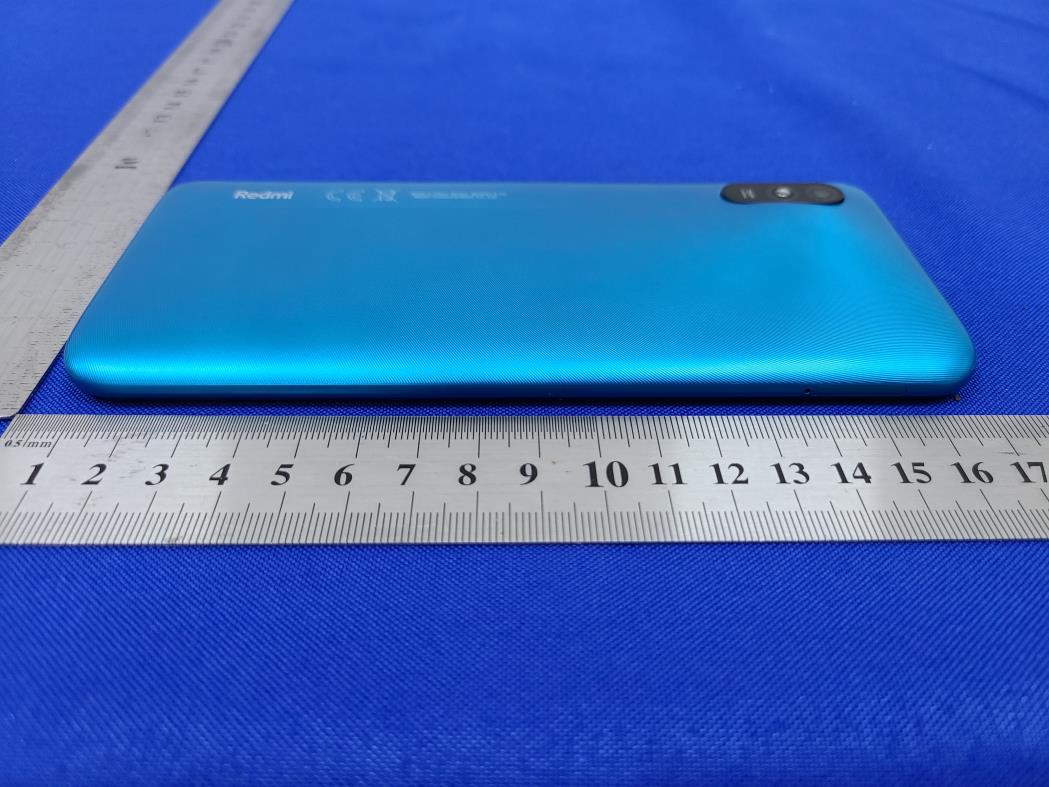

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.41 GHz - 2.46 GHz	154.00 mW

Confidentiality

Long Term

Grant Notes

Output power is maximum PEAK conducted. This device supports WIFI 802.11 b/g/n 20 and 40 MHz channel bandwidth. This device has integrated DSS, DTS and PCE transmitters certified under the same FCC ID. SAR compliance for body-worn operating configurations is limited to the belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.0 cm separation between the device and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values for head, body-worn accessory, hotspot and simultaneous transmission use conditions are 0.66 W/kg, 0.28 W/kg, 1.29 W/kg and 1.36 W/kg, respectively.
