2AFZZC3MNGMobile Phone ( LTE/WCDMA/GSM/BT/WIFI/NFC)

Redmi 9C NFC User Guide Contents English 01 Français 08 Italiano 15 Español 22 Deutsch 29 Nederlands 36 Português (Portugal) 43 Polski 50 Ελληνικά 57 Magyar 64 Česky 71 Româna 78 Українська 85 Srpski 92 Volume Buttons Power Button USB Port SAT. 16 AUG. 02 48 EN 01 Thank you for choosing Redmi 9C NFC Long press the power button to turn on the device. Follow the on-screen instructions to configure the device. For more information, visit our official website: www.mi.com/global/service/userguide MIUI Redmi 9C NFC comes pre-installed with MIUI, our customized Android-based OS which provides frequent updates and user-friendly features based on suggestions from over 200 million active users worldwide. For more information, please visit en.miui.com SIM Card Tray: Micro SD Nano-SIM Nano-SIM About Dual SIM: • Dual 4G SIM is offered by select telecom operators and may not be available in all regions. • Supports dual nano-SIM cards. When using both SIM card slots, either card can be set as the primary card. • VoLTE is only supported by telecom operators in certain regions. • System may be automatically updated for optimal network performance. For details, please refer to the system version in use on the device. • Please do not insert non-standard SIM cards into the SIM card slot. They may damage the SIM card slot. • WARNING: Do not disassemble this device. 02 WEEE Special precautions must be taken to safely dispose of this product. This marking indicates that this product may not be discarded with other household waste in the EU. To prevent harm to the environment or human health from inappropriate waste disposal, and to promote sustainable reuse of material resources, please recycle responsibly. To safely recycle your device, please use return and collection systems or contact the retailer where the device was originally purchased. To view our Environmental Declaration, please refer to the following link: www.mi.com/en/about/environment CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS. To prevent possible hearing damage, do not listen at high volume levels for long periods. Additional safety information and precautions can be accessed at the following link: www.mi.com/en/certification Important Safety Information Read all safety information below before using your device: • Use of unauthorized cables, power adapters, or batteries can cause fire, explosion, or pose other risks. • Use only authorized accessories which are compatible with your device. • This device’s operating temperature range is 0°C to 40°C. Using this device in an environment outside of this temperature range may damage the device. • If your device is provided with a built-in battery, to avoid damaging the battery or the device, do not attempt to replace the battery yourself. • Charge this device only with the included or authorized cable and power adapter. Using other adapters may cause fire, electric shock, and damage the device and the adapter. • After charging is complete, disconnect the adapter from both the device and the power outlet. Do not charge the device for more than 12 hours. • The battery must be recycled or disposed of separately from household waste. Mishandling the battery may cause fire or explosion. Dispose of or recycle the device, its battery, and accessories according to your local regulations. • Do not disassemble, hit, crush, or burn the battery. If the battery appears deformed or damaged, stop using it immediately. -Do not short circuit the battery, as this may cause overheating, burns, or other injury. -Do not place the battery in a high-temperature environment. -Overheating may cause explosion. 03 -Do not disassemble, hit, or crush the battery, as this may cause the battery to leak, overheat, or explode. -Do not burn the battery, as this may cause fire or explosion. -If the battery appears deformed or damaged, stop using it immediately. • User shall not remove or alter the battery. Removal or repair of the battery shall only be done by an authorized repair center of the manufacturer. • Keep your device dry. • Do not try to repair the device yourself. If any part of the device does not work properly, contact Mi customer support or bring your device to an authorized repair center. • Connect other devices according to their instruction manuals. Do not connect incompatible devices to this device. • For AC/DC adapters, the socket-outlet shall be installed near the equipment and shall be easily accessible. Safety Precautions • Observe all applicable laws and rules restricting use of mobile phones in specific situations and environments. • Do not use your phone at petrol stations or in any explosive atmosphere or potentially explosive environment, including fueling areas, below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air may contain chemicals or particles such as grain, dust, or metal powders. Obey all posted signs to turn off wireless devices such as your phone or other radio equipment. Turn off your mobile phone or wireless device when in a blasting area or in areas requiring “two-way radios” or “electronic devices” to be turned off to prevent potential hazards. • Do not use your phone in hospital operating rooms, emergency rooms, or intensive care units. Always comply with all rules and regulations of hospitals and health centers. If you have a medical device, please consult your doctor and the device manufacturer to determine whether your phone may interfere with the device’s operation. To avoid potential interference with a pacemaker, always maintain a minimum distance of 15 cm between your mobile phone and the pacemaker. This can be done by using your phone on the ear opposite to your pacemaker and not carrying your phone in a breast pocket. To avoid interference with medical equipment, do not use your phone near hearing aids, cochlear implants, or other similar devices. • Observe all airc…

Text truncated - open the document above for the full version.

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Tel: 010 6060 6666 ; Fax: 010 6060 6666 Date: July 13, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: 2AFZZC3MNG To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Part List Operational Description Tune‐up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04‐1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short‐term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04‐1705. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ____ sheng hao [email protected] 5h ef\ J ha.o

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Tel: 010 6060 6666 ; Fax: 010 6060 6666 Statement We, Xiaomi Communications Co., Ltd., Model name: M2006C3MNG， FCC ID: 2AFZZC3MNG，states that our device is a LTE/WCDMA/GSM Mobile Phone with WLAN 2.4GHz(Channel 1~11), Bluetooth and NFC functionality. The hardware supports LTE Band 40, but they will be disabled by software and are not available in US market. sheng hao [email protected] 5h ef\ J ha.o

Amendment Letter Phoenix Engineering, Inc. This is to request report update for FCC ID: 2AFZZC3MNG, The Major change filed under this application and the relevant report numbers are as below: Original report number New report number Revise content ZR/2020/5004601 ZR/2020/5004601-01 1.Add test site Information in section 2, 3.2 and 3.3. 2.Update equipment list in section 5. 3. Updated the report NO. of appendix B in header with “-01” ZR/2020/5004602 ZR/2020/5004602-01 1.Add test site Information in section 2, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. ZR/2020/5004603 ZR/2020/5004603-01 1.Add test site Information in section 2, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. ZR/2020/5004604 ZR/2020/5004604-01 1.Add test site Information in section 2, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. Setup photo Add test location. Sincerely, (signature) (printed name) Derek Yang

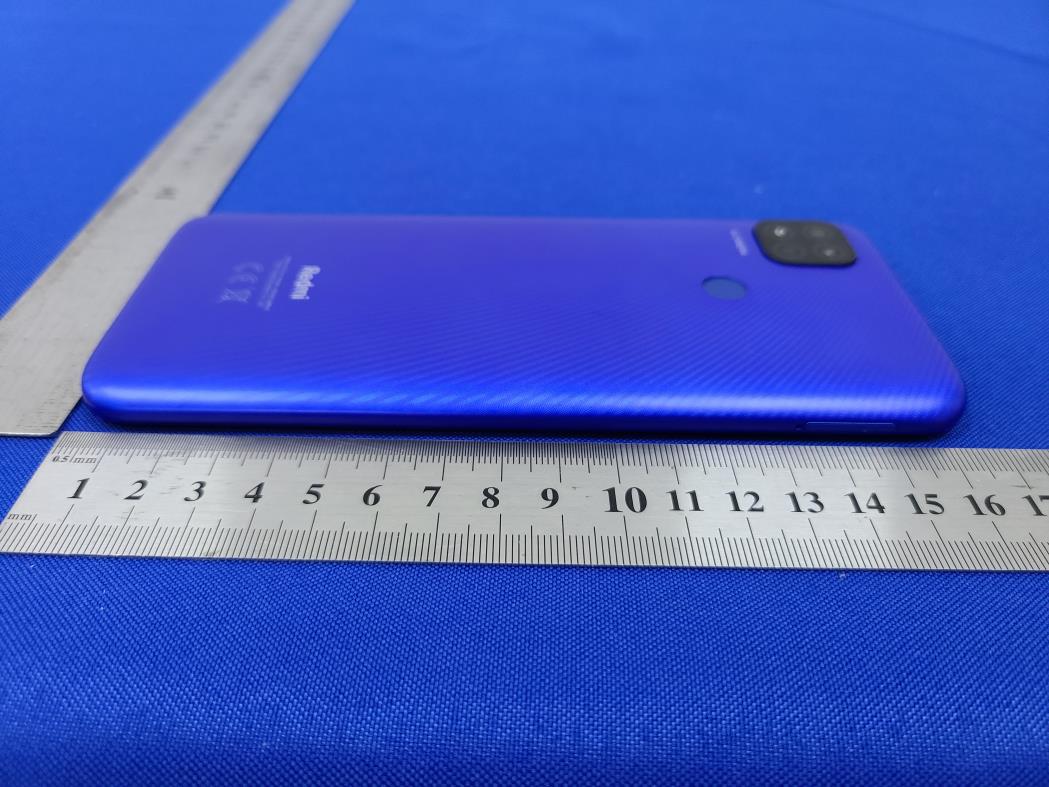

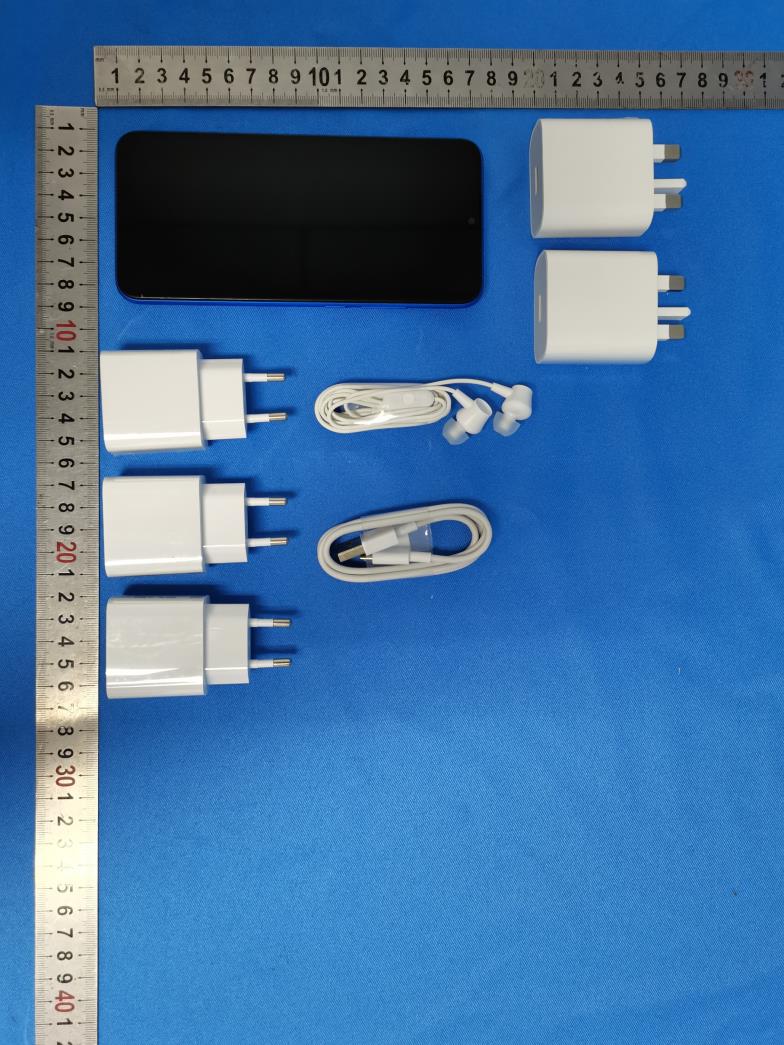

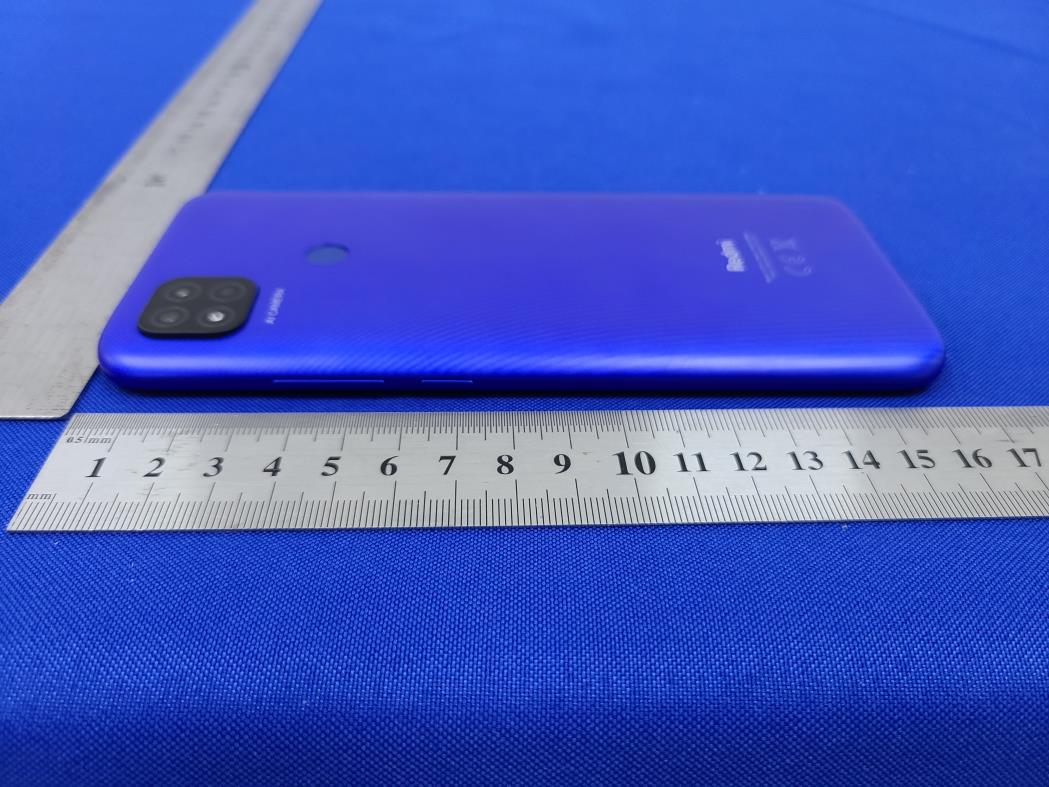

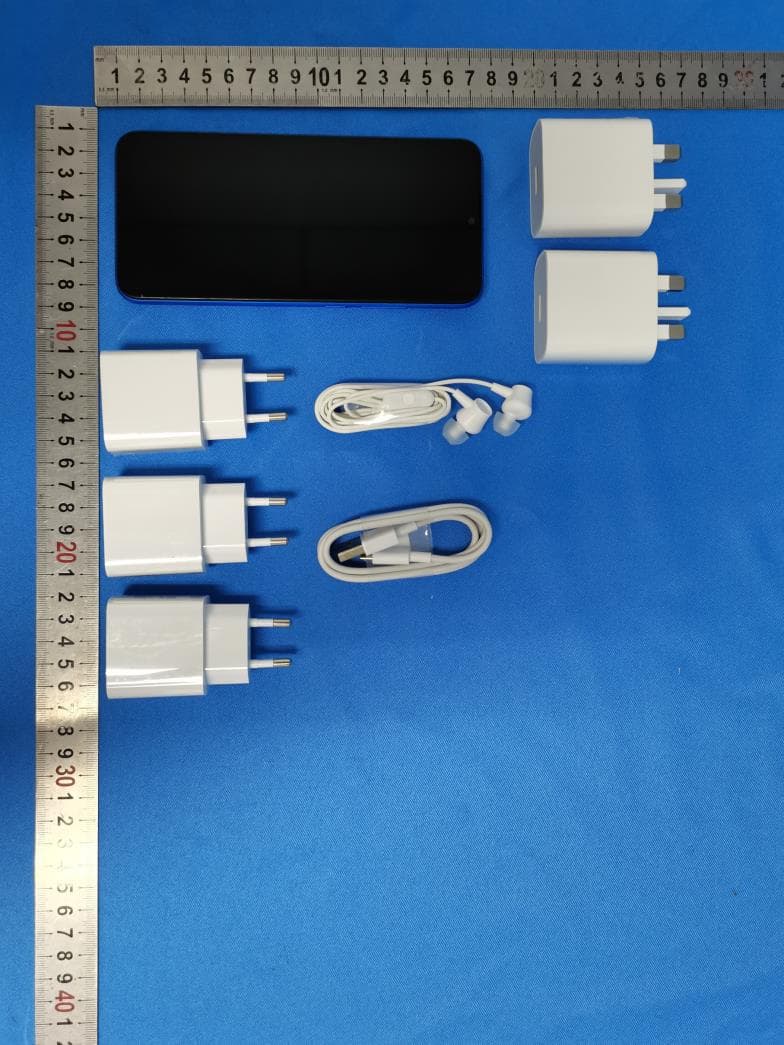

Page 1 of 4 1 Photographs - EUT Constructional Details Model No.(EUT): M2006C3MNG FCC ID: 2AFZZC3MNG Page 2 of 4 Page 3 of 4 Page 4 of 4

Page 1 of 7 1 Photographs - EUT Constructional Details Model No.(EUT): M2006C3MNG FCC ID: 2AFZZC3MNG Page 2 of 7 Page 3 of 7 Page 4 of 7 Page 5 of 7 Page 6 of 7 Page 7 of 7

SGS-CSTC Standards Technical Services Co., Ltd. Xi’An Branch Report No.: ZR/2020/5004606 Page : 1 of 93 FCC SAR TEST REPORT Report No: ZR/2020/50046 Applicant: Xiaomi Communications Co., Ltd. Manufacturer: Xiaomi Communications Co., Ltd. Product Name: Mobile Phone Model No.(EUT): M2006C3MNG Trade Mark: Redmi FCC ID: 2AFZZC3MNG Standards: FCC 47CFR §2.1093 Date of Receipt: 2020-06-12 Date of Test: 2020-06-13 to 2020-06-29 Date of Issue: 2020-07-04 Test conclusion: PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Authorized Signature: Derek Yang Wireless Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. SGS-CSTC Standards Technical Services Co., Ltd. Xi’An Branch Report No.: ZR/2020/5004606 Page : 2 of 93 REVISION HISTORY Report Number Revision Description Issue Date ZR/2020/5004606 01 Original 2020-07-04 SGS-CSTC Standards Technical Services Co., Ltd. Xi’An Branch Report No.: ZR/2020/5004606 Page : 3 of 93 TEST SUMMARY Frequency Band Maximum Reported SAR(W/kg) Head Body-worn Hotspot Product Specific 10-g SAR GSM850 0.21 0.44 0.33 / GSM1900 0.22 0.67 0.62 / WCDMA Band II 0.29 0.90 0.90 / WCDMA Band IV 0.18 0.72 0.89 / WCDMA Band V 0.16 0.36 0.36 / LTE Band 2 0.36 0.70 0.73 / LTE Band 4 0.26 0.59 0.90 / LTE Band 5 0.18 0.46 0.46 / LTE Band 7 0.39 0.27 0.29 / LTE Band 38 0.17 0.26 0.26 / WI-FI (2.4GHz) 0.57 0.21 0.21 / BT 0.16 / / / SAR Limited(W/kg) 1.6 4.0 Maximum Simultaneous Transmission SAR (W/kg) Scenario Head Body-worn Hotspot Product Specific 10-g SAR Sum SAR 0.95 1.11 1.11 / SPLSR NA NA NA NA SPLSR Limited 0.04 0.1 Approved & Released by Simon Ling SAR Manager Tested by Gavin Gao SAR Engineer SGS-CSTC Standards Technical Services Co., Ltd. Xi’An Branch Report No.: ZR/2020/5004606 Page : 4 of 93 CONTENTS 1 GENERAL INFORMATION .....................................................................................................................................6 1.1 DETAILS OF CLIENT ...........................................................................................................................................6 1.2 TEST LOCATION.................................................................................................................................................6 1.3 TEST FACILITY ...................................................................................................................................................7 1.4 GENERAL DESCRIPTION OF EUT .......................................................................................................................8 1.4.1 DUT Antenna Locations(Front View).........................................................................................................9 1.4.2 Power reduction specification .................................................................................................................. 10 1.5 TEST SPECIFICATION ....................................................................................................................................... 11 1.6 RF EXPOSURE LIMITS ...................................................................................................................................... 12 2 LABORATORY ENVIRONMENT ........................................................................................................................ 13 3 SAR MEASUREMENTS SYSTEM CONFIGURATION ...................................................................................... 14 3.1 THE SAR MEASUREMENT SYSTEM.................................................................................................................. 14 3.2 ISOTROPIC E-FIELD PROBE EX3DV4 .............................................................................................................. 15 3.3 DATA ACQUISITION ELECTRONICS (DAE) ....................................................................................................... 16 3.4 SAM TWIN PHANTOM ...................................................................................................................................... 16 3.5 ELI PHANTOM ................................................................................................................................................. 17 3.6 DEVICE HOLDER FOR TRANSMITTERS .............................................................................................................. 18 3.7 MEASUREMENT PROCEDURE ........................................................................................................................... 19 3.7.1 Scanning procedure ................................................................................................................................. 19 3.7.2 Data Storage ............................................................................................................................................. 21 3.7.3 Data Evaluation by SEMCAD .................................................................................................................. 21 4 SAR MEASUREMENT VARIABILITY AND UNCERTAINTY ............................................................................ 23 4.1 SAR MEASUREMENT VARIABILITY ................................................................................................................... 23 4.2 SAR MEASUREMENT UNCERTAINTY ...........................................................................................…

Text truncated - open the document above for the full version.

Dipole D1750V2 SN 1149 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2019-05-21 -31.8 / 47.6 / 2020-05-20 -32.3 1.57% 48.9 1.3 Ω Dipole D2 600V2 SN 1125 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2019-05-20 -25.7 / 48.9 / 2020-05-20 -26.6 3.50% 50.8 1.9 Ω

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/5004604 Page: 1 of 82 Authorized Signature: Derek Yang Wireless Laboratory Manager Cover pageFCC TEST REPORT Application No.: ZR/2020/50046 Applicant: Xiaomi Communications Co., Ltd. Address of Applicant #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 Manufacturer: Xiaomi Communications Co., Ltd. Address of Manufacturer #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 EUT Description: Mobile Phone Model No.: M2006C3MNG Trade Mark: Redmi FCC ID: 2AFZZC3MNG Standards: 47 CFR FCC Part 2, Subpart J 47 CFR Part 15, Subpart C Test Method ANSI C63.10 (2013) KDB558074 D01 15.247 Meas Guidance v05r02 Date of Receipt: 2020/6/10 Date of Test: 2020/6/10 to 2020/6/22 Date of Issue: 2020/7/4 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/5004604 Page: 2 of 82 1 Version Revision Record Version Chapter Date Modifier Remark 01 2020/7/4 Original Authorized for issue by: Tested By (Mike Hu) /Project Engineer Checked By (David Chen) /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/5004604 Page: 3 of 82 2 Test Summary Test Item Test Requirement Test method Test Result Result AC Power Line Conducted Emission 15.207 ANSI C63.10 (2013) Clause 4.3 PASS Conducted Peak Output Power 15.247 (a)(1) ANSI C63.10 (2013) Clause 4.4 PASS 20dB Emission Bandwidth & 99% Occupied Bandwidth 15.247 (a)(1) ANSI C63.10 (2013) Clause 4.5 PASS Carrier Frequencies Separation 15.247 (a)(1) ANSI C63.10 (2013) Clause 4.6 PASS Hopping Channel Number 15.247 (a)(1) ANSI C63.10 (2013) Clause 4.7 PASS Dwell Time 15.247 (a)(1) ANSI C63.10 (2013) Clause 4.8 PASS Band-edge for RF Conducted Emissions 15.247(d) ANSI C63.10 (2013) Clause 4.9 PASS RF Conducted Spurious Emissions 15.247(d) ANSI C63.10 (2013) Clause 4.10 PASS Radiated Spurious emissions 15.247(d); 15.205/15.209 ANSI C63.10 (2013) Clause 4.11 PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d); 15.205/15.209 ANSI C63.10 (2013) Clause 4.12 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/5004604 Page: 4 of 82 Contents 1 VERSION ................................................................................................................................................................. 2 2 TEST SUMMARY ................................................................................................................................................... 3 3 GENERAL INFORMATION .................................................................................................................................. 5 3.1 CLIENT INFORMATION ........................................................................................................................................ 5 3.2 TEST LOCATION .................................................................................................................................................. 5 3.3 TEST FACILITY .................................................................................................................................................... 5 3.4 GENERAL DESCRIPTION OF EUT ......................................................................................................................... 6 3.5 TEST ENVIRONMENT ........................................................................................................................................... 7 3.6 DESCRIPTION OF SUPPORT UNITS ....................................................................................................................... 7 4 TEST RESULTS AND MEASUREMENT DATA ............................................................................................... 8 4.1 ANTENNA REQUIREMENT ................................................................................................................................... 8 4.2 OTHER REQUIREMENTS FREQUENCY HOPPING SPREAD SPECTRUM SYSTEM HOPPING SEQUENCE ..................... 9 4.2.1 Test Requirement: .................................................................................................................................. 9 4.2.2 Conclusion ............................................................................................................................................... 9 4.3 AC POWER LINE CONDUCTED EMISSIONS ........................................................................................................ 11 4.4 CONDUCTED PEAK OUTPUT POWER.................................................................................................................. 15 4.4.1 Test Results ........................................................................................................................................... 16 4.4.2 Test plots ................................................................................................................................................ 17 4.5 20DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH ......................................................................... 22 4.5.1 Test Results ........................................................................................................................................... 22 4.5.2 Test plots ................................................................................................................................................ 23 4.6 CARRIER FREQUENCIES SEPARATION ............................................................................................................... 32 4.6.1 Test Results ........................................................................................................................................... 33 4.6.2 Test plots: ........................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/5004604-01 Page: 1 of 83 Authorized Signature: Derek Yang Wireless Laboratory Manager Cover pageFCC TEST REPORT Application No.: ZR/2020/50046 Applicant: Xiaomi Communications Co., Ltd. Address of Applicant #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 Manufacturer: Xiaomi Communications Co., Ltd. Address of Manufacturer #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 EUT Description: Mobile Phone Model No.: M2006C3MNG Trade Mark: Redmi FCC ID: 2AFZZC3MNG Standards: 47 CFR FCC Part 2, Subpart J 47 CFR Part 15, Subpart C Test Method ANSI C63.10 (2013) KDB558074 D01 15.247 Meas Guidance v05r02 Date of Receipt: 2020/6/10 Date of Test: 2020/6/10 to 2020/6/22 Date of Issue: 2021/4/29 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/5004604-01 Page: 2 of 83 1 Version Revision Record Version Chapter Date Modifier Remark 01 2020/7/4 Original 01 2021/4/29 Eason Wang 1. Add test site Information 2.Modify data conversion error of antenna height 3.Update equipment list *This report supersedes our previous report ZR/2020/5004604, issued on 2020/7/4, which is hereby deemed null and void. Authorized for issue by: Prepared By (Eason Wang) /Engineer Checked By (David Chen) /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/5004604-01 Page: 3 of 83 2 Test Summary Test Item Test Requirement Test method Result Test Lab* AC Power Line Conducted Emission 15.207 ANSI C63.10 2013 PASS B Duty Cycle -- -- PASS A Conducted Output Power 15.247 (b)(3) ANSI C63.10 2013 PASS A DTS (6 dB) Bandwidth & 99% Occupied Bandwidth 15.247 (a)(2) ANSI C63.10 2013 PASS A Power Spectral Density 15.247 (e) ANSI C63.10 2013 PASS A Band-edge for RF Conducted Emissions 15.247(d) ANSI C63.10 2013 PASS A RF Conducted Spurious Emissions 15.247(d) ANSI C63.10 2013 PASS A Radiated Spurious Emissions 15.247(d);15.205/15.209 ANSI C63.10 2013 PASS B Restricted bands around fundamental frequency (Radiated Emission) 15.247(d);15.205/15.209 ANSI C63.10 2013 PASS B Remark: All test were performed by Lab A and Lab B. Lab A: SGS-CSTC Standards Technical Services Co.,Ltd. Shenzhen Branch Lab B: SGS-CSTC Standards Technical Services (XI’AN) Co.,Ltd SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/5004604-01 Page: 4 of 83 Contents 1 VERSION ................................................................................................................................................................. 2 2 TEST SUMMARY ................................................................................................................................................... 3 3 GENERAL INFORMATION .................................................................................................................................. 5 3.1 CLIENT INFORMATION ........................................................................................................................................ 5 3.2 TEST LOCATION .................................................................................................................................................. 5 3.3 TEST FACILITY .................................................................................................................................................... 6 3.4 GENERAL DESCRIPTION OF EUT ......................................................................................................................... 7 3.5 TEST ENVIRONMENT ........................................................................................................................................... 8 3.6 DESCRIPTION OF SUPPORT UNITS ....................................................................................................................... 8 4 TEST RESULTS AND MEASUREMENT DATA ............................................................................................... 9 4.1 ANTENNA REQUIREMENT ................................................................................................................................... 9 4.2 OTHER REQUIREMENTS FREQUENCY HOPPING SPREAD SPECTRUM SYSTEM HOPPING SEQUENCE ................... 10 4.2.1 Test Requirement: ................................................................................................................................ 10 4.2.2 Conclusion ............................................................................................................................................. 10 4.3 AC POWER LINE CONDUCTED EMISSIONS ........................................................................................................ 12 4.4 CONDUCTED PEAK OUTPUT POWER.................................................................................................................. 16 4.4.1 Test Results ........................................................................................................................................... 17 4.4.2 Test plots ................................................................................................................................................ 18 4.5 20DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH ......................................................................... 23 4.5.1 Test Results ........................................................................................................................................... 23 4.5.2 Test plots ................................................................................................................................................ 24 4.6 CARRIER FREQUENCIES SEPARATION ..........................................................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 3 Appendix A Photographs of EUT Constructional Details for ZR/2020/50046 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 3 1 Photographs – RF Test model No.: M2006C3MNG FCC ID : 2AFZZC3MNG 1.1 Setup for AC Power Line Conducted Emissions below 30MHz SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 3 1.2 Setup for Unwanted Emissions that fall Outside of the Restricted Bands(Radiated) and Unwanted Emissions in the Restricted Bands (Radiated) below 1GHz 1.3 Setup for Unwanted Emissions that fall Outside of the Restricted Bands(Radiated) and Unwanted Emissions in the Restricted Bands (Radiated) above 1GHz

SGS-CSTC Standards Technical Services Co., Ltd. Xi’An Branch Report No.: ZR/2020/5004606 Appendix D Photographs 1. SAR measurement System 2. Photographs of Tissue Simulate Liquid 3. Photographs of EUT test position 4. EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Xi’An Branch Report No.: ZR/2020/5004606 1. SAR measurement System SGS-CSTC Standards Technical Services Co., Ltd. Xi’An Branch Report No.: ZR/2020/5004606 2. Photographs of Tissue Simulate Liquid Photo 1: Tissue Simulant Liquid for Head 835 Photo 2: Tissue Simulant Liquid for Head 1750 Photo 3: Tissue Simulant Liquid for Head 1900 Photo 4: Tissue Simulant Liquid for Head 2450 Photo 5: Tissue Simulant Liquid for Head 2600 NA NA SGS-CSTC Standards Technical Services Co., Ltd. Xi’An Branch Report No.: ZR/2020/5004606 3. Photographs of EUT test position Photo 6: Left cheek Photo 7: Left tilted Photo 8: Right cheek Photo 9: Right tilted Photo 10: Front side 10mm Photo 11:…
