2AFZZJ11GMobile Phone (LTE/WCDMA/GSM/BT/WIFI/NFC)

POCO F2 Pro User Guide SAT. 16 AUG. 02 48 Volume Buttons Power Button USB Type-C Port Thank you for choosing POCO F2 Pro Long press the power button to turn on the device. Follow the on-screen instructions to configure the device. For more information, visit our official website: www.mi.com/global/service/userguide MIUI POCO F2 Pro comes pre-installed with MIUI, our customized Android-based OS which provides frequent updates and user-friendly features based on suggestions from over 200 million active users worldwide. For more information, please visit en.miui.com SIM Card Tray: About Dual SIM: • Supports Dual SIM cards with no carrier restrictions, single 5G or dual 4G connectivity ① • Supports Dual Nano-SIM card slots, either card can be set as the primary card • Supports single SIM 5G/4G+/4G/3G/2G • Supports Dual SIM 4G+/4G/3G/2G • Supports Dual SIM VoLTE HD calling ② Note ①: 5G support depends on the local telecom operator’s network; if the primary card 5G is enabled, the secondary card will not be available; subsequent software upgrades will include support for primary 5G and secondary 4G/3G/2G card mode function in dual-card situations. Note ②: VoLTE service availability depends on the local telecom operator’s network and service deployment • Please do not insert non-standard SIM cards into the SIM card slot. They may damage the SIM card slot. • WARNING: Do not disassemble this device. WEEE Special precautions must be taken to safely dispose of this product. This marking indicates that this product may not be discarded with other household waste in the EU. To prevent harm to the environment or human health from inappropriate waste disposal, and to promote sustainable reuse of material resources, please recycle responsibly. To safely recycle your device, please use return and collection systems or contact the retailer where the device was originally purchased. To view our Environmental Declaration, please refer to the following link: www.mi.com/en/about/environment CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS. To prevent possible hearing damage, do not listen at high volume levels for long periods. Additional safety information and precautions can be accessed at the following link: www.mi.com/en/certification Important Safety Information Read all safety information below before using your device: • Use of unauthorized cables, power adapters, or batteries can cause fire, explosion, or pose other risks. • Use only authorized accessories which are compatible with your device. • This device’s operating temperature range is 0°C to 40°C. Using this device in an environment outside of this temperature range may damage the device. • If your device is provided with a built-in battery, to avoid damaging the battery or the device, do not attempt to replace the battery yourself. • Charge this device only with the included or authorized cable and power adapter. Using other adapters may cause fire, electric shock, and damage the device and the adapter. • After charging is complete, disconnect the adapter from both the device and the power outlet. Do not charge the device for more than 12 hours. • The battery must be recycled or disposed of separately from household waste. Mishandling the battery may cause fire or explosion. Dispose of or recycle the device, its battery, and accessories according to your local regulations. • Do not disassemble, hit, crush, or burn the battery. If the battery appears deformed or damaged, stop using it immediately. - Do not short circuit the battery, as this may cause overheating, burns, or other injury. - Do not place the battery in a high-temperature environment. - Overheating may cause explosion. - Do not disassemble, hit, or crush the battery, as this may cause the battery to leak, overheat, or explode. - Do not burn the battery, as this may cause fire or explosion. - If the battery appears deformed or damaged, stop using it immediately. • User shall not remove or alter the battery. Removal or repair of the battery shall only be done by an authorized repair center of the manufacturer. • Keep your device dry. • Do not try to repair the device yourself. If any part of the device does not work properly, contact Mi customer support or bring your device to an authorized repair center. • Connect other devices according to their instruction manuals. Do not connect incompatible devices to this device. • For AC/DC adapters, the socket-outlet shall be installed near the equipment and shall be easily accessible. Safety Precautions • Observe all applicable laws and rules restricting use of mobile phones in specific situations and environments. • Do not use your phone at petrol stations or in any explosive atmosphere or potentially explosive environment, including fueling areas, below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air may contain chemicals or particles such as grain, dust, or metal powders. Obey all posted signs to turn off wireless devices such as your phone or other radio equipment. Turn off your mobile phone or wireless device when in a blasting area or in areas requiring “two-way radios” or “electronic devices” to be turned off to prevent potential hazards. • Do not use your phone in hospital operating rooms, emergency rooms, or intensive care units. Always comply with all rules and regulations of hospitals and health centers. If you have a medical device, please consult your doctor and the device manufacturer to determine whether your phone may interfere with the device’s operation. To avoid potential interference with a pacemaker, always maintain a minimum distance of 15 cm between your mobile phone and the pacemaker. This can be done by using your phone on the ear opposite to your pacemaker and not carrying your phone in a breast pocket. To avoid interference with medical equipment, do not use your phone near hearing aids, cochlear implant…

Text truncated - open the document above for the full version.

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Tel: 010 6060 6666 ; Fax: 010 6060 6666 Date: April 21, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: 2AFZZJ11G To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune‐up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04‐1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short‐term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04‐1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, _ ___ Xiaogang Jiao [email protected]

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Tel: 010 6060 6666 ; Fax: 010 6060 6666 Statement We, Xiaomi Communications Co., Ltd., Model name: M2004J11G， FCC ID: 2AFZZJ11G，states that our device is a LTE/WCDMA/GSM Mobile Phone with WLAN 2.4GHz(Channel 1~11)/5GHz, Bluetooth and NFC functionality. The hardware supports LTE Band 40, but they will be disabled by software and are not available in US market. Xiaogang Jiao [email protected]

Xiaomi Communications Co.,Ltd #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2AFZZJ11G (1) DFS Device -- Master, Client with Radar detection capability , ■ Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 2422 – 2452 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 5745 – 5825 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 5755 – 5795 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 5180 – 5240 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 5190 – 5230 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 5260 – 5320 MHz Yes, ■ No Yes, ■ No Yes, ■ No Yes, ■ No 5270 – 5310 MHz Yes, ■ No Yes, ■ No Yes, ■ No Yes, ■ No 5500 – 5700 MHz Yes, ■ No Yes, ■ No Yes, ■ No Yes, ■ No 5510 – 5670 MHz Yes, ■ No Yes, ■ No Yes, ■ No Yes, ■ No (3) Country code selection ability - Yes , ■ No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement - ■ Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices ■ A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , ■ No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Xiaomi Communications Co., Ltd. Printed Name:Jiao Xiao Gang Position：Certification Director

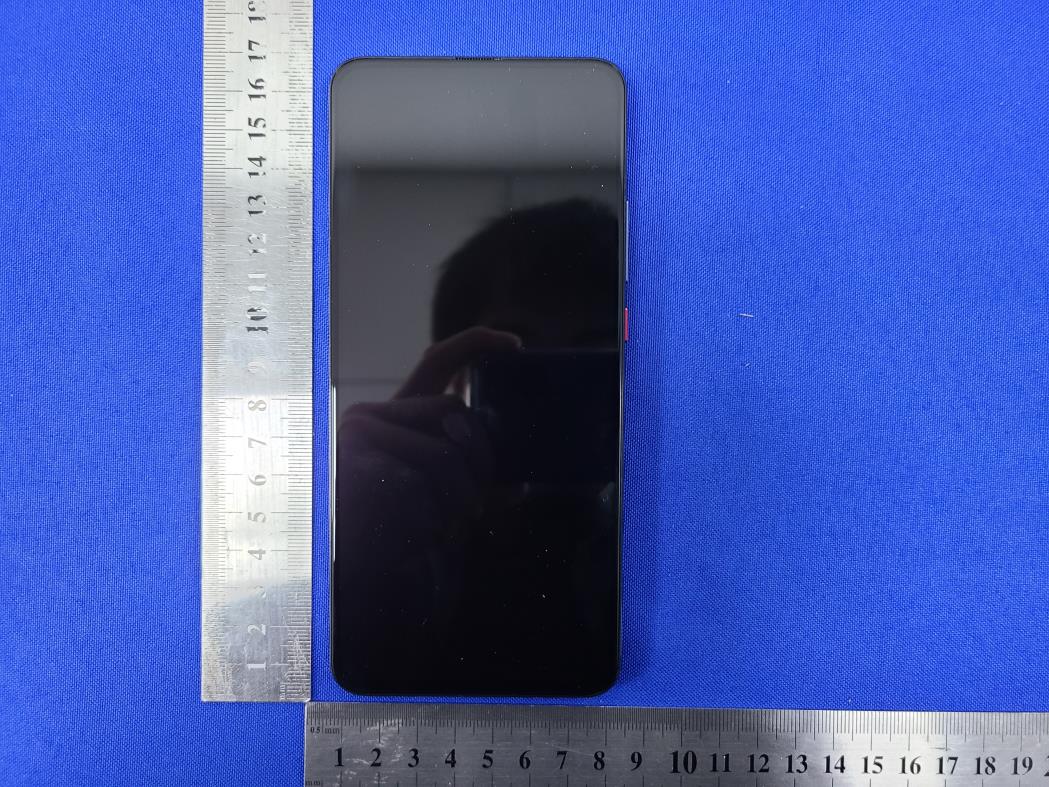

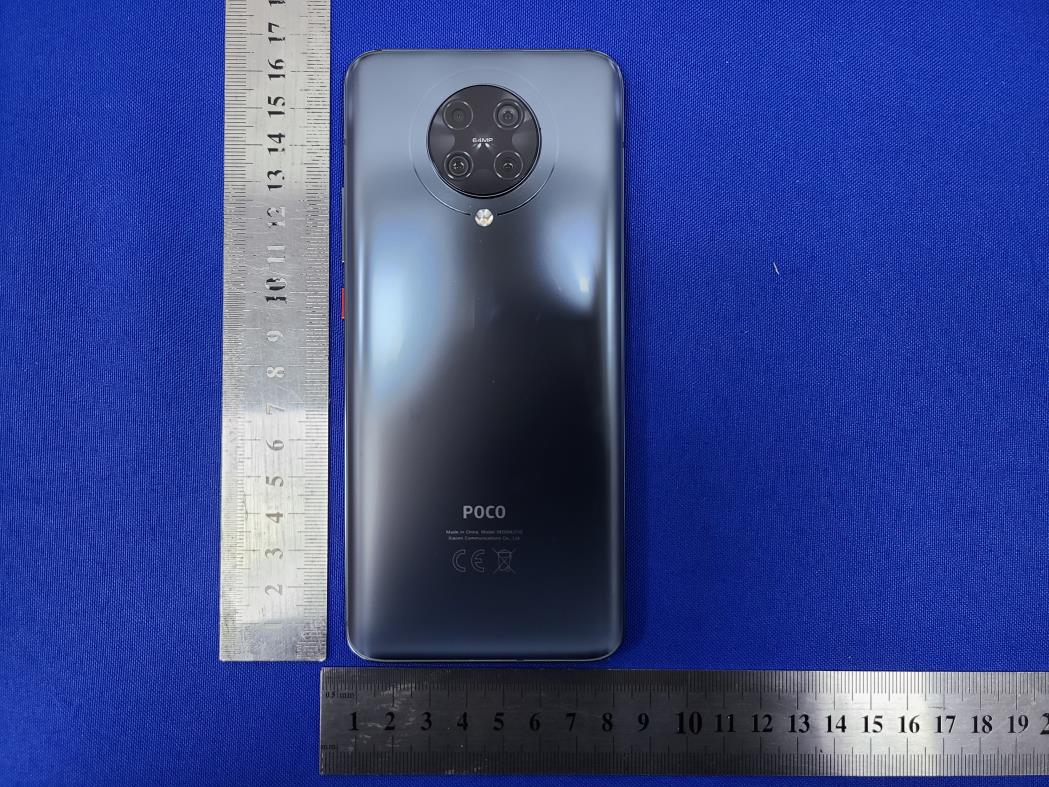

Page 1 of 4 1 Photographs - EUT Constructional Details Model No.(EUT): M2004J11G FCC ID: 2AFZZJ11G Page 2 of 4 Page 3 of 4 Page 4 of 4

FCC E-Label Information A. Images of the e-label screen are provided bel。w: B. Access to the required information on the e-label Users are able to access the information in no more than three steps in a device's menu. The actual steps are: Settings> About Phone >Certification or select Setting, then type ” Certification ” into the search bar. m1

Page 1 of 8 1 Photographs - EUT Constructional Details Model No.(EUT): M2004J11G FCC ID: 2AFZZJ11G Page 2 of 8 Page 3 of 8 Page 4 of 8 Page 5 of 8 Page 6 of 8 Page 7 of 8 Page 8 of 8

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/3001007 Page : 1 of 185 FCC SAR TEST REPORT Report No: ZR/2020/30010 Applicant: Xiaomi Communications Co., Ltd. Manufacturer: Xiaomi Communications Co., Ltd. Product Name: Mobile Phone Model No.(EUT): M2004J11G Trade Mark: POCO FCC ID: 2AFZZJ11G Standards: FCC 47CFR §2.1093 Date of Receipt: 2020-03-18 Date of Test: 2020-03-30 to 2020-04-10 Date of Issue: 2020-04-26 Test conclusion: PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Authorized Signature: Derek Yang Wireless Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/3001007 Page : 2 of 185 REVISION HISTORY Report Number Revision Description Issue Date ZR/2020/3001007 01 Original 2020-04-26 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/3001007 Page : 3 of 185 TEST SUMMARY Frequency Band Maximum Reported SAR(W/kg) Head Body-worn Hotspot Product specific 10g SAR GSM850 0.605 0.237 0.610 / GSM1900 0.716 0.195 0.509 / WCDMA Band II 0.682 0.509 0.922 2.467 WCDMA Band IV 0.667 0.443 0.920 / WCDMA Band V 0.754 0.359 0.738 / LTE Band 2 0.729 0.306 0.866 / LTE Band 4 1.086 0.433 0.928 / LTE Band 5 0.748 0.307 0.611 / LTE Band 7 1.037 0.346 0.585 / LTE Band 38 0.920 0.208 0.669 / LTE Band 41 1.090 0.190 0.807 / WI-FI (2.4GHz) 1.066 0.287 0.590 / WI-FI (5GHz) 0.968 0.404 0.674 2.339 BT 0.444 <0.100 0.114 / SAR Limited(W/kg) 1.6 4.0 Maximum Simultaneous Transmission SAR (W/kg) Scenario Head Body-worn Hotspot Product specific 10g SAR Sum SAR 1.574 0.980 1.498 2.467 SPLSR N/A N/A N/A N/A SPLSR Limited 0.04 0.1 Note: The Simultaneous transmission SAR is the same test position of the WWAN antenna + WiFi/BT antenna. Approved & Released by Simon Ling SAR Manager Tested by Jackson Li SAR Engineer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/3001007 Page : 4 of 185 CONTENTS 1 GENERAL INFORMATION .................................................................................................................................... 7 1.1 DETAILS OF CLIENT ................................................................................................................................................. 7 1.2 TEST LOCATION ...................................................................................................................................................... 7 1.3 TEST FACILITY ......................................................................................................................................................... 8 1.4 GENERAL DESCRIPTION OF EUT ............................................................................................................................ 9 1.4.1 DUT Antenna Locations ................................................................................................................................ 11 1.4.2 LTE CA additional specification ................................................................................................................... 13 1.4.3 Power reduction specification ....................................................................................................................... 17 1.5 TEST SPECIFICATION ............................................................................................................................................ 19 1.6 RF EXPOSURE LIMITS ............................................................................................................................................ 20 2 LABORATORY ENVIRONMENT ........................................................................................................................ 21 3 SAR MEASUREMENTS SYSTEM CONFIGURATION ...................................................................................... 22 3.1 THE SAR MEASUREMENT SYSTEM ...................................................................................................................... 22 3.2 ISOTROPIC E-FIELD PROBE EX3DV4 .................................................................................................................. 23 3.3 DATA ACQUISITION ELECTRONICS (DAE) ........................................................................................................... 24 3.4 SAM TWIN PHANTOM ........................................................................................................................................... 24 3.5 ELI PHANTOM ....................................................................................................................................................... 25 3.6 DEVICE HOLDER FOR TRANSMITTERS .................................................................................................................. 26 3.7 MEASUREMENT PROCEDURE ................................................................................................................................ 27 3.7.1 Scanning procedure ....................................................................................................................................... 27 3.7.2 Data Storage ................................................................................................................................................... 29 3.7.3 Data Evaluation by SEMCAD ...............…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/3001007 Page : 109 of 185 Bandwidth Modulation RB size RB offset Channel Channel Channel Tune up 37825 38000 38175 15MHz QPSK 1 0 18.58 18.60 18.55 20.00 1 38 18.55 18.48 18.54 20.00 1 74 18.39 18.42 18.49 20.00 36 0 18.72 18.64 18.77 20.00 36 18 18.72 18.68 18.70 20.00 36 39 18.64 18.62 18.60 20.00 75 0 18.72 18.75 18.67 20.00 16QAM 1 0 18.77 18.88 18.89 20.00 1 38 18.75 18.64 18.74 20.00 1 74 18.67 18.64 18.62 20.00 36 0 18.71 18.73 18.71 20.00 36 18 18.71 18.70 18.65 20.00 36 39 18.71 18.65 18.68 20.00 75 0 18.74 18.79 18.75 20.00 64QAM 1 0 18.64 18.65 18.64 20.00 1 38 18.41 18.54 18.47 20.00 1 74 18.50 18.44 18.48 20.00 36 0 18.59 18.66 18.63 20.00 36 18 18.70 18.61 18.66 20.00 36 39 18.66 18.65 18.70 20.00 75 0 18.67 18.71 18.63 20.00 Bandwidth Modulation RB size RB offset Channel Channel Channel Tune up 37850 38000 38150 20MHz QPSK 1 0 18.59 18.77 18.65 20.00 1 50 18.54 18.61 18.66 20.00 1 99 18.53 18.51 18.55 20.00 50 0 18.72 18.73 18.75 20.00 50 25 18.86 18.80 18.61 20.00 50 50 18.65 18.65 18.72 20.00 100 0 18.73 18.77 18.69 20.00 16QAM 1 0 18.90 18.89 18.83 20.00 1 50 18.71 18.81 18.74 20.00 1 99 18.59 18.77 18.59 20.00 50 0 18.73 18.78 18.73 20.00 50 25 18.81 18.76 18.78 20.00 50 50 18.71 18.73 18.72 20.00 100 0 18.78 18.83 18.77 20.00 64QAM 1 0 18.60 18.61 18.67 20.00 1 50 18.47 18.57 18.59 20.00 1 99 18.54 18.60 18.52 20.00 50 0 18.73 18.68 18.76 20.00 50 25 18.69 18.75 18.73 20.00 50 50 18.75 18.73 18.68 20.00 100 0 18.74 18.78 18.72 20.00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/3001007 Page : 110 of 185 LTE Band 38 Receiver off/Hotspot off Conducted Power(dBm) Bandwidth Modulation RB size RB offset Channel Channel Channel Tune up 37775 38000 38225 5MHz QPSK 1 0 21.39 21.50 21.46 23.00 1 13 21.45 21.62 21.56 23.00 1 24 21.39 21.52 21.43 23.00 12 0 20.43 20.43 20.40 22.00 12 6 20.50 20.58 20.46 22.00 12 13 20.53 20.52 20.46 22.00 25 0 20.46 20.53 20.51 22.00 16QAM 1 0 20.56 20.65 20.60 22.00 1 13 20.55 20.72 20.65 22.00 1 24 20.54 20.55 20.65 22.00 12 0 19.46 19.43 19.43 21.00 12 6 19.53 19.48 19.50 21.00 12 13 19.44 19.52 19.51 21.00 25 0 19.53 19.58 19.59 21.00 64QAM 1 0 19.79 20.03 19.76 21.00 1 13 19.68 19.67 19.67 21.00 1 24 19.51 19.53 19.79 21.00 12 0 18.80 18.70 18.77 20.00 12 6 18.77 18.79 18.62 20.00 12 13 18.81 18.76 18.76 20.00 25 0 18.74 18.74 18.74 20.00 Bandwidth Modulation RB size RB offset Channel Channel Channel Tune up 37800 38000 38200 10MHz QPSK 1 0 21.44 21.38 21.48 23.00 1 25 21.39 21.37 21.36 23.00 1 49 21.15 21.44 21.35 23.00 25 0 20.44 20.53 20.46 22.00 25 13 20.54 20.56 20.52 22.00 25 25 20.52 20.57 20.55 22.00 50 0 20.48 20.54 20.53 22.00 16QAM 1 0 20.55 20.65 20.74 22.00 1 25 20.67 20.65 20.55 22.00 1 49 20.50 20.58 20.73 22.00 25 0 19.40 19.58 19.40 21.00 25 13 19.60 19.61 19.61 21.00 25 25 19.48 19.52 19.54 21.00 50 0 19.51 19.61 19.68 21.00 64QAM 1 0 19.80 19.83 19.80 21.00 1 25 19.65 19.76 19.67 21.00 1 49 19.68 19.61 19.63 21.00 25 0 18.77 18.76 18.76 20.00 25 13 18.74 18.76 18.70 20.00 25 25 18.70 18.76 18.75 20.00 50 0 18.72 18.83 18.76 20.00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/3001007 Page : 111 of 185 Bandwidth Modulation RB size RB offset Channel Channel Channel Tune up 37825 38000 38175 15MHz QPSK 1 0 21.57 21.58 21.61 23.00 1 38 21.48 21.61 21.52 23.00 1 74 21.54 21.59 21.50 23.00 36 0 20.75 20.66 20.74 22.00 36 18 20.76 20.71 20.68 22.00 36 39 20.68 20.75 20.68 22.00 75 0 20.69 20.77 20.65 22.00 16QAM 1 0 20.83 20.82 20.83 22.00 1 38 20.74 20.67 20.71 22.00 1 74 20.76 20.64 20.58 22.00 36 0 19.72 19.78 19.76 21.00 36 18 19.67 19.73 19.61 21.00 36 39 19.62 19.68 19.70 21.00 75 0 19.77 19.83 19.72 21.00 64QAM 1 0 19.79 19.95 19.81 21.00 1 38 19.78 19.69 19.68 21.00 1 74 19.62 19.53 19.70 21.00 36 0 18.80 18.81 18.77 20.00 36 18 18.77 18.80 18.72 20.00 36 39 18.72 18.78 18.67 20.00 75 0 18.74 18.75 18.63 20.00 Bandwidth Modulation RB size RB offset Channel Channel Channel Tune up 37850 38000 38150 20MHz QPSK 1 0 21.58 21.81 21.81 23.00 1 50 21.55 21.65 21.58 23.00 1 99 21.52 21.52 21.51 23.00 50 0 20.70 20.69 20.80 22.00 50 25 20.81 20.76 20.64 22.00 50 50 20.73 20.75 20.74 22.00 100 0 20.71 20.75 20.75 22.00 16QAM 1 0 20.80 20.91 20.93 22.00 1 50 20.75 20.74 20.73 22.00 1 99 20.59 20.75 20.53 22.00 50 0 19.68 19.76 19.84 21.00 50 25 19.75 19.83 19.70 21.00 50 50 19.74 19.72 19.71 21.00 100 0 19.79 19.82 19.72 21.00 64QAM 1 0 19.78 19.76 19.96 21.00 1 50 19.68 19.79 19.84 21.00 1 99 19.80 19.63 19.65 21.00 50 0 18.70 18.82 18.83 20.00 50 25 18.77 18.81 18.74 20.00 50 50 18.73 18.69 18.72 20.00 100 0 18.74 18.75 18.76 20.00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/3001007 Page : 112 of 185 LTE Band 41 Receiver on/Hotspot on Conducted Power(dBm) Bandwidth Modulation RB size RB offset Channel Channel Channel Channel Channel Tune up 39675 40148 40620 41093 41565 5MHz QPSK 1 0 18.77 18.55 18.48 18.49 18.55 20.00 1 13 18.70 18.63 18.65 18.61 18.68 20.00 1 24 18.63 18.58 18.52 18.59 18.63 20.00 12 0 18.73 18.55 18.53 18.45 18.60 20.00 12 6 18.70 18.60 18.58 18.55 18.70 20.00 12 13 18.71 18.58 18.61 18.58 18.66 20.00 25 0 18.65 18.53 18.48 18.48 18.56 20.00 16QAM 1 0 18.88 18.48 18.65 18.67 18.80 20.00 1 13 18.82 18.65 18.76 18.65 18.71 20.00 1 24 18.88 18.72 18.66 18.75 18.77 20.00 12 0 18.72 18.49 18.54 18.42 18.59 20.00 12 6 18.75 18.54 18.54 18.48 18.62 20.00 12 13 18.67 18.54 18.56 18.50 18.56 20.00 25 0 18.75 18.62 18.54 18.56 18.60 20.00 64QAM 1 0 18.75 18.54 18.55 18.49 18.55 20.00 1 13 18.68 18.62 18.64 18.60 18.68 20.00 1 24 18.69 18.48 18.51 18.58 18.53 20.00 12 0 18.71 18.53 18.52 18.53 18.60 20.00 12 6 18.69 18.58 18.57 18.54 18.71 20.00 12 13 18.70 18.50 18.59 18.56 18.65 20.00 25 0 18.62 18.52 18.47 18.52 18.60 20.00 Bandwidth Modulation RB size RB offset Channel Channel Channel Channel Channel Tune up 39700 40160 4…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/3001007 Page : 179 of 185 State 24 0.050 State 24 0.154 State 24 0.051 State 25 0.122 State 25 0.050 State 25 0.067 State 26 0.120 State 26 0.113 State 26 0.115 State 27 0.080 State 27 0.104 State 27 0.159 State 28 0.125 State 28 0.044 State 28 0.062 State 29 0.130 State 29 0.182 State 29 0.069 State 30 0.110 State 30 0.074 State 30 0.188 State 31 0.115 State 31 0.062 State 31 0.068 State 32 0.080 State 32 0.084 State 32 0.071 State 33 0.118 State 33 0.071 State 33 0.180 State 34 0.095 State 34 0.069 State 34 0.074 State 35 0.096 State 35 0.070 State 35 0.094 State 36 0.095 State 36 0.052 State 36 0.050 State 37 0.142 State 37 0.069 State 37 0.062 State 38 0.128 State 38 0.139 State 38 0.059 State 39 0.079 State 39 0.115 State 39 0.088 State 40 0.108 State 40 0.056 State 40 0.060 State 41 0.132 State 41 0.105 State 41 0.132 State 42 0.128 State 42 0.158 State 42 0.107 State 43 0.050 State 43 0.079 State 43 0.074 State 44 0.081 State 44 0.079 State 44 0.093 State 45 0.116 State 45 0.166 State 45 0.177 State 46 0.062 State 46 0.162 State 46 0.037 State 47 0.060 State 47 0.110 State 47 0.126 State 48 0.054 State 48 0.170 State 48 0.080 State 49 0.113 State 49 0.136 State 49 0.083 State 50 0.107 State 50 0.182 State 50 0.078 State 51 0.057 State 51 0.070 State 51 0.129 State 52 0.095 State 52 0.175 State 52 0.038 State 53 0.075 State 53 0.080 State 53 0.161 State 54 0.064 State 54 0.139 State 54 0.112 State 55 0.085 State 55 0.201 State 55 0.168 State 56 0.067 State 56 0.066 State 56 0.180 State 57 0.062 State 57 0.088 State 57 0.111 State 58 0.062 State 58 0.134 State 58 0.136 State 59 0.087 State 59 0.147 State 59 0.104 State 60 0.057 State 60 0.056 State 60 0.056 State 61 0.052 State 61 0.192 State 61 0.051 State 62 0.113 State 62 0.141 State 62 0.101 State 63 0.121 State 63 0.091 State 63 0.056 State 64 0.056 State 64 0.151 State 64 0.069 State 65 0.099 State 65 0.100 State 65 0.148 State 66 0.063 State 66 0.060 State 66 0.070 State 67 0.124 State 67 0.135 State 67 0.091 State 68 0.076 State 68 0.176 State 68 0.173 State 69 0.124 State 69 0.136 State 69 0.069 State 70 0.105 State 70 0.146 State 70 0.057 State 71 0.106 State 71 0.093 State 71 0.142 State 72 0.052 State 72 0.119 State 72 0.084 State 73 0.131 State 73 0.169 State 73 0.107 State 74 0.071 State 74 0.154 State 74 0.130 State 75 0.127 State 75 0.078 State 75 0.067 State 76 0.102 State 76 0.092 State 76 0.041 State 77 0.065 State 77 0.115 State 77 0.154 State 78 0.107 State 78 0.079 State 78 0.160 State 79 0.086 State 79 0.089 State 79 0.048 State 80 0.109 State 80 0.110 State 80 0.115 State 81 0.124 State 81 0.114 State 81 0.071 State 82 0.051 State 82 0.098 State 82 0.082 State 83 0.068 State 83 0.107 State 83 0.163 State 84 0.104 State 84 0.114 State 84 0.137 State 85 0.056 State 85 0.110 State 85 0.052 State 86 0.104 State 86 0.104 State 86 0.116 State 87 0.091 State 87 0.105 State 87 0.095 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/3001007 Page : 180 of 185 State 88 0.110 State 88 0.098 State 88 0.074 State 89 0.054 State 89 0.123 State 89 0.116 State 90 0.085 State 90 0.156 State 90 0.053 State 91 0.046 State 91 0.108 State 91 0.076 State 92 0.075 State 92 0.098 State 92 0.121 State 93 0.131 State 93 0.137 State 93 0.076 State 94 0.056 State 94 0.093 State 94 0.049 State 95 0.058 State 95 0.087 State 95 0.095 State 96 0.068 State 96 0.056 State 96 0.136 State 97 0.062 State 97 0.091 State 97 0.062 State 98 0.102 State 98 0.151 State 98 0.146 State 99 0.125 State 99 0.075 State 99 0.066 State 100 0.084 State 100 0.096 State 100 0.052 State 101 0.091 State 101 0.164 State 101 0.123 State 102 0.087 State 102 0.151 State 102 0.122 State 103 0.051 State 103 0.093 State 103 0.035 State 104 0.083 State 104 0.107 State 104 0.181 State 105 0.065 State 105 0.053 State 105 0.081 State 106 0.062 State 106 0.102 State 106 0.077 State 107 0.107 State 107 0.171 State 107 0.069 State 108 0.087 State 108 0.122 State 108 0.089 State 109 0.046 State 109 0.048 State 109 0.042 State 110 0.058 State 110 0.138 State 110 0.162 State 111 0.071 State 111 0.131 State 111 0.173 State 112 0.052 State 112 0.054 State 112 0.090 State 113 0.130 State 113 0.067 State 113 0.087 State 114 0.107 State 114 0.077 State 114 0.126 State 115 0.047 State 115 0.054 State 115 0.091 State 116 0.084 State 116 0.096 State 116 0.145 State 117 0.105 State 117 0.081 State 117 0.057 State 118 0.044 State 118 0.049 State 118 0.083 State 119 0.110 State 119 0.069 State 119 0.107 State 120 0.097 State 120 0.072 State 120 0.084 State 121 0.039 State 121 0.046 State 121 0.076 State 122 0.129 State 122 0.162 State 122 0.165 State 123 0.088 State 123 0.089 State 123 0.053 State 124 0.061 State 124 0.039 State 124 0.083 State 125 0.091 State 125 0.132 State 125 0.166 State 126 0.111 State 126 0.063 State 126 0.058 State 127 0.052 State 127 0.050 State 127 0.061 State 128 0.115 State 128 0.101 State 128 0.088 State 129 0.052 State 129 0.165 State 129 0.146 State 130 0.033 State 130 0.061 State 130 0.067 State 131 0.097 State 131 0.051 State 131 0.125 State 132 0.082 State 132 0.117 State 132 0.114 State 133 0.036 State 133 0.033 State 133 0.078 State 134 0.093 State 134 0.130 State 134 0.162 State 135 0.099 State 135 0.143 State 135 0.138 State 136 0.045 State 136 0.046 State 136 0.090 State 137 0.091 State 137 0.163 State 137 0.128 State 138 0.085 State 138 0.134 State 138 0.095 State 139 0.038 State 139 0.042 State 139 0.061 State 140 0.065 State 140 0.137 State 140 0.123 State 141 0.116 State 141 0.092 State 141 0.161 State 142 0.046 State 142 0.049 State 142 0.090 State 143 0.086 State 143 0.070 State 143 0.150 State 144 0.082 State 144 0.110 State 144 0.116 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/3001007 Page : 181 of 185 Hotspot SAR Data GSM850 Ant0 WCDMA Band V Ant0 LTE Band 5 Ant0 GPRS 4TS RMC QPSK 10MHz 1RB…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200300172301 Page: 1 of 32 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2003001723CR Ap…

Text truncated - open the document above for the full version.
