2AFZZJ17GMobile Phone (5G NR/LTE/WCDMA/GSM/BT/WIFI/NFC)

Mi 10T Lite User Guide Contents English 01 Français 08 Italiano 15 Español 22 Deutsch 29 Nederlands 36 Português (Portugal) 43 Polski 50 Ελληνικά 57 Magyar 64 Česky 71 Româna 78 Українська 85 Srpski 92 Volume Buttons Power Button USB Type-C Port EN SAT. 16 AUG. 02 48 01 Thank you for choosing Mi 10T Lite Long press the power button to turn on the device. Follow the on-screen instructions to configure the device. For more information, visit our official website: www.mi.com/global/service/userguide MIUI Mi 10T Lite comes pre-installed with MIUI, our customized Android-based OS which provides frequent updates and user-friendly features based on suggestions from over 200 million active users worldwide. For more information, please visit en.miui.com SIM Card Tray: Nano-SIM Nano-SIM Nano-SIM Micro SD About Dual SIM: • Supports Dual SIM cards with no carrier restrictions, single 5G or dual 4G connectivity ① • Supports Dual Nano-SIM card slots, either card can be set as the primary card • Supports single SIM 5G/4G+/4G/3G/2G • Supports Dual SIM 4G+/4G/3G/2G • Supports Dual SIM VoLTE HD calling ② Note ①: 5G support depends on the local telecom operator’s network; if the primary card 5G is enabled, the secondary card will not be available; subsequent software upgrades will include support for primary 5G and secondary 4G/3G/2G card mode function in dual-card situations. Note ②: VoLTE service availability depends on the local telecom operator’s network and service deployment • Please do not insert non-standard SIM cards into the SIM card slot. They may damage the SIM card slot. • WARNING: Do not disassemble this device. 02 WEEE Special precautions must be taken to safely dispose of this product. This marking indicates that this product may not be discarded with other household waste in the EU. To prevent harm to the environment or human health from inappropriate waste disposal, and to promote sustainable reuse of material resources, please recycle responsibly. To safely recycle your device, please use return and collection systems or contact the retailer where the device was originally purchased. To view our Environmental Declaration, please refer to the following link: www.mi.com/en/about/environment CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS. To prevent possible hearing damage, do not listen at high volume levels for long periods. Additional safety information and precautions can be accessed at the following link: www.mi.com/en/certification Important Safety Information Read all safety information below before using your device: • Use of unauthorized cables, power adapters, or batteries can cause fire, explosion, or pose other risks. • Use only authorized accessories which are compatible with your device. • This device’s operating temperature range is 0°C to 40°C. Using this device in an environment outside of this temperature range may damage the device. • If your device is provided with a built-in battery, to avoid damaging the battery or the device, do not attempt to replace the battery yourself. • Charge this device only with the included or authorized cable and power adapter. Using other adapters may cause fire, electric shock, and damage the device and the adapter. • After charging is complete, disconnect the adapter from both the device and the power outlet. Do not charge the device for more than 12 hours. • The battery must be recycled or disposed of separately from household waste. Mishandling the battery may cause fire or explosion. Dispose of or recycle the device, its battery, and accessories according to your local regulations. • Do not disassemble, hit, crush, or burn the battery. If the battery appears deformed or damaged, stop using it immediately. -Do not short circuit the battery, as this may cause overheating, burns, or other injury. -Do not place the battery in a high-temperature environment. -Overheating may cause explosion. 03 -Do not disassemble, hit, or crush the battery, as this may cause the battery to leak, overheat, or explode. -Do not burn the battery, as this may cause fire or explosion. -If the battery appears deformed or damaged, stop using it immediately. • User shall not remove or alter the battery. Removal or repair of the battery shall only be done by an authorized repair center of the manufacturer. • Keep your device dry. • Do not try to repair the device yourself. If any part of the device does not work properly, contact Mi customer support or bring your device to an authorized repair center. • Connect other devices according to their instruction manuals. Do not connect incompatible devices to this device. • For AC/DC adapters, the socket-outlet shall be installed near the equipment and shall be easily accessible. Safety Precautions • Observe all applicable laws and rules restricting use of mobile phones in specific situations and environments. • Do not use your phone at petrol stations or in any explosive atmosphere or potentially explosive environment, including fueling areas, below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air may contain chemicals or particles such as grain, dust, or metal powders. Obey all posted signs to turn off wireless devices such as your phone or other radio equipment. Turn off your mobile phone or wireless device when in a blasting area or in areas requiring “two-way radios” or “electronic devices” to be turned off to prevent potential hazards. • Do not use your phone in hospital operating rooms, emergency rooms, or intensive care units. Always comply with all rules and regulations of hospitals and health centers. If you have a medical device, please consult your doctor and the device manufacturer to determine whether your phone may interfere with the device’s operation. To avoid potential interference with a pacemaker, always maintain a minimum distance of 15 cm between your mobile phone and the pacemaker. This …

Text truncated - open the document above for the full version.

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Tel: 010 6060 6666 ; Fax: 010 6060 6666 Date: August 27, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: 2AFZZJ17G To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune‐up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04‐1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short‐term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04‐1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, _ ___ Sheng hao [email protected]

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Tel: 010 6060 6666 ; Fax: 010 6060 6666 Statement We, Xiaomi Communications Co., Ltd., Model name: M2007J17G， FCC ID: 2AFZZJ17G，states that our device is a GSM/WCDMA/LTE/5G NR Mobile Phone with WLAN 2.4GHz(Channel 1~11)/5GHz, Bluetooth and NFC functionality. The hardware supports LTE Band 40, but they will be disabled by software and are not available in US market. Sheng hao [email protected]

Xiaomi Communications Co.,Ltd #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2AFZZJ17G (1) DFS Device -- Master, Client with Radar detection capability , ■ Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 2422 – 2452 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 5745 – 5825 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 5755 – 5795 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 5180 – 5240 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 5190 – 5230 MHz Yes, ■ No Yes, ■ No ■Yes, No Yes, ■ No 5260 – 5320 MHz Yes, ■ No Yes, ■ No Yes, ■ No Yes, ■ No 5270 – 5310 MHz Yes, ■ No Yes, ■ No Yes, ■ No Yes, ■ No 5500 – 5700 MHz Yes, ■ No Yes, ■ No Yes, ■ No Yes, ■ No 5510 – 5670 MHz Yes, ■ No Yes, ■ No Yes, ■ No Yes, ■ No (3) Country code selection ability - Yes , ■ No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement - ■ Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices ■ A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , ■ No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Xiaomi Communications Co., Ltd. Printed Name:Sheng hao Position：Certification Director

Amendment Letter Phoenix Engineering, Inc. This is to request report update for FCC ID: 2AFZZJ17G, The Major change filed under this application and the relevant report numbers are as below: Original report number New report number Revise content ZR20206003702 ZR20206003702-01 1.Add test site Information in section 2, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. ZR20206003703 ZR20206003703-01 1.Add test site Information in section 2, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. ZR20206003704 ZR20206003704-01 1.Add test site Information in section 2, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. ZR20206003705 ZR20206003705-01 1.Add test site Information in section 2, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. ZR20206003701 ZR20206003701-01 1.Add test site Information in section 2, 3.2 and 3.3. 2. Update equipment list in section 5. 3. Updated the report NO. of appendix B in header with “- 01” ZR20206003706 ZR20206003706-01 1.Add test site Information in section 2, 3.2 and 3.3. 2. Update equipment list in section 5. 3. Updated the report NO. of appendix B in header with “-01” Setup Photo Add test location. Sincerely, (signature) (printed name) Derek Yang

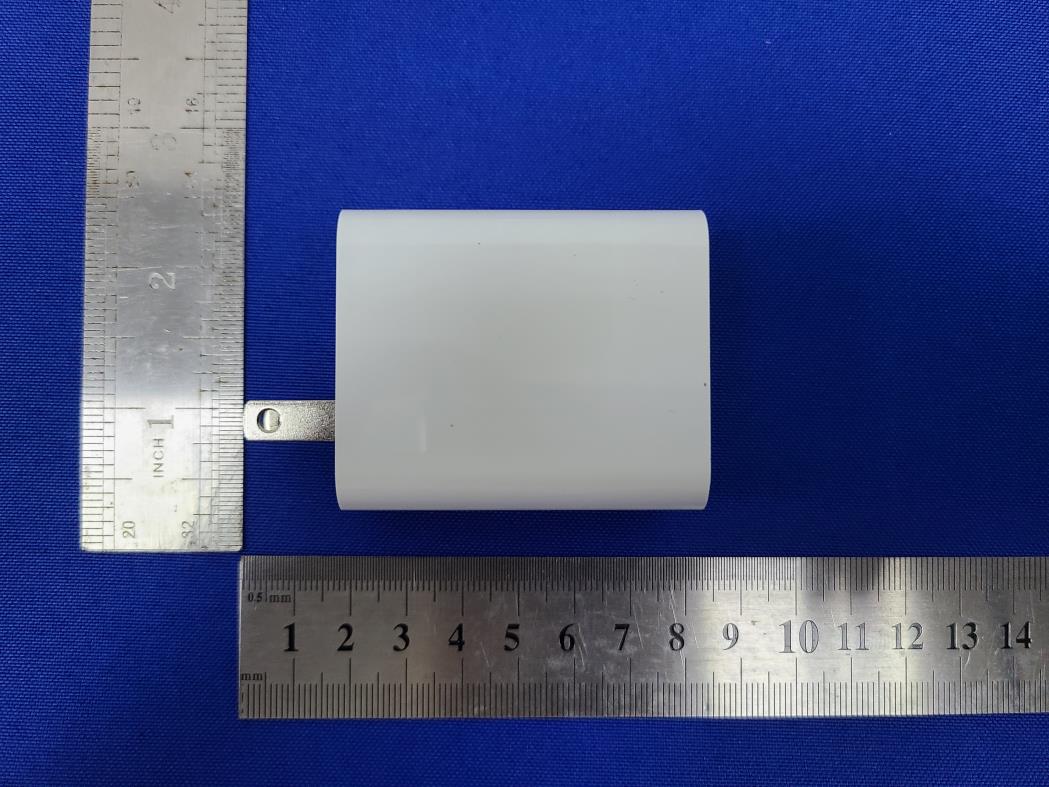

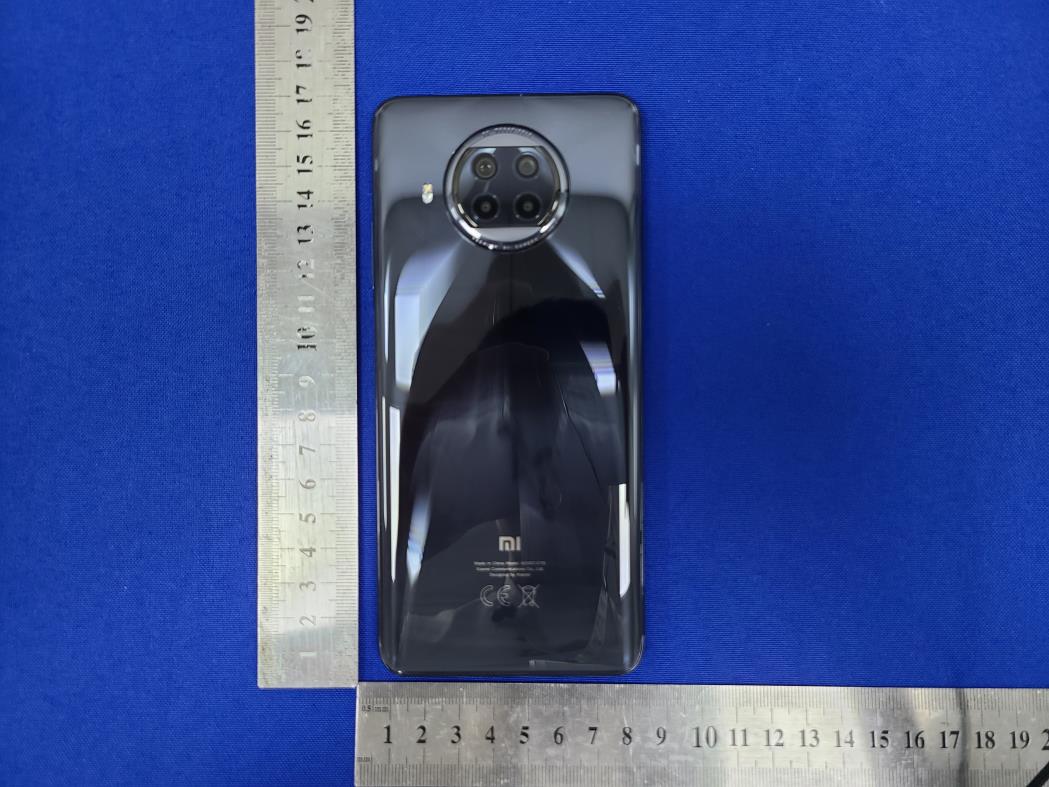

Page 1 of 5 1 Photographs - EUT Constructional Details Model No.(EUT): M2007J17G FCC ID: 2AFZZJ17G Page 2 of 5 Page 3 of 5 Page 4 of 5 Model Name: MDY-12-EA Brand Name: MI Manufacturer: Xiaomi Communications Co.,Ltd.(Aohai) Page 5 of 5 Model Name: L63312 Brand Name: MI Manufacturer: Luxshare

Page 1 of 7 1 Photographs - EUT Constructional Details Model No.(EUT): M2007J17G FCC ID: 2AFZZJ17G Page 2 of 7 Page 3 of 7 Page 4 of 7 Page 5 of 7 Page 6 of 7 Page 7 of 7 Model: BM4W Manufacturer: Zhuhai CosMX Battery Co., Ltd.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 Page : 1 of 110 FCC SAR TEST REPORT Report No: ZR/2020/60037 Applicant: Xiaomi Communications Co., Ltd. Manufacturer: Xiaomi Communications Co., Ltd. Product Name: Mobile Phone Model No.(EUT): M2007J17G Trade Mark: MI FCC ID: 2AFZZJ17G Standards: FCC 47CFR §2.1093 Date of Receipt: 2020-07-22 Date of Test: 2020-07-27 to 2020-08-15 Date of Issue: 2020-09-10 Test conclusion: PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Authorized Signature: Derek Yang Wireless Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 Page : 2 of 110 REVISION HISTORY Report Number Revision Description Issue Date ZR/2020/6003708 01 Original 2020-09-01 ZR/2020/6003708 02 Update the Power reduction of section 1.4.3 2020-09-10 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 Page : 3 of 110 TEST SUMMARY Frequency Band Maximum Reported SAR(W/kg) Head Body-worn Hotspot Product specific 10g SAR GSM850 0.786 0.239 0.487 / GSM1900 0.979 0.557 0.905 2.455 WCDMA Band II 0.905 0.994 1.064 2.452 WCDMA Band IV 0.193 0.983 1.071 2.363 WCDMA Band V 0.709 0.280 0.703 / LTE Band 2 0.785 0.994 0.869 2.677 LTE Band 4 0.170 0.880 0.866 2.561 LTE Band 5 0.701 0.289 0.654 / LTE Band 7 0.535 0.405 0.474 / LTE Band 38 0.467 0.690 0.402 / LTE Band 41 0.508 0.594 0.335 / 5G NR n5 0.630 0.309 0.412 / WI-FI (2.4GHz) 0.914 0.114 0.437 1.482 WI-FI (5GHz) 1.057 0.253 0.907 2.047 BT 1.028 0.243 0.581 / SAR Limited(W/kg) 1.6 4.0 Maximum Simultaneous Transmission SAR (W/kg) Scenario Head Body-worn Hotspot Product specific 10g SAR Sum SAR 1.586 1.490 1.292 3.551 SPLSR N/A N/A N/A N/A SPLSR Limited 0.04 0.1 Note: The Simultaneous transmission SAR is the same test position of the WWAN antenna + WiFi/BT antenna. Approved & Released by Simon Ling SAR Manager Tested by Jackson Li SAR Engineer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 Page : 4 of 110 CONTENTS 1 GENERAL INFORMATION ................................................................................................................................. 7 1.1 DETAILS OF CLIENT ................................................................................................................................................. 7 1.2 TEST LOCATION ...................................................................................................................................................... 7 1.3 TEST FACILITY ......................................................................................................................................................... 8 1.4 GENERAL DESCRIPTION OF EUT ............................................................................................................................ 9 1.4.1 DUT Antenna Locations(Back View) ........................................................................................................... 11 1.4.2 LTE CA additional specification ................................................................................................................... 13 1.4.3 Power reduction specification ....................................................................................................................... 16 1.5 TEST SPECIFICATION ............................................................................................................................................ 19 1.6 RF EXPOSURE LIMITS ............................................................................................................................................ 20 2 LABORATORY ENVIRONMENT ..................................................................................................................... 21 3 SAR MEASUREMENTS SYSTEM CONFIGURATION .................................................................................... 22 3.1 THE SAR MEASUREMENT SYSTEM ...................................................................................................................... 22 3.2 ISOTROPIC E-FIELD PROBE EX3DV4 .................................................................................................................. 23 3.3 DATA ACQUISITION ELECTRONICS (DAE) ........................................................................................................... 24 3.4 SAM TWIN PHANTOM ........................................................................................................................................... 24 3.5 ELI PHANTOM ....................................................................................................................................................... 25 3.6 DEVICE HOLDER FOR TRANSMITTERS .................................................................................................................. 26 3.7 MEASUREMENT PROCEDURE ................................................................................................................................ 27 3.7.1 Scanning procedure ....................................................................................................................................... 27 3.7.2 Data Storage ................................................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 Page : 107 of 110 Bottom side / / / / / / / / LTE Band 41 Front side 0.060 0.277 0.395 0.263 0.337 0.455 0.323 0.718 Back side 0.075 0.400 0.369 0.144 0.475 0.444 0.219 0.588 Left side 0.012 / / / 0.012 0.012 0.012 0.012 Right side / 0.437 0.907 0.178 0.437 0.907 0.178 1.085 Top side 0.072 0.257 0.256 0.382 0.329 0.328 0.454 0.710 Bottom side / / / / / / / / Band Exposure position SARmax (W/kg) Summed SAR Summed SAR Summed SAR Summed SAR 1 2 3 4 / WiFi 2.4G MIMO WiFi 5G MIMO BT 1+2 1+3 1+4 1+3+4 EN_DC n5-B7 Front side 0.274 0.277 0.395 0.263 0.551 0.669 0.537 0.932 Back side 0.392 0.400 0.369 0.144 0.792 0.761 0.536 0.905 Left side 0.422 / / / 0.422 0.422 0.422 0.422 Right side 0.100 0.437 0.907 0.178 0.537 1.007 0.278 1.185 Top side 0.059 0.257 0.256 0.382 0.316 0.315 0.441 0.697 Bottom side 0.343 / / / 0.343 0.343 0.343 0.343 WiFi 5G MIMO + BT: Exposure position SARmax (W/kg) Summed SAR 3 4 WiFi 5G MIMO BT 3+4 Front side 0.395 0.263 0.658 Back side 0.369 0.144 0.513 Left side / / 0.000 Right side 0.907 0.178 1.085 Top side 0.256 0.382 0.638 Bottom side / / 0.000 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 Page : 108 of 110 Product specific 10g SAR: Band Exposure position SARmax (W/kg) Summed SAR Summed SAR Summed SAR Summed SAR 1 2 3 4 Ant1 WiFi 2.4G MIMO WiFi 5G MIMO BT 1+2 1+3 1+4 1+3+4 WCDMA Band II Front side / / 0.846 / / 0.846 / 0.846 Back side 2.257 0.990 0.419 / 3.247 2.676 2.257 2.676 Left side / / / / / / / / Right side / 1.482 2.047 / 1.482 2.047 / 2.047 Top side / / 0.945 / / 0.945 / 0.945 Bottom side 2.452 / / / 2.452 2.452 2.452 2.452 WCDMA Band IV Front side / / 0.846 / / 0.846 / 0.846 Back side 2.363 0.990 0.419 / 3.353 2.782 2.363 2.782 Left side / / / / / / / / Right side / 1.482 2.047 / 1.482 2.047 / 2.047 Top side / / 0.945 / / 0.945 / 0.945 Bottom side 1.983 / / / 1.983 1.983 1.983 1.983 LTE Band 2 Front side / / 0.846 / / 0.846 / 0.846 Back side 2.478 0.990 0.419 / 3.468 2.897 2.478 2.897 Left side / / / / / / / / Right side / 1.482 2.047 / 1.482 2.047 / 2.047 Top side / / 0.945 / / 0.945 / 0.945 Bottom side 2.677 / / / 2.677 2.677 2.677 2.677 LTE Band 4 Front side 1.795 / 0.846 / 1.795 2.641 1.795 2.641 Back side 2.561 0.990 0.419 / 3.551 2.980 2.561 2.980 Left side / / / / / / / / Right side / 1.482 2.047 / 1.482 2.047 / 2.047 Top side / / 0.945 / / 0.945 / 0.945 Bottom side 2.525 / / / 2.525 2.525 2.525 2.525 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 Page : 109 of 110 9 Equipment list Test Platform SPEAG DASY5 Professional Description SAR Test System (Frequency range 300MHz-6GHz) Software Reference DASY52 52.10.3(1513); SEMCAD X 14.6.13(7474) Hardware Reference Equipment Manufacturer Model Serial Number Calibration Date Due date of calibration Twin Phantom SPEAG SAM 1 1640 NCR NCR Twin Phantom SPEAG SAM 2 1913 NCR NCR DAE SPEAG DAE4 1428 2020-03-03 2021-03-02 E-Field Probe SPEAG EX3DV4 3923 2019-10-22 2020-10-21 E-Field Probe SPEAG EX3DV4 3793 2020-05-09 2021-05-08 Validation Kits SPEAG D835V2 4d105 2019-12-17 2022-12-16 Validation Kits SPEAG D1750V2 1149 2019-05-21 2022-05-20 Validation Kits SPEAG D1900V2 5d028 2019-12-17 2022-12-16 Validation Kits SPEAG D2450V2 733 2019-12-17 2022-12-16 Validation Kits SPEAG D2600V2 1125 2019-05-20 2022-05-19 Validation Kits SPEAG D5GHzV2 1165 2019-12-20 2022-12-19 Agilent Network Analyzer Agilent E5071C MY46523591 2020-04-16 2021-04-15 Dielectric Probe Kit Agilent 85070E US01440210 NCR NCR Universal Radio Communication Tester R&S CMW500 111637 2020-04-16 2021-04-15 Radio Communication Analyzer Anritsu MT8821C 6201502984 2020-06-11 2021-06-10 RF Bi-Directional Coupler Agilent 86205-60001 MY31400031 NCR NCR Signal Generator Agilent N5171B MY53050736 2020-04-15 2021-04-14 Preamplifier Mini-Circuits ZHL-42W 15542 NCR NCR Preamplifier Compliance Directions Systems Inc. AMP28-3W 073501433 NCR NCR Power Meter Agilent E4416A GB41292095 2020-04-15 2021-04-14 Power Sensor Agilent 8481H MY41091234 2020-04-15 2021-04-14 Power Sensor R&S NRP-Z92 100025 2020-04-16 2021-04-15 Attenuator SHX TS2-3dB 30704 NCR NCR Coaxial low pass filter Mini-Circuits VLF-2500(+) NA NCR NCR Coaxial low pass filter Microlab Fxr LA-F13 NA NCR NCR 50 Ω coaxial load Mini-Circuits KARN-50+ 00850 NCR NCR SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 Page : 110 of 110 DC POWER SUPPLY SAKO SK1730SL5A NA NCR NCR Speed reading thermometer MingGao T809 NA 2020-04-21 2021-04-20 Humidity and Temperature Indicator KIMTOKA KIMTOKA NA 2020-04-21 2021-04-20 Note: All the equipments are within the valid period when the tests are performed. Of 10 Calibration certificate Please see the Appendix C 11 Photographs Please see the Appendix D Appendix A: Detailed System Check Results Appendix B: Detailed Test Results Appendix C: Calibration certificate Appendix D: Photographs ---END--- SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 Appendix A Detailed System Check Results 1.System Performance Check System Performance Check 835 MHz Head System Performance Check 1750 MHz Head System Performance Check 1900 MHz Head System Performance Check 2450 MHz Head System Performance Check 2600 MHz Head System Performance Check 5250 MHz Head System Performance Check 5600 MHz Head System Performance Check 5750 MHz Head Date: 2020-07-27 Test Laboratory: SGS-SAR Lab System Performance Check 835 MHz Head DUT: D835V2; Type: D835V2; Serial: 4d105 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL835;Medium parameters used: f = 835 MHz; σ = 0.916 S/m; ε r = 43.207; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3793; ConvF(9.05, 9.05, 9.05); Calibrated: 2020-05-09 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1428; Calibrated: 20…

Text truncated - open the document above for the full version.

Dipole D1750V2 SN 1149 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2019-05-21 -31.8 / 47.6 / 2020-05-20 -32.3 1.57% 48.9 1.3Ω Dipole D2300V2 SN 1072 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2019-05-21 -26.7 / 46.9 / 2020-05-20 -27.6 3.37% 48.5 1.6Ω Dipole D2600V2 SN 1125 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2019-05-20 -25.7 / 48.9 / 2020-05-19 -26.6 3.50% 50.8 1.9Ω SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 Appendix E Conducted RF Output Power Table 1 Measurement of RF conducted Power 1.1 Conducted Power of Main Antenna (Ant1) 1.2 Conducted Power of Main Antenna (Ant4) 1.3 Conducted Power of Main Antenna (Ant5) 2 Conducted Power of NR Antenna 2.1 Conducted Power of NR Antenna (Ant1) 2.2 Conducted Power of NR Antenna (Ant4) 3 Conducted Power of Uplink CA and Downlink CA 3.1 Uplink LTE CA Conducted Power of Ant1 3.2 Uplink LTE CA Conducted Power of Ant5 3.3 Downlink LTE CA Conducted Power of LTA 3.4 Downlink LTE CA Conducted Power of UTA 4 Conducted Power of WiFi and BT 4.1 Conducted Power of WiFi 4.2 Conducted Power of BT SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 1 Measur ement of R F conducted Power 1.1 Conducted Power of Main Antenna (Ant1) 1.1.1 Conducted Power of GSM GSM 850 receiver off Burst Output Power(dBm) Tune up Division Factors Frame-Average Output Power(dBm) Tune up Channel 128 190 251 128 190 251 GSM(GMSK) GSM 33.47 33.46 33.52 34.00 -9.19 24.28 24.27 24.33 24.81 GPRS/EGPRS (GMSK) 1 TX Slot 33.54 33.48 33.53 34.00 -9.19 24.35 24.29 24.34 24.81 2 TX Slots 30.37 30.38 30.33 31.00 -6.18 24.19 24.20 24.15 24.82 3 TX Slots 28.32 28.43 28.53 29.20 -4.42 23.90 24.01 24.11 24.78 4 TX Slots 27.23 27.36 27.54 28.00 -3.17 24.06 24.19 24.37 24.83 EGPRS(8PSK) 1 TX Slot 27.01 27.05 27.10 28.50 -9.19 17.82 17.86 17.91 19.31 2 TX Slots 24.63 24.34 24.68 25.50 -6.18 18.45 18.16 18.50 19.32 3 TX Slots 22.97 23.10 22.91 23.70 -4.42 18.55 18.68 18.49 19.28 4 TX Slots 21.92 21.84 21.91 22.50 -3.17 18.75 18.67 18.74 19.33 GSM 1900 Receiver on/Receiver off/ Hotspot off/Sensor off Burst Output Power(dBm) Tune up Division Factors Frame-Average Output Power(dBm) Tune up Channel 512 661 810 512 661 810 GSM(GMSK) GSM 29.96 29.94 29.91 30.50 -9.19 20.77 20.75 20.72 21.31 GPRS/ EGPRS (GMSK) 1 TX Slot 29.87 29.89 29.93 30.50 -9.19 20.68 20.70 20.74 21.31 2 TX Slots 26.91 26.94 26.89 27.50 -6.18 20.73 20.76 20.71 21.32 3 TX Slots 25.24 25.31 24.71 25.70 -4.42 20.82 20.89 20.29 21.28 4 TX Slots 23.98 23.78 23.73 24.50 -3.17 20.81 20.61 20.56 21.33 EGPRS (8PSK) 1 TX Slot 26.25 26.26 26.14 27.50 -9.19 17.06 17.07 16.95 18.31 2 TX Slots 23.39 23.45 23.59 24.50 -6.18 17.21 17.27 17.41 18.32 3 TX Slots 21.79 21.34 21.75 22.70 -4.42 17.37 16.92 17.33 18.28 4 TX Slots 20.12 20.11 20.16 21.50 -3.17 16.95 16.94 16.99 18.33 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 GSM 1900 Hotspot on Burst Output Power(dBm) Tune up Division Factors Frame-Average Output Power(dBm) Tune up Channel 512 661 810 512 661 810 GSM(GMSK) GSM 27.45 27.43 27.37 28.00 -9.19 18.26 18.24 18.18 18.81 GPRS/ EGPRS (GMSK) 1 TX Slot 27.46 27.36 27.37 28.00 -9.19 18.27 18.17 18.18 18.81 2 TX Slots 24.56 24.45 23.86 25.00 -6.18 18.38 18.27 17.68 18.82 3 TX Slots 22.47 22.23 22.34 23.20 -4.42 18.05 17.81 17.92 18.78 4 TX Slots 20.85 20.83 20.88 22.00 -3.17 17.68 17.66 17.71 18.83 EGPRS (8PSK) 1 TX Slot 24.25 24.18 24.17 25.00 -9.19 15.06 14.99 14.98 15.81 2 TX Slots 21.16 20.97 21.02 22.00 -6.18 14.98 14.79 14.84 15.82 3 TX Slots 18.94 19.58 19.41 20.20 -4.42 14.52 15.16 14.99 15.78 4 TX Slots 17.96 18.02 17.89 19.00 -3.17 14.79 14.85 14.72 15.83 GSM 1900 Sensor on Burst Output Power(dBm) Tune up Division Factors Frame-Average Output Power(dBm) Tune up Channel 512 661 810 512 661 810 GSM(GMSK) GSM 29.50 29.39 29.44 30.00 -9.19 20.31 20.20 20.25 20.81 GPRS/ EGPRS (GMSK) 1 TX Slot 29.36 29.35 29.41 30.00 -9.19 20.17 20.16 20.22 20.81 2 TX Slots 26.42 26.39 26.43 27.00 -6.18 20.24 20.21 20.25 20.82 3 TX Slots 24.79 24.82 24.25 25.20 -4.42 20.37 20.40 19.83 20.78 4 TX Slots 23.48 23.28 23.24 24.00 -3.17 20.31 20.11 20.07 20.83 EGPRS (8PSK) 1 TX Slot 25.72 25.74 25.67 27.00 -9.19 16.53 16.55 16.48 17.81 2 TX Slots 22.94 22.90 23.11 24.00 -6.18 16.76 16.72 16.93 17.82 3 TX Slots 21.25 20.89 21.20 22.20 -4.42 16.83 16.47 16.78 17.78 4 TX Slots 19.64 19.61 19.71 21.00 -3.17 16.47 16.44 16.54 17.83 Table 1： Conducted Power of GSM SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6003708 1.1.2 Conducted Power of WCDMA WCDMA Band II Receiver on Average Con…

Text truncated - open the document above for the full version.
