2AFZZK7AGMobile Phone (LTE/WCDMA/GSM/BT/WIFI)

Redmi Note 10 User Guide SAT. 16 AUG. 02 48 Volume Buttons Power Button USB Type-C Port 1 Thank you for choosing Redmi Note 10 Long press the power button to turn on the device. Follow the on-screen instructions to configure the device. For more information, visit our official website: www.mi.com/global/service/userguide MIUI Redmi Note 10 comes pre-installed with MIUI, our customized Android- based OS which provides frequent updates and user-friendly features based on suggestions from over 200 million active users worldwide. For more information, please visit en.miui.com SIM Card Tray: Micro SD Nano-SIM Nano-SIM About Dual SIM: • Dual 4G SIM is offered by select telecom operators and may not be available in all regions. • Supports dual nano-SIM cards. When using both SIM card slots, either card can be set as the primary card. • VoLTE is only supported by telecom operators in certain regions. • System may be automatically updated for optimal network performance. For details, please refer to the system version in use on the device. • Please do not insert non-standard SIM cards into the SIM card slot. They may damage the SIM card slot. • WARNING: Do not disassemble this device. 2 WEEE Special precautions must be taken to safely dispose of this product. This marking indicates that this product may not be discarded with other household waste in the EU. To prevent harm to the environment or human health from inappropriate waste disposal, and to promote sustainable reuse of material resources, please recycle responsibly. To safely recycle your device, please use return and collection systems or contact the retailer where the device was originally purchased. To view our Environmental Declaration, please refer to the following link: www.mi.com/en/about/environment CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS. To prevent possible hearing damage, do not listen at high volume levels for long periods. Additional safety information and precautions can be accessed at the following link: www.mi.com/en/certification Important Safety Information Read all safety information below before using your device: • Use of unauthorized cables, power adapters, or batteries can cause fire, explosion, or pose other risks. • Use only authorized accessories which are compatible with your device. • This device’s operating temperature range is 0°C to 40°C. Using this device in an environment outside of this temperature range may damage the device. • If your device is provided with a built-in battery, to avoid damaging the battery or the device, do not attempt to replace the battery yourself. • Charge this device only with the included or authorized cable and power adapter. Using other adapters may cause fire, electric shock, and damage the device and the adapter. • After charging is complete, disconnect the adapter from both the device and the power outlet. Do not charge the device for more than 12 hours. • The battery must be recycled or disposed of separately from household waste. Mishandling the battery may cause fire or explosion. Dispose of or recycle the device, its battery, and accessories according to your local regulations. • Do not disassemble, hit, crush, or burn the battery. If the battery appears deformed or damaged, stop using it immediately. -Do not short circuit the battery, as this may cause overheating, burns, or other injury. -Do not place the battery in a high-temperature environment. -Overheating may cause explosion. 3 -Do not disassemble, hit, or crush the battery, as this may cause the battery to leak, overheat, or explode. -Do not burn the battery, as this may cause fire or explosion. -If the battery appears deformed or damaged, stop using it immediately. • User shall not remove or alter the battery. Removal or repair of the battery shall only be done by an authorized repair center of the manufacturer. • Keep your device dry. • Do not try to repair the device yourself. If any part of the device does not work properly, contact Mi customer support or bring your device to an authorized repair center. • Connect other devices according to their instruction manuals. Do not connect incompatible devices to this device. • For AC/DC adapters, the socket-outlet shall be installed near the equipment and shall be easily accessible. Safety Precautions • Observe all applicable laws and rules restricting use of mobile phones in specific situations and environments. • Do not use your phone at petrol stations or in any explosive atmosphere or potentially explosive environment, including fueling areas, below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air may contain chemicals or particles such as grain, dust, or metal powders. Obey all posted signs to turn off wireless devices such as your phone or other radio equipment. Turn off your mobile phone or wireless device when in a blasting area or in areas requiring “two-way radios” or “electronic devices” to be turned off to prevent potential hazards. • Do not use your phone in hospital operating rooms, emergency rooms, or intensive care units. Always comply with all rules and regulations of hospitals and health centers. If you have a medical device, please consult your doctor and the device manufacturer to determine whether your phone may interfere with the device’s operation. To avoid potential interference with a pacemaker, always maintain a minimum distance of 15 cm between your mobile phone and the pacemaker. This can be done by using your phone on the ear opposite to your pacemaker and not carrying your phone in a breast pocket. To avoid interference with medical equipment, do not use your phone near hearing aids, cochlear implants, or other similar devices. • Observe all aircraft safety regulations and turn off your phone on board aircraft when required. • When driving a vehicle, use your phone in accordance with relevant traffic laws and regulat…

Text truncated - open the document above for the full version.

Xiaomi Communications Co., Ltd. POWER OF ATTORNEY DATE: 01/14/2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 We, the undersigned, hereby authorize TA Technology (Shanghai) Co., Ltd. /Huang Ting on our behalf, to apply to FCC on our equipment for FCC ID: 2AFZZK7AG. Any and all acts carriedout by TA Technology (Shanghai) Co., Ltd. / Huang Ting on our behalf shall have the same effect as acts of our own. Sincerely, Print name:shenghao Company:Xiaomi Communications Co., Ltd.

Xiaomi Communications Co., Ltd. Request for Confidentiality Date: _2021-01-14_ Subject: Confidentiality Request for: _____ FCC ID: 2AFZZK7AG ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit ShortTermPermanentBlock Diagrams ShortTermExternal Photos ShortTermPermanent* 1 Internal Photos ShortTermPermanentOperation Description/Theory of Operation ShortTermPermanentParts List& Placement/BOM ShortTermPermanentTune-Up Procedure ShortTermPermanentSchematics ShortTermTestSetup Photos ShortTermPermanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ ______Xiaomi Communications Co., Ltd._____has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180_ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: shenghao (Signature/Title 2 )(Print name)

Xiaomi Communications Co., Ltd. UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: M2101K7AG (1) DFS Device -- Master,Client with Radar detection capability , Client without radar detection capability,N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 –2462 MHzYes,NoYes,NoYes,NoYes,No 5150 –5250 MHzYes,NoYes,NoYes,NoYes,No 5250 –5350 MHzYes,NoYes,NoYes,NoYes,No 5470 –5725 MHzYes,NoYes,NoYes,NoYes,No 5725– 5850 MHz Yes,NoYes,NoYes,NoYes,No (3) Country code selection ability -Yes ,No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement - Yes ,No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply ,No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Printed Nameshenghao PositionCertification Director

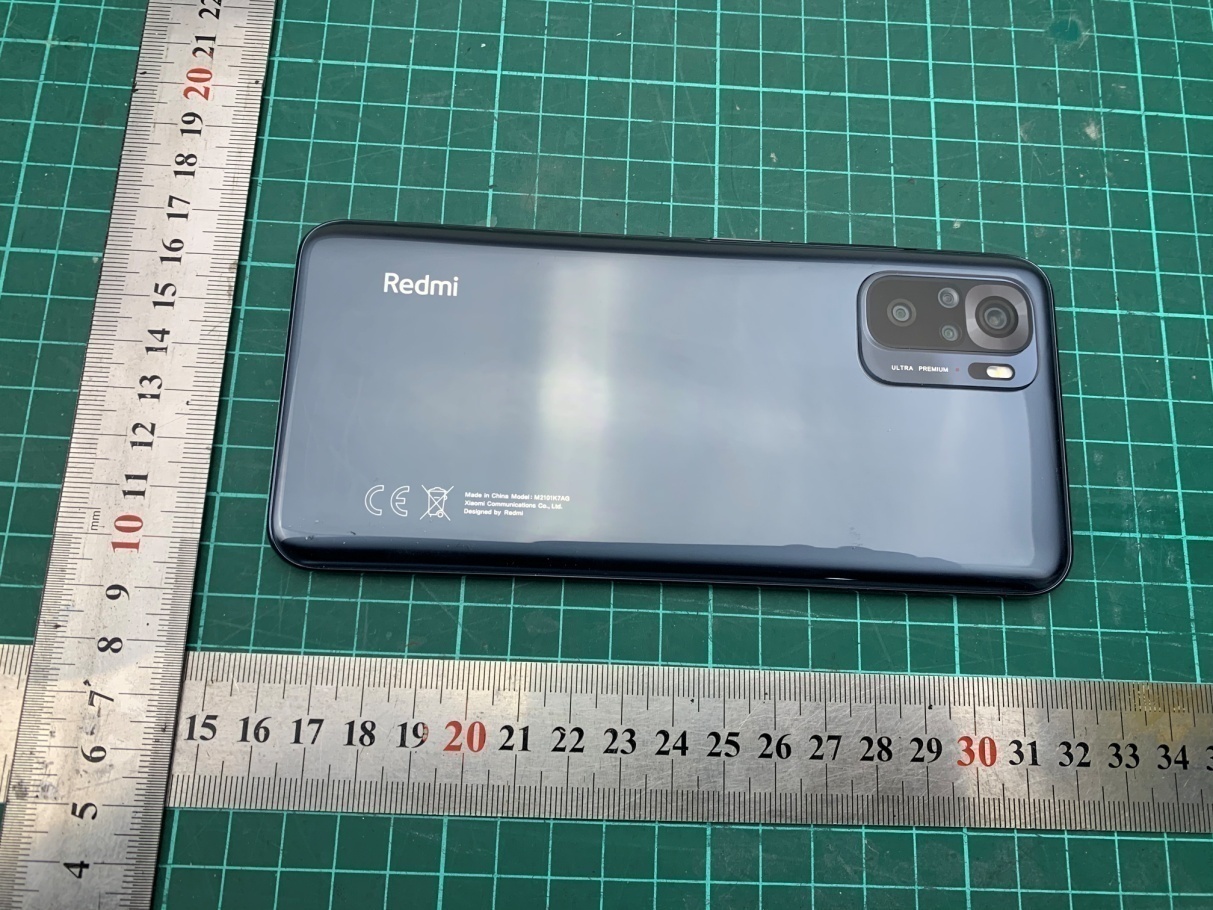

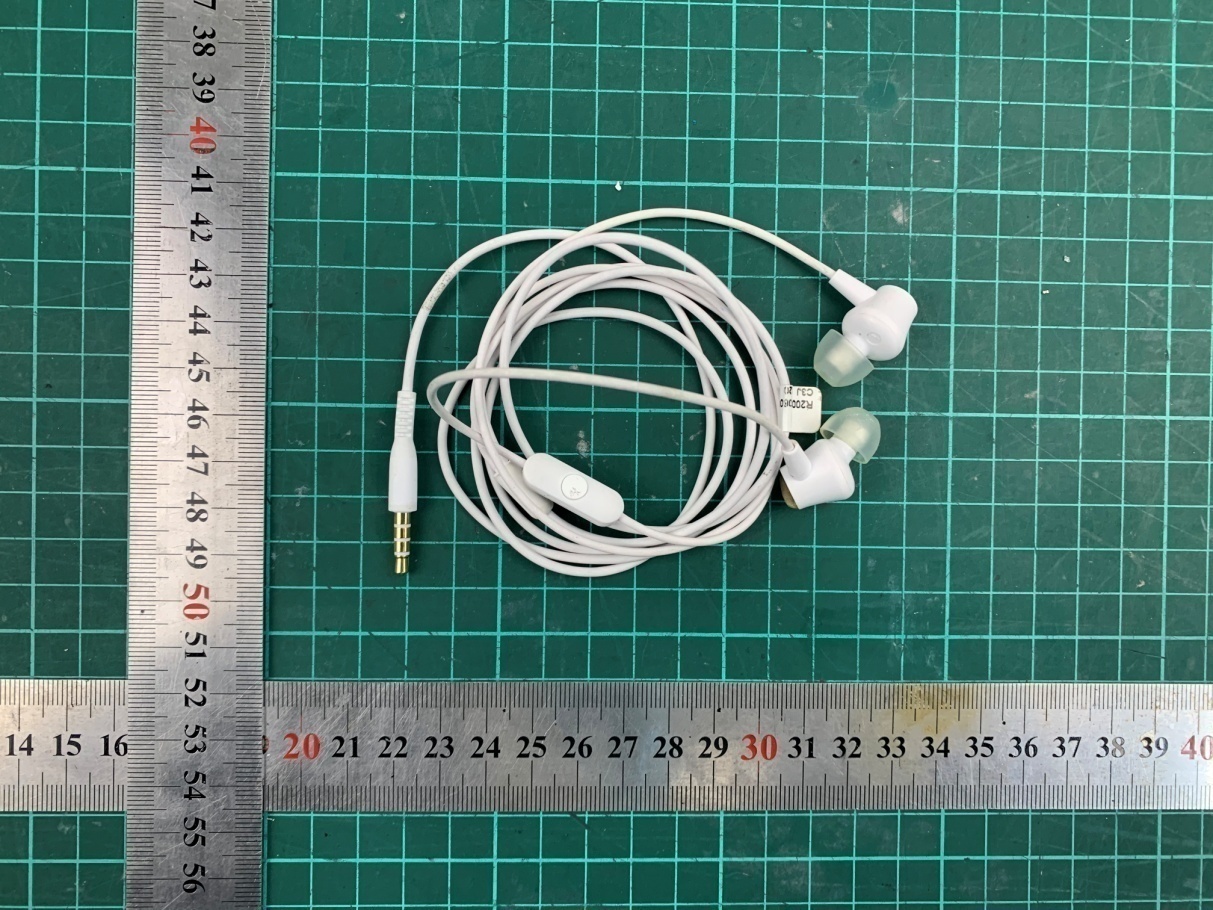

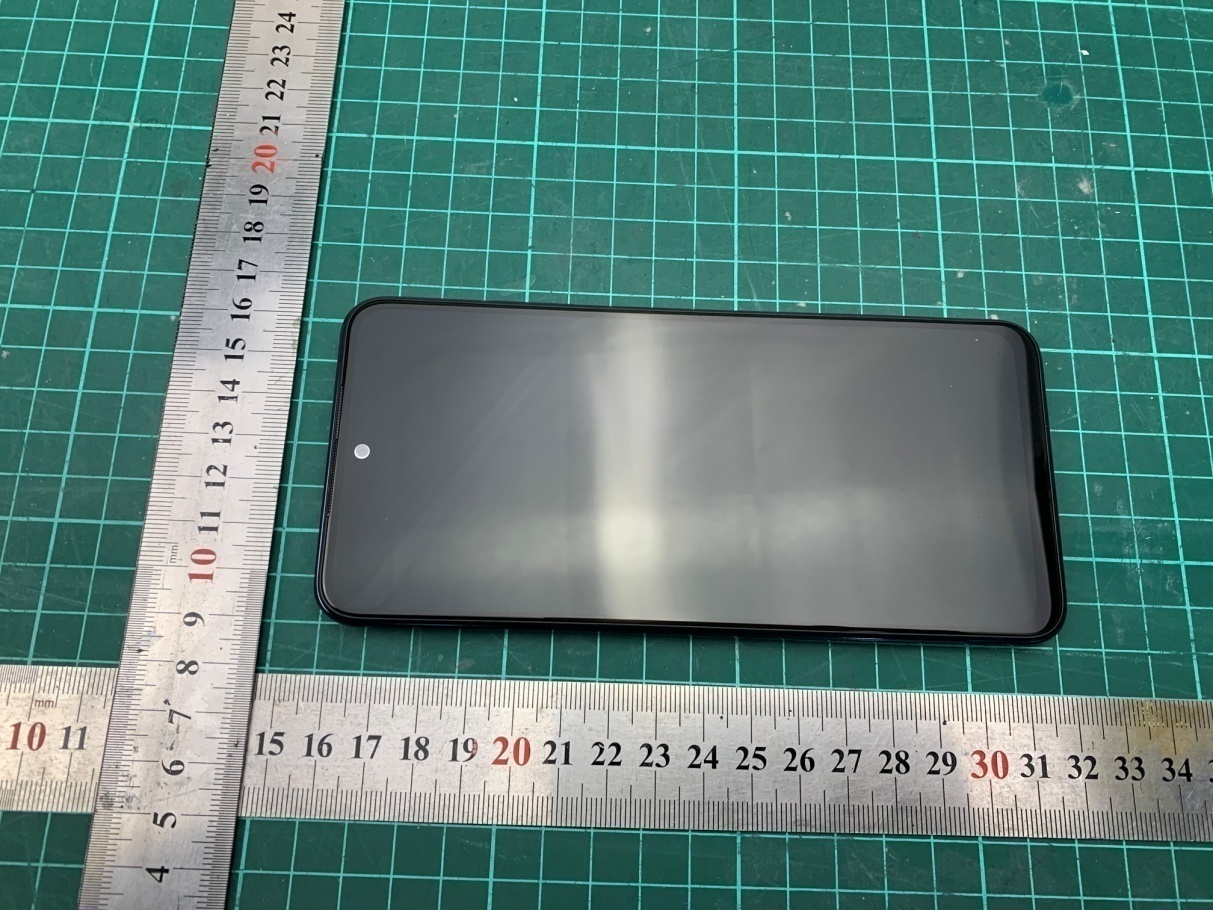

EUT Appearance Report No.: R2012A0833 Page 1 of 5 EUT Appearance EUT Appearance Report No.: R2012A0833 Page 2 of 5 EUT Appearance Report No.: R2012A0833 Page 3 of 5 a: EUT EUT Appearance Report No.: R2012A0833 Page 4 of 5 b: Adapter c: Earphone EUT Appearance Report No.: R2012A0833 Page 5 of 5 d: USB Cable Picture 1: Constituents of EUT EUT Accessory Adapter Manufacturer: Xiaomi Communications Co., Ltd. (Aohai) Model:MDY-11-EA Earphone Manufacturer: One more Model: EM023 Battery 1 Manufacturer: SUNWODA Electronic Co., Ltd Model: BN59 Battery 2 Manufacturer: Dongguan Amperex Technology Limited Model: BN59 USB Cable 1 Manufacturer: Suining Luxshare Precision Industry Co.,Ltd. Model: L23220 USB Cable 2 Manufacturer: NingBo Broad Telecommunication Co.,Ltd. Model: B23220 Note: 1.The EUT is sent from the applicant to TA and the information of the EUT is declared by the applicant. 2. There is more than one USB cable/ Battery, each one should be applied throughout the compliance test respectively, and however, only the worst case (USB cable 1/ Battery 1) will be recorded for test report.

Step: settings‐‐>about phone‐‐> Certification

Internal photo Report No.: R2012A0833 Page 1 of 13 Internal photo MainAnt Wifi/BT/ GNSS Ant DIV Ant Internal photo Report No.: R2012A0833 Page 2 of 13 Internal photo Report No.: R2012A0833 Page 3 of 13 Internal photo Report No.: R2012A0833 Page 4 of 13 Internal photo Report No.: R2012A0833 Page 5 of 13 Internal photo Report No.: R2012A0833 Page 6 of 13 Internal photo Report No.: R2012A0833 Page 7 of 13

Internal photo Report No.: R2012A0833 Page 8 of 13 Internal photo Report No.: R2012A0833 Page 9 of 13 Internal photo Report No.: R2012A0833 Page 10 of 13 Internal photo Report No.: R2012A0833 Page 11 of 13 Internal photo Report No.: R2012A0833 Page 12 of 13 Internal photo Report No.: R2012A0833 Page 13 of 13

Prepared by: Yu Wang Approved by: Guangchang Fan TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 SAR TEST REPORT Applicant Xiaomi Communications Co., Ltd. FCC ID 2AFZZK7AG Product Mobile Phone Brand Redmi Model M2101K7AG Report No. R2012A0833-S1V1 Issue Date January 18, 2021 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in IEEE 1528- 2013, ANSI C95.1: 1992, IEEE C95.1: 1991. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 2 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ............................................................................................................................... 5 1.1 Notes of the Test Report ......................................................................................................... 5 1.2 Test facility .............................................................................................................................. 5 1.3 Testing Location ...................................................................................................................... 5 1.4 Laboratory Environment .......................................................................................................... 6 2 Statement of Compliance ............................................................................................................... 7 3 Description of Equipment under Test .............................................................................................. 8 4 Test Specification, Methods and Procedures ............................................................................... 10 5 Operational Conditions during Test ............................................................................................... 11 5.1 Test Positions ......................................................................................................................... 11 5.1.1 Against Phantom Head ................................................................................................... 11 5.1.2 Body Worn Configuration ................................................................................................ 11 5.1.3 Phablet SAR test considerations ................................................................................... 12 5.2 Measurement Variability ........................................................................................................ 13 5.3 Test Configuration ................................................................................................................. 14 5.3.1 GSM Test Configuration ................................................................................................. 14 5.3.2 UMTS Test Configuration ............................................................................................... 14 5.3.3 LTE Test Configuration ................................................................................................... 18 5.3.4 Additional requirements for TDD LTE specification .................................................... 19 5.3.5 LTE CA specification .................................................................................................... 22 5.3.6 Wi-Fi Test Configuration ................................................................................................. 23 5.3.7 BT Test Configuration ..................................................................................................... 24 5.3.8 Proximity sensor& Receiver Power reduction information ......................................... 24 6 SAR Measurements System Configuration .................................................................................. 28 6.1 SAR Measurement Set-up .................................................................................................... 28 6.2 DASY5 E-field Probe System ................................................................................................ 29 6.3 SAR Measurement Procedure .............................................................................................. 30 7 Main Test Equipment .................................................................................................................... 32 8 Tissue Dielectric Parameter Measurements & System Verification .............................................. 33 8.1 Tissue Verification ................................................................................................................. 33 8.2 System Performance Check .................................................................................................. 35 8.3 SAR System Validation ......................................................................................................... 37 9 Normal and Maximum Output Power ........................................................................................... 38 9.1 GSM Mode ............................................................................................................................ 38 9.2 WCDMA Mode ...................................................................................................................... 42 9.3 LTE Mode .............................................................................................................................. 45 9.2.1 LTE CA ............................................................................................................................ 110 9.4 WLAN Mode ......................................................................................................................... 111 9.5 B…

Text truncated - open the document above for the full version.

SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 242 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 68 UMTS Band V Right Cheek Middle (Second-Antenna) Date: 12/29/2020 Communication System: UID 0, WCDMA (0); Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.6 MHz; σ = 0.923 S/m; ε r = 42.201; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 1.4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.38, 9.38, 9.38); Calibrated: 7/6/2020; Electronics: DAE4 SN1291; Calibrated: 2/24/2020 Phantom: SAM 2; Type: SAM Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Right Cheek Middle/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.609 W/kg Right Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.26 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 1.89 W/kg SAR(1 g) = 0.601 W/kg; SAR(10 g) = 0.368 W/kg Maximum value of SAR (measured) = 0.626 W/kg SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 243 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 69 UMTS Band V Back Side Middle (Second-Antenna, Distance 15mm) Date: 12/29/2020 Communication System: UID 0, WCDMA (0); Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.6 MHz; σ = 0.923 S/m; ε r = 42.201; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 1.4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.38, 9.38, 9.38); Calibrated: 7/6/2020; Electronics: DAE4 SN1291; Calibrated: 2/24/2020 Phantom: SAM 2; Type: SAM Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Back Side Middle/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.147 W/kg Back Side Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.04 V/m; Power Drift = 0.060 dB Peak SAR (extrapolated) = 0.466 W/kg SAR(1 g) = 0.145 W/kg; SAR(10 g) = 0.103 W/kg Maximum value of SAR (measured) = 0.151 W/kg SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 244 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 70 UMTS Band V Back Side Middle (Second-Antenna, Distance 10mm) Date: 12/29/2020 Communication System: UID 0, WCDMA (0); Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.6 MHz; σ = 0.923 S/m; ε r = 42.201; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 1.4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.38, 9.38, 9.38); Calibrated: 7/6/2020; Electronics: DAE4 SN1291; Calibrated: 2/24/2020 Phantom: SAM 2; Type: SAM Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Back Side Middle/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.201 W/kg Back Side Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.45 V/m; Power Drift = 0.113 dB Peak SAR (extrapolated) = 0.697 W/kg SAR(1 g) = 0.171 W/kg; SAR(10 g) = 0.117 W/kg Maximum value of SAR (measured) = 0.208 W/kg SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 245 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 71 LTE Band 2 1RB Right Tilt Middle (Second-Antenna) Date: 1/2/2021 Communication System: UID 0, LTE (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.434 S/m; ε r = 38.861; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 1.4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(7.90, 7.90, 7.90); Calibrated: 7/6/2020; Electronics: DAE4 SN1291; Calibrated: 2/24/2020 Phantom: SAM 2; Type: SAM Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Right Tilt High/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.989 W/kg Right Tilt High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.49 V/m; Power Drift = -0.102 dB Peak SAR (extrapolated) = 2.07 W/kg SAR(1 g) = 0.906 W/kg; SAR(10 g) = 0.383 W/kg Maximum value of SAR (measured) = 1.10 W/kg SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 246 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 72 LTE Band 2 1RB Back Side High (Second-Antenna, Distance 15mm) Date: 1/2/2021 Communication System: UID 0, LTE (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.434 S/m; ε r = 38.861; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 1.4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(7.90, 7.90, 7.90); Calibrated: 7/6/2020; Electronics: DAE4 SN1291; Calibrated: 2/24/2020 Phantom: SAM 2; Type: SAM Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Front Side High/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.911 W/kg Front Side High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.888 V/m; Power Drift…

Text truncated - open the document above for the full version.

SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 302 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 303 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 304 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX G: D1900V2 Dipole Calibration Certificate SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 305 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 306 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 307 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 308 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 309 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 310 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 311 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 312 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX H: D2450V2 Dipole Calibration Certificate SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 313 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 314 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 315 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 316 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 317 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 318 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 319 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 320 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX I: D2600V2 Dipole Calibration Certificate SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 321 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 322 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2012A0833-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 323 of 346 This report shall not be reproduced except in full, without the written approval of TA Technology (Shangha…

Text truncated - open the document above for the full version.
