2AFZZN87GMobile Phone

XXXmi XXX Quick Start Guide SAT. 16 AUG. 02 48 Volume Buttons Power Button USB Type-C Port Micro SD Nano-SIM Nano-SIM To view the user guide, scan the QR code. Thank you for choosing XXXmi XXX Long press the power button to turn on the device. Follow the on-screen instructions to configure the device. For more information, visit our official website: www.mi.com/global/service/userguide About SIM: Please do not insert non-standard SIM cards into the SIM card slot. They may damage the SIM card slot. WARNING: Do not disassemble this device. WEEE Special precautions must be taken to safely dispose of this product. This marking indicates that this product may not be discarded with other household waste in the EU. To prevent harm to the environment or human health from inappropriate waste disposal, and to promote sustainable reuse of material resources, please recycle responsibly. To safely recycle your device, please use return and collection systems or contact the retailer where the device was originally purchased. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS. To prevent possible hearing damage, do not listen at high volume levels for long periods. Additional safety information and precautions can be accessed at the following link: www.mi.com/en/certification Important Safety Information Read all safety information below before using your device: • Use of unauthorized cables, power adapters, or batteries can cause fire explosion, electric shock, pose other risks, or damage the device. • This device’s operating temperature range is 0°C to 40°C. Using this device in an environment outside of this temperature range may damage the device. • If your device is provided with a built-in battery, to avoid damaging the battery or the device, do not attempt to replace the battery yourself. • Charge this device only with the included or authorized cable and power adapter. Use only authorized accessories which are compatible with your device. • After charging is complete, disconnect the adapter from both the device and the power outlet. Do not charge the device for more than 12 hours. • The battery must be recycled or disposed of separately from household waste. Mishandling the battery may cause fire or explosion. Dispose of or recycle the device, its battery, and accessories according to your local regulations. • Do not disassemble, hit, crush, or burn the battery. If the battery appears deformed or damaged, stop using it immediately. -Do not short circuit the battery, as this may cause overheating, burns, or other injury. -Do not place the battery in a high-temperature environment. -Overheating may cause explosion. -Do not disassemble, hit, or crush the battery, as this may cause the battery to leak, overheat, or explode. -Do not burn the battery, as this may cause fire or explosion. • User shall not remove or alter the battery. Removal or repair of the battery shall only be done by an authorized repair center of the manufacturer. • Keep your device dry. • Do not try to repair the device yourself. If any part of the device does not work properly, contact Mi customer support or bring your device to an authorized repair center. • Connect other devices according to their instruction manuals. Do not connect incompatible devices to this device. • For AC/DC adapters, the socket-outlet shall be installed near the equipment and shall be easily accessible. Safety Precautions • Observe all applicable laws and rules restricting use of mobile phones in specific situations and environments. • Do not use your phone at petrol stations or in any explosive atmosphere or potentially explosive environment, including fueling areas, below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air may contain chemicals or particles such as grain, dust, or metal powders. Obey all posted signs to turn off wireless devices such as your phone or other radio equipment. Turn off your mobile phone or wireless device when in a blasting area or in areas requiring “two-way radios” or “electronic devices” to be turned off to prevent potential hazards. • Do not use your phone in hospital operating rooms, emergency rooms, or intensive care units. Always comply with all rules and regulations of hospitals and health centers. If you have a medical device, please consult your doctor and the device manufacturer to determine whether your phone may interfere with the device’s operation. To avoid potential interference with a pacemaker, always maintain a minimum distance of 15 cm between your mobile phone and the pacemaker. This can be done by using your phone on the ear opposite to your pacemaker and not carrying your phone in a breast pocket. To avoid interference with medical equipment, do not use your phone near hearing aids, cochlear implants, or other similar devices. • Observe all aircraft safety regulations and turn off your phone on board aircraft when required. • When driving a vehicle, use your phone in accordance with relevant traffic laws and regulations. • To avoid being struck by lightning, do not use your phone outdoors during thunderstorms. • Do not use your phone to make calls while it is charging. • Do not use your phone in places with high humidity, such as bathrooms. Doing so may result in electric shock, injury, fire, and charger damage Security Statement Please update your phone’s operating system using the built-in software update feature, or visit any of our authorized service outlets. Updating software through other means may damage the device or result in data loss, security issues, and other risks. EU Regulations RED Declaration of Conformity Xiaomi Communications Co., Ltd. hereby declares that this GSM / GPRS / EDGE / UMTS / LTE / 5G NR Digital Mobile Phone with Bluetooth and Wi-Fi 23124RN87G is in compliance with the essential requirements and other relevant provisions of the RE Directive 2014/53/EU. The full …

Text truncated - open the document above for the full version.

Xiaomi Communications Co., Ltd. Date: 2023.12.19 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: 2AFZZN87G To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) and Well Wei in SGS- CSTC Standards Technical Services (Suzhou) Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own.. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Xiaomi Communications Co., Ltd. This authorization is valid until further written notice from the applicant. Print Name: qingyao zeng Signature: On behalf of Company: Xiaomi Communications Co., Ltd. Telephone: 010 6060 6666 E-mail: [email protected]

Xiaomi Communications Co., Ltd. TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: Confidentiality Request regarding application for FCC ID: 2AFZZN87G LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions BOM List Tune up procedure NII Software Security Info The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date, whichever is less. If the device is marketed within 180 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: qingyao zeng Signature: On behalf of Company: Xiaomi Communications Co., Ltd. Telephone: 010 6060 6666 E-mail: [email protected]

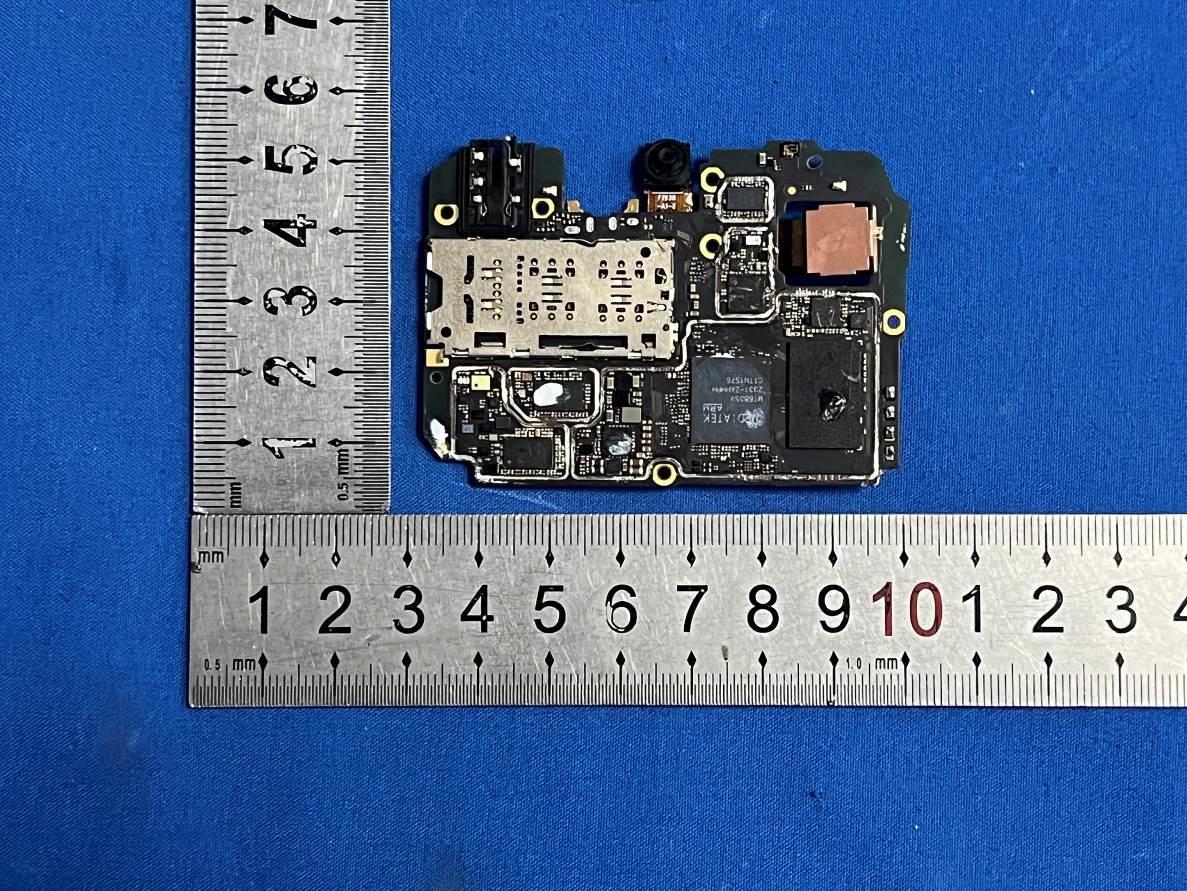

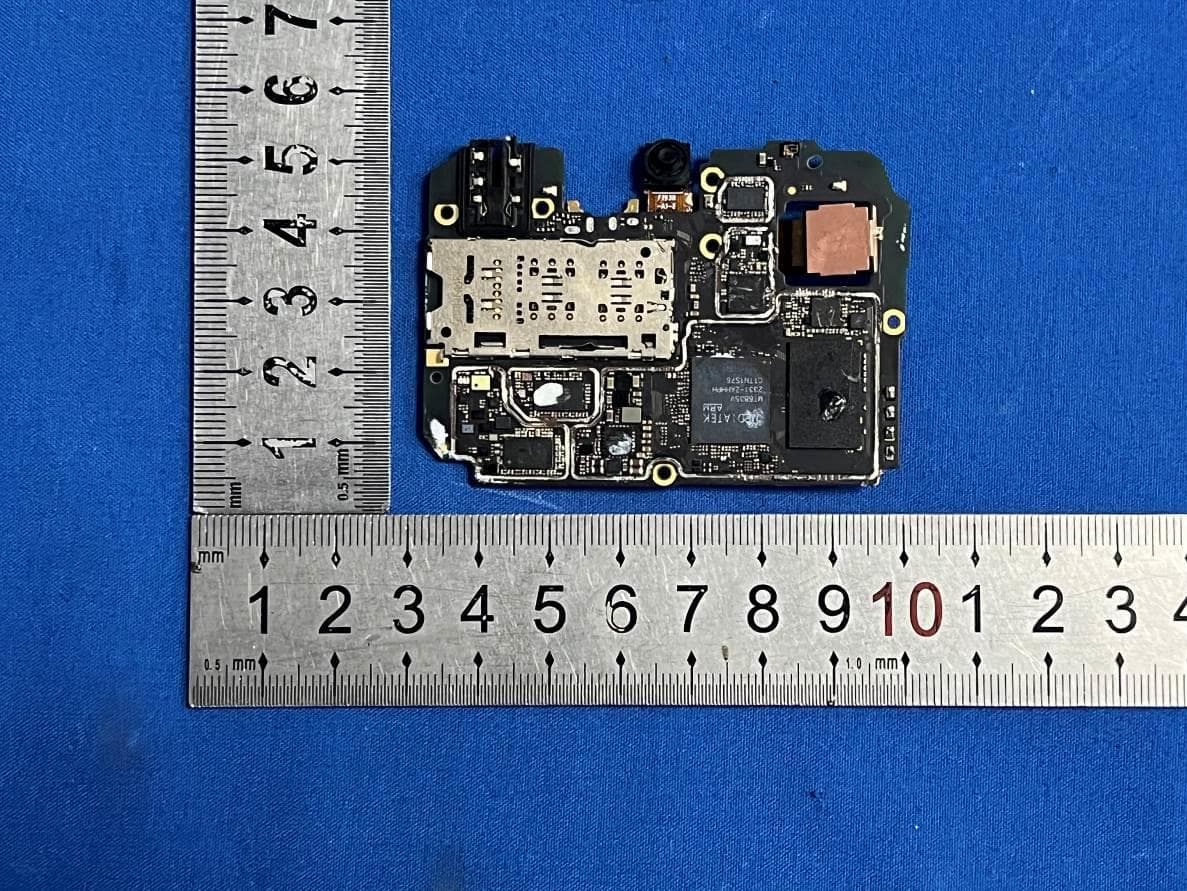

Page 1 of 8 1 Photographs - EUT Constructional Details Model No. (EUT): 23124RN87G FCC ID: 2AFZZN87G Page 2 of 8 ANT Location Page 3 of 8 Page 4 of 8 Page 5 of 8 Page 6 of 8 Page 7 of 8 Model Name: BN5Q Rated capacity: 4900mAh Brand Name: MI Manufacturer: Sunwoda Page 8 of 8 Model Name: BN5Q Rated capacity: 4900mAh Brand Name: MI Manufacturer: Amperex

Report No.: SEWM2311000456RG09 Appendix A Detailed System Check Results 1. System Performance Check System Performance Check 13 MHz Head System Performance Check 750 MHz Head System Performance Check 835 MHz Head System Performance Check 1750 MHz Head System Performance Check 1900 MHz Head System Performance Check 2450 MHz Head System Performance Check 2600 MHz Head System Performance Check 3500 MHz Head System Performance Check 3900 MHz Head System Performance Check 5250 MHz Head System Performance Check 5600 MHz Head System Performance Check 5750 MHz Head

Report No.: SEWM2311000456RG09 Appendix C Calibration certificate 1. Dipole D750V3-SN 1210 D835V2-SN 4d161 D1750V2-SN 1038 D1950V2- SN 1218 D2450V2-SN 922 D2600V2-SN 1180 D3500V2-SN 1124 D3900V2-SN 1071 D5GHzV2-SN 1313 2. DAE DAE4-SN 1740 3. Probe& Dipole EX3DV4-SN 7636 EX3DV4-SN 7466 CLA13-SN 1032

Report No.: SEWM2311000456RG09 Appendix E Conducted RF Output Power Table Measurement of RF conducted Power 1 Conducted Power of Main Antenna (Ant1) 2 Conducted Power of Main Antenna (Ant3) 3 Conducted Power of Main Antenna (Ant4) 4 Conducted Power of Main Antenna (Ant7) 5 Conducted Power of LTE Uplink CA 6 Conducted Power of LTE Down CA 7 Conducted Power of NR Antenna 7.1 Conducted Power of NR Antenna (Ant1) 7.2 Conducted Power of NR Antenna (Ant2) 7.3 Conducted Power of NR Antenna (Ant3) 7.4 Conducted Power of NR Antenna (Ant4) 7.5 Conducted Power of NR Antenna (Ant5) 7.6 Conducted Power of NR Antenna (Ant7) 8 Conducted Power of WiFi and Bluetooth 8.1 Conducted Power of WiFi 8.2 Conducted Power of Bluetooth Report No.: SEWM2311000456RG09 Measur ement of R F conducted Power 1 Conducted P ower of Main Antenna(A nt1) 1.1 Conducted Power of GSM GSM 850 DSI1&2&3&4 Burst Output Power(dBm) Division Factors Frame-Average Output Power(dBm) Channel 128 190 251 Tune up 128 190 251 Tune up GSM(GMSK) GSM 32.34 32.40 32.37 33.50 -9.19 23.15 23.21 23.18 24.31 GPRS (GMSK) 1 TX Slot 32.30 32.24 32.30 33.50 -9.19 23.11 23.05 23.11 24.31 2 TX Slots 30.12 30.00 30.18 31.00 -6.18 23.94 23.82 24.00 24.82 3 TX Slots 28.56 28.63 28.52 29.50 -4.42 24.14 24.21 24.10 25.08 4 TX Slots 26.53 26.64 26.51 27.50 -3.17 23.36 23.47 23.34 24.33 EGPRS (GMSK) 1 TX Slot 32.17 32.19 32.42 33.50 -9.19 22.98 23.00 23.23 24.31 2 TX Slots 30.08 30.10 30.21 31.00 -6.18 23.90 23.92 24.03 24.82 3 TX Slots 28.48 28.57 28.52 29.50 -4.42 24.06 24.15 24.10 25.08 4 TX Slots 26.58 26.51 26.41 27.50 -3.17 23.41 23.34 23.24 24.33 EGPRS (8PSK) 1 TX Slot 26.45 26.50 26.61 28.00 -9.19 17.26 17.31 17.42 18.81 2 TX Slots 23.88 24.02 23.97 25.50 -6.18 17.70 17.84 17.79 19.32 3 TX Slots 22.47 22.33 22.37 24.00 -4.42 18.05 17.91 17.95 19.58 4 TX Slots 21.03 20.95 20.93 22.50 -3.17 17.86 17.78 17.76 19.33 GSM 1900 DSI1&2 Burst Output Power(dBm) Division Factors Frame-Average Output Power(dBm) Channel 512 661 810 Tune up 512 661 810 Tune up GSM(GMSK) GSM 29.77 29.78 29.63 30.50 -9.19 20.58 20.59 20.44 21.31 GPRS (GMSK) 1 TX Slot 29.67 29.82 29.60 30.50 -9.19 20.48 20.63 20.41 21.31 2 TX Slots 27.22 27.11 26.94 28.00 -6.18 21.04 20.93 20.76 21.82 3 TX Slots 25.36 25.52 25.30 26.50 -4.42 20.94 21.10 20.88 22.08 4 TX Slots 23.86 23.90 23.74 25.00 -3.17 20.69 20.73 20.57 21.83 EGPRS (GMSK) 1 TX Slot 29.73 29.82 29.58 30.50 -9.19 20.54 20.63 20.39 21.31 2 TX Slots 27.20 27.11 27.01 28.00 -6.18 21.02 20.93 20.83 21.82 3 TX Slots 25.33 25.54 25.31 26.50 -4.42 20.91 21.12 20.89 22.08 4 TX Slots 23.79 23.89 23.78 25.00 -3.17 20.62 20.72 20.61 21.83 EGPRS (8PSK) 1 TX Slot 25.81 25.65 25.73 27.00 -9.19 16.62 16.46 16.54 17.81 2 TX Slots 23.09 22.95 22.95 24.50 -6.18 16.91 16.77 16.77 18.32 3 TX Slots 21.48 21.51 21.59 23.00 -4.42 17.06 17.09 17.17 18.58 4 TX Slots 20.60 20.59 20.50 21.50 -3.17 17.43 17.42 17.33 18.33 Report No.: SEWM2311000456RG09 GSM 1900 DSI3&4 Burst Output Power(dBm) Division Factors Frame-Average Output Power(dBm) Channel 512 661 810 Tune up 512 661 810 Tune up GSM(GMSK) GSM 28.66 28.67 28.58 29.50 -9.19 19.47 19.48 19.39 20.31 GPRS (GMSK) 1 TX Slot 28.51 28.63 28.46 29.50 -9.19 19.32 19.44 19.27 20.31 2 TX Slots 26.03 26.04 25.80 27.00 -6.18 19.85 19.86 19.62 20.82 3 TX Slots 24.26 24.35 24.17 25.50 -4.42 19.84 19.93 19.75 21.08 4 TX Slots 22.79 22.81 22.55 24.00 -3.17 19.62 19.64 19.38 20.83 EGPRS (GMSK) 1 TX Slot 28.61 28.69 28.53 29.50 -9.19 19.42 19.50 19.34 20.31 2 TX Slots 26.03 26.00 25.91 27.00 -6.18 19.85 19.82 19.73 20.82 3 TX Slots 24.20 24.42 24.15 25.50 -4.42 19.78 20.00 19.73 21.08 4 TX Slots 22.69 22.82 22.71 24.00 -3.17 19.52 19.65 19.54 20.83 EGPRS (8PSK) 1 TX Slot 25.88 25.64 25.81 27.00 -9.19 16.69 16.45 16.62 17.81 2 TX Slots 23.08 23.02 22.95 24.50 -6.18 16.90 16.84 16.77 18.32 3 TX Slots 21.53 21.52 21.66 23.00 -4.42 17.11 17.10 17.24 18.58 4 TX Slots 20.60 20.56 20.56 21.50 -3.17 17.43 17.39 17.39 18.33 1.2 Conducted Power of WCDMA WCDMA Band II DSI1&2 Average Conducted Power(dBm) Channel 9262 9400 9538 Tune up WCDMA 12.2kbps RMC 24.21 24.27 24.1 25.00 12.2kbps AMR 23.9 24.08 23.89 25.00 HSDPA Subtest 1 23.10 23.15 23.13 24.00 Subtest 2 23.11 23.11 23.12 24.00 Subtest 3 22.62 22.62 22.50 23.50 Subtest 4 22.55 22.52 22.55 23.50 HSUPA Subtest 1 21.43 21.62 21.57 22.00 Subtest 2 20.96 20.94 21.08 22.00 Subtest 3 22.05 22.20 22.14 23.00 Subtest 4 21.06 20.95 21.16 21.50 Subtest 5 22.10 22.11 22.03 23.00 DC-HSDPA Subtest 1 23.15 23.15 23.10 24.00 Subtest 2 23.10 23.08 23.07 24.00 Subtest 3 22.45 22.56 22.63 23.50 Subtest 4 22.62 22.61 22.60 23.50 HSPA+ 16QAM 21.13 20.88 20.99 22.00 Report No.: SEWM2311000456RG09 WCDMA Band II DSI13&4 Average Conducted Power(dBm) Channel 9262 9400 9538 Tune up WCDMA 12.2kbps RMC 21.14 21.24 21.05 22.00 12.2kbps AMR 20.97 21.13 20.88 22.00 HSDPA Subtest 1 20.19 20.15 20.06 21.00 Subtest 2 20.04 20.08 20.09 21.00 Subtest 3 19.64 19.55 19.61 20.50 Subtest 4 19.55 19.56 19.48 20.50 HSUPA Subtest 1 18.46 18.57 18.49 19.00 Subtest 2 18.09 17.81 18.14 19.00 Subtest 3 19.07 19.09 19.14 20.00 Subtest 4 18.14 17.96 18.17 18.50 Subtest 5 19.07 19.14 19.08 20.00 DC-HSDPA Subtest 1 20.12 20.08 20.15 21.00 Subtest 2 20.10 20.06 20.19 21.00 Subtest 3 19.58 19.58 19.65 20.50 Subtest 4 19.56 19.61 19.63 20.50 HSPA+ 16QAM 18.07 17.89 18.03 19.00 WCDMA Band IV DSI1&2 Average Conducted Power(dBm) Channel 1312 1412 1513 Tune up WCDMA 12.2kbps RMC 24.07 24.23 24.10 25.00 12.2kbps AMR 23.93 24.09 23.98 25.00 HSDPA Subtest 1 23.14 23.10 23.05 24.00 Subtest 2 23.09 23.16 23.10 24.00 Subtest 3 22.66 22.57 22.61 23.50 Subtest 4 22.63 22.52 22.63 23.50 HSUPA Subtest 1 21.51 21.48 21.44 22.00 Subtest 2 21.07 20.94 21.16 22.00 Subtest 3 22.13 22.07 22.15 23.00 Subtest 4 21.04 20.88 21.19 21.50 Subtest 5 22.05 22.02 22.07 23.00 DC-HSDPA Subtest 1 23.21 23.12 23.05 24.00 Subtest 2 23.17 23.09 23.04 24.00 Subtest 3 22.52 22.58 22.59 23.50 Subtest 4 22.54 22.56 22.65 23.50 HSPA+ 16QAM 20.98 20.95 21.07 22.00 Report No.: …

Text truncated - open the document above for the full version.

Report No.: SEWM2311000456RG09 WCDMA Band IV DSI2 Average Conducted Power(dBm) Channel 1312 1412 1513 Tune up WCDMA 12.2kbps RMC 23.35 23.52 23.36 24.50 12.2kbps AMR 23.21 23.34 23.24 24.50 HSDPA Subtest 1 22.35 22.37 22.44 23.50 Subtest 2 22.51 22.35 22.36 23.50 Subtest 3 21.92 21.80 21.96 23.00 Subtest 4 21.99 21.84 21.93 23.00 HSUPA Subtest 1 20.79 20.77 20.76 21.50 Subtest 2 20.29 20.19 20.50 21.50 Subtest 3 21.39 21.41 21.41 22.50 Subtest 4 20.42 20.16 20.44 21.00 Subtest 5 21.29 21.32 21.27 22.50 DC-HSDPA Subtest 1 22.47 22.37 22.39 23.50 Subtest 2 22.55 22.33 22.44 23.50 Subtest 3 21.83 21.88 21.79 23.00 Subtest 4 21.82 21.82 21.93 23.00 HSPA+ 16QAM 20.34 20.23 20.30 21.50 WCDMA Band IV DSI4 Average Conducted Power(dBm) Channel 1312 1412 1513 Tune up WCDMA 12.2kbps RMC 20.30 20.35 20.17 21.00 12.2kbps AMR 19.97 20.11 20.03 21.00 HSDPA Subtest 1 19.17 19.14 19.18 20.00 Subtest 2 19.27 19.06 19.15 20.00 Subtest 3 18.71 18.52 18.74 19.50 Subtest 4 18.82 18.58 18.67 19.50 HSUPA Subtest 1 17.53 17.56 17.60 18.00 Subtest 2 17.12 16.96 17.27 18.00 Subtest 3 18.19 18.12 18.24 19.00 Subtest 4 17.20 17.00 17.20 17.50 Subtest 5 18.05 18.16 18.08 19.00 DC-HSDPA Subtest 1 19.24 19.16 19.23 20.00 Subtest 2 19.38 19.09 19.22 20.00 Subtest 3 18.64 18.70 18.53 19.50 Subtest 4 18.65 18.61 18.70 19.50 HSPA+ 16QAM 17.15 17.06 17.06 18.00 Report No.: SEWM2311000456RG09 WCDMA Band V DSI1&2&4 Average Conducted Power(dBm) Channel 4132 4182 4233 Tune up WCDMA 12.2kbps RMC 24.15 24.20 24.18 25.00 12.2kbps AMR 23.98 24.06 23.94 25.00 HSDPA Subtest 1 23.17 23.19 23.23 24.00 Subtest 2 23.10 23.17 23.17 24.00 Subtest 3 22.58 22.59 22.63 23.50 Subtest 4 22.56 22.49 22.60 23.50 HSUPA Subtest 1 21.58 21.66 21.57 22.00 Subtest 2 21.08 20.89 21.13 22.00 Subtest 3 22.06 22.09 22.01 23.00 Subtest 4 21.09 20.90 21.11 21.50 Subtest 5 21.99 22.08 22.03 23.00 DC-HSDPA Subtest 1 23.21 23.10 23.17 24.00 Subtest 2 23.11 23.22 23.15 24.00 Subtest 3 22.59 22.52 22.55 23.50 Subtest 4 22.57 22.57 22.65 23.50 HSPA+ 16QAM 21.02 20.89 21.20 22.00 Report No.: SEWM2311000456RG09 3.3 Conducted Power of LTE LTE Band 2 DSI1 Conducted Power(dBm) Bandwidth Modulation RB size RB offset Channel Channel Channel Tune up 18607 18900 19193 1.4MHz QPSK 1 0 16.52 16.59 16.73 17.50 1 2 16.54 16.56 16.63 17.50 1 5 16.52 16.55 16.64 17.50 3 0 16.61 16.67 16.66 17.50 3 2 16.58 16.57 16.68 17.50 3 3 16.55 16.54 16.72 17.50 6 0 16.65 16.62 16.75 17.50 16QAM 1 0 16.55 16.67 16.68 17.50 1 2 16.57 16.58 16.66 17.50 1 5 16.63 16.61 16.69 17.50 3 0 16.62 16.60 16.75 17.50 3 2 16.53 16.57 16.71 17.50 3 3 16.63 16.60 16.71 17.50 6 0 16.52 16.59 16.62 17.50 64QAM 1 0 16.52 16.57 16.65 17.50 1 2 16.52 16.63 16.74 17.50 1 5 16.55 16.66 16.65 17.50 3 0 16.52 16.63 16.73 17.50 3 2 16.61 16.66 16.66 17.50 3 3 16.53 16.66 16.71 17.50 6 0 16.62 16.62 16.75 17.50 256QAM 1 0 16.64 16.59 16.70 17.50 1 2 16.61 16.62 16.73 17.50 1 5 16.64 16.58 16.68 17.50 3 0 16.61 16.62 16.75 17.50 3 2 16.57 16.56 16.68 17.50 3 3 16.62 16.60 16.64 17.50 6 0 16.53 16.58 16.72 17.50 Bandwidth Modulation RB size RB offset Channel Channel Channel Tune up 18615 18900 19185 3MHz QPSK 1 0 16.59 16.64 16.72 17.50 1 7 16.61 16.61 16.67 17.50 1 14 16.57 16.60 16.70 17.50 8 0 16.51 16.59 16.73 17.50 8 4 16.60 16.64 16.71 17.50 8 7 16.59 16.60 16.68 17.50 15 0 16.53 16.65 16.65 17.50 Report No.: SEWM2311000456RG09 16QAM 1 0 16.59 16.60 16.72 17.50 1 7 16.54 16.64 16.70 17.50 1 14 16.62 16.64 16.72 17.50 8 0 16.65 16.67 16.72 17.50 8 4 16.56 16.55 16.73 17.50 8 7 16.56 16.54 16.63 17.50 15 0 16.59 16.64 16.70 17.50 64QAM 1 0 16.59 16.60 16.67 17.50 1 7 16.56 16.62 16.62 17.50 1 14 16.59 16.57 16.71 17.50 8 0 16.61 16.64 16.70 17.50 8 4 16.57 16.66 16.67 17.50 8 7 16.60 16.62 16.73 17.50 15 0 16.58 16.55 16.69 17.50 256QAM 1 0 16.58 16.65 16.63 17.50 1 7 16.64 16.54 16.69 17.50 1 14 16.54 16.65 16.68 17.50 8 0 16.62 16.54 16.74 17.50 8 4 16.52 16.56 16.72 17.50 8 7 16.64 16.65 16.67 17.50 15 0 16.58 16.63 16.67 17.50 Bandwidth Modulation RB size RB offset Channel Channel Channel Tune up 18625 18900 19175 5MHz QPSK 1 0 16.63 16.56 16.75 17.50 1 13 16.52 16.65 16.63 17.50 1 24 16.54 16.58 16.64 17.50 12 0 16.53 16.58 16.73 17.50 12 6 16.60 16.58 16.63 17.50 12 13 16.53 16.66 16.64 17.50 25 0 16.63 16.63 16.72 17.50 16QAM 1 0 16.61 16.64 16.63 17.50 1 13 16.51 16.58 16.70 17.50 1 24 16.59 16.60 16.72 17.50 12 0 16.58 16.63 16.75 17.50 12 6 16.60 16.60 16.71 17.50 12 13 16.63 16.61 16.71 17.50 25 0 16.63 16.64 16.69 17.50 64QAM 1 0 16.56 16.58 16.67 17.50 1 13 16.53 16.63 16.65 17.50 1 24 16.56 16.61 16.76 17.50 12 0 16.55 16.53 16.67 17.50 12 6 16.54 16.63 16.67 17.50 Report No.: SEWM2311000456RG09 12 13 16.60 16.61 16.72 17.50 25 0 16.62 16.65 16.67 17.50 256QAM 1 0 16.60 16.53 16.76 17.50 1 13 16.52 16.64 16.65 17.50 1 24 16.51 16.57 16.71 17.50 12 0 16.65 16.54 16.71 17.50 12 6 16.64 16.59 16.73 17.50 12 13 16.60 16.67 16.62 17.50 25 0 16.54 16.54 16.73 17.50 Bandwidth Modulation RB size RB offset Channel Channel Channel Tune up 18650 18900 19150 10MHz QPSK 1 0 16.52 16.54 16.7 17.50 1 25 16.63 16.59 16.74 17.50 1 49 16.53 16.67 16.66 17.50 25 0 16.55 16.63 16.76 17.50 25 13 16.63 16.56 16.7 17.50 25 25 16.57 16.65 16.75 17.50 50 0 16.54 16.53 16.75 17.50 16QAM 1 0 16.56 16.62 16.71 17.50 1 25 16.59 16.65 16.64 17.50 1 49 16.57 16.56 16.64 17.50 25 0 16.56 16.57 16.67 17.50 25 13 16.63 16.66 16.75 17.50 25 25 16.52 16.56 16.7 17.50 50 0 16.63 16.67 16.74 17.50 64QAM 1 0 16.53 16.61 16.70 17.50 1 25 16.53 16.66 16.66 17.50 1 49 16.61 16.59 16.69 17.50 25 0 16.59 16.58 16.64 17.50 25 13 16.55 16.64 16.65 17.50 25 25 16.64 16.54 16.75 17.50 50 0 16.61 16.55 16.75 17.50 256QAM 1 0 16.59 16.58 16.72 17.50 1 25 16.57 16.63 16.72 17.50 1 49 16.56 16.56 16.74 17.50 25 0 16.64 16.54 16.65 17.50 25 13 16.63 16.57 16.62 17.50 25 25 16.63 16.64 16.66 17.50 50 0 16.53 16.66 16.73 17.50 Bandwidth Modulation RB size RB offset Channel Channel Channel Tune up 18675 18900 19125 15MHz QPSK 1 0 16.56 16.55 16.63 17.50 …

Text truncated - open the document above for the full version.

Report No.: SEWM2311000456RG09 5 Conducted P ower of LTE Uplink CA 5.1 Conducted Power of LTE Uplink CA(Ant1) CA_7C DSI1&2 Combination 20MHz+20MHz (100RB+100RB) PCC Channel SCC Channel Modulation PCC SCC Total RB Size Target MPR Level (dB) Measured Power (dBm) Tune up Power (dBm) RB Size RB offset RB Size RB offset 20850 21048 QPSK 1 0 0 0 1 0 24.35 25.50 21100 20902 QPSK 1 0 1 99 2 0 24.57 25.50 21350 21152 QPSK 1 0 1 99 2 0 24.3 25.50 20850 21048 QPSK 50 0 0 0 1 0 23.28 24.50 21100 20902 QPSK 50 0 1 49 2 0 23.36 24.50 21350 21152 QPSK 50 0 1 49 2 0 23.3 24.50 CA_7C DSI3&4 Combination 20MHz+20MHz (100RB+100RB) PCC Channel SCC Channel Modulation PCC SCC Total RB Size Target MPR Level (dB) Measured Power (dBm) Tune up Power (dBm) RB Size RB offset RB Size RB offset 20850 21048 QPSK 1 0 0 0 1 0 18.5 19.50 21100 20902 QPSK 1 0 1 99 2 0 18.5 19.50 21350 21152 QPSK 1 0 1 99 2 0 18.38 19.50 20850 21048 QPSK 50 0 0 0 1 0 18.38 19.50 21100 20902 QPSK 50 0 1 49 2 0 18.4 19.50 21350 21152 QPSK 50 0 1 49 2 0 18.38 19.50 CA_38C DSI1&2 Combination 20MHz+20MHz (100RB+100RB) PCC Channel SCC Channel Modulation PCC SCC Total RB Size Target MPR Level (dB) Measured Power (dBm) Tune up Power (dBm) RB Size RB offset RB Size RB offset 37850 38048 QPSK 1 0 0 0 1 0 24.1 25.50 37901 38099 QPSK 1 0 1 99 2 0 24.23 25.50 38150 37952 QPSK 1 0 1 99 2 0 24.16 25.50 37850 38048 QPSK 50 0 0 0 1 0 23.08 24.50 37901 38099 QPSK 50 0 1 49 2 0 23.01 24.50 38150 37952 QPSK 50 0 1 49 2 0 23 24.50 CA_38C DSI3&4 Combination 20MHz+20MHz (100RB+100RB) PCC Channel SCC Channel Modulation PCC SCC Total RB Size Target MPR Level (dB) Measured Power (dBm) Tune up Power (dBm) RB Size RB offset RB Size RB offset 37850 38048 QPSK 1 0 0 0 1 0 20.64 22.00 37901 38099 QPSK 1 0 1 99 2 0 20.92 22.00 38150 37952 QPSK 1 0 1 99 2 0 20.82 22.00 37850 38048 QPSK 50 0 0 0 1 0 20.79 22.00 37901 38099 QPSK 50 0 1 49 2 0 20.83 22.00 Report No.: SEWM2311000456RG09 38150 37952 QPSK 50 0 1 49 2 0 20.71 22.00 5.2 Conducted Power of LTE Uplink CA(Ant4) CA_7C DSI1 Combination 20MHz+20MHz (100RB+100RB) PCC Channel SCC Channel Modulation PCC SCC Total RB Size Target MPR Level (dB) Measured Power (dBm) Tune up Power (dBm) RB Size RB offset RB Size RB offset 20850 21048 QPSK 1 0 0 0 1 0 16.31 17.50 21100 20902 QPSK 1 0 1 99 2 0 16.38 17.50 21350 21152 QPSK 1 0 1 99 2 0 16.21 17.50 20850 21048 QPSK 50 0 0 0 1 0 16.25 17.50 21100 20902 QPSK 50 0 1 49 2 0 16.35 17.50 21350 21152 QPSK 50 0 1 49 2 0 16.22 17.50 CA_7C DSI2 Combination 20MHz+20MHz (100RB+100RB) PCC Channel SCC Channel Modulation PCC SCC Total RB Size Target MPR Level (dB) Measured Power (dBm) Tune up Power (dBm) RB Size RB offset RB Size RB offset 20850 21048 QPSK 1 0 0 0 1 0 24.39 25.50 21100 20902 QPSK 1 0 1 99 2 0 24.34 25.50 21350 21152 QPSK 1 0 1 99 2 0 24.41 25.50 20850 21048 QPSK 50 0 0 0 1 0 23.36 24.50 21100 20902 QPSK 50 0 1 49 2 0 23.31 24.50 21350 21152 QPSK 50 0 1 49 2 0 23.33 24.50 CA_7C DSI4 Combination 20MHz+20MHz (100RB+100RB) PCC Channel SCC Channel Modulation PCC SCC Total RB Size Target MPR Level (dB) Measured Power (dBm) Tune up Power (dBm) RB Size RB offset RB Size RB offset 20850 21048 QPSK 1 0 0 0 1 0 17.26 18.50 21100 20902 QPSK 1 0 1 99 2 0 17.41 18.50 21350 21152 QPSK 1 0 1 99 2 0 17.14 18.50 20850 21048 QPSK 50 0 0 0 1 0 17.28 18.50 21100 20902 QPSK 50 0 1 49 2 0 17.33 18.50 21350 21152 QPSK 50 0 1 49 2 0 17.24 18.50 CA_38C DSI1 Combination 20MHz+20MHz (100RB+100RB) PCC Channel SCC Channel Modulation PCC SCC Total RB Size Target MPR Level (dB) Measured Power (dBm) Tune up Power (dBm) RB Size RB offset RB Size RB offset Report No.: SEWM2311000456RG09 37850 38048 QPSK 1 0 0 0 1 0 19.04 20.00 37901 38099 QPSK 1 0 1 99 2 0 19.04 20.00 38150 37952 QPSK 1 0 1 99 2 0 19 20.00 37850 38048 QPSK 50 0 0 0 1 0 18.93 20.00 37901 38099 QPSK 50 0 1 49 2 0 19.02 20.00 38150 37952 QPSK 50 0 1 49 2 0 18.96 20.00 CA_38C DSI2 Combination 20MHz+20MHz (100RB+100RB) PCC Channel SCC Channel Modulation PCC SCC Total RB Size Target MPR Level (dB) Measured Power (dBm) Tune up Power (dBm) RB Size RB offset RB Size RB offset 37850 38048 QPSK 1 0 0 0 1 0 24.26 25.00 37901 38099 QPSK 1 0 1 99 2 0 24.32 25.00 38150 37952 QPSK 1 0 1 99 2 0 24.24 25.00 37850 38048 QPSK 50 0 0 0 1 0 23.1 24.00 37901 38099 QPSK 50 0 1 49 2 0 23.13 24.00 38150 37952 QPSK 50 0 1 49 2 0 23.21 24.00 CA_38C DSI4 Combination 20MHz+20MHz (100RB+100RB) PCC Channel SCC Channel Modulation PCC SCC Total RB Size Target MPR Level (dB) Measured Power (dBm) Tune up Power (dBm) RB Size RB offset RB Size RB offset 37850 38048 QPSK 1 0 0 0 1 0 19.44 20.50 37901 38099 QPSK 1 0 1 99 2 0 19.56 20.50 38150 37952 QPSK 1 0 1 99 2 0 19.52 20.50 37850 38048 QPSK 50 0 0 0 1 0 19.47 20.50 37901 38099 QPSK 50 0 1 49 2 0 19.43 20.50 38150 37952 QPSK 50 0 1 49 2 0 19.41 20.50 Report No.: SEWM2311000456RG09 6 Conducted P ower of LTE Downlink CA CA List PCC SCC1 Power LTE Ant BW UL UL Mod. UL# UL LTE BW DL DL With CA Without CA Band (MHz) Freq. Channel RB RB Band (MHz) Freq. Channel Tx. Power Tx. Power (MHz) Offset (MHz) (dBm) (dBm) CA_2A-2A Band 2 1 20M 1880 18900 QPSK 1 0 Band 2 5M 1987.5 1175 24.42 24.64 CA_2A-4A Band 2 1 20M 2535 21100 QPSK 1 0 Band 4 20M 2132.5 2175 24.47 24.64 Band 4 1 20M 1732.5 20175 QPSK 1 0 Band 2 20M 1960 900 24.69 24.91 CA_2A-5A Band 2 1 20M 1880 18900 QPSK 1 0 Band 5 10M 881.5 2525 24.39 24.64 Band 5 1 10M 836.5 20525 QPSK 1 0 Band 2 20M 1960 900 24.62 24.79 CA_2A-7A Band 2 1 20M 1880 18900 QPSK 1 0 Band 7 20M 2655 3100 24.45 24.64 Band 7 1 20M 2535 21100 QPSK 1 0 Band 2 20M 1960 900 24.44 24.65 CA_2A-66A Band 2 1 20M 1880 18900 QPSK 1 0 Band 66 20M 2164.8 66984 24.44 24.64 Band 66 1 20M 1745 132322 QPSK 1 0 Band 2 20M 1960 900 24.8 24.98 CA_2C Band 2 1 20M 1880 18900 QPSK 1 0 Band 2 20M 1979.8 1098 24.45 24.64 CA_2A-26A Band 2 1 20M 1880 18900 QPSK 1 0 Band 26 15M 876.5 8865 24.38 24.64 Band 26 1 15M 831.5 26865 QPSK 1 0 Band 2 5M 1987.5 1175 24.94 25.09 CA_4A-4A Band 4 1 20M 1732.5 20175 QPSK 1 0 Band 4 5M 2152.5 2375 24.76 24.9…

Text truncated - open the document above for the full version.

Authorized Signature: Well Wei Wireless Laboratory Manager ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2311000456RG09 Rev.: 01 Page: 1 of 123 FCC SAR TEST REPORT Application No.: SEWM2311000456RG Applicant: Xiaomi Communications Co., Ltd. Manufacturer: Xiaomi Communications Co., Ltd. Product Name: Mobile Phone Model No.(EUT): 23124RN87G Trade Mark: Redmi FCC ID: 2AFZZN87G Standards: FCC 47CFR §2.1093 Date of Receipt: 2023-11-17 Date of Test: 2023-11-22 to 2023-12-16 Date of Issue: 2023-12-19 Test conclusion: PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2311000456RG09 Rev.: 01 Page: 2 of 123 REVISION HISTORY Report Number Revision Description Issue Date SEWM2311000456RG09 01 Original 2023-12-19 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2311000456RG09 Rev.: 01 Page: 3 of 123 TEST SUMMARY Frequency Band Maximum Reported SAR(W/kg) Head Body-worn Hotspot Product specific 10g SAR GSM850 0.68 0.31 0.31 / GSM1900 1.03 0.44 0.59 / WCDMA Band II 1.09 1.09 1.09 / WCDMA Band IV 1.04 0.89 1.08 / WCDMA Band V 0.97 0.36 0.36 / LTE Band 2 1.00 0.86 0.86 / LTE Band 7 0.96 1.04 1.04 / LTE Band 12(17) 0.60 0.21 0.26 / LTE Band 13 0.82 0.33 0.33 / LTE Band 26(5) 0.74 0.40 0.40 / LTE Band 41(38) 1.06 0.55 0.59 / LTE Band 66(4) 0.89 0.88 1.08 / NR Band n5 1.04 0.54 0.54 / NR Band n7 1.07 1.08 1.08 / NR Band n41(38) 1.08 1.01 1.01 / NR Band n66 1.03 0.89 1.09 / NR Band n77(78) 1.04 0.80 0.80 / WI-FI (2.4GHz) 0.48 0.42 0.42 / WI-FI (5GHz) 0.50 0.35 0.38 0.75 BT 0.12 0.07 0.07 / NFC / / / <0.1 SAR Limited(W/kg) 1.6 4.0 Maximum Simultaneous Transmission SAR (W/kg) Scenario Head Body-worn Hotspot Product specific 10g SAR Sum SAR 1.51 1.56 1.56 0.75 SPLSR / / / / SPLSR Limited 0.04 0.1 Note: 1) According to TCB workshop October,2014 RF Exposure Procedures Update (Overlapping Bands): SAR for LTE Band 4 (Frequency range:1710 - 1755 MHz)/ LTE Band 38 (Frequency range:2570 - 2620 MHz)/n38 (Frequency range:2570 - 2620…

Text truncated - open the document above for the full version.
