2AFZZR4AMi Router 4A Gigabit Edition

All images are for illustration purposes only and may differ from the actual product by model and region. User Manual of Mi Router 4A Gigabit Edition List English3 Español9 15 21 1 繁體中文 الإنجليزية 2 Power on the router, then connect the Internet (WAN) port to the DSL/Cable/satellite modem * If your Internet network is connected via an Ethernet cable at the wall, connect the Ethernet cable directly to the Internet (WAN) port on the router Step 1: Connect the cables 3 Connect the power DSL/Cable/ Satellite modem Internet LAN Or English Connect to the Wi-Fi using a phone or co- -mputer (no password). The Wi-Fi name can be found on the panel at the base of the router 1 At this point, you will automatically be directed to the landing page for connecting to the Internet (if you aren’t, open up the browser that comes with your system and enter "router.miwifi.com" or "192.168.31.1") 3 2 * If you have forgoen your broadband account name or password, you can get them by contacting your broadband provider * Wait until the system indicator light turns blue. Search for the Wi-Fi network and connect * Mi Router EULA is available at -hp://www1.miwifi.com/router/eula/20191230.html Step 2: Set up the network connection WLAN Turn on WLAN Xiaomi_XXXX_5G Xiaomi_XXXX Thank you for using Mi Router Start router.miwifi.com Broadband account name Password Next Set up the router Please enter the account name and password provided by your broadband provider, then click Next (there are different ways of connecting to the internet, so this step may be skipped) English 4 Set a new Wi-Fi and administrator password. You can choose to use your Wi-Fi password as your administrator password as well 4 Network established successfully Same as Wi-Fi password Admin password Done Set admin password Wi-Fi name Wi-Fi password Next Seing Wi-Fi * Please wait until the indicator light turns blue and stops flashing, then reconnect to the Wi-Fi Scan the QR code, download the Mi WiFi app, and manage your router anytime, anywhere Manage Mi WiFi The web management website is router.miwifi.com and supports basic Internet functions QoS Wi-Fi optimization Unauthorized access prevention More features 5 English I have finished seing up my network. Why can't I connect to the Internet? Step 1: Use your phone to search for the Wi-Fi network set by your router. If you can’t find it, make sure that the router is connected to the power and has finished booting up Step 2: Connect your phone to your router's Wi-Fi network, go to "router.miwifi.com", and try to fix the problem based on the network diagnostics results I've forgoen the administrator password for my router. What should I do? If you haven’t set a specific password, your administrator password will be the same as your Wi-Fi password, so try using this to log in. If the problem persists, it is recommended that you restore your router to the factory seings, then set up the network again How do I restore my router to the factory seings? First make sure that the router has finished booting up, then hold down the Reset buon at the base of the router for more than 5 seconds and let go when the system status light turns orange. When the router finishes booting up again, the reset was successful What do the different indicator lights mean on the router? There should be two indicator lights on the front panel, which are the network status light (blue light) and the system status light (three colors: blue, orange, and purple) Network status light Nothing is plugged into the external Internet port or there is a problem with the connection Off Network connection normalOn Light with one color (blue) System status light Switched off or not connected to the powerOff System updating (flashing), system booting up (on, not flashing) Orange Functioning normally (on, not flashing)blue Safe mode (flashing), system failure (on, not flashing)purple three colors (blue, orange, and purple) Sending or receiving dataFlashing System status lightNetwork status light FAQ English 6 Specifications: Name: Mi Router 4A Gigabit Edition Model: R4A Operating Temperature: 0~40°C Input: 12V, 1A Operating Frequency: 2400MHz~2483.5MHz(≤20dBm), 5150MHz~5250MHz(≤23dBm) 7 All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points. Hereby, Xiaomi Communications Co., Ltd declares that the radio equipment type R4A is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: hp://www.mi.com/global/service/support/declaration.html Certifications: The product can be used within all European Union countries. To comply with CE RF exposure requirements, the device must be installed and operated 20cm (8 inches) or more between the product and all person’s body. The adapter shall be installed near the equipment and shall be easily accessible. Caution: English English 8 Manufactured by: Xiaomi Communications Co., Ltd #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by th…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District City: Beijing Country: China Declare that: Name Representative of agent: Ms. Rose Liu Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Mi Router 4A Gigabit Edition Type designation: R4A Trademark: MI FCC ID : 2AFZZR4A on our behalf. Date: 2021-03-31 City:Beijing Name: Xuxiaoping Signature:  Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Xiaomi Communications Co.,Ltd Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District City: Beijing, Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AFZZR4A Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 2021-03-31 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

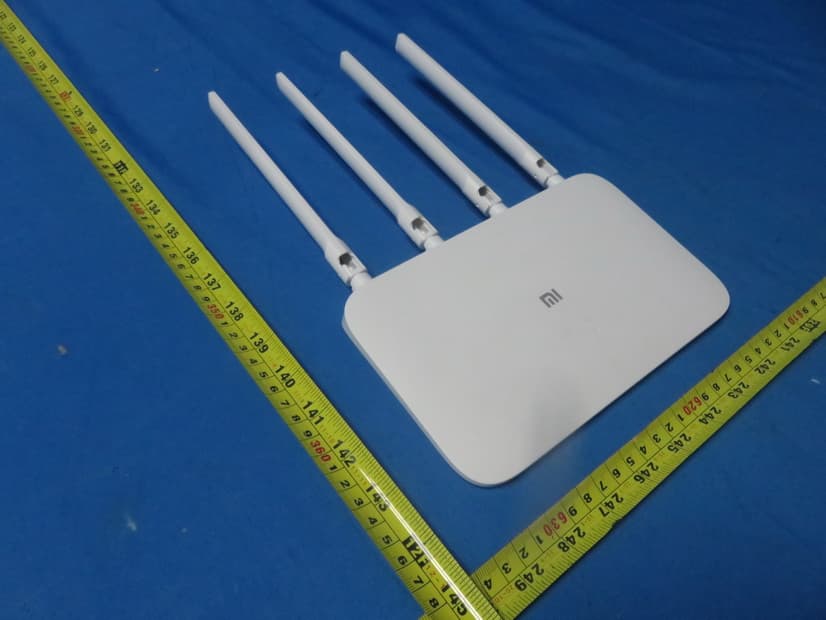

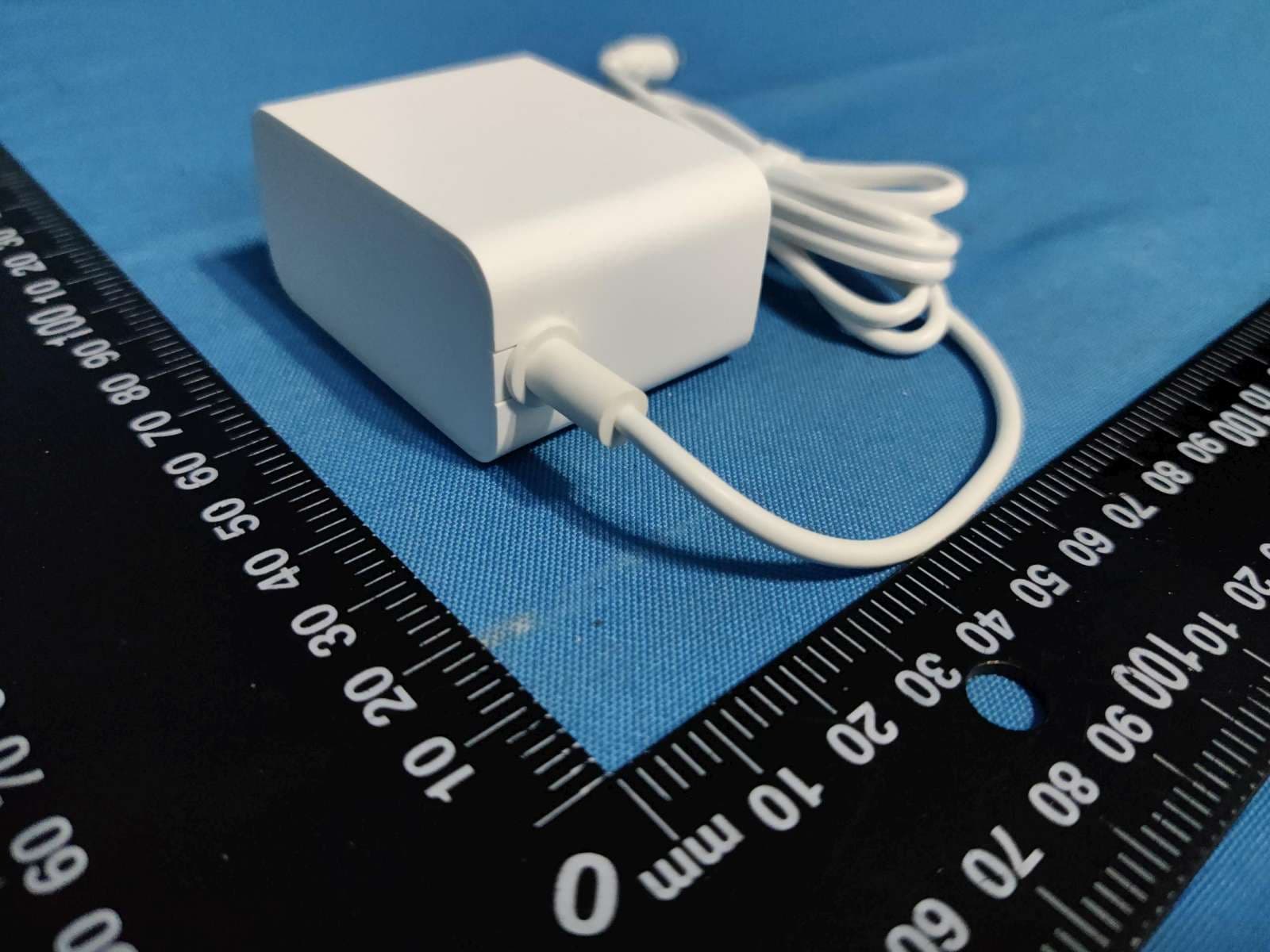

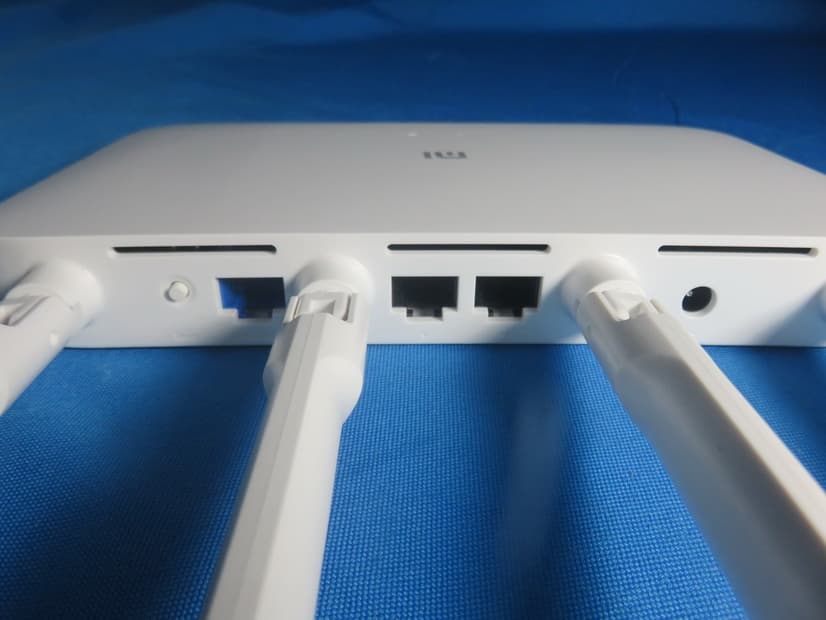

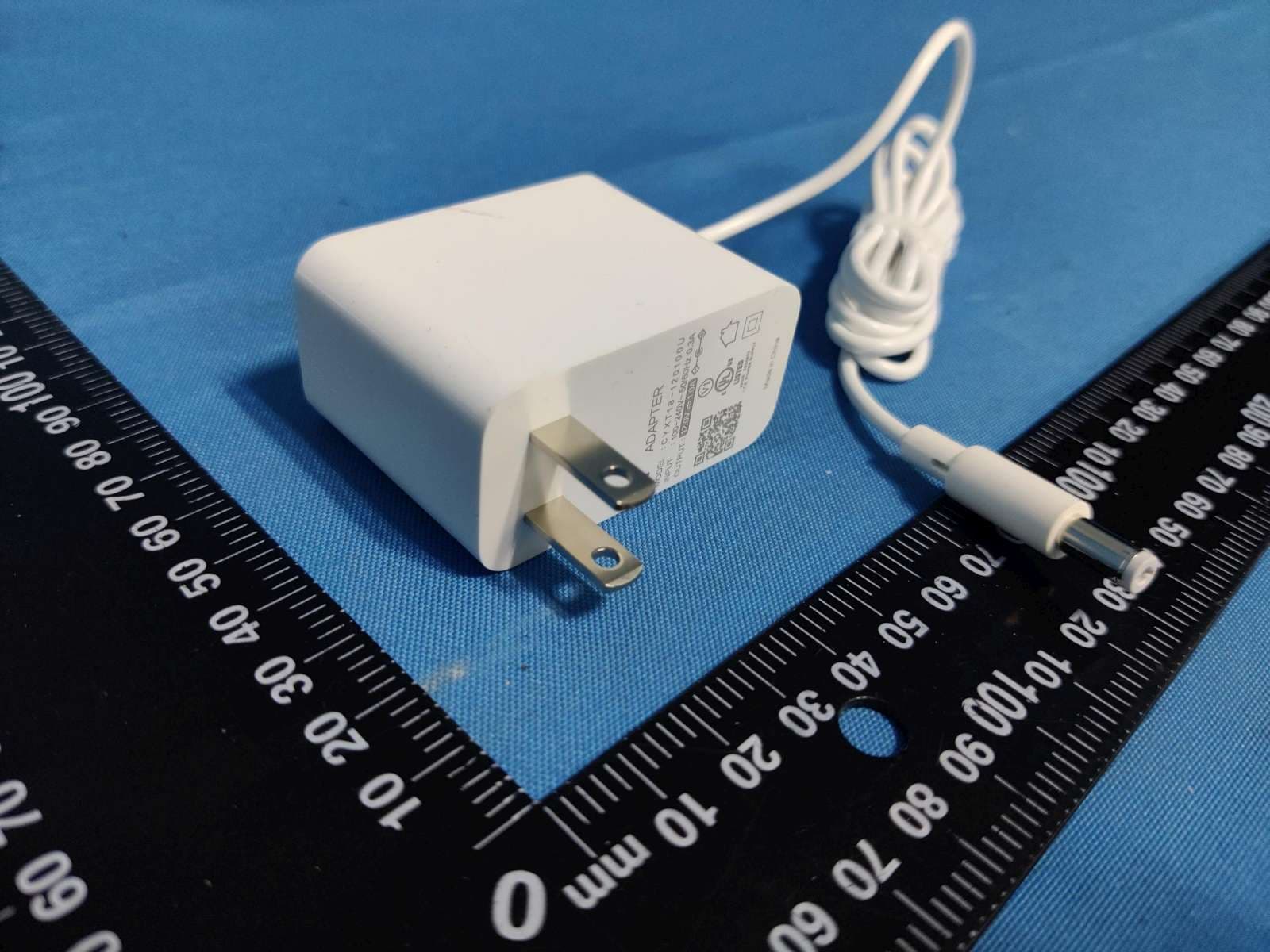

Report No.: 2101C239 Page 2 of 11 5G Ant. 1 5G Ant. 2 2.4G Ant. 2 2.4G Ant. 1 Report No.: 2101C239 Page 3 of 11 Report No.: 2101C239 Page 4 of 11 Report No.: 2101C239 Page 5 of 11

Report No.: 2101C239 Page 6 of 11 Report No.: 2101C239 Page 7 of 11 Report No.: 2101C239 Page 8 of 11 Report No.: 2101C239 Page 9 of 11 Report No.: 2101C239 Page 10 of 11 Report No.: 2101C239 Page 11 of 11

Report No.: BTL-FCCP-3-2101C239 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: 2AFZZR4A Project No. : 2101C239 Equipment : Mi Router 4A Gigabit Edition Brand Name : MI Test Model : R4A Series Model : N/A Applicant : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Manufacturer : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Factory : Huizhou MTN WEIYE Technology Development Co.,Ltd Address : No.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou City,Guangdong Province,China. 516000 Date of Receipt : Jan. 28, 2021 Date of Test : Feb. 25, 2021 ~ Mar. 17, 2021 Issued Date : Apr. 09, 2021 Report Version : R01 Test Sample : Engineering Sample No.: DG2021012799 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2101C239 Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Apr. 01, 2021 R01 Updated the description in page 3 and page 4. Apr. 09, 2021 Report No.: BTL-FCCP-3-2101C239 Page 3 of 5 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: For 2.4GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 South star MTO-WRM43 Dipole N/A 5.99 2 South star MTO-WRM43 Dipole N/A 6.03 Note: 1) This EUT supports CDD, and all antenna gains are not equal, Directional gain=10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, that is Directional gain=10log[(10 5.99/20 +10 6.03/20 ) 2 /2]dBi =9.02. 2) The antenna gain is provided by the manufacturer. 3) IEEE 802.11b is found to be the worst case and calculated. Table for Antenna Configuration: Operating Mode TX Mode 1TX 2TX IEEE 802.11b V (Ant. 1) - IEEE 802.11g V (Ant. 1) - IEEE 802.11n(HT20) - V (Ant. 1+Ant. 2) IEEE 802.11n(HT40) - V (Ant. 1+Ant. 2) Report No.: BTL-FCCP-3-2101C239 Page 4 of 5 For 5GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 South star MTO-WRM43 Dipole N/A 5.16 UNII-1 2 South star MTO-WRM43 Dipole N/A 5.35 1 South star MTO-WRM43 Dipole N/A 5.44 UNII-3 2 South star MTO-WRM43 Dipole N/A 5.73 Note: 1) This EUT supports CDD, and all antenna gains are not equal, Directional gain=10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, that is UNII-1 Directional gain=10log[(10 5.16/20 +10 5.35/20 ) 2 /2]dBi=8.27, UNII-3 Directional gain=10log[(10 5.44/20 +10 5.73/20 ) 2 /2]dBi=8.60. 2) The antenna gain is provided by the manufacturer. Table for Antenna Configuration: Operating Mode TX Mode 1TX 2TX IEEE 802.11a V (Ant. 2) - IEEE 802.11n(HT20) - V (Ant. 1+Ant. 2) IEEE 802.11n(HT40) - V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT20) - V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT40) - V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT80) - V (Ant. 1+Ant. 2) Report No.: BTL-FCCP-3-2101C239 Page 5 of 5 3. TEST RESULTS For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.99 3.9719 24.52 283.1392 0.22385 1 Complies For 5GHz UNII-1: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.27 6.7143 24.28 267.9168 0.35806 1 Complies For 5GHz UNII-3: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.60 7.2444 24.19 262.4219 0.37840 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.22385 0.37840 0.60225 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-2-2101C239 Page 1 of 202 FCC Radio Test Report FCC ID: 2AFZZR4A This report concerns: Original Grant Project No. : 2101C239 Equipment : Mi Router 4A Gigabit Edition Brand Name : MI Test Model : R4A Series Model : N/A Applicant : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Manufacturer : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Factory : Huizhou MTN WEIYE Technology Development Co.,Ltd Address : No.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou City,Guangdong Province,China. 516000 Date of Receipt : Jan. 28, 2021 Date of Test : Feb. 25, 2021 ~ Mar. 17, 2021 Apr. 13, 2021 Issued Date : Apr. 14, 2021 Report Version : R01 Test Sample : Engineering Sample No.: DG2021012799 for conducted, DG2021012797 for radiated. Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2101C239 Page 2 of 202 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2101C239 Page 3 of 202 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 14 2.4 DUTY CYCLE 15 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 17 2.6 SUPPORT UNITS 17 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 18 3.1 LIMIT 18 3.2 TEST PROCEDURE 18 3.3 DEVIATION FROM TEST STANDARD 18 3.4 TEST SETUP 19 3.5 EUT OPERATION CONDITIONS 19 3.6 TEST RESULTS 19 4 . RADIATED EMISSIONS TEST 20 4.1 LIMIT 20 4.2 TEST PROCEDURE 21 4.3 DEVIATION FROM TEST STANDARD 21 4.4 TEST SETUP 22 4.5 EUT OPERATION CONDITIONS 23 4.6 TEST RESULTS - 9 KHZ to 30 MHZ 23 4.7 TEST RESULTS - 30 MHz TO 1000 MHz 23 4.8 TEST RESULTS - ABOVE 1000 MHz 23 5 . BANDWIDTH TEST 24 5.1 LIMIT 24 5.2 TEST PROCEDURE 24 5.3 DEVIATION FROM STANDARD 24 5.4 TEST SETUP 24 Report No.: BTL-FCCP-2-2101C239 Page 4 of 202 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 24 5.6 TEST RESULTS 24 6 . MAXIMUM OUTPUT POWER TEST 25 6.1 LIMIT 25 6.2 TEST PROCEDURE 25 6.3 DEVIATION FROM STANDARD 25 6.4 TEST SETUP 25 6.5 EUT OPERATION CONDITIONS 25 6.6 TEST RESULTS 25 7 . POWER SPECTRAL DENSITY TEST 26 7.1 LIMIT 26 7.2 TEST PROCEDURE 26 7.3 DEVIATION FROM STANDARD 26 7.4 TEST SETUP 27 7.5 EUT OPERATION CONDITIONS 27 7.6 TEST RESULTS 27 8 . FREQUENCY STABILITY MEASUREMENT 28 8.1 LIMIT 28 8.2 TEST PROCEDURE 28 8.3 DEVIATION FROM STANDARD 28 8.4 TEST SETUP 28 8.5 EUT OPERATION CONDITIONS 28 8.6 TEST RESULTS 28 9 . MEASUREMENT INSTRUMENTS LIST 29 10 . EUT TEST PHOTOS 31 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 35 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 38 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1 GHZ 43 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 46 APPENDIX E - BANDWIDTH 159 APPENDIX F - MAXIMUM OUTPUT POWER 172 APPENDIX G - POWER SPECTRAL DENSITY 183 Report No.: BTL-FCCP-2-2101C239 Page 5 of 202 Table of Contents Page APPENDIX H - FREQUENCY STABILITY 200 Report No.: BTL-FCCP-2-2101C239 Page 6 of 202 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Apr. 01, 2021 R01 Updated the data of OBW in page 171. Apr. 14, 2021 Report No.: BTL-FCCP-2-2101C239 Page 7 of 202 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgment Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.407(b) 15.205(a) 15.209(a) Rad…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2101C239 Page 163 of 202 Test Mode UNII-3_TX A Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 149 5745 15.81 29.40 500 Complies 157 5785 16.45 29.90 500 Complies 165 5825 16.35 30.00 500 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2101C239 Page 164 of 202 Test Mode UNII-3_TX N (HT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 149 5745 16.79 24.80 500 Complies 157 5785 16.79 24.90 500 Complies 165 5825 16.99 24.50 500 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2101C239 Page 165 of 202 Test Mode UNII-3_TX N (HT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 151 5755 35.30 50.60 500 Complies 159 5795 35.30 51.60 500 Complies CH151 CH159 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2101C239 Page 166 of 202 Test Mode UNII-1_TX AC (VHT20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 36 5180 38.35 20.30 40 5200 38.29 20.10 48 5240 38.95 20.90 CH36 CH40 CH48 26 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2101C239 Page 167 of 202 Test Mode UNII-1_TX AC (VHT40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 38 5190 77.70 39.80 46 5230 74.19 40.60 CH38 CH46 26 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2101C239 Page 168 of 202 Test Mode UNII-1_TX AC (VHT80) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 42 5210 168.39 86.00 CH42 26 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2101C239 Page 169 of 202 Test Mode UNII-3_TX AC (VHT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 149 5745 16.60 24.20 500 Complies 157 5785 16.99 24.40 500 Complies 165 5825 16.99 24.00 500 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2101C239 Page 170 of 202 Test Mode UNII-3_TX AC (VHT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 151 5755 35.00 50.20 500 Complies 159 5795 35.30 51.00 500 Complies CH151 CH159 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2101C239 Page 171 of 202 Test Mode UNII-3_TX AC (VHT80) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 155 5775 74.20 88.00 500 Complies CH155 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2101C239 Page 172 of 202 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-2101C239 Page 173 of 202 Test Mode UNII-1_TX A Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 11.48 0.32 11.80 30.00 1.00 Complies 40 5200 13.17 0.32 13.49 30.00 1.00 Complies 48 5240 16.89 0.32 17.21 30.00 1.00 Complies Te s t Mode UNII-1_TX N (HT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 13.05 0.64 13.69 30.00 1.00 Complies 40 5200 18.04 0.64 18.68 30.00 1.00 Complies 48 5240 20.28 0.64 20.92 30.00 1.00 Complies Test Mode UNII-1_TX N (HT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 13.16 0.64 13.80 30.00 1.00 Complies 40 5200 18.37 0.64 19.01 30.00 1.00 Complies 48 5240 20.95 0.64 21.59 30.00 1.00 Complies Test Mode UNII-1_TX N (HT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 16.76 27.73 0.59 Complies 40 5200 21.86 27.73 0.59 Complies 48 5240 24.28 27.73 0.59 Complies Report No.: BTL-FCCP-2-2101C239 Page 174 of 202 Test Mode UNII-1_TX N (HT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 10.02 1.40 11.42 30.00 1.00 Complies 46 5230 17.03 1.40 18.43 30.00 1.00 Complies Test Mode UNII-1_TX N (HT40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 11.13 1.40 12.53 30.00 1.00 Complies 46 5230 17.15 1.40 18.55 30.00 1.00 Complies Test Mode UNII-1_TX N (HT40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 15.02 27.73 0.59 Complies 46 5230 21.50 27.73 0.59 Complies Report No.: BTL-FCCP-2-2101C239 Page 175 of 202 Test Mode UNII-3_TX A Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 16.03 0.32 16.35 30.00 1.00 Complies 157 5785 16.15 0.32 16.47 30.00 1.00 Complies 165 5825 16.27 0.32 16.59 30.00 1.00 Complies Test Mode UNII-3_TX N (HT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 20.61 0.64 21.25 30.00 1.00 Complies 157 5785 20.58 0.64 21.22 30.00 1.00 Complies 165 5825 20.56 0.64 21.20 30.00 1.00 Complies Test Mode UNII-3_TX N (HT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 20.47 0.64 21.11 30.00 1.00 Complies 157 5785 20.39 0.64 21.03 30.00 1.00 Complies 165 5825 20.38 0.64 21.02 30.00 1.00 Complies Test Mode UNII-3_TX N (HT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 24.19 27.40 0.55 Complies 157 5785 24.14 27.40 0.55 Complies 165 5825 24.12 27.40 0.55 Complies Report No.: BTL-FCCP-2-2101C239 Page 176 of 202 Test Mode UNII-3_TX N (HT40) Mode_…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2101C239 Page 31 of 202 10. EUT TEST PHOTOS AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-2-2101C239 Page 32 of 202 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-2-2101C239 Page 33 of 202 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-2-2101C239 Page 34 of 202 Radiated Emissions Test Photos Above 1 GHz
