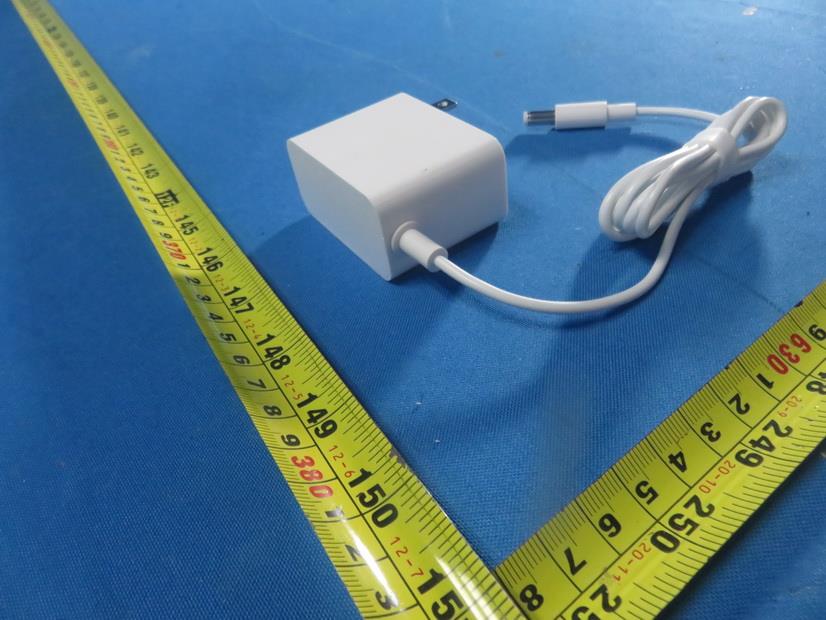

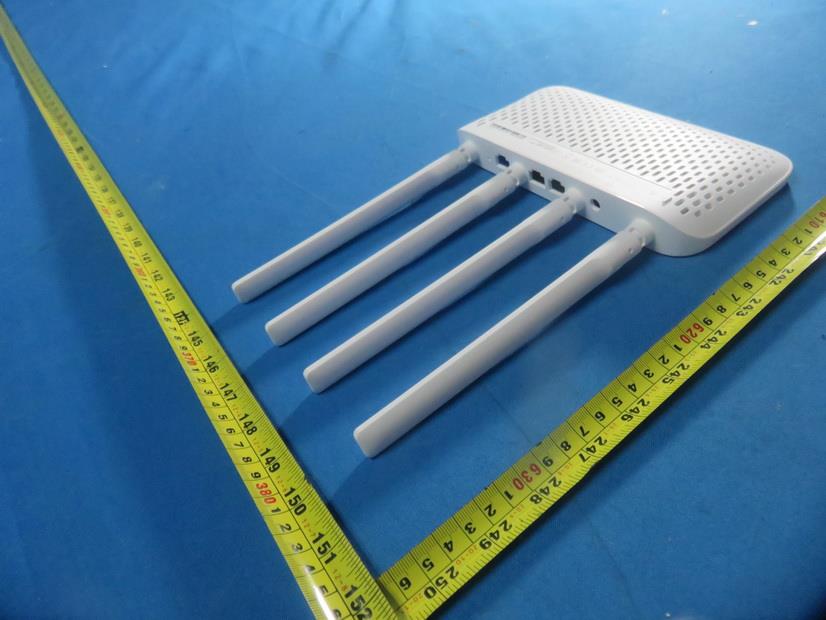

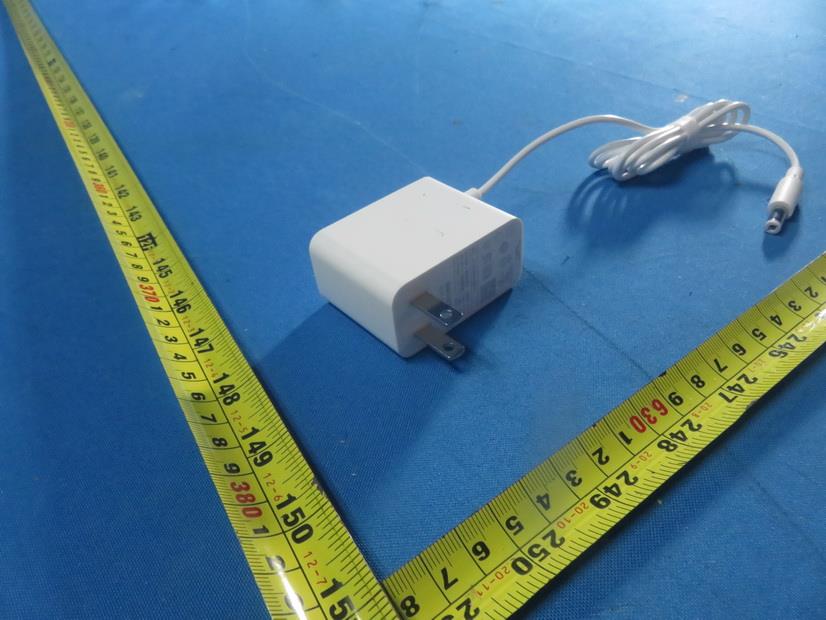

2AFZZR4CMMi Router 4C

All images are for illustration purposes only and may differ from the actual product by model and region. User Manual of Mi Router 4C List Instructions English3 9 15 21 Español 1 繁體中文 الإنجليزية 2 Power on the router, then connect the Internet (WAN) port to the DSL/Cable/satellite modem * If your Internet network is connected via an Ethernet cable at the wall, connect the Ethernet cable directly to the Internet (WAN) port on the router Step 1: Connect the cables 3 Connect the power DSL/Cable/ Satellite modem Internet LAN Or English Connect to the Wi-Fi using a phone or computer (no password). The Wi-Fi name can be found on the panel at the base of the router 1 At this point, you will automatically be directed to the landing page for connecting to the Internet (if you aren’t, open up the browser that comes with your system and enter "router.miwifi.com" or "192.168.31.1") Please enter the account name and password provided by your broadband provider, then click Next (there are different ways of connecting to the internet, so this step may be skipped) 3 2 * If you have forgoen your broadband account name or password, you can get them by contacting your broadband provider * Wait until the system indicator light turns blue. Search for the Wi-Fi network and connect Step 2: Set up the network connection English Thank you for using Mi Router Start router.miwifi.com Broadband account name Password Next Set up the router WLAN Turn on WLAN Xiaomi_XXXX 4 * Mi Router EULA is available at -hp://www1.miwifi.com/router/eula/20191230.html Set a new Wi-Fi and administrator password. You can choose to use your Wi-Fi password as your administrator password as well 4 Network established successfully Same as Wi-Fi password Admin password Done Set admin password Wi-Fi name Wi-Fi password Next Seing Wi-Fi * Please wait until the indicator light turns blue and stops flashing, then reconnect to the Wi-Fi Scan the QR code, download the Mi WiFi app, and manage your router anytime, anywhere Manage Mi WiFi The web management website is router.miwifi.com and supports basic Internet functions 5 English QoS Wi-Fi optimization Unauthorized access prevention More features I have finished seing up my network. Why can't I connect to the Internet? Step 1: Use your phone to search for the Wi-Fi network set by your router. If you can’t find it, make sure that the router is connected to the power and has finished booting up Step 2: Connect your phone to your router's Wi-Fi network, go to router.miwifi.com", and try to fix the problem based on the network diagnostics results I've forgoen the administrator password for my router. What should I do? If you haven’t set a specific password, your administrator password will be the same as your Wi-Fi password, so try using this to log in. If the problem persists, it is recommended that you restore your router to the factory seings, then set up the network again How do I restore my router to the factory seings? First make sure that the router has finished booting up, then hold down the Reset buon at the base of the router for more than 5 seconds and let go when the system status light turns orange. When the router finishes booting up again, the reset was successful What do the different indicator lights mean on the router? There should be two indicator lights on the front panel, which are the network status light (blue light) and the system status light (three colors: blue, orange, and purple) Network status light Nothing is plugged into the external Internet port or there is a problem with the connection Off Network connection normalOn Light with one color (blue) System status light Switched off or not connected to the powerOff System updating (flashing), system booting up (on, not flashing)Orange Functioning normally (on, not flashing)blue Safe mode (flashing), system failure (on, not flashing)purple three colors (blue, orange, and purple) Sending or receiving dataFlashing System status lightNetwork status light FAQ English 6 Specifications: Name: Mi Router 4C Model: R4CM Operating Temperature: 0~40°C Input: 5V,1A Operating Frequency: 2400MHz~2483.5MHz (≤20dBm) 7 Certifications: English Hereby, Xiaomi Communications Co., Ltd declares that the radio equipment type R4CM is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: hp://www.mi.com/global/service/support/declaration.html All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points. Caution: The product can be used within all European Union countries. To comply with CE RF exposure requirements, the device must be installed and operated 20cm (8 inches) or more between the product and all person’s body. The adapter shall be installed near the equipment and shall be easily accessible. English Manufactured by: Xiaomi Communications Co., Ltd #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 8 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's autho…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District City: Beijing Country: China Declare that: Name Representative of agent: Ms. Rose Liu Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Mi Router 4C Type designation: R4CM Trademark: MI FCC ID : 2AFZZR4CM on our behalf. Date: 2021-04-08 City:Beijing Name: Xuxiaoping Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Xiaomi Communications Co.,Ltd Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District City: Beijing, Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AFZZR4CM Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 2021-04-08 Name and signature of applicant:Xuxiaoping Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Xiaomi Communications Co., Ltd. Wi-Fi Channel 12 and 13 Declaration Letter Date: 2021-04-08 We, the undersigned company Company Name: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Declare that: Product description: Mi Router 4C Type designation: R4CM Brand: MI FCC ID: 2AFZZR4CM Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Xuxiaoping Tel: 010 6060 6666 Email: [email protected]

Report No.: 2102C271 Page 2 of 8 2.4G Ant.1 2.4G Ant.2 Report No.: 2102C271 Page 3 of 8 Report No.: 2102C271 Page 4 of 8 Report No.: 2102C271 Page 5 of 8

Report No.: 2102C271 Page 6 of 8 Report No.: 2102C271 Page 7 of 8 Report No.: 2102C271 Page 8 of 8

Report No.: BTL-FCCP-2-2102C271 Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: 2AFZZR4CM Project No. : 2102C271 Equipment : Mi Router 4C Brand Name : MI Test Model : R4CM Series Model : N/A Applicant : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Manufacturer : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Factory : Huizhou MTN WEIYE Technology Development Co.,Ltd Address : No.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou City,Guangdong Province,China. 516000 Date of Receipt : Feb. 25, 2021 Date of Test : Mar. 05, 2021 ~ Mar. 30, 2021 Issued Date : Apr. 08, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021022230 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Peggy Zhu Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2102C271 Page 2 of 4 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Apr. 08, 2021 Report No.: BTL-FCCP-2-2102C271 Page 3 of 4 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 Cortec M47 Dipole N/A 5 2 Cortec M47 Dipole N/A 5 1 South star M47 Dipole N/A 5 2 South star M47 Dipole N/A 5 1 Innowave M47 Dipole N/A 5 2 Innowave M47 Dipole N/A 5 Note: 1) This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=5. For power spectral density measurements, N ANT =4, N SS = 1. So the Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi=5+10log(2/1)dBi=8.01. Then, the power spectral density limit is 8-(8.01-6)=5.99. 2) The antenna gain is provided by the manufacturer. Table for Antenna Configuration: Operating Mode TX Mode 1TX 2TX IEEE 802.11b V (Ant. 1) - IEEE 802.11g V (Ant. 1) - IEEE 802.11n(HT20) - V (Ant. 1+Ant. 2) IEEE 802.11n(HT40) - V (Ant. 1+Ant. 2) Report No.: BTL-FCCP-2-2102C271 Page 4 of 4 3. TEST RESULTS Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 29.13 818.4648 0.51517 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-1-2102C271 Page 1 of 111 FCC Radio Test Report FCC ID: 2AFZZR4CM This report concerns: Original Grant Project No. : 2102C271 Equipment : Mi Router 4C Brand Name : MI Test Model : R4CM Series Model : N/A Applicant : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Manufacturer : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Factory : Huizhou MTN WEIYE Technology Development Co.,Ltd Address : No.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou City,Guangdong Province,China. 516000 Date of Receipt : Feb. 25, 2021 Date of Test : Mar. 05, 2021 ~ Mar. 30, 2021 Issued Date : Apr. 08, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021022230 for conducted, DG2021022229 for radiated. Standard(s) : FCC CFR Title 47, Part 15, Subpart C ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Peggy Zhu Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2102C271 Page 2 of 111 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2102C271 Page 3 of 111 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 13 2.4 DUTY CYCLE 14 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 15 2.6 SUPPORT UNITS 15 3 . AC POWER LINE CONDUCTED EMISSIONS 16 3.1 LIMIT 16 3.2 TEST PROCEDURE 16 3.3 DEVIATION FROM TEST STANDARD 16 3.4 TEST SETUP 17 3.5 EUT OPERATION CONDITIONS 17 3.6 TEST RESULTS 17 4 . RADIATED EMISSIONS 18 4.1 LIMIT 18 4.2 TEST PROCEDURE 19 4.3 DEVIATION FROM TEST STANDARD 19 4.4 TEST SETUP 20 4.5 EUT OPERATION CONDITIONS 21 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 21 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 21 4.8 TEST RESULTS - ABOVE 1000 MHZ 21 5 . BANDWIDTH 22 5.1 LIMIT 22 5.2 TEST PROCEDURE 22 5.3 DEVIATION FROM STANDARD 22 5.4 TEST SETUP 22 Report No.: BTL-FCCP-1-2102C271 Page 4 of 111 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 22 5.6 TEST RESULTS 22 6 . MAXIMUM OUTPUT POWER 23 6.1 LIMIT 23 6.2 TEST PROCEDURE 23 6.3 DEVIATION FROM STANDARD 23 6.4 TEST SETUP 23 6.5 EUT OPERATION CONDITIONS 23 6.6 TEST RESULTS 23 7 . CONDUCTED SPURIOUS EMISSIONS 24 7.1 LIMIT 24 7.2 TEST PROCEDURE 24 7.3 DEVIATION FROM STANDARD 24 7.4 TEST SETUP 24 7.5 EUT OPERATION CONDITIONS 24 7.6 TEST RESULTS 24 8 . POWER SPECTRAL DENSITY 25 8.1 LIMIT 25 8.2 TEST PROCEDURE 25 8.3 DEVIATION FROM STANDARD 25 8.4 TEST SETUP 25 8.5 EUT OPERATION CONDITIONS 25 8.6 TEST RESULTS 25 9 . MEASUREMENT INSTRUMENTS LIST 26 10 . EUT TEST PHOTO 28 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 32 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 35 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 40 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 43 APPENDIX E - BANDWIDTH 92 APPENDIX F - MAXIMUM OUTPUT POWER 97 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 101 Report No.: BTL-FCCP-1-2102C271 Page 5 of 111 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 108 Report No.: BTL-FCCP-1-2102C271 Page 6 of 111 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Apr. 08, 2021 Report No.: BTL-FCCP-1-2102C271 Page 7 of 111 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PA SS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PA SS ------ 15.247(a)(2) Bandwidth APPENDIX E PA SS …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2102C271 Page 103 of 111 Test Mode TX G Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2102C271 Page 104 of 111 Test Mode TX N(HT20) Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2102C271 Page 105 of 111 Test Mode TX N(HT20) Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2102C271 Page 106 of 111 Test Mode TX N(HT40) Mode_Ant. 1 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2102C271 Page 107 of 111 Test Mode TX N(HT40) Mode_Ant. 2 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2102C271 Page 108 of 111 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-1-2102C271 Page 109 of 111 Test Mode TX B Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -2.70 8.00 Complies 06 2437 -2.11 8.00 Complies 11 2462 -2.93 8.00 Complies CH01 CH06 CH11 Test Mode TX G Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.32 8.00 Complies 06 2437 -5.39 8.00 Complies 11 2462 -5.65 8.00 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2102C271 Page 11 0 of 111 Test Mode TX N(HT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.37 8.00 Complies 06 2437 -5.14 8.00 Complies 11 2462 -6.78 8.00 Complies CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.45 8.00 Complies 06 2437 -6.10 8.00 Complies 11 2462 -5.26 8.00 Complies CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.37 5.99 Complies 06 2437 -5.14 5.99 Complies 11 2462 -6.78 5.99 Complies Report No.: BTL-FCCP-1-2102C271 Page 111 of 111 Test Mode TX N(HT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -8.06 8.00 Complies 06 2437 -8.82 8.00 Complies 09 2452 -8.06 8.00 Complies CH03 CH06 CH09 Test Mode TX N(HT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -8.52 8.00 Complies 06 2437 -7.93 8.00 Complies 09 2452 -8.14 8.00 Complies CH03 CH06 CH09 Test Mode TX N(HT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -8.06 5.99 Complies 06 2437 -8.82 5.99 Complies 09 2452 -8.06 5.99 Complies End of Test Report

Report No.: BTL-FCCP-1-2102C271 Page 28 of 111 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2102C271 Page 29 of 111 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2102C271 Page 30 of 111 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2102C271 Page 31 of 111 Radiated Emissions Test Photos Above 1 GHz
