2AFZZRA4BR

Xiaomi Communications Co., Ltd.

Mobile Phone with GSM, WCDMA, LTE, 5GNR, Bluetooth, WiFi and NFC

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Oct 30, 2023
Application Purpose: Original Equipment
Date of Application: Oct 18, 2023
Equipment Note: Mobile Phone with GSM, WCDMA, LTE, 5GNR, Bluetooth, WiFi and NFC
Frequency Range: 815.50000000 - 822.50000000
Company: Xiaomi Communications Co., Ltd.
Country: China

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

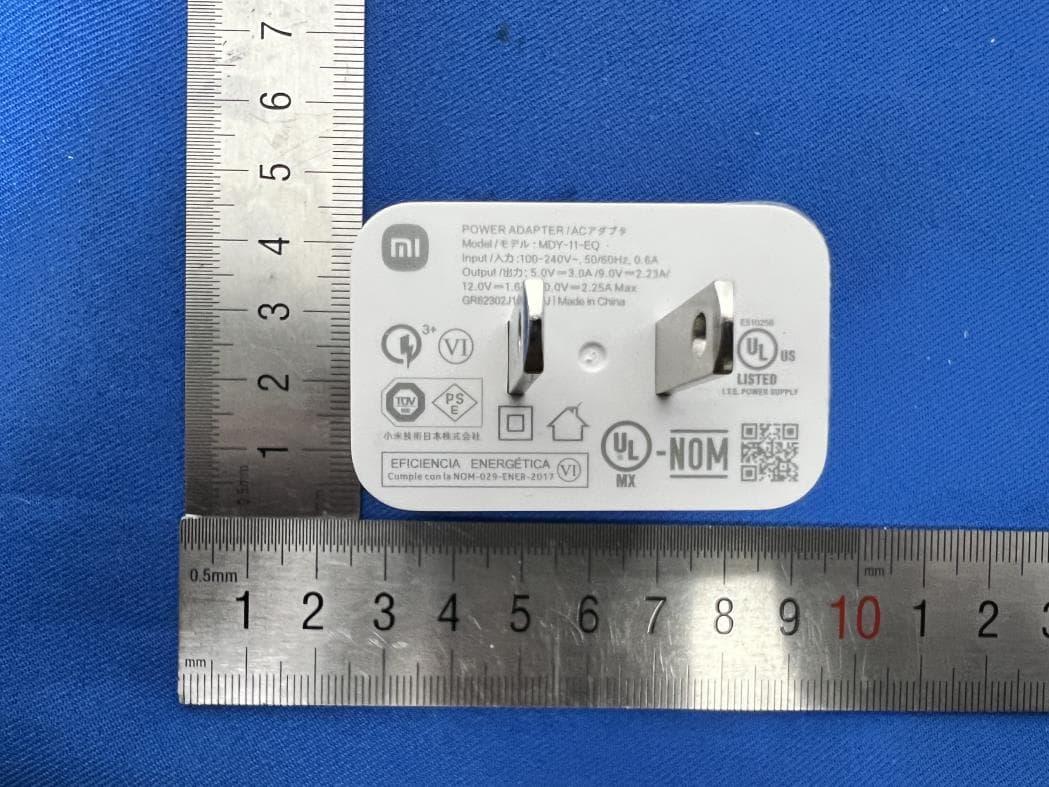

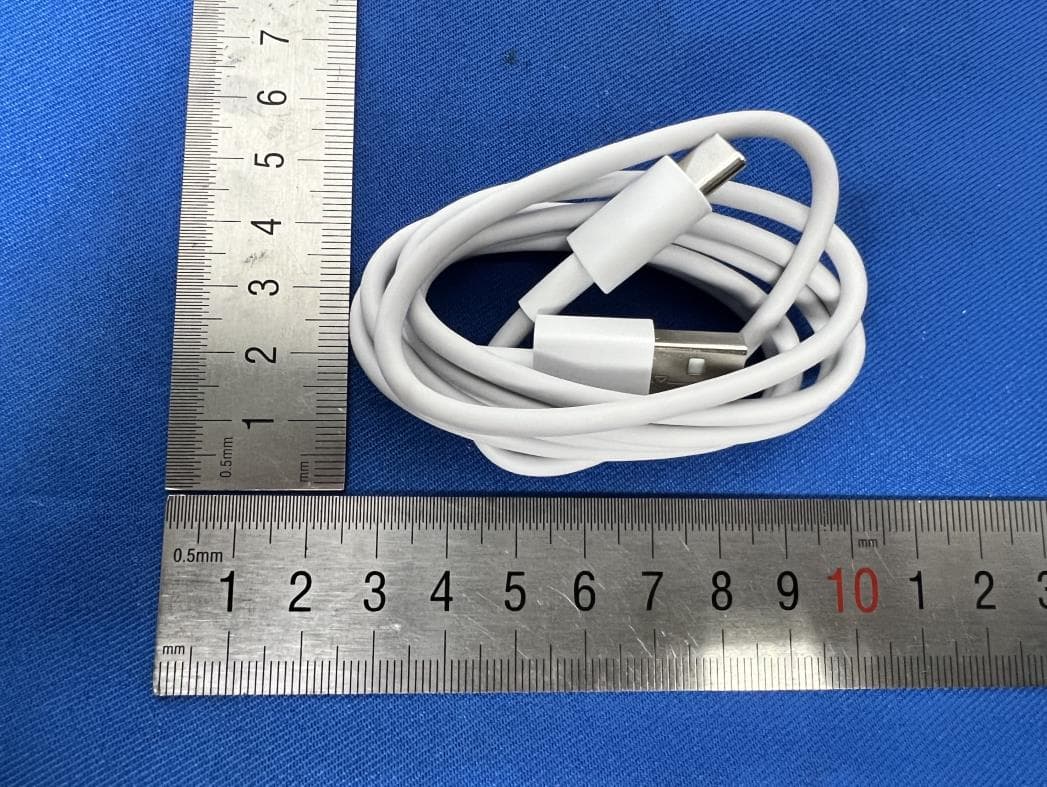

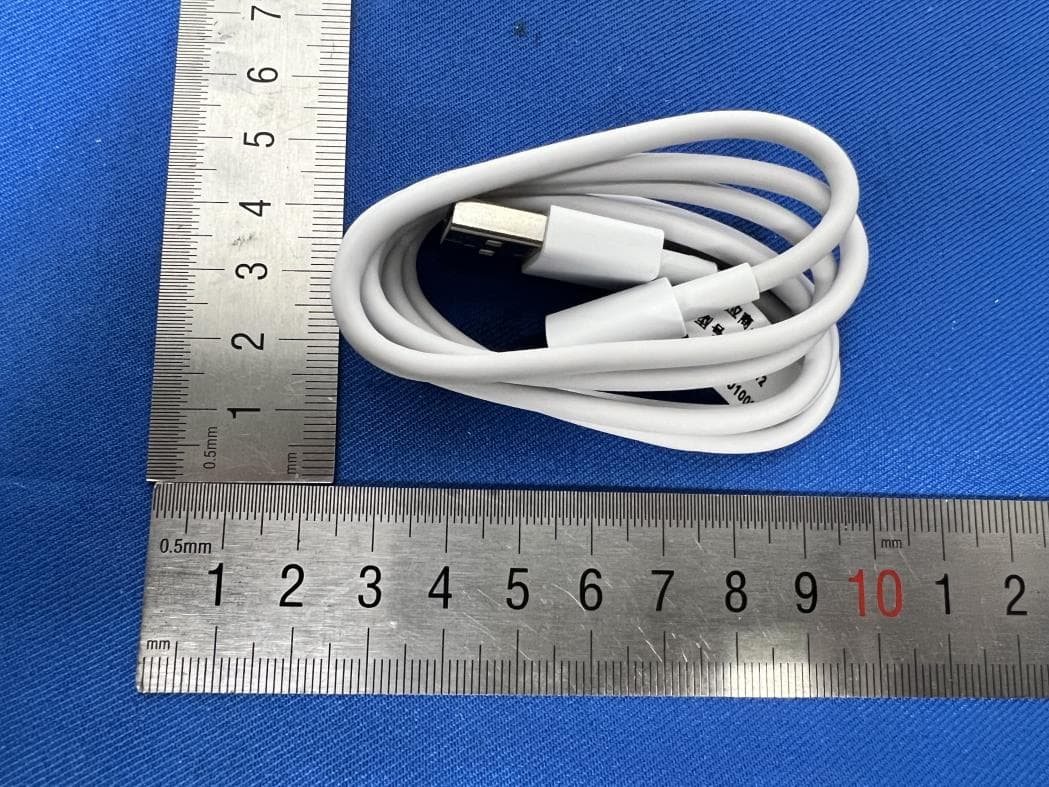

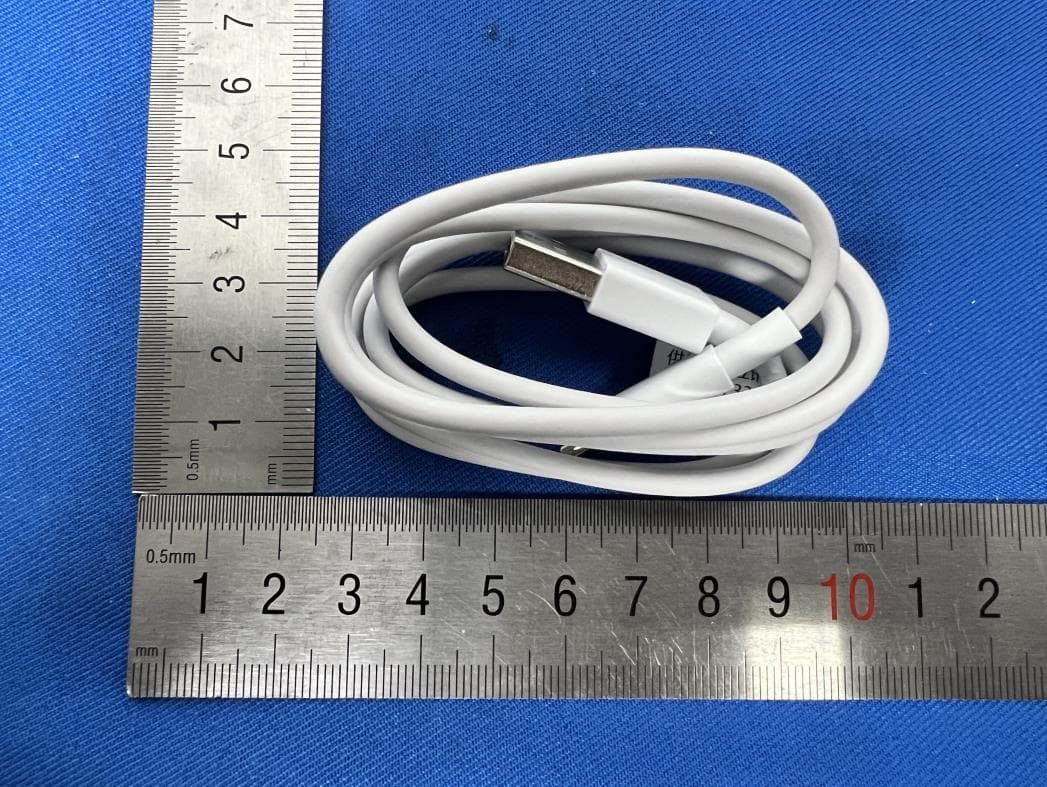

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
75	9	815.5 MHz - 822.5 MHz	212.00 mW	2M71W7D	0.1 ppm

Confidentiality

Long Term

Grant Notes

Output power listed for GSM850, WCDMA Band 5, LTE Band 5/12/13/17/26 are maximum ERP. Output power listed for PCS1900, WCDMA Band 2/4, LTE Band 2/4/7/38/41/42, 5GNR n41/n77/n78 are maximum EIRP. It supports GSM, WCDMA, LTE (QPSK, 16QAM, 64QAM, 256QAM), 5G NR operation mode includes Standalone and Non-standalone (EN-DC): Modulation: CP- OFDM QPSK, 16QAM, 64QAM, 256QAM and DFT-s-OFDM PI/2 BPSK, QPSK, 16QAM, 64QAM, 256QAM. LTE B2, B4, B5, B7, B12, B13, B17, B26, B38, B41, B42 5G NR n41, n77, 78 Channel Bandwidth (1.4/3/5/10 MHz) for LTE B5, B12 Channel Bandwidth (1.4/3/5/10/15 MHz) for LTE B26 Channel Bandwidth (1.4/3/5/10/15/20 MHz) for LTE B2, B4 Channel Bandwidth (5/10 MHz) for LTE B13, B17 Channel Bandwidth (5/10/15/20 MHz) for LTE B7, B38, B41, B42 Channel Bandwidth (20/30/40/50/60/80/90/100 MHz) for 5G NR n41, n77, n78 It supports LTE Uplink carrier Aggregation intra-band contiguous CA_41C, CA_42C as described in this filing. NSA (EN-DC): DC_41A_n77A, DC_41A_n78A This device contains functions that are not operational in U.S. Territories; this filing is only applicable for U.S. operations. This device has integrated DXX, DTS, DSS, NII and PCE transmitters certified under the same FCC ID. SAR compliance for body-worn operating configurations is limited to the belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values for Head, body-worn accessory, hotspot and simultaneous transmission use conditions are 1.09 W/kg, 0.88 W/kg, 1.07 W/kg, and 1.59 W/kg, respectively.
