2AFZZRA75Mi WiFi Range Extender AC1200

All images are for illustration purposes only and may differ from the actual product by model and region. About this product English The Mi WiFi Range Extender AC1200 is designed to extend the range of your home WiFi network. ① ② ③ ④ Signal Indicator English Solid blue: The range extender is connected to your existing network and receiving a strong signal. Solid orange: The range extender is receiving a weak signal. Relocating the extender closer to the router is recommended. Solid red: The range extender is disconnected from the network. Trying to relocate it within the range of your router. Flashing red: The range extender is ready for initialization. Off: The range extender is unready for connection. Solid blue: The system runs normally. Flashing blue: WPS is processing. Solid orange: The system is booting. Flashing orange: The system is upgrading. Off: No power. System Indicator WPS Buon Press to launch the WPS Wizard. Reset BuonPress and hold for at least 5 seconds to restore factory seings. ① ② ③ ④ English Step1: Power On Plug the range extender into a power outlet close to your router. Wait until the ‘Signal’ indicator turns flashing red. Step2: Set Up Method 1: APP Setup (Recommended) Download the Mi Home APP/Xiaomi Home App and follow the in-app instructions to complete the setup. Installation Method 2: WPS Buon Setup Press the WPS buon on your router if it has one. Within 2 minutes, press the WPS buon on the range extender. The ‘Signal’ indicator should turn solid blue once the connection is successful. English 3 Default Extended WiFi Name and Password aer setup 2.4G WiFi: Router’s WiFi name with ‘_Plus’ at the end 5G WiFi: Router’s WiFi name with ‘_Plus_5G’ at the end Password: Same as the router Step3: Reposition your range extender Plug your range extender in a place between your router and the WiFi dead zone. To achieve beer signal quality, try to find a location where the ‘Signal’ indicator is solid blue. If it doesn’t, relocate the range extender closer to the router. Blue: Suitable location Orange/Red: Trying to move closer to your router ! If the signal is poor, move the range extender to another location where there are no large obstacles between the range extender and the router. If the range extender is offline, check that the router is emiing a WiFi signal. If the router is working normally, restart the range extender and try again. Check whether the range extender was blacklisted by your router. If the issue persists, hold down the reset buon for at least 5 seconds until the indicator is constant orange. Reconfigure the seings and try again. 1 2 3 4 English You can manually find Mi WiFi Range Extender AC1200 in the in-app device list and add it following the instructions. Q1. What should I do if the Mi Home APP/Xiaomi Home App doesn’t find my device during setup? Reset the range extender to factory seings and reconfigure the seings. Q3.How do I configure the seings if I want to connect the range extender to a new Wi-Fi network? Q2. What should I do if the Mi WiFi Range Extender AC1200 stops working? FAQs (frequently asked questions) Specifications: Name: Mi WiFi Range Extender AC1200 Model: RA75 Operating Temperature: 0-40ºC Input: 100~240VAC, 50/60Hz, 0.3A Operating Frequency: 2400MHz~2483.5MHz ，5150MHz~5350MHz , 5470MHz~5725MHz , 5725MHz~5850MHz Certifications: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. English —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmier must not be co-located or operating in conjunction with any other antenna or transmier. Manufactured by: Xiaomi Communications Co.,Ltd No.019, Floor 9, Building 6, Yard 33, Middle Xierqi Road, Haidian District, Beijing, China Specifications: Name: Mi WiFi Range Extender AC1200 Model: RA75 Operating Temperature: 0-40ºC Input: 100~240VAC, 50/60Hz, 0.3A Operating Frequency: 2412~2462MHz; 5150~5350MHz; 5470~5850MHz Certifications: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio c…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2021.07.09> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AFZZRA75 RA75 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name / Title: Xuxiaoping/Manager Company: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Tel: 010 6060 6666 Fax: 010 6060 6666 E-Mail: [email protected]

RF_160, Issue 02 Declaration of Authorization We Name: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District City: Beijing Country: China Declare that: Name Representative of agent: Ms. Rose Liu Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Mi WiFi Range Extender AC1200 Type designation: RA75 Trademark: MI FCC ID : 2AFZZRA75 on our behalf. Date: 2021-07-09 City: Beijing Name: Xuxiaoping Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

<Xiaomi Communications Co., Ltd.> <#019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District Beijing China> Date: 2021.07.09 FCC ID: 2AFZZRA75 Model Number: RA75 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Xiaomi Communications Co., Ltd. declare that this EUT (FCC ID: 2AFZZRA75) doesn’t have Ad Hoc mode function on “on-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Xuxiaoping/Manager Company: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Tel: 010 6060 6666 Fax: 010 6060 6666 E-Mail: [email protected]

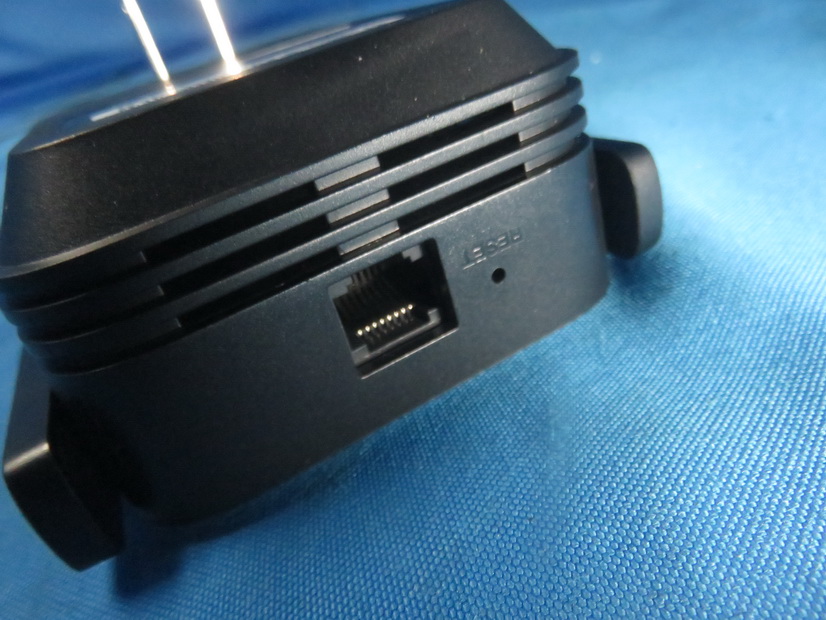

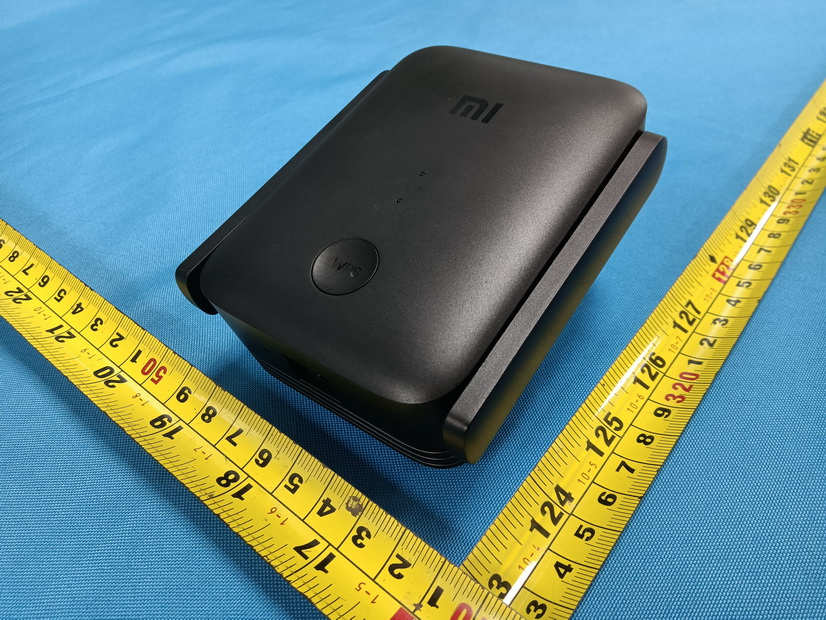

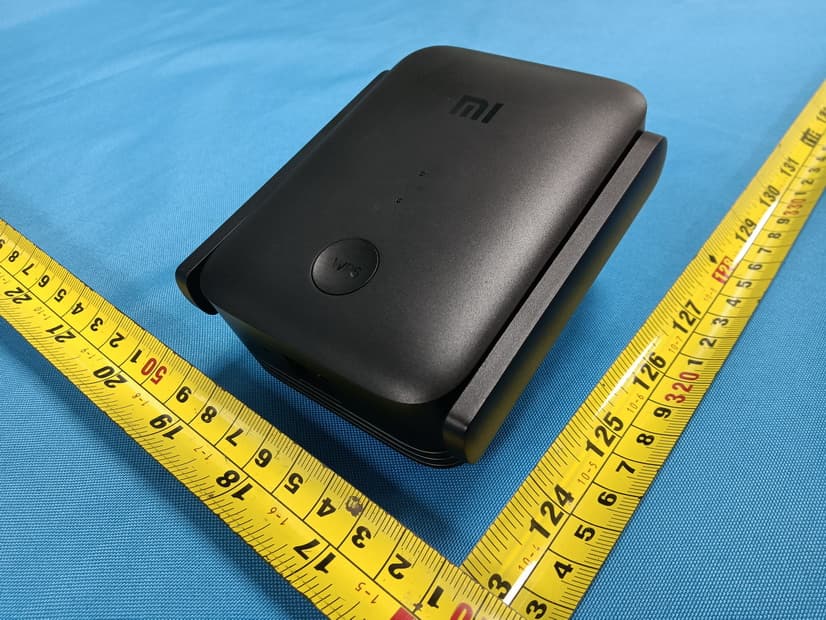

Report No.: 2104C019 Page 1 of 11 ATTACHMENT PHOTOGRAPHS OF EUT Report No.: 2104C019 Page 2 of 11 Report No.: 2104C019 Page 3 of 11

V1.0 首次创建 20210408 Black 47.3x27mm R=2.5mm M75US铭牌标签 王岳龙 M75US Pantone 429C 75 产品经理 质量工程 设计主管 认证工程 软件测试 硬件测试 结 构 售后服务 法务主管 助厂工程 郭亚伟 王云瑞 刘思琦项目经理 采 购 通知人员 47.3x11mm R=2.5mm 印刷图： 47.3 毫米 ±0.2 11 毫米 ±0.2 小贴纸位置 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AFZZRA75 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AFZZRA75

V1.0 首次创建 20210408 Black 47.3x27mm R=2.5mm M75US铭牌标签 王岳龙 M75US Pantone 429C 75 产品经理 质量工程 设计主管 认证工程 软件测试 硬件测试 结 构 售后服务 法务主管 助厂工程 郭亚伟 王云瑞 刘思琦项目经理 采 购 通知人员 47.3x11mm R=2.5mm 印刷图： 27.0 毫米 ±0.2 47.3 毫米 ±0.2 半径 2.5 毫米 ±0.2 Mi WiFi Range Extender AC1200 產品名稱: 小米 WiFi 訊號延伸器 Pro 產品型號/Model: RA75 Input/輸入: 100-240V~50/60Hz 0.3A Manufactured by: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 中國製造 Made in China XXXXXXXXXXXXXX SN: 30859/XXXXXXXX MAC: XX : XX : XX : XX : XX : XX 2.4G WiFi: xiaomi-repeater-v6_miapxxxx 5G WiFi: xiaomi-repeater-v6_miapxxxx_5G D39245 RoHS 小贴纸位置 Mi WiFi Range Extender AC1200 產品名稱: 小米 WiFi 訊號延伸器 Pro 產品型號/Model: RA75 Input/輸入: 100-240V~50/60Hz 0.3A Manufactured by: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 中國製造 Made in China D39245 RoHS Mi WiFi Range Extender AC1200 產品名稱: 小米 WiFi 訊號延伸器 Pro 產品型號/Model: RA75 Input/輸入: 100-240V~50/60Hz 0.3A Manufactured by: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 中國製造 Made in China XXXXXXXXXXXXXX SN: 30859/XXXXXXXX MAC: XX : XX : XX : XX : XX : XX 2.4G WiFi: xiaomi-repeater-v6_miapxxxx 5G WiFi: xiaomi-repeater-v6_miapxxxx_5G D39245 RoHS (3.0 毫米) 36.0 毫米 0.8 毫米 0.8 毫米

Report No.: 2104C019 Page 4 of 11 Ant. 1 Ant. 2 Report No.: 2104C019 Page 5 of 11 Report No.: 2104C019 Page 6 of 11 Report No.: 2104C019 Page 7 of 11 Report No.: 2104C019 Page 8 of 11 Report No.: 2104C019 Page 9 of 11 Report No.: 2104C019 Page 10 of 11 Report No.: 2104C019 Page 11 of 11

Report No.: BTL-FCCP-4-2104C019 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: 2AFZZRA75 Project No. : 2104C019 Equipment : Mi WiFi Range Extender AC1200 Brand Name : MI Test Model : RA75 Series Model : N/A Applicant : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Manufacturer : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Factory : Huizhou MTN WEIYE Technology Development Co.,Ltd Address : No.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou City,Guangdong Province,China. 516000 Date of Receipt : May 17, 2021 Date of Test : May 18, 2021 ~ Jun. 28, 2021 Issued Date : Jul. 14, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021040674 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-4-2104C019 Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Jul. 14, 2021 Report No.: BTL-FCCP-4-2104C019 Page 3 of 5 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna For 2.4GHz: Antenna Specification: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 N12-7508-R0A Internal N/A 3.36 2 N12-7509-R0A Internal N/A 3.21 Note: 1) This EUT supports CDD, and all antenna gains are not equal. Then, Directional gain=10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, that is Directional gain=10log[(10 3.36/20 +10 3.21/20 ) 2 /2]dBi =6.30. So, the output power limit is 30-(6.30-6)=29.70, the power spectral density limit is 8-(6.30-6)=7.70. 2) The antenna gain is provided by the manufacturer. Table for Antenna Configuration: Operating Mode TX Mode 2TX IEEE 802.11b V(Ant. 1 + Ant. 2) IEEE 802.11g V(Ant. 1 + Ant. 2) IEEE 802.11n(HT20) V(Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V(Ant. 1 + Ant. 2) Report No.: BTL-FCCP-4-2104C019 Page 4 of 5 For 5GHz: Antenna Specification: Ant. Brand P/N Antenna Type Connector Gain (dBi) Note 1 N12-7508-R0A Internal N/A 3.85 UNII-1 2 N12-7509-R0A Internal N/A 4.05 1 N12-7508-R0A Internal N/A 3.87 UNII-2A 2 N12-7509-R0A Internal N/A 4.40 1 N12-7508-R0A Internal N/A 3.72 UNII-2C 2 N12-7509-R0A Internal N/A 3.93 1 N12-7508-R0A Internal N/A 2.95 UNII-3 2 N12-7509-R0A Internal N/A 3.62 Note: 1) This EUT supports CDD, and all antenna gains are not equal. Then, Directional gain=10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi. For UNII-1: Directional gain=10log[(10 3.85/20 +10 4.05/20 ) 2 /2]dBi =6.96. So the output power limit is 30-(6.96-6)=29.04, the power spectral density limit is 17-(6.96-6)=16.04. For UNII-2A: Directional gain=10log[(10 3.87/20 +10 4.40/20 ) 2 /2]dBi =7.15. So the output power limit is 24-(7.15-6)=22.85, the power spectral density limit is 11-(7.15-6)=9.85. For UNII-2C: Directional gain=10log[(10 3.72/20 +10 3.93/20 ) 2 /2]dBi =6.84. So the output power limit is 24-(6.84-6)=23.16, the power spectral density limit is 11-(6.84-6)=10.16. For UNII-3: Directional gain=10log[(10 2.95/20 +10 3.62/20 ) 2 /2]dBi =6.30. So the output power limit is 30-(6.30-6)=29.70, the power spectral density limit is 30-(6.30-6)=29.70. 2) The antenna gain is provided by the manufacturer. Table for Antenna Configuration: Operating Mode TX Mode 2TX IEEE 802.11a V (Ant. 1 + Ant. 2) IEEE 802.11n(HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac(VHT20) V (Ant. 1 + Ant. 2) IEEE 802.11ac(VHT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac(VHT80) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-4-2104C019 Page 5 of 5 3. TEST RESULTS For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.30 4.2658 26.50 446.6836 0.37927 1 Complies For 5GHz UNII-1: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.96 4.9659 20.10 102.3293 0.10115 1 Complies For 5GHz UNII-2A: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 7.15 5.1880 18.14 65.1628 0.06729 1 Complies For 5GHz UNII-2C: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.84 4.8306 22.15 164.0590 0.15774 1 Complies For 5GHz UNII-3: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.30 4.2658 22.43 174.9847 0.14858 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.37927 0.15774 0.53701 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-1-2104C019 Page 1 of 121 FCC Radio Test Report FCC ID: 2AFZZRA75 This report concerns: Original Grant Project No. : 2104C019 Equipment : Mi WiFi Range Extender AC1200 Brand Name : MI Test Model : RA75 Series Model : N/A Applicant : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Manufacturer : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Factory : Huizhou MTN WEIYE Technology Development Co.,Ltd Address : No.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou City,Guangdong Province,China. 516000 Date of Receipt : May 17, 2021 Date of Test : May 18, 2021 ~ Jun. 28, 2021 Issued Date : Jul. 14, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021040674 for conducted, DG2021040672 for radiated. Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2104C019 Page 2 of 121 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2104C019 Page 3 of 121 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 15 2.6 SUPPORT UNITS 15 3 . AC POWER LINE CONDUCTED EMISSIONS 16 3.1 LIMIT 16 3.2 TEST PROCEDURE 16 3.3 DEVIATION FROM TEST STANDARD 16 3.4 TEST SETUP 17 3.5 EUT OPERATION CONDITIONS 17 3.6 TEST RESULTS 17 4 . RADIATED EMISSIONS 18 4.1 LIMIT 18 4.2 TEST PROCEDURE 19 4.3 DEVIATION FROM TEST STANDARD 20 4.4 TEST SETUP 20 4.5 EUT OPERATION CONDITIONS 21 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 21 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 21 4.8 TEST RESULTS - ABOVE 1000 MHZ 21 5 . BANDWIDTH 22 5.1 LIMIT 22 5.2 TEST PROCEDURE 22 5.3 DEVIATION FROM STANDARD 22 5.4 TEST SETUP 22 Report No.: BTL-FCCP-1-2104C019 Page 4 of 121 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 22 5.6 TEST RESULTS 22 6 . MAXIMUM OUTPUT POWER 23 6.1 LIMIT 23 6.2 TEST PROCEDURE 23 6.3 DEVIATION FROM STANDARD 23 6.4 TEST SETUP 23 6.5 EUT OPERATION CONDITIONS 23 6.6 TEST RESULTS 23 7 . CONDUCTED SPURIOUS EMISSIONS 24 7.1 LIMIT 24 7.2 TEST PROCEDURE 24 7.3 DEVIATION FROM STANDARD 24 7.4 TEST SETUP 24 7.5 EUT OPERATION CONDITIONS 24 7.6 TEST RESULTS 24 8 . POWER SPECTRAL DENSITY 25 8.1 LIMIT 25 8.2 TEST PROCEDURE 25 8.3 DEVIATION FROM STANDARD 25 8.4 TEST SETUP 25 8.5 EUT OPERATION CONDITIONS 25 8.6 TEST RESULTS 25 9 . MEASUREMENT INSTRUMENTS LIST 26 10 . EUT TEST PHOTO 28 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 34 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 39 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 44 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 47 APPENDIX E - BANDWIDTH 98 APPENDIX F - MAXIMUM OUTPUT POWER 103 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 108 Report No.: BTL-FCCP-1-2104C019 Page 5 of 121 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 117 Report No.: BTL-FCCP-1-2104C019 Page 6 of 121 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jul. 14, 2021 Report No.: BTL-FCCP-1-2104C019 Page 7 of 121 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth AP…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2104C019 Page 110 of 121 Test Mode TX B Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2104C019 Page 111 of 121 Test Mode TX G Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2104C019 Page 112 of 121 Test Mode TX G Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2104C019 Page 113 of 121 Test Mode TX N(HT20) Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2104C019 Page 114 of 121 Test Mode TX N(HT20) Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2104C019 Page 115 of 121 Test Mode TX N(HT40) Mode_Ant. 1 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2104C019 Page 116 of 121 Test Mode TX N(HT40) Mode_Ant. 2 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2104C019 Page 117 of 121 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-1-2104C019 Page 118 of 121 Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.57 8.00 Complies 06 2437 -4.93 8.00 Complies 11 2462 -7.23 8.00 Complies CH01 CH06 CH11 Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -4.02 8.00 Complies 06 2437 -3.64 8.00 Complies 11 2462 -3.88 8.00 Complies CH01 CH06 CH11 Test Mode TX B Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -1.72 7.70 Complies 06 2437 -1.23 7.70 Complies 11 2462 -2.23 7.70 Complies Report No.: BTL-FCCP-1-2104C019 Page 119 of 121 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -7.23 8.00 Complies 06 2437 -8.25 8.00 Complies 11 2462 -8.69 8.00 Complies CH01 CH06 CH11 Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.43 8.00 Complies 06 2437 -7.01 8.00 Complies 11 2462 -7.53 8.00 Complies CH01 CH06 CH11 Test Mode TX G Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -3.80 7.70 Complies 06 2437 -4.58 7.70 Complies 11 2462 -5.06 7.70 Complies Report No.: BTL-FCCP-1-2104C019 Page 120 of 121 Test Mode TX N(HT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -7.07 8.00 Complies 06 2437 -7.80 8.00 Complies 11 2462 -8.43 8.00 Complies CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.64 8.00 Complies 06 2437 -5.98 8.00 Complies 11 2462 -5.81 8.00 Complies CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -3.84 7.70 Complies 06 2437 -3.79 7.70 Complies 11 2462 -3.92 7.70 Complies Report No.: BTL-FCCP-1-2104C019 Page 121 of 121 Test Mode TX N(HT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -11.56 8.00 Complies 06 2437 -10.39 8.00 Complies 09 2452 -11.06 8.00 Complies CH03 CH06 CH09 Te s t Mode TX N(HT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -10.47 8.00 Complies 06 2437 -9.43 8.00 Complies 09 2452 -8.99 8.00 Complies CH03 CH06 CH09 Test Mode TX N(HT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -7.97 7.70 Complies 06 2437 -6.87 7.70 Complies 09 2452 -6.89 7.70 Complies End of Test Report

Report No.: BTL-FCCP-2-2104C019 Page 35 of 272 10. EUT TEST PHOTOS AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-2-2104C019 Page 36 of 272 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-2-2104C019 Page 37 of 272 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-2-2104C019 Page 38 of 272 Radiated Emissions Test Photos Above 1 GHz Report No.: BTL-FCCP-2-2104C019 Page 39 of 272 Conducted Test Photos Report No.: BTL-FCCP-2-2104C019 Page 40 of 272
