2AFZZRP34GTablet Computer (BT/WIFI/WPC)

Xiaomi Pad 6 Quick Start Guide Contents English 01 Français 07 Italiano 14 Español 21 Deutsch 28 Nederlands 35 Português (Portugal) 42 Polski 49 Ελληνικά 56 Magyar 63 Čeština 70 Română 77 Українська 84 Srpski 91 SAT. 16 AUG. 02 48 Volume Buons Keyboard Connector Smart Pen Charger Power Buon USB Type-C Port EN 01 Thank you for choosing Xiaomi Pad 6 Long press the power button to turn on the device. Follow the on-screen instructions to configure the device. For more information, visit our official website: www.mi.com/global/service/userguide MIUI Xiaomi Pad 6 comes pre-installed with MIUI, our customized Android-based OS which provides frequent updates and user-friendly features based on suggestions from over 200 million active users worldwide. For more information, please visit en.miui.com WEEE Special precautions must be taken to safely dispose of this product. This marking indicates that this product may not be discarded with other household waste in the EU. To prevent harm to the environment or human health from inappropriate waste disposal, and to promote sustainable reuse of material resources, please recycle responsibly. To safely recycle your device, please use return and collection systems or contact the retailer where the device was originally purchased. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS. To prevent possible hearing damage, do not listen at high volume levels for long periods. Additional safety information and precautions can be accessed at the following link: www.mi.com/en/certification Important Safety Information Read all safety information below before using your device: • Use of unauthorized cables, power adapters, or batteries can cause fire, explosion, or pose other risks. • Use only authorized accessories which are compatible with your device. • This device’s operating temperature range is 0°C to 40°C. Using this device in an environment outside of this temperature range may damage the device. • If your device is provided with a built-in battery, to avoid damaging the battery or the device, do not attempt to replace the battery yourself. • Charge this device only with the included or authorized cable and power adapter. Using other adapters may cause fire, electric shock, and damage the device and the adapter. 02 • After charging is complete, disconnect the adapter from both the device and the power outlet. Do not charge the device for more than 12 hours. • The battery must be recycled or disposed of separately from household waste. Mishandling the battery may cause fire or explosion. Dispose of or recycle the device, its battery, and accessories according to your local regulations. • Do not disassemble, hit, crush, or burn the battery. If the battery appears deformed or damaged, stop using it immediately. -Do not short circuit the battery, as this may cause overheating, burns, or other injury. -Do not place the battery in a high-temperature environment. -Overheating may cause explosion. -Do not disassemble, hit, or crush the battery, as this may cause the battery to leak, overheat, or explode. -Do not burn the battery, as this may cause fire or explosion. -If the battery appears deformed or damaged, stop using it immediately. • User shall not remove or alter the battery. Removal or repair of the battery shall only be done by an authorized repair center of the manufacturer. • Keep your device dry. • Do not try to repair the device yourself. If any part of the device does not work properly, contact Mi customer support or bring your device to an authorized repair center. • Connect other devices according to their instruction manuals. Do not connect incompatible devices to this device. • For AC/DC adapters, the socket-outlet shall be installed near the equipment and shall be easily accessible. Safety Precautions • Observe all applicable laws and rules restricting use of tablet in specific situations and environments. • Do not use your tablet at petrol stations or in any explosive atmosphere or potentially explosive environment, including fueling areas, below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air may contain chemicals or particles such as grain, dust, or metal powders. Obey all posted signs to turn off wireless devices such as your tablet or other radio equipment. Turn off your tablet or wireless device when in a blasting area or in areas requiring “two-way radios” or “electronic devices” to be turned off to prevent potential hazards. • Do not use your tablet in hospital operating rooms, emergency rooms, or intensive care units. Always comply with all rules and regulations of hospitals and health centers. If you have a medical device, please consult your doctor and the device manufacturer to determine whether your tablet may interfere with the device’s operation. To avoid potential interference with a pacemaker, always maintain a minimum distance of 15 cm between your tablet and the pacemaker. To avoid interference with medical equipment, do not use your tablet near hearing aids, cochlear implants, or other similar devices. • Observe all aircraft safety regulations and turn off your tablet on board aircraft when required. • When driving a vehicle, use your tablet in accordance with relevant traffic 03 laws and regulations. • To avoid being struck by lightning, do not use your tablet outdoors during thunderstorms. • Do not use your tablet in places with high humidity, such as bathrooms. Doing so may result in electric shock, injury, fire, and charger damage. Security Statement Please update your tablet’s operating system using the built-in software update feature, or visit any of our authorized service outlets. Updating software through other means may damage the device or result in data loss, security issues, and other risks. EU Regulations RED Declaration of Conformity Xiaomi Communications Co., Ltd. hereby declares that this Tablet with…

Text truncated - open the document above for the full version.

Xiaomi Communications Co., Ltd. Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: March 24, 2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AFZZRP34G [Xiaomi Communications Co., Ltd.] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Name:  Zeng Qingyao .. Email: [email protected]...................... Signature:  . Xiaomi Communications Co., Ltd. Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: March 24, 2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AFZZRP34G [Xiaomi Communications Co., Ltd.] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Name:  Zeng Qingyao .. Email: [email protected]...................... Signature:  .

Xiaomi Communications Co., Ltd. #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Tel: 010 6060 6666 ; Fax: 010 6060 6666 Date: March 19, 2023 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: 2AFZZRP34G To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. ⚫ Schematic Diagram ⚫ Block Diagram ⚫ Part List ⚫ Operational Description ⚫ Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ___ _ Zengqingyao [email protected]

Xiaomi Communications Co.,Ltd #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2AFZZRP34G (1) DFS Device -- Master, Client with Radar detection capability , ■ Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 2422 – 2452 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 5745 – 5825 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 5755 – 5795 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 5180 – 5240 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 5190 – 5230 MHz ■ Yes, No ■ Yes, No ■Yes, No Yes, ■ No 5260 – 5320 MHz Yes, ■ No ■ Yes, No Yes, ■ No Yes, ■ No 5270 – 5310 MHz Yes, ■ No ■ Yes, No Yes, ■ No Yes, ■ No 5500 – 5700 MHz Yes, ■ No ■ Yes, No Yes, ■ No Yes, ■ No 5510 – 5670 MHz Yes, ■ No ■ Yes, No Yes, ■ No Yes, ■ No (3) Country code selection ability - Yes , ■ No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement - ■ Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices ■ A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , ■ No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Xiaomi Communications Co., Ltd. Printed Name:Zengqingyao Position：Certification Director

RF_160, Issue 04 Xiaomi Communications Co., Ltd. Declaration of Authorization We Name: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China City: Beijing Country: China Declare that: Name Representative of agent: Well Wei Agent Company name: SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd Branch Address: South of No. 6 Plant, No. 1, Runsheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Tablet Computer Type designation: 23043RP34G Trademark: XIAOMI FCC ID: 2AFZZRP34G on our behalf. Sincerely yours, Contact Person: Zengqingyao Applicant: Xiaomi Communications Co., Ltd. Phone: 010-60606666-8088 E-Mail: [email protected] Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

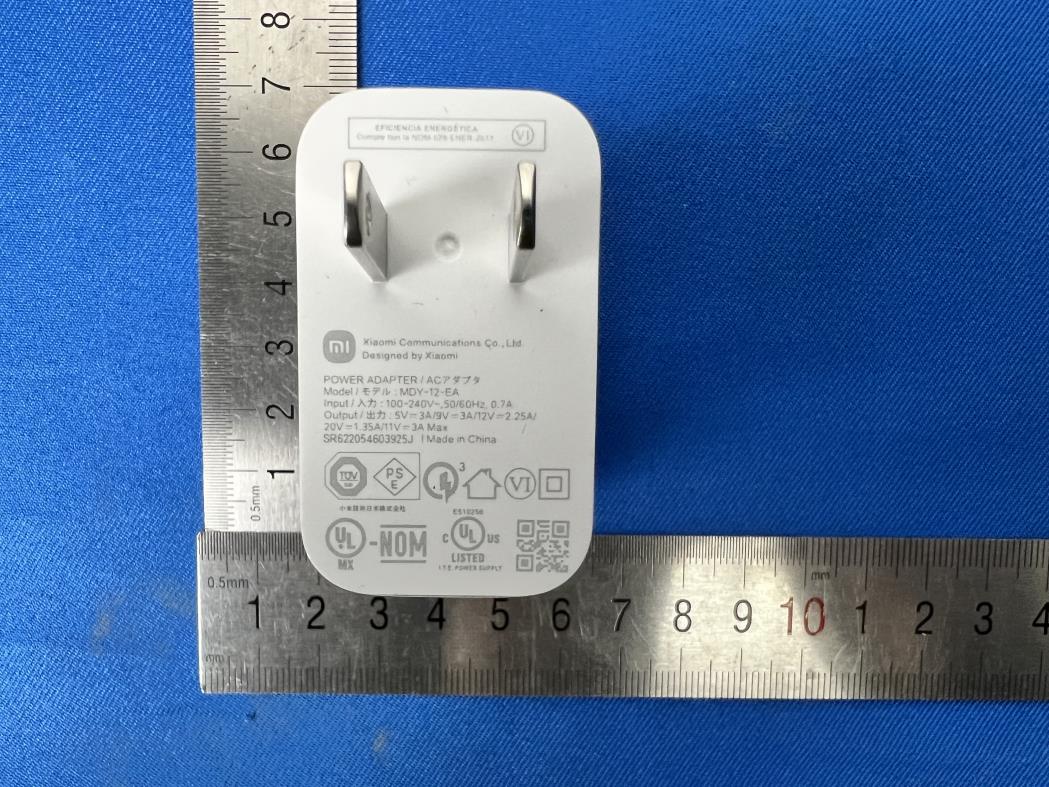

Page 1 of 6 1 Photographs - EUT Constructional Details Model No.(EUT): 23043RP34G FCC ID: 2AFZZRP34G Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Model Name: MDY-12-EA Brand Name: MI Input :100-240V~,50/60Hz.0.7A Output:5.0V,3.0A/9.0V,3.0A/12.0V,2.25A/20.0V,1.35A/11.0V,3.0A Max Page 6 of 6 Model Name: H23230 Brand Name: MI

E-Label Model Name: 23043RP34G E-label Path: Setting - About tablet - Certification

Page 1 of 8 1 Photographs - EUT Constructional Details Model No.(EUT): 23043RP34G FCC ID: 2AFZZRP34G ANT location Page 2 of 8 Page 3 of 8 Page 4 of 8 Page 5 of 8 Page 6 of 8 Page 7 of 8 Page 8 of 8 Model Name: BP4N Brand Name: MI Power Rating: 3.87VDC,4320mAh/16.7Wh(Rated),4420mAh/17.1Wh(Typical)

ReportNo.:SEWM2302000047RG06 AppendixA DetailedSystemCheckResults 1.SystemPerformanceCheck SystemPerformanceCheck2450MHzHead SystemPerformanceCheck5250MHzHead SystemPerformanceCheck5600MHzHead SystemPerformanceCheck5750MHzHead Date: 2023-03-10 Test Laboratory: SGS-SAR Lab System Performance Check 2450MHz Head DUT: D2450V2; Type: Dipole; Serial: 1038 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450;Medium parameters used: f = 2450 MHz; σ = 1.784 S/m; ε = 40.136; ρ = 920 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration:  Probe: EX3DV4 - SN7735; ConvF(8.2, 8.2, 8.2); Calibrated: 2022-08-09  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 3; Type: QD000P40CD; Serial: TP:1770 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=250mW/Area Scan (9x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 16.8 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.06 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 26.6 W/kg SAR(1 g) = 12.7 W/kg; SAR(10 g) = 5.76 W/kg Maximum value of SAR (measured) = 21.7 W/kg 0 dB = 21.7 W/kg = 13.36 dBW/kg Date: 2023-03-11 Test Laboratory: SGS-SAR Lab System Performance Check 5.25GHz Head DUT: D5GHzV2; Type: Dipole; Serial: 1313 Communication System: UID 0, CW (0); Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL5000;Medium parameters used: f = 5250 MHz; σ = 4.724 S/m; ε = 35.575; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration:  Probe: EX3DV4 - SN7735; ConvF(5.3, 5.3, 5.3); Calibrated: 2022-08-09  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 3; Type: QD000P40CD; Serial: TP:1770 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=100mW, f=5250 MHz/Area Scan (10x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 13.5 W/kg Body/d=10mm, Pin=100mW, f=5250 MHz/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 48.29 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 29.3 W/kg SAR(1 g) = 7.58 W/kg; SAR(10 g) = 2.15 W/kg Maximum value of SAR (measured) = 17.7 W/kg 0 dB = 17.7 W/kg = 12.48 dBW/kg Date: 2023-03-13 Test Laboratory: SGS-SAR Lab System Performance Check 5.6GHz Head DUT: D5GHzV2; Type: Dipole; Serial: 1313 Communication System: UID 0, CW (0); Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: HSL5000;Medium parameters used: f = 5600 MHz; σ = 5.198 S/m; ε = 34.903; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration:  Probe: EX3DV4 - SN7735; ConvF(4.75, 4.75, 4.75); Calibrated: 2022-08-09  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 3; Type: QD000P40CD; Serial: TP:1770 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=100mW, f=5600 MHz/Area Scan (10x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 16.4 W/kg Body/d=10mm, Pin=100mW, f=5600 MHz/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 49.73 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 32.4 W/kg SAR(1 g) = 7.72 W/kg; SAR(10 g) = 2.16 W/kg Maximum value of SAR (measured) = 18.5 W/kg 0 dB = 18.5 W/kg = 12.67 dBW/kg Date: 2023-03-15 Test Laboratory: SGS-SAR Lab System Performance Check 5.75GHz Head DUT: D5GHzV2; Type: Dipole; Serial: 1313 Communication System: UID 0, CW (0); Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: HSL5000;Medium parameters used: f = 5750 MHz; σ = 5.381 S/m; ε = 34.531; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration: Probe: EX3DV4 -  SN7735; ConvF(4.8, 4.8, 4.8); Calibrated: 2022-08-09  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 3; Type: QD000P40CD; Serial: TP:1770 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=100mW, f=5750 MHz/Area Scan (10x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 18.1 W/kg Body/d=10mm, Pin=100mW, f=5750 MHz/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 63.06 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 36.3 W/kg SAR(1 g) = 7.94 W/kg; SAR(10 g) = 2.26 W/kg Maximum value of SAR (measured) = 19.3 W/kg 0 dB = 19.3 W/kg = 12.86 dBW/kg

ReportNo.:SEWM2302000047RG06 AppendixB DetailedTestResults 1.WIFI WIFI2.4GforBody WIFI5GforBody 2.BT BTforBody Date: 2023-03-10 Test Laboratory: SGS-SAR Lab WLAN2.4G 802.11b 6CH Back side 0mm Ant0 DUT: 23043RP34G; Type: mobile pad; Serial: a437d383 Communication System: UID 0, WI-FI(2.4GHz) (0); Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL2450;Medium parameters used: f = 2437 MHz; σ = 1.761 S/m; ε = 40.163; ρ = 920 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration:  Probe: EX3DV4 - SN7735; ConvF(8.2, 8.2, 8.2); Calibrated: 2022-08-09  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 3; Type: QD000P40CD; Serial: TP:1770 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (11x10x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.34 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.667 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 2.69 W/kg SAR(1 g) = 0.857 W/kg; SAR(10 g) = 0.307 W/kg Maximum value of SAR (measured) = 2.01 W/kg 0 dB = 2.01 W/kg = 3.03 dBW/kg Date: 2023-03-10 Test Laboratory: SGS-SAR Lab WLAN2.4G 802.11b 6CH Left side 0mm Ant1 DUT: 23043RP34G; Type: mobile pad; Serial: a437d383 Communication System: UID 0, WI-FI(2.4GHz) (0); Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL2450;Medium parameters used: f = 2437 MHz; σ = 1.761 S/m; ε = 40.163; ρ = 920 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration:  Probe: EX3DV4 - SN7735; ConvF(8.2, 8.2, 8.2); Calibrated: 2022-08-09  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 3; Type: QD000P40CD; Serial: TP:1770 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (6x16x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.722 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.76 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.489 W/kg; SAR(10 g) = 0.222 W/kg Maximum value of SAR (measured) = 0.869 W/kg 0 dB = 0.869 W/kg = -0.61 dBW/kg Date: 2023-03-10 Test Laboratory: SGS-SAR Lab WLAN2.4G 802.11b 6CH Back side 0mm MIMO DUT: 23043RP34G; Type: mobile pad; Serial: a437d383 Communication System: UID 0, WI-FI(2.4GHz) (0); Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL2450;Medium parameters used: f = 2437 MHz; σ = 1.761 S/m; ε = 40.163; ρ = 920 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration:  Probe: EX3DV4 - SN7735; ConvF(8.2, 8.2, 8.2); Calibrated: 2022-08-09  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 3; Type: QD000P40CD; Serial: TP:1770 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (11x10x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.57 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.283 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 2.33 W/kg SAR(1 g) = 0.726 W/kg; SAR(10 g) = 0.268 W/kg Maximum value of SAR (measured) = 1.66 W/kg 0 dB = 1.66 W/kg = 2.20 dBW/kg Date: 2023-03-11 Test Laboratory: SGS-SAR Lab WLAN5G 802.11a 60CH Back side 0mm Ant0 DUT: 23043RP34G; Type: mobile pad; Serial: a437d383 Communication System: UID 0, WI-FI(5GHz) (0); Frequency: 5300 MHz;Duty Cycle: 1:1.005 Medium: HSL5000;Medium parameters used: f = 5300 MHz; σ = 4.791 S/m; ε = 35.456; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration:  Probe: EX3DV4 - SN7735; ConvF(5.3, 5.3, 5.3); Calibrated: 2022-08-09  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 3; Type: QD000P40CD; Serial: TP:1770 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (13x12x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.29 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 1.528 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 4.26 W/kg SAR(1 g) = 0.910 W/kg; SAR(10 g) = 0.210 W/kg Maximum value of SAR (measured) = 2.41 W/kg 0 dB = 2.41 W/kg = 3.82 dBW/kg Date: 2023-03-13 Test Laboratory: SGS-SAR Lab WLAN5G 802.11a 116CH Back side 0mm Ant0 DUT: 23043RP34G; Type: mobile pad; Serial: a437d383 Communication System: UID 0, WI-FI(5GHz) (0); Frequency: 5580 MHz;Duty Cycle: 1:1.005 Medium: HSL5000;Medium parameters used: f = 5580 MHz; σ = 5.177 S/m; ε = 34.997; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration:  Probe: EX3DV4 - SN7735; ConvF(4.75, 4.75, 4.75); Calibrated: 2022-08-09  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SAM 3; Type: QD000P40CD; Serial: TP:1770 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (13x12x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.74 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 1.652 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 4.38 W/kg SAR(1 g) = 0.931 W/kg; SAR(10 g) = 0.228 W/kg Maximum value of SAR (measured) = 2.47 W/kg 0 dB = 2.47 W/kg = 3.93 dBW/kg Date: 2023-03-15 Test Laboratory: SGS-SAR Lab WLAN5G 802.11a 157CH Back side 15mm Ant0 DUT: 23043RP34G; Type: mobile pad; Serial: a437d383 Communication System: UID 0, WI-FI(5GHz) (0); Frequency: 5785 MHz;Duty Cycle: 1:1.005 Medium: HSL5000;Medium parameters used: f = 5785 MHz; σ = 5.452 S/m; ε = 34.495; ρ = 1000 r 3 kg/m Phantom section: Flat Section  DASY 5 Configuration:  Probe: EX3DV4 - SN7735; ConvF(4.8, 4.8, 4.8); Calibrated: 2022-08-09  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1428; Calibrated: 2022-04-27  Phantom: SA…

Text truncated - open the document above for the full version.

ReportNo.:SEWM2302000047RG06 AppendixC Calibrationcertificate 1.Dipole D2450V2-SN1038 D5GHzV2-SN1313 2.DAE DAE4-SN1428 3.Probe EX3DV4-SN7735 Dipole D2450V2 SN 1038 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2020-04-08 -30.5 / 52.3 / 2021-04-07 -31.7 3.93% 53.6 1.3Ω 2022-04-06 -31.2 2.30% 53.1 0.8Ω Dipole D2450V2 SN 1038 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2020-04-08 -30.5/52.3/ 2021-04-07-31.7 3.93% 53.61.3Ω 2022-04-06-31.2 2.30% 53.10.8Ω D5G HzV2 – serial no. 1313 5GHzV2 Head Date of Measurement Freq. Return-Loss (dB) Δ % Real Impedance (ohm) ΔΩ 2022-01-25 5250-29.9/47.0/ 5600-28.5/53.5/ 5750-34.1/50.2/ 2023-01-24 5250-29.61.2%47.1-0.1 5600-28.21.1%53.10.4 5750-33.90.6%51.3-1.1

SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2302000047RG06 Page : 1 of 49 Authorized Signature: Panta Sun Wireless Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. FCC SAR TEST REPORT Application No.: SEWM2302000047RG Applicant: Xiaomi Communications Co., Ltd. Manufacturer: Xiaomi Communications Co., Ltd. Product Name: Tablet Computer Model No.(EUT): 23043RP34G Trade Mark: XIAOMI FCC ID: 2AFZZRP34G Standards: FCC 47CFR §2.1093 Date of Receipt: 2023-02-28 Date of Test: 2023-03-10 to 2023-03-15 Date of Issue: 2023-03-17 Test Result: PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2302000047RG06 Page: 2 of 69 REVISION HISTORY Report Number Revision Description Issue Date SEWM2302000047RG06 01 Original 2023-03-17 SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2302000047RG06 Page: 3 of 69 TEST SUMMARY Frequency Band Test position Max Report SAR1-g (W/kg) SAR limit (W/kg) WI-FI (2.4GHz) Body 1.03 1.60 WI-FI (5GHz) Body 1.09 1.60 BT Body 0.79 1.60 Maximum Simultaneous Transmission SAR (W/kg) 1.57 1.60 Reviewed by Well Wei Prepared by Nick Hu SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2302000047RG06 Page: 4 of 69 CONTENTS 1 GENERAL INFORMATION .....................................................................................................................................6 1.1 DETAILS OF CLIENT .................................................................................................................................................. 6 1.2 TEST LOCATION ........................................................................................................................................................ 6 1.3 TEST FACILITY .......................................................................................................................................................... 7 1.4 GENERAL DESCRIPTION OF EUT ............................................................................................................................. 8 1.5 TEST SPECIFICATION ................................................................................................................................................ 9 1.6 RF EXPOSURE LIMITS ............................................................................................................................................... 9 2 SAR MEASUREMENTS SYSTEM CONFIGURATION ...................................................................................... 10 2.1 THE SAR MEASUREMENT SYSTEM ....................................................................................................................... 10 2.2 ISOTROPIC E-FIELD PROBE EX3DV4 .................................................................................................................... 11 2.3 DATA ACQUISITION ELECTRONICS (DAE)............................................................................................................. 12 2.4 SAM TWIN PHANTOM ............................................................................................................................................ 12 2.5 ELI PHANTOM ......................................................................................................................................................... 13 2.6 DEVICE HOLDER FOR TRANSMITTERS ................................................................................................................... 14 2.7 MEASUREMENT PROCEDURE.................................................................................................................................. 15 2.7.1 Scanning procedure ........................................................................................................................................ 15 2.7.2 Data Storage .................................................................................................................................................... 17 2.7.3 Data Evaluation by SEMCAD ........................................................................................................................ 17 3 DESCRIPTION OF TEST POSITION ................................................................................................................... 19 3.1 THE BODY TEST POSITION ..................................................................................................................................... 19 4 PROXIMITY SENSOR TRIGGERING TEST ......................................................................................................…

Text truncated - open the document above for the full version.
