2AFZZX04GMi Smart Clock

All images are for illustration purposes only and may differ from the actual product by model and region. User Manual of Mi Smart Clock List English2 Español de Latinoamérica14 25 1 日本語 2 Power Adapter User Manual Smart Clock Packing List Buon Instruction Microphone disable/enable English Synchronously hold “VOL +” & ”VOL -” buon for 10 seconds to reset factory seings VOL + VOL - 3 Your Mi Smart Clock What you need to get started Geing Started 1 Download the Google Home app 1 Plug in the device 2 A Google Account 2 A mobile phone or tablet that An internet connection and secure wireless network 3 4 English Has Android™ 5.0 or higher Works with 2.4 GHz WiFi network (a WPA-2 Enterprise network won’t work) All of the seings and controls during the setup process are carried out through the Google Home app, so you’ll need to download it to your phone or tablet. Go into the app store on your device. On iOS this is the App Store and on Android devices it is the Google Play Store. Once in the store, search for Google Home and when you found the correct app, download and install it. Now that we have the soware we need, it’s time to get the hardware itself set up. Take the power adaptor that came packaged with the device and plug in into the port, then take the other end of the cable and plug in into your wall. 4 Set up your device 3 A lile help to start and end your day. 4 English The Google Home app will begin a tutorial, displaying a number of basic set up steps for you to follow. Scroll through these and follow the instructions to set up your Mi Smart Clock. Talk to Google on your Mi Smart Clock to set an alarm, enjoy music, check your next meeting time, control your smart home, and more – all hands – free. 5 Kick start your day: Wake up with hundreds of sound and media alarms. Plus, check the weather, view your calendar, get commute info, news, and more - all hands free. Unwind in the evening: Ask Google to turn off the lights, lock the doors, and play some relaxing music as you get ready for bed. You can also see alarm suggestions and set it up via voice or touch. Control your connected home: Use your voice to control your smart home devices. Turn on the lights, adjust the thermostat, check your security camera and more - just say “Ok Google.“ to get started. Enjoy your favourite music: Talk to Google to play your favourite music and radio. Your Smart Clock also works with Chromecast, so you can cast your favourite shows, movies, or music to your TV or speakers using your voice. English Ok Google 6 English Input 5V 2A Wireless IEEE 802.11b/g/n 2.4GHz WiFi Name Mi Smart Clock Model X04G Speaker 1.5” Full-range speaker Display 3.97” Microphones 2-mic array Bluetooth BT4.2 & A2DP Technical Specif ications Operating Frequency and Radio Frequency Power: WiFi: 2412MHz~2472MHz(≤20dBm for UK) BT: 2402MHz~2480MHz(≤10dBm for UK) BLE: 2402MHz~2480MHz(≤10dBm for UK) 7 English WARRANTY NOTICE LIMITED PRODUCT WARRANTY 1 THIS WARRANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY HAVE OTHER RIGHTS CONVEYED BY LAWS OF YOUR COUNTRY, PROVINCE OR STATE. INDEED, IN SOME COUNTRIES, PROVINCES OR STATES, CONSUMER LAW MAY IMPOSE A MINIMUM WARRANTY PERIOD. OTHER THAN AS PERMITTED BY LAW, XIAOMI DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER RIGHTS YOU MAY HAVE. FOR A FULL UNDERSTANDING OF YOUR RIGHTS WE INVITE YOU TO CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE OR STATE. This contractual Warranty applies only to the hardware components of Xiaomi Product (hereaer “Product”) as originally supplied and does not apply to any soware or other equipment that are owned by Xiaomi or third parties for which an end-user license agreement or separate warranty/guarantee statements or exclusions are provided or intended to apply. XIAOMI warrants that the Products are free from defects in materials and workmanship under normal use and use in accordance with the respective Product user manual, during the Warranty Period. The duration and conditions related to the legal warranties are provided by respective local laws. For more information 8 about the consumer warranty benefits, please refer to Xiaomi's official website hps://www.mi.com/en/service/warranty/. Xiaomi warrants to the original purchaser that its Xiaomi Product will be free from defects in materials and workmanship under normal use in the period mentioned above. Xiaomi does not guarantee that the operation of the Product will be uninterrupted or error free. Xiaomi is not liable for damages arising from non-compli- ance with the instructions related to the use of the Product. English REMEDIES 2 If a hardware defect is found and a valid claim is received by Xiaomi within the Warranty Period, Xiaomi will either (1) repair the product at no charge, (2) replace the product, or (3) refund the Product, excluding potential shipping costs. HOW TO OBTAIN WARRANTY SERVICE 3 To obtain warranty service, you must deliver the Product, in its original packaging or similar packaging providing an equal degree of Product protection, to the address specified by Xiaomi. Except to the extent prohibited by applicable law, Xiaomi may require you to present proofs or proof of purchase and / or comply with registration requirements before receiving warranty service. EXCLUSIONS AND LIMITATIONS 4 9 Unless otherwise stipulated by Xiaomi, this Limited Warranty applies only to the Product manufactured by or for Xiaomi and identifiable by the trademarks, trade name or "Xiaomi" or "Mi" logo. The Limited Warranty does not apply to any (a) Damage due to acts of nature or God, for example, lightning strikes, tornadoes, flood, fire, earthquake or other external causes; (b) Negligence; (c) Commercial use; (d) Alterations or modifications to any part of the Product; (e) Damage caused by use with non-Xiaomi products; (f) Damage caused by accident, abuse or misuse; (g) Damage caused by operating the Product outside the permied or intended uses described by Xiaomi or with improper voltage or power supply; or (h) Dam…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District City: Beijing Country: China Declare that: Name Representative of agent: Ms. Rose Liu Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Mi Smart Clock Type designation: X04G Trademark: MI FCC ID : 2AFZZX04G on our behalf. Date: 2021-05-12 City:Beijing Name: Xuxiaoping Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Xiaomi Communications Co.,Ltd Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District City: Beijing, Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AFZZX04G Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 2021-05-12 Name and signature of applicant: Xuxiaoping Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Xiaomi Communications Co., Ltd. Wi-Fi Channel 12 and 13 Declaration Letter Date: 2021-05-12 We, the undersigned company Company Name: Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Declare that: Product description: Mi Smart Clock Type designation: X04G Brand: MI FCC ID: 2AFZZX04G Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Xuxiaoping Tel: 010 6060 6666 Email: [email protected]

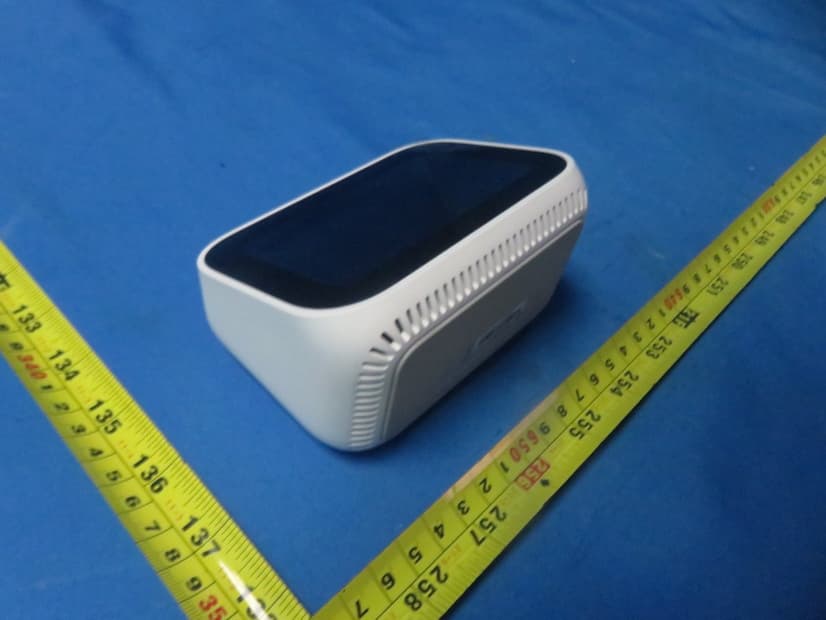

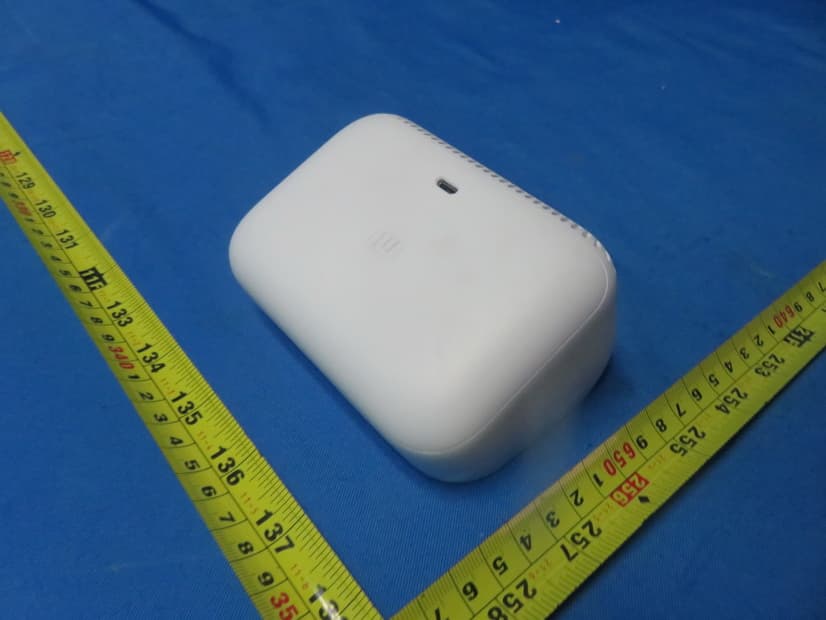

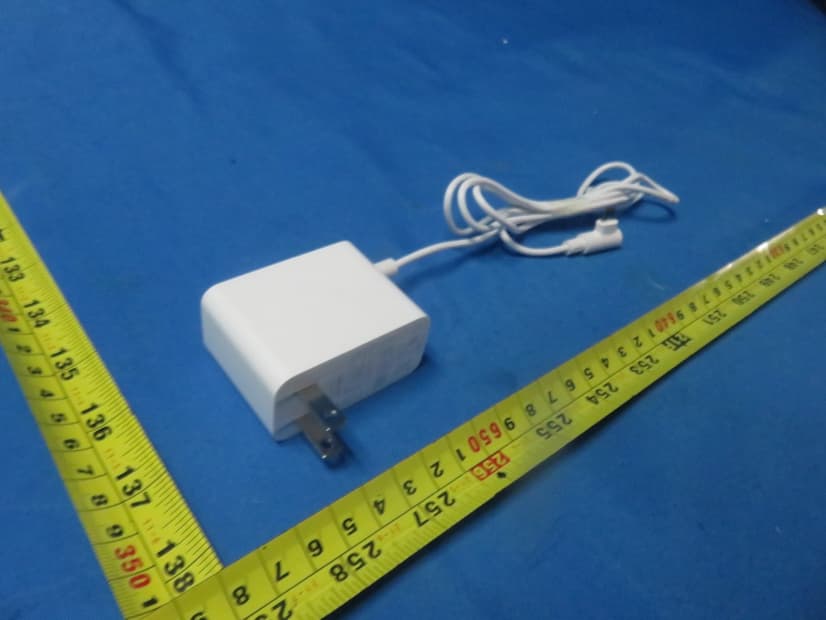

Report No.: 2103C223 Page 2 of 16 Report No.: 2103C223 Page 3 of 16 Report No.: 2103C223 Page 4 of 16 Report No.: 2103C223 Page 5 of 16

label location

Report No.: 2103C223 Page 6 of 16 Antenna Antenna Report No.: 2103C223 Page 7 of 16 Report No.: 2103C223 Page 8 of 16 Report No.: 2103C223 Page 9 of 16 Report No.: 2103C223 Page 10 of 16 Report No.: 2103C223 Page 11 of 16 Report No.: 2103C223 Page 12 of 16 Report No.: 2103C223 Page 13 of 16 Report No.: 2103C223 Page 14 of 16 Report No.: 2103C223 Page 15 of 16 Report No.: 2103C223 Page 16 of 16

Report No.: BTL-FCCP-4-2103C223 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: 2AFZZX04G Project No. : 2103C223 Equipment : Mi Smart Clock Brand Name : MI Test Model : X04G Series Model : N/A Applicant : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Manufacturer : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Factory : 1# Shenzhen Chino-e Communication Co., Ltd. 2# Shenzhen MTC Digital Technology Co., Ltd Address : 1# Building 6 of Xinbaili Industrial Park, Floors 3-5, No.1, Floors 1-5, No.3 of Yifenghua Innovation Industrial Park, Hualian Industrial Zone, Xinshi Community, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China. 2# 2F Building 3,6F,2F, Building 2, MTC Industry Park, Xialilang community, Nanwan street, Longgang district, Shenzhen, China Date of Receipt : Mar. 31, 2021 Date of Test : Apr. 06, 2021 ~ Apr. 27, 2021 Issued Date : May 14, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021032677 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-4-2103C223 Page 2 of 3 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue May 14, 2021 Report No.: BTL-FCCP-4-2103C223 Page 3 of 3 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 AS04 FPC N/A 1.90 Note: The antenna gain is provided by the manufacturer. 3. TEST RESULTS For BT: Antenna Gain (dBi) Antenna Gain (numeric) Max. Peak Output Power (dBm) Max. Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.90 1.5488 8.77 7.5336 0.00232 1 Complies For LE: Antenna Gain (dBi) Antenna Gain (numeric) Max. Peak Output Power (dBm) Max. Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.90 1.5488 7.77 5.9841 0.00184 1 Complies For 2.4GHz: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.90 1.5488 24.66 292.4152 0.09015 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-3-2103C223 Page 1 of 106 FCC Radio Test Report FCC ID: 2AFZZX04G This report concerns: Original Grant Project No. : 2103C223 Equipment : Mi Smart Clock Brand Name : MI Test Model : X04G Series Model : N/A Applicant : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Manufacturer : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Factory : 1# Shenzhen Chino-e Communication Co., Ltd. 2# Shenzhen MTC Digital Technology Co., Ltd Address : 1# Building 6 of Xinbaili Industrial Park, Floors 3-5, No.1, Floors 1-5, No.3 of Yifenghua Innovation Industrial Park, Hualian Industrial Zone, Xinshi Community, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China. 2# 2F Building 3,6F,2F, Building 2, MTC Industry Park, Xialilang community, Nanwan street, Longgang district, Shenzhen, China Date of Receipt : Mar. 31, 2021 Date of Test : Apr. 06, 2021 ~ Apr. 27, 2021 Issued Date : May 14, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021032677 for conducted, DG2021032678 for radiated. Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2103C223 Page 2 of 106 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-3-2103C223 Page 3 of 106 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.6 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATION CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 19 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 20 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS - ABOVE 1000 MHZ 20 5 . BANDWIDTH 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 Report No.: BTL-FCCP-3-2103C223 Page 4 of 106 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 . MAXIMUM OUTPUT POWER 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . CONDUCTED SPURIOUS EMISSIONS 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 32 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 35 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 40 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 43 APPENDIX E - BANDWIDTH 92 APPENDIX F - MAXIMUM OUTPUT POWER 97 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 99 Report No.: BTL-FCCP-3-2103C223 Page 5 of 106 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 104 Report No.: BTL-FCCP-3-2103C223 Page 6 of 106 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. May 14, 2021 Report No.: BTL-FCCP-3-2103C223 Page 7 of 106 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-3-2103C223 Page 101 of 106 Test Mode TX G Mode Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-3-2103C223 Page 102 of 106 Test Mode TX N(HT20) Mode Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-3-2103C223 Page 103 of 106 Test Mode TX N(HT40) Mode Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-3-2103C223 Page 104 of 106 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-3-2103C223 Page 105 of 106 Test Mode TX B Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -2.50 8.00 Complies 06 2437 -1.92 8.00 Complies 11 2462 -2.90 8.00 Complies CH01 CH06 CH11 Test Mode TX G Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -4.36 8.00 Complies 06 2437 -5.42 8.00 Complies 11 2462 -5.02 8.00 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-3-2103C223 Page 106 of 106 Test Mode TX N(HT20) Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.92 8.00 Complies 06 2437 -5.83 8.00 Complies 11 2462 -5.52 8.00 Complies CH01 CH06 CH11 Test Mode TX N(HT40) Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -8.50 8.00 Complies 06 2437 -8.66 8.00 Complies 09 2452 -8.83 8.00 Complies CH03 CH06 CH09 End of Test Report

Report No.: BTL-FCCP-2-2103C223 Page 1 of 61 FCC Radio Test Report FCC ID: 2AFZZX04G This report concerns: Original Grant Project No. : 2103C223 Equipment : Mi Smart Clock Brand Name : MI Test Model : X04G Series Model : N/A Applicant : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Manufacturer : Xiaomi Communications Co.,Ltd Address : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China Factory : 1# Shenzhen Chino-e Communication Co., Ltd. 2# Shenzhen MTC Digital Technology Co., Ltd Address : 1# Building 6 of Xinbaili Industrial Park, Floors 3-5, No.1, Floors 1-5, No.3 of Yifenghua Innovation Industrial Park, Hualian Industrial Zone, Xinshi Community, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China. 2# 2F Building 3,6F,2F, Building 2, MTC Industry Park, Xialilang community, Nanwan street, Longgang district, Shenzhen, China Date of Receipt : Mar. 31, 2021 Date of Test : Apr. 06, 2021 ~ Apr. 27, 2021 Issued Date : May 14, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021032677 for conducted, DG2021032678 for radiated. Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2103C223 Page 2 of 61 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2103C223 Page 3 of 61 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 11 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.5 SUPPORT UNITS 12 3 . AC POWER LINE CONDUCTED EMISSIONS 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 13 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 14 3.5 EUT OPERATING CONDITIONS 14 3.6 TEST RESULTS 14 4 . RADIATED EMISSIONS 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM TEST STANDARD 17 4.4 TEST SETUP 17 4.5 EUT OPERATING CONDITIONS 18 4.6 TEST RESULT - 9 KHZ TO 30 MHZ 18 4.7 TEST RESULT - 30 MHZ TO 1000 MHZ 18 4.8 TEST RESULT - ABOVE 1000 MHZ 18 5 . BANDWIDTH 19 5.1 LIMIT 19 5.2 TEST PROCEDURE 19 5.3 DEVIATION FROM STANDARD 19 5.4 TEST SETUP 19 Report No.: BTL-FCCP-2-2103C223 Page 4 of 61 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 19 5.6 TEST RESULTS 19 6 . MAXIMUM OUTPUT POWER 20 6.1 LIMIT 20 6.2 TEST PROCEDURE 20 6.3 DEVIATION FROM STANDARD 20 6.4 TEST SETUP 20 6.5 EUT OPERATION CONDITIONS 20 6.6 TEST RESULTS 20 7 . CONDUCTED SPURIOUS EMISSION 21 7.1 LIMIT 21 7.2 TEST PROCEDURE 21 7.3 DEVIATION FROM STANDARD 21 7.4 TEST SETUP 21 7.5 EUT OPERATION CONDITIONS 21 7.6 TEST RESULTS 21 8 . POWER SPECTRAL DENSITY 22 8.1 LIMIT 22 8.2 TEST PROCEDURE 22 8.3 DEVIATION FROM STANDARD 22 8.4 TEST SETUP 22 8.5 EUT OPERATION CONDITIONS 22 8.6 TEST RESULTS 22 9 . MEASUREMENT INSTRUMENTS LIST 23 10 . EUT TEST PHOTO 25 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 30 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 33 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 38 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 41 APPENDIX E - BANDWIDTH 54 APPENDIX F - MAXIMUM OUTPUT POWER 56 Report No.: BTL-FCCP-2-2103C223 Page 5 of 61 Table of Contents Page APPENDIX G - CONDUCTED SPURIOUS EMISSION 58 APPENDIX H - POWER SPECTRAL DENSITY 60 Report No.: BTL-FCCP-2-2103C223 Page 6 of 61 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. May 14, 2021 Report No.: BTL-FCCP-2-2103C223 Page 7 of 61 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgmen…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2103C223 Page 28 of 88 12. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2103C223 Page 29 of 88 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2103C223 Page 30 of 88 Radiated Emissions Test Photos 30 MHz to 1000 MHz Report No.: BTL-FCCP-1-2103C223 Page 31 of 88 Radiated Emissions Test Photos Above 1 GHz Report No.: BTL-FCCP-1-2103C223 Page 32 of 88 Conducted Test Photos
