2AG68-TWS-824ATRUE WIRELESS EARBUDS

&280,+ 7:6$    䈤᰾Җ $ 㢣㓒ߌ ࣎ࢱ OO2್ᢖࢷᯮI᪾ဧᎵҶᰍI΁ᎵᵳᕫֆԌᓢថ Übersicht des Produkts Verpackungsinhalt Sieben. Lichtanzeige Verwendungsanleitungen Gerät RahmenBluetooth $NWGVQQVJ Coumi H10 Trageanleitung Technische Specifications Häufig getretende Fragen 1 3 4 5 7 8 Funktionsbetrieb 6 2 Bedienungsanleitung des Kopfhörers Anruf ablehnen Ausladetasche/ Presse für 3 Sekunden Power On Power Off Wieder auf Ladekoffer/ Drücken für 10 Sekunden Anrufe auflegen Vorderseite des linken Ohrs Vorderseite des linken Ohrs Doppelklicken Doppelklicken Halten Sie 2 Sekunden lang Halten Sie 2 Sekunden lang Halten Sie 2 Sekunden lang call rejected Du Einmal klicken Einmal klicken Einmal klicken Einmal klicken Einmal klicken Einmal klicken Halten Sie 2 Sekunden lang Drei mal drücken Drei mal drücken Wiedergaben / Stoppen Einschalten ausschalten Sprachassistent- Funktion Funktion Aufforderungston Durch einmales Klicken zum letzten Lied wechseln zum nächsten Lied wechseln Lautstärke+ Lautstärke- Anrufe entgegennehmen Multifunktionales Touchpad Kopfhörhülle Ladekontaktpunkt aus Metall Kopfhörer-Teile Ladekontaktpunkt Mikrofon LED Lampe USB-Ladeanschluss Kontrollleuchte der Ladekasten Kopfhörer x1 (Standard mit mittlerer Hörhülle)Ladebox x1 Größe Kopfhörhülle. x2 Kleine Kopfhörhülle. x2 Micro-USB-Ladekabel x1 Benutzerhandbuch x1 Kurzanleitung X1 Rabattkarte X1 Nachverkauskarte X1 Ladekastenteil 2.Bitte installieren Sie die Kopfhörhülle mit der am besten geeigneten Größe am Ohrenmund. 3.Wählen Sie beim Tragen des Kopfhörers den rechten und linken Kanal (L / R -Iconauf der Innenseite des Kopfhörers) und stecken Sie den Kopfhörer die laterale Ohrmuschel ein. Drehen Sie die Kopfhörer entsprechend der Pfeilri- chtung, um die Stabilität der Kopfhörer zu erhöhen. 1.Wählen Sie die geeignet Kopfhörhülle. Wir bieten drei Größen davon an, große, mittlere und kleine. Bitte versuchen und wählen Sie die richtige Größe, um die bestmöglichen Verwendungserle- bnisse zu erhalten. Erste Verwendung: Bitte reißen Sie den Isolationsaufkleber des Ladekontakts des Headsets ab, und dann stellen Sie das Headset zum Laden in die Ladebox. Nehmen Sie entweder oder beide Ohrhörer aus dem Ladekoffer auf und setzen Sie sie an. Sie hören den "Power on"-Ton, wenn sie sich automatisch einschalten und miteinander paaren. Rote und blaue Lichter blinken abwechselnd, dann gehen Sie aus. Bluetooth-Verbindung Schalten Sie die Bluetooth-Funktion Ihres Geräts ein und suchen Sie nach "Coumi H10", und Sie hören den Ton "connected", wenn Ohrhörer angeschlossen sind. 1. 2. 3. * Dieses Produkt wurde geprüft und qualifiziert * Produktmodell: TWS-824A Bluetooth-Version: 5.0 Unterstützungsprotokoll: HFP / HSP / A2DP / AVRCP Kommunikationsentfernung: 360° 10M Alleine Musikdauer: ca. 4.5 Stunden Verwendungszeit mit Ladebox: ca. 13.5 Stunden Ladezeit: 2 Stunden Ladespannung: Kopfhörer: 5V / 50mA Ladebox: 5V / 235mA Batterietyp: Litium-Ionen-Batterie Kopfhörer: 3,7V/55 mAh Ladebox: 3,7V/300 mAh Frequenzgang: 20Hz-20KHz Empfindlichkeit: 98 ± 3 dB Das Headset kann nicht eingeschaltet werden Bitte bestätigen Sie, ob das Headset über Strom verfügt. Falls nicht, laden Sie es bitte auf und schalten Sie es dann ein Die Bluetooth-Anpaarung ist nicht erfolgreich Stellen Sie sicher, dass der Kopfhörer eingeschaltet ist und sich im angepaartten Verbindungsstatus befindet, der Anpaarungsabstand sollte innerhalb von 1 m sein. Starten Sie das Headset neu, um es anzupaaren. Einige Bluetooth-Geräte fordern zum Pairing des Kennworts auf $KVVGIGJGP5KGGKP Automatische Zurückverbindung Nach dem Einschalten wird es die Verbindung zum zuletzt gekoppelten verbundenen Mobiltelefon automatisch wiederhergestellt. Wie lange wird es automatisch ausgeschaltet, wenn die Maschine bei der Einschaltung nicht verbunden wird. Nach dem Einschalten des Headsets sind keine anderen Bluetooth-Geräte nicht verbunden geworden, wird es nach 10 Minuten automatisch ausgeschaltet. 9CTPWPI 1. Entfernen oder rüsten Sie den Kopfhörer aus keinem Grund nach, da dies zu einem Ausfall oder Verbrennen des Kopfhörers, e lektronische Panne oder sogar zu einer vollständigen Beschädigung des Produkts führen kann 2. Dieses Produkt hat einen eingebauten wiederaufladbaren Lithium-Ionen-Akku. Es ist verboten, es zu zerlegen, aufzuschlagen, zu quetschen oder ins Feuer zu werfen. Bei starker Ausbeulung verwenden Sie es bitte nicht weiter 3. Stellen Sie das Gerät nicht in einer Umgebung mit zu niedriger oder zu hoher Temperatur (unter 0 ° C oder über 45 ° C) auf. 4. Verwenden Sie diese Ausrüstung bei Gewitter nicht. Gewitter können zu Fehlfunktionen des Geräts führen und das Risiko eines Stromschlags erhöhen 1. 2. 3. 4. 5. Wenn der linke und der rechte Ohrhörer das Telefon nicht synchronisieren oder verbinden, weil sich das Headset im Wiederverbindungsmodus oder in einem anderen Modus befindet, oder wenn Sie Ihr bevorzugtes Bluetooth- Gerät nicht finden können, können Sie einen Werksreset durchführen: Headset in der Ladeschale, gleichzeitig die linke und rechte Seite des He- adsets 10s lang drücken, bis das blaue Licht dreimal blinkt, die Kopplung ist abgeschlossen, das Headset startet dann automatisch neu, TWS wieder anschließen, in den Zustand der Telefonkopplung eintreten. 6. .KEJVCP\GKIGFGT.CFGDQZ LadekastenlichtstatusStatus der Ladebox KopfhörerlichtstatusStatus der Kopfhörerleuchte Das blau Licht lange aufleuchten während des Ladens Jede Lampe stellt 25% der Stromversorgung dar, eine Lampe ist voll geladen und eine Lampe leuchtet permanent, die anderen Lampen sind im Betriebsmodus Völlig aufladen einschalten des Telefons Die Bluetooth-Kopplung des Telefons war erfolgreich angepaart Blitz 1 Sekunde Zwei Ohrhörer mit abwechselnd blauem und rotem Blinklicht Zwei Ohrhörer leuchten aus Lichtanzeige des Kopfhörers Anleitung der Dauer: Aufgrund unterschiedlicher Systeme, Audioformate, persönlicher Nutzungsgewohnh- eiten (z. B. Lautstärke) von Mobiltelefonen und anderen Geräten kann …

Text truncated - open the document above for the full version.

Dongguan Koppo Electronics Co., Ltd. Agent Authorization Company: Dongguan Koppo Electronics Co., Ltd. Address: No.2 Road 3, Buxinji Industrial Area, Guanjingtou Village, Fenggang Town, Dongguan City, Guangdong Province, China Product Name: TRUE WIRELESS EARBUDS Model Number(s): TWS-824A Product Description: TRUE WIRELESS EARBUDS We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-29 Name: yongning Wei Company: Dongguan Koppo Electronics Co.,Ltd

Dongguan Koppo Electronics Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-12-31 Subject; Request for Confidentiality FCC ID: 2AG68-TWS-824A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Dongguan Koppo Electronics Co.,Ltd Contact person: yongning Wei

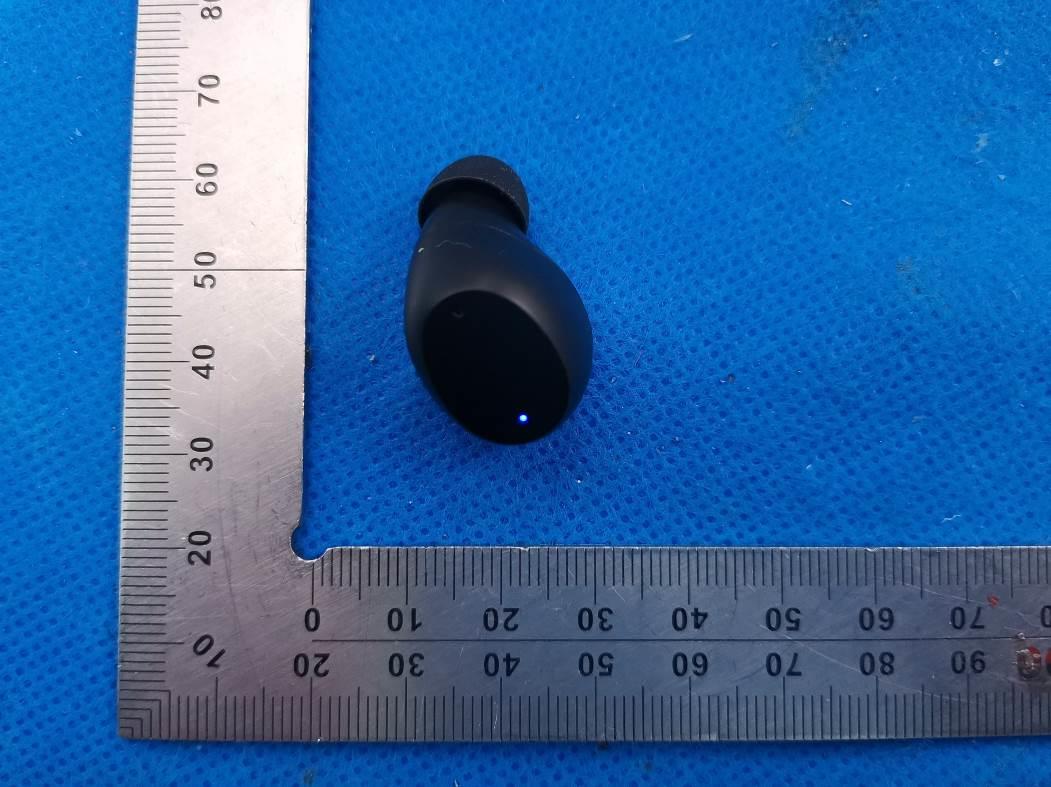

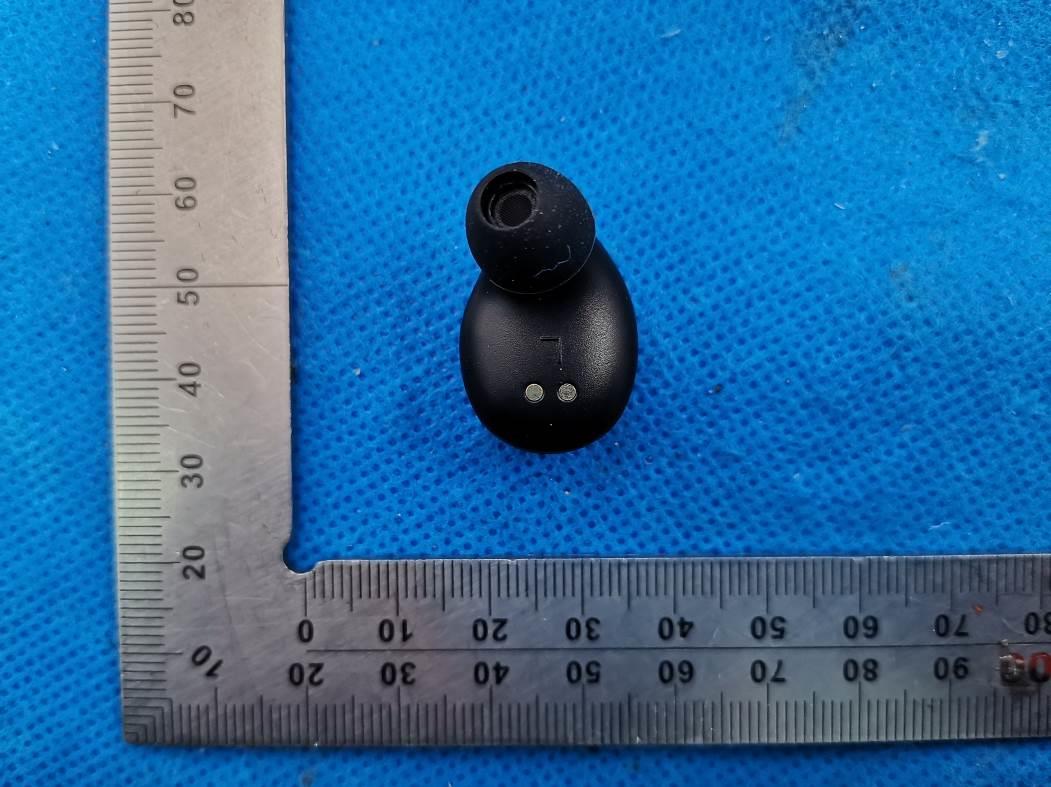

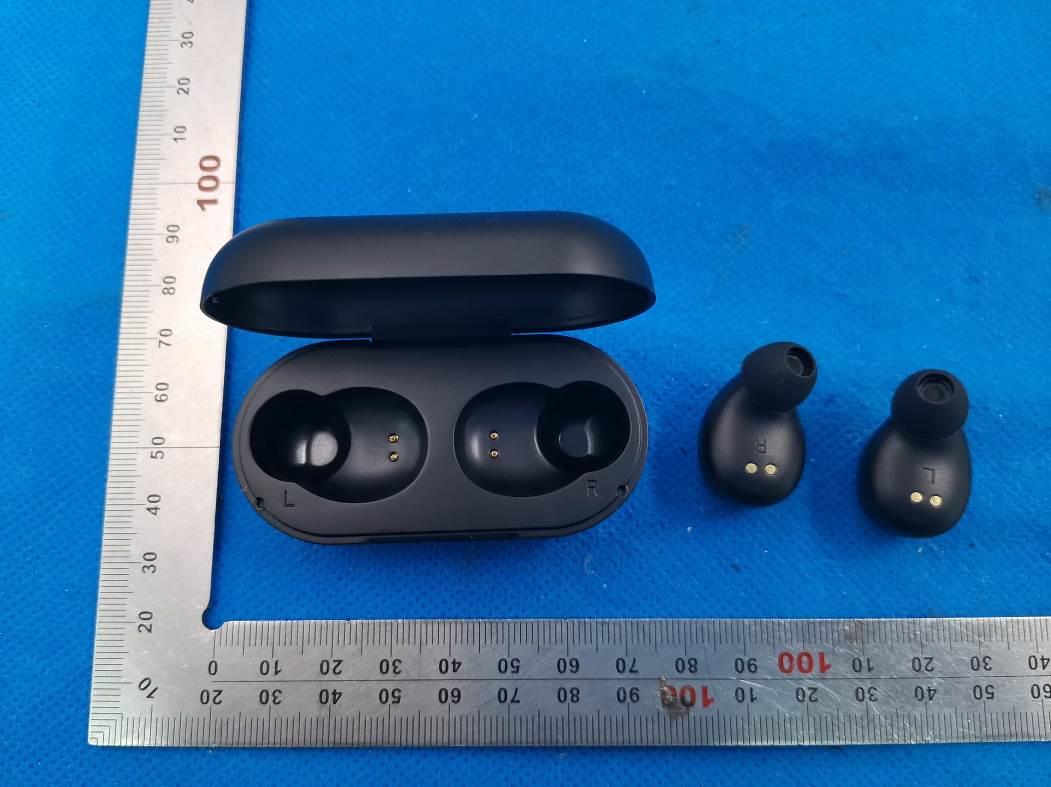

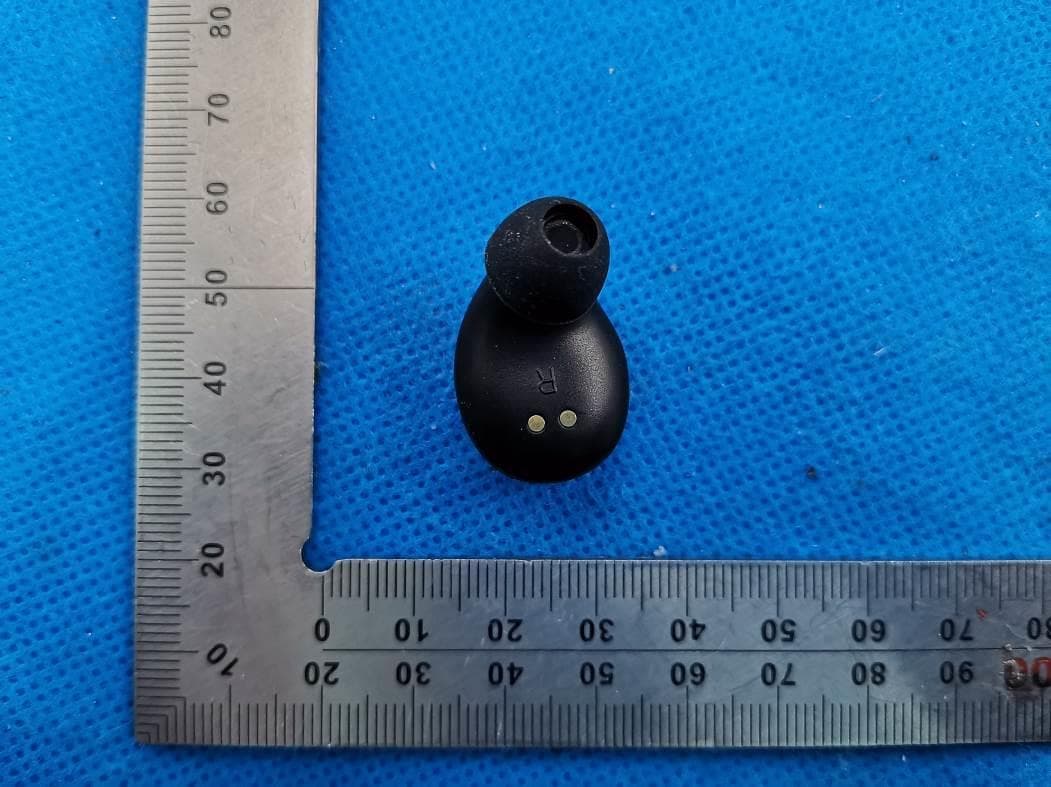

External Photos WHOLE VIEW OF EUT Left TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Right TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location The product does not have enough space to place the label, and FCC ID label is reflected in the user manual and package, as below:

Internal Photos Left OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 BT Antenna Right OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 BT Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description TRUE WIRELESS EARBUDS Model Name TWS-824A FCC ID 2AG68-TWS-824A 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR(Left): P t =-3.423dBm=0.45mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.45mW /5mm) .[√2.480GHz)]=0.14<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 88 FCC Test Report Report No.: AGC08328201201FE03 FCC ID : 2AG68-TWS-824A APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : TRUE WIRELESS EARBUDS BRAND NAME : N/A MODEL NAME : TWS-824A APPLICANT : Dongguan Koppo Electronics Co., Ltd. DATE OF ISSUE : Dec. 30, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC08328201201FE03 Page 2 of 88 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 30, 2020 Valid Initial Release Report No.: AGC08328201201FE03 Page 3 of 88 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 2.10. ANTENNA REQUIREMENT .................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 26 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 26 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 26 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 27 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 33 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 33 Report No.: AGC08328201201FE03 Page 4 of 88 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 33 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 33 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 33 10. RADIATED EMISSION ............................................................................................................................... 46 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 46 10.2. TEST SETUP ....................................................................................................................................... 48 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 49 10.4. TEST RESULT ..................................................................................................................................... 49 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 59 11.1. MEASUREMENT PROCEDURE ........…

Text truncated - open the document above for the full version.

Report No.: AGC08328201201FE03 Page 42 of 88 π /4-DQPSK MODULATION IN LOW CHANNEL Hopping off Hopping on Report No.: AGC08328201201FE03 Page 43 of 88 π /4-DQPSK MODULATION IN HIGH CHANNEL Hopping off Hopping on Report No.: AGC08328201201FE03 Page 44 of 88 8-DPSK MODULATION IN LOW CHANNEL Hopping off Hopping on Report No.: AGC08328201201FE03 Page 45 of 88 8-DPSK MODULATION IN HIGH CHANNEL Hopping off Hopping on Report No.: AGC08328201201FE03 Page 46 of 88 10. RADIATED EMISSION 10.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emission, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC08328201201FE03 Page 47 of 88 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC08328201201FE03 Page 48 of 88 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC08328201201FE03 Page 49 of 88 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT RADIATED EMISSION BELOW 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC08328201201FE03 Page 50 of 88 RADIATED EMISSION BELOW 1GHz EUT TRUE WIRELESS EARBUDS Model Name TWS-824A Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Horizontal RESULT: PASS Report No.: AGC08328201201FE03 Page 51 of 88 EUT TRUE WIRELESS EARBUDS Model Name TWS-824A Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Over= Measurement –Limit. 2. All test modes had been pre-tested. The mode 9 is the worst case and recorded in the report. Report No.: AGC08328201201FE03 Page 52 of 88 RADIATED EMISSION ABOVE 1GHz EUT TRUE WIRELESS EARBUDS Model Name TWS-824A Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimit…

Text truncated - open the document above for the full version.

Report No.: AGC08328201201FE03 Page 71 of 88 VIEW OF BATTERY INTERNAL VIEW OF EUT-1 Report No.: AGC08328201201FE03 Page 72 of 88 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Report No.: AGC08328201201FE03 Page 73 of 88 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 Report No.: AGC08328201201FE03 Page 74 of 88 INTERNAL VIEW OF EUT-6 Right TOP VIEW OF EUT BT Antenna Report No.: AGC08328201201FE03 Page 75 of 88 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC08328201201FE03 Page 76 of 88 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC08328201201FE03 Page 77 of 88 RIGHT VIEW OF EUT OPEN VIEW OF EUT Report No.: AGC08328201201FE03 Page 78 of 88 VIEW OF BATTERY INTERNAL VIEW OF EUT-1 Report No.: AGC08328201201FE03 Page 79 of 88 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Report No.: AGC08328201201FE03 Page 80 of 88 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 Report No.: AGC08328201201FE03 Page 81 of 88 INTERNAL VIEW OF EUT-6 Charging Dock TOP VIEW OF EUT BT Antenna

Report No.: AGC08328201201FE03 Page 82 of 88 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC08328201201FE03 Page 83 of 88 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC08328201201FE03 Page 84 of 88 RIGHT VIEW OF EUT VIEW OF EUT(port)-1 Report No.: AGC08328201201FE03 Page 85 of 88 VIEW OF EUT(port)-2 OPEN VIEW OF EUT Report No.: AGC08328201201FE03 Page 86 of 88 VIEW OF BATTERY INTERNAL VIEW OF EUT-1 Report No.: AGC08328201201FE03 Page 87 of 88 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Report No.: AGC08328201201FE03 Page 88 of 88 INTERNAL VIEW OF EUT-4 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
