2AG6GH8951-NACellular Wi-Fi Router

User Manual H8951-NA Cellular Wi-Fi Router www.hongdian.com Doc. Version 1.2 ii Cellular Wi-Fi Router User Manual We Hongdian provide full support to customers, contact us freely if any questions. Shenzhen Hongdian Technologies Corporation Address F14-16,Headquarter Economic Center Building, ZhonghaixinScience&Tech Park, Bulan Road, Longgang District, Shenzhen Website http://www.hongdian.com Technical Support +86-0755-88864288-4/8238 Fax Number 0755-83404677 Postcode 518112 Copyright © Shenzhen Hongdian Technologies Corporation. 2017. All rights reserved. All information in this user manual is protected by copyright law. Whereby, no organization or individual shall copy or reproduce the whole or part of this user manual by any means without written authorization from Shenzhen Hongdian Technologies Corporation. Trademarks and Permissions and DTU are the trademarks and logos of Shenzhen Hongdian Technologies Corporation. Other trademarks and logos mentioned in this manual belong to other organizations related. Shenzhen Hongdian Technologies Corporation does not own the rights of other trademarks and logos. Caution Due to product updates or functional upgrading, we may renew the content of this file, and this file only for reference. All statement, information, suggestion etc. in this file do not compose any form of guarantee and we Hongdian reserves the right of final explanation. Doc. Version 1.2 iii Cellular Wi-Fi Router User Manual Introduction Summary H8951-NA Cellular Wi-Fi Router is a data communication terminal on mobile communication network which independently researched and developed by Hongdian Corporation. The product is based on 3G/4G wireless communication technology. It uses high performance 32-bit embedded operating system and has a full industrial design. It can provide high performance 3G/4G communication speed by accessing the global 3G/4G network via the embedded 4G module. It is widely used for various industries such as telecommunication, finance, information media, electric power, transportation, on-board devices and environmental protection and so on. The main function of this document is to help readers know the functional characteristics and typical application modes of the product, understand the installation, deployment and configuration operation methods for the product and master the methods for dealing with common faults during usage. Product Version The product version corresponding to the document is as shown below. Product name Product version H8951-NA Cellular Wi-Fi Router V50A Readers The document applies to the following persons:  R & D engineers  Technical support engineers  Customers You are recommended to start from Chapter One if you know and use any Router product of Hongdian for the first time so as to get a better understanding of the product and the correct usage by reading all the contents of the document. You are recommended to select any chapter or section you want to know via the contents below if you have known or used any Router product of Hongdian or a similar product of any other company. Doc. Version 1.2 iv Cellular Wi-Fi Router User Manual Brief Introduction of Contents The usage of H8951-NA Cellular Wi-Fi Router is described in the document. Section Contents 1 Product Introduction H8951-NA Cellular Wi-Fi Router and its functional characteristics, product orientation are introduced in the chapter. 2 Product Structure H8951-NA Cellular Wi-Fi Router software, hardware structures are introduced in the chapter. 3 Installation of H8951-NA Cellular Wi-Fi Router How to install H8951-NA Cellular Wi-Fi Router is introduced in the chapter. 4 Preparation before Configuration Preparation before H8951-NA Cellular Wi-Fi Router configuration is introduced in the chapter. 5 Router Configuration H8951-NA Cellular Wi-Fi Router functional configuration is introduced in the chapter. 6 Typical Application Several typical application modes of H8951-NA Cellular Wi-Fi Router is introduced in the chapter. 7 FAQ The causes and handling methods for common faults of H8951-NA Cellular Wi-Fi Router during usage are introduced in the chapter. Conventions Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results. Indicates a tip that may help you address a problem or save your time. Provides additional information to emphasize or supplement important points of the main text. Command Conventions Convention Description Boldface The keywords of a command line are in boldface. Doc. Version 1.2 v Cellular Wi-Fi Router User Manual Convention Description Italic Command arguments are in italics. [ ] Items (keywords or arguments) in brackets [ ] are optional. { x | y | ... } Optional items are grouped in braces and separated by vertical bars. One item is selected. [ x | y | ... ] Optional items are grouped in brackets and separated by vertical bars. One item is selected or no item is selected. { x | y | ... } * Optional items are grouped in braces and separated by vertical bars. A minimum of one item or a maximum of all items can be selected. [ x | y | ... ] * Optional items are grouped in brackets and separated by vertical ars. Several items or no item can be selected. &<1-n> The parameter before the “&” sign can be repeated 1 to n times. # A line starting with the “#” sign is comments. GUI Conventions Convention Description Boldface Buttons, menus, parameters, tabs, window, and dialog titles are in boldface. For example, click OK. > Multi-level menus are in boldface and separated by the ">" signs. For example, choose File > Create > Folder. Keyboard Operations Format Description Key Press the key. For example, press Enter and press Tab. Key 1+Key 2 Press the keys concurrently. For example, pressing Ctrl+Alt+A means the three keys should be pressed concurrently. Key…

Text truncated - open the document above for the full version.

64 H8951-NA1 3G/4G Router User Manual 5.5.2 NAT DNAT configuration rule DNAT is used to replace the destination address of packets accessing external network, router will replace the destination address of packet accessing external network into the user custom settings. Step 1 Log-on WEB GUI of H8951-NA Cellular Wi-Fi Router. Step 2 Click “Forward > NAT” to open “NAT” tab. Figure 5-30 NAT tab Step 3 Click “Add” to add a new NAT rule. 65 H8951-NA1 3G/4G Router User Manual Figure 5-31 DNAT rule configuration Step 4 Select “DNAT” in NAT Type, to configure DNAT rule parameter. Table 5-19 DNAT Parameter instruction Parameter Details Operation Basic Settings Protocol Supports “TCP”, “UDP”, “ICMP” or “ALL” Select from Dropdown List Original Address Type The external address, the address needs to be converted Dropdown List  interface  static Interface (when the initial address type select “interface” , needs to be configured) Indicates the external address of IP packets to an interface of the router Dropdown List  br0  modem  eth0  eth1 Original Address (when the initial address type select “static”, needs to be configured) The external address, the address needs to be converted Manual input Format1：A.B.C.D Format2: A.B.C.D/Mask 66 H8951-NA1 3G/4G Router User Manual Parameter Details Operation Original port The port of external IP, the port need to be replaced Value area: 1~65535 Mapping address Internal IP address e.g. 192.168.8.1 Mapping port The port of Internal IP address Value area :1~65535 Step 5 Single click “save” icon to finish. ---END SNAT configuration rule SNAT is the source address translation, and its role is to translate source address of IP packets into another address. Step 1 Log-on WEB GUI of H8951-NA Cellular Wi-Fi Router. Step 2 Click “Forward > NAT” to open “NAT” tab. Step 3 NAT Type select “SNAT”, Configuration interface as shown in Figure 5-47. Figure 5-32 SNAT rule configuration Step 4 Configure SNAT rule parameter. Parameter instruction as Table 5-22 67 H8951-NA1 3G/4G Router User Manual Table 5-20 SNAT rule instruction Parameter Details Operation Protocol Convert some kind of protocol packets into address  Dropdown List  all  tcp  udp  icmp Original Address The source address need to be replaced Manual input Format1：A.B.C.D Format2: A.B.C.D/Mask Original Port The port of external IP, the port need to be replaced Value area: 1-65535 or [1-65535], it can be a range, or a single port Mapping Address Type Internal IP address  Dropdown List  interface  static Interface Select the interface of the router as source address after replacement  Dropdown List  br0  modem  eth0  eth1 Mapping Port The new port which replaces the original port of source address. Value area: 1-65535 or [1-65535], it can be a range, or a single port Step 5 Single click “save” icon to finish. When a SNAT rule is configured with port specified, selecting “all” in protocol means selecting two protocols contain "tcp", "udp"; when a SNAT rule is configured with no port specified, selecting “all” in protocol means selecting three protocols contains "tcp", "udp","icmp". ---END MASQ rule configuration MASQ is MASQUREADE. Step 1 Log-on WEB GUI of H8951-NA Cellular Wi-Fi Router. Step 2 Click “Forward > NAT” to open “NAT” tab. Step 3 Select “SNAT” in NAT Type. The configuration page is shown in Figure 5-48. 68 H8951-NA1 3G/4G Router User Manual Figure 5-33 MASQ configuration Step 4 Configure MASQ rule parameter. Table 5-21 MASQ rule Parameter instruction Parameter Details Operation NAT Type To select “MASQ” Select “MASQ” Interface Interface includes:  br0: use br0 interface as commutation address between router & LAN and external network  Modem: use modem interface as commutation address between router & LAN and external network  eth0: use eth0 interface as commutation address between router & LAN and external network Select from Dropdown List Step 5 Single click “save” icon to finish. MASQ rule: the source address of all packets in the LAN need to be transferred into the specific ip address of the router, so the PC from the LAN can send packets out; If MASQ rule in the router will be deleted, the router LAN of the PC cannot communicate with external network. ---END 5.5.3 Static Routing Static routing can forward packets according that the user configured specific forwarding path manually. Static Routing form is divided into static routing and policy routing, static routing is based on the destination address as an alternative route; while policy route is based on the source address that match with the policy to forward the packets (forwarding router detects the received packet's source address, and then forward packages according to the source which matches policy route) and policy routing priority, use numbers 3 to 252 to differentiate, the smaller number with higher priority. And there 69 H8951-NA1 3G/4G Router User Manual are priorities between static routing and policy routing: policy routing higher priority than static routing. Step 1 Log-on WEB GUI of H8951-NA Cellular Wi-Fi Router. Step 2 Click “Forward > Routing” to open “NAT” tab, as Figure 5-49. Figure 5-34 Static Routing Interface Step 3 Click “Add” to add a new static route, configure interface as Figure 5-50 and Figure 5-51. Figure 5-35 Static Routing Interface 70 H8951-NA1 3G/4G Router User Manual Figure 5-36 Policy Routing Interface Parameter Instruction as Table 5-24. Table 5-22 Static Routing Parameter Instruction Parameter Details Operation Basic Setting Routing Type To select “Static Route” or “Policy Route”  Dropdown List When Routing Type is “Static Route” Network Set the destination IP address and subnet mask of static route Manual input Format1: A.B.C.D/Mask Gateway Type Specify gateway type of static routing, includes:  interface  static IP Dropdown List Gateway Set a next hop IP address of static route, IP address of the adjacent router interface Dropdown List  If the gateway type selects static IP, gateway need…

Text truncated - open the document above for the full version.

Hongdian Corporation Agent Authorization Company: Hongdian Corporation Address: F14-16,Headquarter Economic Center Building, Zhonghaixin Science&Tech Park, Bulan Road, Longgang District, Shenzhen 518112, China. Product Name: Cellular Wi-Fi Router Trade Mark: Models Number: H8951-NA, H8951, H8951-LQA FCC ID: 2AG6GH8951-NA We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-04-13 Name: Solon Lau Title: Manager Company: Hongdian Corporation

Hongdian Corporation Add: F14-16,Headquarter Economic Center Building, Zhonghaixin Science&Tech Park, Bulan Road, Longgang District, Shenzhen 518112, China. Tel: +86 188-2366-5080 Fax: +86 0755-83404677 Date: 2020-04-13 Dear Sir/Madam, We, Hongdian Corporation Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for marketing purpose: Product name: Cellular Wi-Fi Router Models No.: H8951-NA, H8951, H8951-LQA Sincerely, Client’s name / title : Solon Lau / Manager Contact information / address: F14-16,Headquarter Economic Center Building, Zhonghaixin Science&Tech Park, Bulan Road, Longgang District, Shenzhen 518112, China. Tel: +86 188-2366-5080 Fax: +86 0755-83404677 E-Mail: [email protected]

Hongdian Corporation Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-04-13 Subject; Request for Confidentiality FCC ID: 2AG6GH8951-NA To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Solon Lau Title: Manager

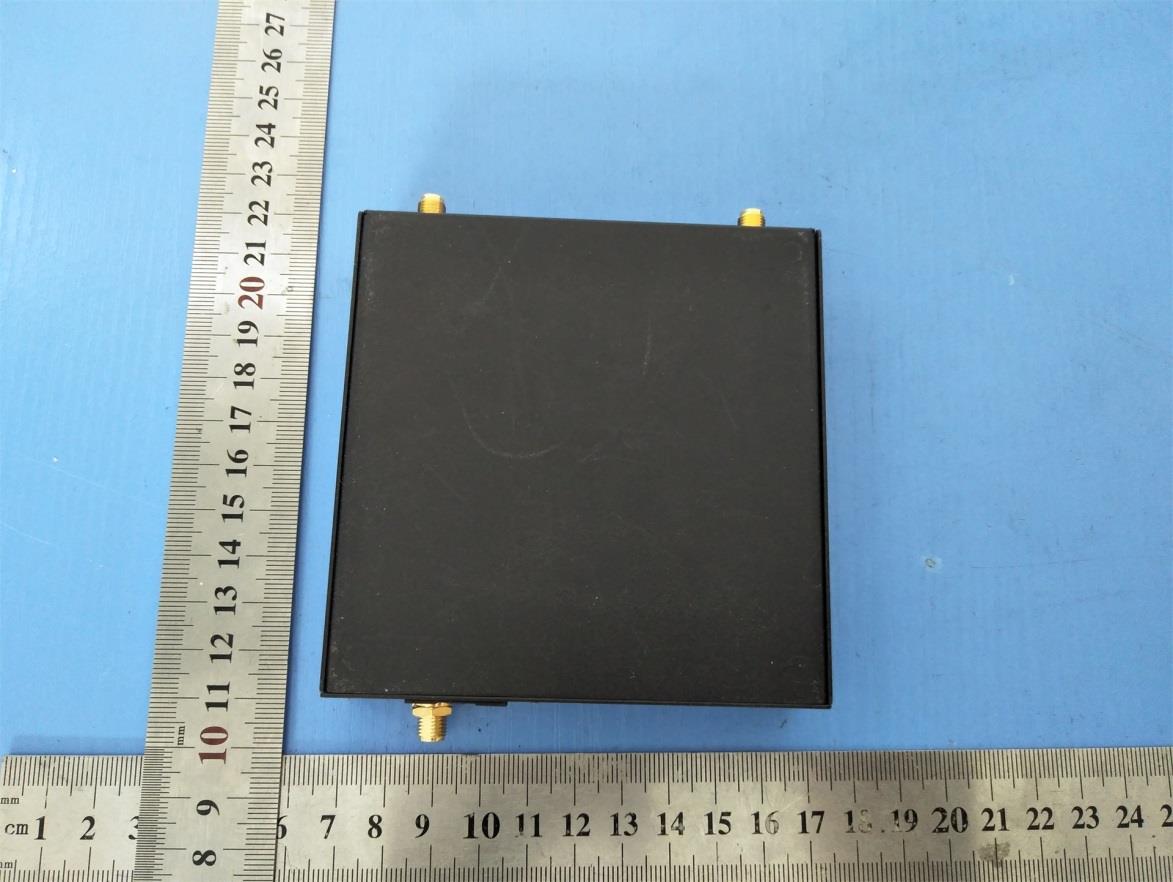

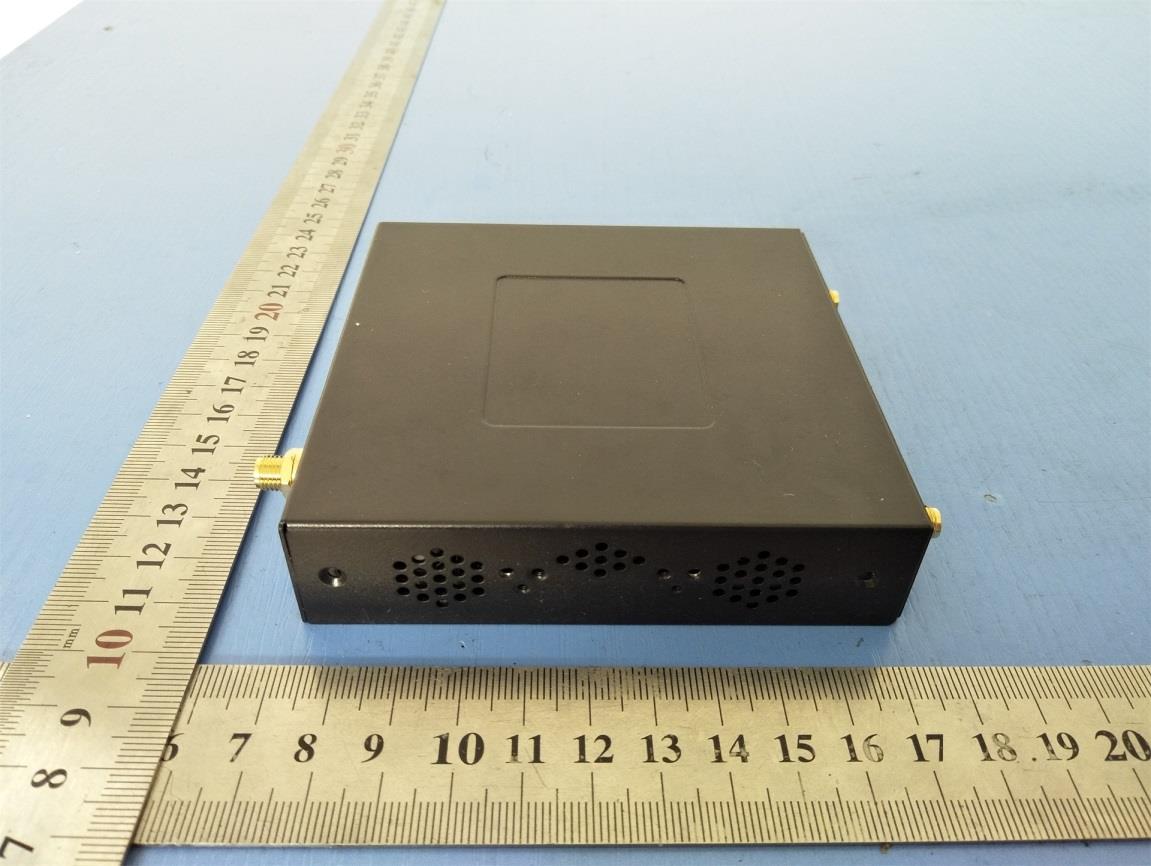

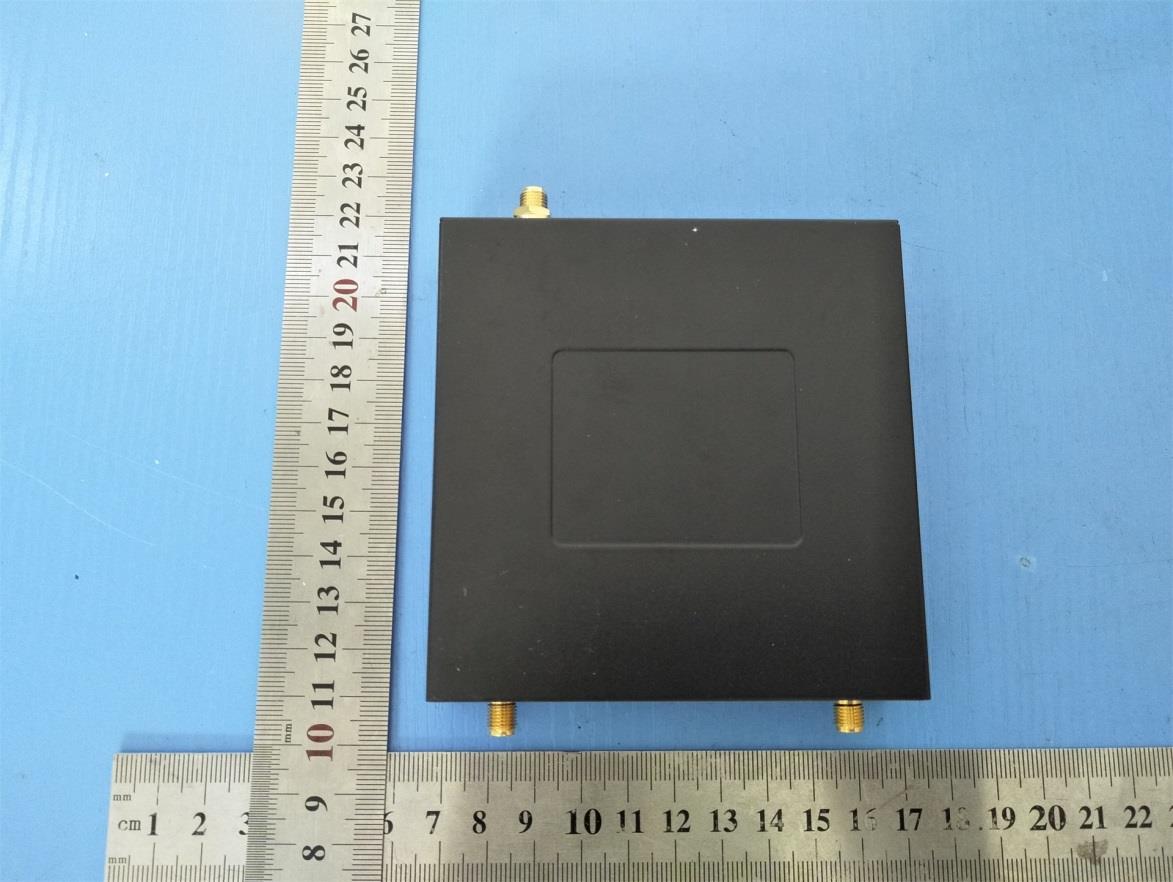

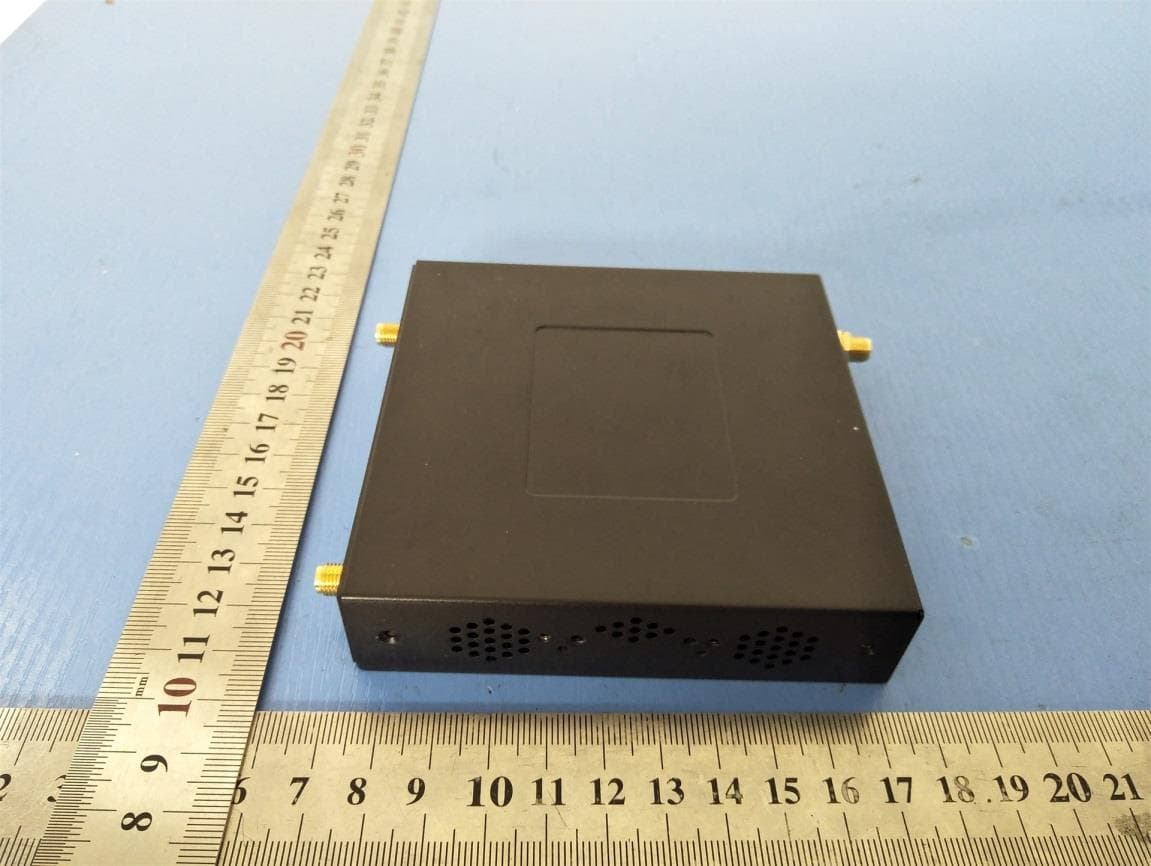

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21030-H8951NA FCC ID: 2AG6GH8951-NA Exterior Photograph Fig. 1 Fig. 2 WIFI/WCDMA/ LTE Main ANT LTE Div ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21030-H8951NA FCC ID: 2AG6GH8951-NA Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21030-H8951NA FCC ID: 2AG6GH8951-NA Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21030-H8951NA FCC ID: 2AG6GH8951-NA Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21030-H8951NA FCC ID: 2AG6GH8951-NA Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21030-H8951NA FCC ID: 2AG6GH8951-NA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21030-H8951NA FCC ID: 2AG6GH8951-NA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 1 Size: L: 5.0cm*W: 4.0cm Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21030-H8951NA FCC ID: 2AG6GH8951-NA Interior Photograph Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21030-H8951NA FCC ID: 2AG6GH8951-NA Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21030-H8951NA FCC ID: 2AG6GH8951-NA Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. IC: 21030-H8951NA FCC ID: 2AG6GH8951-NA Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG6GH8951-NA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 6 Maximum Permissible Exposure Report 1. Product Information Name of EUT Cellular Wi-Fi Router Test Model H8951-NA Additional Models H8951, H8951-LQA Model Declaration PCB board, structure and internal of these models are the same, So no additional models were tested. Power Supply Input: 5-36V1.5A Hardware Version V50A Software Version V7.2.0_SE_Techtrex 2.4G WLAN Frequency Range 2412 – 2462 MHz Channel Number 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing 5MHz Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Description External Antenna, 2.5dBi(Max.) WCDMA UMTS Operation Frequency Band UMTS FDD Band II/IV/V WCDMA Release Version R8 HSDPA Release Version Release 8 HSUPA Release Version Release 6 DC-HSUPA Release Version Not Supported Modulation Type QPSK for UMTS Antenna Gain External Antenna, 2.5dBi(Max.) LTE LTE Operation Frequency Band LTE Band 2, 4, 5, 12, 13, 25, 26 LTE Release Version Release 9 LTE/UMTS Power Class Class 3 Modulation Type QPSK, 16QAM for LTE Antenna Gain External Antenna, 2.5dBi(Max.) Extreme temp. Tolerance -20°C to +55°C GPS function Not Supported FM function Not Supported NFC Function Not Supported Extreme vol. Limits Extreme vol 1：4.25VDC to 5.75VDC (nominal: 5VDC) Extreme vol 2：30.6VDC to 41.4VDC (nominal: 36VDC) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG6GH8951-NA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 6 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG6GH8951-NA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 6 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Cellular Wi-Fi Router can only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Notes External Antenna 600 MHz – 3000 MHz 2.5 dBi WIFI/WCDMA/LTE Main ANT External Antenna 600 MHz – 3000 MHz 2.5 dBi LTE Div ANT 6. Conducted Power [2.4GWLAN Max Peak Conducted Power] Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 8.75 6 2437 8.63 11 2462 8.40 IEEE 802.11g 1 2412 9.00 6 2437 8.78 11 2462 8.26 IEEE 802.11n HT20 1 2412 9.05 6 2437 8.69 11 2462 8.12 IEEE 802.11n HT40 3 2422 10.29 6 …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG6GH8951-NA IC: 21030-H8951NA Page 1 of 313 Appendix B: Test Data for E-UTRA Band 2 Product Name: Cellular Wi-Fi Router Trade Mark: Test Model: H8951-NA Environmental Conditions Temperature: 24.8 C Relative Humidity: 52.3% ATM Pressure: 100.0 kPa Test Engineer: Li Huan Supervised by: Tom.Liu B.1: Effective (Isotropic) Radiated Power Output Data Conducted Output Power Test Result (Channel Bandwidth: 1.4 MHz) Modulation Channel RB Con1iguration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size O11set QPSK / 16QAM LCH 1 0 22.80 21.79 PASS 1 3 22.91 21.90 PASS 1 5 22.91 21.95 PASS 3 0 22.62 21.87 PASS 3 2 22.81 21.77 PASS 3 3 22.79 21.72 PASS 6 0 21.62 20.56 PASS MCH 1 0 22.94 22.36 PASS 1 3 22.93 22.31 PASS 1 5 22.98 22.17 PASS 3 0 22.97 22.00 PASS 3 2 22.96 21.93 PASS 3 3 22.92 21.79 PASS 6 0 21.85 20.70 PASS HCH 1 0 23.39 21.88 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG6GH8951-NA IC: 21030-H8951NA Page 2 of 313 1 3 23.28 22.16 PASS 1 5 23.20 22.15 PASS 3 0 23.30 23.01 PASS 3 2 23.32 22.41 PASS 3 3 23.31 22.47 PASS 6 0 22.27 21.18 PASS Conducted Output Power Test Result (Channel Bandwidth: 3 MHz) Modulation Channel RB Con1iguration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size O11set QPSK / 16QAM LCH 1 0 22.75 21.72 PASS 1 7 23.14 21.97 PASS 1 14 23.04 21.82 PASS 8 0 21.68 20.76 PASS 8 4 21.78 20.84 PASS 8 7 21.69 20.82 PASS 15 0 21.64 20.70 PASS MCH 1 0 23.07 22.59 PASS 1 7 23.11 22.54 PASS 1 14 22.81 22.22 PASS 8 0 22.04 21.10 PASS 8 4 21.94 20.97 PASS 8 7 21.80 20.77 PASS 15 0 21.88 21.07 PASS HCH 1 0 23.15 22.63 PASS 1 7 23.30 22.67 PASS 1 14 23.03 22.48 PASS 8 0 22.33 21.62 PASS 8 4 22.37 21.44 PASS 8 7 22.37 21.20 PASS 15 0 22.28 21.37 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG6GH8951-NA IC: 21030-H8951NA Page 3 of 313 Conducted Output Power Test Result (Channel Bandwidth: 5 MHz) Modulation Channel RB Con1iguration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size O11set QPSK / 16QAM LCH 1 0 22.57 22.00 PASS 1 12 22.92 22.16 PASS 1 24 22.76 22.06 PASS 12 0 21.76 20.97 PASS 12 6 21.85 21.06 PASS 12 13 21.82 20.93 PASS 25 0 21.83 20.94 PASS MCH 1 0 22.98 22.45 PASS 1 12 23.04 22.25 PASS 1 24 22.64 21.93 PASS 12 0 22.11 21.34 PASS 12 6 21.94 21.18 PASS 12 13 21.85 20.99 PASS 25 0 21.95 21.01 PASS HCH 1 0 23.00 21.08 PASS 1 12 23.56 21.45 PASS 1 24 22.74 21.05 PASS 12 0 22.11 21.34 PASS 12 6 22.25 21.40 PASS 12 13 22.08 21.14 PASS 25 0 22.17 21.49 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG6GH8951-NA IC: 21030-H8951NA Page 4 of 313 Conducted Output Power Test Result (Channel Bandwidth: 10 MHz) Modulation Channel RB Con1iguration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size O11set QPSK / 16QAM LCH 1 0 22.85 22.54 PASS 1 24 23.28 22.87 PASS 1 49 22.57 21.92 PASS 25 0 21.87 20.96 PASS 25 12 21.93 21.03 PASS 25 25 22.03 21.05 PASS 50 0 21.94 21.03 PASS MCH 1 0 22.99 22.33 PASS 1 24 23.90 23.27 PASS 1 49 22.56 21.71 PASS 25 0 22.25 21.34 PASS 25 12 22.10 21.26 PASS 25 25 21.89 20.86 PASS 50 0 22.03 21.14 PASS HCH 1 0 20.44 19.95 PASS 1 24 23.23 22.72 PASS 1 49 21.93 21.41 PASS 25 0 21.84 20.84 PASS 25 12 22.47 21.38 PASS 25 25 22.22 21.28 PASS 50 0 22.03 21.11 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG6GH8951-NA IC: 21030-H8951NA Page 5 of 313 Conducted Output Power Test Result (Channel Bandwidth: 15 MHz) Modulation Channel RB Con1iguration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size O11set QPSK / 16QAM LCH 1 0 22.68 22.57 PASS 1 37 23.34 23.22 PASS 1 74 22.53 21.82 PASS 37 0 21.98 20.92 PASS 37 18 22.16 20.98 PASS 37 38 22.27 21.21 PASS 75 0 22.11 21.38 PASS MCH 1 0 22.78 22.13 PASS 1 37 23.80 23.15 PASS 1 74 22.31 22.43 PASS 37 0 22.23 21.06 PASS 37 18 22.17 21.33 PASS 37 38 22.08 21.18 PASS 75 0 22.10 21.27 PASS HCH 1 0 21.40 20.81 PASS 1 37 21.85 21.34 PASS 1 74 21.65 21.07 PASS 37 0 21.36 20.46 PASS 37 18 21.84 20.99 PASS 37 38 22.44 21.53 PASS 75 0 21.83 20.95 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG6GH8951-NA IC: 21030-H8951NA Page 6 of 313 Conducted Output Power Test Result (Channel Bandwidth: 20 MHz) Modulation Channel RB Con1iguration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size O11set QPSK / 16QAM LCH 1 0 22.91 21.86 PASS 1 49 23.16 22.06 PASS 1 99 21.48 20.66 PASS 50 0 22.22 21.27 PASS 50 25 22.28 21.36 PASS 50 50 22.13 21.23 PASS 100 0 22.14 21.16 PASS MCH 1 0 21.44 20.59 PASS 1 49 23.86 22.66 PASS 1 99 22.73 21.17 PASS 50 0 22.14 21.32 PASS 50 25 22.31 21.48 PASS 50 50 22.16 21.27 PASS 100 0 22.22 21.31 PASS HCH 1 0 22.46 21.77 PASS 1 49 21.45 20.82 PASS 1 99 21.28 20.71 PASS 50 0 21.77 20.87 PASS 50 25 21.51 20.63 PASS 50 50 21.84 20.98 PASS 100 0 21.74 20.84 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG6GH8951-NA IC: 21030-H8951NA Page 7 of 313 B.2: Peak-to-Average Ratio Test Result Channel Bandwidth: 1.4 MHz Channel Bandwidth: 1.4 MHz Modulation Channel RB Configuration Peak-to-Average Ratio (dB) Limit (dB) Verdict Size Offset QPSK LCH 1 0 4.09 <13 PASS 1 3 4.01 <13 PASS 1 5 4.12 <13 PASS 3 0 4.27 <13 PASS 3 2 4.19 <13 PASS 3 3 4.25 <13 PASS 6 0 4.99 <13 PASS MCH 1 0 4.53 <13 PASS 1 3 4.44 <13 PASS 1 5 4.46 <13 PASS 3 0 4.66 <13 PASS 3 2 4.53 <13 PASS 3 3 4.67 <13 PASS 6 0 5.18 <13 PASS HCH 1 0 4.39 <13 PASS 1 3 4.98 <13 PASS 1 5 5.31 <13 PASS 3 0 4.69 <13 PASS 3 2 5.03 <13 PASS 3 3 4.81 <13 PASS 6 0 4.93 <13 PASS 16QAM LCH 1 0 5.1 <13 PASS 1 3 5.06 <13 PASS 1 5 5.09 <13 PASS 3 0 5.25 <13 PASS 3 2 5.17 <13 PASS 3 3 5.23 <13 PASS 6 0 5.79 <13 PASS MCH 1 0 5.41 <13 PASS 1 3 5.28 <13 PASS 1 5 5.35 <13 PASS 3 0 5.59 <13 PASS 3 2 5.51 <13 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG6GH8951-NA IC: 21030-H8951NA Page 8 of 313 3 3 5.62 <13 PASS 6 0 5.98 <13 PASS HCH 1 0 5.1 <13 PASS 1 3 5.22 <13 PASS 1 5 5.75 <13 PASS 3 0 5.45 <13 PASS 3 2 5.6 <13 PASS 3 3 5.69 <13 PASS 6 0 5.…
