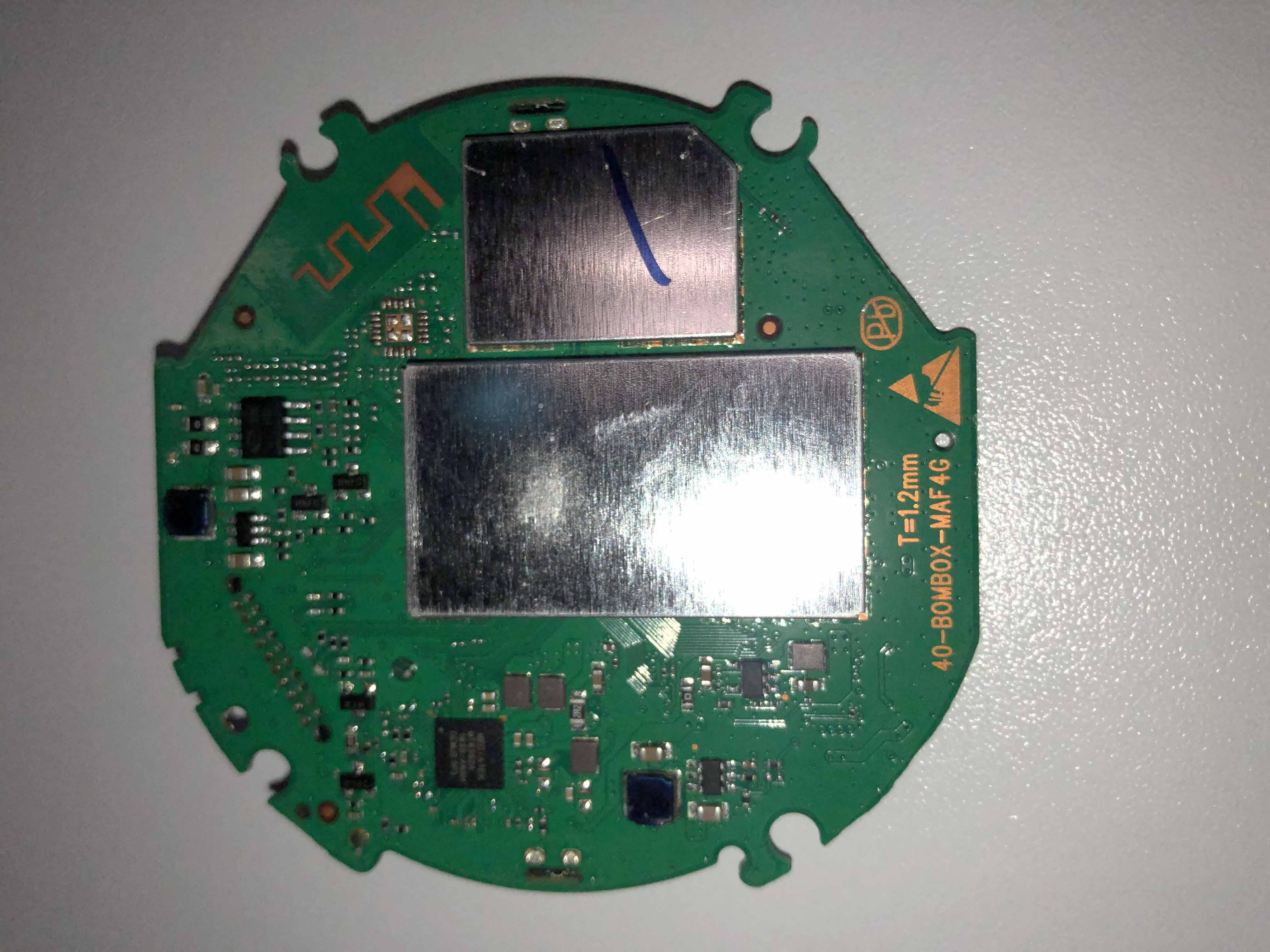

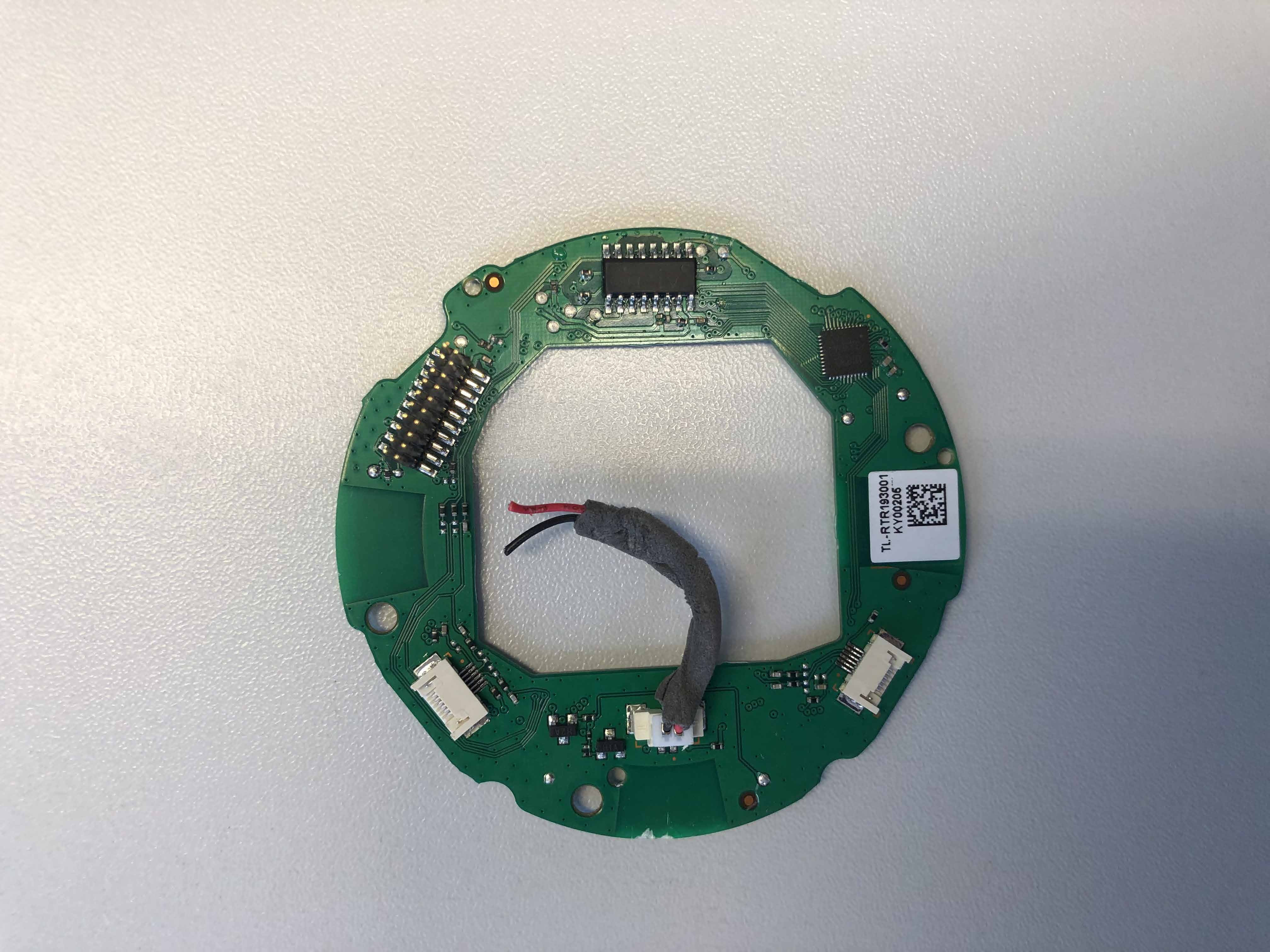

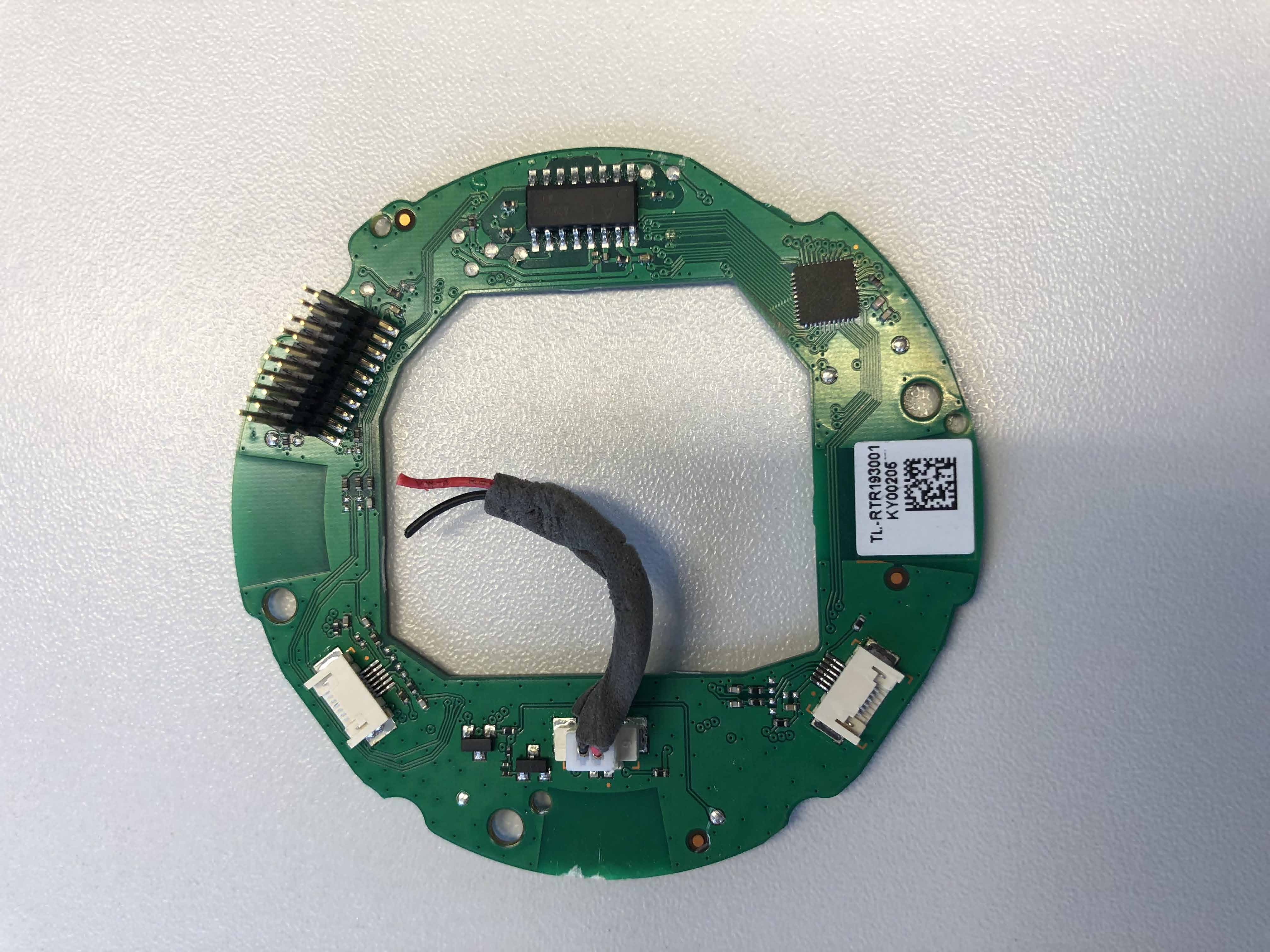

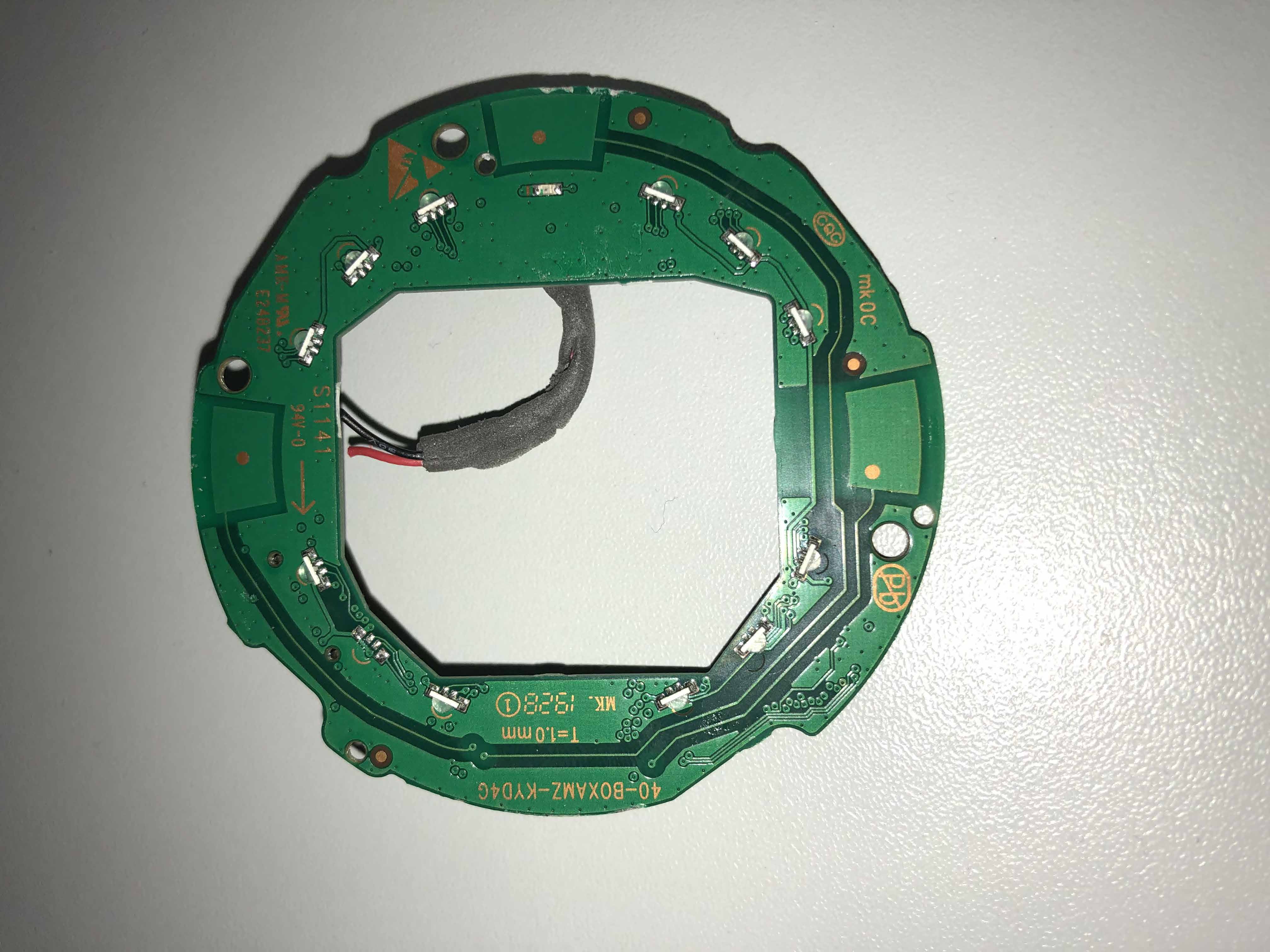

2AG9A51910Wireless Toothbrush Charging Base

quick start manual TM A B C TM powering healthy habits A) CROSS ACTION BRUSH HEADAngled bristles reach around teeth for a morethorough clean with up to 100% less plaque.*B) LED PRESSURE SENSORCustom-color sensors light up when you’rebrushing too hard, preventing gum irritation.C) 6 UNIQUE MODESChoose from Daily Clean, Gum Care,Sensitive, Whitening, tongue cleaning and Pro-Clean. D) EXTRA-LONG BATTERY LIFELithium ion battery charges fasterand stays charged longer.E) WIFI-ENABLED SMART CHARGERTracks brushing and logs progress fora customized view of your oral health.F) SPLASH RESISTANT SPEAKERIPX-5 Certified ORAL-B CONNECTSync your data to our digital platforms to see your progress & get expert tips for continuous improvement. C D E F powering healthy habits A D E F B C GUIDE WI-FI CHARGING BASE BOX CONTAINS POWER CORD BRUSH HEAD BRUSH HANDLE Assemble handle & brush head. Then plug in charging base. 1 Open the Oral-B TM Connect App and follow instructions. Install the Oral-B Connect App on your mobile device 3 2 Scan this QR Code from your mobile device Or, find Oral-B TM CONNECT in your app store GET STARTERD how it works TAKE YOUR ROUTINE TO THE NEXT LEVELwith guided brushing and smart home connectivity.HANDS FULL? JUST ASK.Now you can say “Alexa” at the sink. Check weather, play music and more by connecting to your smart home devices. The Wi-Fi Enabled Smart Charger tracks brushing and logs progress for a customized view of your oral health. 4 3 2 1 5 6 7 8 9 1. CROSS ACTION BRUSH HEAD 2. LED PRESSURE SENSOR INDICATOR 3. POWER BUTTON 4. MODE SELECTOR 5. DEEP CLEAN 6. SENSITIVE 7. WHITENING 8. GUM CARE 9. TONGUE CLEANING 10. BLUETOOTH INDICATOR 11. BATTERY LIFE INDICATOR 12. WI-FI ENABLED SMART CHARGER 13. LED QUAD TIMER 14. MICROPHONE MUTE 15. HIGH QUALITY SPEAKER Okay, playingmorning playlist. 15 14 13 12 11 10 4 1 5 3 7 2 6 4 8 9 5 6 7 8 9 Alexa, play mymorning playlist. 10 13 11 14 12 15 When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following:READ ALL INSTRUCTIONS BEFORE USING.DANGERIn order to reduce the risk of electrocution:1. Do not use while bathing. 2. Do not place or store the charger/charging stand/power cord where it canfall or be pulled into a tub or sink 3. Do not place or drop the charger/charging stand/power cord in water or other liquid. 4. Do not reach for a charger/charging stand/power cord that has fallen intowater. Unplug immediately. IMPORTANT SAFEGUARDS WARNINGTo reduce the risk of burns, electrocution, fire or injury:Close supervision is necessary when this product is used by, on, or near children or persons with disabilities.Use this product only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.Keep cord away from heated surfaces.Never drop the appliance or insert any object into any opening of the appliance.Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged or if it has been dropped into water. If any of these occur, please contact a service center and return the product for examination and repair. SAVE THESE INSTRUCTIONS IMPORTANT1. Periodically check the entire product/cords/accessories for damage. A damaged or non-functioning unit should no longer be used. Avoid sharp bending, jamming and squeezing of cord. If the product/cords/accessories are damaged, take it to an Oral-B TM Service Center. 2. Do not touch the power plug with wet hands. This can cause an electric shock. 3. When unplugging, always hold the power plug instead of the cord. 4. Do not modify or repair the product. This may cause fire, electric shock or injury. Consult your dealer for repairs or contact an Oral-B TM Service Center. 5. This appliance contains batteries that are non-replaceable. The appliance has no user serviceable parts. Do not open and disassemble device except when disposing of the battery. Follow handling and disposal instructions of the battery/device described in this manual. 6. Do not use on children under age 3. 7. Small parts may come off. Keep out of reach of children. 8. This toothbrush is a personal care device and is not intended for use on multiple patients in a dental practice or institution. For hygienic reasons we recommend the use of individual brush handles for each family member. CAUTIONTo avoid brush head breakage which may generate a small parts choking hazard or damage teeth:• Prior to each use, ensure the brush head fits well. Discontinue use of the toothbrush, if brush head no longer fits properly. Never use without a brush head. • If the toothbrush handle is dropped, the brush head should be replaced before the next use even if no damage is visible. • Replace brush head every 3 months or sooner if brush head becomes worn. • Clean brush head properly after each use (see Cleaning recommendations paragraph). Proper cleaning ensures the safe use and functional life of the toothbrush. If you are undergoing treatment for any oral care condition, consult your dental professional prior to use. CAUTIONTo avoid brush head breakage which may generate a small parts choking hazard or damage teeth:• Prior to each use, ensure the brush head fits well. Discontinue use of the toothbrush, if brush head no longer fits properly. Never use without a brush head. • If the toothbrush handle is dropped, the brush head should be replaced before the next use even if no damage is visible. • Replace brush head every 3 months or sooner if brush head becomes worn. • Clean brush head properly after each use (see Cleaning recommendations paragraph). Proper cleaning ensures the safe use and functional life of the toothbrush. If you are undergoing treatment for any oral care condition, consult your dental professional prior to use. IMPORTANT INFORMATION• Your Oral-B TM toothbrush can be used with your smartphone (find details under Connecting your toothbrush to your Sm…

Text truncated - open the document above for the full version.

P&G UL Agent Authorization Date: February 17, 2020 UL LLC 12 Laboratory Dr RTP, NC 27709, USA To whom it may concern: I, the undersigned, hereby authorize UL LLC to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL LLC on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 2 1 U.S.C. 85 3(a). In authorizing UL LLC as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring UL LLC into disrepute and not make any statement regarding our product certification which UL LLC may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by UL LLC; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of ULLLC; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to UL LLC when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Robert Schick, Group Engineer The Procter & Gamble Co. February 17, 2020

FCC Confidentiality Request Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AG9A51910, Type Nos. 3782, 3783 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), The Procter & Gamble Co. are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna Specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until April 1, 2021. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Robert Schick, Group Engineer The Procter & Gamble Co. October 5, 2020

NVLAP LAB CODE 200246-0 FCC Part 1 Subpart I FCC Part 2 Subpart J RF EXPOSURE REPORT FOR TOOTHBRUSH CHARGING BASE MODEL NUMBER: 3783 FCC ID: 2AG9A51910 REPORT NUMBER: R13158070-E8 ISSUE DATE: 2020-10-09 Prepared for BRAUN GMBH T-QTA FRANKFURTER STRASSES 145 KRONBERG TS, D-61476 GERMANY Prepared by UL LLC 12 LABORATORY DR. RESEARCH TRIANGLE PARK, NC 27709 USA TEL: (919) 549-1400 REPORT NO: R13158070-E8 DATE: 2020-10-09 FCC ID: 2AG9A51910 Page 2 of 9 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., RTP, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. Revision History Ver. Issue Date Revisions Revised By 1 2020-03-20 Initial Issue Brian T. Kiewra 2 2020-03-31 Revised declared output power in Section 6. Brian T. Kiewra 3 2020-05-04 Revised declared output power in Section 6 back to original v1 reading. Revised BT antenna gain in Section 6. Brian T. Kiewra 4 2020-06-10 Revised declared output power in Section 6 to include the correct tolerance for 2.4GHz band as declared by manufacturer. Brian T. Kiewra 5 2020-10-06 Added individual, non-simultaneous transmission MPE results. Jeff Moser 6 2020-10-09 Updated declared power values Niklas Haydon REPORT NO: R13158070-E8 DATE: 2020-10-09 FCC ID: 2AG9A51910 Page 3 of 9 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., RTP, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. MAXIMUM PERMISSIBLE EXPOSURE (LIMITS AND EQUATIONS) ............................... 6 5.1. FCC RULES ................................................................................................................ 6 5.2. EQUATIONS ................................................................................................................ 7 6. RF EXPOSURE RESULTS ................................................................................................. 9 END OF TEST REPORT ........................................................................................................... 9 REPORT NO: R13158070-E8 DATE: 2020-10-09 FCC ID: 2AG9A51910 Page 4 of 9 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., RTP, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Braun GMBH T-QTA Frankfurter Strasses 145 Kronberg TS, D-61476 Germany EUT DESCRIPTION: Wireless Toothbrush Charging Base MODEL: 3783 SERIAL NUMBER: Charging base: BW012969000010 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J Complies RSS 102 ISSUE 5 Complies UL LLC. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. All samples tested were in good operating condition throughout the entire test program. Measurement Uncertainties are published for informational purposes only and were not taken into account unless noted otherwise. This document may not be altered or revised in any way unless done so by UL LLC. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. government. Approved & Released For Approved & Released For UL LLC By: Prepared By: Jeffrey Moser Brian T. Kiewra Operations Manager Project Engineer UL – Consumer Technology Division UL – Consumer Technology Division REPORT NO: R13158070-E8 DATE: 2020-10-09 FCC ID: 2AG9A51910 Page 5 of 9 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., RTP, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 2. TEST METHODOLOGY All calculations were made in accordance with FCC Parts 1.1310, 2.1091, 2.1093, KDB 447498 D01 v06, KDB 447498 D03 V01, IEEE Std C95.1-2005, and IEEE Std C95.3-2002. 3. REFERENCES All measurements were made as documented in test report UL LLC Documents R13158070-E4 and R13158070-E5 for operation in the 2.4 GHz and 5 GHz bands. Output power, Duty cycle and Antenna gain data is excerpted from the applicable documentation provided by applicant. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 12 Laboratory Dr., Research Triangle Park, NC 27709, USA and 2800 Perimeter Park Dr., Suite B, Morrisville, NC 27560, USA. UL LLC (RTP) is accredited by NVLAP, Laboratory Code 200246-0. REPORT NO: R13158070-E8 DATE: 2020-10-09 FCC ID: 2AG9A51910 Page 6 of 9 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., RTP, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 5. MAXIMUM PERMISSIBLE EXPOSURE (LIMITS AND EQUATIONS) 5.1. FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) r…

Text truncated - open the document above for the full version.

NVLAP LAB CODE 200246-0 DFS PORTION of FCC 47 CFR PART 15 SUBPART E CERTIFICATION TEST REPORT FOR WIRELESS TOOTHBRUSH CHARGING BASE MODEL NUMBER: 3783 FCC ID: 2AG9A51910 REPORT NUMBER: R13158070-D1 ISSUE DATE: 2020-04-29 Prepared for BRAUN GMBH T-QTA FRANKFURTER STRASSES 145 KRONBERG TS, D-61476 GERMANY Prepared by UL LLC 12 LABORATORY DR. RESEARCH TRIANGLE PARK, NC 27709 USA TEL: (919) 549-1400 REPORT NO: R13158070-D1 DATE: 2020-04-29 FCC ID: 2AG9A51910 Page 2 of 41 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., RTP, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. Revision History Rev. Issue Date Revisions Revised By V1 2020-04-29 Initial Issue John E. Manser III REPORT NO: R13158070-D1 DATE: 2020-04-29 FCC ID: 2AG9A51910 Page 3 of 41 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., RTP, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................4 2. TEST METHODOLOGY ......................................................................................................5 3. SUMMARY OF TEST RESULTS .........................................................................................5 4. REFERENCE DOCUMENTS ...............................................................................................5 5. FACILITIES AND ACCREDITATION ..................................................................................5 6. DECISION RULES AND MEASUREMENT UNCERTAINTY ...............................................6 6.1. METROLOGICAL TRACEABILITY ...............................................................................6 6.2. DECISION RULES ........................................................................................................6 7. DYNAMIC FREQUENCY SELECTION ................................................................................7 7.1. OVERVIEW ..................................................................................................................7 7.1.1. LIMITS ...................................................................................................................7 7.1.2. TEST AND MEASUREMENT SYSTEM ...............................................................11 7.1.3. TEST AND MEASUREMENT SOFTWARE..........................................................13 7.1.4. TEST ROOM ENVIRONMENT ............................................................................14 7.1.5. SETUP OF EUT ...................................................................................................15 7.1.6. DESCRIPTION OF EUT ......................................................................................16 7.2. RESULTS FOR 20 MHz BANDWIDTH .......................................................................18 7.2.1. TEST CHANNEL .................................................................................................18 7.2.2. RADAR WAVEFORM AND TRAFFIC ..................................................................18 7.2.3. OVERLAPPING CHANNEL TESTS .....................................................................21 7.2.4. MOVE AND CLOSING TIME ...............................................................................21 7.3. RESULTS FOR 40 MHz BANDWIDTH .......................................................................25 7.3.1. TEST CHANNEL .................................................................................................25 7.3.2. RADAR WAVEFORM AND TRAFFIC ..................................................................25 7.3.3. OVERLAPPING CHANNEL TESTS .....................................................................28 7.3.4. MOVE AND CLOSING TIME ...............................................................................28 7.4. RESULTS FOR 80 MHz BANDWIDTH .......................................................................32 7.4.1. TEST CHANNEL .................................................................................................32 7.4.2. RADAR WAVEFORM AND TRAFFIC ..................................................................32 7.4.3. OVERLAPPING CHANNEL TESTS .....................................................................35 7.4.4. MOVE AND CLOSING TIME ...............................................................................35 7.4.5. 30-MINUTE NON-OCCUPANCY PERIOD ...........................................................39 8. SETUP PHOTOS ...............................................................................................................40 REPORT NO: R13158070-D1 DATE: 2020-04-29 FCC ID: 2AG9A51910 Page 4 of 41 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., RTP, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Braun GMBH T-QTA Frankfurter Strasses 145 Kronberg TS, D-61476 Germany EUT DESCRIPTION: Wireless Toothbrush Charging Base MODEL: 3783 SERIAL NUMBER: BW01296900017 DATE TESTED: 2020-04-20 APPLICABLE STANDARDS STANDARD TEST RESULTS DFS Portion of CFR 47 Part 15 Subpart E Complies UL LLC tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. All samples tested were in good operating condition throughout the entire test program. Measurement Uncertainties are published for informational purposes on…

Text truncated - open the document above for the full version.

NVLAP Lab code: 200246-0 CERTIFICATION TEST REPORT Report Number. : R13158070-E5 Applicant : Braun GMBH T- QTA Frankfurter Strasses 145 Kronberg TS, D-61476 Germany Model : 3783 FCC ID : 2AG9A51910 EUT Description : Wireless Toothbrush Charging Base Test Standard(s) : FCC 47 CFR PART 15 SUBPART E Date Of Issue: March 20, 2020 Prepared by: UL LLC 12 Laboratory Dr. Research Triangle Park, NC 27709 U.S.A. TEL: (919) 549-1400 REPORT NO: R13158070-E5 DATE: 3/20/2020 FCC ID: 2AG9A51910 Page 2 of 234 UL LLC 12 Laboratory Dr., RTP, NC 27709; USA TEL:(919)-549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC REPORT REVISION HISTORY Rev. Issue Date Revisions Revised By -- 3/20/2020 Initial Issue REPORT NO: R13158070-E5 DATE: 3/20/2020 FCC ID: 2AG9A51910 Page 3 of 234 UL LLC 12 Laboratory Dr., RTP, NC 27709; USA TEL:(919)-549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC TABLE OF CONTENTS REPORT REVISION HISTORY ..................................................................................................2 TABLE OF CONTENTS .............................................................................................................3 1. ATTESTATION OF TEST RESULTS ..................................................................................6 2. TEST METHODOLOGY ......................................................................................................7 3. FACILITIES AND ACCREDITATION ..................................................................................7 4. CALIBRATION AND UNCERTAINTY .................................................................................8 4.1. MEASURING INSTRUMENT CALIBRATION ...............................................................8 4.2. SAMPLE CALCULATION .............................................................................................8 4.3. MEASUREMENT UNCERTAINTY ................................................................................8 5. EQUIPMENT UNDER TEST ................................................................................................9 5.1. EUT DESCRIPTION .....................................................................................................9 5.2. MAXIMUM OUTPUT POWER .......................................................................................9 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................11 5.4. SOFTWARE AND FIRMWARE ...................................................................................11 5.5. WORST-CASE CONFIGURATION AND MODE .........................................................11 5.6. DESCRIPTION OF TEST SETUP ...............................................................................12 6. MEASUREMENT METHOD...............................................................................................13 7. TEST AND MEASUREMENT EQUIPMENT ......................................................................14 8. ANTENNA PORT TEST RESULTS ...................................................................................17 8.1. ON TIME AND DUTY CYCLE .....................................................................................17 8.2. 26 dB BANDWIDTH ....................................................................................................19 8.2.1. 802.11a MODE IN THE 5.2 GHz BAND ...............................................................20 8.2.2. 802.11n HT20 MODE IN THE 5.2 GHz BAND .....................................................21 8.2.3. 802.11n HT40 MODE IN THE 5.2 GHz BAND .....................................................22 8.2.4. 802.11ac VHT80 MODE IN THE 5.2 GHz BAND .................................................23 8.2.5. 802.11a MODE IN THE 5.3 GHz BAND ...............................................................24 8.2.6. 802.11n HT20 MODE IN THE 5.3 GHz BAND .....................................................25 8.2.7. 802.11n HT40 MODE IN THE 5.3 GHz BAND .....................................................26 8.2.8. 802.11ac VHT80 MODE IN THE 5.3 GHz BAND .................................................27 8.2.9. 802.11a MODE IN THE 5.6 GHz BAND ...............................................................28 8.2.10. 802.11n HT20 MODE IN THE 5.6 GHz BAND .....................................................29 8.2.11. 802.11n HT40 MODE IN THE 5.6 GHz BAND .....................................................30 8.2.12. 802.11ac VHT80 MODE IN THE 5.6 GHz BAND .................................................31 8.3. 99% BANDWIDTH ......................................................................................................32 REPORT NO: R13158070-E5 DATE: 3/20/2020 FCC ID: 2AG9A51910 Page 4 of 234 UL LLC 12 Laboratory Dr., RTP, NC 27709; USA TEL:(919)-549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC 8.3.1. 802.11a MODE IN THE 5.2 GHz BAND ...............................................................33 8.3.2. 802.11n HT20 MODE IN THE 5.2 GHz BAND .....................................................34 8.3.3. 802.11n HT40 MODE IN THE 5.2 GHz BAND .....................................................35 8.3.4. 802.11ac VHT80 MODE IN THE 5.2 GHz BAND .................................................36 8.3.5. 802.11a MODE IN THE 5.3 GHz BAND ...............................................................37 8.3.6. 802.11n HT20 MODE IN THE 5.3 GHz BAND .....................................................38 8.3.7. 802.11n HT40 MODE IN THE 5.3 GHz BAND .....................................................39 8.3.8. 802.11ac VHT80 MODE IN THE 5.3 GHz BAND .................................................40 8.3.9. 802.11a MODE IN THE 5.6 GHz BAND ...............................................................41 8.3.10. 802.11n HT20 MODE IN THE 5.6 GHz BAND .............................................…

Text truncated - open the document above for the full version.

REPORT NO: R13158070-E5 DATE: 3/20/2020 FCC ID: 2AG9A51910 Page 180 of 234 UL LLC 12 Laboratory Dr., RTP, NC 27709; USA TEL:(919)-549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC BANDEDGE (Low Band 5610 MHz ) HORIZONTAL RESULT Marker Frequency (GHz) Meter Reading (dBuV) Det AT0072 (dB/m) Amp/Cbl/ Fltr/Pad (dB) DC Corr (dB) Corrected Reading (dBuV/m) Average Limit (dBuV/m) Margin (dB) Peak Limit (dBuV/m) PK Margin (dB) Azimuth (Degs) Height (cm) Pol 1 * ** 5.45998 37.33 Pk 34.5 -23.4 0 48.43 - - 74 -25.57 348 226 H 2 * ** 5.44348 39.02 Pk 34.5 -23.4 0 50.12 - - 74 -23.88 348 226 H 5 * ** 5.45998 26.11 ADV 34.5 -23.4 2.3 39.51 54 -14.49 - - 348 226 H 6 * ** 5.45682 26.95 ADV 34.5 -23.4 2.3 40.35 54 -13.65 - - 348 226 H 4 5.46569 39.31 Pk 34.5 -23.5 0 50.31 - - 68.2 -17.89 348 226 H 8 5.4694 27.03 ADV 34.5 -23.5 2.3 40.33 - - - - 348 226 H 3 5.46998 35.89 Pk 34.5 -23.5 0 46.89 - - 68.2 -21.31 348 226 H 7 5.46998 26.34 ADV 34.5 -23.5 2.3 39.64 - - - - 348 226 H * - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band ** - indicates frequency in Taiwan NCC LP0002 Restricted Band Pk - Peak detector ADV - U-NII AD primary method, Linear Voltage Average REPORT NO: R13158070-E5 DATE: 3/20/2020 FCC ID: 2AG9A51910 Page 181 of 234 UL LLC 12 Laboratory Dr., RTP, NC 27709; USA TEL:(919)-549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC VERTICAL RESULT Marker Frequency (GHz) Meter Reading (dBuV) Det AT0072 (dB/m) Amp/Cbl/ Fltr/Pad (dB) DC Corr (dB) Corrected Reading (dBuV/m) Average Limit (dBuV/m) Margin (dB) Peak Limit (dBuV/m) PK Margin (dB) Azimuth (Degs) Height (cm) Pol 1 * ** 5.4599…

Text truncated - open the document above for the full version.
