2AG9J-EVGA-X20-MS01Gaming Mouse

EVGA Corporation
Gaming Mouse - FCC ID 2AG9J-EVGA-X20-MS01 - EVGA Corporation
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Apr 22, 2021
Application Purpose
Original Equipment
Date of Application
Apr 22, 2021
Equipment Note
Gaming Mouse
Frequency Range
2402.00000000 - 2480.00000000
Company
EVGA Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

More... Quick Guide E009-00-000300www.evga.com CONTENTS Getting Start Your X20 Gaming Mouse Introduction Setting Up Your X20 Gaming Mouse Deutsche Italiano Français Русский Español Portuguese 繁體中文 简体中文 1 3 5 8 9 10 11 13 14 15 16 SET UP TRANSLATIONS GETTING START YOUR X20 GAMING MOUSE STEP 3 Install EVGA Unleash RGB Software / Installez le logiciel EVGA Unleash RGB / Установите ПО EVGA Unleash RGB / Installieren Sie die EVGA Unleash RGB Software / Instala el software EVGA Unleash RGB / Installa il software EVGA Unleash RGB / Instale o software EVGA Unleash RGB / 安裝EVGA Unleash RGB軟體 / 安装EVGA Unleash RGB软件 STEP 4 Enjoy it! / Profitez ! / Наслаждайтесь! / Viel Spaß damit! / Disfruta! / Buon divertimento! / Aproveite! / 開始使用! / 开始使用! GETTING START YOUR X20 GAMING MOUSE STEP 2 Turn on your PC / Allumez votre PC / Включите компьютер / Schalten Sie Ihren PC ein / Enciende tu PC / Accendi il PC / Ligue o seu PC / 開啟您的PC系統 / 开启您的PC系统 STEP 1 Plug USB Charging/Data Cable to your PC, and the mouse will charge simultaneously / Branchez le câble USB de charge/données à votre PC et la souris se chargera simultané- ment / Подсоедините USB-кабель зарядки и передачи данных к своему компьютеру, при этом мышь начнет заряжаться / Verbinden Sie das USB Lade- und Datenkabel mit Ihrem PC und die Maus wird gleichzeitig geladen / Enchufa el cable USB de carga/datos a tu PC, y el mouse se cargará en simultaneo / Collega il cavo USB di carica/ dati al tuo PC, e il mouse si caricherà contemporaneamente /Conecte o cabo de carregamento / dados USB ao PC e o mouse será carregado simultaneamente / 將USB充電/傳輸線連接滑鼠與PC,滑鼠也 會同時充電 / 将USB充电/传输线连接鼠标与PC,鼠标也会同时充电 12 INTRODUCTION Left Click Key Right Click Key Middle Click Key Wheel Left Scroll Wheel Right Scroll Profile Cycle Key DPI Cycle Key DPI Indicator Side Front Key Side Rear Key Sniper Button A B C D E F G H I J K A B C D E F G H I J K INTRODUCTION Lift Off Distance Detection Sensor 2 Lift Off Distance Detection Sensor 1 Pixart 3335 Optical Sensor Connection Switch Pairing LED Pairing Button Micro USB Port M L N O P Q USB Charging/Data Cable R Extension Adapter S USB Receiver T U U T S N M L O P Q R 34 SETTING UP YOUR X20 GAMING MOUSE LED Indicator : Battery Status Battery Critical 2.4GHz- Pairing 2.4GHz- Paired 2.4GHz- Pairing Failed Pairing LED- Blinking Green Pairing LED- Green Pairing LED- Pulsing Green Scroll Wheel LED- Blinking Red Battery ChargingScroll Wheel LED- Green BT- Paired BT- Pairing BT- Pairing Failed Pairing LED- Green Pairing LED- Blinking Green Pairing LED- Pulsing Green 2.4GHz Status Bluetooth Status SETTING UP YOUR X20 GAMING MOUSE 2.4GHz Wireless Mode: a. Plug the USB charging/data cable to computer. b. Use extension adapter to connect USB receiver and USB charging/data cable . c. Turn the connection switch to “ 2.4G” position. d. The Pairing LED on mouse will turn solid green while connected. Bluetooth Wireless Mode: a. Turn on Bluetooth enabled computer and initiate Bluetooth pairing mode. b. Turn the connection switch to “ ” position. c. Press pairing button on mouse for 5 seconds and the pairing LED on mouse will start blinking green. d. The Pairing LED on mouse will turn solid green while connected. Sniper Button: Allows you to change DPI to 400 (Default value) when held. LOD Sensors: X20 Mouse is equipped with two LOD sensors. You can calibrate each LOD sensor with EVGA Unleash Software. 56 SETTING UP YOUR X20 GAMING MOUSE LED Indicator : DPI Status Stage 2 - 1600 DPI Stage 1 - 800 DPI DPI LED Indicator #1#2#3#4#5 Stage 3 - 3200 DPI Stage 4 - 6400 DPI Stage 5 - 16000 DPI Profile 2 Profile 1 Profile 3 Profile 4 Profile 5 LED - Orange LED - Red LED - Yellow LED - Green LED - Blue Profile Status A Taste für Linksklick B Taste für Rechtsklick C Taste für Mittelklick D Linksklick-Tastenrad E Rechtsklick-Tastenrad F Profil-Umschalttaste G DPI-Umschalttaste H DPI-Anzeige I Vordere seitliche Taste J Hintere seitliche Taste K Scharfschützen-Taste L Micro-USB-Port M Abhebedistanz-Sensor 2 N Abhebedistanz-Sensor 1 O Pixart 3335 optischer Sensor P Verbindungsschalter Q Kopplungs-LED R Kopplungsknopf S USB Lade- unbd Datenkabel T Erweiterungsadapter U USB Empfänger DEUTSCHE Einrichten der X20 Gaming-Maus Batterie kritisch Scrollrad-LED - Rotes Blinken Batterie lädt Scrollrad-LED - Grün 2.4GHz wird gekoppelt Kopplungs-LED - Grünes Blinkes 2.4GHz ist gekoppelt Kopplungs-LED - Grün 2.4GHz Koppeln fehlgeschlagen Kopplungs-LED - Grünes Pulsieren Bluetooth wird gekoppelt Kopplungs-LED - Grünes Blinkes Bluetooth ist gekoppelt Kopplungs-LED - Grün Bluetooth Koppeln fehlgeschlagen Kopplungs-LED - Grünes Pulsieren LED Anzeige Stage 2 - 1600 DPI Stage 1 - 800 DPI DPI LED Indicator #1 #2#3#4#5 Stage 3 - 3200 DPI Stage 4 - 6400 DPI Stage 5 - 16000 DPI Profil 2LED - Orange Profil 1LED - Rot Profil 3LED - Gelb Profil 4LED - Grün Profil 5LED - Blau 2.4GHz Wireless Mode: a. Plug the USB charging/data cable to computer. b. Use extension adapter to connect USB receiver and USB charging/data cable . c. Turn the connection switch to “ 2.4G” position. d. The Pairing LED on mouse will turn solid green while connected. Bluetooth Wireless Mode: a. Turn on Bluetooth enabled computer and initiate Bluetooth pairing mode. b. Turn the connection switch to “ ” position. c. Press pairing button on mouse for 5 seconds and the pairing LED on mouse will start blinking green. d. The Pairing LED on mouse will turn solid green while connected. Sniper Button: It allows you to change DPI to 400 (Default value) while held done. LOD Sensors: X20 Mouse is equipped with two LOD sensors. You can calibrate each LOD sensor with EVGA Unleash Software. 78 A Tasto sinistro B Tasto destro C Tasto centrale D Tasto sinistro rotellina E Tasto destro rotellina F Tasto ciclo di profilo G Tasto ciclo DPI H Puntatore DPI I Tasto laterale anteriore J Tasto laterale posteriore K Tasto sniper L Porta micro USB M Sensore di distanza lift off 2 N Sensore di distanza lift off 1 O Sensore ottico Pixart 3335 P Switch di …

Text truncated - open the document above for the full version.

External Photos

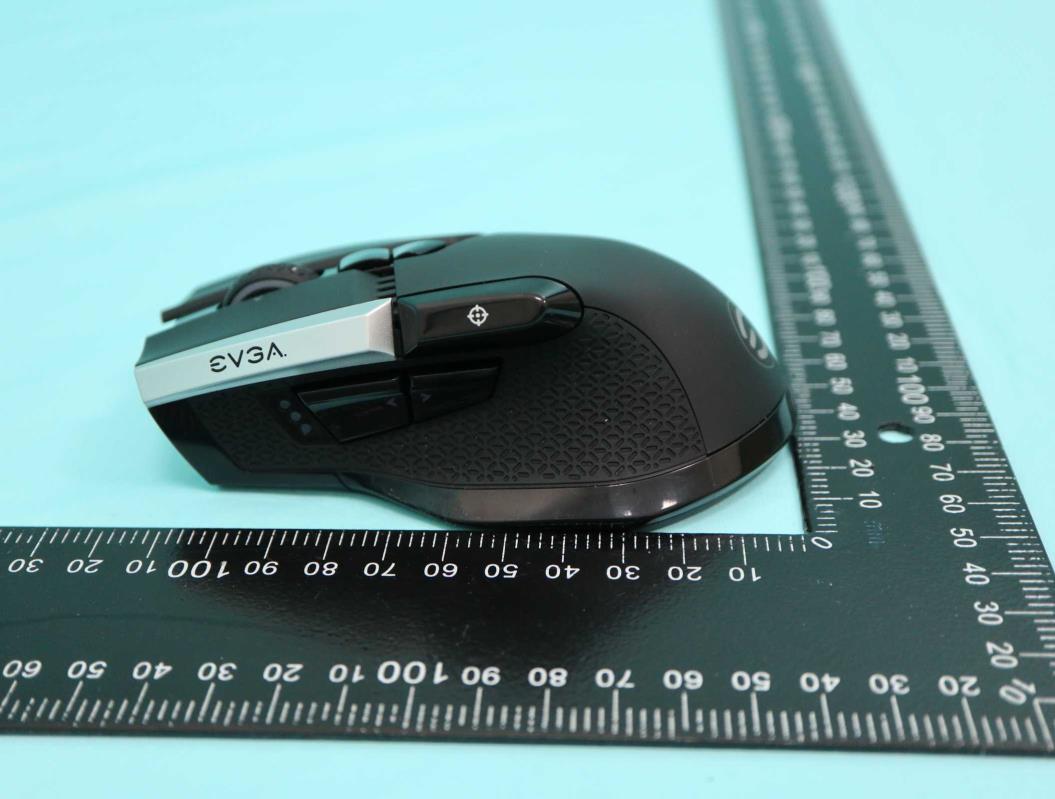

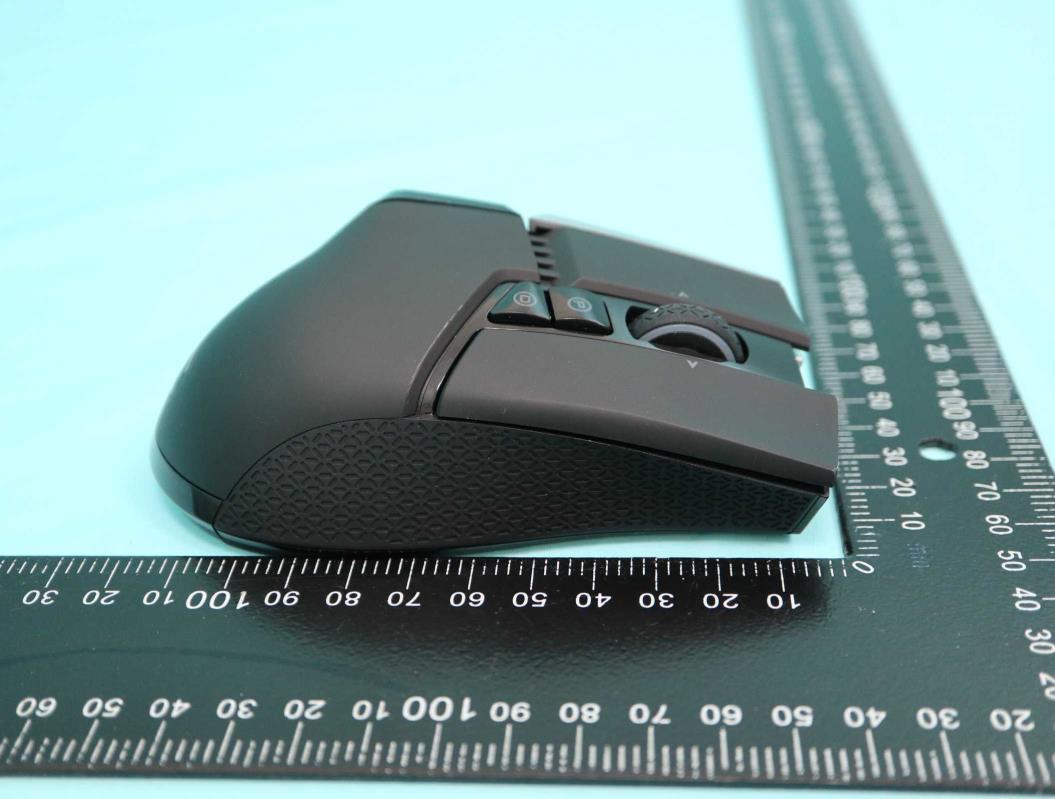

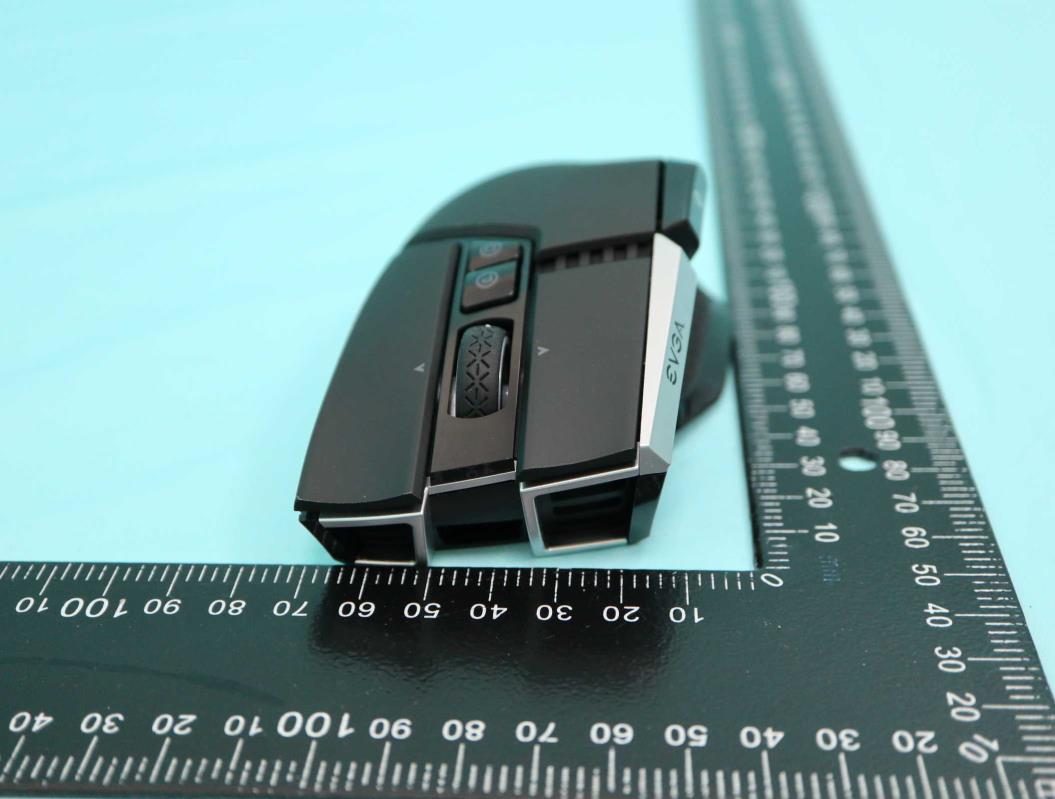

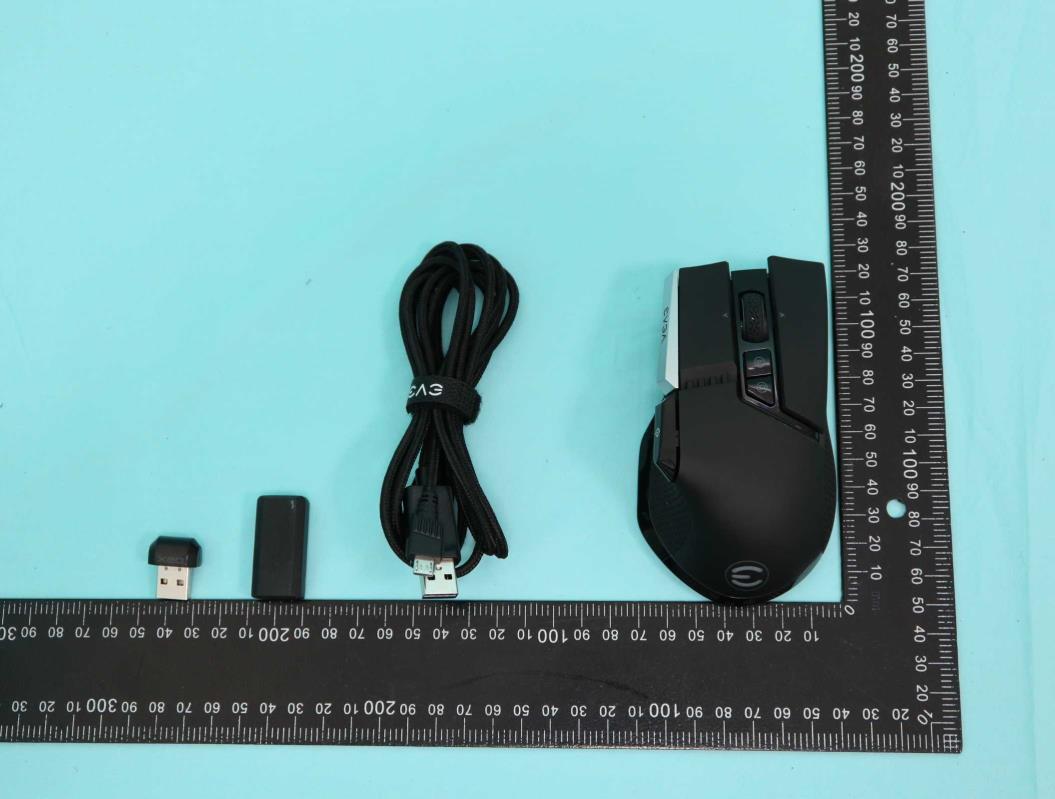

Photographs of EUT Report No. : EP111405 SPORTON International Inc. Page No. : 1 of 24 EP Report Version : Rev. 01 Issued Date : Apr. 15, 2021 Photographs of EUT Report No. : EP111405 SPORTON International Inc. Page No. : 2 of 24 EP Report Version : Rev. 01 Issued Date : Apr. 15, 2021 Photographs of EUT Report No. : EP111405 SPORTON International Inc. Page No. : 3 of 24 EP Report Version : Rev. 01 Issued Date : Apr. 15, 2021 Photographs of EUT Report No. : EP111405 SPORTON International Inc. Page No. : 4 of 24 EP Report Version : Rev. 01 Issued Date : Apr. 15, 2021 Photographs of EUT Report No. : EP111405 SPORTON International Inc. Page No. : 18 of 24 EP Report Version : Rev. 01 Issued Date : Apr. 15, 2021 USB Cable Photographs of EUT Report No. : EP111405 SPORTON International Inc. Page No. : 19 of 24 EP Report Version : Rev. 01 Issued Date : Apr. 15, 2021 Extension Adapter Photographs of EUT Report No. : EP111405 SPORTON International Inc. Page No. : 20 of 24 EP Report Version : Rev. 01 Issued Date : Apr. 15, 2021 Photographs of EUT Report No. : EP111405 SPORTON International Inc. Page No. : 21 of 24 EP Report Version : Rev. 01 Issued Date : Apr. 15, 2021 USB Receiver Photographs of EUT Report No. : EP111405 SPORTON International Inc. Page No. : 22 of 24 EP Report Version : Rev. 01 Issued Date : Apr. 15, 2021
