2AGA9TWS05True Wireless Earbuds

True Wireless Stereo EarbudsWith Touch Control Model: CCS15156 Packaging Contents:  1 pairs ofWireless Earbuds  1× Type-C Charging Cable  1× User Guide How to Use: 1. Charge YourWireless Earbuds 1.) Prior to use, charge your wireless earbuds Use the suppliedType-C charging cable, plug the cableinto the Type-C port which is located on the back of thecharging case. 2.) Charging case charging: the blueLED is flash. Charging case full charged: solid blue Charging case Blue LED 2. Selecting the Right Fit Your wireless earbuds includethree sizes of earbud caps. They arepre-assembled with medium sizeearbud caps. Determine which onesprovide the best fit to achieve theoptimal listening experience. If the medium size earbud caps do not feel comfortable,pull them off and replace with another size. Type- C Small and Large earbud caps Charging cable 3. Connecting / Wireless Pairing 1.) Make sure the earbudsand your Bluetooth device are next to each other (within 3 feet / 1 meter ) 2.) Remove both earbuds from the charging case and place into your ears. 3.) Turn on your device’s Bluetooth. Most devices will automatically detect your earbuds. Locate and select “CCS15156”. It will indicate that your earbuds are now connected or paired.  If your device does not automatically detect your earbuds, make sure Bluetooth is turned on, do a SEARCH for “CCS15156” and then click CONNECT. Notes: To shut down, touch theMFB for 4 seconds or place back into the charging case. Once paired, the range is approximately 32 feet/10 meters.Your earbud will automatically connect to the last paired and connected device when it is turned on again 4. OperatingYour Wireless Earbuds Whenplaying music: • To skip to the next song, touch the right ear button for twice. • To skip to the previous song, touch the left ear button for twice. • To increase volume, touch the right ear button for 1 second. • To decrease volume, touch the left ear button for 1 second. When on a call: • To answer or hang up a call, shorttouch the right or left ear button for 1 second. • To reject an incoming call, touch the right or left ear button for 2-3 seconds. Low Battery • You’ll hear a voice prompt of “Low battery” when the battery level is less than 10%. EarbudLED Indicators • When your wireless earbuds are charging –the blue LED light is on. • When your wireless earbudshave finished charging – the blue LED light is off;. • When your Bluetooth is being paired – the blue LED light flash quickly. Troubleshooting If your wireless earbuds are not pairing together OR if both earbuds are not flashing blue, use the following instructions to reset and re-pair your earbuds: 1.) Remove both earbuds from the charging case and turn them OFF by touching both earbuds simultaneously until the blue lights slow flashes 3 times. Please note, do not cover entire earbuds with your finger or you will not see the blue light flash. 2.) Next, touch and hold down both earbuds simultaneously for approximately 13 seconds, until you see the blue lights quickly flash2 times. You will need to continue to hold and see the blue light flash a second time. This resets your earbuds. 3.) To pair your wireless earbuds, place both earbuds into the changing case, and take them out simultaneously; 4.) Make sure the earbuds and your Bluetooth device are next to each other (within 3 feet / 1 meter ) 5.) Turn on your device’s Bluetooth. Most devices will automatically detect your earbuds. Locate and select “CCS15156”. It will indicate that your earbuds are now connected or paired.  If your device does not automatically detect your earbuds, make sure Bluetooth is turned on, do a SEARCH for “CCS15156” and then click CONNECT. Notes: To shut down, touch theMFB for 4 seconds or place back into the charging case. Once paired, the range is approximately 32 feet/10 meters.Your earbud will automatically connect to the last paired and connected device when it is turned on again Label: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC ID:2AGA9TWS05

HUIZHOU WEIDE Electronics CO.,LTD Date: May 08, 2020 FCC ID: 2AGA9TWS05 Model Number: WD-TWS05, CCS15156 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, HUIZHOU WEIDE Electronics CO.,LTD, declare that this EUT (FCC ID: 2AGA9TWS05) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: Jerry Wei/ Business Director Company: HUIZHOU WEIDE Electronics CO.,LTD Address: Jimadi Industrial Area, Boluo County, Huizhou, Guangdong, China. 516100

HUIZHOU WEIDE Electronics CO.,LTD Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AGA9TWS05 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name  Block Diagram  Schematic Diagram  Operational Description  POFIT_Block  POFIT_SCH  POFIT_OPS The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application for180 days as outlined below: Exhibit Type File Name  Test Setup Photos  Internal Photos  User Manual  Test Setup photo  Internal Photos  User Manual Sincerely, Signature: Name: Jerry Wei Date: 2020/05/08

HUIZHOU WEIDE Electronics CO.,LTD Family models declaration letter. 2020-05-08 We HUIZHOU WEIDE Electronics CO.,LTD Of Jimadi Industrial Area, Boluo County, Huizhou, Guangdong, China. 516100 Product: True Wireless Earbuds Model Name: WD-TWS05,CCS15156 FCC ID: 2AGA9TWS05 Trade mark: All models are the same circuit and RF module, except the appearance. Thanks Sincerely, Signature 2020-05-08 Jerry Wei E-mail: [email protected] Phone: 86-7526203629 Address: Jimadi Industrial Area, Boluo County, Huizhou, Guangdong, China. 516100

(HUIZHOU WEIDE Electronics CO.,LTD) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020/05/08 SUBJECT: FCC Application for FCC ID: 2AGA9TWS05 To Whom It May Concern: We, the undersigned, hereby authorize Alex Li NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District Shenzhen China Tel: +86-0755-61156584 Email: [email protected] on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by NTEK Testing Technology Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signatory 2020-05-08 Jerry Wei Applicant: HUIZHOU WEIDE Electronics CO.,LTD Address: Jimadi Industrial Area, Boluo County, Huizhou, Guangdong, China. 516100

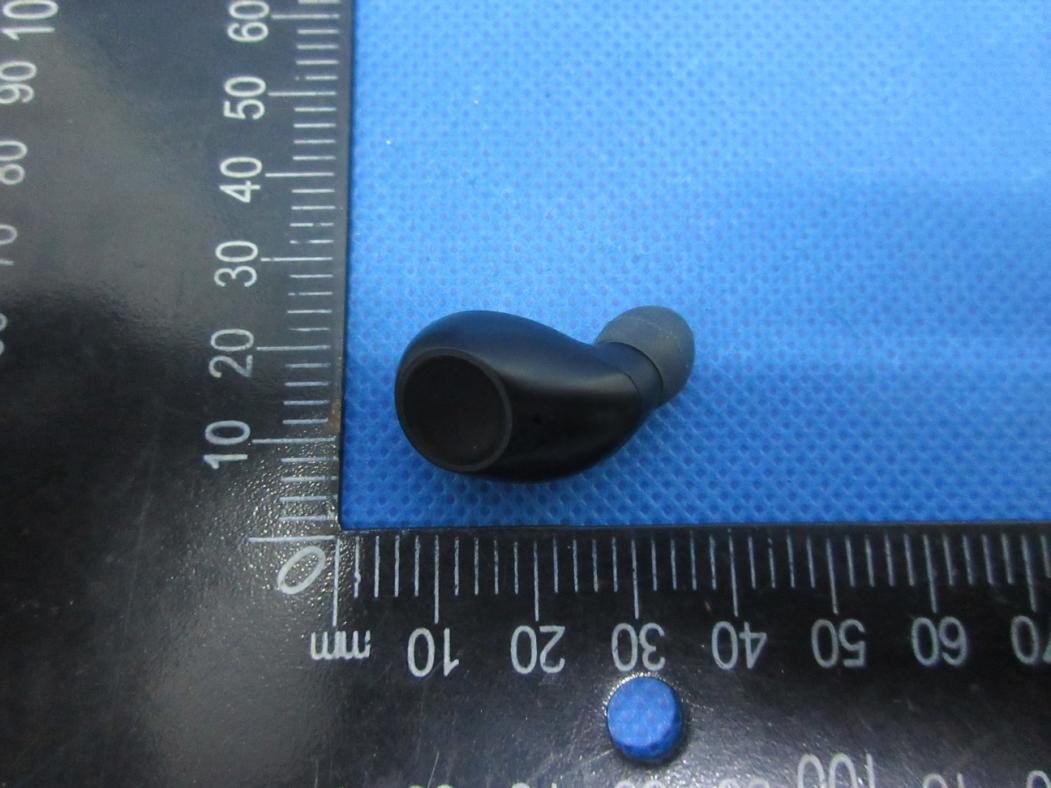

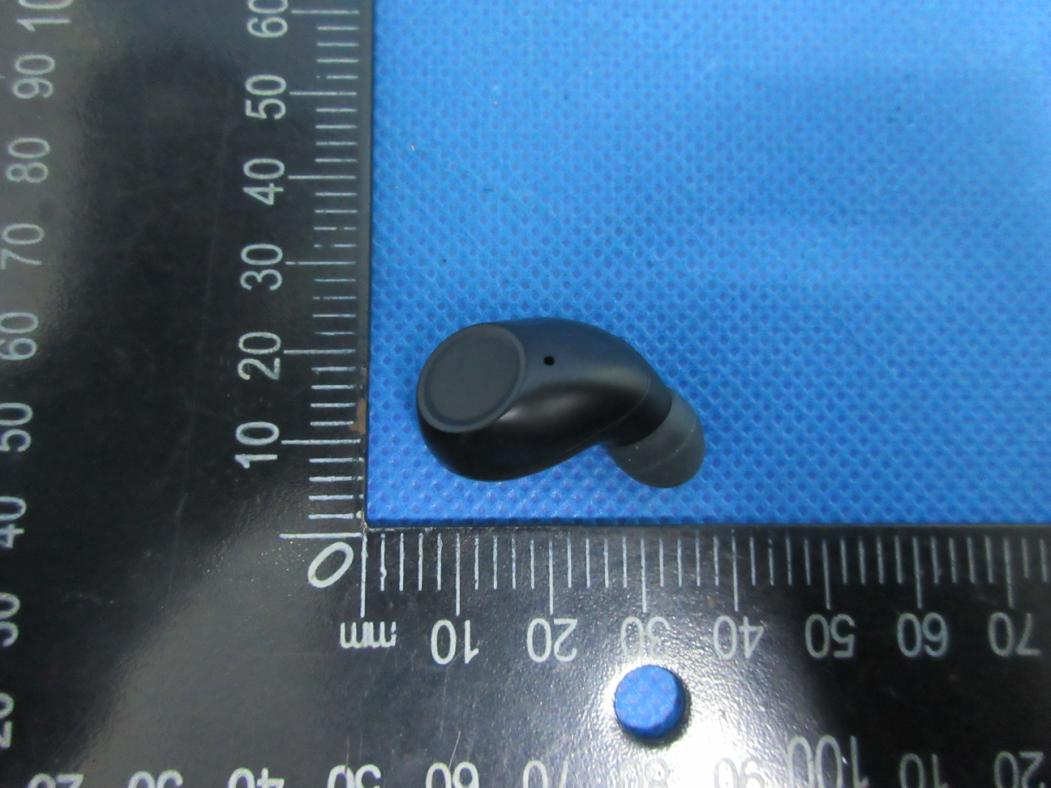

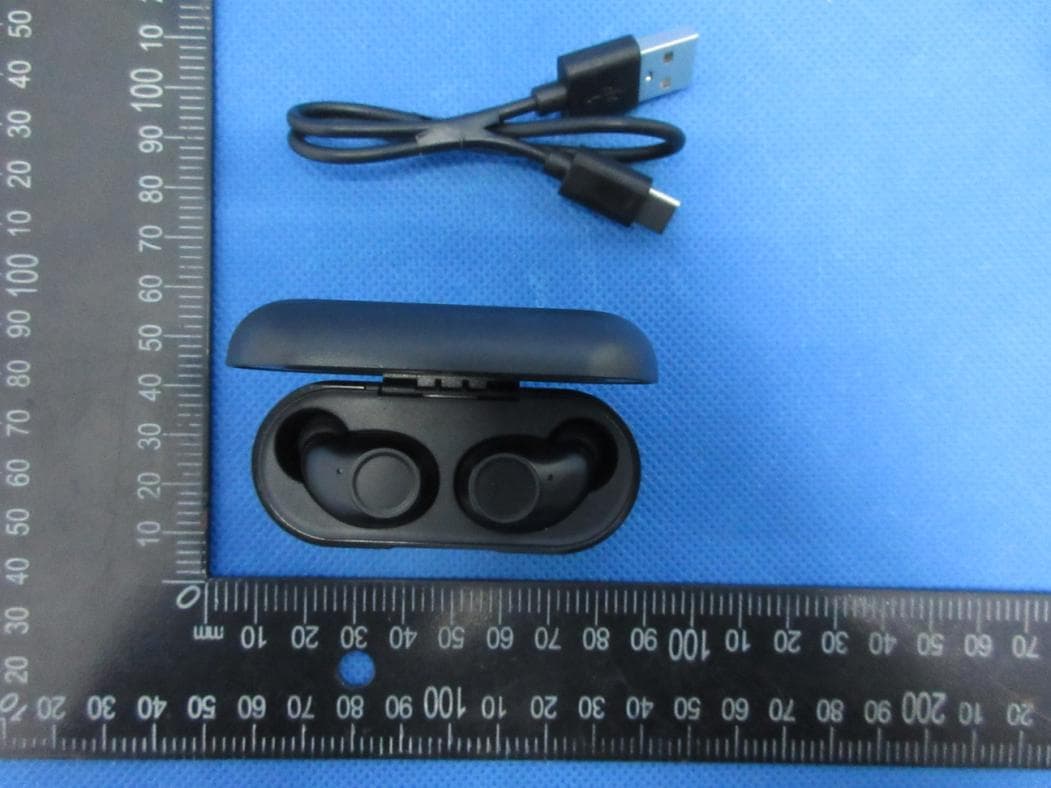

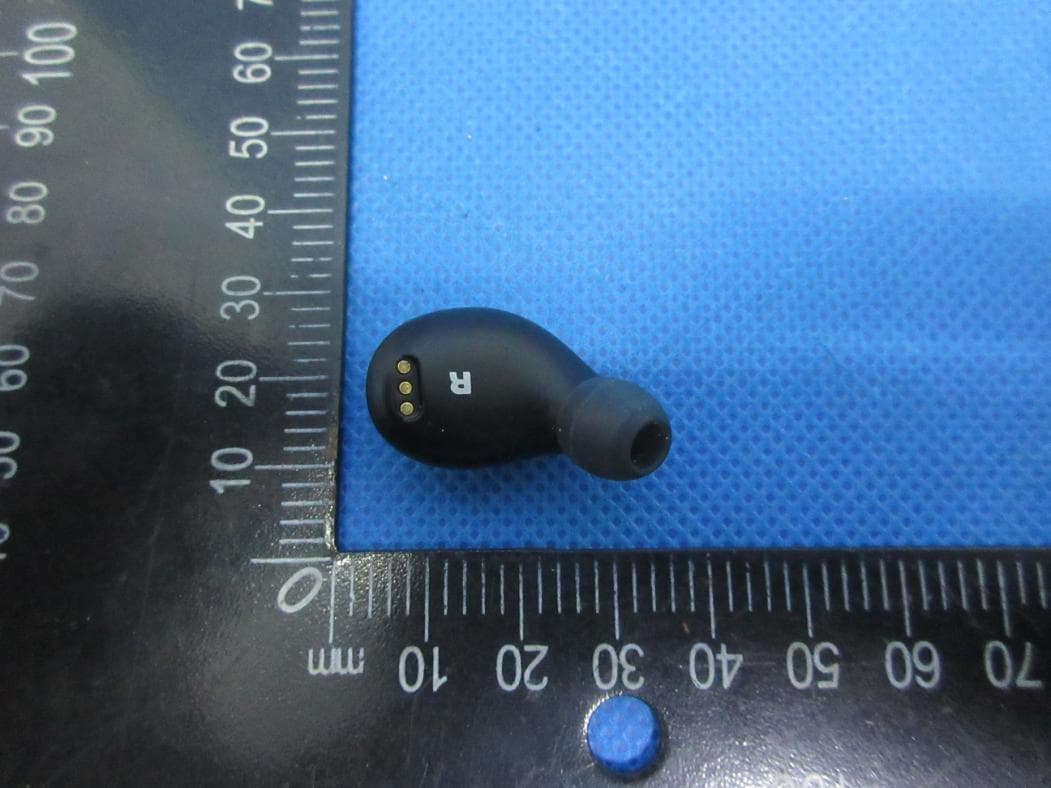

FCC ID: 2AGA9TWS05 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 FCC ID: 2AGA9TWS05 Photo 3 Photo 4 FCC ID: 2AGA9TWS05 Photo 5 Photo 6 FCC ID: 2AGA9TWS05 Photo 7 Photo 8 FCC ID: 2AGA9TWS05 Photo 9 Photo 10 FCC ID: 2AGA9TWS05 Photo 11 Photo 12 FCC ID: 2AGA9TWS05 Photo 13

FCC ID: 2AGA9TWS05

FCC ID: 2AGA9TWS05 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 FCC ID: 2AGA9TWS05 Photo 3 Photo 4 FCC ID: 2AGA9TWS05 Photo 5 Photo 6 BT ANT L FCC ID: 2AGA9TWS05 Photo 7 Photo 8 FCC ID: 2AGA9TWS05 Photo 9 Photo 10 BT ANT R FCC ID: 2AGA9TWS05 Photo 11 Photo 12

FCC ID: 2AGA9TWS05 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Left BT: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 3.741 2.373±142.51<50.778603.00YES 2.44 2.743 1.883±142.51<50.784743.00YES 2.480 2.353 1.723±142.51<50.791143.00YES 2.402 5.358 3.435±163.98<51.234003.00YES 2.44 4.986 3.155±163.98<51.243733.00YES 2.480 4.075 2.565±163.98<51.253883.00YES 2.402 6.025 4.005.5±16.54.47<51.384583.00YES 2.44 4.745 2.985.5±16.54.47<51.395483.00YES 2.480 4.583 2.875.5±16.54.47<51.406883.00YES 8-DPSK GFSK π/4- DQPSK Right BT: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 3.791 2.394.5±15.53.55<51.099813.00YES 2.44 5.486 3.544.5±15.53.55<51.108473.00YES 2.480 3.73 2.364.5±15.53.55<51.117523.00YES 2.402 4.799 3.025.5±16.54.47<51.384583.00YES 2.44 5.363 3.445.5±16.54.47<51.395483.00YES 2.480 6.178 4.155.5±16.54.47<51.406883.00YES 2.402 6.771 4.756±175.01<51.553523.00YES 2.44 5.221 3.336±175.01<51.565763.00YES 2.480 6.507 4.476±175.01<51.578543.00YES 8-DPSK GFSK π/4- DQPSK Conclusion: For the max result : 1.57854W/Kg ≤ 3.0 for 1g SAR, No SAR is required. Signature: Date: 2020-05-08 NAME AND TITLE (Please print or type): Alex Li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S20031701501001 Version.1.3 Page 1 of 136 RADIO TEST REPORT FCC ID: 2AGA9TWS05 Product: True Wireless Earbuds Trade Mark: Model No.: WD-TWS05 Family Model: CCS15156 Report No.: S20031701501001 Issue Date: 14 Apr. 2020 Prepared for HUIZHOU WEIDE Electronics CO.,LTD Jimadi Industrial Area, Boluo County, Huizhou, Guangdong, China. 516100 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S20031701501001 Version.1.3 Page 2 of 136 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ............................................................................. 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 29 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 30 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 32 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 34 7.7 PEAK OUTPUT POWER .............................................................................................................................. 36 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 38 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 40 7.10 ANTENNA APPLICATION .......................................................................................................................... 41 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS .......................................... 42 8 TEST RESULTS ................................................................................................................................................... 43 8.1 DWELL TIME ............................................................................................................................................... 43 8.2 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 53 8.3 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 63 8.4 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 82 8.5 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 92 8.6 BAND EDGE .................................................................................................................................................... 93 8.7 CONDUCTED RF SPURIOUS EMISSION ........................................................................................................... 118 END OF REPORT .......................................................................................................................................................... 136 Report No.: S20031701501001 Version.1.3 Page 3 of 136 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : HUIZHOU WEIDE Electronics CO.,LTD Address ....................................... : Jimadi Industrial Area, Boluo County, Huizhou, Guangdong, China. 516100 Manufacturer's Name .................. : HUIZHOU WEIDE Electronics CO.,LTD Address ....................................... : Ji…

Text truncated - open the document above for the full version.

Report No.: S20031701501001 Version.1.3 Page 71 of 136 -20 dB BW NVNT 2-DH5 2441MHz Left OBW NVNT 2-DH5 2480MHz Left Report No.: S20031701501001 Version.1.3 Page 72 of 136 -20 dB BW NVNT 2-DH5 2480MHz Left OBW NVNT 2-DH5 2402MHz Right Report No.: S20031701501001 Version.1.3 Page 73 of 136 -20 dB BW NVNT 2-DH5 2402MHz Right OBW NVNT 2-DH5 2441MHz Right Report No.: S20031701501001 Version.1.3 Page 74 of 136 -20 dB BW NVNT 2-DH5 2441MHz Right OBW NVNT 2-DH5 2480MHz Right Report No.: S20031701501001 Version.1.3 Page 75 of 136 -20 dB BW NVNT 2-DH5 2480MHz Right OBW NVNT 3-DH5 2402MHz Left Report No.: S20031701501001 Version.1.3 Page 76 of 136 -20 dB BW NVNT 3-DH5 2402MHz Left OBW NVNT 3-DH5 2441MHz Left Report No.: S20031701501001 Version.1.3 Page 77 of 136 -20 dB BW NVNT 3-DH5 2441MHz Left OBW NVNT 3-DH5 2480MHz Left Report No.: S20031701501001 Version.1.3 Page 78 of 136 -20 dB BW NVNT 3-DH5 2480MHz Left OBW NVNT 3-DH5 2402MHz Right Report No.: S20031701501001 Version.1.3 Page 79 of 136 -20 dB BW NVNT 3-DH5 2402MHz Right OBW NVNT 3-DH5 2441MHz Right Report No.: S20031701501001 Version.1.3 Page 80 of 136 -20 dB BW NVNT 3-DH5 2441MHz Right OBW NVNT 3-DH5 2480MHz Right Report No.: S20031701501001 Version.1.3 Page 81 of 136 -20 dB BW NVNT 3-DH5 2480MHz Right Report No.: S20031701501001 Version.1.3 Page 82 of 136 8.4 CARRIER FREQUENCIES SEPARATION Earphone Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict Left NVNT 1-DH5 2401.849 2402.851 1.002 0.97 Pass Left NVNT 1-DH5 2441.182 2442.184 1.002 0.96 Pass Left NVNT 1-DH5 2478.852 2479.851 0.999 0.97 Pass Right NVNT 1-DH5 2402.182 2403.184 1.002 0.958 Pass Right NVNT 1-DH5 2441.017 2442.019 1.002 0.96 Pass Right NVNT 1-DH5 2479.182 2480.184 1.002 0.96 Pass Left NVNT 2-DH5 2401.849 2402.851 1.002 0.901 Pass Left NVNT 2-DH5 2441.014 2442.016 1.002 0.911 Pass Left NVNT 2-DH5 2479.014 2480.019 1.005 0.909 Pass Right NVNT 2-DH5 2402.017 2403.016 0.999 0.909 Pass Right NVNT 2-DH5 2441.017 2442.016 0.999 0.909 Pass Right NVNT 2-DH5 2479.182 2480.181 0.999 0.909 Pass Left NVNT 3-DH5 2401.849 2402.851 1.002 0.904 Pass Left NVNT 3-DH5 2441.182 2442.181 0.999 0.901 Pass Left NVNT 3-DH5 2478.849 2479.851 1.002 0.899 Pass Right NVNT 3-DH5 2401.849 2402.848 0.999 0.901 Pass Right NVNT 3-DH5 2441.179 2442.181 1.002 0.901 Pass Right NVNT 3-DH5 2479.182 2480.181 0.999 0.901 Pass CFS NVNT 1-DH5 2402MHz Left Report No.: S20031701501001 Version.1.3 Page 83 of 136 CFS NVNT 1-DH5 2441MHz Left CFS NVNT 1-DH5 2480MHz Left Report No.: S20031701501001 Version.1.3 Page 84 of 136 CFS NVNT 1-DH5 2402MHz Right CFS NVNT 1-DH5 2441MHz Right Report No.: S20031701501001 Version.1.3 Page 85 of 136 CFS NVNT 1-DH5 2480MHz Right CFS NVNT 2-DH5 2402MHz Left Report No.: S20031701501001 Version.1.3 Page 86 of 136 CFS NVNT 2-DH5 2441MHz Left CFS NVNT 2-DH5 2480MHz Left Report No.: S20031701501001 Version.1.3 Page 87 of 136 CFS NVNT 2-DH5 2402MHz Right CFS NVNT 2-DH5 2441MHz Right Report No.: S20031701501001 Version.1.3 Page 88 of 136 CFS NVNT 2-DH5 2480MHz Right CFS NVNT 3-DH5 2402MHz Left Report No.: S20031701501001 Version.1.3 Page 89 of 136 CFS NVNT 3-DH5 2441MHz Left CFS NVNT 3-DH5 2480MHz Left Report No.: S20031701501001 Version.1.3 Page 90 of 136 CFS NVNT 3-DH5 2402MHz Right CFS NVNT 3-DH5 2441MHz Right Report No.: S20031701501001 Version.1.3 Page 91 of 136 CFS NVNT 3-DH5 2480MHz Right Report No.: S20031701501001 Version.1.3 Page 92 of 136 8.5 NUMBER OF HOPPING CHANNEL Earphone Condition Mode Hopping Number Limit Verdict Left NVNT 1-DH5 79 15 Pass Right NVNT 1-DH5 79 15 Pass Hopping No. NVNT 1-DH5 2402MHz Left Hopping No. NVNT 1-DH5 2402MHz Right Report No.: S20031701501001 Version.1.3 Page 93 of 136 8.6 BAND EDGE Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Left No-Hopping -45.44 -20 Pass NVNT 1-DH5 2402 Left Hopping -44.27 -20 Pass NVNT 1-DH5 2480 Left No-Hopping -45.59 -20 Pass NVNT 1-DH5 2480 Left Hopping -44.41 -20 Pass NVNT 1-DH5 2402 Right No-Hopping -44.64 -20 Pass NVNT 1-DH5 2402 Right Hopping -43.73 -20 Pass NVNT 1-DH5 2480 Right No-Hopping -47.17 -20 Pass NVNT 1-DH5 2480 Right Hopping -46.02 -20 Pass NVNT 2-DH5 2402 Left No-Hopping -41 -20 Pass NVNT 2-DH5 2402 Left Hopping -43.78 -20 Pass NVNT 2-DH5 2480 Left No-Hopping -42.74 -20 Pass NVNT 2-DH5 2480 Left Hopping -43.57 -20 Pass NVNT 2-DH5 2402 Right No-Hopping -42.08 -20 Pass NVNT 2-DH5 2402 Right Hopping -44.39 -20 Pass NVNT 2-DH5 2480 Right No-Hopping -45.71 -20 Pass NVNT 2-DH5 2480 Right Hopping -46.27 -20 Pass NVNT 3-DH5 2402 Left No-Hopping -43.48 -20 Pass NVNT 3-DH5 2402 Left Hopping -43.35 -20 Pass NVNT 3-DH5 2480 Left No-Hopping -44 -20 Pass NVNT 3-DH5 2480 Left Hopping -45.71 -20 Pass NVNT 3-DH5 2402 Right No-Hopping -44.69 -20 Pass NVNT 3-DH5 2402 Right Hopping -44.85 -20 Pass NVNT 3-DH5 2480 Right No-Hopping -44.69 -20 Pass NVNT 3-DH5 2480 Right Hopping -45.73 -20 Pass Band Edge NVNT 1-DH5 2402MHz Left No-Hopping Ref Report No.: S20031701501001 Version.1.3 Page 94 of 136 Band Edge NVNT 1-DH5 2402MHz Left No-Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2402MHz Left Hopping Ref Report No.: S20031701501001 Version.1.3 Page 95 of 136 Band Edge(Hopping) NVNT 1-DH5 2402MHz Left Hopping Emission Band Edge NVNT 1-DH5 2480MHz Left No-Hopping Ref Report No.: S20031701501001 Version.1.3 Page 96 of 136 Band Edge NVNT 1-DH5 2480MHz Left No-Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2480MHz Left Hopping Ref Report No.: S20031701501001 Version.1.3 Page 97 of 136 Band Edge(Hopping) NVNT 1-DH5 2480MHz Left Hopping Emission Band Edge NVNT 1-DH5 2402MHz Right No-Hopping Ref Report No.: S20031701501001 Version.1.3 Page 98 of 136 Band Edge NVNT 1-DH5 2402MHz Right No-Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2402MHz Right Hopping Ref Report No.: S20031701501001 Version.1.3 Page 99 of 136 Band Edge(Hopping) NVNT 1-DH5 2402MHz Right Hopping Emission Band Edge NVNT 1-DH5 2480MHz Right No-Hopping Ref Report No.: S20031701501001 Vers…

Text truncated - open the document above for the full version.

Report No.: S20031701501001 Version.1.3 Page 104 of 136 Band Edge NVNT 2-DH5 2480MHz Left No-Hopping Emission Band Edge(Hopping) NVNT 2-DH5 2480MHz Left Hopping Ref Report No.: S20031701501001 Version.1.3 Page 105 of 136 Band Edge(Hopping) NVNT 2-DH5 2480MHz Left Hopping Emission Band Edge NVNT 2-DH5 2402MHz Right No-Hopping Ref Report No.: S20031701501001 Version.1.3 Page 106 of 136 Band Edge NVNT 2-DH5 2402MHz Right No-Hopping Emission Band Edge(Hopping) NVNT 2-DH5 2402MHz Right Hopping Ref Report No.: S20031701501001 Version.1.3 Page 107 of 136 Band Edge(Hopping) NVNT 2-DH5 2402MHz Right Hopping Emission Band Edge NVNT 2-DH5 2480MHz Right No-Hopping Ref Report No.: S20031701501001 Version.1.3 Page 108 of 136 Band Edge NVNT 2-DH5 2480MHz Right No-Hopping Emission Band Edge(Hopping) NVNT 2-DH5 2480MHz Right Hopping Ref Report No.: S20031701501001 Version.1.3 Page 109 of 136 Band Edge(Hopping) NVNT 2-DH5 2480MHz Right Hopping Emission Band Edge NVNT 3-DH5 2402MHz Left No-Hopping Ref Report No.: S20031701501001 Version.1.3 Page 110 of 136 Band Edge NVNT 3-DH5 2402MHz Left No-Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2402MHz Left Hopping Ref Report No.: S20031701501001 Version.1.3 Page 111 of 136 Band Edge(Hopping) NVNT 3-DH5 2402MHz Left Hopping Emission Band Edge NVNT 3-DH5 2480MHz Left No-Hopping Ref Report No.: S20031701501001 Version.1.3 Page 112 of 136 Band Edge NVNT 3-DH5 2480MHz Left No-Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2480MHz Left Hopping Ref Report No.: S20031701501001 Version.1.3 Page 113 of 136 Band Edge(Hopping) NVNT 3-DH5 2480MHz Left Hopping Emission Band Edge NVNT 3-DH5 2402MHz Right No-Hopping Ref Report No.: S20031701501001 Version.1.3 Page 114 of 136 Band Edge NVNT 3-DH5 2402MHz Right No-Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2402MHz Right Hopping Ref Report No.: S20031701501001 Version.1.3 Page 115 of 136 Band Edge(Hopping) NVNT 3-DH5 2402MHz Right Hopping Emission Band Edge NVNT 3-DH5 2480MHz Right No-Hopping Ref Report No.: S20031701501001 Version.1.3 Page 116 of 136 Band Edge NVNT 3-DH5 2480MHz Right No-Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2480MHz Right Hopping Ref Report No.: S20031701501001 Version.1.3 Page 117 of 136 Band Edge(Hopping) NVNT 3-DH5 2480MHz Right Hopping Emission Report No.: S20031701501001 Version.1.3 Page 118 of 136 8.7 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Left -28.22 -20 Pass NVNT 1-DH5 2441 Left -36.3 -20 Pass NVNT 1-DH5 2480 Left -32.75 -20 Pass NVNT 1-DH5 2402 Right -28.79 -20 Pass NVNT 1-DH5 2441 Right -32.62 -20 Pass NVNT 1-DH5 2480 Right -31.94 -20 Pass NVNT 2-DH5 2402 Left -28.59 -20 Pass NVNT 2-DH5 2441 Left -38.35 -20 Pass NVNT 2-DH5 2480 Left -33.33 -20 Pass NVNT 2-DH5 2402 Right -27.85 -20 Pass NVNT 2-DH5 2441 Right -34.52 -20 Pass NVNT 2-DH5 2480 Right -31.82 -20 Pass NVNT 3-DH5 2402 Left -28.11 -20 Pass NVNT 3-DH5 2441 Left -38.2 -20 Pass NVNT 3-DH5 2480 Left -32.26 -20 Pass NVNT 3-DH5 2402 Right -30.21 -20 Pass NVNT 3-DH5 2441 Right -35.89 -20 Pass NVNT 3-DH5 2480 Right -33.06 -20 Pass Tx. Spurious NVNT 1-DH5 2402MHz Left Ref Report No.: S20031701501001 Version.1.3 Page 119 of 136 Tx. Spurious NVNT 1-DH5 2402MHz Left Emission Tx. Spurious NVNT 1-DH5 2441MHz Left Ref Report No.: S20031701501001 Version.1.3 Page 120 of 136 Tx. Spurious NVNT 1-DH5 2441MHz Left Emission Tx. Spurious NVNT 1-DH5 2480MHz Left Ref Report No.: S20031701501001 Version.1.3 Page 121 of 136 Tx. Spurious NVNT 1-DH5 2480MHz Left Emission Tx. Spurious NVNT 1-DH5 2402MHz Right Ref Report No.: S20031701501001 Version.1.3 Page 122 of 136 Tx. Spurious NVNT 1-DH5 2402MHz Right Emission Tx. Spurious NVNT 1-DH5 2441MHz Right Ref Report No.: S20031701501001 Version.1.3 Page 123 of 136 Tx. Spurious NVNT 1-DH5 2441MHz Right Emission Tx. Spurious NVNT 1-DH5 2480MHz Right Ref Report No.: S20031701501001 Version.1.3 Page 124 of 136 Tx. Spurious NVNT 1-DH5 2480MHz Right Emission Tx. Spurious NVNT 2-DH5 2402MHz Left Ref Report No.: S20031701501001 Version.1.3 Page 125 of 136 Tx. Spurious NVNT 2-DH5 2402MHz Left Emission Tx. Spurious NVNT 2-DH5 2441MHz Left Ref Report No.: S20031701501001 Version.1.3 Page 126 of 136 Tx. Spurious NVNT 2-DH5 2441MHz Left Emission Tx. Spurious NVNT 2-DH5 2480MHz Left Ref Report No.: S20031701501001 Version.1.3 Page 127 of 136 Tx. Spurious NVNT 2-DH5 2480MHz Left Emission Tx. Spurious NVNT 2-DH5 2402MHz Right Ref Report No.: S20031701501001 Version.1.3 Page 128 of 136 Tx. Spurious NVNT 2-DH5 2402MHz Right Emission Tx. Spurious NVNT 2-DH5 2441MHz Right Ref Report No.: S20031701501001 Version.1.3 Page 129 of 136 Tx. Spurious NVNT 2-DH5 2441MHz Right Emission Tx. Spurious NVNT 2-DH5 2480MHz Right Ref Report No.: S20031701501001 Version.1.3 Page 130 of 136 Tx. Spurious NVNT 2-DH5 2480MHz Right Emission Tx. Spurious NVNT 3-DH5 2402MHz Left Ref Report No.: S20031701501001 Version.1.3 Page 131 of 136 Tx. Spurious NVNT 3-DH5 2402MHz Left Emission Tx. Spurious NVNT 3-DH5 2441MHz Left Ref Report No.: S20031701501001 Version.1.3 Page 132 of 136 Tx. Spurious NVNT 3-DH5 2441MHz Left Emission Tx. Spurious NVNT 3-DH5 2480MHz Left Ref Report No.: S20031701501001 Version.1.3 Page 133 of 136 Tx. Spurious NVNT 3-DH5 2480MHz Left Emission Tx. Spurious NVNT 3-DH5 2402MHz Right Ref Report No.: S20031701501001 Version.1.3 Page 134 of 136 Tx. Spurious NVNT 3-DH5 2402MHz Right Emission Tx. Spurious NVNT 3-DH5 2441MHz Right Ref Report No.: S200…
