2AGB6SWPRO51SWIRELESS SUBWOOFER

QUICK START GUID Model: SHOCKWAFE PRO 5.1 NAKAMICHI Your Unit is designed and manufactured to operate within defined design limits, and misuse mayresult in electric shock or fire. To prevent your Unit from being damaged, the following rules shouldbe observed for its installation, use, and maintenance. Please read the following safety instructionsbefore operating your Unit. Keep these instructions in a safe place for future reference.• Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a thirdgrounding prong. The wide blade or the third prong are provided for your safety. If the providedplug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid hasbeen spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain ormoisture, does not operate normally, or has been dropped. • To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Unit. • Unplug the power cord before cleaning your Unit. A damp cloth is sufficient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners. • Always use the accessories recommended by th e manufacturer to insure compatibility. • When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Unit to avoid causing fire,electric shock, or component damage. • Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these openings are notblocked or covered. Do not place your Unit in a bookcase or cabinet unless proper • ventilation is provided. • Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short circuit parts causing a fire or electric shock.Never spill liquids on your Unit. • When connected to a power outlet, power is always flowing into your Unit. To totally disconnect power, unplug the power cord. • Do not overload power strips and extension cords. Overloading can result in fire or electric shock. • The wall socket should be located near your Unit and be easily accessible • Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may resultin fire or electric shock. • Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your unit yourself. • Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact yourdealer for repair. • Continued use of your Unit may cause fire or electric shock. • Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause fire or electric shock. • Ensure that the power cord and any other cables are unplugged before moving your Unit. • When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your Unit will not be used foran extended period of time, unplug the power cord. • To reduce risk of electric shock, do not touch the connector with wet hands. • Insert the remote control batteries in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator. • The marking label of the subwoofer was located on the external bottom enclosure of the product. • The equipment shall be used at maximum 35 degree Celsius ambient temperature. • See the important note and rating located on the back of the unit. • WARNING - This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near the equipment (such as a vase or flower pot) or expose it to dripping,splashing, rain, or moisture. • To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. • CAUTION - Danger of explosion or fire if batteries are mistreated. Replace only with the same or specified type. • Do not leave the batteries exposed to direct sunlight for a long period of time with doors and windows closed. Do not disassemble the batteries or dispose of it in fire. • Where the MAINS plug or appliance coupler is used as the disconnect d…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 WOW Technologies (Singapore) Pte Ltd 2015-10-13 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We,WOW Technologies (Singapore) Pte Ltd hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): WIRELESS SUBWOOFER Model Number: SHOCKWAFE PRO 5.1 FCC ID: 2AGB6SWPRO51S Sincerely, Brian Law/VP of Product Development E-mail: [email protected] Phone: +86 1382 3673400 Fax: +65 6281 2106 Address: 62 Burn Road #06-01 TSH Centre Singapore, Singapore369976, Singapore.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 WOW Technologies (Singapore) Pte Ltd 2015-10-13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AGB6SWPRO51S We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - FCC SW SECURITY DESCRIPTION The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, signature Brian Law/VP of Product Development E-mail: [email protected] Phone: +86 1382 3673400 Fax: +65 6281 2106 Address: 62 Burn Road #06-01 TSH Centre Singapore, Singapore369976, Singapore.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 21.06.07 Datum: 00.00.00 Seite 1 von 1 WOW Technologies (Singapore) Pte Ltd Date: 2015-11-18 Subject: WIRELESS SUBWOOFER FCC ID: 2AGB6SWPRO51S To Whom it may concern, This device is acting as slave and operating in the 5.8 GHz (5725 – 5875 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, signature Brian Law/VP of Product Development E-mail: [email protected] Phone: +86 1382 3673400 Fax: +65 6281 2106 Address: 62 Burn Road #06-01 TSH Centre Singapore, Singapore369976, Singapore.

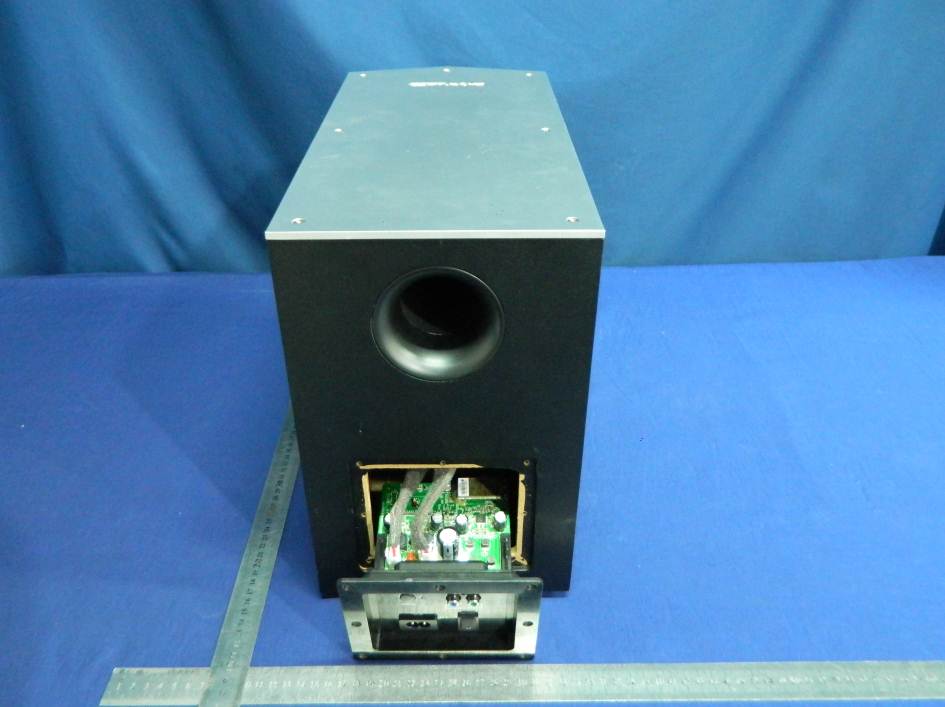

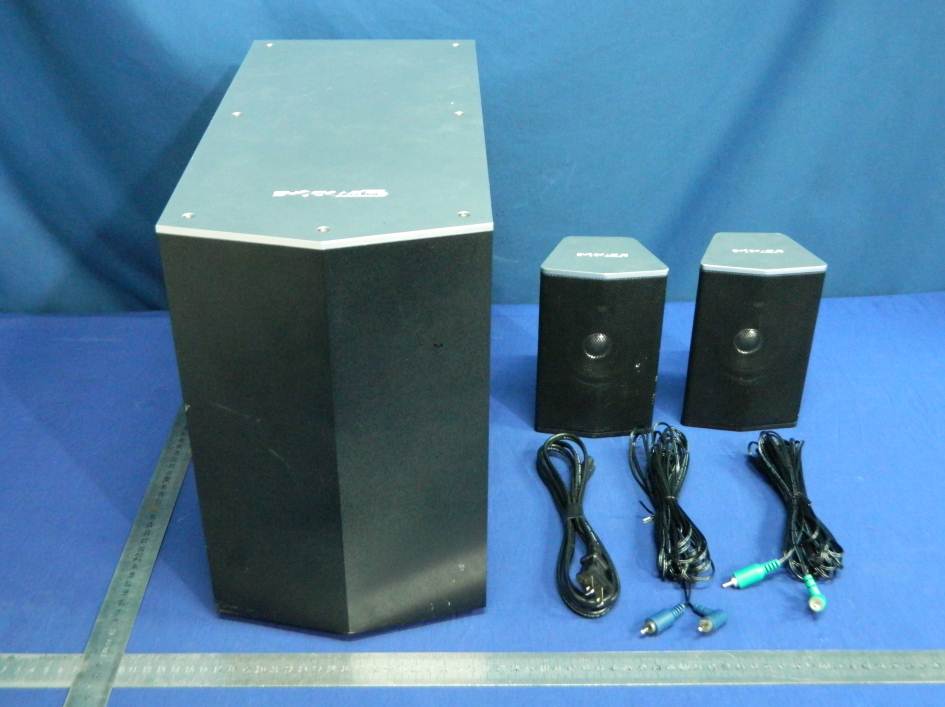

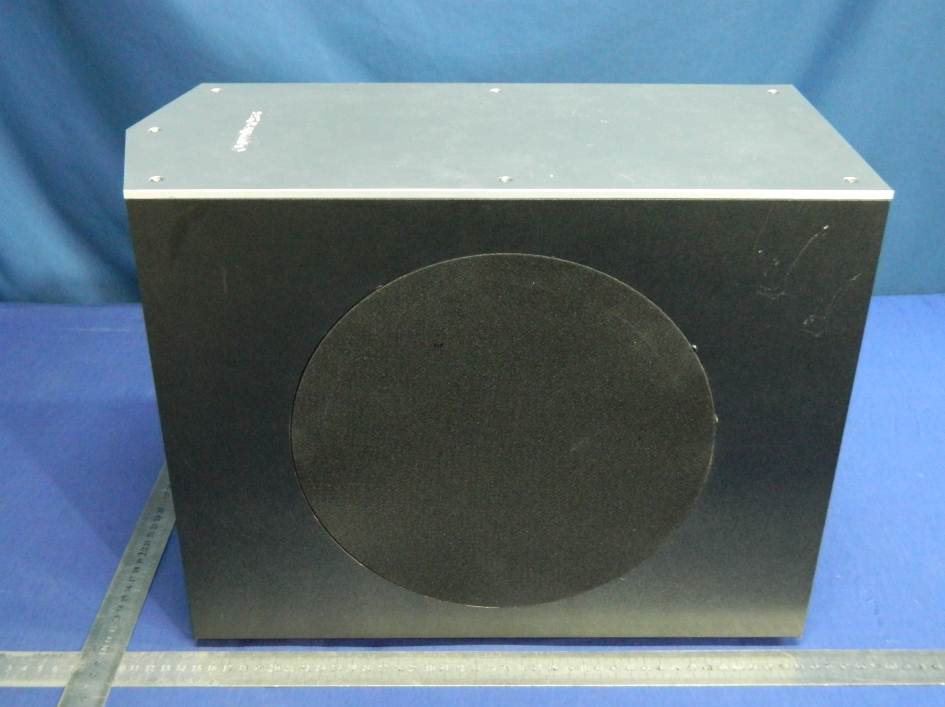

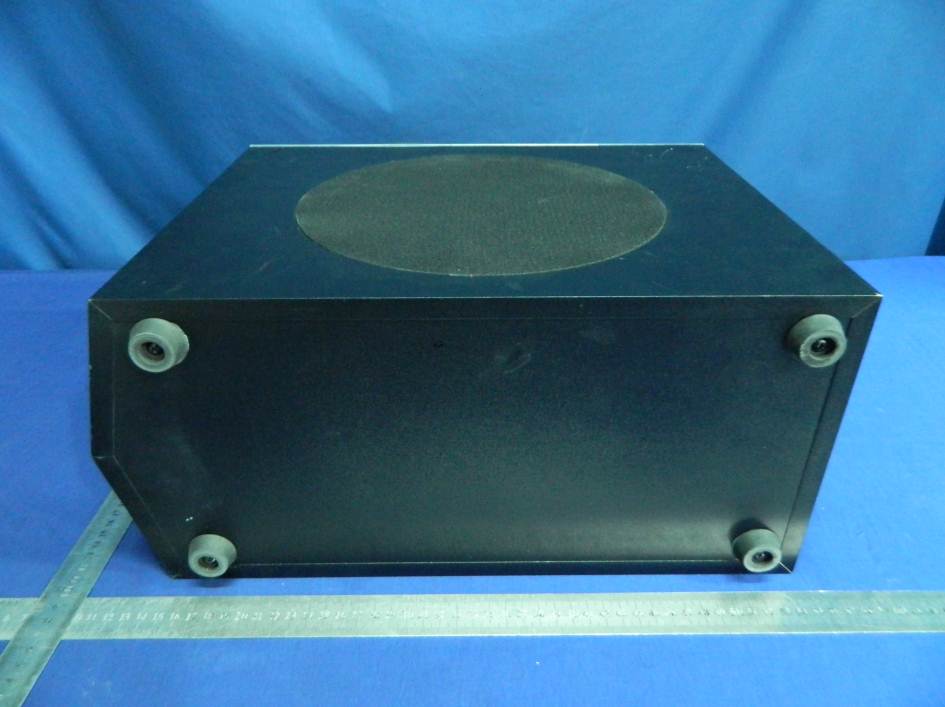

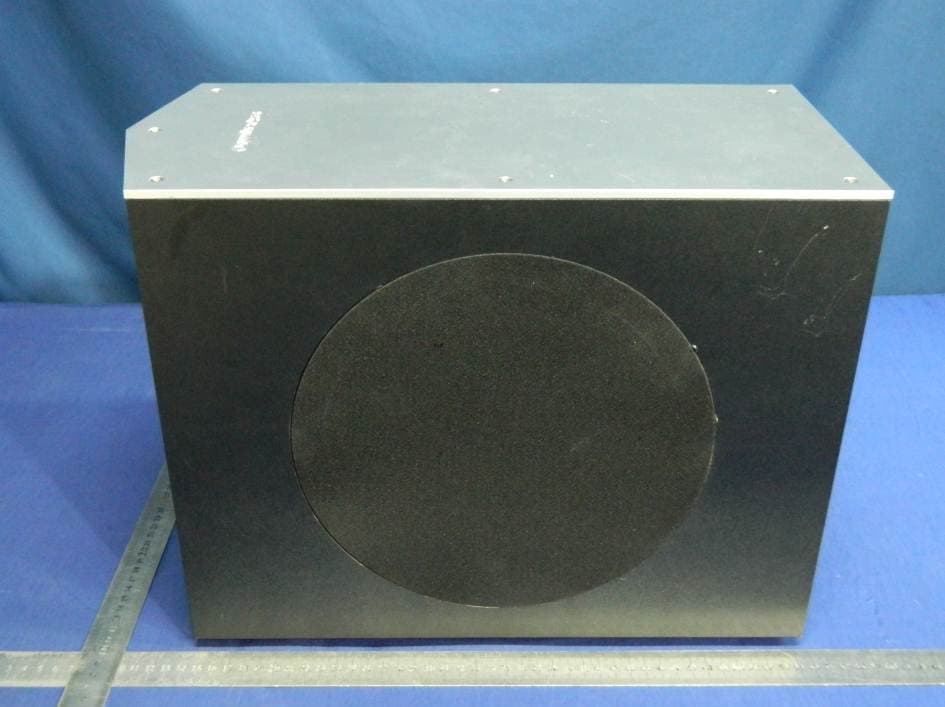

PHOTOGRAPHS OF EUT (EXTERNAL PHOTO)

Label Location

Antenna A Module Antenna B

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Operation Frequency: WIFI 5.8G 5736MHz~ 5814MHz Power density limited: 1mW/ cm 2 Antenna gain: Chain A: 2dBi, Chain B: 2dBi, Chain A: Channel Frequency (MHz) Output power (mW) Output power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Power density at 20cm(mW/cm 2 ) Power density Limits (mW/cm2 ) 5736 27.2914.36 16±1 17 1.58 0.0158 1 5762 32.0615.06 16±1 17 1.58 0.0158 1 5814 42.1716.25 16±1 17 1.58 0.0158 1 Chain B: Channel Frequency (MHz) Output power (mW) Output power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Power density at 20cm(mW/cm 2 ) Power density Limits (mW/cm2 ) 5736 8.83 9.46 10.0±1 11 1.58 0.0040 1 5762 10.1210.05 10.0±1 11 1.58 0.0040 1 5814 10.3310.14 10.0±1 11 1.58 0.0040 1 FCC ID: 2AGB6SWPRO51S

TRF No.: FCC 15.407/A Page 1 of 57 Report No.: ES150731444E Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART E CERTIFICATION TEST REPORT For WIRELESS SUBWOOFER Model No.: SHOCKWAFE PRO 5.1 FCC ID: 2AGB6SWPRO51S Trademark: Nakamichi REPORT NO.: ES150731444E ISSUE DATE: October 13, 2015 Prepared for WOW Technologies (Singapore) Pte Ltd 62 Burn Road #06-01 TSH Centre Singapore, Singapore369976, Singapore. Prepared by EMTEK (SHENZHEN) CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.: FCC 15.407/A Page 2 of 57 Report No.: ES150731444E Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: WOW Technologies (Singapore) Pte Ltd 62 Burn Road #06-01 TSH Centre Singapore, Singapore369976, Singapore. Manufacturer: SHENZHEN FENDA TECHNOLOGY CO., LTD. Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, Guangdong, China Product Description: WIRELESS SUBWOOFER Model Number: SHOCKWAFE PRO 5.1 File Number: ES150731444E Date of Test: July 30, 2015 to October 13, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J:2014 FCC 47 CFR Part 15, Subpart E:2014 PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.407 The test results of this report relate only to the tested sample identified in this report. Date of Test : July 30, 2015 to October 13, 2015 Prepared by : Jack Li /Editor Reviewer : Joe Xia /Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No.: FCC 15.407/A Page 3 of 57 Report No.: ES150731444E Ver.1.0 Access to the World TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 2 2 EUT TECHNICAL DESCRIPTION .................................................................................................................... 4 3 SUMMARY OF TEST RESULT ........................................................................................................................... 6 4 TEST METHODOLOGY ...................................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................. 7 4.2 MEASUREMENT EQUIPMENT USED ........................................................................................................ 7 4.3 DESCRIPTION OF TEST MODES ................................................................................................................. 8 5 FACILITIES AND ACCREDITATIONS ............................................................................................................. 9 5.1 FACILITIES..................................................................................................................................................... 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 9 6 TEST SYSTEM UNCERTAINTY ...................................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP ........................................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP ........................................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP .................................................................................................... 13 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 14 7.5 SUPPORT EQUIPMENT ............................................................................................................................... 14 8 TEST REQUIREMENTS .................................................................................................................................... 15 8.1 BANDWIDTH MEASUREMENT ................................................................................................................ 15 8.2 MAXIMUM CONDUCTED OUTPUT POWER ........................................................................................... 23 8.3 MAXIMUM PEAK POWER DENSITY ....................................................................................................... 25 8.4 FREQUENCY STABILITY ........................................................................................................................... 30 8.5 UNDESIRABLE RADIATED SPURIOUS EMISSION ................................................................................ 33 8.6 POWER LINE CONDUCTED EMISSIONS ................................................................................................. 54 8.7 ANTENNA APPLICATION .......................................................................................................................... 57 TRF No.: FCC 15.407/A Page 4 of 57 Report No.: ES150731444E Ver.1.0 Access to the World 2 EUT TECHNICAL DESCRIPTION Characteristics Description Device Type: Wifi 5.8G Device Modulation: OFDM; Operating Frequency Range: 5725-5875 MHz; Number of Channels: 3 channels; Transmit Power Max: 16.25dBm for Antenna A port; 10.14dBm for Antenna B port; Antenna Type: PCB Antenna Antenna Gain: 2dBi for wifi 5.8G Power supply: AC supply: 120V AC~ 60Hz 0.6A Adapter sup…

Text truncated - open the document above for the full version.

Conducted Measurement Photo Radiated Emission Test
