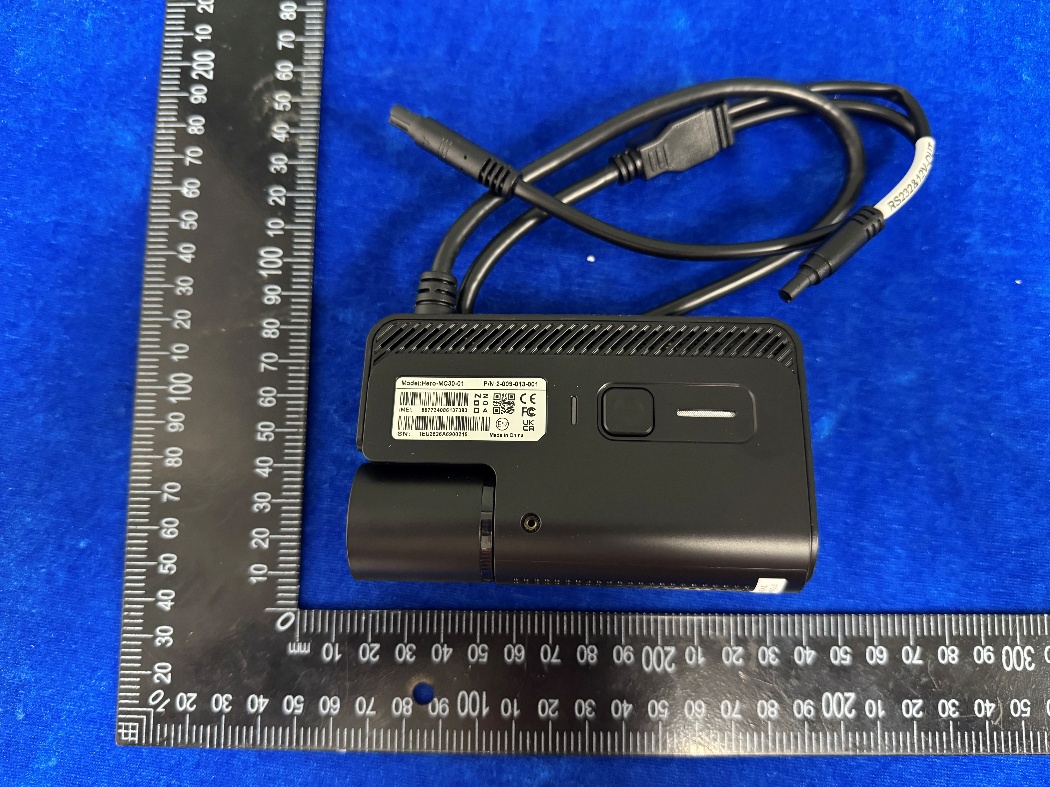

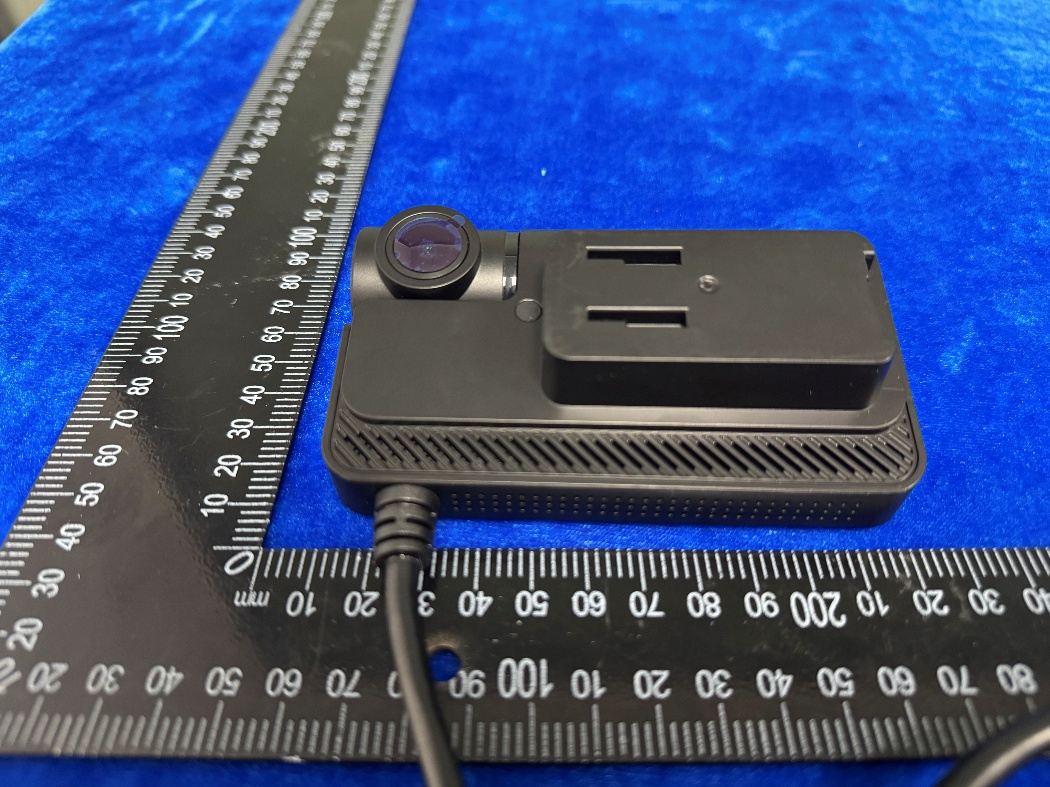

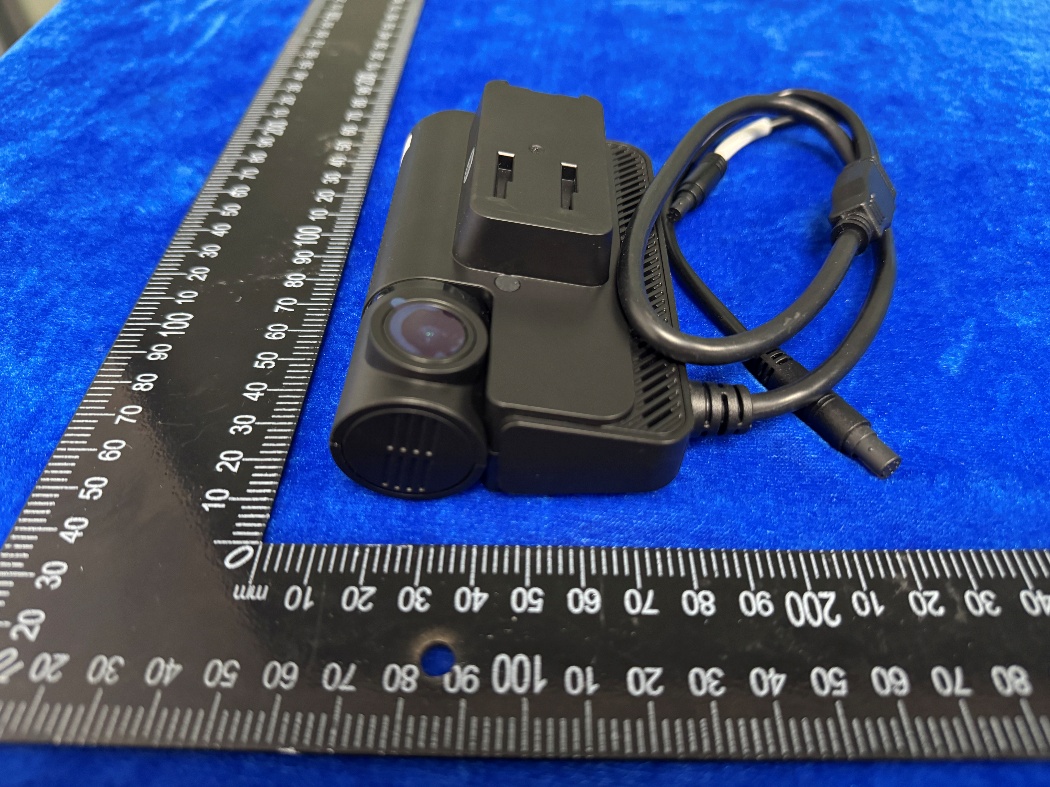

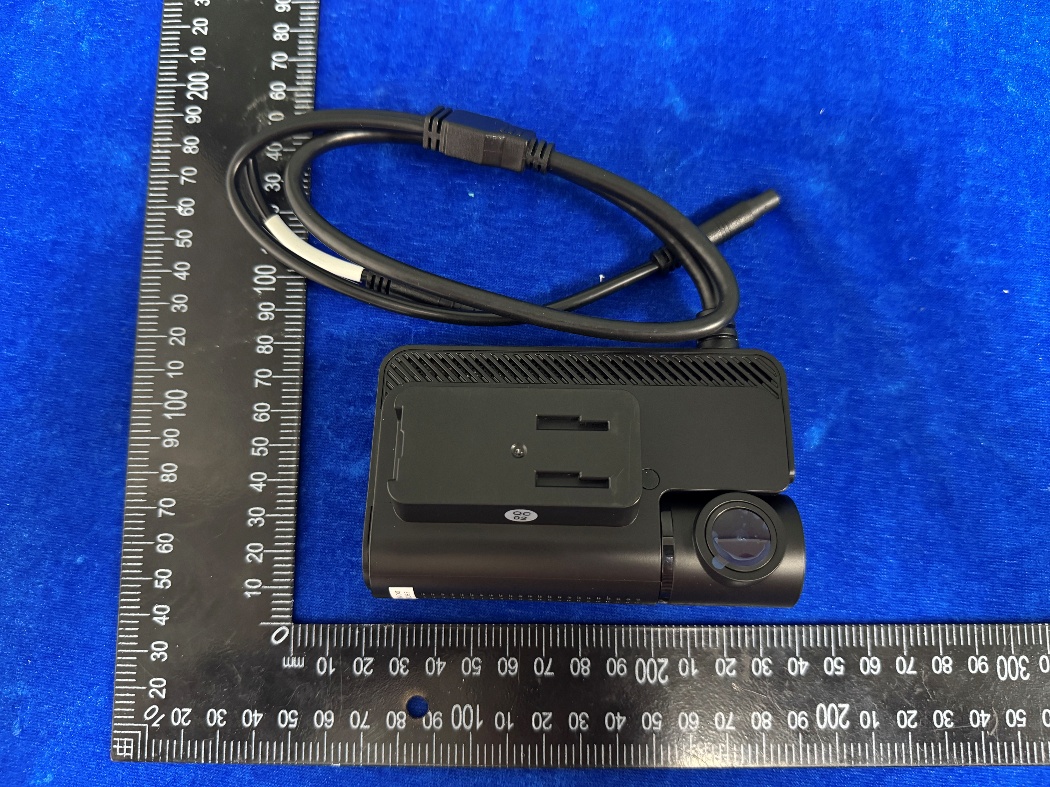

2AGBD-HERO-MC30-01Dashcam

Dashcam User Manual (V ersion 1.1) Revisionrecord: ActorVersionDescriptionDate KevinV1.0First draft2025/6/4 KevinV1. 1Replacenew diagram2025/8/28 Content Actor................................................................................................................................................................2 Version.............................................................................................................................................................2 Description......................................................................................................................................................2 Date.................................................................................................................................................................2 1. Features ............................................................................................................................................................1 2.Dimensionand Definition .................................................................................................................................1 3.QuickStarts ........................................................................................................................................................2 3.1 DashcamConfiguration ........................................................................................................................3 3.2 Parametersset up via Howen-iTool ...................................................................................................4 3.3 Timezonesetting......................................................................................................................................5 3.4 Quickconnectto Platform ....................................................................................................................6 3.4.1DeviceID .....................................................................................................................................7 3.4.2Centersetting .............................................................................................................................7 3.4.3Dial setting ...................................................................................................................................8 3.4. 4 Add deviceto HowenVSS .......................................................................................................9 3.4. 5 NetworkStatus ...........................................................................................................................9 3.5 Info page.................................................................................................................................................10 3.5.1System .......................................................................................................................................11 3.5.2Disk .............................................................................................................................................12 3.5.3AI Authorization .........................................................................................................................13 4. Installation .......................................................................................................................................................13 5.Calibration ........................................................................................................................................................17 5.1 DMSCalibration......................................................................................................................................17 5.2 ADASCalibration.....................................................................................................................................19 6.MainMenu .......................................................................................................................................................23 6.1 Search......................................................................................................................................................23 6.2 Config......................................................................................................................................................24 6.2.1Device ........................................................................................................................................24 6.2.2User ............................................................................................................................................24 6.2.3Clock ..........................................................................................................................................25 6.2.4Power .........................................................................................................................................26 6.2.5SleepConfiguration .................................................................................................................27 6.2.6Disk .............................................................................................................................................29 6.2.7Audio ..........................................................................................................................................30 6.2.8Parameter ..................................................................................................................................30 6.3 Video.......................................................................................................................................................31 6.3.1General ......................................................................................................................................32 6.3.2Main-stream ..............................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Huaxin Information Technology Service Co., Ltd 101, R & D Building, No.3 guansheng 4th Road, Luhu Community, Guanhu Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-21018313 Http: //www.tecovo.net Shenzhen Huaxin Information Technology Service Co., Ltd 101, R & D Building, No.3 guansheng 4th Road, Luhu Community, Guanhu Street, Longhua District, Shenzhen, Guangdong, China Tel.: +86-755-21018313 Http: //www.tecovo.net Maximum Permissible Exposure Evaluation FCC ID: 2AGBD-HERO-MC30-01 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) EUT Specification Product Name: Dashcam Trade Mark: / Model/Type reference: Hero-MC30-01 Listed Model(s): Hero-MC30-02, Hero-MC30-03, Hero-ME41-02, Hero-ME41-03, Hero-ME40-01, Hero-ME40-02, Hero-ME40-03, Hero-MA90-01, Hero-MA90-02, Hero-MA90-03 Model Different: All these models are identical in the same PCB, layout and electrical circuit, The difference is model name. Frequency band (Operating): BT: 2402MHz~2480MHz WLAN: 2412MHz~2462MHz RLAN: 5745MHz~5825MHz FDD Band 7: UL: 2500 ~ 2570MHz, DL: 2620 ~ 2690MHz TDD Band 41: UL: 2498.5MHz~2687.5MHz, DL: 2498.5MHz~2687.5MHz Device category: Portable (<5mm separation) Mobile (>20cm separation) Fixed (>20cm separation) Others ___ Exposure classification: Occupational/Controlled exposure (S=5mW/cm2) General Populati on/Uncontrolled exposure (S=1mW/cm2) Antenna diversity: Single antenna Multiple antennas Antenna gain: BT: 0.6dBi Max WLAN: 0.6dBi Max RLAN: 0.4dBi Max FDD Band 7: 3.0dBi Max TDD Band 41: 3.0dBi Max Evaluation applied: MPE Evaluation SAR Evaluation Page 2 of 2 Report No.: HX260327R007 Shenzhen Huaxin Information Technology Service Co., Ltd 101, R & D Building, No.3 guansheng 4th Road, Luhu Community, Guanhu Street, Longhua District, Shenzhen, Guangdong, China Te l.: +86-755-21018313 Http: //www.tecovo.net Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 30 1500-100000 -- -- 1 30 F = frequency in MHz Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout= output power to antenna in mW G= gain of antenna in linear scale Pi= 3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, We will know the distance where the MPE limit is reached. Measurement Result Band Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/cm 2 ) Verdict BLE 2480 0.6 4.20 4±1 5 0.00072 1.000 PASS EDR 2402 0.6 11.27 11±1 12 0.00362 1.000 PASS 802.11b 2462 0.6 17.30 17±1 18 0.01441 1.000 PASS 802.11a 5745 0.4 16.47 16±1 17 0.01093 1.000 PASS LTE Band 7 2505 3.0 22.15 22±1 23 0.07920 1.000 PASS LTE Band 41 2498.5 3.0 23.96 24±1 25 0.12553 1.000 PASS The LTE and WLAN can transmit simultaneously LTE Band 41 Power density at 20cm (mW ) WLAN Power density at 20cm(mW ) Total Power density at 20cm(mW ) Limit Verdict 0.12553 0.01441 0.13994 1 PASS Total E-field strength = ((E-field strength)/ (Limit) + (E-field strength)/ (Limit)...) ≤ 1 Note: For a more detailed features description, Please refer to the R F Test Report. **********************THE END**********************

Shenzhen Huaxin Information Technology Service Co., Ltd 101, R & D Building, No.3 guansheng 4th Road, Luhu Community, Guanhu Street, Longhua District, Shenzhen, Guangdong, China Te l : +86-755-21018313 Http: //www.tecovo.net Page 1 of 1 Radiated Measurements 30MHz - 1GHz Above 1GHz

Product OC: Y0CDK0CA4BA Version: 1.0 Date: 2025-05-29 Product Name: 4G Antenna Key Features: Frequency Band: 700–960 MHz, 1710–2690 MHz Dimensions: 68.90 mm × 37.63 mm × 0.13 mm Efficiency: Up to 53.81 % RoHS Compliant Antenna Datasheet Antenna Services Y0CDK0CA4BA Datasheet Antenna_Datasheet 1 1 Specification Test Condition: Assembled in test device 1.1. Electrical 1.2. Mechanical & Environmental Electrical Frequency Range 700–960 MHz, 1710–2690 MHz Impedance50 Ω Polarization Linear Radiation Pattern Omni-directional VSWR ≤ 26.6 Peak Gain 3.6 dBi Mechanical Antenna Dimensions 68.90 mm × 37.63 mm × 0.13 mm Material & Color FPC & Black Cable Type & Color & Length Ф 1.13 & Black & 52 mm Connector Type IPEX MHF 1 Mounting Type Adhesive Weight Typ. 0.72 g Environmental Operation Temperature -40 °C to +85 °C Antenna Services Y0CDK0CA4BA Datasheet Antenna_Datasheet 2 1.3. Antenna Assembly Storage Temperature -40 °C to +85 °C RoHS Compliant Yes Y0CDK0CA4BA Test system ØSATIMO，Agilent E5071C，Anristu MT8820C，CMW500,StarPointSP9500 Antenna Services Y0CDK0CA4BA Datasheet Antenna_Datasheet 3 Antenna Services Y0CDK0CA4BA Datasheet Antenna_Datasheet 4 2 Drawing Antenna Services Y0CDK0CA4BA Datasheet Antenna_Datasheet 5 3 Detailed Performance 3.1. S-Parameter Test 3.1.1. VSWR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 500700900 1100130015001700190021002300250027002900 VSWR Frequency(MHz) VSWR VSWR Frequency (MHz) 600 630 710 830 900 960 1440 1710 1740 1880 VSWR - - 24.5 3.6 3.8 7.6 - 1.9 2.0 2.7 Frequency (MHz) 1950 2140 2350 2450 2690 3600 4700 5000 5500 6000 VSWR 1.8 1.2 2.2 2.2 3.3 - - - - - Antenna Services Y0CDK0CA4BA Datasheet Antenna_Datasheet 6 3.2. Radiation Performance Test 3.2.1. Efficiency 0 10 20 30 40 50 60 70 700900 17101910211023102510 Efficiency(%) Frequency(MHz) Efficiency Efficiency (%) Frequency (MHz) 600 630 710 830 900 960 1440 1710 1740 1880 Efficiency (%) - - 2.2 27.0 20.6 11.9 - 44.6 41.3 34.5 Frequency (MHz) 1950 2140 2350 2450 2690 3600 4700 5000 5500 6000 Efficiency (%) 42.7 43.4 37.9 43.7 53.5 - - - - - Antenna Services Y0CDK0CA4BA Datasheet Antenna_Datasheet 7 3.2.2. Peak Gain -15 -12 -9 -6 -3 0 3 6 700900 17101910211023102510 Peak Gain(dBi) Frequency(MHz) Peak Gain Peak Gain (dBi) Frequency (MHz) 600 630 710 830 900 960 1440 1710 1740 1880 Peak Gain (dBi) - - -14.3-2.0-2.1-3.3- 2.3 2.4 2.6 Frequency (MHz) 1950 2140 2350 2450 2690 3600 4700 5000 5500 6000 Peak Gain (dBi) 3.6 3.4 2.6 3.0 3.0 - - - - - Antenna Services Y0CDK0CA4BA Datasheet Antenna_Datasheet 8 4 Packaging Step Packaging Picture / 2D Picture Description 1 Product drawing 2 50 pcs antenna products in a PE bag. (50 PCS Antennas / PE Bag) 3 (80 PE Bags / Carton Box) (4000 PCS Antennas / Carton Box) Estimated quantity Products that cannot fill the entire carton box are packed in a suitable size carton box. Carton Size: L × W × H = 325 × 325 × 200 mm 4 Position for Attaching Labels ①Carton Label ②Quality Label Antenna Services Y0CDK0CA4BA Datasheet Antenna_Datasheet 9 5 Sealing Cartons H-shaped sealing cartons Note The initial packaging method described above is for reference only, and the final actual packaging method shall be subject to the actual shipping packaging. Antenna Services Y0CDK0CA4BA Datasheet Antenna_Datasheet 10 Contact Us At Quectel, our aim is to provide timely and comprehensive services to our customers. If you require any assistance, please contact our headquarters: Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86 21 5108 6236 Email: [email protected] Or our local offices. For more information, please visit: http://www.quectel.com/support/sales.htm. For technical support, or to report documentation errors, please visit: http://www.quectel.com/support/technical.htm. Or email us at: [email protected]. Antenna Services Y0CDK0CA4BA Datasheet Antenna_Datasheet 11 Legal Notices We offer information as a service to you. The provided information is based on your requirements and we make every effort to ensure its quality. You agree that you are responsible for using independent analysis and evaluation in designing intended products, and we provide reference designs for illustrative purposes only. Before using any hardware, software or service guided by this document, please read this notice carefully. Even though we employ commercially reasonable efforts to provide the best possible experience, you hereby acknowledge and agree that this document and related services hereunder are provided to you on an “as available” basis. We may revise or restate this document from time to time at our sole discretion without any prior notice to you. Use and Disclosure Restrictions License Agreements Documents and information provided by us shall be kept confidential, unless specific permission is granted. They shall not be accessed or used for any purpose except as expressly provided herein. Copyright Our and third-party products hereunder may contain copyrighted material. Such copyrighted material shall not be copied, reproduced, distributed, merged, published, translated, or modified without prior written consent. We and the third party have exclusive rights over copyrighted material. No license shall be granted or conveyed under any patents, copyrights, trademarks, or service mark rights. To avoid ambiguities, purchasing in any form cannot be deemed as granting a license other than the normal non- exclusive, royalty-free license to use the material. We reserve the right to take legal action for noncompliance with abovementioned requirements, unauthorized use, or other illegal or malicious use of the material. Trademarks Except as otherwise set forth herein, nothing in this document shall be construed as conferring any rights to use any trademark, trade name or name, abbreviation, or counterfeit product thereof owned by Quectel or any third party in advertising, publicity, or other aspects. Third-Party Rights…

Text truncated - open the document above for the full version.

Shenzhen Huaxin Information Technology Service Co., Ltd 101, R & D Building, No.3 guansheng 4th Road, Luhu Community, Guanhu Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-21018313 Http: //www.tecovo.net TEST REPORT Report No. ··························: HX260327R006 FCC ID································: 2AGBD-HERO-MC30-01 Applicant····························: Howen Technologles Co., Ltd. Address·······························: Room 2001 & 2004, Building 2A, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, China Manufacturer························: Howen Technologles Co., Ltd. Address·······························: Room 2001 & 2004, Building 2A, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, China Product Name······················: Dashcam Trade Mark···························: / Model/Type reference·············: Hero-MC30-01 Listed Model(s) ··· ·················: Hero-MC30-02, Hero-MC30-03, Hero-ME41-02, Hero-ME41-03, Hero-ME40-01, Hero-ME40-02, Hero-ME40-03, Hero-MA90-01, Hero-MA90-02, Hero-MA90-03 Standard·····························: CFR47 PART 27 Date of receipt of test sample...: Mar. 02, 2026 Date of testing.......................: Mar. 03, 2026 ~ Mar. 27, 2026 Date of issue.........................: Mar. 28, 2026 Result.................................: PASS Compiled by: (Printed name + signature) Terry Su Approved by: (Printed name + signature) Amy Zhai Testing Laboratory Name......: Shenzhen Huaxin Information Technology Service Co., Ltd Address...............................: 101, R & D Building, No.3 guansheng 4th Road, Luhu Community, Guanhu Street, Longhua District, Shenzhen, Guangdong, China This test report shall not be copied in any form except with the written approval of our laboratory. The customer shall not claim that the product has been endorsed by Shenzhen Huaxin Information Te chnology Service Co., Ltd. based on this report, The test results in the report are only applicable to the samples tested. Without the signatures of the compiled engineer and the approver, the test report will be invalid. Any objection shall be submitted to Shenzhen Huaxin Information Technology Service Co., Ltd. within 15 days from the date of receiving the report. After this period, it will not be considered. The test report only corresponds to the test sample. Page 2 of 27 Report No.: HX260327R006 Shenzhen Huaxin Information Technology Service Co., Ltd 101, R & D Building, No.3 guansheng 4th Road, Luhu Community, Guanhu Street, Longhua District, Shenzhen, Guangdong, China Tel.: +86-755-21018313 Http: //www.tecovo.net Table of Contents Page 1. SUMMARY .................................................................................................................................................... 3 1.1. T EST STANDARDS ................................................................................................................................................. 3 1.2. R EPORT VERSION ................................................................................................................................................. 3 1.3. T EST DESCRIPTION ............................................................................................................................................... 4 1.4. T EST FACILITY ...................................................................................................................................................... 5 1.5. M EASUREMENT UNCERTAINTY ............................................................................................................................... 6 1.6. E NVIRONMENTAL CONDITIONS ............................................................................................................................... 6 2. GENERAL INFORMATION ............................................................................................................................... 7 2.1. C LIENT INFORMATION ........................................................................................................................................... 7 2.2. G ENERAL DESCRIPTION OF EUT ............................................................................................................................. 7 2.3. D ESCRIPTION OF TEST MODES AND TEST FREQUENCY ................................................................................................. 8 2.4. M EASUREMENT INSTRUMENTS LIST ........................................................................................................................ 9 3. TEST ITEM AND RESULTS .............................................................................................................................. 10 3.1. C ONDUCTED OUTPUT POWER .............................................................................................................................. 10 3.2. P EAK-TO-AVERAGE RAT I O .................................................................................................................................... 11 3.3. O CCUPY BANDWIDTH ......................................................................................................................................... 12 3.4. O UT OF BAND EMISSION AT ANTENNA TERMINALS .................................................................................................... 13 3.5. R ECEIVER SPURIOUS EMISSIONS AT ANTENNA TERMINAL .......................................................................................... 14 3.6. B AND EDGE COMPLIANCE .................................................................................................................................... 15 3.7. R ADIATED POWER MEASUREMENT ....................................................................................................................... 16 3.8. R ADIATED SPURIOUS EMISSION ..............................................................…

Text truncated - open the document above for the full version.

60 Band41_10MHz_QPSK_HCH_2685MHz_RB_1_0_NTNV Band41_10MHz_QPSK_HCH_2685MHz_RB_1_0_NTNV Band41_10MHz_QPSK_HCH_2685MHz_RB_1_49_NTNV 61 Band41_10MHz_QPSK_HCH_2685MHz_RB_50_0_NTNV Band41_10MHz_16QAM_LCH_2501MHz_RB_1_0_NTNV Band41_10MHz_16QAM_LCH_2501MHz_RB_1_0_NTNV 62 Band41_10MHz_16QAM_LCH_2501MHz_RB_1_0_NTNV Band41_10MHz_16QAM_LCH_2501MHz_RB_1_0_NTNV Band41_10MHz_16QAM_LCH_2501MHz_RB_50_0_NTNV 63 Band41_10MHz_16QAM_MCH_2593MHz_RB_1_0_NTNV Band41_10MHz_16QAM_MCH_2593MHz_RB_1_0_NTNV Band41_10MHz_16QAM_MCH_2593MHz_RB_1_0_NTNV 64 Band41_10MHz_16QAM_HCH_2685MHz_RB_1_0_NTNV Band41_10MHz_16QAM_HCH_2685MHz_RB_1_0_NTNV Band41_10MHz_16QAM_HCH_2685MHz_RB_1_0_NTNV 65 Band41_10MHz_16QAM_HCH_2685MHz_RB_1_49_NTNV Band41_10MHz_16QAM_HCH_2685MHz_RB_50_0_NTNV 6.2.3 B41_15MHz Band41_15MHz_QPSK_LCH_2503.5MHz_RB_1_0_NTNV 66 Band41_15MHz_QPSK_LCH_2503.5MHz_RB_1_0_NTNV Band41_15MHz_QPSK_LCH_2503.5MHz_RB_1_0_NTNV 67 Band41_15MHz_QPSK_LCH_2503.5MHz_RB_1_0_NTNV Band41_15MHz_QPSK_LCH_2503.5MHz_RB_75_0_NTNV Band41_15MHz_QPSK_MCH_2593MHz_RB_1_0_NTNV 68 Band41_15MHz_QPSK_MCH_2593MHz_RB_1_0_NTNV Band41_15MHz_QPSK_MCH_2593MHz_RB_1_0_NTNV Band41_15MHz_QPSK_HCH_2682.5MHz_RB_1_0_NTNV 69 Band41_15MHz_QPSK_HCH_2682.5MHz_RB_1_0_NTNV Band41_15MHz_QPSK_HCH_2682.5MHz_RB_1_0_NTNV Band41_15MHz_QPSK_HCH_2682.5MHz_RB_1_74_NTNV 70 Band41_15MHz_QPSK_HCH_2682.5MHz_RB_75_0_NTNV Band41_15MHz_16QAM_LCH_2503.5MHz_RB_1_0_NTNV Band41_15MHz_16QAM_LCH_2503.5MHz_RB_1_0_NTNV 71 Band41_15MHz_16QAM_LCH_2503.5MHz_RB_1_0_NTNV Band41_15MHz_16QAM_LCH_2503.5MHz_RB_1_0_NTNV Band41_15MHz_16QAM_LCH_2503.5MHz_RB_75_0_NTNV 72 Band41_15MHz_16QAM_MCH_2593MHz_RB_1_0_NTNV Band41_15MHz_16QAM_MCH_2593MHz_RB_1_0_NTNV Band41_15MHz_16QAM_MCH_2593MHz_RB_1_0_NTNV 73 Band41_15MHz_16QAM_HCH_2682.5MHz_RB_1_0_NTNV Band41_15MHz_16QAM_HCH_2682.5MHz_RB_1_0_NTNV Band41_15MHz_16QAM_HCH_2682.5MHz_RB_1_0_NTNV 74 Band41_15MHz_16QAM_HCH_2682.5MHz_RB_1_74_NTNV Band41_15MHz_16QAM_HCH_2682.5MHz_RB_75_0_NTNV 6.2.4 B41_20MHz Band41_20MHz_QPSK_LCH_2506MHz_RB_1_0_NTNV 75 Band41_20MHz_QPSK_LCH_2506MHz_RB_1_0_NTNV Band41_20MHz_QPSK_LCH_2506MHz_RB_1_0_NTNV 76 Band41_20MHz_QPSK_LCH_2506MHz_RB_1_0_NTNV Band41_20MHz_QPSK_LCH_2506MHz_RB_100_0_NTNV Band41_20MHz_QPSK_MCH_2593MHz_RB_1_0_NTNV 77 Band41_20MHz_QPSK_MCH_2593MHz_RB_1_0_NTNV Band41_20MHz_QPSK_MCH_2593MHz_RB_1_0_NTNV Band41_20MHz_QPSK_HCH_2680MHz_RB_1_0_NTNV 78 Band41_20MHz_QPSK_HCH_2680MHz_RB_1_0_NTNV Band41_20MHz_QPSK_HCH_2680MHz_RB_1_0_NTNV Band41_20MHz_QPSK_HCH_2680MHz_RB_1_99_NTNV 79 Band41_20MHz_QPSK_HCH_2680MHz_RB_100_0_NTNV Band41_20MHz_16QAM_LCH_2506MHz_RB_1_0_NTNV Band41_20MHz_16QAM_LCH_2506MHz_RB_1_0_NTNV 80 Band41_20MHz_16QAM_LCH_2506MHz_RB_1_0_NTNV Band41_20MHz_16QAM_LCH_2506MHz_RB_1_0_NTNV Band41_20MHz_16QAM_LCH_2506MHz_RB_100_0_NTNV 81 Band41_20MHz_16QAM_MCH_2593MHz_RB_1_0_NTNV Band41_20MHz_16QAM_MCH_2593MHz_RB_1_0_NTNV Band41_20MHz_16QAM_MCH_2593MHz_RB_1_0_NTNV 82 Band41_20MHz_16QAM_HCH_2680MHz_RB_1_0_NTNV Band41_20MHz_16QAM_HCH_2680MHz_RB_1_0_NTNV Band41_20MHz_16QAM_HCH_2680MHz_RB_1_0_NTNV 83 Band41_20MHz_16QAM_HCH_2680MHz_RB_1_99_NTNV Band41_20MHz_16QAM_HCH_2680MHz_RB_100_0_NTNV

Shenzhen Huaxin Information Technology Service Co., Ltd 101, R & D Building, No.3 guansheng 4th Road, Luhu Community, Guanhu Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-21018313 Http: //www.tecovo.net Appendix for LTE Band 41 Applicant: Howen Technologles Co., Ltd. Address: Room 2001 & 2004, Building 2A, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen, China Product Name: Dashcam Model: Hero-MC30-01, Hero-MC30-02, Hero-MC30-03, Hero-ME41- 02, Hero-ME41-03, Hero-ME40-01, Hero-ME40-02, Hero-ME40-03, Hero-MA90-01, Hero-MA90-02, Hero-MA90-03 FCC ID: 2AGBD-HERO-MC30-01 1 TABLE OF CONTENTS 1. Conducted Output Power ................................................................................. 2 2. Frequency Stability ........................................................................................... 5 3. 99% & 26dB Bandwidth .................................................................................. 11 4. Peak-Average Ratio........................................................................................ 31 5. Spurious Emission and Band Edge ................................................................ 45 2 1. Conducted Output Power 1.1 Test Result 1.1.1 B41_5MHz Band: 41 / Bandwidth: 5MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Verdict Size Offset QPSK 2498.5 1 0 23.74 Pass 13 23.20 Pass 24 23.28 Pass 12 0 23.26 Pass 6 23.96 Pass 13 23.55 Pass 25 0 23.96 Pass 2593 1 0 23.66 Pass 13 23.71 Pass 24 23.55 Pass 12 0 22.63 Pass 6 22.69 Pass 13 22.57 Pass 25 0 22.61 Pass 2687.5 1 0 23.21 Pass 13 23.32 Pass 24 23.05 Pass 12 0 22.28 Pass 6 22.35 Pass 13 22.18 Pass 25 0 22.23 Pass 16QAM 2498.5 1 0 23.45 Pass 13 23.31 Pass 24 23.83 Pass 12 0 23.24 Pass 6 23.85 Pass 13 23.50 Pass 25 0 23.90 Pass 2593 1 0 22.83 Pass 13 22.68 Pass 24 22.59 Pass 12 0 21.68 Pass 6 21.72 Pass 13 21.63 Pass 25 0 21.75 Pass 2687.5 1 0 22.20 Pass 13 22.34 Pass 24 22.09 Pass 12 0 21.31 Pass 6 21.33 Pass 13 21.20 Pass 25 0 21.28 Pass 1.1.2 B41_10MHz Band: 41 / Bandwidth: 10MHz / NTNV Modulation Frequency RB Allocation Conducted Power Verdict 3 (MHz) Size Offset (dBm) QPSK 2501 1 0 22.88 Pass 25 22.75 Pass 49 21.13 Pass 25 0 22.07 Pass 13 22.52 Pass 25 22.40 Pass 50 0 22.31 Pass 2593 1 0 23.50 Pass 25 23.69 Pass 49 23.45 Pass 25 0 22.58 Pass 13 22.73 Pass 25 22.57 Pass 50 0 22.58 Pass 2685 1 0 23.54 Pass 25 23.47 Pass 49 23.03 Pass 25 0 22.45 Pass 13 22.47 Pass 25 22.22 Pass 50 0 22.38 Pass 16QAM 2501 1 0 22.72 Pass 25 22.48 Pass 49 22.90 Pass 25 0 22.02 Pass 13 22.57 Pass 25 22.39 Pass 50 0 22.38 Pass 2593 1 0 22.54 Pass 25 22.83 Pass 49 22.52 Pass 25 0 21.69 Pass 13 21.85 Pass 25 21.62 Pass 50 0 21.69 Pass 2685 1 0 22.37 Pass 25 22.24 Pass 49 21.78 Pass 25 0 21.50 Pass 13 21.53 Pass 25 21.28 Pass 50 0 21.43 Pass 1.1.3 B41_15MHz Band: 41 / Bandwidth: 15MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Verdict Size Offset QPSK 2503.5 1 0 21.08 Pass 38 20.78 Pass 74 21.64 Pass 36 0 21.84 Pass 18 20.48 Pass 39 20.36 Pass 75 0 22.32 Pass 2593 1 0 23.54 Pass 4 38 23.62 Pass 74 23.43 Pass 36 0 22.67 Pass 18 22.74 Pass 39 22.66 Pass 75 0 22.64 Pass 2682.5 1 0 23.87 Pass 38 23.62 Pass 74 23.07 Pass 36 0 22.73 Pass 18 22.68 Pass 39 22.39 Pass 75 0 22.57 Pass 16QAM 2503.5 1 0 22.76 Pass 38 22.89 Pass 74 21.85 Pass 36 0 22.75 Pass 18 21.44 Pass 39 22.38 Pass 75 0 22.36 Pass 2593 1 0 22.90 Pass 38 22.61 Pass 74 22.84 Pass 36 0 21.72 Pass 18 21.87 Pass 39 21.71 Pass 75 0 21.76 Pass 2682.5 1 0 22.61 Pass 38 22.41 Pass 74 21.95 Pass 36 0 21.76 Pass 18 21.68 Pass 39 21.36 Pass 75 0 21.61 Pass 1.1.4 B41_20MHz Band: 41 / Bandwidth: 20MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Verdict Size Offset QPSK 2506 1 0 22.70 Pass 50 22.70 Pass 99 22.68 Pass 50 0 22.67 Pass 25 21.69 Pass 50 22.67 Pass 100 0 22.69 Pass 2593 1 0 22.63 Pass 50 22.63 Pass 99 22.61 Pass 50 0 22.61 Pass 25 22.61 Pass 50 22.60 Pass 100 0 22.60 Pass 2680 1 0 22.64 Pass 50 22.63 Pass 99 22.63 Pass 5 50 0 22.63 Pass 25 22.62 Pass 50 22.62 Pass 100 0 22.62 Pass 16QAM 2506 1 0 21.44 Pass 50 22.75 Pass 99 21.68 Pass 50 0 22.63 Pass 25 21.51 Pass 50 22.20 Pass 100 0 22.86 Pass 2593 1 0 22.59 Pass 50 22.60 Pass 99 22.60 Pass 50 0 22.59 Pass 25 22.58 Pass 50 22.59 Pass 100 0 22.58 Pass 2680 1 0 22.59 Pass 50 22.63 Pass 99 22.59 Pass 50 0 22.63 Pass 25 22.62 Pass 50 22.63 Pass 100 0 22.59 Pass 2. Frequency Stability 2.1 Test Result 2.1.1 B41_5MHz Band: 41 / Bandwidth: 5MHz Modulation Frequency (MHz) RB Allocation Temp. (°C) Voltage (VDC) Freq. Error (Hz) Freq. vs. Rated (ppm) Verdict Size Offset Result Limit QPSK 2498.5 25 0 25 9.00 -9.069 -0.0036 -2.5 to 2.5 Pass 12.00 -23.603 -0.0094 -2.5 to 2.5 Pass 36.00 -25.220 -0.0101 -2.5 to 2.5 Pass -20 12.00 -22.030 -0.0088 -2.5 to 2.5 Pass -10 12.00 -23.203 -0.0093 -2.5 to 2.5 Pass 0 12.00 -25.792 -0.0096 -2.5 …

Text truncated - open the document above for the full version.
