2AGBWLLC742XLLC742x RF Node

LLC742x RF Node User Manual 1. General Information The individual RF module named as LLC742x RF Node, FCC ID: 2AGBWLLC742X and IC: 20812-LLC742X, is supplied by DC 3.8V . The transmitter has its own RF shielding. The operation temperature range is ‐40°C‐85°C. This module using only one kind of antennas with maximum gain is ‐2 dBi. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The picture of module is as showed in below pictures. The module will be installed in final products as showed below. The module will be installed here.Final product 2. Information on Test Modes and Additional Testing Requirements a. The modular transmitter has been fully tested by the module grantee on the required number of channels, modulation types, and modes, and it’s complied with FCC part 15.247. It should not be necessary for the host installer to re‐test all the available transmitter modes or settings. It is recommended that the host product manufacturer, installing the modular transmitter, perform some investigative measurements to confirm that the resulting composite system does not exceed the spurious emissions limits or band‐edge limits(e.g., where a different antenna may be causing additional emissions). b. The testing should check for emissions that may occur due to the intermixing of emissions with the other transmitters, digital circuitry, or due to physical properties of the host product (enclosure). This investigation is especially important when integrating multiple modular transmitters where the certification is based on testing each of them in a stand‐alone configuration. It is important to note that host product manufacturers should not assume that because the modular transmitter is certified that they do not have any responsibility for final product compliance. c. If the investigation indicates a compliance concern the host product manufacturer is obligatedtomitigatetheissue.Hostproductsusingamodulartransmitteraresubjectto all the applicable individual technical rules as well as to the general conditions of operation in Sections 15.5, 15.15, and 15.29 to not cause interference. The operator of the host product will be obligated to stop operating the device until the interference has beencorrected. Below are steps for TX verification：rx 0//Rx: Disabled set channel//set channel to 1, 2, 3, 4 ~10etc. set power110 //set Tx power to 11dBm set Tx Stream 1//start continuous modulated Tx set Tx Stream 0//stop continuous Tx Note: This module only has one kind of modulation type, OQPSK. The physical rate is 250Kbps. d. The Class A or Class B compliance check in the end‐pr oduct which uses NARF module according to FCC part 15B should be checked with the end‐product. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction s, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful i nterference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: Thi s equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. ISED Statement This device complies with Industry Canada license -exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interferenc e, and (2) This device must accept any interference, including interference that may cause un desired operation of the device. Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appa reil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brou illa geradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnem ent. Radiation Exposure Statement 3.Warning This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé à distance minimum de 20cm entre le radiateur et votre corps. This device is intended only for OEM integrators under the following condition: The transmitter module may not be co-located with any other trans…

Text truncated - open the document above for the full version.

Company: Signify (China) Investment Co., Ltd. Add.: Building no.9, Lane 888, Tianlin Road, Minhang District, Shanghai 200233, Tel: +86-17701755062 Fax: +86-21-54452269 E-mail: [email protected] Attestation Letter Date: 2025-03-24 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: Our product LLC742x RF Node, model: LLC742x RF Node, FCC ID:2AGBWLLC742X, for marketing purpose, this product only supports Sub- GHz: 906-924 MHz, GPS:1559MHZ-1610MHZ(RX).The other functions, bands and modes was disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely, Signature: Printed Name: Yefeng Zhang Title: Approbation Group Manager China

Company: Signify (China) Investment Co., Ltd. Add.: Building no.9, Lane 888, Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86-17701755062 Fax: +86-21-54452269 E-mail: [email protected] Attestation Letter Date: 2025 -03-24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911 ((d)(5)(i)(ii) Filing FCC ID: 2AGBWLLC742X Signify (China) Investment Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Signify (China) Investment Co., Ltd. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signify (China) Investment Co., Ltd. (“the applicant”) certifies that the equipment does not use Kaspersky's software information. Sincerely, Signature: Contact Person: Yefeng Zhang Title: Approbation Group Manager

CFR 47 §2.911 (d)(7) Agent Designation Attestation Date: 2025-08-20 FRN: 0024989014 FCC ID: 2AGBWLLC742X Product Model Number: LLC742x RF Node To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Signify (China) Investment Co., Ltd. (“the applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. U. S. Agent Information: Contact Person: Arun Ganesh Company Name: Signify North America Corporation Company Address: 10275 West Higgins Road, Rosemont, IL 60018 Email: [email protected] Sincerely yours, Name: Yefeng Zhang Job Title: Validation & Approbation Group Manager Company Name: Signify (China) Investment Co., Ltd. Email: [email protected]

CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation Date: 2025-08-20 FRN: 0024989014 FCC ID: 2AGBWLLC742X Product Model Number: LLC742X RF Node To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA FCC US Agent Agent FRN: 0024909822 Agent Company Name: Signify North America Corporation Agent Contact Name: Arun Ganesh Agent US Address: 10275 West Higgins Road, Rosemont, IL 60018 Agent Email Address: [email protected] This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of Signify ( China) Investment Co., Ltd. (“the applicant”) for the above referenced FCC ID. We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section 2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely yours, Authorized Agent Contact Person Name: Arun Ganesh Agent contact Job Title: R&D Manager, North America Agent Company name: Signify North America Corporation

Company: Signify (China) Investment Co., Ltd. Add.: Building no.9, Lane 888, Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86-17701755062 Fax: +86-21-54452269 E-mail: [email protected] FCC Authorization Date: 2025-03-24 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Signify (China) Investment Co., Ltd., hereby authorizes Bay Area Compliance Laboratories Corp. (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature: Print Name: Yefeng Zhang Title: Approbation Group Manager QA-FR-170 -B

QA-FR-171-A Company: Signify (China) Investment Co., Ltd. Add.: Building no.9, Lane 888, Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86-17701755062 Fax: +86-21 -54452269 E-mail: [email protected] FCC Confidential Authorization Date: 2025-03 -24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AGBWLLC742X In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Signify (China) Investment Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printer Name: Yefeng Zhang Title: Approbation Group Manager

Company: S ignify (China) Investment Co., Ltd. Add.: Building no.9, Lane 888, Tianlin Road, Minhang District, S hanghai 200233, China Tel: +86-17701755062 Fax: +86-21-54452269 E-mail: [email protected] Modular Approval Letter Date: 2025-03-24 FEDERAL COM MUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Signify (China) Investment Co., Ltd., hereby request Modular Approval for Product: LLC742x RF Node (Model number: LLC742x RF Node, FCC ID: 2AGBWLLC742X).The requirement of FCC 15.212 as below: Item § 15.212 Requirement The radio elements of the modular transmitter (i) must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The modular transmitter must have buffered modulation/data inputs (if such inputs are (ii) provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter must have its own (iii) power supply regulation. The modular transmitter must comply with the antenna and transmission system requirements of§§ 15.203, 15.204(b) and 15.204(c). The antenna must either be pem诅nently attached or employ a''unique" antenna coupler (at all (iv) connections between the module and the antenna, including the cable). The "professional installation" provision of§ 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The modular transmitter must be tested in a (v) stand-alone configuration, i.e., the module must not be inside another device during testing for YIN Yes Yes Yes Yes Yes Comments The modular has RF shielding, please refer to the EUT photo. The modular transmitter has buffered modulation/data inputs, Buffered data inputs stage has been integrated in chip (Model:E FR32MG 12). The modular transmitter has its own power supply regulation. Please refer to the Block Diagram. Comply with the antenna requirements of Section 15.203 and 15.204(c), the modular have a P IFA antenna permanently attached to the module, the maximum gain is -2dBi. The EUT was tested in a stand-alone confi guration, please refer to setup photos exhibit for details. compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in§ 15.207 . AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see§ 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see§ 15.3l(i)). The modular transmitter must be equipped with The module labeled with its own FCC (vi) either a permanently affixed label or must be Yes ID. capable of electronically displaying its FCC identification number. Comply with any specific rules or The modular transmitter must comply with any operating requirements that ordinarily apply to a complete transmitter and specific rules or operating requirements that the manufa cturer must provide ordinarily apply to a complete transmitter and adequate instructions along with the the manufacturer must provide adequate (vii) Yes module to explain any such instructions along with the module to explain requirements. The necessary any such requirements. A copy of these explanation to be complied with this instructions must be included in the application requirement is contained in the user for equipment authorization. manual, and please refers to the User Manual. Radio frequency devices operating under the provisions of this part are subject to the radio (viii) frequency radiation exposure requirements Yes specified in§§ l.1307(b), 1.1310, 2.1091, and It meets RF exposure requirements with distances greater than or equal to 20cm infinal configuration. 2.1093 of this chapter. Sincerely, S l g n a t u r e ： 马产－ Print Name: Yefeng Zhang Title: Approbation Group Manager

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502R20655E-RF-EXP Page 1 / 2 EUT EXTERNAL PHOTOS EUT Debugging board Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502R20655E-RF-EXP Page 2 / 2 *****END *****

Label: FCC ID: 2AGBWLLC742X Model: LLC742x RF Node IC: 20812-LLC742X La bel Location:

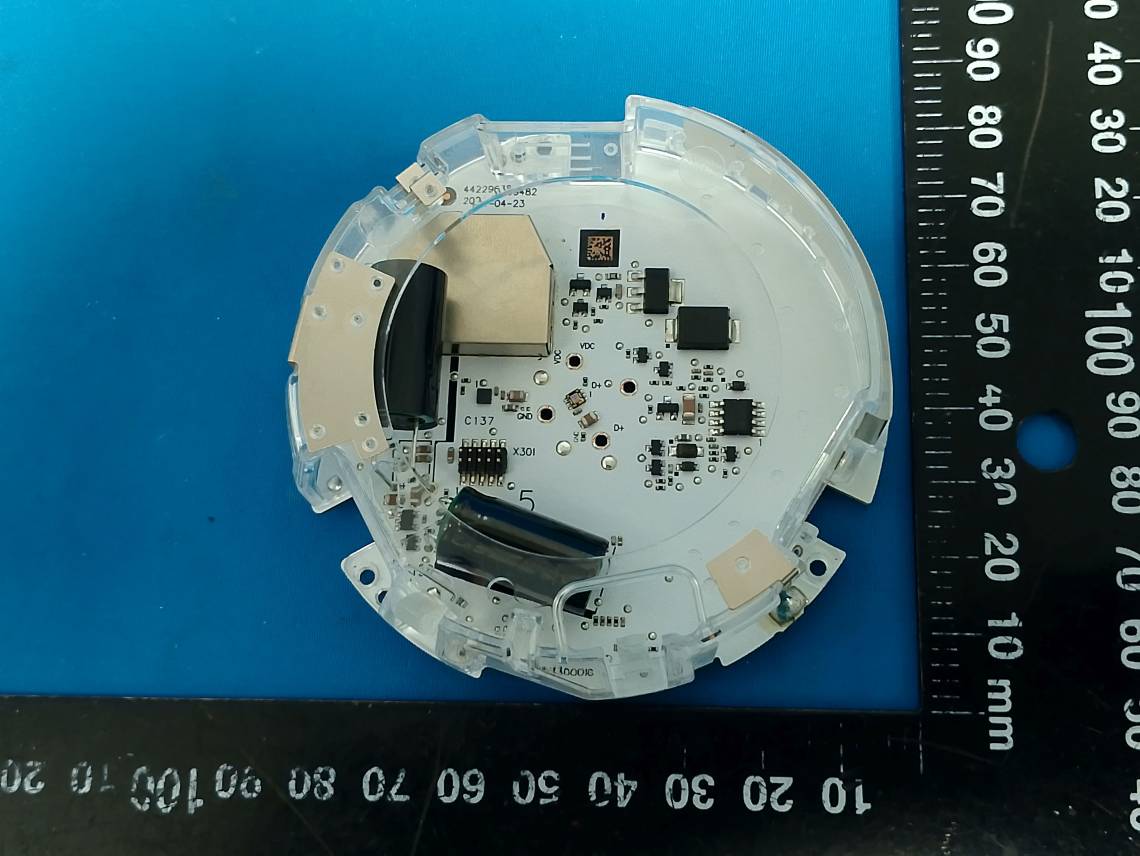

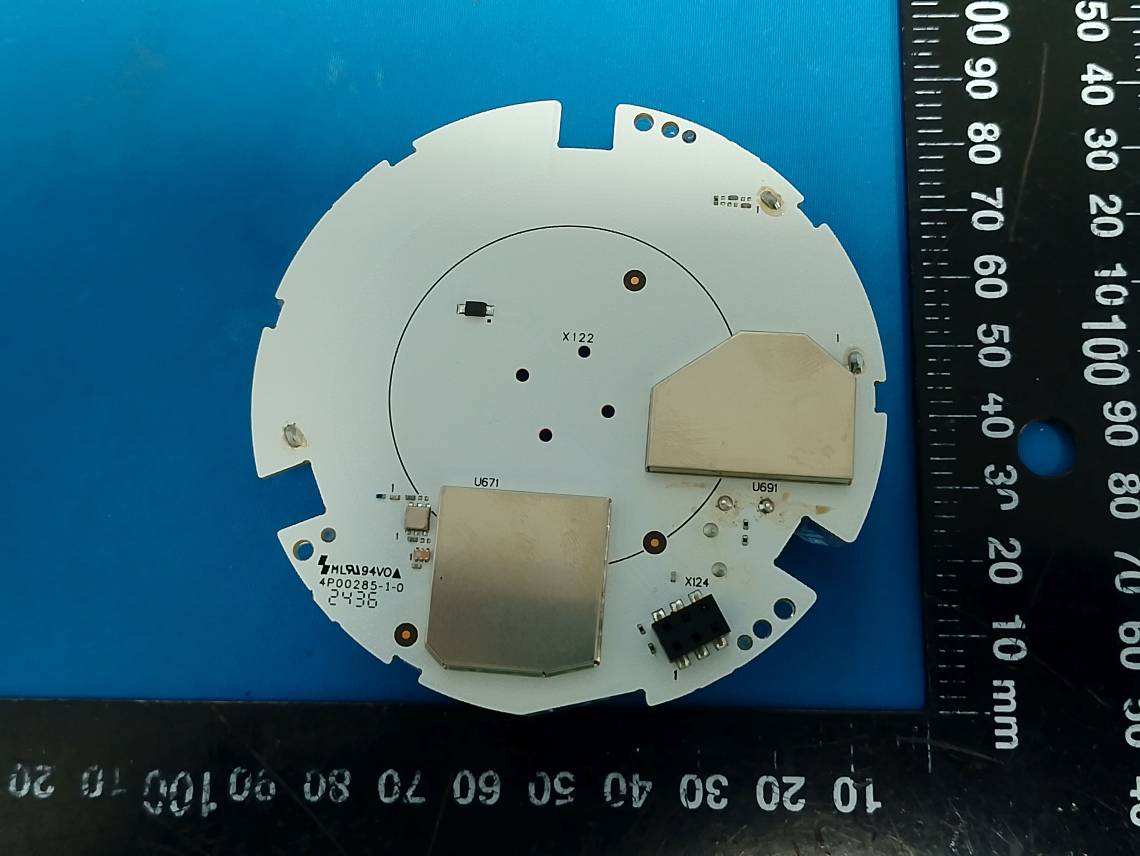

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502R20655E-RF-INP Page 1 / 3 EUT INTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502R20655E-RF-INP Page 2 / 3 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502R20655E-RF-INP Page 3 / 3 Antenna *****END *****

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:2502R20655E-RF-00A Report Template Version: FCC+IC-Lora-DTS-V2.0 Page 58 of 59 EXHIBIT C - RF EXPOSURE EVALUATION Maximum Permissible Exposure (MPE) Applicable Standard According to subpart §1.1310,15.247(i) systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency (MHz) Antenna Gain ▲ Conducted output power including Tune-up Tolerance ▲ Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) SRD 906-924 -2.0 0.63 11.0 12.5920.00 0.002 0.6 Note: The Antenna Gain and Conducted output power including Tune-up Tolerance provided by manufacturer. Result: The device meet FCC MPE at 20 cm distance

TEST REPORT Applicant: Signify (China) Investment Co., Ltd. Address: Building no.9, Lane 888, Tianlin Road, Minhang District, Shanghai 200233, China P r o d u c t N a m e : LLC742x RF Node F C C I D : 2AGBWLLC742X IC: 20812-LLC742X H V I N : LLC742x RF Node Standard(s): 47 CFR Part 15, Subpart C(15.247) RSS-247 Issue 3, August 2023 RSS-Gen, Issue 5, February 2021 Amendment 2 ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 ★ KDB 558074 D01 15.247 Meas Guidance v05r02 Report Number: 2502R20655E-RF-00A Report Date: 2025/9/10 The above device has been tested and found compliant with the requirement of the relative standards by Bay Area Compliance Laboratories Corp. (Dongguan). Reviewed By: Pedro Yun Approved By: Gavin Xu Title: Project Engineer Title: RF Supervisor Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Note: The information marked ▲ is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with ★.This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Each test item follows the test standard(s) without deviation. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:2502R20655E-RF-00A Report Template Version: FCC+IC-Lora-DTS-V2.0 Page 2 of 59 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 4 1. GENERAL INFORMATION .................................................................................................... 5 1.1 GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST ..................................................................... 5 1.2 ACCESSORY INFORMATION ................................................................................................................. 5 1.3 ANTENNA INFORMATION DETAIL▲ ................................................................................................... 5 1.4 EQUIPMENT MODIFICATIONS ............................................................................................................. 5 2. SUMMARY OF TEST RESULTS ............................................................................................ 6 3. DESCRIPTION OF TEST CONFIGURATION ..................................................................... 7 3.1 OPERATION FREQUENCY DETAIL ....................................................................................................... 7 3.2 EUT OPERATION CONDITION ............................................................................................................. 7 3.3 SUPPORT EQUIPMENT LIST AND DETAILS ......................................................................................... 7 3.4 SUPPORT CABLE LIST AND DETAILS .................................................................................................. 7 3.5 BLOCK DIAGRAM OF TEST SETUP ...................................................................................................... 8 3.6 TEST FACILITY ..................................................................................................................................... 9 3.7 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 4. REQUIREMENTS AND TEST PROCEDURES .................................................................. 10 4.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 10 4.1.1 Applicable Standard ..................................................................................................................................... 10 4.1.2 EUT Setup.................................................................................................................................................... 12 4.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 4.1.4 Test Procedure ............................................................................................................................................. 13 4.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 4.1.6 Test Result ................................................................................................................................................... 13 4.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 4.2.1 Applicable Standard ..................................................................................................................................... 14 4.2.2 EUT Setup.................................................................................................................................................... 14 4.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 4.2.4 Test Procedure ............................................................................................................................................. 16 4.2.5 Corrected Amplitude & Margin Calculation .........................…

Text truncated - open the document above for the full version.

LLC742X Sub-G Antenna Information 1. ANT Basic information Antenna type: PIFA antenna Working Frequency: 698MHZ-960MHZ Manufacturer: Shanghai Amphenol Airwive Electronics Co., Ltd Manufacturer address: No.689 Shen Nan Road, Xin Zhuang Industry Park, Shanghai, PR China 2. ANT Parameters Frequency Efficiency(%) peak gain(dBi) 698 11% -5.7 710 14% -4.8 734 18% -3.3 746 21% -2.5 756 23% -2.0 782 26% -1.6 791 26% -1.7 821 29% -1.7 837 31% -1.7 850 34% -1.6 860 35% -1.7 868.3 35% -2.0 870 35% -2.1 880 34% -2.2 890 30% -2.4 900 27% -2.6 910 29% -2.2 920 32% -2.0 930 33% -2.2 940 32% -2.6 950 30% -3.0 960 26% -3.3 3. 3D Pattern 4. Antenna picture

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502R20655E-RF-00A-TSP TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502R20655E-RF-00A-TSP Radiated Emission 9k-30MHz Parallel View Radiated Emission 9k-30MHz Perpendicular View Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502R20655E-RF-00A-TSP Radiated Emission 9k-30MHz Ground-parallel View Radiated Emission 30M-1GHz View Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502R20655E-RF-00A-TSP Radiated Emission Above 1GHz View RF Conducted Test Photo *****END *****
