2AGDW0006V2BLUETOOTH SPEAKER

APP CONTROLLED BLUETOOTH WEATHERPROOF RGB SPEAKER LIGHT Congratulations on your purchase of this Premium RV Media Bluetooth Speaker with integrated Awning Light. Designed with the RV enthusiast in mind, this speaker allows you to easily add an external speaker to your RV using the latest Bluetooth Streaming technology. Not only suitable for RVs, there are many other uses for this speaker such as: marine applications, pergolas, pool areas, garages, etc. - anywhere you can mount the speaker within reach of 12VDC or a 110VAC power adaptor* (sold separately), and where you would like the added convenience of a super bright LED light! POWER Operating Voltage: 12V 100W Max Audio Output Power LED Power Consumption 0.75A @ 12V Max Max Total Power Consumption: 3A @ 12V Package contents listed on back. BLUETOOTH Output Power Class 2 Frequency Band 2.4000GHz - 2.4835GHz Bluetooth 4.0 Specification Typical Range up to approximately 30 Feet (if no obstructions) SPECIFICATIONS 11200 Hampshire Avenue South, Bloomington, MN 55438 PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com MODELS RVM2000 RVM2001 RV INSTALLATIONQUICK START GUIDE INSTALLATION IN OTHER LOCATIONS LOCATION The RV Media Bluetooth Speaker Light operates on 12VDC and is intended to be installed on the exterior of your RV, ideally replacing an existing awning light. However, you can install it anywhere outside or inside the RV as long as you can connect it to 12VDC. INSTALLATION (see CONNECTION DIAGRAM at right) If installing in place of an exterior awning light, please use the following steps as a guide: 1. Carefully remove the existing awning light. Disconnect the RV’s wiring from the light and keep the wiring accessible for the next step. 2. Connect the red wire of the supplied male power lead to the RV’s +12V wire, and connect the black wire to the RV’s ground wire. Make these connections with suitable crimp terminals or solder and heat shrink. 3. Mark the location of the 4 mounting screws. Be careful to ensure the screws will not damage any materials behind the mounting surface. 4. Mount the optional locating brackets using the center screw (only) with the hook part at the bottom. These brackets provide reinforcement for the speaker plus they can be used as a temporary, removable mounting option if required. 5. Apply the foam sealing tape around the back edge of the speaker. 6. Plug the female power lead attached to the speaker light into the male power lead that was wired in step 2. We suggest that this connection be secured with electrical tape. Mount the speaker using the 4 supplied screws taking care not to overtighten the screws. Please ensure the wiring is recessed as much as possible in the hole it emerges from and ensure that any remaining cable is stored in the cavity on the back of the speaker. Press in the supplied screw covers to hide the screws. 7. To complete the installation, use a suitable RV sealant to seal around the edge of the speaker to ensure a water tight seal. NOTE: If you are unsure about any aspects of the installation, please seek the advice of an experienced RV installation technician or electrician. 1. Power Up Turn on the speaker using the awning light switch if the speaker light has been connected to the original awning light wiring. If connected to the optional power adaptor* (sold separately), use the switch on the speaker light (see CONNECTION DIAGRAM at far right). 2. Connect your Device Open the Bluetooth menu on your device to search for your RV Media Bluetooth speaker. Its Bluetooth device name is “RV Media RGB.” Upon first use, the speaker will not appear on your Bluetooth device list for approximately 8 seconds. Once it appears, select “RV Media RGB” to connect. No pin number or password is required. 3. Listen to Music! You can stream music to the speaker without using the dedicated app. Use the volume control on your device to control the volume of the speaker. 4. Get the App The RV Media free app is available both on the Apple app store and Google Play. Search “RV Media” to download the app for your device. 5. Using the App To use the app, please follow these steps: a) Turn on the RV Media Bluetooth Speaker Light. b) Connect your device as per step 2 above. c) Open the app. The app will search for the speaker then open the Light On/Off and Color Selection menu. d) Use the app to control the light functions. 6. Bluetooth Connection & App Troubleshooting After first connection of your device to the speaker, the speaker should automatically reconnect the next time it is powered up (providing Bluetooth is enabled on your device). If you reopen the app but it fails to reconnect to the speaker, please close the app then reopen it. Please use the following procedures to close the app: Apple - double click on the home button to open a list of apps running in the background, then locate the RV Media app and swipe up to close the app. Android - Launch the Recent Applications Menu (this varies from device to device so check your user documentation if you are unsure how to find this menu). Locate the RV Media app and swipe to the right to close it. 7. Reconnecting the Devices When you power up the RV Media Speaker Light, it will first attempt to reconnect to a device that was previously connected (this applies to the last 5 devices connected to the speaker). PLEASE SEE BACK OF THIS GUIDE FOR ADDITIONAL INFORMATION ON OPERATION AND APP FUNCTIONS. For installations in marine applications, home pergolas, pool and entertainment areas etc., when a direct 12V power source is not available, please use the optional RV Media 110VAC/12VDC power adaptor* (sold separately). The power adaptor converts 110VAC to the required 12VDC and features an extra long 9 foot power cord to ensure it reaches the Bluetooth Speaker. NOTE: The power adaptor should be located in a dry environment. *Manufacturer specified adaptor - KING #RVM50 (input: 110-240 V, 50/60 Hz, 1.5 A max) Google Play app Apple app POWER UP THE SPEAKER LI…

Text truncated - open the document above for the full version.

Cmaec Pty Ltd Date 2015-11-24 To: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE Camec Pty Ltd HEREBY DECLARED THAT Our product: Product Description: BLUETOOTH SPEAKER And the models below : Model No.: RVM2000(043441) Manufacturer’s Name: NINGBO CODE LIGHTING TECHNOLOGY CO., LTD Manufacturer’s Address: Building #3, No.181-197, Shanshan Road, Wangchun Industrial Zone, Yinzhou District, Ningbo, China with the model(s) below which samples we chose to be tested by SGS Model No.: RVM2001(043440) Manufacturer’s Name: NINGBO CODE LIGHTING TECHNOLOGY CO., LTD Manufacturer’s Address: Building #3, No.181-197, Shanshan Road, Wangchun Industrial Zone, Yinzhou District, Ningbo, China

Camec Pty Ltd 2015-11-24 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AGDW0006V2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematic Diagram Schematics.pdf Circuit Description Operation Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Company Name: Camec Pty Ltd Contact name: Les Battyanyi Signature of applicant:

Camec Pty Ltd FCC ID: 2AGDW0006V2 POWER OF ATTORNEY (2015-11-24) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize _Eddy Zong from SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Eddy Zong from SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd on our behalf shall have the same effect as acts of our own. This authorization expires on (2016-11-23). This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (Camec Pty Ltd), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Company Name: Camec Pty Ltd Contact name: Les Battyanyi Signature of applicant:

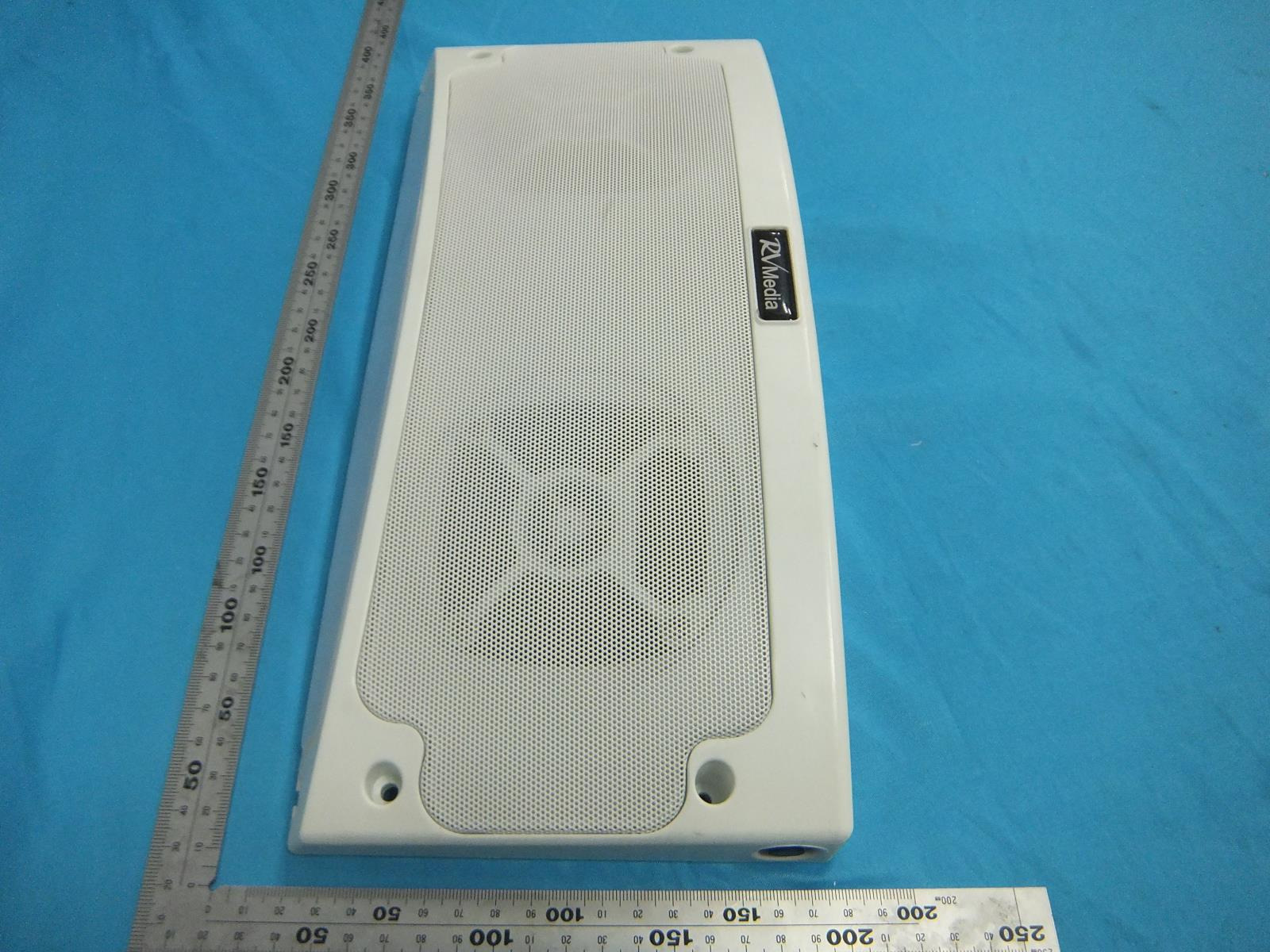

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 3 Page 1 of 3 RVM2000(043441)_External Photos Applicant: Camec Pty Ltd Address of Applicant: 47-63 Remington Drive Dandenong South, Victoria. 3175. Australia Equipment Under Test (EUT): Product Name: BLUETOOTH SPEAKER Brand Name: RV Media Model No.: RVM2000(043441) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 3 Page 2 of 3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 3 Page 3 of 3 End

Label I: Size: 90*55mm Label II: Size:55*25mm

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 6 Page 1 of 6 RVM2000(043441)_Internal Photos Applicant: Camec Pty Ltd Address of Applicant: 47-63 Remington Drive Dandenong South, Victoria. 3175. Australia Equipment Under Test (EUT): Product Name: BLUETOOTH SPEAKER Brand Name: RV Media Model No.: RVM2000(043441) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 6 Page 2 of 6 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 6 Page 3 of 6 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 6 Page 4 of 6 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 6 Page 5 of 6 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 6 Page 6 of 6 E EE En nn nd dd d

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5678 [email protected] Report No.: SHEM151100413904 Page: 1 of 8 Parlam Zhan E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page FCC MPE REPORT Application No.: SHEM1511004139CR Applicant: Camec Pty Ltd FCC ID: 2AGDW0006V2 Equipment Under Test (EUT): NOTE: The following sample(s) submitted was/were identified on behalf of the client as Product Name: BLUETOOTH SPEAKER Model No.(EUT): RVM2000(043441) Add Model No.: RVM2001(043440) Standards: FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v05r02 Date of Receipt: November 11, 2015 Date of Test: November 20, 2015 to November 22, 2015 Date of Issue: December 04, 2015 Test Result: Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM151100413904 Page: 2 of 8 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Version Revision Record Version Chapter Date Modifier Remark 00 / December 04, 2015 / Original Authorized for issue by: Engineer Eddy Zong Print Name Clerk Susie Liu Print Name Reviewer Keny Xu Print Name This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction. documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM151100413904 Page: 3 of 8 3 Contents Page 1 COVER PAGE .............................................................................................................................................. 1 2 VERSION ...................................................................................................................................................... 2 3 CONTENTS ......................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5678 [email protected] Report No.: SHEM151100413902 Page: 1 of 78 Parlam Zhan E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page RF TEST REPORT Application No.: SHEM1511004139CR Applicant: Camec Pty Ltd FCC ID: 2AGDW0006V2 Equipment Under Test (EUT): NOTE: The following sample(s) was/were submitted and identified by the client as Product Name: BLUETOOTH SPEAKER Model No.(EUT): RVM2000(043441) Add Model No.: RVM2001(043440) Standards: FCC PART 15 Subpart C: 2014 Date of Receipt: November 11, 2015 Date of Test: November 11, 2015 to November 16, 2015 Date of Issue: December 04, 2015 Test Result: Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM151100413902 Page: 2 of 78 2 Version Revision Record Version Chapter Date Modifier Remark 00 / December 04, 2015 / Original Authorized for issue by: Engineer Eddy Zong Print Name Clerk Susie Liu Print Name Reviewer Keny Xu Print Name This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM151100413802 Page: 3 of 78 3 Test Summary Test Item FCC Requirement Test method Result Antenna Requirement FCC Part 15, Subpart C Section 15.203/15.247 (c) --- PASS AC Power Line Conducted Emission FCC Part 15, Subpart C Section 15.207 ANSI C63.10 (2013) Section 6.2 PASS 20dB Occupied Bandwidth FCC Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2013) Section 6.9.2 PASS Conducted Peak Output Power FCC Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2013) Section 7.8.5 PASS Carrier Frequencies Separation FCC Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2013) Section 7.8.2 PASS Hopping Channel Number FCC Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2013) Section 7.8.3 PASS Dwell Time FCC Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2013) Section 7.8.4 PASS Conducted Spurious Emissions and Band-edge FCC Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2013) Section 7.8.6&7.8.8 PASS Radiated Spurious Emissions and Band-edge FCC Part 15, Subpart C Section 15.209&15.205 ANSI C63.10 (2013) Section 6.4&6.5&6.6&6.10 PASS This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s so…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 Page 1 of 4 RVM2000(043441)_Test Setup Photos-FCC Applicant: Camec Pty Ltd Address of Applicant: 47-63 Remington Drive Dandenong South, Victoria. 3175. Australia Equipment Under Test (EUT): Product Name: BLUETOOTH SPEAKER Brand Name: RV Media Model No.: RVM2000(043441) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS ............................................................................................................................ 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................................... 3 2.1 Radiated Emission Test Setup ................................................................................... 3 2.2 Conducted Emission Test Setup ................................................................................ 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 Page 3 of 4 2 EQUIPMENT UNDER TEST PICTURES 2.1 Radiated Emission Test Setup Below 30MHz 30MHz to 1GHz SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4 Page 4 of 4 Above 1GHz 2.2 Conducted Emission Test Setup End
