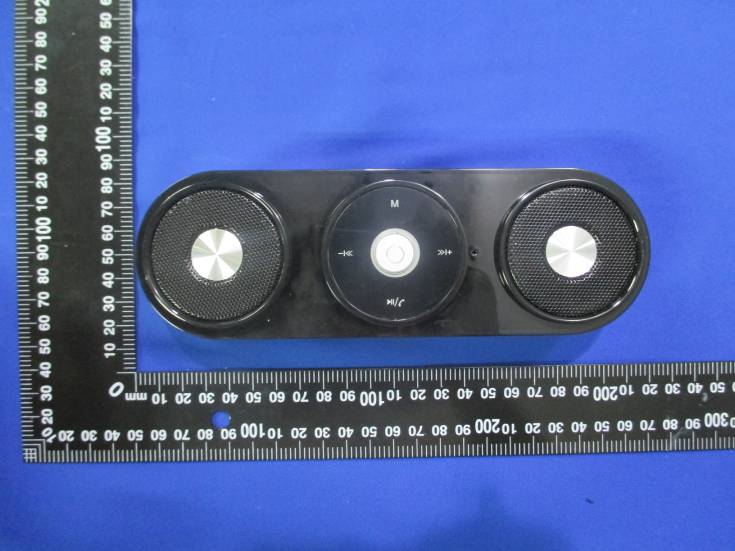

2AGEOLP-04Mini speaker

Manual A. Bluetooth mode 1. Bluetooth Version: Bluetooth 2.1 + EDR compliant, supports HSP, HFP, A2DP, AVRCP protocol, with English voice prompts, Bluetooth device name for LP-04 2. Long press the power button to boot, the boot Bluetooth Bluetooth LED blue lights turned on, the speaker issued a voice prompt 3. Blue lights flash to 100ms pairing status, mobile search to LP-04 device name to confirm the connection, and if the password is entered (0000), connect the blue light emitted speaker voice prompts After the success of the process of music playing in the blue light to 1000ms slow flash. Paired Bluetooth cell phone to turn on the phone and then turn back speakers are automatically linked 4. During playback, press the "Volume - / previous song" on or "Volume + / next track" button control, the next song, press the "Volume - / on the song" or "Volume + / next track" button control volume reduction, plus 5. During playback, press "Play Pause / Mode" button to control play / pause function, long press "Play Pause / Mode" button to enter the mode switch 6. During playback, there is an incoming call, press "Call" to answer the call, the call ends short press to hang up. Double-click the "Phone" button to automatically play back the last outgoing number, long forced to disconnect the current device is connected press the "call" button and enter the Bluetooth search status B. TF card mode 1. When the speaker is not inserted TF card device, press the power button to boot into Bluetooth mode, insert TF card speaker TF card automatically detects and enters TF card mode. If the speaker has inserted TF card device, boot directly into the TF card mode 2. During playback, the blue indicator light flashes slowly to 1000ms, pause blue light 3. During playback, press the "Volume - / previous song" on or "Volume + / next track" button control, the next song, press the "Volume - / on the song" or "Volume + / next track" button control volume reduction, plus 4. During playback, press "Play Pause / Mode" button to control play / pause function, long press "Play Pause / Mode" to enter the mode switch C. Radio mode 1. Press the Mode button to enter the radio mode, radio frequency is 87.5 ~ 108.0MHZ 2. Under radio mode into the USB charging cable, or 3.5 stereo audio cable when an external antenna 3. Press "Play Pause / Mode" key auto search, auto-save after completion of the radio station search and enter the first channel playback, long press "Play Pause / Mode" button to enter the mode switch 4. During playback, press the "Volume - / on the song" or "Volume + / next track" button control on a radio or next radio, long press the "Volume - / on the song" or "Volume + / next song "buttons control the volume reduction, plus 5. Automatic station search lights flash blue lights to 100ms, play blue light D. AUX mode 1. The 3.5MM AUX audio cable into the speaker jack, the speaker will automatically detect enter AUX mode, plug the other end of the phone or computer 3.5MM 2. Under the AUX mode indicator slowly flashing blue lights to 2000ms E. Charging 1. Plug the USB cable into the charger or computer speakers connected to 5V on the speakers built-in battery; 2. When charging, "Charging" light red and green light, red light off after the full; F. Standby function 1. No more than 10 minutes after connecting speakers will automatically enter standby mode Bluetooth mode, press any key to wake up 2. Bluetooth mode has a connection but does not play music or do not have to call more than 10 minutes after the speakers will automatically enter standby mode, press any key or cell phone to play music or phone calls to electricity may have to wake Speaker 3. TF card and AUX mode under suspended more than 10 minutes after the speakers will automatically enter standby mode, press any key to wake up G. All modes native default boot volume of two-thirds of the total volume. To protect the battery life and speaker working properly, the software when the battery voltage is lower than 3.3V setting the speaker will automatically detect and send voice alarm, speakers will be issued when the battery voltage is lower than 3.2V voice prompts and set automatic shutdown H. List of key features 1. The machine open, shut down the control key with the touch of a button, the other four buttons with capacitive touch button control. Long press on, off key on, off, every time you press the touch buttons corresponding to the touch LED flashes once Mode Serial number Key Name Bluetooth TF card FM AUX 1 Play Pause / mode Short press the play / pause, long press the mode switch Short press the play / pause, long press the mode switch Short press automatic station search, press the mode switch Short press the play / pause, long press the mode switch 2 Phone Short press the answer, hang up, double-click automatic callback, press disconnect the device Invalid Invalid Invalid 3 Vo l u m e - / on a On a short press, long press volume down On a short press, long press volume down Short press on a store radio, long press volume down Press invalid, long press volume down 4 Vo l u m e + / under a A short press, long press the volume increase A short press, long press the volume increase Short pressing a store radio, long press volume up Press invalid, long press the volume increase Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used i…

Text truncated - open the document above for the full version.

Shenzhen Hwell Technology Co.,Ltd 6F, 11Bldg, Rich Industrial Park, Le Zhu Jiao, Xixiang Town, Baoan District, Shenzhen, China TEL: +86-755-83006956 FAX: +86-755-83006956 DATE 11-10-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AGEOLP-04 Product Name: Mini speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 11-10-2015 By: Changxia Cai Signature Printed Title: Manager On behalf of : Shenzhen Hwell Technology Co.,Ltd Telephone: +86-755-83006956

Shenzhen Hwell Technology Co.,Ltd 6F, 11Bldg, Rich Industrial Park, Le Zhu Jiao, Xixiang Town, Baoan District, Shenzhen, China TEL: +86-755-83006956 FAX: +86-755-83006956 Series Models Description FCC ID: 2AGEOLP-04 Date: Nov. 10, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: Mini speaker) Models Name: LP-04, LP-05, LP-06, SoundBankZ3, Z3 have same electrical, PCB and BOM, only the model’s name and colour are different for marketing requirements. Sincerely, Changxia Cai/Manager The device (Product Name: Mini speaker) Models Name: LP-04, LP-05, LP-06, SoundBankZ3, Z3 are electrically identical, only the model’s name and color are different for marketing requirements.

Shenzhen Hwell Technology Co.,Ltd 6F, 11Bldg, Rich Industrial Park, Le Zhu Jiao, Xixiang Town, Baoan District, Shenzhen, China TEL: +86-755-83006956 FAX: +86-755-83006956 USB Port Statement FCC ID: 2AGEOLP-04 Date: Nov. 10, 2015 To whom it may concern: We, the undersigned, state that the device's (Model: LP-04, LP-05, LP-06, SoundBankZ3, Z3) USB port only used for charge, no any data transfer to PC. Sincerely, Changxia Cai/Manager

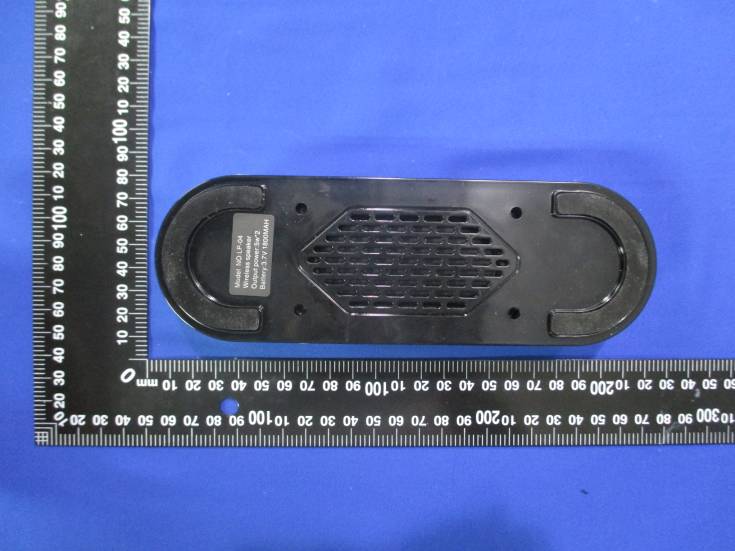

FCC ID Label Information 1. Label location: 2. FCC ID Label: Model: LP-04 FCC ID: 2AGEOLP-04 FCCID Label Location

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Ant gain 1.2dBi ;so Ant numeric gain=1.32 Field strength = 96.08 dBuV/m @3m So Pt={ [10 (96.08 /20) /10 6 x3] 2 /30x1.32}x1000 mW = 0.922 mW So ( 0.922 mW/5mm)x √2.402 GHz =0.3 < 3 Then SAR evaluation is not required

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No.: CTL1511033189-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Tracy Qi (Manager) Product Name...............................: Mini speaker Model/Type reference..................: LP-04, LP-05, LP-06, SoundBankZ3, Z3 Trade Mark....................................: N/A FCC ID...........................................: 2AGEOLP-04 Applicant’s name.........................: Shenzhen Hwell Technology Co.,Ltd Address of applicant...................: 6F, 11Bldg, Rich Industrial Park, Le Zhu Jiao, Xixiang Town, Baoan District, Shenzhen, China Test Firm.......................................: Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm...................: Floor 1- A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification.........................: Standard........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator..........................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF..............................: Dated 2011-01 Date of Receipt.............................: Nov. 03, 2015 Date of Test Date..........................: Nov. 03, 2015 - Nov. 09, 2015 Data of Issue.................................: Nov. 09, 2015 Result............................................: Positive Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 32 Report No.: CTL1511033189-WF T E S T R E P O R T Test Report No. : CTL1511033189-WF Nov. 09, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mini speaker Model /Type : LP-04 Listed Modes LP-04, LP-05, LP-06, SoundBankZ3, Z3 Difference Description Only the color and model's name is different Applicant : Shenzhen Hwell Technology Co.,Ltd Address : 6F, 11Bldg, Rich Industrial Park, Le Zhu Jiao, Xixiang Town, Baoan District, Shenzhen, China Manufacturer : Shenzhen Hwell Technology Co.,Ltd Address : 6F, 11Bldg, Rich Industrial Park, Le Zhu Jiao, Xixiang Town, Baoan District, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 32 Report No.: CTL1511033189-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.Equipment Under Test 5 2.2.Description of the Equipment under Test (EUT) 5 2.3.EUT operation mode 6 2.4.EUT configuration 6 2.5.Related Submittal(s) / Grant (s) 6 2.6.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2. Transmitter Radiated Unwanted Emissions and Bandedge 14 4.3.Occupied Bandwidth Measurement 20 5. ANTENNA REQUIREMENT ....................................................... 24 6.TEST SETUP PHOTOS OF THE EUT .......................................... 25 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 27 V1.0 Page 4 of 32 Report No.: CTL151133189-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.10-2013 ANSI C63.4-2014 V1.0 Page 5 of 32 Report No.: CTL1511033189-WF 2. SUMMARY 2.1. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.2. Description of the Equipment under Test (EUT) The EUT (Mini speaker) support Bluetooth function. Name of EUT Mini speaker Model Number LP-04 Antenna Type Internal BT Operation frequency 2402MHz-2480MHz BT Modulation Type GFSK,8DPSK,/4DQPSK(BT V2.1+EDR) Bluetooth BT V2.1+EDR Antenna Gain 0dBi Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 For more details, refer to the user’s manual of the EUT. Serial number: Prototype 1.2 dBi. V1.0 Page 6 of 32 Report No.: CTL1511033189-WF 2.3. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting…
