2AGGKSTANDSENSORStunt Stand Sensor

Stunt Stand Sensor Technical description: 1 separate complete bridge weighing sensors are placed on the 4 corners of the product. After the successful establishment of the Bluetooth connection, the BLE will sample and upload the data of the weighing sensor, for the judgment and calculation of the user's center of gravity. The differential signal of the 4 weighing sensor is converted into a single ended signal access AD BLE interface after amplification. This BLE can be used for the internal integration of the ADC 12bit module for sensor data sampling and calculation. EEPROM design for storage of sensor calibration data in the production process. These data are used to convert the sample data of the sensor to the actual weight value. In order to indicate the connection state of the BLE, the BLE is controlled by GPIO at the same time by the external LED, or by flashing. Instructions Turn on / off The user can control the device's starting and shutdown state by using an external dial switch control device. Bluetooth connection When the device is turned on, the Bluetooth is automatically entered into the "discovery mode", which is called "Stand Sensor Stunt" ". Device Bluetooth can be found and connected with other devices via Bluetooth in the "discovery mode", while LED flashes the state. After the establishment of the Bluetooth connection, the LED from the flashing state to the normal state, while the device will start to sample the 4 independent weighing sensor data real-time reported to the external device. The time interval of sampling data is about 1 second. Power supply The device defaults to use the built-in lithium polymer battery to work, the normal working voltage is ~3.4V 4.2V. Charge The device can be charged by the external USB Micro interface in both the power and the off state. By LED on the current state of charge to indicate the state of the red light is charging, blue light said it has been full of. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

YEHL&JORDAN LLC Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 11/25/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AGGKSTANDSENSOR including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Company Officer: BRIAN JORDAN Company address： 114 PAIGE BEND HUTTO,TEXAS 78634 Email: [email protected]

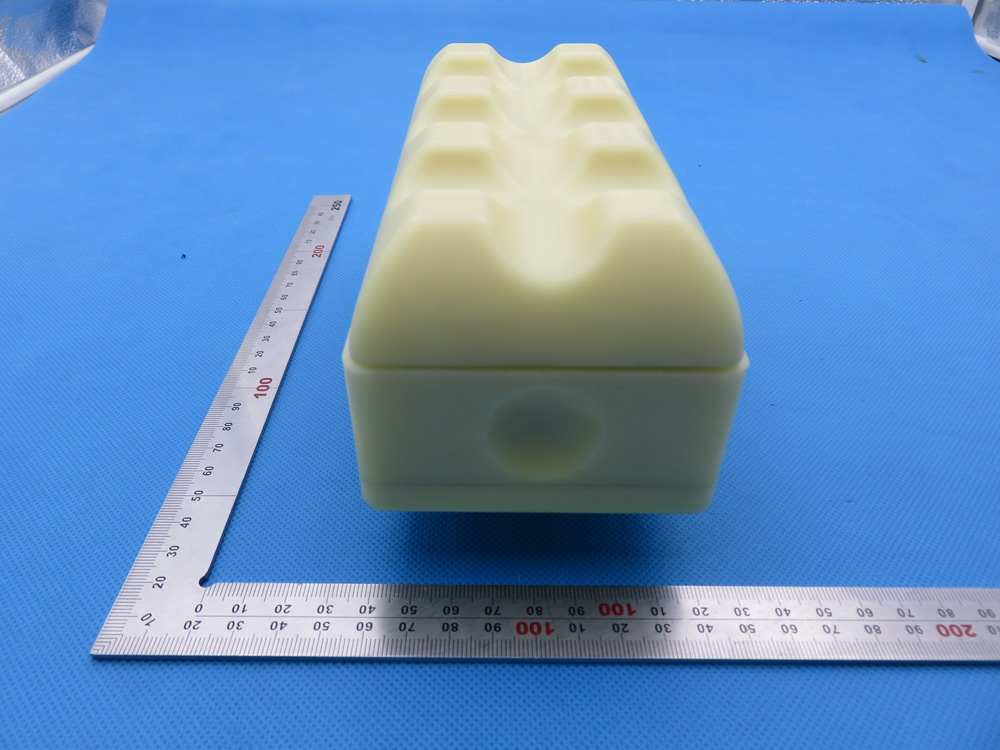

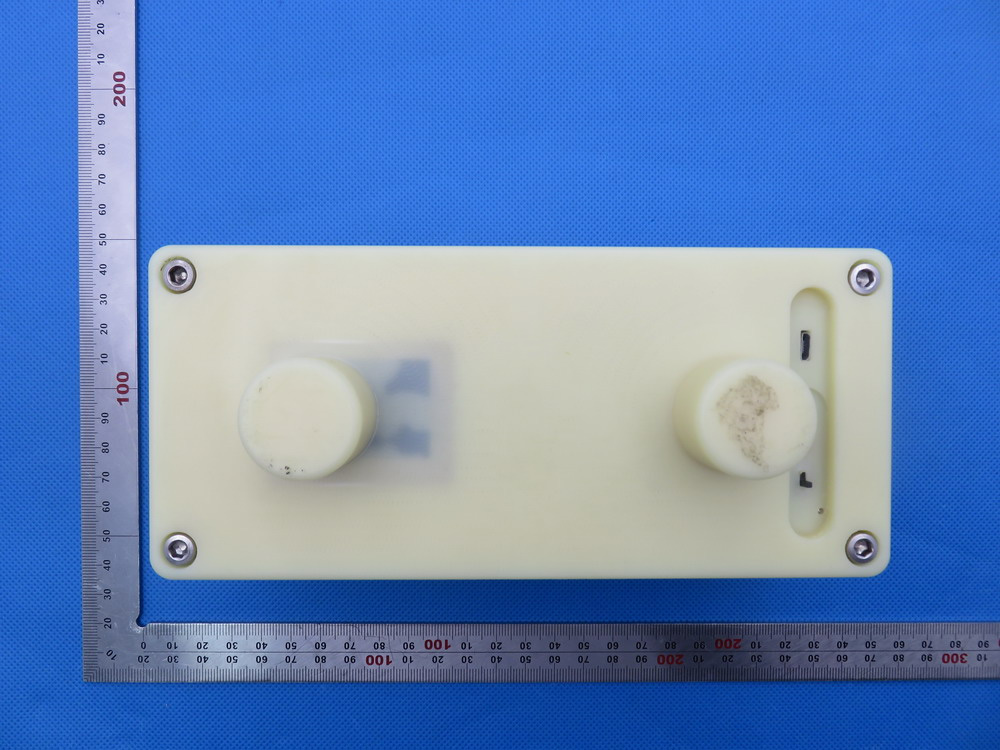

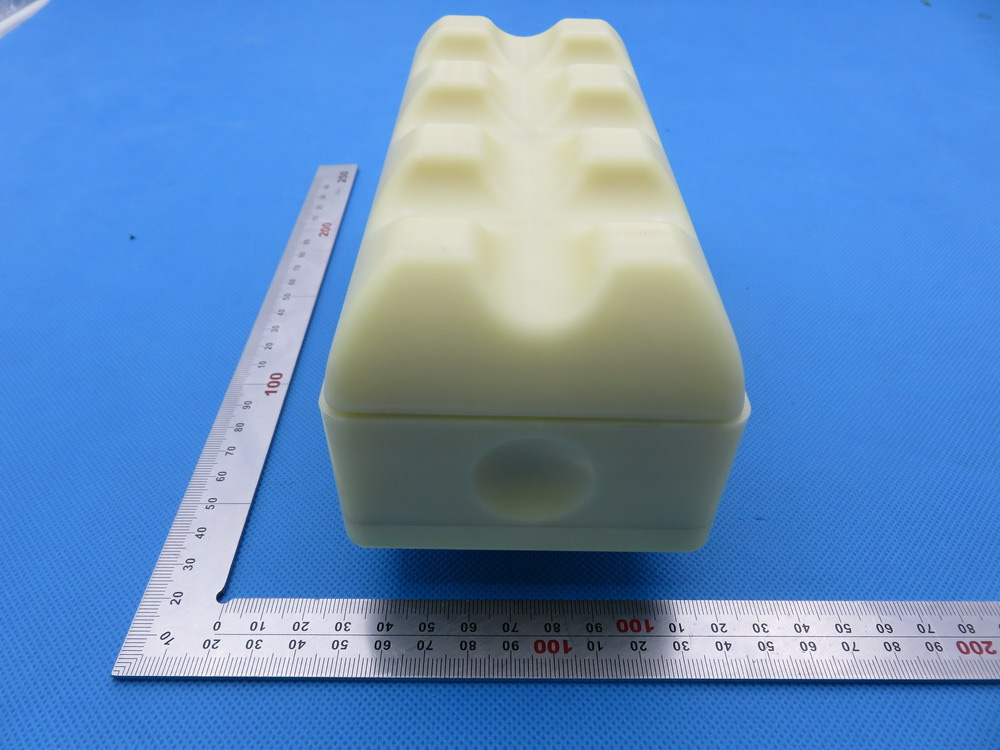

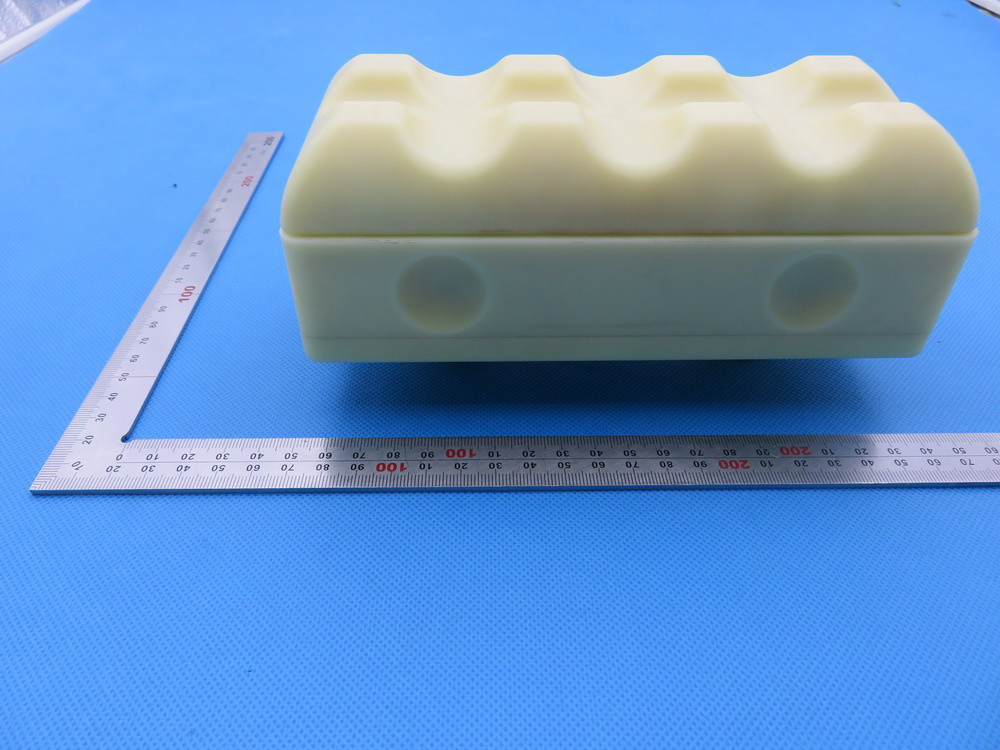

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AGGKSTANDSENSOR Stunt Stand Sensor

Internal Photos VIEW OF EUT (Port) OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

YEHL&JORDAN LLC Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Stunt Stand Sensor FCC ID: 2AGGKSTANDSENSOR fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type described below: Model No. of antenna: N/A Type of antenna: PCB antenna permanently attached Gain of the antenna: 1.6dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: YEHL&JORDAN LLC Address: 114 PAIGE BEND HUTTO,TEXAS City: TEXAS ZIP / Postal code: 78634, Country: USA Place: TEXAS Date: 2015-11-25 Signature:

RF Exposure evaluation Product Description:Stunt Stand Sensor Model Number: Stunt Stand Sensor FCC ID: 2AGGKSTANDSENSOR According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=98.78dBuv/m=0.087V/m,d=3m,g t =1.45 P t =（E x d） 2 /（30 x g t ）=(0.087x3) 2 /(30x1.45)=0.001567W=1.57mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -1.57mW output power] (1.57mW /5mm) .[√2.480(GHz)]= 0.494<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 52 FCC Test Report Report No.: AGC05362151001FE03 FCC ID : 2AGGKSTANDSENSOR APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Stunt Stand Sensor BRAND NAME : N/A MODEL NAME : Stunt Stand Sensor CLIENT : YEHL&JORDAN LLC DATE OF ISSUE : Nov.18,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC05362151001FE03 Page 2 of 52 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Nov.18,2015 Valid Original Report Report No.: AGC05362151001FE03 Page 3 of 52 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 7 4. DESCRIPTION OF TEST MODES ................................................................................................................. 7 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ..................................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 8 6. TEST FACILITY ............................................................................................................................................. 9 7. ALL TEST EQUIPMENT LIST ....................................................................................................................... 9 8. RADIATED EMISSION ................................................................................................................................. 11 8.1TEST LIMIT .............................................................................................................................................. 11 8.2. MEASUREMENT PROCEDURE ........................................................................................................... 12 8.3. TEST SETUP ......................................................................................................................................... 14 8.4. TEST RESULT ....................................................................................................................................... 16 9. BAND EDGE EMISSION ............................................................................................................................. 29 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 29 9.2 TEST SETUP .......................................................................................................................................... 29 9.3 RADIATED TEST RESULT ..................................................................................................................... 30 10 20DB BANDWIDTH .................................................................................................................................... 34 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 34 10.2. TEST SET-UP ..................................................................................................................................... 34 10.3. LIMITS AND MEASUREMENT RESULTS .......................................................................................... 34 11. FCC LINE CONDUCTED EMISSION TEST ............................................................................................... 37 Report No.: AGC05362151001FE03 Page 4 of 52 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ............................................................................... 37 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ............................................................. 37 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................... 38 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ......................................................... 38 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ................................................................... 39 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................ 41 APPENDIX B: PHOTOGRAPHS OF EUT ....................................................................................................... 43 Report No.: AGC05362151001FE03 Page 5 of 52 1. VERIFICATION OF CONFORMITY Applicant YEHL&JORDAN LLC Address 114 PAIGE BEND HUTTO,TEXAS 78634 Manufacturer Huizhou besjoy hi-tech Co.ltd. Address Room314,Building B,NO.16,Huifeng East 2nd Road,ZhongKai Hi-tech Developme-nt Zone,Huizhou Guangdong P.R.C Product Designation Stunt Stand Sensor Brand Name N/A Test Model Stunt Stand Sensor Date of test Nov. 07,2015 to Nov.10,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify …

Text truncated - open the document above for the full version.

Test Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
