2AGKBKM6ATMAndroid Box

FCC ID: 2AGKBKM6ATM Press and hold + buttons for 5 seconds to pair the remote control. PAIRING METHOD

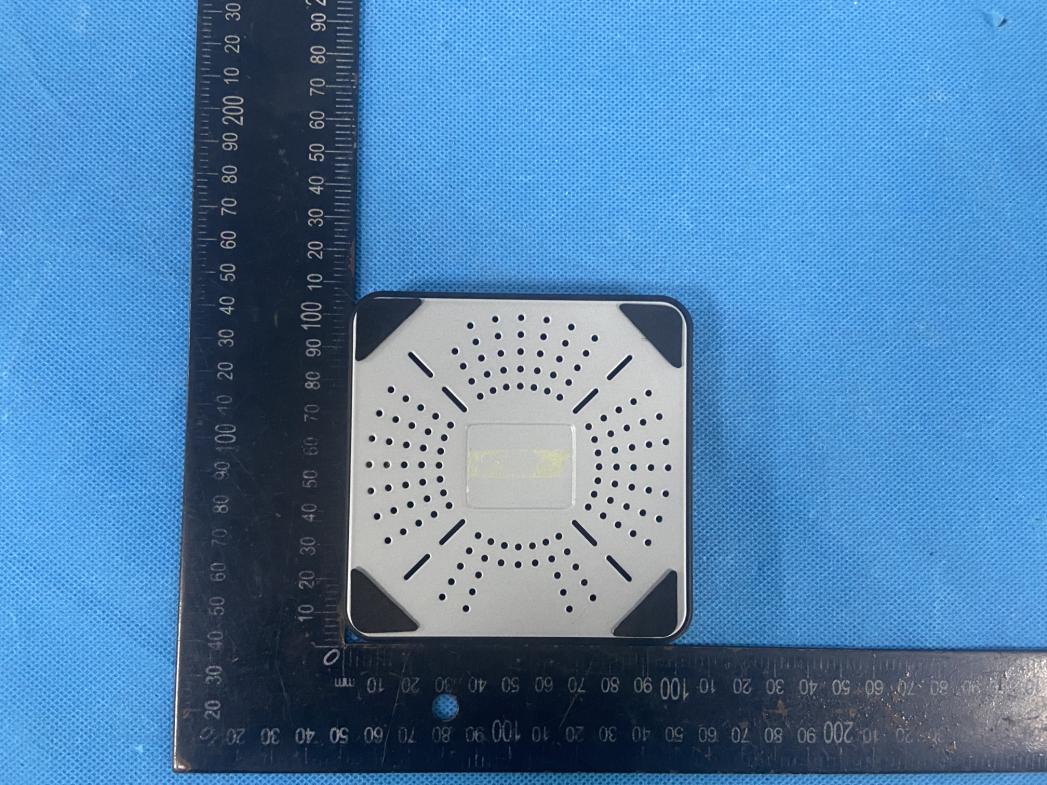

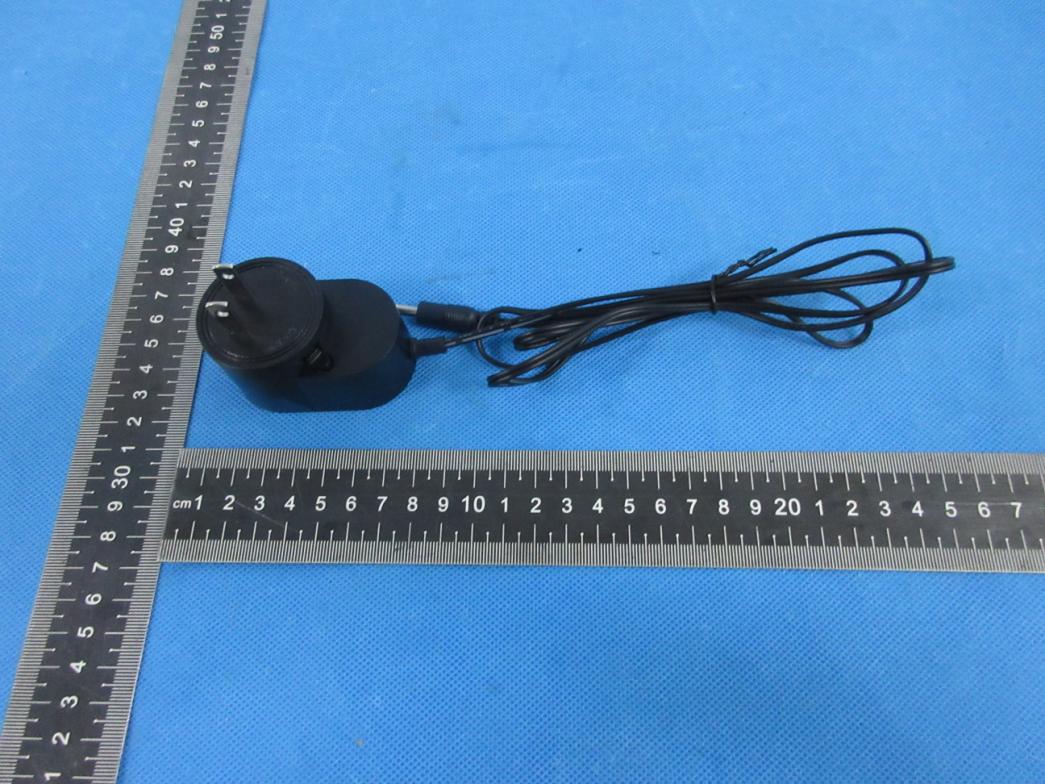

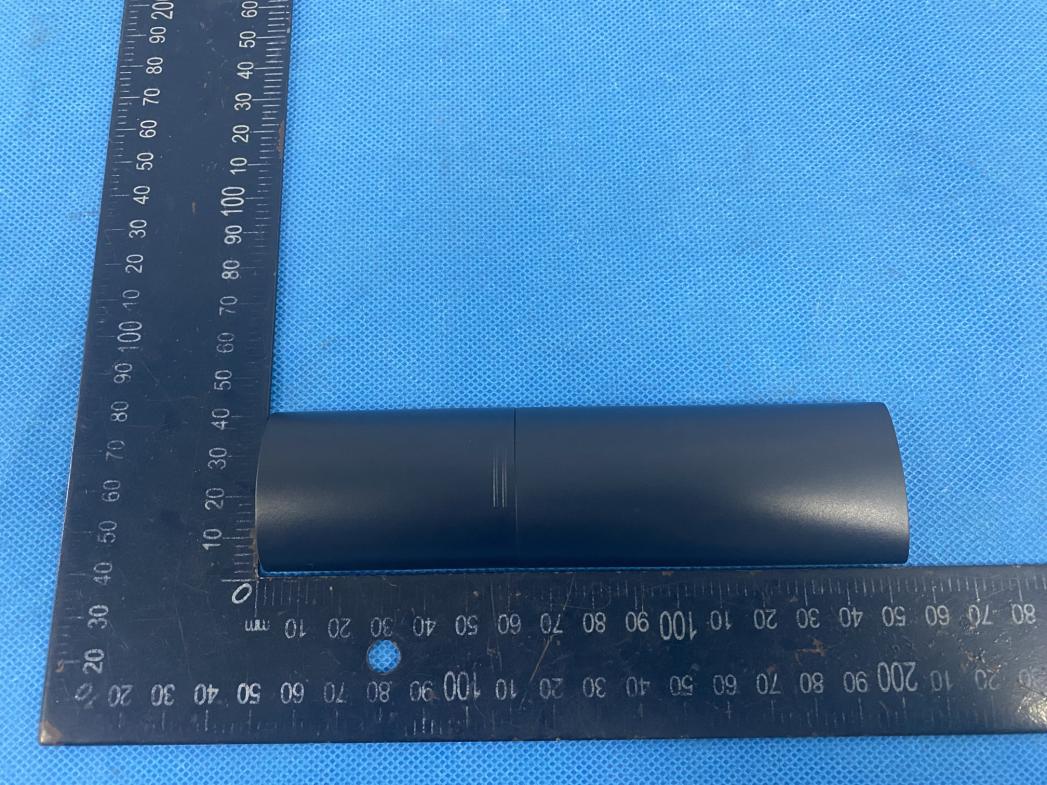

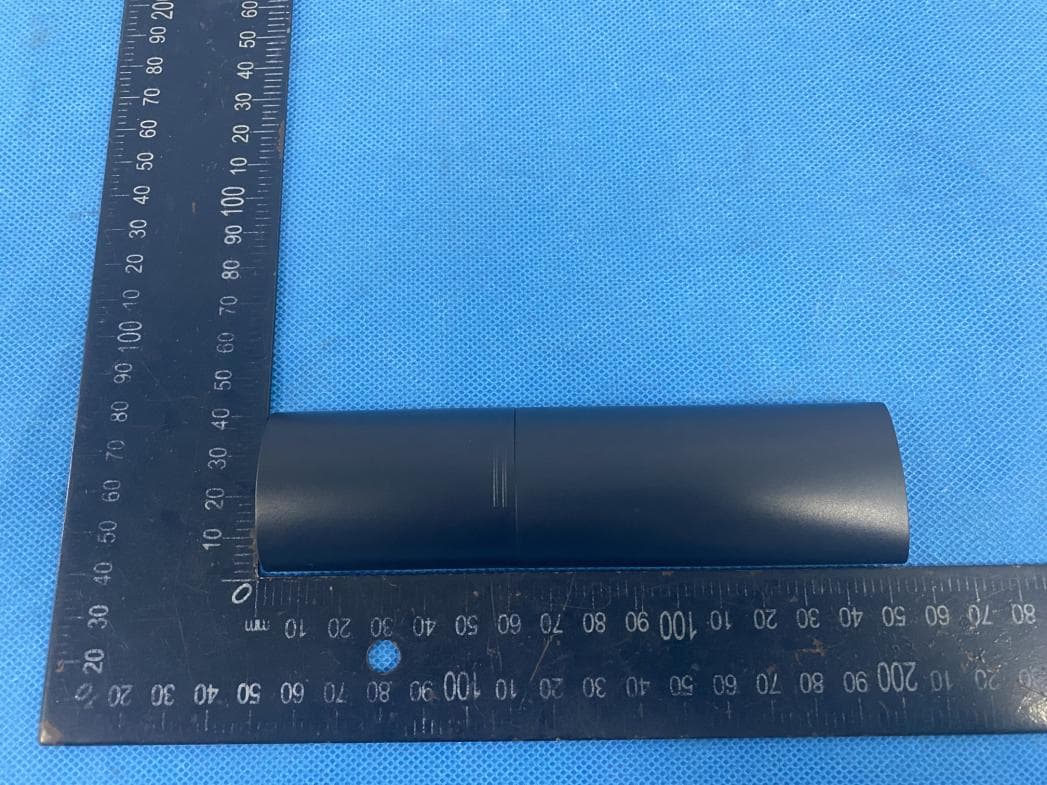

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 17 Photo 18 Photo 19

Bottom case sticker 使用位置 MAC uses hexadecimal E81863568FB1 to E81863569B72, a total of 3010 The supplier provides stickers without barcode boards, and the factory prints barcodes No barcode board stickers, as follows Requirements: black text on white background Material: 80g coated paper, with glue on the back, rounded corners R2 size: 31x24mm tolerance ±0.2mm One in one S/N:XXXXXXXXXXXXXX 物料刀模名称 公司名称 深圳市视壮科技有限公司：V-EEMM220801M6订单号： 物料名称 底壳贴纸 KM6 31x24mm,圆角R2 一式一份 兰正孟 ± 1mm 80g铜版纸，背带不干胶 KM6.ATMT03.01 CPLSHKM60017 / 2022.9.8 Ver 1.0 / 白底黑字 / / 印刷 ：版本号： 物料料号： 图号： 对应机型：特殊工艺：需求材质： 印刷工艺过膜类型：印刷色需求： 成品尺寸：尺寸公差： 审核：设计人员：设计日期： ： 备注： 专色色号： ： MAC:XXXXXXXXXXXX 2AGKBKM6ATM Android Box Model No.: ATMOSPHERE TV 1 MAC:XXXXXXXXXXXX 2AGKBKM6ATM Android Box Model No.: ATMOSPHERE TV 1 MAC:XXXXXXXXXXXX 2AGKBKM6ATM Android Box Model No.: ATMOSPHERE TV 1 2AGKBKM6ATM Android Box Model No.: ATMOSPHERE TV 1

Photo 7 Photo 8 Photo 9 Photo 10 BT/wifi Ant1 wifi Ant2 BT/wifi Ant1 背面 Photo 11 Photo 12 wifi Ant2 背面 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18

FCC ID: 2AGKBKM6ATM RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: 2402MHz-2480MHz; 2412MHz-2462MHz; 5180MHz-5240MHz; 5260MHz~5320MHz; 5500MHz~5700MHz; 5745MHz-5825MHz; Antenna Type: FPC Antenna Antenna gain: BT: 2.85dBi WIFI ANT1: 2400-2500MHz / 5150-5850 MHz-- 2.85 dBi / 5.31 dBi WIFI ANT2: 2400-2500MHz / 5150-5850 MHz-- 2.96 dBi / 6.42 dBi R=20cm Maximum Single sources Max ConductedAntennaEvaluation result Power density Limits Gain (dBi) BLE-1M6.4642.85200.0016991PASS BLE-2M6.6772.85200.0017841PASS Wi-Fi 2.4G（Ant1）16.742.85200.0181021PASS Wi-Fi 2.4G（Ant2）16.32.96200.0167771PASS Wi-Fi 5.2G（Ant1）10.75.31200.0079381PASS Wi-Fi 5.2G（Ant2）10.926.42200.0107831PASS Wi-Fi 5.3G（Ant1）11.085.31200.0086641PASS Wi-Fi 5.3G（Ant2）10.846.42200.0105861PASS Wi-Fi 5.6G（Ant1）10.175.31200.0070261PASS Wi-Fi 5.6G（Ant2）10.316.42200.009371PASS Wi-Fi 5.8G（Ant1）10.315.31200.0072561PASS Wi-Fi 5.8G（Ant2）10.436.42200.0096321PASS Verdict (mW/cm2)(mW/cm2 ) Band Separation distance (cm) (dBm) SIMULTANEOUS TRANSMISSIONS When a number of sources at different frequencies, and/or broadband sources, contribute to the total exposure, it becomes necessary to weigh each contribution relative to the MPE. To comply with the MPE, the fraction of the MPE in terms of E 2 , H 2 (or power density) incurred within each frequency interval should be determined and the sum of all such fractions should not exceed unity. In order to ensure compliance with the MPE for a controlled environment, the sum of the ratios of the power density to the corresponding MPE should not exceed unity. That is Maximum Multiple sources Note: 1. NO simultaneous transmissions are possible for this device of Wi-Fi 2.4G + BT. 2. NO simultaneous transmissions are possible for this device of Wi-Fi 5G + Wi-Fi 2.4G. Signature: Date: 2022-09-21 NAME AND TITLE (Please print or type): Alex/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China. Gain (dBi) 11.162.85200.0050091 11.422.96200.0054541 10.75.31200.0079381 10.926.42200.0107831 11.085.31200.0086641 10.846.42200.0105861 10.075.31200.0068661 10.46.42200.0095661 10.315.31200.0072561 10.436.42200.0096321 6.6772.85200.0017841 11.085.31200.0086641 10.846.42200.0105861 PASS PASS 5.3G ANT1+ANT2 5.6G ANT1+ANT2 1 1 0.01925 0.016432 5G ANT1+5G ANT2+BT 1PASS 2.4G ANT1+ANT2 5.2G ANT1+ANT2 5.8G ANT1+ANT2 PASS PASS PASS 1 Verdict (mW/cm2 )(mW/cm2)(dBm)(mW/cm2)(mW/cm2 ) Pow er density Limits Max Conducted Antenna Separation distance (cm) 0.016888 0.021034 1 1 Band Evaluation result Pow er density Limits Evaluation result 0.010463 0.018721

供应商： 东莞市腾祥电子有限公司 Tengxiang Technology.Inc 地 址： 东莞市 长安镇 沙头沙涌路53号 承 認 書 SPECIFICATION FOR APPROVAL AN2450-FPC04GX 腾祥料號 SOREDE P/N 2.4/5.8G FPC天线，1.13灰色线L=60mm+IPEX 品 名 / 規 格 DESCRIPTION 210225002 腾祥送樣編號 SOREDE DWG# 送样日期 2022/12/1 SAMPLE DATE MANUFACTURER/制造商 APPROVED BY 核 准 Q.C.DEPT. 品 管 CHECKED BY 核 准 TESTED BY 檢 測 韦佳袁旭阳胡超李艳坪 客户： 深圳市视壮科技有限公司 视 壮 料 號 CUSTOMER P/N 视 壮 名 稱 CUSTOMER 品 名 / 規 格 DESCRIPTION CUSTOMER APPROVAL/客户审核 APPROVED BY 核 准 Q.C.DEPT. 品 管 CHECKED BY 审核 TESTED BY 檢 測 TengxiangTechnology.Inc ProductNumber:AN2450-FPC04GX ProductName:FPCAntenna Page 1 Version:1.0IssueDate:2022.12.1 1.Specification SamplePhoto A.ElectricalCharacteristics Frequency频率2400-2500MHz/5150-5850MHz S.W.R.驻波比<=2.0 AntennaGain增益2.85dBi/5.31dBi Polarization 极化方式Linear Impedance 阻抗50Ohm B.Material&MechanicalCharacteristics MaterialofRadiatorCu MaterialofPlastic塑胶材质/ CableType线材规格OD1.13mm，GRAY ConnectorType 连接器规格I-PEX ConnectorPullTest/ ConnectorTorqueTest/ C.Environmental OperationTemperature存储 温度 -40 ̊C~+80 ̊C StorageTemperature存储温 度 -40 ̊C~+80 ̊C 2.CharacteristicsandReliabilityTest TengxiangTechnology.Inc ProductNumber:AN2450-FPC04GX ProductName:FPCAntenna Page 2 Version:1.0IssueDate:2022.12.1 TestItemsTestConditionandProcedureRequirements C1S.W.R.SetDUTonNetworkAnalyzer;makeindividual calibrationtotest DirectiveDUTspecification C2Antenna Gain SetDUTonAntennaChamber;makeindividual calibrationtotest DirectiveDUTspecification M1VibrationMIL-STD-202G,201A Amplitude:0.03inch(0.76mm);Freq:10to55Hz 3directions;2hoursforeachdirection 1.NoVisualDamage 2.FrequencyTol.<=5% M2Random Drop Height:1.5Meter; 3directions;1timeforeachdirection 1.Nopartsseparated 2.FrequencyTol.<=5% M3SolderabilityMIL-STD-202G,210F,cond.A Solderiron:350±10°C;Duration:5seconds 1.MountedonPCB 2.NoVisualDamage M4Terminal- PullTest MIL-STD-202G,211A,cond.A Holdingwithindividualspecification;forceapplied toaxisofterminal 1.DirectiveDUTspecification 2.FrequencyTol.<=5% M5Terminal- TorqueTest MIL-STD-202G,211A,cond.E Holdingwithindividualspecification;applied clockwiseandcounterclockwisetotheaxisof terminal 1.DirectiveDUTspecification 2.FrequencyTol.<=5% M6DimensionInspectionofdimension,color,material,package, surfaceprocess DirectiveDUTspecification E1SaltSprayMIL-STD-202G,101E,cond.B Temp:35°C;RH:>=95%;NaClsolution:>=5%; Time:48hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E2HumidityMIL-STD-202G,103B,cond.B Temp:40°C;RH:>=95%;Time:48hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E3Thermal Shock 1Cycle:-45°C(30minutes)to+85°C(30minutes) Cycles:24 After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E4Life(High Temp.) MIL-STD-202G,108A,cond.A Temp:85°C;Time:96hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% R1RoHSWithReferencetoIEC62321:2008withflowchartDirectiveRoHS2020/863/EU TengxiangTechnology.Inc ProductNumber:AN2450-FPC04GX ProductName:FPCAntenna Page 3 Version:1.0IssueDate:2022.12.1 3.Antenna-SParameterTestData TengxiangTechnology.Inc ProductNumber:AN2450-FPC04GX ProductName:FPCAntenna Page 4 Version:1.0IssueDate:2022.12.1 4.Antenna-RadiationPatternTestData TengxiangTechnology.Inc ProductNumber:AN2450-FPC04GX ProductName:FPCAntenna Page 5 Version:1.0IssueDate:2022.12.1 5 .M ec h a ni ca lDr a win g( S eeattac h ed fil es ) Note: Maximum antenna gain at 5800.0MHz

供应商： 东莞市腾祥电子有限公司 Tengxiang Technology.Inc 地 址： 东莞市 长安镇 沙头沙涌路53号 承 認 書 SPECIFICATION FOR APPROVAL AN2450-FPC05BX 腾祥料號 SOREDE P/N 2.4/5.8G FPC天线，黑色线L=80mm+IPEX 品 名 / 規 格 DESCRIPTION 210225002 腾祥送樣編號 SOREDE DWG# 送样日期 2022/12/1 SAMPLE DATE MANUFACTURER/制造商 APPROVED BY 核 准 Q.C.DEPT. 品 管 CHECKED BY 核 准 TESTED BY 檢 測 韦佳袁旭阳胡超李艳坪 客户： 深圳市视壮科技有限公司 视 壮 料 號 CUSTOMER P/N 视 壮 名 稱 CUSTOMER 品 名 / 規 格 DESCRIPTION CUSTOMER APPROVAL/客户审核 APPROVED BY 核 准 Q.C.DEPT. 品 管 CHECKED BY 审核 TESTED BY 檢 測 TengxiangTechnology.Inc ProductNumber:AN2450-FPC05BX ProductName:FPCAntenna Page 1 Version:1.0IssueDate:2022.12.1 1.Specification SamplePhoto A.ElectricalCharacteristics Frequency频率2400-2500MHz/5150-5850MHz S.W.R.驻波比<=2.0 AntennaGain增益2.96dBi/6.42dBi Polarization极化方式Linear Impedance 阻抗50Ohm B.Material&MechanicalCharacteristics MaterialofRadiatorCu MaterialofPlastic塑胶材质/ CableType线材规格OD1.13mm，BLACK ConnectorType连接器规格I-PEX ConnectorPullTest/ ConnectorTorqueTest/ C.Environmental OperationTemperature存储 温度 -40 ̊C~+80 ̊C StorageTemperature存储温 度 -40 ̊C~+80 ̊C 2.CharacteristicsandReliabilityTest TengxiangTechnology.Inc ProductNumber:AN2450-FPC05BX ProductName:FPCAntenna Page 2 Version:1.0IssueDate:2022.12.1 TestItemsTestConditionandProcedureRequirements C1S.W.R.SetDUTonNetworkAnalyzer;makeindividual calibrationtotest DirectiveDUTspecification C2Antenna Gain SetDUTonAntennaChamber;makeindividual calibrationtotest DirectiveDUTspecification M1VibrationMIL-STD-202G,201A Amplitude:0.03inch(0.76mm);Freq:10to55Hz 3directions;2hoursforeachdirection 1.NoVisualDamage 2.FrequencyTol.<=5% M2Random Drop Height:1.5Meter; 3directions;1timeforeachdirection 1.Nopartsseparated 2.FrequencyTol.<=5% M3SolderabilityMIL-STD-202G,210F,cond.A Solderiron:350±10°C;Duration:5seconds 1.MountedonPCB 2.NoVisualDamage M4Terminal- PullTest MIL-STD-202G,211A,cond.A Holdingwithindividualspecification;forceapplied toaxisofterminal 1.DirectiveDUTspecification 2.FrequencyTol.<=5% M5Terminal- TorqueTest MIL-STD-202G,211A,cond.E Holdingwithindividualspecification;applied clockwiseandcounterclockwisetotheaxisof terminal 1.DirectiveDUTspecification 2.FrequencyTol.<=5% M6DimensionInspectionofdimension,color,material,package, surfaceprocess DirectiveDUTspecification E1SaltSprayMIL-STD-202G,101E,cond.B Temp:35°C;RH:>=95%;NaClsolution:>=5%; Time:48hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E2HumidityMIL-STD-202G,103B,cond.B Temp:40°C;RH:>=95%;Time:48hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E3Thermal Shock 1Cycle:-45°C(30minutes)to+85°C(30minutes) Cycles:24 After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E4Life(High Temp.) MIL-STD-202G,108A,cond.A Temp:85°C;Time:96hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% R1RoHSWithReferencetoIEC62321:2008withflowchartDirectiveRoHS2020/863/EU TengxiangTechnology.Inc ProductNumber:AN2450-FPC05BX ProductName:FPCAntenna Page 3 Version:1.0IssueDate:2022.12.1 3.Antenna-SParameterTestData TengxiangTechnology.Inc ProductNumber:AN2450-FPC05BX ProductName:FPCAntenna Page 4 Version:1.0IssueDate:2022.12.1 4.Antenna-RadiationPatternTestData TengxiangTechnology.Inc ProductNumber:AN2450-FPC05BX ProductName:FPCAntenna Page 5 Version:1.0IssueDate:2022.12.1 5 .M ec h a ni ca lDr a win g( S eeattac h ed fil es ) Note: Maximum antenna gain at 2460MHz.

Report No.: S22082700102003 1 / 882 5.2G Duty Cycle Antenna Condition Mode Frequency (MHz) Duty Cycle (%) Correction Factor (dB) Ant 1 NVNT 802.11a 5180 97.52 0.11 Ant 1 NVNT 802.11a 5200 97.52 0.11 Ant 1 NVNT 802.11a 5240 97.53 0.11 Ant 2 NVNT 802.11a 5180 97.32 0.12 Ant 2 NVNT 802.11a 5200 97.57 0.11 Ant 2 NVNT 802.11a 5240 97.56 0.11 Ant 1 NVNT 802.11ac20 5180 97.37 0.12 Ant 1 NVNT 802.11ac20 5200 97.39 0.11 Ant 1 NVNT 802.11ac20 5240 97.37 0.12 Ant 2 NVNT 802.11ac20 5180 97.37 0.12 Ant 2 NVNT 802.11ac20 5200 97.37 0.12 Ant 2 NVNT 802.11ac20 5240 97.37 0.12 Ant 1 NVNT 802.11ac40 5190 94.84 0.23 Ant 1 NVNT 802.11ac40 5230 94.83 0.23 Ant 2 NVNT 802.11ac40 5190 94.83 0.23 Ant 2 NVNT 802.11ac40 5230 94.83 0.23 Ant 1 NVNT 802.11ac80 5210 91.94 0.36 Ant 2 NVNT 802.11ac80 5210 91.84 0.37 Ant 1 NVNT 802.11ax20 5180 97.37 0.12 Ant 1 NVNT 802.11ax20 5200 97.34 0.12 Ant 1 NVNT 802.11ax20 5240 97.37 0.12 Ant 2 NVNT 802.11ax20 5180 97.33 0.12 Ant 2 NVNT 802.11ax20 5200 97.39 0.12 Ant 2 NVNT 802.11ax20 5240 97.33 0.12 Ant 1 NVNT 802.11ax40 5190 94.79 0.23 Ant 1 NVNT 802.11ax40 5230 94.77 0.23 Ant 2 NVNT 802.11ax40 5190 94.77 0.23 Ant 2 NVNT 802.11ax40 5230 94.79 0.23 Ant 1 NVNT 802.11ax80 5210 45.79 3.39 Ant 2 NVNT 802.11ax80 5210 45.71 3.4 Ant 1 NVNT 802.11n(HT20) 5180 97.34 0.12 Ant 1 NVNT 802.11n(HT20) 5200 97.37 0.12 Ant 1 NVNT 802.11n(HT20) 5240 97.34 0.12 Ant 2 NVNT 802.11n(HT20) 5180 97.38 0.12 Ant 2 NVNT 802.11n(HT20) 5200 97.37 0.12 Ant 2 NVNT 802.11n(HT20) 5240 97.37 0.12 Ant 1 NVNT 802.11n(HT40) 5190 94.77 0.23 Report No.: S22082700102003 2 / 882 Ant 1 NVNT 802.11n(HT40) 5230 94.74 0.23 Ant 2 NVNT 802.11n(HT40) 5190 94.79 0.23 Ant 2 NVNT 802.11n(HT40) 5230 94.77 0.23 Duty Cycle NVNT 802.11a 5180MHz Ant 1 Duty Cycle NVNT 802.11a 5200MHz Ant 1 Duty Cycle NVNT 802.11a 5240MHz Ant 1 Report No.: S22082700102003 3 / 882 Duty Cycle NVNT 802.11a 5180MHz Ant 2 Duty Cycle NVNT 802.11a 5200MHz Ant 2 Report No.: S22082700102003 4 / 882 Duty Cycle NVNT 802.11a 5240MHz Ant 2 Duty Cycle NVNT 802.11ac20 5180MHz Ant 1 Report No.: S22082700102003 5 / 882 Duty Cycle NVNT 802.11ac20 5200MHz Ant 1 Duty Cycle NVNT 802.11ac20 5240MHz Ant 1 Report No.: S22082700102003 6 / 882 Duty Cycle NVNT 802.11ac20 5180MHz Ant 2 Duty Cycle NVNT 802.11ac20 5200MHz Ant 2 Report No.: S22082700102003 7 / 882 Duty Cycle NVNT 802.11ac20 5240MHz Ant 2 Duty Cycle NVNT 802.11ac40 5190MHz Ant 1 Report No.: S22082700102003 8 / 882 Duty Cycle NVNT 802.11ac40 5230MHz Ant 1 Duty Cycle NVNT 802.11ac40 5190MHz Ant 2 Report No.: S22082700102003 9 / 882 Duty Cycle NVNT 802.11ac40 5230MHz Ant 2 Duty Cycle NVNT 802.11ac80 5210MHz Ant 1 Report No.: S22082700102003 10 / 882 Duty Cycle NVNT 802.11ac80 5210MHz Ant 2 Duty Cycle NVNT 802.11ax20 5180MHz Ant 1 Report No.: S22082700102003 11 / 882 Duty Cycle NVNT 802.11ax20 5200MHz Ant 1 Duty Cycle NVNT 802.11ax20 5240MHz Ant 1 Report No.: S22082700102003 12 / 882 Duty Cycle NVNT 802.11ax20 5180MHz Ant 2 Duty Cycle NVNT 802.11ax20 5200MHz Ant 2 Report No.: S22082700102003 13 / 882 Duty Cycle NVNT 802.11ax20 5240MHz Ant 2 Duty Cycle NVNT 802.11ax40 5190MHz Ant 1 Report No.: S22082700102003 14 / 882 Duty Cycle NVNT 802.11ax40 5230MHz Ant 1 Duty Cycle NVNT 802.11ax40 5190MHz Ant 2 Report No.: S22082700102003 15 / 882 Duty Cycle NVNT 802.11ax40 5230MHz Ant 2 Duty Cycle NVNT 802.11ax80 5210MHz Ant 1 Report No.: S22082700102003 16 / 882 Duty Cycle NVNT 802.11ax80 5210MHz Ant 2 Duty Cycle NVNT 802.11n(HT20) 5180MHz Ant 1 Report No.: S22082700102003 17 / 882 Duty Cycle NVNT 802.11n(HT20) 5200MHz Ant 1 Duty Cycle NVNT 802.11n(HT20) 5240MHz Ant 1 Report No.: S22082700102003 18 / 882 Duty Cycle NVNT 802.11n(HT20) 5180MHz Ant 2 Duty Cycle NVNT 802.11n(HT20) 5200MHz Ant 2 Report No.: S22082700102003 19 / 882 Duty Cycle NVNT 802.11n(HT20) 5240MHz Ant 2 Duty Cycle NVNT 802.11n(HT40) 5190MHz Ant 1 Report No.: S22082700102003 20 / 882 Duty Cycle NVNT 802.11n(HT40) 5230MHz Ant 1 Duty Cycle NVNT 802.11n(HT40) 5190MHz Ant 2 Report No.: S22082700102003 21 / 882 Duty Cycle NVNT 802.11n(HT40) 5230MHz Ant 2 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT 802.11a 5180 Ant 1 9.88 0.11 9.99 24 Pass NVNT 802.11a 5200 Ant 1 9.59 0.11 9.7 24 Pass NVNT 802.11a 5240 Ant 1 9.99 0.11 10.1 24 Pass NVNT 802.11a 5180 Ant 2 9.42 0.12 9.54 24 Pass Report No.: S22082700102003 22 / 882 NVNT 802.11a 5200 Ant 2 9.63 0.11 9.74 24 Pass NVNT 802.11a 5240 Ant 2 9.84 0.11 9.95 24 Pass NVNT 802.11ac20 5180 Ant 1 9.77 0.12 9.89 24 Pass NVNT 802.11ac20 5200 Ant 1 9.9 0.11 10.01 24 Pass NVNT 802.11ac20 5240 Ant 1 9.87 0.12 9.99 24 Pass NVNT 802.11ac20 5180 Ant 2 9.6 0.12 9.72 24 Pass NVNT 802.11ac20 5200 Ant 2 10.31 0.12 10.43 24 Pass NVNT 802.11ac20 5240 Ant 2 9.6 0.12 9.72 24 Pass NVNT 802.11ac40 5190 Ant 1 10.03 0.23 10.26 24 Pass NVNT 802.11ac40 5230 Ant 1 9.91 0.23 10.14 24 Pass NVNT 802.11ac40 5190 Ant 2 9.9 0.23 10.13 24 Pass NVNT 802.11ac40 5230 Ant 2 9.47 0.23 9.7 24 Pass NVNT 802.11ac80 5210 Ant 1 9.49 0.36 9.85 24 Pass NVNT 802.11ac80 5210 Ant 2 9.47 0.37 9.84 24 Pass NVNT 802.11ax20 5180 Ant 1 10.04 0.12 10.16 24 Pass NVNT 802.11ax20 5200 Ant 1 9.92 0.12 10.04 24 Pass NVNT 802.11ax20 5240 Ant 1 9.91 0.12 10.03 24 Pass NVNT 802.11ax20 5180 Ant 2 9.8 0.12 9.92 24 Pass NVNT 802.11ax20 5200 Ant 2 10.27 0.12 10.39 24 Pass NVNT 802.11ax20 5240 Ant 2 9.71 0.12 9.83 24 Pass NVNT 802.11ax40 5190 Ant 1 9.88 0.23 10.11 24 Pass NVNT 802.11ax40 5230 Ant 1 9.89 0.23 10.12 24 Pass NVNT 802.11ax40 5190 Ant 2 9.77 0.23 10 24 Pass NVNT 802.11ax40 5230 Ant 2 9.43 0.23 9.66 24 Pass NVNT 802.11ax80 5210 Ant 1 7.3 3.4 10.7 24 Pass NVNT 802.11ax80 5210 Ant 2 7.52 3.4 10.92 24 Pass NVNT 802.11n(HT20) 5180 Ant 1 9.95 0.12 10.07 24 Pass NVNT 802.11n(HT20) 5200 Ant 1 9.78 0.12 9.9 24 Pass NVNT 802.11n(HT20) 5240 Ant 1 9.88 0.12 10 24 Pass NVNT 802.11n(HT20) 5180 Ant 2 9.59 0.12 9.71 24 Pass NVNT 802.11n(HT20) 5200 Ant 2 10.01 0.12 10.13 24 Pass NVNT 802.11n(HT20) 52…
