2AGLL-2EGEN2DHSK-AF20

Wireless Module Model: DHSK-AF20 User Manual Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Pentium is trademark of Intel. All copyright reserved. 1 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: - EN 300 328 V2.1.1: - Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating using wide band modulation techniques; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede [fabrikantens navn] erklæ rer herved, at fø lgende udstyr [udstyrets typebetegnelse] overholder de væ sentlige krav og ø vrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Ü bereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ 2 ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Nederland s [Dutch] Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti [Maltese] Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Magyar [Hungarian] Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Polski [Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC. Português [Portuguese] [Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko [Slovenian] [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. Slovensky [Slovak] [Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Suomi [Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. 3 1. Introduction Thank you for purchasing the 802.11 b/g/n Wireless LAN Device that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference. 2. Driver/Utility Installation The driver should have been installed before the Appliances is shipped from the manufacturer. You can start using its network function without installing driver or utility. This device is associated product for Appliances’ host. The following description provides a basic installation for wireless device. For more information about the Wireless device, please refer to your manual. Installing Wi-Fi device: 1. Link cable with connector on wireless device 2. Link wireless device with connector to PC and install software in wireless device 3. Open the back lid of Appliances, lock wireless device on internal main board of Appliances. 4. Power supply on internal main-board and allow Appliances to load fully. 3. Connecting to an Existing Network 1. Use the remote control that came with your Appliances to access the network configuration settings page. 2. Select the scanning wireless network fun…

Text truncated - open the document above for the full version.

RF_734_02 04 April 16 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: 2AGLL-2EGEN2 Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is RTL8720CM-VT2 3. The modular transmitter must have its own power supply regulation. The component number is RT9078-18GQZ_DFN4P 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Antenna Connectors is NA. And no external amplifier will be used with this modular. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. RF_734_02 04 April 16 Items to be covered by Split modular transmitters. Answer from applicant 1. The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. 2. Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3. Control information and other data may be exchanged between the transmitter control elements and radio front end. 4. The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. 5. Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): __________________ Date: ___25 August 2023____ Signature: ___________________________

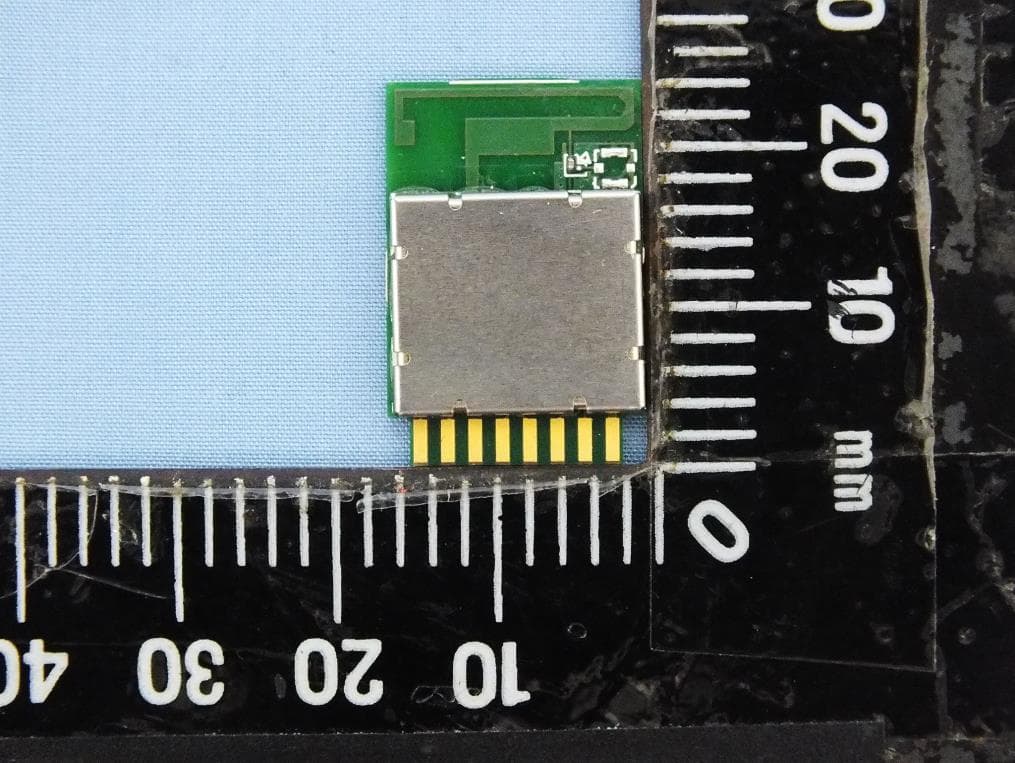

Project No.: EP341901 Page No. : 1 of 3 Photographs of EUT

Project No.: EP341901 Page No. : 1 of 3 Photographs of EUT Project No.: EP341901 Page No. : 2 of 3 Project No.: EP341901 Page No. : 3 of 3

Report No.: FA341901 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : 2AGLL-2EGEN2 Equipment : DHSK-AF20 Model No. : DHSK-AF20 Brand Name : Afero Applicant : Afero Inc. Address : 4410 El Camino Real, Suite 200, Los Altos, CA, 94022 Standard : 47 CFR FCC Part 2.1091 Received Date : Apr. 19, 2023 Tested Date : May 23 ~ Jul. 10, 2023 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA341901 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 RF EXPOSURE TEST EXEMPTIONS ................................................................................................... 4 1.1 1-mW TEST EXEMPTION ..................................................................................................................... 4 1.2 SAR-BASED EXEMPTION .................................................................................................................... 4 1.3 MPE-BASED EXEMPTION .................................................................................................................... 4 1.4 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 5 1.5 MEASUREMENT UNCERTAINTY ......................................................................................................... 5 1.6 EXEMPTION CALCULATION ................................................................................................................ 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA341901 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA341901 Rev. 01 Initial issue Aug. 25, 2023 Report No.: FA341901 Page : 4 of 6 Report Version: Rev. 01 1 RF Exposure Test Exemptions 1.1 1-mW TEST EXEMPTION Available maximum time-averaged power is no more than 1 mW. 1.2 SAR-BASED EXEMPTION This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. The maximum time-averaged power or effective radiated power (ERP), whichever is greater, ≤ Pth Pth (mW) = ERP 20cm (d/20) x d≤20cm Pth (mW) = ERP 20cm 20 cm < d ≤40cm Where = - log 10 Pth (mW) = ERP 20cm (mW) = 2040f 0.3GHz ≤ f < 1.5 GHz Pth (mW) = ERP 20cm (mW) = 3060 1.5GHz ≤ f < 6 GHz Frequency (MHz) Power Thresholds mW dBm 663 1353 31.31 699 1426 31.54 704 1436 31.57 777 1585 32.00 824 1681 32.26 902 1840 32.65 1500 ~ 6000 3060 34.86 1.3 MPE-BASED EXEMPTION For a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. Radio Source Frequency Minimum Distance Threshold ERP F L MHz F H MHz λ L / 2π λ H / 2π W 0.3 - 1.34 159 m - 35.6 m 1920 R 2 1.34 - 30 35.6 m - 1.6 m 3450 R 2 /f 2 30 - 300 1.6 m - 159 mm 3.83 R 2 300 - 1500 159 mm - 31.8 mm 0.0128 R 2 f 1500 - 100000 31.8 mm - 0.5 mm 19.2 R 2 Note: R is the antenna-person separation distance. Report No.: FA341901 Page : 5 of 6 Report Version: Rev. 01 1.4 REFERENCE GUIDANCE 447498 D04 Interim General RF Exposure Guidance v01. 1.5 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.6 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. 1.7 EXEMPTION CALCULATION Frequency Range (MHz) Maximum Conducted Power (dBm) Maximum Tune Up Limit (dBm) Antenna Gain (dBi) EIRP (dBm) ERP (dBm) ERP (mW) SAR-Based Exemption Thresholds (mW) Ratio Pass/ Fail 2412-2462 22.86 23 1.37 24.37 22.22 166.72 3060 0.054 Pass 2402-2480 8.85 9 1.37 10.37 8.22 6.64 3060 0.002 Pass Note: Minimum separation distance = 20 cm. Report No.: FA341901 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corporation (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No.30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan (R.O.C.) No.3-1, Lane 6, Wen San 3rd St., Kwei Shan Dist., Tao Yuan City 33381, Taiwan (R.O.C.) No.2-1, Lane 6, Wen San 3rd St., Kwei Shan Dist., Tao Yuan City 33381, Taiwan (R.O.C.) No.14-1, Lane 19, Wen San 3rd St., Kwei Shan Dist., Tao Yuan City 33381, Taiwan (R.O.C.) If…

Text truncated - open the document above for the full version.

Report No.: FR341901AC Page : 1 of 19 Report Version: Rev. 01 FCC Test Report FCC ID : 2AGLL-2EGEN2 Equipment : DHSK-AF20 Model No. : DHSK-AF20 Brand Name : Afero Applicant : Afero Inc. Address : 4410 El Camino Real, Suite 200, Los Altos, CA, 94022 Standard : 47 CFR FCC Part 15.247 Received Date : Apr. 19, 2023 Tested Date : May 23 ~ Jul. 10, 2023 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR341901AC Page : 2 of 19 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ..................................................................................................................................... 10 1.6 Reference Guidance ............................................................................................................................ 10 1.7 Deviation from Test Standard and Measurement Procedure ............................................................... 10 1.8 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Facility ..................................................................................................................................... 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ....................................................................................................... 12 3.1 6dB and Occupied Bandwidth .............................................................................................................. 12 3.2 Conducted Output Power ..................................................................................................................... 13 3.3 Power Spectral Density ........................................................................................................................ 14 3.4 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 15 3.5 Emissions in Non-Restricted Frequency Bands ................................................................................... 17 3.6 AC Power Line Conducted Emissions ................................................................................................. 18 4 TEST LABORATORY INFORMATION ............................................................................................... 19 Appendix A. 6dB and Occupied Bandwidth Appendix B. Conducted Output Power Appendix C. Power Spectral Density Appendix D. Unwanted Emissions into Restricted Frequency Bands Appendix E. Emissions in Non-Restricted Frequency Bands Appendix F. AC Power Line Conducted Emissions Report No.: FR341901AC Page : 3 of 19 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR341901AC Rev. 01 Initial issue Aug. 25, 2023 Report No.: FR341901AC Page : 4 of 19 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emission [dBuV]:0.529MHz 32.98 (Margin -13.02dB) - AV Pass 15.247(d) 15.209 Unwanted Emissions [dBuV/m at 3m]: 2483.50MHz 52.95 (Margin -1.05dB) - AV Pass 15.247(b)(3) Conducted Output Power Max Power [dBm]: 25.87 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR341901AC Page : 5 of 19 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 1 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 1 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 MCS 0-7 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: DSSS-DBPSK, DQPSK, CCK modulation OFDMBPSK, QPSK, 16QAM and 64QAM modulation. 1.1.2 Antenna Details Ant. No. Brand Model Type Connector Gain (dBi) 1 WNC DHSK-AF20_ANT PIFA No 1.37 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 5Vdc from host 1.1.4 Accessories N/A Report No.: FR341901AC Page : 6 of 19 Report…

Text truncated - open the document above for the full version.

Report No.: FR341901AE Page : 1 of 19 Report Version: Rev. 01 FCC Test Report FCC ID : 2AGLL-2EGEN2 Equipment : DHSK-AF20 Model No. : DHSK-AF20 Brand Name : Afero Applicant : Afero Inc. Address : 4410 El Camino Real, Suite 200, Los Altos, CA, 94022 Standard : 47 CFR FCC Part 15.247 Received Date : Apr. 19, 2023 Tested Date : May 23 ~ Jul. 10, 2023 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR341901AE Page : 2 of 19 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 Test Equipment List and Calibration Data .............................................................................................. 8 1.5 Test Standards ..................................................................................................................................... 10 1.6 Reference Guidance ............................................................................................................................ 10 1.7 Deviation from Test Standard and Measurement Procedure ............................................................... 10 1.8 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Facility ..................................................................................................................................... 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ....................................................................................................... 12 3.1 6dB and Occupied Bandwidth .............................................................................................................. 12 3.2 Conducted Output Power ..................................................................................................................... 13 3.3 Power Spectral Density ........................................................................................................................ 14 3.4 Unwanted Emissions in Restricted Frequency Bands ......................................................................... 15 3.5 Emissions in non-restricted Frequency Bands ..................................................................................... 17 3.6 AC Power Line Conducted Emissions ................................................................................................. 18 4 TEST LABORATORY INFORMATION ............................................................................................... 19 Appendix A. 6dB and Occupied Bandwidth Appendix B. Conducted Output Power Appendix C. Power Spectral Density Appendix D. Unwanted Emissions into Restricted Frequency Bands Appendix E. Emissions in Non-Restricted Frequency Bands Appendix F. AC Power Line Conducted Emissions Report No.: FR341901AE Page : 3 of 19 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR341901AE Rev. 01 Initial issue Aug. 25, 2023 Report No.: FR341901AE Page : 4 of 19 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions [dBuV]: 0.518MHz 32.47 (Margin -13.53dB) - AV Pass 15.247(d) 15.209 Unwanted Emissions [dBuV/m at 3m]: 73.65MHz 29.76 (Margin -10.24dB) - PK Pass 15.247(b)(3) Conducted Output Power Power [dBm]: 9.10 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR341901AE Page : 5 of 19 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Freq. (MHz) Channel Number Data Rate 2400-2483.5 LE 2402-2480 0-39 [40] 1 Mbps Note: Bluetooth LE (Low energy) uses GFSK modulation. 1.1.2 Antenna Details Ant. No. Brand Model Type Connector Gain (dBi) 1 WNC DHSK-AF20_ANT PIFA No 1.37 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 5Vdc from host 1.1.4 Accessories N/A Report No.: FR341901AE Page : 6 of 19 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 37 2402 9 2422 18 2442 28 2462 0 2404 10 2424 19 2444 29 2464 1 2406 38 2426 20 2446 30 2466 …

Text truncated - open the document above for the full version.

□Normal □Internal Use ■Confidential □Restricted Confidential Antenna Test Report for Afero _Wi-Fi/BLE 2.4GHz Module Oct. 31. 2022 Rev.01 2 □Normal □Internal Use ■Confidential □Restricted Confidential 2.4GHz Module w/ carrier PCB –VSWR •Under 2.6 for 2.4GHz Module(non fine-tune) w/ carrier PCB •Under 2.2 for 2.4GHz Module(fine-tune) w/ carrier PCB –Average radiation efficiency •55.9% for 2.4GHz Module(non fine-tune) w/ carrier PCB •57.4% for 2.4GHz Module(fine-tune) w/ carrier PCB –Peak gain •Max 1.2dBi for 2.4GHz Module(non fine-tune) w/ carrier PCB •Max 1.3dBi for 2.4GHz Module(fine-tune) w/ carrier PCB 3 □Normal □Internal Use ■Confidential □Restricted Confidential VSWR 2.4GHz Module(fine-tune)240024502500avg. Eff.52.5%62.1%57.5%5…
