2AGM5CSM92F25Bluetooth Module

UserManual BluetoothModule CSM92F25 1.Productoverview TheCSM92F25moduleisaBluetooth5.0lowenergy(BLE) single-modeBluetoothmoduledesignedbasedonthe ChipseaCST92F25chip. ThemodulechipcomeswithanARMCortex-M032-bit processorandintegratesrichperipheralssuchasUART,SPI, I2C,PWM,andADC.Themodulehastheadvantagesofsmall sizeandlowpowerconsumption,whichisverysuitableforIOT applicationscenariossuchassmartwearabledevices,smart homes,sportsandfitnessequipment,consumerelectronics, andindustrialcontrol. CSM92F25module 2.Features basicskills Built-inARMCortex-M032-bitprocessor Integrated512KB Flash,64KBDataSRAM,8KB CodeCache SupportOTAover-the-airupgrade 2.4Gtransceiver SupportBLE5.0 Supportfourtransmissionrates — 2Mbps — 1Mbps Transmittingpower-20~5dBmadjustable,3dBmstepping Powerconsumption Transmitmode8.5mA@0dBmTxpower Receivemode8mA Sleepmode6uA@32KRTCoperation,SRAMcontent Keepall OFFmode0.7uA Peripheralcharacteristics 17GPIO — DigitalperipheralscanbemappedtoanyIOport — AllGPIOssupportwake-upinputandexternalinterruptinput — GPIOinSleepmode workingenvironment Operatingvoltagerange:1.8V~3.6V Operatingtemperaturerange:-40°C~85°C Encapsulation SMDmodule Size:10.5mm*16mm*2.3mm Applicationfield Smartwear Smarthome IOT 3.Applicationnotes 1)Itisforbiddentolaycopperundertheantennaareaofthe moduletoavoidaffectingtheRFsignal. 2)Theantennashouldbefarawayfromothercircuitsto preventtheradiationefficiencyfrombecominglowand affectingthenormaluseofothercircuits. 3)Themoduleshouldbeplacedasfarawayaspossiblefrom otherlow-frequencycircuits,digitalcircuits 4)Ifthereareotherfrequencybandwirelessmodulesinside,it isnecessarytoplanthefrequencyreasonablyandtake measuressuchasshieldingtoreduceharmonicinterference andintermodulationinterference Impact. 5)ThereareCMOSdevicesinthismodule,sobecarefulto preventstaticelectricityduringtransportationanduse. FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Integration instructions for host product manufacturers according to KDB 996369 D03 OEM Manual v01 2.2 List of applicable FCC rules FCC Part 15 Subpart C 15.247 & 15.209 2.3 Specific operational use conditions The module is a Bluetooth module with Bluetooth 5.0 low energy (BLE) function. Operation Frequency: 2402-2480MHz Number of Channel: 40 Modulation: GFSK Type: PCB Antenna Gain: 2 .6 dBi Max . The module can be used for mobile or portable applications with a maximum 2.6 dBi antenna. The host manufacturer installing this module into their product must ensure that the final composit product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules, including the transmitter operaition. The host manufacturer has to be aware not to provide information to the end user regarding how to install or removethis RF module in the user's manual of the end product which integrates this module. The end user manual shall inc lude all required regulatory information/warning as show in this manual. 2.4 Limited module procedures Not applicable. The module is a Single module and complies with the requirement of FCC Part 15.212. 2.5 Trace antenna designs Not applicable. The module has its own antenna, and doesn’t need a host’s printed board microstrip trace antenna etc. 2.6 RF exposure considerations and if RF exposure statement or module layout is changed, then the host product manufacturer required to take responsibilit of the module through a change in FCC ID or new application. The FCC ID of the module cannot be used on the final product. In these circumstanc es, the host manufacturer will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. 2.7 Antennas Antenna Specification are as follows: Type: PCB Antenna Gain: 2.6 dBi This device is intended only for host manufacturers under the following conditions: The transmitter module may not be co-located with any other transmitter or antenna; The module shall be only used with the internal antenna(s) that has been originally tested and certified with this module. The antenna must be either permanently attached or employa ‘unique’ antenna coupler. As long as the conditions above are met, further transmitter test will not be required. However, the host manufacturer is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emis…

Text truncated - open the document above for the full version.

C5266091_X8_Ed.1 1/1 LetterofAuthorization Company:CHIPSEATECHNOLOGIES(SHENZHEN)CORP. Address:9F,BlockA,GardenCityDigitalBuilding,No.1079NanhaiRoad,Nanshan District,Shenzhen,China ProductName:BluetoothModule ModelNumber:CSM92F25 FCCIdentifier:2AGM5CSM92F25 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:WeihangZhangDate:2021.05.10 Title:Manager Signatureofapplicant:

C5266091_X10_Ed.1 1/1 CHIPSEATECHNOLOGIES(SHENZHEN)CORP. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date: 2021.05.10 Subject:RequestforConfidentiality FCCID: 2AGM5CSM92F25 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. C5266091_X10_Ed.1 1/1 Sincerely, Signature: Name: WeihangZhang Title: Manager

C5266091_X9_Ed.2 1/1 CHIPSEATECHNOLOGIES(SHENZHEN)CORP. ModularTransmitterApprovalRequest FederalCommunicationsCommission EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 Companyname:CHIPSEATECHNOLOGIES(SHENZHEN)CORP. FCCID:2AGM5CSM92F25 Gentlemen, Inaccordancewith47CFR15.212ModularTransmittersandKDB996369D01‘Module CertificationGuidev01r04’.FCCID2AGM5CSM92F25hasbeenexaminedagainstthe followingrequirements. ItemstobecoveredbySinglemodulartransmitters. Requirementper15.212andKDB996369D01 ‘ModularCertificationGuidev02 ExplanationfromGrantee (donotwriteyes/no,butexplainwhyproduct complies/howitisachieved) 1.Theradioelementsmusthavetheradiofrequency circuitryshielded.Physicalcomponentsandtuning capacitor(s)maybelocatedexternaltotheshield,but mustbeonthemoduleassembly Theshieldcoversthephysicalelement andthetunedcapacitorcompletely 2.Themodulemusthavebufferedmodulation/datainputs toensurethatthedevicewillcomplywithPart15 requirementswithanytypeofinputsignal Buffereddatainputsstagehasbeen integratedinU1. 3.Themodulemustcontainpowersupplyregulationon themodule Thepartnumberofthepowerregulatoris U1. 4.Themodulemustcontainapermanentlyattached antenna,orcontainauniqueantennaconnector,and bemarketedandoperatedonlywithspecific antenna(s),perSections15.203,15.204(b),15.204(c), 15.212(a),2.929(b) Therequirementsofantennaconnector andspuriousemissionhavebeenfulfilled. PleasereferencetheexhibitionTest Report. 5.Themodulemustdemonstratecomplianceinastand- aloneconfiguration PleasereferenceexhibitionTest ConfigurationPhotoforthestand-alone testconfiguration. 6.Themodulemustbelabelledwithitspermanently affixedFCCIDlabel,oruseanelectronicdisplay(See KDBPublication784748aboutlabellingrequirements) Theinstructiononthelabellingruleofthe endproducthasbeenstatedintheUsers manualofthismodule.Pleasealsosee theexhibitionLabelSample. 7.Themodulemustcomplywithallspecificrules applicabletothetransmitterincludingalltheconditions providedintheintegrationinstructionsbythegrantee TherequiredFCCrulehasbeenfulfilled andalltheinstructionsformaintaining compliancehasbeenclearlystatedinthe UsersManual. 8.ThemodulemustcomplywithRFexposure requirements PleasereferexhibitionRFExposurefor thecomplianceofMPERFexposurerule. C5266091_X9_Ed.2 1/1 ItemstobecoveredbySplitmodulartransmitters. Requirementper15.212andKDB996369D01 ‘ModularCertificationGuidev02 ExplanationfromGrantee (donotwriteyes/no,butexplainwhy productcomplies/howitisachieved) 9.Splitmodulartransmittersmustmeetallthe requirementsofasinglemodularinaboveitem1and 5forsinglemodularapprovalrequirements. 10.Onlytheradiofrontendmustbeshielded.The physicalcrystalandtuningcapacitorsmaybelocated externaltotheshieldedradioelements.Theinterface betweenthesplitsectionsofthemodularsystemmust bedigitalwithaminimumsignalingamplitudeof150 mVpeak-to-peak. 11.Controlinformationandotherdatamaybeexchanged betweenthetransmittercontrolelementsandradio frontend. 12.Thesectionsofasplitmodulartransmittermustbe testedinstalledinahostdevice(s)similartothat whichisrepresentativeoftheplatform(s)intendedfor use. 13.Manufacturersmustensurethatonlytransmitter controlelementsandradiofrontendcomponentsthat havebeenapprovedtogetherarecapableof operatingtogether.Thetransmittermodulemustnot operateunlessithasverifiedthattheinstalled transmittercontrolelementsandradiofrontendhave beenauthorizedtogether.Manufacturersmayuse meansincluding,butnotlimitedto,codingin hardwareandelectronicsignaturesinsoftwareto meettheserequirements,andmustdescribethe methodsintheirapplicationforequipment authorization. Alimitedmodularapproval(LMA)maybegrantedforsingleorsplitmodular transmittersthatcomplypartiallywithrequirementsabove. Name:WeihangZhangDate:2021.05.13 Title:Manager Signatureofapplicant:

FCC-ID:2AGM5CSM92F25 Page1of1ReportNo.:CTL2103295011-WF ExternalPhotosofEUT

FCCIDLabelInformation Labellocation: BluetoothModule Model:CSM92F25 FCCID:2AGM5CSM92F25

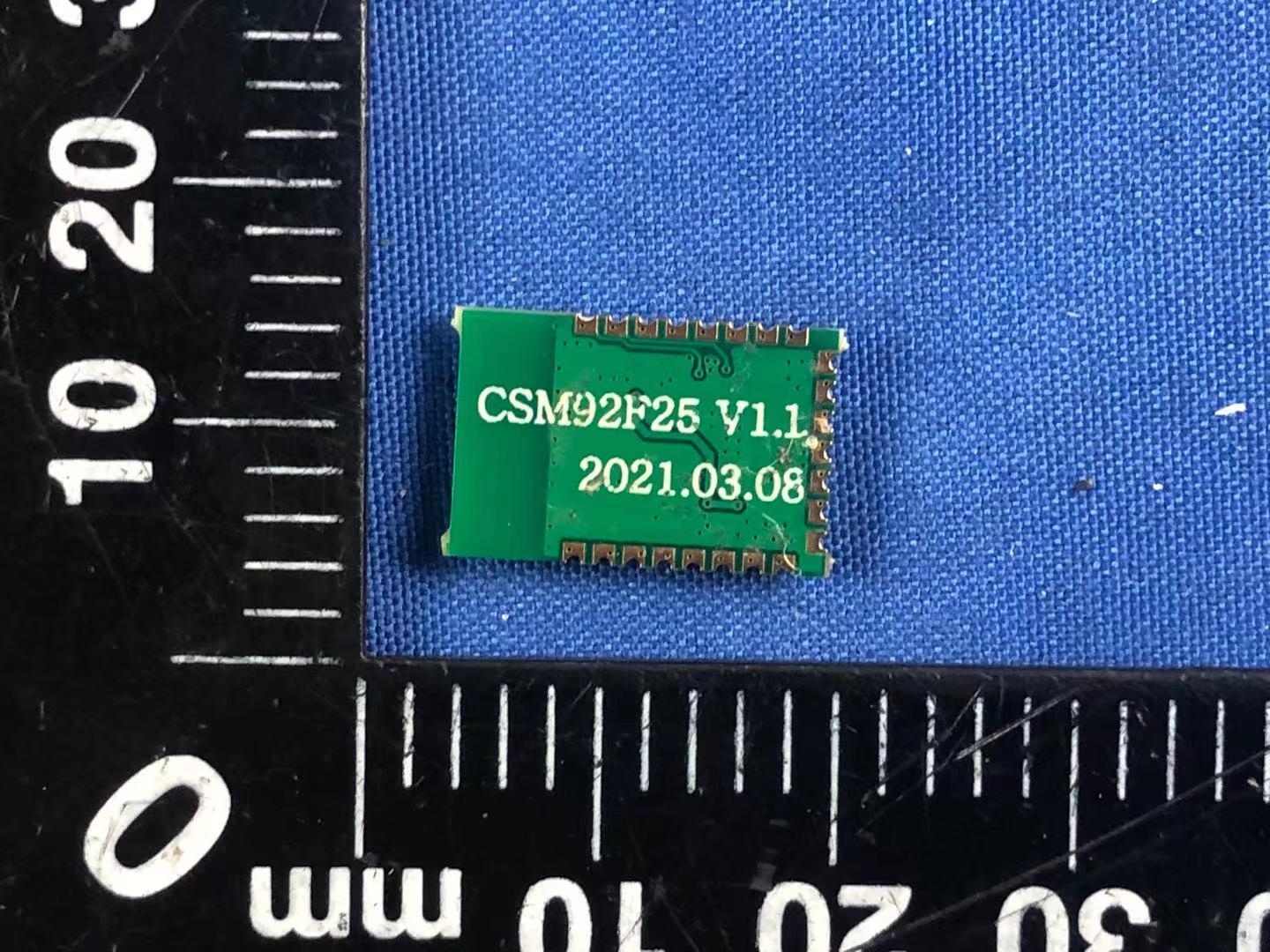

FCC-ID:2AGM5CSM92F25Page 1 of 1 ReportNo.:CTL2103295011-WF InternalPhotosofEUT Antenna RF chipset

FCC-ID:2AGM5CSM92F25Page 1 of 1 ReportNo.:CTL2103295011-WF RFExposureLetter Accordingto447498D01GeneralRFExposureGuidancev05The1‐gand10‐g SARtest exclusionthresholdsfor100MHzto6GHzattestseparationdistances≤50mm aredeterminedby:[(max.powerofchannel,includingtune‐uptolerance, mW)/(min.testseparationdistance,mm)]·[√f(GHz)]≤3.0for1‐gSARand≤ 7.5for10‐gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison pt=1.19dBm=1.32mWat2440MHz So(1.32mW/5mm)x√2.440GHz=0.0411<3 ThenSARevaluationisnotrequired

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-mail:[email protected] TESTREPORT FCCPART15.247 ReportReferenceNo.....................:CTL2103295011-WF Compiledby: (position+printedname+signature) HappyGuo (Fileadministrators) Testedby: (position+printedname+signature) GaryGao (TestEngineer) Approvedby: (position+printedname+signature) IvanXie (Manager) ProductName.................................: BluetoothModule Model/Typereference....................:CSM92F25 ListModel(s)....................................:N/A TradeMark ....................................... : N/A FCCID...............................................: 2AGM5CSM92F25 Applicant’sname...........................: CHIPSEATECHNOLOGIES(SHENZHEN)CORP. Addressofapplicant ..................... : 9F,BlockA,GardenCityDigitalBuilding,No.1079NanhaiRoad, NanshanDistrict,Shenzhen,China TestFirm...........................................: ShenzhenCTLTestingTechnologyCo.,Ltd. AddressofTestFirm.....................: Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad, NanshanDistrict,Shenzhen,China518055 Testspecification...........................: Standard............................................: FCCPart15.247:Operationwithinthebands902-928MHz, 2400-2483.5MHzand5725-5850MHz. TRFOriginator..................................: ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF.......................................:Dated2011-01 Dateofreceiptoftestitem..........: Apr.01,2021 Dateofsampling ............................ : Apr.01,2021 DateofTestDate............................: Apr.01,2021-Apr.28,2021 DateofIssue .................................... : Apr.28,2021 Result................................................: Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of24ReportNo.:CTL2103295011-WF TESTREPORT TestReportNo.:CTL2103295011-WF Apr.28,2021 Dateofissue EquipmentunderTest:BluetoothModule SampleNo:CTL210329501-1-S001 Model/Type: CSM92F25 ListedModels : N/A Applicant: CHIPSEATECHNOLOGIES(SHENZHEN)CORP. Address : 9F,BlockA,GardenCityDigitalBuilding,No.1079 NanhaiRoad,NanshanDistrict,Shenzhen,China Manufacturer: HuizhouChampionAsiaDigitalTechnologyCo.,Ltd. Address : 25DigitalIndustrialPark,SandongTown,Huicheng District,HuizhouCity,GuangdongProvince TestresultPass* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedpage5. Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. V1.0Page3of24ReportNo.:CTL2103295011-WF **ModifiedHistory** RevisionsDescriptionIssuedDataReportNo.Remark Version1.0InitialTestReportRelease2021-04-28CTL2103295011-WFTracyQi V1.0Page4of24ReportNo.:CTL2103295011-WF TableofContentsPage 1.SUMMARY .............................................................................................................................................................................. 5 1.1.TESTSTANDARDS ............................................................................................................................................................ 5 1.2.TESTDESCRIPTION ............................................................................................................................................................... 5 1.3.TESTFACILITY ...................................................................................................................................................................... 6 1.4.STATEMENTOFTHEMEASUREMENTUNCERTAINTY ...................................................................................................................... 6 2.GENERALINFORMATION ....................................................................................................................................................... 7 2.1.ENVIRONMENTALCONDITIONS ................................................................................................................................................ 7 2.2.GENERALDESCRIPTIONOFEUT ............................................................................................................................................. 7 2.3.DESCRIPTIONOFTESTMODESANDTESTFREQUENCY ................................................................................................................ 7 2.4.EQUIPMENTSUSEDDURINGTHETEST ..................................................................................................................................... 8 2.5.RELATEDSUBMITTAL(S)/GRANT(S) ....................................................................................................................................... 8 2.6.MODIFICATIONS ................................................................................................................................................................... 8 3.TESTCONDITIONSANDRESULTS ........................................................................................................................................... 9 3.1.CONDUCTEDEMISSIONSTEST ................................................................................................................................................ 9 3.2.RADIATEDEMISSIONSANDBANDEDGE ................................................................................................................................. 12 3.3.MAXIMUMCONDUCTEDOUTPUTPOWER .............................................................................................................................. 19 3.4.POWERSPECTRALDENSITY .................................................................................................…

Text truncated - open the document above for the full version.

Appendixfor15.247 1.Bandwidth 1.1TestResult TestMode Frequency (MHz) TXTypeANTNo. 6dBBandwidth Verdict TestResult(MHz)Limits(MHz) 1M 2402SISO10.730≥0.5PASS 2440SISO10.737≥0.5PASS 2480SISO10.728≥0.5PASS TestMode Frequency (MHz) TXTypeANTNo. 99%OccupiedBandwidth TestResult(MHz) 1M 2402SISO11.204OnlyforReportUse 2440SISO11.214OnlyforReportUse 2480SISO11.169OnlyforReportUse 1.2TestGraph-6dBBandwidth 1.3TestGraph-99%OccupiedBandwidth 2.MaximumConductedOutputPower 2.1TestResult TestMode Frequency (MHz) TxType MeasuredPeak OutputPower(dBm) Limits(dBm)Verdict Ant1 1M 2402SISO1.0130PASS 2440SISO1.1930PASS 2480SISO0.7930PASS 2.2TestGraph 3.MaximumPowerSpectralDensity(PSD) 3.1TestResult TestMode Frequency (MHz) TxType MaximumPower SpectralDensity (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant1 1M 2402SISO0.62≤8PASS 2440SISO0.79≤8PASS 2480SISO0.37≤8PASS 3.2TestGraph 4.UnwantedEmissionsinNon-restrictedFrequencyBands 4.1TestResult TestMode Frequency (MHz) TXTypeANTNo. SpuriousConducted Emission(dBm) Limits(dBm)Verdict 1M 2402SISO1Refertotestgraph-18.88PASS 2440SISO1Refertotestgraph-18.88PASS 2480SISO1Refertotestgraph-18.88PASS 4.2TestGraph
