2AGMA-SGB1G4G-LTE Smartphone

1 MANUAL BOOK 2 WELCOME Congratulations on your new phone purchase! This guide will help you to quickly come up to speed on the important features of your phone. Keep in mind your phone has .... A Fast Processor Featuring the 1.3GHz Quad-Core ARM® Cortex™-A53 CPU that delivers amazing gaming experience, great performance for speedy application, web page loading, fast multitasking, and smooth video playback. Intelligent Camera Capture the moment in challenging environments with an intelligent camera featuring a 13MP AF rear camera. Featuring advanced image processing for quality, color accuracy, low light capture and facial detection. These smart features mean that no matter how you capture your images, they come out exactly the way you want them. Great Entertainment Section Watch movies and record videos in HD & FHD resolution at 30fps. Note: Screen images and icons are simulated for the purpose of this guide. Actual displays may vary. Instructions in this guide may change depending on the software version on your device. 3 YOUR PHONE FRONT-VIEW 4 YOUR PHONE BACK-VIEW 5 CHARGE THE BATTERY Before using your phone for the first time, charge the phone for four hours. To charge the battery: 1. Attach one end of the USB cord to the phone’s micro-USB port and the other end to the plug. 2. Plug the phone into the socket. For the best battery life, let your battery drain down to at least 20% before recharging, and do not leave your phone plugged in after it is fully charged。 6 INSERT SIM AND MicroSD CARD Please follow as shown on the label on the phone, Make sure that the clipped corner of the SIM card is facing the correct direction and the metallic contacts are facing the correct direction. Slide the SIM card into the card slot until it stops. 7 TURN THE PHONE ON & OFF Hold down the power button to turn the phone on. Hold down the power button then touch Power OFF to turn the phone off. 8 DIM, LOCK & WAKE THE PHONE When the power is on and you want to dim the screen, press the power button. When the screen is dimmed and you want to wake the phone, press the bottom and slide up to unlock For additional protection, easily set a security lock. Press menu → settings → Security→ Screen lock. 9 HOME SCREEN Phone status bars and notifications Press the screen to add or remove widgets to the home page, it can change the home pages.change the order of the home pages, drag new widgets onto the home pages Touch to open Phone Touch to open Messaging Touch to open Camera Tip: To move any icon, touch and hold the icon, then drag it to a new location. 10 STATUS BAR The Status bar shows your phone’s status and notifications. (Notifications are described on the next page.) Notification icons Status icons Icon Description Mobile network strength WLAN connection Battery strength/charge Airplane mode. 11 NOTIFICATION PANEL The Notification panel is your center for new events—like new e-mail, voicemail, updates, and more. Touch a notification to res pond Drag down to display notifications 12 MAKE & ANSWER A CALL 1. From the Home screen, touch 2. Dial a number using the dial pad. 3. Touch to make a call. Tip: You can use the call log, contacts tabs to quickly make a call. Answer a call: press answer 13 SEND A TEXT 1. From the Home screen, touch. 2. Touch . 3. Touch the To field, then enter a recipient. 4. Touch the space field, then enter a message. 5. Touch to send the message. SET A RINGTONE 1. From the Home screen, press settings→sound&notification → →phone ringtone. 2. Touch a ringtone to hear it, then touch OK to select it. 14 TAKE A PICTURE 1. Touch the camera icon to enter camera interface. 2. In the Camera app, tap the screen to focus on a specific area. 3. Press the camera button all the way down to take a picture. TIP: Also launch the camera by pressing the camera icon on the home screen. Capture the photo using the on screen camera button. 15 SHOOT A VIDEO 1. Touch the camera icon to enter camera interface . 2. In the Camera app, select Video. 3. Press the camera button to begin filming, and press again to stop filming. SHARE A PHOTO _______________ 1. From the Home screen, touch 2. Touch an album to open it then touch the picture you want to share. 3. Touch 4. Touch an application for sending the photo (such as Gmail to mail the photo, or Messages to send the photo via messaging). CONNECT TO Wi-Fi 1. Press→settings→Wi-Fi 2. To turn on Wi-Fi. 3. Touch a network to connect to it. 16 The information contained herein is subject to change without notice. All statements, information and recommendations contained herein do not constitute a warranty of any kind, either expressed or implied. Please review this product guide thoroughly, with particular attention paid to any safety sections, to be sure that you use your phone safely. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types 4G-LTE Smartphone (FCC ID: 2AGMA-SGB1G) has also been tested against this SAR limit. The highest reported SAR values for head, body-worn accessory, and wireless router(hotspot) are 0.323W/kg, 0.814W/kg, and 1.268W/kg respectively. This device was tested for typical body-worn operations with the back of the handset kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. FCC Warning This device complies with Part 15 of the FCC Rules. Operation 17 is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has b…

Text truncated - open the document above for the full version.

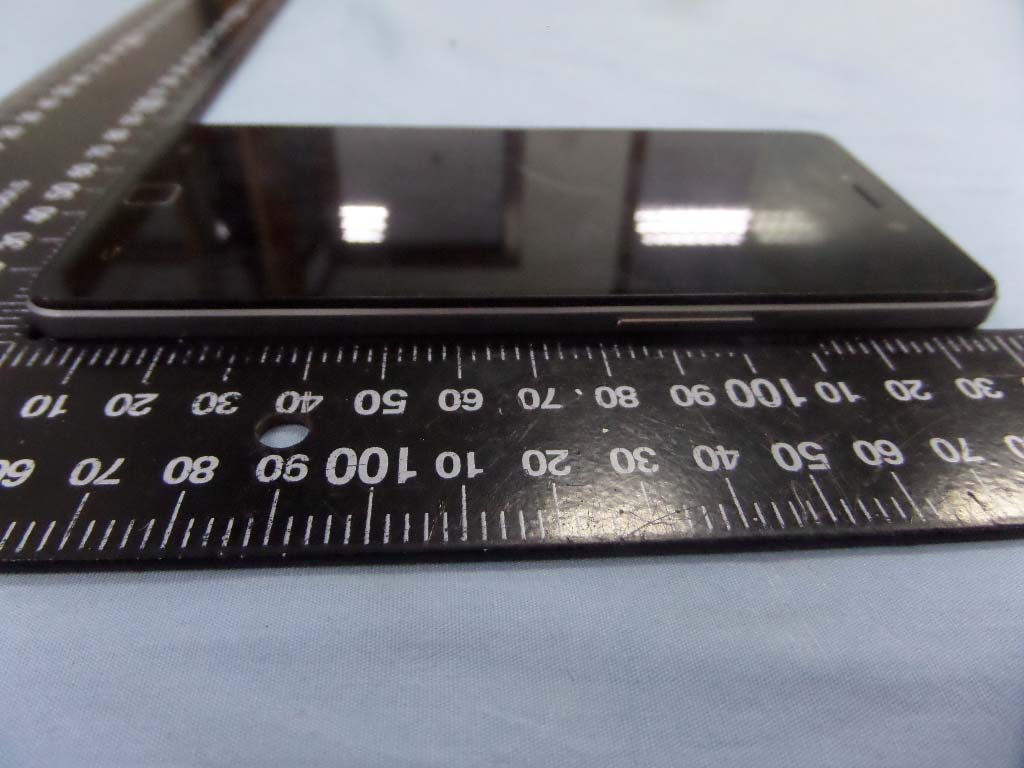

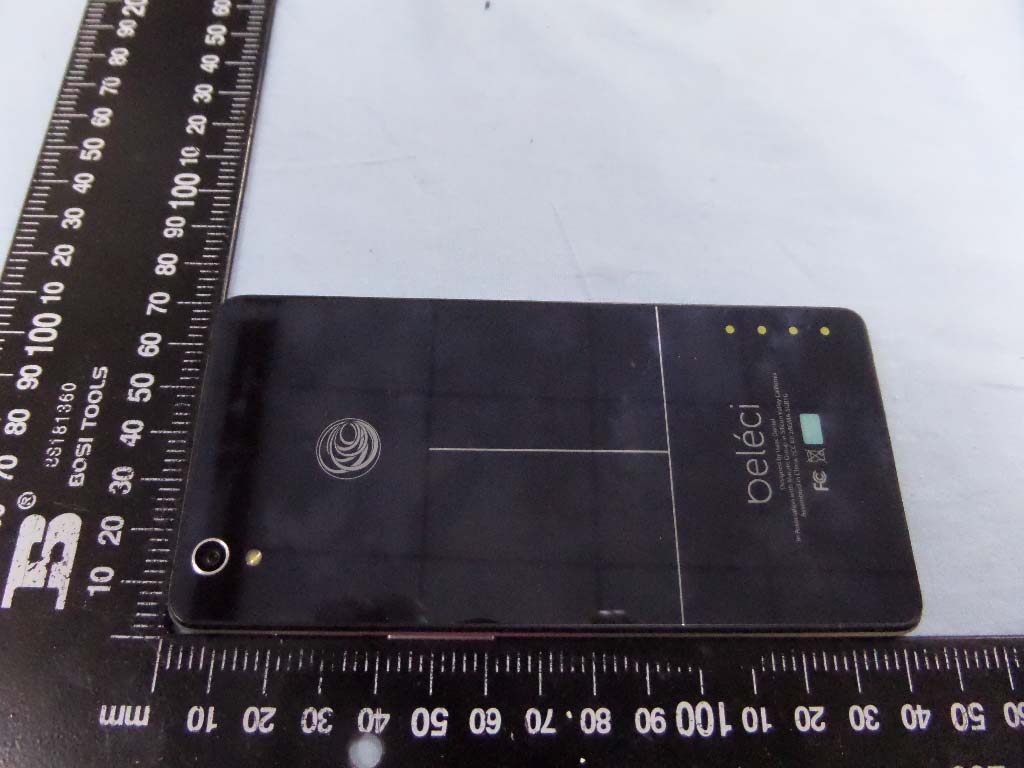

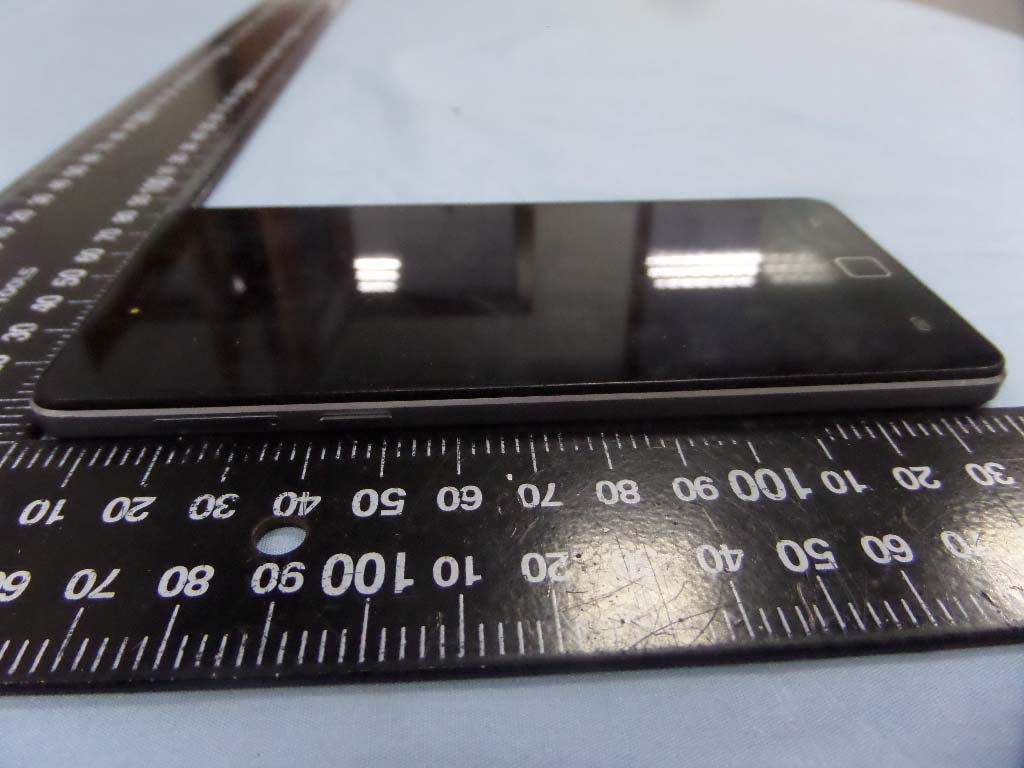

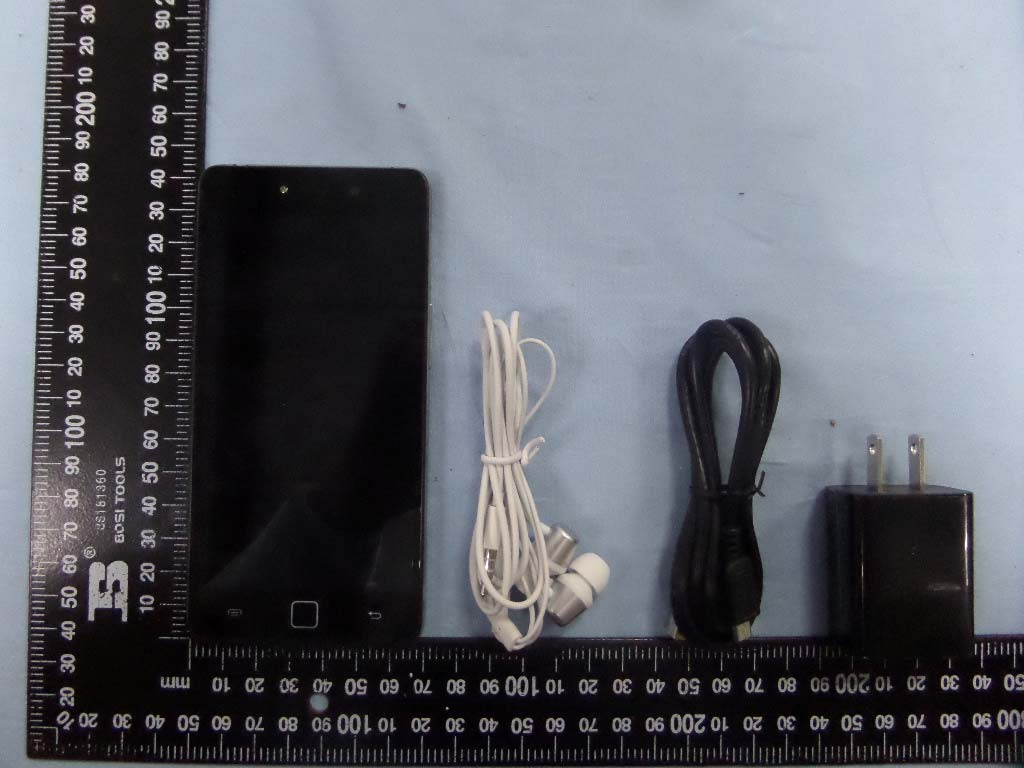

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15118239I-1/2 FCC PART 22H&24E&27 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15118239I-1/2 FCC PART 22H&24E&27 EUT View 3 EUT View 4 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15118239I-1/2 FCC PART 22H&24E&27 EUT View 5 EUT View 6 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15118239I-1/2 FCC PART 22H&24E&27 EUT View 7

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15118239I-1/2 FCC PART 22H&24E&27 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AGMA-SGB1G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15118239I-1/2 FCC PART 22H&24E&27 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 GSM&WCDMA&LTE Ant. WIFI&BT Ant. LTE Receiving Ant. GPS Ant. Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15118239I-1/2 FCC PART 22H&24E&27 EUT Housing and Board View 3 Solder Board-Component View 1 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15118239I-1/2 FCC PART 22H&24E&27 Solder Board-Component View 2 Solder Board-Component View 3 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STR15118239I-1/2 FCC PART 22H&24E&27 Solder Board-Component View 4

Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage (3.3 ~ 4.3V DC) to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator ( CMW 500) measures 4G‐LTE Smartphone, Model: SGB1G‐W device specific RF characteristics. 3. The maximum gains of each individual device are adjusted until the target value met. Tune‐up Power Mode Frequency Bands Tune‐up Power GSM GSM850 30.5dBm±2dB GSM1900 27.5dBm±2dB GPRS GPRS850(1 slots) 30.5dBm±2dB GPRS850(2 slots) 29.5dBm±2dB GPRS850(3 slots) 27.0dBm±2dB GPRS850(4 slots) 26.0dBm±2dB GPRS1900(1 slots) 28.5dBm±2dB GPRS1900(2 slots) 28.0dBm±2dB GPRS1900(3 slots) 26.0dBm±2dB GPRS1900(4 slots) 25.0dBm±2dB EDGE EDGE850(1 slots) 25.0dBm±2dB EDGE850(2 slots) 24.0dBm±2dB EDGE850(3 slots) 22.5dBm±2dB EDGE850(4 slots) 21.0dBm±2dB EDGE1900(1 slots) 25.0dBm±2dB EDGE1900(2 slots) 23.5dBm±2dB EDGE1900(3 slots) 23.0dBm±2dB EDGE1900(4 slots) 21.0dBm±2dB WCDMA850 WCDMA 21.0dBm±2dB HSDPA 20.0dBm±2dB HSUPA 20.0dBm±2dB WCDMA1900 WCDMA 21.0dBm±2dB HSDPA 20.0dBm±2dB HSUPA 20.0dBm±2dB FDD‐LTE Band 2 21.0dBm±2dB FDD‐LTE Band 4 21.0dBm±2dB FDD‐LTE Band 5 22.5dBm±2dB FDD‐LTE Band 17 21.5dBm±2dB WIFI 802.11b/g/n 2.4GHz 7.0Bm±2dB BT 2.4GHz 1.0dBm±2dB BT LE 2.4GHz ‐6.0dBm±2dB Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a CMW 500 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 1 of 228 SAR Report FCC SAR Measurement and Test Report For MACATE GROUP CORPORATION 3401 SW 160th AVENUE, SUITE 430, MIRAMAR/FLORIDA, USA FCC ID: 2AGMA-SGB1G Test Standards: FCC Part 2.1093 ANSI / IEEE C95.1 :2005 ANSI / IEEE C95.3 :2002 IEEE 1528 :2013 Product Description: 4G-LTE Smartphone Tested Model: SGB1G-W Report No.: STR15118239H Tested Date: 2015-12-07 to 2015-12-11 Issued Date: 2015-12-15 Tested By: Lucy Wei / Engineer Reviewed By: Silin Chen / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 2 of 228 SAR Report TABLE OF CONTENTS 1. General Information ................................................................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ......................................................................................... 3 1.2 Test Standards .................................................................................................................................................... 6 1.3 Test Methodology ................................................................................................................................................ 6 1.4 Test Facility ......................................................................................................................................................... 6 2. Summary of Test Results .......................................................................................................................................... 8 3. Specific Absorption Rate (SAR) ................................................................................................................................ 9 3.1 Introduction .......................................................................................................................................................... 9 3.2 SAR Definition ..................................................................................................................................................... 9 4. SAR Measurement System ...................................................................................................................................... 10 4.1 The Measurement System ................................................................................................................................ 10 4.2 Probe ................................................................................................................................................................. 10 4.3 Probe Calibration Process ................................................................................................................................. 12 4.4 Phantom ............................................................................................................................................................ 13 4.5 Device Holder .................................................................................................................................................... 13 4.6 Test Equipment List ........................................................................................................................................... 14 5. Tissue Simulating Liquids ....................................................................................................................................... 15 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 15 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 16 5.3 Tissue Calibration Result ................................................................................................................................... 17 6. SAR Measurement Evaluation ................................................................................................................................ 18 6.1 Purpose of System Performance Check ............................................................................................................ 18 6.2 System Setup .................................................................................................................................................... 18 6.3 Validation Results .............................................................................................................................................. 19 7. EUT Testing Position ............................................................................................................................................... 20 7.1 Define Two Imaginary Lines on The Handset .................................................................................................... 20 7.2 Cheek Position .................................................................................................................................................. 21 7.3 Tilted Position .................................................................................................................................................... 21 7.4 Body Position .................................................................................................................................................... 22 7.5 EUT Antenna Position ...........................................................................…

Text truncated - open the document above for the full version.

Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 121 of 228 SAR Report Maximum location: X=-48.00, Y=-48.00 SAR 10g (W/Kg) 0.031151 SAR 1g (W/Kg) 0.048188 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.0499 0.0335 0.0225 0.0152 3D screen shot Hot spot position Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 122 of 228 SAR Report MEASUREMENT 27 Type: Phone measurement (Complete) Date of measurement: 12/07/2015 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.35; Calibrated: 06/03/2015 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Left head Device Position Cheek Band WCDMA1900_RMC Channels High Signal Duty Cycle 1:1 B. SAR Measurement Results Frequency (MHz) 1907.600000 Relative Permittivity (real part) 38.560124 Conductivity (S/m) 1.380369 Power Variation (%) 1.653352 Ambient Temperature 21.1 Liquid Temperature 21.3 SURFACE SAR VOLUME SAR Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 123 of 228 SAR Report Maximum location: X=-56.00, Y=-56.00 SAR 10g (W/Kg) 0.133653 SAR 1g (W/Kg) 0.231472 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.2516 0.1537 0.0966 0.0645 3D screen shot Hot spot position Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 124 of 228 SAR Report MEASUREMENT 28 Type: Phone measurement (Complete) Date of measurement: 12/07/2015 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.35; Calibrated: 06/03/2015 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Left head Device Position Tilt Band WCDMA1900_RMC Channels High Signal Duty Cycle 1:1 B. SAR Measurement Results Frequency (MHz) 1907.600000 Relative Permittivity (real part) 38.560124 Conductivity (S/m) 1.380369 Power Variation (%) 1.532452 Ambient Temperature 21.1 Liquid Temperature 21.3 SURFACE SAR VOLUME SAR Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 125 of 228 SAR Report Maximum location: X=-58.00, Y=-48.00 SAR 10g (W/Kg) 0.028850 SAR 1g (W/Kg) 0.044843 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.0471 0.0292 0.0187 0.0129 3D screen shot Hot spot position Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 126 of 228 SAR Report MEASUREMENT 29 Type: Phone measurement (Complete) Date of measurement: 12/07/2015 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.55; Calibrated: 06/03/2015 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Flat Plane Device Position Back Band WCDMA1900_RMC Channels High Signal Duty Cycle 1:1 B. SAR Measurement Results Frequency (MHz) 1907.600000 Relative Permittivity (real part) 52.420415 Conductivity (S/m) 1.501966 Power Variation (%) 1.534242 Ambient Temperature 21.1 Liquid Temperature 21.3 SURFACE SAR VOLUME SAR Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 127 of 228 SAR Report Maximum location: X=-11.00, Y=-2.00 SAR 10g (W/Kg) 0.280794 SAR 1g (W/Kg) 0.470133 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.4997 0.3048 0.1863 0.1160 3D screen shot Hot spot position Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 128 of 228 SAR Report MEASUREMENT 30 Type: Phone measurement (Complete) Date of measurement: 12/07/2015 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.55; Calibrated: 06/03/2015 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Flat Plane Device Position Front Band WCDMA1900_RMC Channels High Signal Duty Cycle 1:1 B. SAR Measurement Results Frequency (MHz) 1907.600000 Relative Permittivity (real part) 52.420415 Conductivity (S/m) 1.501966 Power Variation (%) 0.906634 Ambient Temperature 21.1 Liquid Temperature 21.3 SURFACE SAR VOLUME SAR Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 129 of 228 SAR Report Maximum location: X=-17.00, Y=25.00 SAR 10g (W/Kg) 0.340380 SAR 1g (W/Kg) 0.643825 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.7077 0.3900 0.2158 0.1247 3D screen shot Hot spot position Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 130 of 228 SAR Report MEASUREMENT 31 Type: Phone measurement (Complete) Date of measurement: 12/07/2015 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.55; Calibrated: 06/03/2015 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Flat Plane Device Position Bottom Band WCDMA1900_RMC Channels Low Signal Duty Cycle 1:1 B. SAR Measurement Results Frequency (MHz) 1852.400000 Relative Permittivity (real part) 52.420415 Conductivity (S/m) 1.501966 Power Variation (%) 1.847552 Ambient Temperature 21.1 Liquid Temperature 21.3 SURFACE SAR VOLUME SAR Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 131 of 228 SAR Report Maximum location: X=-3.00, Y=16.00 SAR 10g (W/Kg) 0.378820 SAR 1g (W/Kg) 0.721592 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.7993 0.4453 0.2501 0.1474 3D screen shot Hot spot position Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 132 of 228 SAR Report MEASUREMENT 32 Type: Phone measurement (Complete) Date of measurement: 12/07/2015 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.55; Calibrated: 06/03/2015 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Flat Plane Device Position Bottom Band WCDMA1900_RMC Channels Middle Signal Duty Cycle 1:1 B. SAR Measurement Results Frequency (MHz) 1880.000000 Relative Permittivity (real part) 52.420415 Conductivity (S/m) 1.501966 Power Variation (%) 1.546257 Ambient Temperature 21.1 Liquid Temperature 21.3 SURFACE SAR VOLUME SAR Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239H Page 133 of 228 SAR Report Maximum location: X=-2.00, Y=16.00 SAR 10g (W/Kg) 0.410922 SAR 1g (W/Kg) 0.781248 Z (mm) 0.00 4.00 9…

Text truncated - open the document above for the full version.

Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 51 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_LCH_QPSK_25RB#25 Channel Bandwidth: 10 MHz_LCH_QPSK_50RB#0 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 52 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#24 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#49 Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#0 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 53 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#12 Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#25 Channel Bandwidth: 10 MHz_HCH_QPSK_50RB#0 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 54 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#0 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#24 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#49 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 55 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_LCH_16QAM_25RB#0 Channel Bandwidth: 10 MHz_LCH_16QAM_25RB#12 Channel Bandwidth: 10 MHz_LCH_16QAM_25RB#25 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 56 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_LCH_16QAM_50RB#0 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 57 of 96 LTE Band 17 Appendix E: Conducted Spurious Emission Test Graphs Channel Bandwidth: 5 MHz (Channel Bandwidth: 5 MHz)_LCH_QPSK_1RB#0 (Channel Bandwidth: 5 MHz)_LCH_QPSK_1RB#12 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 58 of 96 LTE Band 17 (Channel Bandwidth: 5 MHz)_LCH_QPSK_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 59 of 96 LTE Band 17 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 60 of 96 LTE Band 17 (Channel Bandwidth: 5 MHz)_MCH_QPSK_1RB#0 (Channel Bandwidth: 5 MHz)_MCH_QPSK_1RB#12 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 61 of 96 LTE Band 17 (Channel Bandwidth: 5 MHz)_MCH_QPSK_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 62 of 96 LTE Band 17 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 63 of 96 LTE Band 17 (Channel Bandwidth: 5 MHz)_HCH_QPSK_1RB#0 (Channel Bandwidth: 5 MHz)_HCH_QPSK_1RB#12 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 64 of 96 LTE Band 17 (Channel Bandwidth: 5 MHz)_HCH_QPSK_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 65 of 96 LTE Band 17 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 66 of 96 LTE Band 17 (Channel Bandwidth: 5 MHz)_LCH_16QAM_1RB#0 (Channel Bandwidth: 5 MHz)_LCH_16QAM_1RB#12 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 67 of 96 LTE Band 17 (Channel Bandwidth: 5 MHz)_LCH_16QAM_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 68 of 96 LTE Band 17 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 69 of 96 LTE Band 17 (Channel Bandwidth: 5 MHz)_MCH_16QAM_1RB#0 (Channel Bandwidth: 5 MHz)_MCH_16QAM_1RB#12 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 70 of 96 LTE Band 17 (Channel Bandwidth: 5 MHz)_MCH_16QAM_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 71 of 96 LTE Band 17 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 72 of 96 LTE Band 17 (Channel Bandwidth: 5 MHz)_HCH_16QAM_1RB#0 (Channel Bandwidth: 5 MHz)_HCH_16QAM_1RB#12 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 73 of 96 LTE Band 17 (Channel Bandwidth: 5 MHz)_HCH_16QAM_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 74 of 96 LTE Band 17 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 75 of 96 LTE Band 17 Channel Bandwidth: 10 MHz Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 76 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#49 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 77 of 96 LTE Band 17 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 78 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 79 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#49 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 80 of 96 LTE Band 17 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 81 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 82 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#49 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 83 of 96 LTE Band 17 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 84 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#0 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 85 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#49 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 86 of 96 LTE Band 17 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 87 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_MCH_16QAM_1RB#0 Channel Bandwidth: 10 MHz_MCH_16QAM_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 88 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_MCH_16QAM_1RB#49 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 89 of 96 LTE Band 17 Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 90 of 96 LTE Band 17 Channel Bandwidth: 10 MHz_HCH_16QAM_1RB#0 Channel Bandwidth: 10 MHz_HCH_16QAM_1RB#24 Shenzhen SEM.Test Technology Co., Ltd. Rep…

Text truncated - open the document above for the full version.

Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 1 of 281 LTE Band 2 Appendix for Band 2 Appendix A: Average Power Output Data Test Result Channel Bandwidth: 1.4 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.14 PASS 1 3 22.65 PASS 1 5 22.46 PASS 3 0 21.97 PASS 3 2 22.05 PASS 3 3 22.81 PASS 6 0 22.79 PASS MCH 1 0 22.35 PASS 1 3 22.78 PASS 1 5 22.22 PASS 3 0 22.35 PASS 3 2 22.28 PASS 3 3 22.98 PASS 6 0 22.53 PASS HCH 1 0 22.58 PASS 1 3 22.22 PASS 1 5 22.16 PASS 3 0 22.48 PASS 3 2 22.10 PASS 3 3 22.69 PASS 6 0 22.04 PASS 16QAM LCH 1 0 22.39 PASS 1 3 22.05 PASS 1 5 22.75 PASS 3 0 22.06 PASS 3 2 22.68 PASS 3 3 22.78 PASS 6 0 22.68 PASS MCH 1 0 22.85 PASS 1 3 22.77 PASS Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 2 of 281 LTE Band 2 1 5 22.56 PASS 3 0 22.66 PASS 3 2 22.77 PASS 3 3 22.42 PASS 6 0 22.19 PASS HCH 1 0 22.13 PASS 1 3 22.18 PASS 1 5 22.05 PASS 3 0 22.87 PASS 3 2 22.03 PASS 3 3 22.37 PASS 6 0 22.69 PASS Channel Bandwidth: 3 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 21.94 PASS 1 7 22.67 PASS 1 14 22.04 PASS 8 0 22.60 PASS 8 4 22.20 PASS 8 7 22.62 PASS 15 0 22.11 PASS MCH 1 0 22.72 PASS 1 7 22.05 PASS 1 14 22.26 PASS 8 0 22.04 PASS 8 4 22.40 PASS 8 7 22.09 PASS 15 0 22.00 PASS HCH 1 0 22.60 PASS 1 7 22.27 PASS 1 14 22.79 PASS 8 0 22.31 PASS 8 4 22.53 PASS 8 7 22.50 PASS 15 0 22.42 PASS 16QAM LCH 1 0 22.66 PASS 1 7 22.35 PASS 1 14 22.39 PASS 8 0 22.86 PASS Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 3 of 281 LTE Band 2 8 4 22.71 PASS 8 7 22.29 PASS 15 0 22.52 PASS MCH 1 0 22.57 PASS 1 7 22.10 PASS 1 14 22.48 PASS 8 0 22.39 PASS 8 4 22.26 PASS 8 7 22.51 PASS 15 0 22.33 PASS HCH 1 0 22.74 PASS 1 7 21.89 PASS 1 14 22.29 PASS 8 0 22.09 PASS 8 4 22.24 PASS 8 7 22.20 PASS 15 0 22.05 PASS Channel Bandwidth: 5 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.73 PASS 1 12 22.25 PASS 1 24 22.62 PASS 12 0 22.44 PASS 12 6 22.84 PASS 12 13 22.75 PASS 25 0 22.24 PASS MCH 1 0 22.25 PASS 1 12 22.62 PASS 1 24 22.82 PASS 12 0 22.47 PASS 12 6 22.48 PASS 12 13 22.64 PASS 25 0 22.29 PASS HCH 1 0 22.61 PASS 1 12 22.14 PASS 1 24 22.11 PASS 12 0 22.18 PASS 12 6 22.02 PASS Shenzhen SEM.Test Technology Co., Ltd. Report No.: STR15118239I‐2 Page 4 of 281 L…

Text truncated - open the document above for the full version.
