2AGNC-C20MULTICONNECTED WIRELESS LOUDSPEAKER

ww C 20 Användarmanual User manual Schnellstart-Anleitung Gebruikershandleiding NLDEENSE C20_manual_118x178_SE_EN_DE_NL_FR_IT_ES_FI.indd 1C20_manual_118x178_SE_EN_DE_NL_FR_IT_ES_FI.indd 12023-07-03 07:502023-07-03 07:50 The Audio Pro wireless HiFi products lets you enjoy your favourite audio in a multiroom setup everywhere around your home. Our WiFi products uses Audio Pro wireless technology, Google Cast, AirPlay 2, Spotify Connect and Tidal Connect. By utilizing your WiFi network & smartphone apps you can explore and play audio from streaming services and your own music library. If you don’t have a WiFi network, you can use Bluetooth or connect your audio equipment via cable. The legendary Audio Pro sound quality is included. WELCOME TO WIRELESS HIFI. PRODUCT INFO. CUSTOMER S U P P O RT. MANUALS. Scan the QR code. (audiopro.com/info) C20_manual_118x178_SE_EN_DE_NL_FR_IT_ES_FI.indd 2C20_manual_118x178_SE_EN_DE_NL_FR_IT_ES_FI.indd 22023-07-03 07:502023-07-03 07:50 The Spotify Software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses. Google, Google Play, Chromecast and other related marks are trademarks of Google LLC. Chromecast built-in may require subscription(s). The Google Assistant requires an internet connection and is not available in certain countries and languages. Availability and react of certain features and services are device, service, and network-dependent and may not be available in all areas. Controlling certain devices in your home requires compatible smart devices. Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply. The Android robot is created and shared by Google and used according to the Creative Commons 3.0 Attribution License. © Apple, the Apple logo, AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by AUDIO PRO AB, is under license. Other trademarks and trade names are those of thier respective owners. The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. © Audio Pro AB, Sweden. All rights reserved. Trademarks are the property of Audio Pro AB, Sweden. Audio Pro AB, Garnisonsgatan 52 SE-254 66 Helsingborg, Sweden ©1978-2020 Audio Pro AB Sweden. Audio Pro®, the Audio Pro logotype, the ‘a’ symbol, and ace-bass® are all registered trademarks of Audio Pro AB, Sweden. All rights reserved. Audio Pro follows a policy of continuous advancement in development. Specifications may be changed without notice. All other products and services mentioned may be trademarks or service marks of their respective owners. This document contains information that is subject to change without notice. Apple Home 5.0 C20_manual_118x178_SE_EN_DE_NL_FR_IT_ES_FI.indd 3C20_manual_118x178_SE_EN_DE_NL_FR_IT_ES_FI.indd 32023-07-03 07:502023-07-03 07:50 WIFITVPHONOOPTBTLINE 12 45 3 6 KONTROLLER | CONTROLS | SCHALTTAFEL | BEDIENING På/Av On/Off Ein/Aus Aan/uit Para Bluetooth Pair Bluetooth Koppeln Bluetooth Koppelen via Bluetooth Välj ljudkälla Select source Quelle auswählen Bron selecteren Play/Pause Play/Pause Wiedergabe/Pause Afspelen/pauzeren Förinställningar Wifi Presets WiFi-Voreinstellungen Wifi-voorinstellingen Volymkontroll Volume control Lautstärkeregelung Volumeregeling Nästa Next Nächster Volgende Föregående Previous Vorheriges Vorige C20_manual_118x178_SE_EN_DE_NL_FR_IT_ES_FI.indd 4C20_manual_118x178_SE_EN_DE_NL_FR_IT_ES_FI.indd 42023-07-03 07:502023-07-03 07:50 LINE IN OPTICALTV/ARCSERVICERESET A C 100-240 V ~50-60 Hz, 250 W PHONO (MM)SUB OUTPHONO GND LRLR Reset button Phono ground Line in (RCA) Optical in Removable magnetic grille. TV/ARC in Phono in, MM (RCA) Sub out (RCA) Service port (USB-A) Power RIAA C20_manual_118x178_SE_EN_DE_NL_FR_IT_ES_FI.indd 5C20_manual_118x178_SE_EN_DE_NL_FR_IT_ES_FI.indd 52023-07-03 07:502023-07-03 07:50 VIKTIGA KRAV NÄTVERK: »Ditt nätverk måste ha en bredbandsan- slutning till internet, då Audio Pro ljudsys- temet är designat för gratis mjukvaruupp- dateringar. »Audio Pro högtalarna kommunicerar över 2.4 GHz / 5 GHz i nätverk som stödjer 802.11 a/b/g/n/ac trådlös teknologi. ROUTER »Höghastighets ADSL/kabel modem, eller bredbandsfiber är nödvändigt för en korrekt avspelning från internetbaserade musiktjänster. »Olika routrar har olika prestanda. Använd helst en premium router för bra prestanda. KEY REQUIREMENTS NETWORK »Your network must have a high-speed in- ternet connection, as the Audio Pro system is designed to utilise free, online software updates. »Audio Pro speakers communicate via a 2.4 GHz / 5 GHz home network with support for 802.11 a/b/g/n/ac/ wireless technology. ROUTER »High-speed DSL/cable modem, or fibre- to-the-home broadband connection for proper playback of internet-based music services. »Different routers provide different levels of performance. Please use a good wireless router to achieve the best possible perfor- mance. WICHTIGE VORAUSSETZUNGEN NETZWERK »Ihr Netzwerk muss über eine schnelle Internetverbindung verfügen, weil das Audio-Pro-System dazu entwickelt wurde, kostenlose Online-Softwareupdates zu nutzen. »Audio Pro-Lautsprecher kommunizieren über ein 2.4 GHz / 5 GHz-Heimnetzwerk mit Unterstützung für die 802.11 a/b/g/n/ ac-WLAN-Technologie. ROUTER »DSL-/Kabel-Hochgeschwindigkeitsmodem oder Glasfaser-Heimbreitbandanschluss für die ordnungsgemäße Wiedergabe internetbasierter Musikdienste. »Verschiedene Router bieten unterschied- liche Leistungsniveaus. Bitte verwenden Sie einen guten WLAN-Router, um die bestmögliche Leistung zu erzielen. BELANGRIJKSTE EISEN NETWERK »Het Audio Pro-systeem is zo ontworpen dat het gratis online software-updates gebruikt. Uw netwerk moet daarom een snelle internetverbinding hebben. »Audio Pro-luidsprekers communiceren via een thuisnetwerk van 2.4 GHz / 5 GHz…

Text truncated - open the document above for the full version.

AUDIO PRO AB * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 7/21/2023 ATTN.: Reviewing Engineer FCC ID: 2AGNC-C20 Per section 2.911(d)(7) of the FCC rules,AUDIO PRO AB(“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: JOC Australia Inc Physical U.S. Company Address: 18351 Colima Road Ste 585 Rowland Heights,California,91748 United States of America Agent contact name/Title: Benjamin. Smith/Vice President Agent Email Address:[email protected]/[email protected] Tel No.: +1(626) 217 4778 FRN No.: 0033379421 The above contact person accepts the obligation for service of process. Applicant Signed: Agent Signed (if different to Applicant The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. ): Signed: Signed: Printed name: chao li Printed name: Benjamin. Smith Title: EngineerTitle: Vice President Company Name: AUDIO PRO ABCompany Name: JOC Australia Inc Date:7/21/2023 Date: 7/21/2023

AUDIO PRO AB Covered Equipment Certification Attestation Letter 7/12/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AGNC-C20 AUDIO PRO AB (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: chao li Title: Engineer Company Name: AUDIO PRO AB Date: 7/12/2023

AUDIO PRO AB Covered Equipment Certification Attestation Letter 7/12/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AGNC-C20 AUDIO PRO AB (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the currentCovered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Signed: Printed name: chao li Title: Engineer Company Name: AUDIO PRO AB Date: 7/12/2023

AUDIO PRO AB for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 10/23/2023 ATTN.: Reviewing Engineer FCC ID: 2AGNC-C20 FRN of the grantee: 0025076464 Per section 2.911(d)(7) of the FCC rules,AUDIO PRO AB(“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: The above contact person accepts the obligation for service of Company Name: JOC Australia Inc Physical U.S. Company Address: 18351 Colima Road Ste 585 Rowland Heights,California,91748 United States of America Agent contact name/Title: Benjamin. Smith/Vice President Agent Email Address:[email protected]/[email protected] Tel No.: +1(626) 341 3408 FRN No.: 0033379421 process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant ): Signed: Signed: Printed name: chao li Printed name: Benjamin. Smith Title: EngineerTitle: Vice President Company Name: AUDIO PRO ABCompany Name: JOC Australia Inc Date:10/23/2023 Date: 10/23/2023

AUDIO PRO AB DATE : 2023.07.12 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AGNC-C20 Product Name : MULTICONNECTED WIRELESS LOUDSPEAKER Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics  Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: chao li Title: Engineer Company: AUDIO PRO AB

AUDIO PRO AB DATE:2023.07.12 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 AuthoritytoActasAgent On our behalf, I appoint ESTTechnologyCo.,Ltd. Address: Chilingxiang,Qishantou,Santun, Houjie,Dongguan,Guangdong,China (Name of Agent company name andaddress) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,Iack nowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification,stillres ideswith AUDIO PRO AB Address: Garnisonsgatan 52, 25466, Helsingborg, Sweden (Applicant Nameandaddress) <Signature> Name: chao li Title: Engineer Company: AUDIO PRO AB

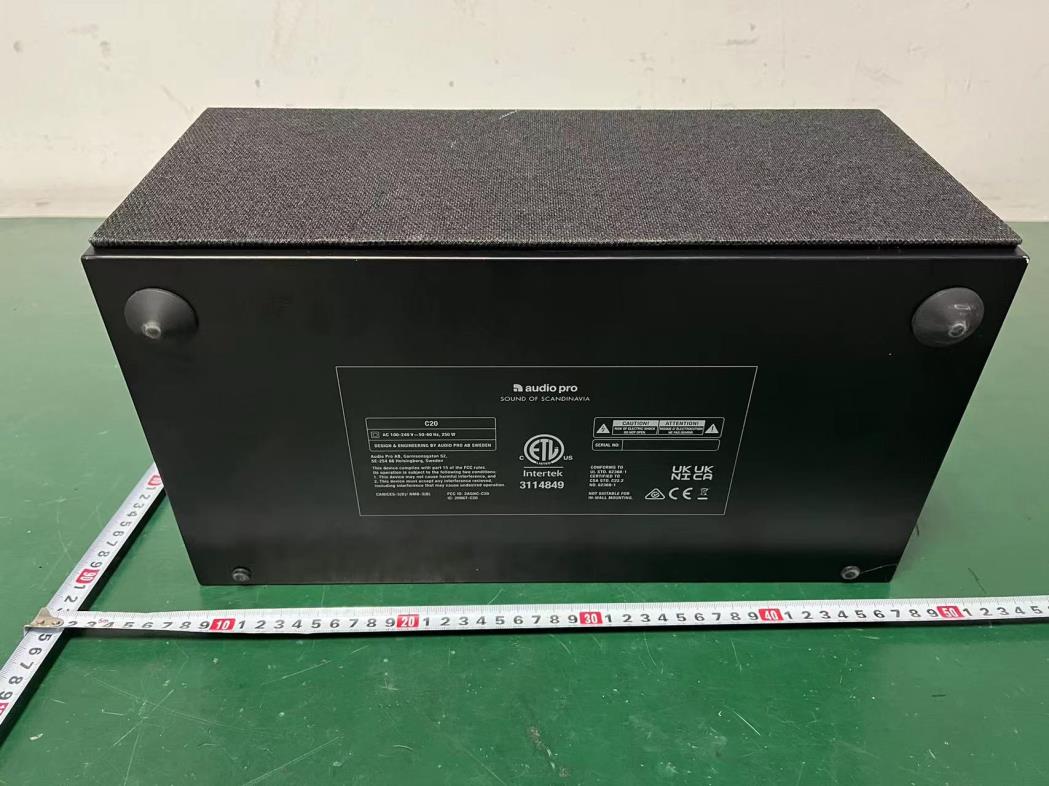

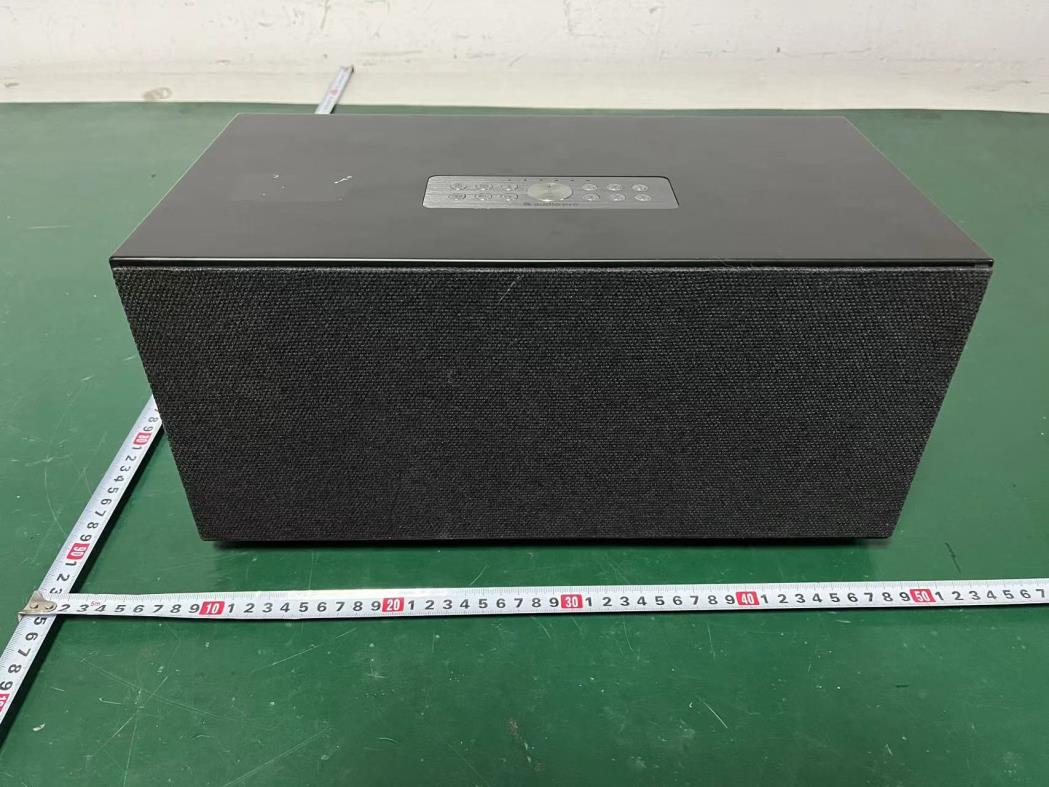

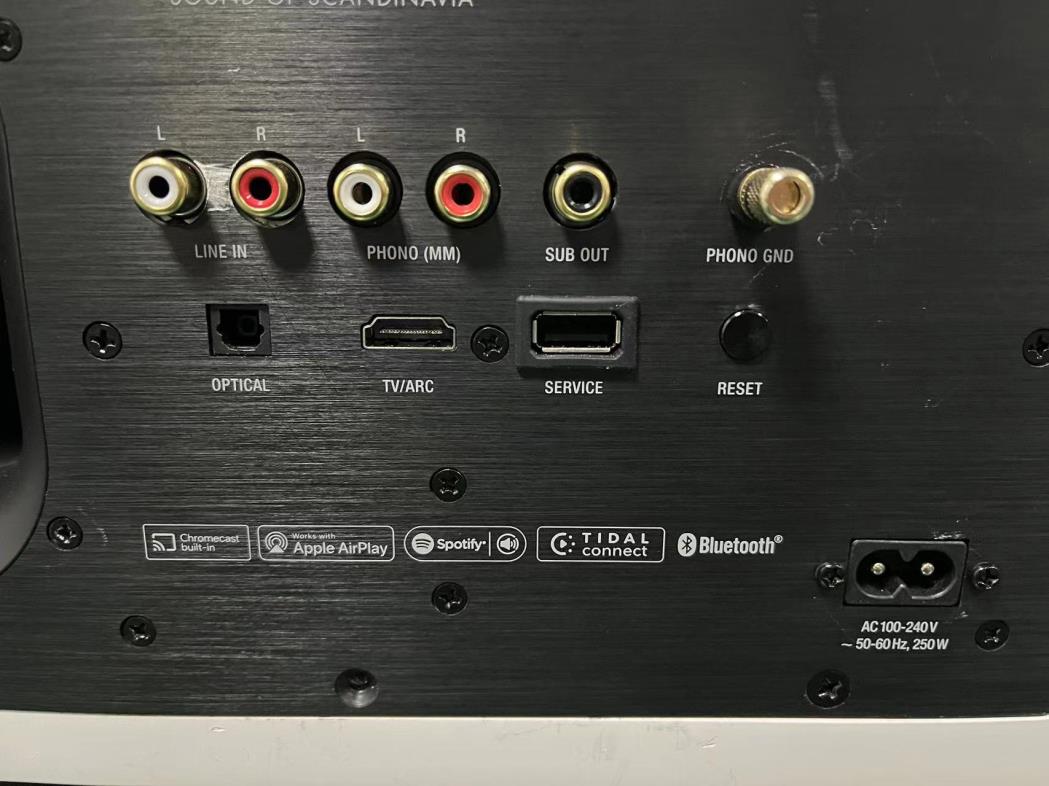

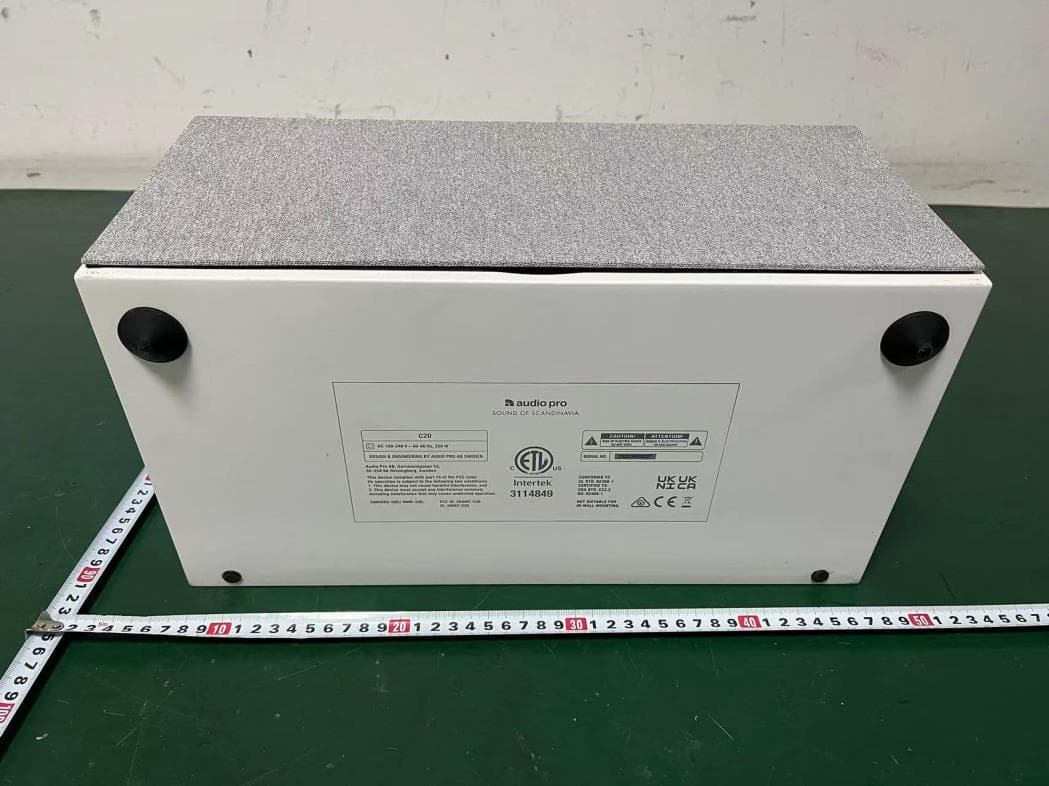

External photos M/N: C20 External photos M/N: C20 External photos M/N: C20 External photos M/N: C20 External photos M/N: C20 External photos M/N: C20 External photos M/N: C20 External photos M/N: C20

NOTE DATE DRWN BY DATE SHEET CHECKED BY APPROVED BY SIZE TOLERANCES: FIT A4 UNLESS OTHERWISE SPECIFIED REV: PART NO. SCALE UNIT MM DOC. NO. PA R T: DRAW NO. DECIMALS ANGLES X ±0.5 ±0.5° .X ±0.2 .XX ±0.1 MATERIAl COLOR DATE FINISH RoHSREACH Environmental Protection CA65 加"*"标注为重点管控尺寸 V01 New Drawing REVISIONS DATE SIGNATURE REV DESCRIPTION 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 AA BB CC DD EE FF 技术要求： 1.所有零部件需经过庭丰工程部承认才可生产； 2.庭丰模具： □模具料号 ；□N/A； 3.可靠性测试要求： a.环境测试：高温 °C，低温 °C，测试时间 H； b.盐雾测试： 适用，测试时间 H; N/A； c.UV测试： □适用; □N/A； d.耐磨耐刮测试： 适用; □N/A； e.附着力测试： □适用; □N/A； f.其它测试： 4.可靠性测试详细条件参见品质部或客户标准。 TFC94C001 结构图号 -20 32 丝印颜色：PANTONE COOL GREY 7U √ √ √ 木箱丝印图（黑色） TFC94AA01 V01 黑色 李建恩 2023.04.01 1/1 2023.04.01 李建恩 √ √ √ √ √ 60 哑光漆 MDF P2板 木箱底部 9050500939

Internal photos M/N: C20 Internal photos M/N: C20 Internal photos M/N: C20 Bluetooth/ WIFI ANT Internal photos M/N: C20 Internal photos M/N: C20 Internal photos M/N: C20 Internal photos M/N: C20 Internal photos M/N: C20 Internal photos M/N: C20 Internal photos M/N: C20 Internal photos M/N: C20

FCC ID: 2AGNC-C20 EST Technology Co. ,Ltd Report No. ESTE-R2307087 Page 1 of 8 FCC 47 CFR MPE REPORT AUDIO PRO AB MULTICONNECTED WIRELESS LOUDSPEAKER Model Number: C20 FCC ID: 2AGNC-C20 Applicant: AUDIO PRO AB Address: Garnisonsgatan 52, 25466, Helsingborg, Sweden Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2307087 Date of Test: Jun. 05~Jul. 06, 2023 Date of Report: Jul. 11, 2023 FCC ID: 2AGNC-C20 EST Technology Co. ,Ltd Report No. ESTE-R2307087 Page 2 of 8 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AGNC-C20 EST Technology Co. ,Ltd Report No. ESTE-R2307087 Page 3 of 8 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AGNC-C20 EST Technology Co. ,Ltd Report No. ESTE-R2307087 Page 4 of 8 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 4.55 2.851 2441 4.73 2.972 2480 4.18 2.618 π/4-DQPSK 2402 4.2 2.630 2441 4.29 2.685 2480 3.47 2.223 8-DPSK 2402 4.43 2.773 2441 4.58 2.871 2480 3.84 2.421 BLE 1M 2402 3.54 2.2594 2440 3.79 2.3933 2480 2.83 1.9187 BLE 2M 2402 3.65 2.3174 2440 3.92 2.4660 2480 2.98 1.9861 IEEE 802.11b 2412 15.5 35.4813 2437 15.45 35.0752 2462 15.37 34.4350 IEEE 802.11g 2412 20.67 116.6810 2437 20.68 116.9499 2462 20.45 110.9175 IEEE 802.11n HT20 2412 19.94 98.6279 2437 20.26 106.1696 2462 20.23 105.4387 IEEE 802.11a 5180 11.07 12.7938 5200 10.78 11.9674 5240 10.11 10.2565 5260 10.07 10.1625 5300 9.97 9.9312 5320 10.01 10.0231 5500 10.4 10.9648 5580 10.23 10.5439 5700 11.92 15.5597 5745 10.14 10.3276 FCC ID: 2AGNC-C20 EST Technology Co. ,Ltd Report No. ESTE-R2307087 Page 5 of 8 5785 10.07 10.1625 5825 10.03 10.0693 IEEE 802.11n HT20 5180 11.95 15.6675 5200 11.63 14.5546 5240 10.97 12.5026 5260 10.78 11.9674 5300 10.8 12.0226 5320 10.58 11.4288 5500 10.02 10.0462 5580 9.83 9.6161 5700 11.71 14.8252 5745 11.94 15.6315 5785 10.97 12.5026 5825 10.59 11.4551 IEEE 802.11ac VHT20 5180 10.83 12.1060 5200 11.64 14.5881 5240 10.86 12.1899 5260 11.22 13.2434 5300 11.26 13.3660 5320 11.09 12.8529 5500 10.56 11.3763 5580 10.48 11.1686 5700 12.21 16.6341 5745 11.4 13.8038 5785 10.49 11.1944 5825 10.26 10.6170 IEEE 802.11n HT40 5190 11.5 14.1254 5230 10.61 11.5080 5270 10.39 10.9396 5310 10.26 10.6170 5510 9.56 9.0365 5550 9.87 9.7051 5670 11.17 13.0918 5755 11.36 13.6773 5795 10.72 11.8032 5190 11.03 12.6765 5230 10.25 10.5925 5270 10.13 10.3039 FCC ID: 2AGNC-C20 EST Technology Co. ,Ltd Report No. ESTE-R2307087 Page 6 of 8 IEEE 802.11ac VHT40 5310 10.17 10.3992 5510 10.14 10.3276 5550 10.55 11.3501 5670 11.82 15.2055 5755 11.05 12.7350 5795 10.51 11.2460 IEEE 802.11ac VHT80 5210 11.29 13.4586 5290 10.97 12.5026 5530 10.44 11.0662 5610 10.55 11.3501 5775 11.69 14.7571 FCC ID: 2AGNC-C20 EST Technology Co. ,Ltd Report No. ESTE-R2307087 Page 7 of 8 3. Calculated Result and Limit Mode Peak output power (dBm) Target power (dBm) MAX Target power (dBm) Antenna gain Power Density (S) (mW /cm 2 ) Limited of Power Density (S) (mW /cm 2 ) Test Result (dBi) (Linear) 2.4G Band GFSK 4.73 4±1 5 4.39 2.748 0.00173 1 Complies π/4-DQPSK 4.29 4±1 5 4.39 2.748 0.00173 1 Complies 8-DPSK 4.58 4±1 5 4.39 2.748 0.00173 1 Complies BLE 1M 3.92 3±1 4 4.39 2.748 0.00137 1 Complies BLE 2M 15.5 15±1 16 4.39 2.748 0.02176 1 Complies IEEE 802.11b 20.68 20±1 21 4.39 2.748 0.06882 1 Complies IEEE 802.11g 20.26 20±1 21 4.39 2.748 0.06882 1 Complies IEEE 802.11n HT20 4.73 4±1 5 4.39 2.748 0.00173 1 Complies 5G Band IEEE 802.11a 11.92 11±1 12 5.89 3.882 0.01224 1 Complies IEEE 802.11n HT20 11.95 11±1 12 5.89 3.882 0.01224 1 Complies IEEE802.11ac VHT20 12.21 12±1 13 5.89 3.882 0.01541 1 Complies IEEE 802.11n HT40 11.5 11±1 12 5.89 3.882 0.01224 1 Complies IEEE802.11ac VHT40 11.82 11±1 12 5.89 3.882 0.01224 1 Complies IEEE802.11ac VHT80 11.69 11±1 12 5.89 3.882 0.01224 1 Complies FCC ID: 2AGNC-C20 EST Technology Co. ,Ltd Report No. ESTE-R2307087 Page 8 of 8 BT+WIFI MAX Ture-up power ratio Bluetooth MAX Ture-up power Total ratio Wi-Fi Total Ratio Limit Ratio Test Result 0.0017 0.0690 0.0707 1 Complies Note: WIFI 2.4G and 5GHz bands are share an antenna, Cann't both the 2.4 and 5 GHz bands operate simultaneously. End of Test Report

FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 1 of 210 FCC PART 15E TEST REPORT FOR CERTIFICATION On Behalf of AUDIO PRO AB MULTICONNECTED WIRELESS LOUDSPEAKER Model Number: C20 FCC ID: 2AGNC-C20 Applicant : AUDIO PRO AB Address: Garnisonsgatan 52, 25466, Helsingborg, Sweden Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2307085 Date of Test: Jun. 05~Jul. 06, 2023 Date of Report: Jul. 11, 2023 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 2 of 210 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. The antenna information for EUT .................................................................................................... 6 1.3. Information of RF Cable .................................................................................................................. 6 2. SUMMARY OF TEST ......................................................................................................................... 7 2.1. Summary of test result ...................................................................................................................... 7 2.2. Test Facilities ................................................................................................................................... 8 2.3. Measurement uncertainty for EST Technology Co., Ltd. ................................................................ 9 2.4. Assistant equipment used for test ..................................................................................................... 9 2.5. Block Diagram ................................................................................................................................. 9 2.6. Test Mode ....................................................................................................................................... 10 2.7. Channel List ................................................................................................................................... 12 2.8. Power Setting of Test Software ...................................................................................................... 13 2.9. Duty Cycle of Test Signal .............................................................................................................. 14 2.10. Test Equipment List ....................................................................................................................... 15 3. 6DB BANDWIDTH &26DB BANDWIDTH & 99% OCCUPIED BANDWIDTH ...................................... 17 3.1. Limit ............................................................................................................................................... 17 3.2. Test Setup ....................................................................................................................................... 17 3.3. Spectrum Analyzer Setting ............................................................................................................. 17 3.4. Test Procedure ................................................................................................................................ 18 3.5. Test Result ...................................................................................................................................... 18 4. MAXIMUM CONDUCTED OUTPUT POWER ..................................................................................... 19 4.1. Limit ............................................................................................................................................... 19 4.2. Test Setup ....................................................................................................................................... 19 4.3. Spectrum Analyzer Setting ............................................................................................................. 19 4.4. Test Procedure ................................................................................................................................ 19 4.5. Test Result ...................................................................................................................................... 19 5. PEAK POWER SPECTRAL DENSITY ................................................................................................ 20 5.1. Limit ............................................................................................................................................... 20 5.2. Test Setup ....................................................................................................................................... 20 5.3. Spectrum Analyzer Setting ............................................................................................................. 20 5.4. Test Procedure ................................................................................................................................ 20 5.5. Test Result ...................................................................................................................................... 20 6. UNWANTED EMISSIONS AND BAND EDGE ..................................................................................... 21 6.1. Limit ............................................................................................................................................... 21 6.2. Test Setup ........................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 81 of 210 11N40SISO_Ant1_5670 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 82 of 210 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 83 of 210 11AC20SISO_Ant1_5260 11AC20SISO_Ant1_5300 11AC20SISO_Ant1_5320 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 84 of 210 11AC20SISO_Ant1_5500 11AC20SISO_Ant1_5580 11AC20SISO_Ant1_5700 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 85 of 210 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 86 of 210 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5270 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 87 of 210 11AC40SISO_Ant1_5310 11AC40SISO_Ant1_5510 11AC40SISO_Ant1_5590 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 88 of 210 11AC40SISO_Ant1_5670 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 89 of 210 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5290 11AC80SISO_Ant1_5530 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 90 of 210 11AC80SISO_Ant1_5610 11AC80SISO_Ant1_5775 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 91 of 210 Appendix B: Min emission bandwidth Test Result B4 Test Mode Antenna Frequency [MHz] 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 15.440 5737.120 5752.560 0.5 PASS 5785 15.160 5777.400 5792.560 0.5 PASS 5825 16.240 5816.880 5833.120 0.5 PASS 11N20SISO Ant1 5745 15.960 5737.440 5753.400 0.5 PASS 5785 15.040 5777.480 5792.520 0.5 PASS 5825 15.120 5817.480 5832.600 0.5 PASS 11N40SISO Ant1 5755 35.440 5737.400 5772.840 0.5 PASS 5795 35.360 5777.400 5812.760 0.5 PASS 11AC20SISO Ant1 5745 16.320 5737.440 5753.760 0.5 PASS 5785 15.160 5777.440 5792.600 0.5 PASS 5825 16.120 5816.480 5832.600 0.5 PASS 11AC40SISO Ant1 5755 35.520 5737.400 5772.920 0.5 PASS 5795 35.120 5777.480 5812.600 0.5 PASS 11AC80SISO Ant1 5775 75.200 5737.400 5812.600 0.5 PASS FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 92 of 210 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 93 of 210 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 94 of 210 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5745 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 95 of 210 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 96 of 210 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5775 FCC ID: 2AGNC-C20 EST Technology Co., Ltd Report No.ESTE-R2307085 Page 97 of 210 Appendix C: Emission Bandwidth Test Result Test Mode Antenna Frequency [MHz] 26db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11A Ant1 5180 21.160 5169.400 5190.560 --- --- 5200 21.120 5189.480 5210.600 --- --- 5240 20.880 5229.560 5250.440 --- --- 5260 21.040 5249.400 5270.440 --- --- 5300 20.840 5289.520 5310.360 --- --- 5320 20.840 5309.600 5330.440 --- --- 5500 21.080 5489.480 5510.560 --- --- 5580 21.200 5569.400 5590.600 --- --- 5700 21.160 5689.360 5710.520 --- --- 5745 21.120 5734.600 5755.720 --- --- 5785 20.880 5774.560 5795.440 --- --- 5825 21.120 5814.360 5835.480 --- --- 11N20SISO Ant1 5180 21.120 5169.480 5190.600 --- --- 5200 21.440 5189.320 5210.760 --- --- 5240 21.520 5229.200 5250.720 --- --- 5260 21.320 5249.360 5270.680 --- --- 5300 21.160 5289.480 5310.640 --- --- 5320 21.320 5309.400 5330.720 --- --- 5500 21.320 5489.480 5510.800 --- --- 5580 21.480 5569.120 5590.600 --- --- 5700 21.320 5689.320 5710.640 --- --- 5745 21.360 5734.240 5755.600 --- --- 5785 21.240 5774.600 5795.840 --- --- 5825 21.280 5814.320 5835.600 --- --- 11N40SISO Ant1 5190 39.360 5170.400 5209.760 --- --- 5230 39.520 5210.320 5249.840 --- --- 5270 39.280 5250.480 5289.760 --- --- 5310 39.280 5290.400 5329.680 --- --- 5510 39.680 5490.240 5529.920 --- --- 5590 39.440 5570.400 5609.840 --- --- 5670 39.440 5650.160 5689.600 --- --- 5755 39.520 5735.240 5774.760 --- --- 5795 39.520 5775.240 5814.760 --- --- 11AC20SISO Ant1 5180 21.200 5169.480 5190.680 --- --- 5200 21.080 5189.480 5210.560 --- --- 5240 21.040 5229.640 5250.680 --- --- 5260 21.600 5249.320 5270.920 --- --- 5300 21.200 5289.480 5310.680 …

Text truncated - open the document above for the full version.
