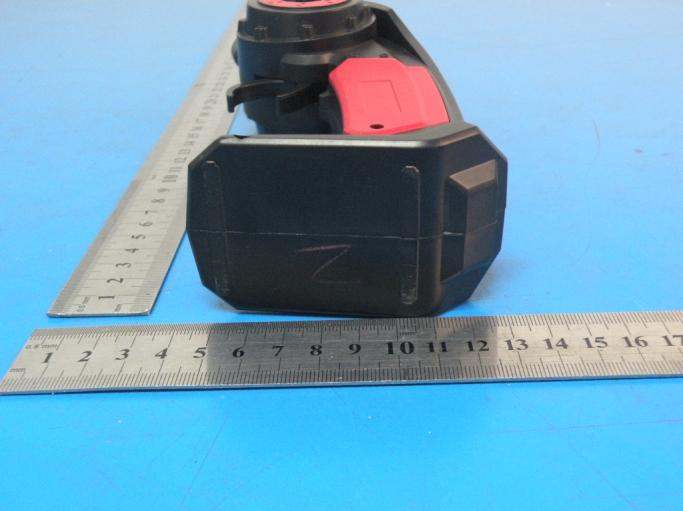

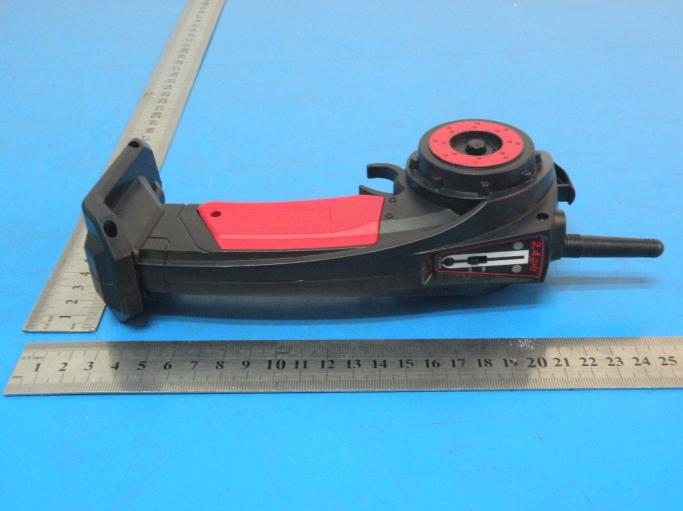

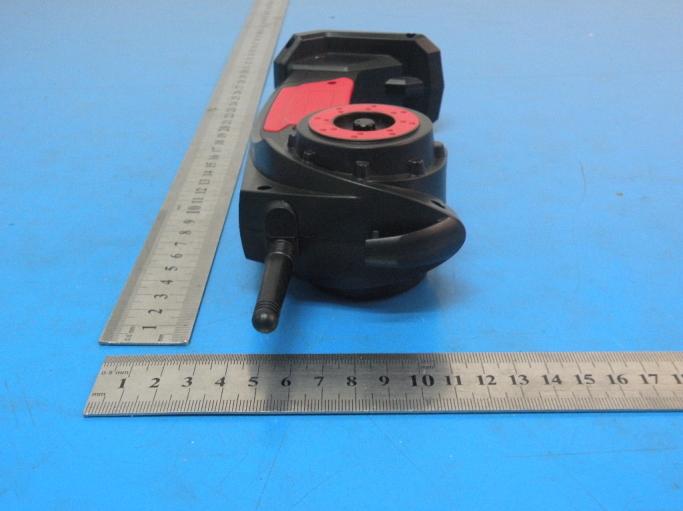

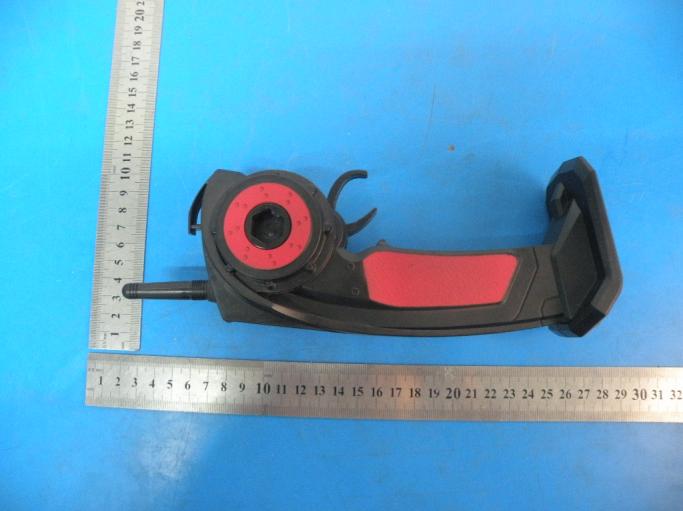

2AGQ591152.4G full proportion remote control car

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

30mm 20mm FCC ID: 2AGQ59115 XINLEHONG TOYS FACTORY Model name: 2.4G full proportion remote control car Model No.: 9115 Label Location

FCC ID: 2AGQ59115 RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances İ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] g[Ĝf(GHz)] İ 3.0 for 1-g SAR and İ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 89.84 dBuV/m @3m Ant gain 3 dBi; so Ant numeric gain=2 So pt={[10 (89.84/20) /10 6 x3] 2 /30x2 }x1000 mW =0.578 mW So ( 0.578 mW/5mm)x √ 2.405 GHz = 0.179 <3 Then SAR evaluation is not required 0.145 0.145 2.405 89.84 3 0.045 9 9 70 0.05

Page 1 of 28 Report No.: T1851812 01 TEST REPORT FCC ID: 2AGQ59115 Applicant : XINLEHONG TOYS FACTORY Address : CHENGHAI DISTRICT ,SHANTOU CITY ,GUANGDONG PROVINCE ,CHINA Equipment Under Test (EUT): Name : 2.4G full proportion remote control car Model : 9109, 9112, 9115, 9116, 9117,9118, 9119, 9120, 9121, 9122, 9123, 9123-1, 9123-2, 9125, 9126, 9127, 9128, 9129, 9130, XLH87901, XLH87902, XLH87903, XLH87905, XLH87906, XLH87907, XLH87908, XLH87909, S911, S912, S913, S914, S915, S916,S917, S918, S919, S920, S921, S922, S923, S924, S925, S926, S927, S928, S929, S930 In Accordance with: FCC PART 15, SUBPART C: 2015 (Section 15.249) Report No : T1851812 01 Rev. Rev. 1 Date of Test : November 25 , 2015 to November 29, 2015 Date of Issue : November 29, 2015 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Alpha Product Testing Co., Ltd Or test done by Shenzhen Alpha Product Testing Co., Ltd Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Alpha Product Testing Co., Ltd Approvals in writing. Page 2 of 28 Report No.: T1851812 01 TABLE OF CONTENT 1 General Information ------------------------------------------------------------------------------------ 3 1.1 Description of Device (EUT) --------------------------------------------------------------------- 3 1.2 Description of Test Facility ----------------------------------------------------------------------- 4 2 EMC Equipment List ------------------------------------------------------------------------------------ 4 3 Test Procedure ------------------------------------------------------------------------------------------- 5 4 Summary of Measurement ---------------------------------------------------------------------------- 6 4.1 Summary of test result ---------------------------------------------------------------------------- 6 4.2 Test connection ------------------------------------------------------------------------------------- 6 4.3 Assistant equipment used for test ---------------------------------------------------------------- 6 4.4 Test mode ------------------------------------------------------------------------------------------- 6 4.5 Test Conditions ------------------------------------------------------------------------------------- 7 4.6 Measurement Uncertainty (95% confidence levels, k=2)------------------------------------- 8 5 Spurious Emission ----------------------------------------------------------------------------------- 9 5.1 Radiation Emission -------------------------------------------------------------------------------- 9 5.1.1 Radiation Emission Limits(15.209) ------------------------------------------------------------- 9 5.1.2 Test Setup ------------------------------------------------------------------------------------------- 9 5.1.3 Test Procedure ------------------------------------------------------------------------------------ 11 5.1.4 Test Equipment Setting For emission test Result. ------------------------------------------- 11 5.1.5 Test Condition ------------------------------------------------------------------------------------ 11 5.1.6 Test Result ---------------------------------------------------------------------------------------- 11 6 POWER LINE CONDUCTED EMISSION ------------------------------------------------------- 17 6.1 Conducted Emission Limits(15.207) ---------------------------------------------------------- 17 6.2 Test Setup ----------------------------------------------------------------------------------------- 17 6.3 Test Procedure ------------------------------------------------------------------------------------ 18 6.4 Test Results --------------------------------------------------------------------------------------- 18 7 Bandwidth ---------------------------------------------------------------------------------------------- 19 7.1 Test limit ------------------------------------------------------------------------------------------ 19 7.2 Method of measurement ------------------------------------------------------------------------ 19 7.3 Test Setup ----------------------------------------------------------------------------------------- 19 7.4 Test Results --------------------------------------------------------------------------------------- 19 8 Antenna Requirement ------------------------------------------------------------------------------ 22 8.1 Standard Requirement --------------------------------------------------------------------------- 22 8.2 Antenna Connected Construction -------------------------------------------------------------- 22 8.3 Result ---------------------------------------------------------------------------------------------- 22 9 Photographs of Test Setup ----------------------------------------------------------------------- 23 4.7 Photos of Radiated emission ------------------------------------------------------------------- 23 10 Photographs of EUT--------------------------------------------------------------------------------- 24 Page 3 of 28 Report No.: T1851812 01 1 General Information 1.1 Description of Device (EUT) EUT : 2.4G full proportion remote control car Model No. : 9109, 9112, 9115, 9116, 9117, 9118, 9119, 9120, 9121, 9122, 9123, 9123-1, 9123-2, 9125, 9126, 9127, 9128, 9129, 9130, XLH87901, XLH87902, XLH87903, XLH87905, XLH87906, XLH87907, XLH87908, XLH87909, S911,S912, S913, S914, S915, S916, S917, S918, S919, S920, S921, S922, S923, S924, S925, S926, S927, S928, S929, S930 DIFF Only different in Model No and Color, the other the …
