2AGQIFX325-VASNFC Android Reader

NFC Android Reader FX325-VAS Operation Instruction 1. Safety Information Safety Specifications and Instructions for Battery of Mobile Phone Recommended Use Considerations ·Before the use of battery, please carefully read this operation instruction and the battery surface mark. ·During use, the battery shall be away from the heat source and the high pressure, and the children shall be prevented from playing batteries. Never knock the battery. This battery shall be only charged with the original match able charger. ·Do not enable the battery anode and cathode short-circuited. Do not assemble or disassemble the battery by yourself. Do not put the battery in the damp place to avoid danger. ·Store the battery in good condition if it is not used for a long time. Make the batter in the half-charge state, not fully charged and also not fully discharged. Danger warning ·Forbid to cause the battery to be short-circuited Do not connect the anode with the cathode through the metal. Do not store and move the batter and the metal together. If the battery is short-circuited, the ultrahigh circuit will flow through the battery to damage the battery and result in battery heating, smoking, distortion or burning. ·Avoid using the battery near the power supply Do not use the battery near the fire source and the oven or in the environment exceeding 80°C. Overheat will cause short circuit inside the battery to result in battery heating, smoking, distortion or burning. ·Use the special charger and correctly charge The use of non-special charger to charge the battery will cause danger. Charging in the abnormal condition will cause the loss of the function of the protection circuit inside the battery and abnormal chemical reaction, and the battery may be heated, smoke, and be distorted or burnt. ·Forbid to damage the battery Forbid to penetrate into the battery with the metal, beat or knock the battery or damage the battery by other means, otherwise it will may cause battery heating, smoking, distortion or burning, even result in danger. ·Do not use the battery for other devices The improper service conditions will damage the battery performance and reduce the service life, even cause battery heating, smoking, distortion or burning. Warnings ·Do not place the battery on the charger for a long time If the charger still charges the battery beyond the normal charging time, it should stop charging. Abnormal charging may cause battery heating, smoking, distortion or burning. ·Do not place the charger into the microwave oven or other pressure vessels. Transient heating or structural damage will cause battery heating, smoking, distortion or burning. ·The leaky battery should be kept away from fire If the leaky battery is found (or there is peculiar smell), it shall be kept away from fire, otherwise the leaked electrolyte will catch fire, even cause other dangers. Precautions ·Do not use the battery under strong sunlight Do not use the battery under strong sunlight for fear of heating, distortion and smoking. At least avoid reducing the battery performance and the service life. ·Anti-static The protection circuit installed in the battery can avoid various unforeseen circumstances. Do not use the battery in the high-voltage electrostatic site as the static is easy to damage the protection board to cause the abnormal operations of the battery such as heating, smoking, distortion or burning. ·User manual Before using the battery, please carefully read the user manual and frequently read it as required. ·Charging mode Please use the special charger and the recommended charging mode. Charge the battery in the recommended environmental condition. Use and maintenance of mobile phone This mobile phone is a product designed by the good technology. Please carefully use it. The following suggestions will help the users better use and maintain the mobile phone. ·Place the mobile phone and all parts at the place that the chil dren cannot touch. ·Do not store the mobile phone at the high temperature place. High temperature may shorten the service life of the electric device, damage the battery, distort or melt some plastic parts. ·Do not store the mobile phone at the low temperature place. When the battery is move to the normal temperature place from the low temperature place, the moisture may be generated inside the battery to cause the damage of circuit board. ·Never use the irritant chemicals, clean solvent or corrosive detergent to clean the mobile phone. To cleaning the mobile phone, please scrub the mobile phone with the duster cloth dipped with mild suds. ·Please use the original fittings recommended by the manufacturer. The unauthorized fittings may damage the mobile phone. ·If the mobile phone is moistened accidentally, please turn off and remove the battery, determine that the mobile phone has been dried, and then use the mobile phone. ·Never make the metal parts (specially configured charger interface and data line interface) in contact with the charger interface of the mobile phone for fear of short circuit. Import Instructions When using this mobile phone, please exactly follow the following precautions to avoid possible disasters or legal penalties. Pay attention to flight safety Never use the mobile phone on the airplane. The navigation system on the airplane may be interfered by the mobile phone. Many countries regulate that the mobile phone shall be prohibited to be used on the airplane. Pay attention to the surrounding environmental safety Never use the mobile phone in the gasoline station. In addition, never use the mobile phone in the oil storage plant, the chemical plant and when there are flammable or explosive objects around. Pay attention to the traffic safety Be careful when driving the vehicle, and avoid calling and driving at the same time as far as possible. Pay attention to radiated interference When using the mobile phone, keep the mobile phone away from the article or instrument susceptible to interfere…

Text truncated - open the document above for the full version.

FAMOCOSAS Address:59avenueVictorHugo,75116Paris,France Tel:0033768547488 Fax:0032497205648 Email:[email protected] CFR47§2.911(d)(5)(i)AttestationLetter AttestationLetter Date:2024-07-24 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsCFR47§2.911(d)(5)(i)Filing FCCID:2AGQIFX325-VAS FAMOCOSAScertifiesthattheequipmentforwhichauthorizationissought isnot“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuantto section2.903oftheFCCrules. Sincerely, Signature GillesFleury Manager

FAMOCOSAS Address:59avenueVictorHugo,75116Paris,France Tel:0033768547488 Fax:0032497205648 Email:[email protected] CFR47§2.911(d)(5)(ii)AttestationLetter AttestationLetter Date:2024-07-24 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsCFR47§2.911(d)(5)(ii)Filing FCCID:2AGQIFX325-VAS FAMOCOSAScertifiesthatasofthedateofthefilingoftheapplication,theapplicantisnot identifiedontheCoveredListasanentityproducing“covered”equipment. Sincerely, Signature GillesFleury Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2024-07-24 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AGQIFX325-VAS FAMOCO SAS certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. FAMOCO SAS accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: FAMOCO SAS Address: 59 avenue Victor Hugo, 75116 Paris, France FRN: 0025001579 Tel: 0033768547488 Email: [email protected] Signed by (printed name): Gilles Fleury Signature:

FAMOCO SAS Address: 59 avenue Victor Hugo, 75116 Paris, France Tel: 0033768547488 Fax: 0032497205648 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2024-07-24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We FAMOCO SAS, the undersigned, hereby authorizes Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Gilles Fleury Manager

FAMOCOSAS Address:59avenueVictorHugo,75116Paris,France Tel:0033768547488 Fax:0032497205648 Email:[email protected] FCCConfidentialAuthorization Date:2024-07-24 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestregardingapplicationforcertificationof FCCID:2AGQIFX325-VAS InaccordancewithSections0.457and0.459oftheCommission’sRules, FAMOCOSASherebyrequestslong-termconfidentialtreatmentofinformation accompanyingthisapplicationasoutlinedbelow: BlockDiagram Schematics OperationDescription SoftwareSecurityDescription Partlist/TuneupProcedure Theabovematerialscontainproprietaryandconfidentialinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsprovidesunjustified benefitstoitscompetitorsinthemarket. SincerelyYours, Signature: GillesFleury Manager

FAMOCOSAS Address:59avenueVictorHugo,75116Paris,France Tel:0033768547488 Fax:0032497205648 Email:[email protected] AttestationLetter Date:2024-07-24 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 DearSirorMadam: OurproductNFCAndroidReader,Modelnumber:FX325-VAS, FCCID:2AGQIFX325-VAS,ForuseintheUSmarket,thisproductonlysupportPCS1900, WCDMABand4,LTEband2/4/7/12/13/17/38/41(2496-2690MHz),BT(GFSK,π/4- DQPSK,8DPSK),BLE1M&2M,2.4GWi-Fi(2412-2472MHz,802.11b/g/n20/n40 modes),5GWi-Fi(5150-5250MHz;5725-5850MHz,802.11a/n20/n40/ac20/ac40/ac80 modes),FM(87.5-108MHz),GNSS,NFC(13.56MHz).Theotherfunctions,bandsand modeswasdisabledtousebymanufacturerinthesoftware,theenduserhasnocapability toactivateit. Sincerely, Signature GillesFleury Manager

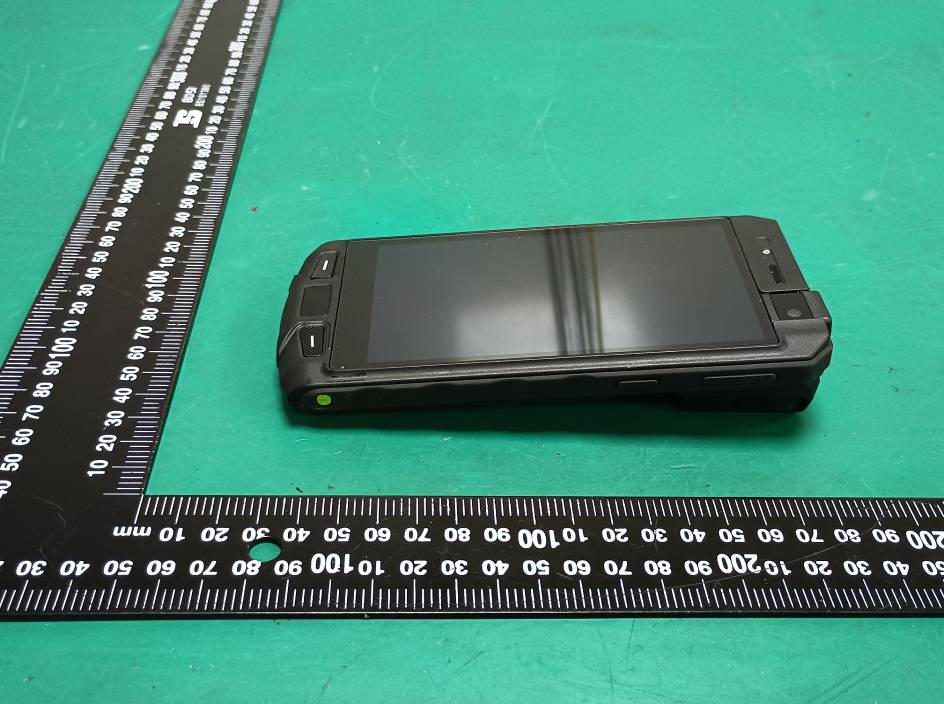

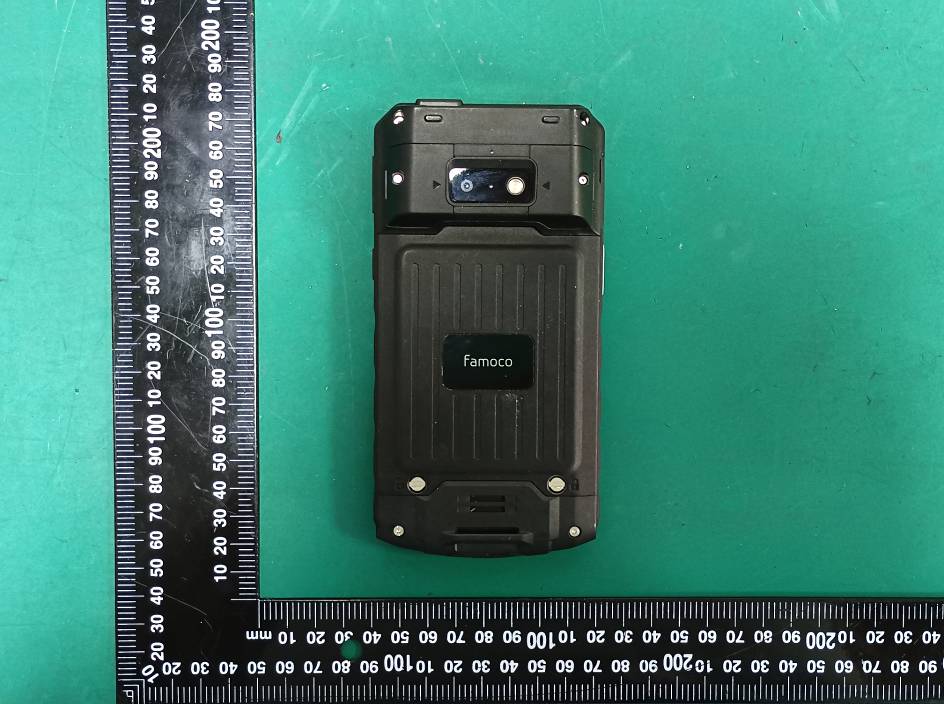

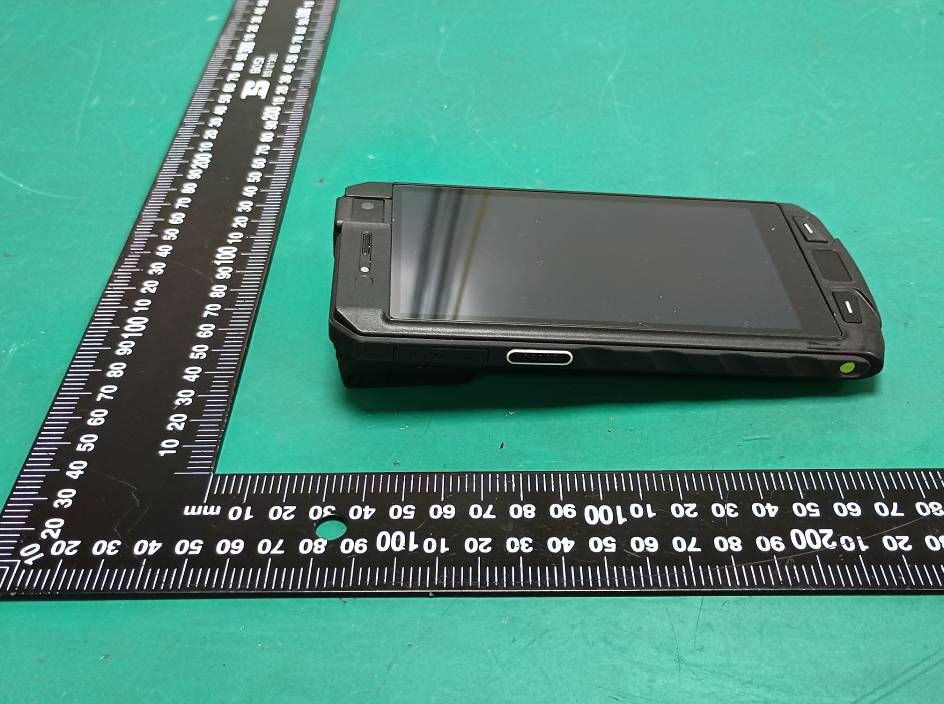

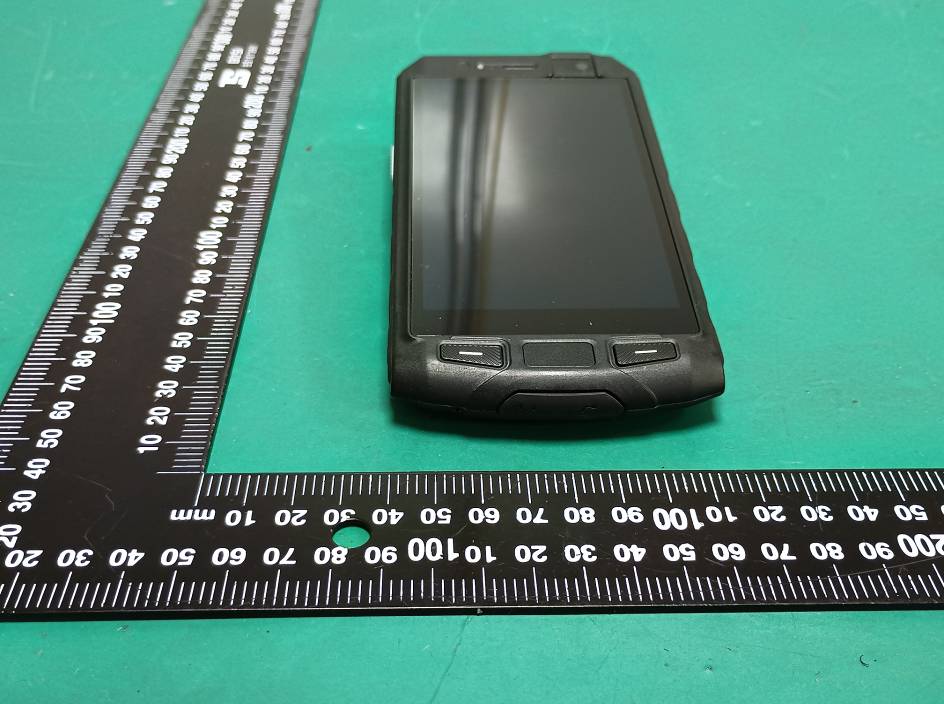

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 1 of 9 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 2 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 3 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 4 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 5 of 9 Charger Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 6 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 7 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 8 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 9 of 9

FX325-VAS FX325-VAS,1.00.T 25208-FX325-VAS 2AGQIFX325-VAS (01)03760291069854(21)1

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 1 of 20 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 2 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 3 of 20 NFC ANT Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 4 of 20 DIV ANT BT/Wi-Fi ANT Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 5 of 20 GSM/WCDMA/LTE MAIN ANT Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 6 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 7 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 8 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 9 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 10 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 11 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 12 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 13 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 14 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 15 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 16 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 17 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 18 of 20 Charger Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 19 of 20 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T35202E-RF Page 20 of 20

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401T35202E-RFB TR-EM-RF010 Page 14 of 110 Version 3.0 FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 - RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b) (1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result For worst case: Mode Frequency (MHz) Max tune-up conducted power # (dBm) Max tune-up conducted power # (mW) Distance (mm) Calculated value Threshold (1-g SAR) SAR Test Exclusion BLE 2402-2480 0.0 1.00 5 0.3 3.0 Yes Result: No Standalone SAR test is required For Wi-Fi mode, please refer to SAR report: Please refer to SAR test report: 2402T35202E-20A.

Test Plo t DUT: NF Commu n Medium Phanto m DASY5 C • • • • • Area Sc a Maximum Zoom S c Referenc Peak SAR SAR(1 g Maximum t 1#: PCS 190 FC Android R nication System parameters us m section: Flat Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: SA Measurement an (9x15x1):M m value of SA can (5x5x7) /C ce Value = 5.6 R (extrapolate g) = 0.087 W/k m value of SA 0 dB = 00_Low_Hea Reader; Typ m: Generic G sed: f =1850.2 Section n: DV4 - SN7839 ce: 1.4mm (M DAE4 Sn772; AM (30deg pro t SW: DASY5 Measurement AR (measured) Cube 0:Measu 601 V/m; Pow ed) = 0.125 W kg; SAR(10 g AR (measured) 0.0995 W/kg Pa ad Cheek e: FX325-V A SM (0); Frequ 2 MHz; σ = 1. 9; ConvF(8, 7. Mechanical Sur Calibrated: 2 obe tilt) with C 52, Version 52 grid: dx=15m ) = 0.0976 W/ urement grid: wer Drift =0.09 W/kg g) = 0.061 W/ ) = 0.0995 W/ = -10.02dBW age1/ 22 AS; Serial: 2M uency:1850.2 431 S/m; ε r =4 27, 7.03) @ 1 rface Detectio 024/1/23 CRP v5.0_201 2.10 (2); SEM mm, dy=15mm /kg dx=8mm, d y 9dB /kg /kg W/kg M31-1 MHz; Duty C 41.23; ρ = 100 1850.2 MHz; C on) 150321; Type MCAD X Vers m =8mm, dz=5 m Report No Cycle: 1:8 00 kg/m 3 ; Calibrated: 20 : QD000P40C ion 14.6.12 (7 mm o.: 2402T352 023/9/21 CD; Serial: TP 7470) 202E-20A P:1874 Test Plo t DUT: NF Commu n Medium Phanto m DASY5 C • • • • • Area Sc a Maximum Zoom S c Referenc Peak SAR SAR(1 g Maximum t 2#: PCS 190 FC Android R nication System parameters us m section: Flat Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: SA Measurement an (9x10x1):M m value of SA can (5x5x7) /C ce Value = 4.8 R (extrapolate g) = 0.590 W/k m value of SA 0 dB = 00_Low_Bod Reader; Typ m: Generic G sed: f = 1850. Section n: DV4 - SN7839 ce: 1.4mm (M DAE4 Sn772; AM (30deg pro t SW: DASY5 Measurement AR (measured) Cube 0:Measu 842 V/m; Pow ed) = 0.960 W kg; SAR(10 g AR (measured) 0.711 W/kg = Pa dy Back e: FX325-V A PRS-2 slots (0 2 MHz; σ = 1 9; ConvF(8, 7. Mechanical Sur Calibrated: 2 obe tilt) with C 52, Version 52 grid: dx=15m ) = 0.687 W/k urement grid: wer Drift = 0.19 W/kg g) = 0.351 W/ ) = 0.711 W/k = -1.48dBW/k age2/ 22 AS; Serial: 2M 0); Frequency .431 S/m; ε r = 27, 7.03) @ 1 rface Detectio 024/1/23 CRP v5.0_201 2.10 (2); SEM mm, dy=15mm kg dx=8mm, d y 9 dB /kg kg kg M31-1 y: 1850.2 MHz 41.23; ρ = 10 1850.2 MHz; C on) 150321; Type MCAD X Vers m =8mm, dz=5 m Report No z; Duty Cycle 00 kg/m 3 ; Calibrated: 20 : QD000P40C ion 14.6.12 (7 mm o.: 2402T352 e: 1:4 023/9/21 CD; Serial: TP 7470) 202E-20A P:1874 Test Plo t DUT: NF Commu n Medium Phanto m DASY5 C • • • • • Area Sc a Maximum Zoom S c Referenc Peak SAR SAR(1 g Maximum t 3#: WCDM FC Android R nication System parameters us m section: Flat Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: SA Measurement an (9x15x1):M m value of SA can (5x5x7) /C ce Value = 8.0 R (extrapolate g) = 0.297 W/k m value of SA 0 dB = MA Band 4_M Reader; Typ m: WCDMA sed: f =1732.6 Section n: DV4 - SN7839 ce: 1.4mm (M DAE4 Sn772; AM (30deg pro t SW: DASY5 Measurement AR (measured) Cube 0:Measu 041 V/m; Pow ed) = 0.421 W kg; SAR(10 g AR (measured) 0.339 W/kg = Pa Mid_Head Che e: FX325-VA (0); Frequenc 6 MHz; σ = 1. 9; ConvF(8.54 Mechanical Sur Calibrated: 2 obe tilt) with C 52, Version 52 grid: dx=15m ) = 0.322 W/k urement grid: wer Drift = 0.0 W/kg g) = 0.203 W/ ) = 0.339 W/k = -4.70dBW/k age3/ 22 eek AS; Serial: 2M cy:1732.6 MH 329 S/m; ε r =3 , 7.65, 7.43) @ rface Detectio 024/1/23 CRP v5.0_201 2.10 (2); SEM mm, dy=15mm kg dx=8mm, d y 1 dB /kg kg kg M31-1 Hz; Duty Cycle 39.311; ρ = 10 @ 1732.6 MH on) 150321; Type MCAD X Vers m =8mm, dz=5 m Report No e: 1:1 000 kg/m 3 ; Hz; Calibrated: : QD000P40C ion 14.6.12 (7 mm o.: 2402T352 : 2023/9/21 CD; Serial: TP 7470) 202E-20A P:1874 Test Plo t DUT: NF Commu n Medium Phanto m DASY5 C • • • • • Area Sc a Maximum Zoom S c Referenc Peak SAR SAR(1 g Maximum t 4#: WCDM FC Android R nication System parameters us m section: Flat Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: SA Measurement an (9x15x1):M m value of SA can (5x5x7) /C ce Value = 11. R (extrapolate g) = 0.662 W/k m value of SA 0 dB = MA Band 4_M Reader; Typ m: WCDMA sed: f =1732.6 Section n: DV4 - SN7839 ce: 1.4mm (M DAE4 Sn772; AM (30deg pro t SW: DASY5 Measurement AR (measured) Cube 0:Measu .61 V/m; Pow ed) = 1.07 W/k kg; SAR(10 g AR (measured) 0.792 W/kg = Pa Mid_Body Fro e: FX325-VA (0); Frequenc 6 MHz; σ = 1. 9; ConvF(8.54 Mechanical Sur Calibrated: 2 obe tilt) with C 52, Version 52 grid: dx=15m ) = 0.796 W/k urement grid: wer Drift = -0.1 kg g) = 0.390 W/ ) = 0.792 W/k = -1.01dBW/k age4/ 22 ont AS; Serial: 2M cy:1732.6 MH 329 S/m; ε r =3 , 7.65, 7.43) @ rface Detectio 024/1/23 CRP v5.0_201 2.10 (2); SEM mm, dy=15mm kg dx=8mm, d y 18 dB /kg kg kg M31-1 Hz; Duty Cycle 39.311; ρ = 10 @ 1732.6 MH on) 150321; Type MCAD X Vers m =8mm, dz=5 m Report No e: 1:1 000 kg/m 3 ; Hz; Calibrated: : QD000P40C ion 14.6.12 (7 mm o.: 2402T352 : 2023/9/21 CD; Serial: TP 7470) 202E-20A P:1874 Test Plo t DUT: NF Commu n Medium Phanto m DASY5 C • • • • • Area Sc a Maximum Zoom S c Referenc Peak SAR SAR(1 g Maximum t 5#: LTE Ba FC Android R nication System parameters us m section: Flat Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: SA Measurement an (9x15x1):M m value of SA can (5x5x7) /C ce Value = 7.7 R (extrapolate g) = 0.249 W/k m value of SA 0 dB = and 2_1RB_L Reader; Typ m: Generic FD sed: f =1860 M Section n: DV4 - SN7839 ce: 1.4mm (M DAE4 Sn772; AM (30deg pro t SW: DASY5 Measurement AR (measured) Cube 0:Measu 730 V/m; Pow ed) = 0.355 W kg; SAR(10 g AR (measured) 0.284 W/kg = Pa Low_Head Ch e: FX325-VA DD-LTE (0); MHz; σ = 1.43 9; ConvF(8, 7. Mechanical Sur Calibrated: 2 obe tilt) with C 52, Version 52 grid: dx=15m ) = 0.280 W/k urement grid: wer Drift = 0.06 W/kg g) = 0.168 W/ ) = 0.284 W/k = -5.47dBW/k age5/ 22 heek AS; Serial: 2M Frequency:18 34 S/m; ε r =41 27, 7.03) @ 1 rface Detectio 024/1/23 CRP v5.0_201 2.10 (2); SEM mm, dy=15mm kg dx=8mm, d y 6 dB /kg kg kg M31-1 860 MHz; Dut .099;…

Text truncated - open the document above for the full version.

APPENDIX D PROBE CALIBRATION CERTIFICATES

APPENDIX E - DIPOLE CALIBRATION CERTIFICATES D750V3 - SN:1167 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss(< -20dB, within 20% of prior calibration), and in impedance(within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration D750V3 - SN:1167 750MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/10/31 (Cal. Report) -26.709 / 52.987 / -3.7065 / 2023/10/30 (Extended) -26.572 -0.5154.922 1.935 -0.12796 3.57854 Th e return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data> D750V3 - SN:1167 (Date of Measurement: 2023/10/30) 750MHz - Head D1900V2 - SN:543 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss(< -20dB, within 20% of prior calibration), and in impedance(within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration D1900V2 - SN:543 1900MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/2 (Cal. Report) -28.189 / 49 .908/3 .8 937/ 2023/11/1 (Extended) -29.552 4.84 48.632 -1.2762.9874 -0.9063 Th e return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data> D1900V2 - SN:543 (Date of Measurement: 2023/11/1) 1900MHz - Head D2600V2 - SN:1132 Extended Dipole Calibrations Referring to KDB 865664 D01, if dipoles are verified in return loss(< -20dB, within 20% of prior calibration), and in impedance(within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration D2600V2 - SN:1132 2600MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/1 (Cal. Report) -22.741 / 47.028 / -6.4392 / 2023/10/31 (Extended) -24.494 7.71 49.797 2.769 -5.9560 0.4832 Th e return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data> D2600V2 - SN:1132 (Date of Measurement: 2023/10/31) 2600MHz - Head D5GHzV2 - SN:1246 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss(< -20dB, within 20% of prior calibration), and in impedance(within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration D5GHzV2 - SN:1246 5250MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/1 (Cal. Report) -29.797 / 49.124 / -3.0884 / 2023/10/31 (Extended) -24.478 -17.8544.921 -4.203-2.4867 0.6017 5600MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/1 (Cal. Report) -26.903 / 51.979 / 4.1641 / 2023/10/31 (Extended) -23.693 -11.9355.429 3.45 4.2531 0.089 5750MHz Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2022/11/1 (Cal. Report) -27.590 / 53.547 / 2.4705 / 2023/10/31 (Extended) -22.325 -19.0854.178 0.631 4.2594 1.7889 Th e return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verific ation Data> D5GHzV2 - SN:1246 (Date of Measurement: 2023/10/31) 5250MHz/5600MHz/5750MHz - Head

FCC SAR TEST REPORT Applicant: FAMOCO SAS Address: 59 avenue Victor Hugo, 75116 Paris, France Product Name: NFC Android Reader FCC ID: 2AGQIFX325-VAS Standard(s): 47 CFR Part 2(2.1093) Report Number: 2402T35202E-20A Report Date: 2024/08/07 The above device has been tested and found compliant with the requirement of the relative standards by Bay Area Compliance Laboratories Corp. (Dongguan). Reviewed By: Mark Dong Approved By: Brave Lu Title: SAR Engineer Title: SAR Engineer Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Note: The information marked ▲ is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with ★.This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2402T35202E-20A Report Template Version: FCC SAR-V1.0 Page 2 of 82 SAR TEST RESULTS SUMMARY Mode Max. Reported SAR Level(s) (W/kg) Limit (W/kg) PCS 1900 1g Head SAR 0.10 1. 6 1g Body SAR 0.66 WCDMA Band 4 1g Head SAR 0.32 1g Body SAR 0.71 LTE Band 2 1g Head SAR 0.26 1g Body SAR 0.96 LTE Band 4 1g Head SAR 0.30 1g Body SAR 1.05 LTE Band 7 1g Head SAR 0.09 1g Body SAR 1.04 LTE Band 12 1g Head SAR 0.27 1g Body SAR 0.42 LTE Band 13 1g Head SAR 0.20 1g Body SAR 0.50 LTE Band 41&38 1g Head SAR 0.15 1g Body SAR 0.80 Wi-Fi 2.4G 1g Head SAR 0.23 1g Body SAR 0.14 Wi-Fi 5.2G 1g Head SAR 0.41 1g Body SAR 0.24 Wi-Fi 5.8G 1g Head SAR 0.58 1g Body SAR 0.48 Simultaneous 1g Head SAR 0.90 1g Body SAR 1.53 1g Body SAR 1.53 (Hotspot) Body SAR Test Distance 10mm Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-2:2010+AMD1:2019 ED1 Amendment 1 - Human exposure to radio frequency fields from hand-held and body- mounted wireless communication devices - Human models, instrumentation, and procedures - Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency ran ge of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 941225 D06 Hotspot Mode v02r01 KDB 248227 D01 802.11 Wi-Fi SAR v02r02 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2402T35202E-20A Report Template Version: FCC SAR-V1.0 Page 3 of 82 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2402T35202E-20A Report Template Version: FCC SAR-V1.0 Page 4 of 82 CONTENTS SAR TEST RESULTS SUMMARY ·································································· 2 DOCUMENT REVISION HISTORY ································································ 6 1. GENERAL INFORMATION ······································································· 7 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ······································ 7 2. REFERENCE, STANDARDS, AND GUIDELINES ··················…

Text truncated - open the document above for the full version.
