2AGR80001Bluetooth scales

Please insert batteries or remove the insulating strip from the battery contacts before using. Replace the batteries when the "Low Battery Indicator" shows. INSTRUCTION MANUAL Equipped with High Precision "Strain-Gauge" Sensors Capacity 180kg (396lb/28.3st) Division 100g/0.2lb Blue backlight LCD Display Bluetooth 4.0 1.Place the scale on a hard,flat surface will ensure on the greatest accuracy and repeatability. 2.Turn on APP and set your parameter. If no weighing is carried out or weight is stable on the scale the scale will automatically switch off after approximately 10 seconds. When the scales are overloaded(over180kg/396lb/28.3st),the following will appear on the screen: When the batteries need replacing,the following will appear on the screen: Please open the back board of the scales,then take batteries carefully out of the battery compartment. Place your scales on a hard, flat surface will ensure the great- est accuracy and repeatability. Always weigh yourself on the same scales placed on the same floor surface. Uneven floors may affect the readings. Keep packaging material away from children! Protect the scale against knocks,damp,dust,chemicals, drastic changes in temperature, electromagnetic field and source of heat that are too near. Never step onto the outer edge of the scale with one foot as this could cause the scales to tip! If the scale would not be used in a long period,please take the battery out,and make sure there is nothing on the scale. Store the scale horizontally,don’t vertically. If the reading appears inaccurate or LCD without displaying. please check if the battery and the contact point are well connected. Scale,body fat,body water,muscle percentage,bone mass and calories analysis 6 in 1 Auto on/zero/off Overload and Low Battery Indication 3.Stepping onto the scale,show the weight then the number on LCD flash 3 times,wait for about 3 seconds,the data transfer to your smart phone. 4.Bluetooth body fat scale:manage the weight ,body water, muscle percentage,bone mass and calories data. APP download Android and IOS APP: Please scan the right QR code and download Fitbrick App Warm Tip Please make sure the reality:Age,Sex,Height.so that get the exact data. THANK YOUR FOR CHOOSING OUR HIGH PRECISION BLUETOOTH SCALE.IN ORDER TO CORRECTLY USE THE SCALE,PLEASE READ THE INSTRUCTION CAREFULLY. Cleaning:You can clean the scale with a damp cloth and a little washing up liquid, if required. Never immerse the scale in water or rinse it under running water. Note:without turning on the APP,only show the weight Bluetooth body fat scale

Zhongshan Loease Electronic Technology Co., ltd AGENCY AUTHORIZATION LETTER Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AGR80001Date：2015/12/4 To whom it may concern: We, the undersigned, hereby authorize Jerry Chan from SGS-CSTC Standards Technical Services Co., Ltd. to act on our behalf, as our agent, in thefollowing matters related to the FCC approval of our product: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Jerry Chan within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, -------------------------------------- Name/Title zeng fugen/Technical Manager Company Name: Zhongshan Loease Electronic Technology Co., ltd Address: No.1, yi road, yongxing industrial zone, henglan town, zhongshan City, China Tel: 18664738292 Fax: 076087610769 Email: [email protected]

Zhongshan Loease Electronic Technology Co., ltd Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AGR80001 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit TypeFile Name Block DiagramBlock Diagram.pdf SchematicsSchematics.pdf Operational DescriptionOperational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, -------------------------------------- Name/Title zeng fugen/Technical Manager Company Name: Zhongshan Loease Electronic Technology Co., ltd Address: No.1, yi road, yongxing industrial zone, henglan town, zhongshan City, China Tel: 18664738292 Fax: 076087610769 Email: [email protected]

Model Difference Statement We Zhongshan Loease Electronic Technology Co., ltd. states that Bluetooth scales and W62, W08, W11, W18, W23, W50, W51, W52, W53, W54, W55, W56, W57, W58, W59, W60, W61, W62, W63, W64, W65, W66, W67, W68, W69, W70, W71, W72, W73, W74, W75, W76, W77, W78, W79, W80, W81, W82, W83, W84, W85, W86, W87, W88, are identical in interior structure, electrical circuits and components, only difference being the model no. and appearance. Confirmed by: —————————————————— Name/Title zeng fugen/Technical Manager Company Name: Zhongshan Loease Electronic Technology Co., ltd Address: No.1, yi road, yongxing industrial zone, henglan town, zhongshan City, China Tel: 18664738292 Fax: 076087610769 Email: [email protected]

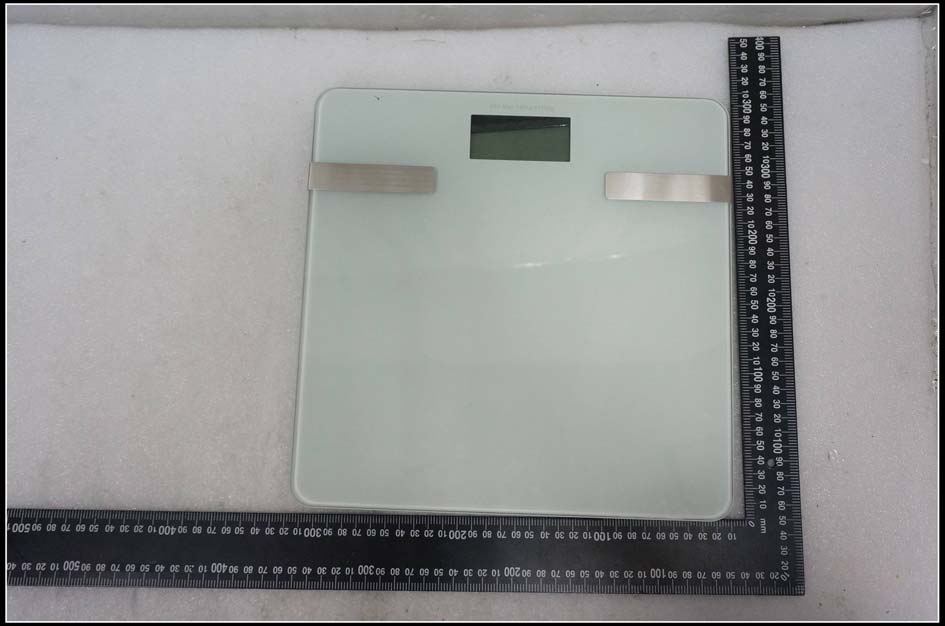

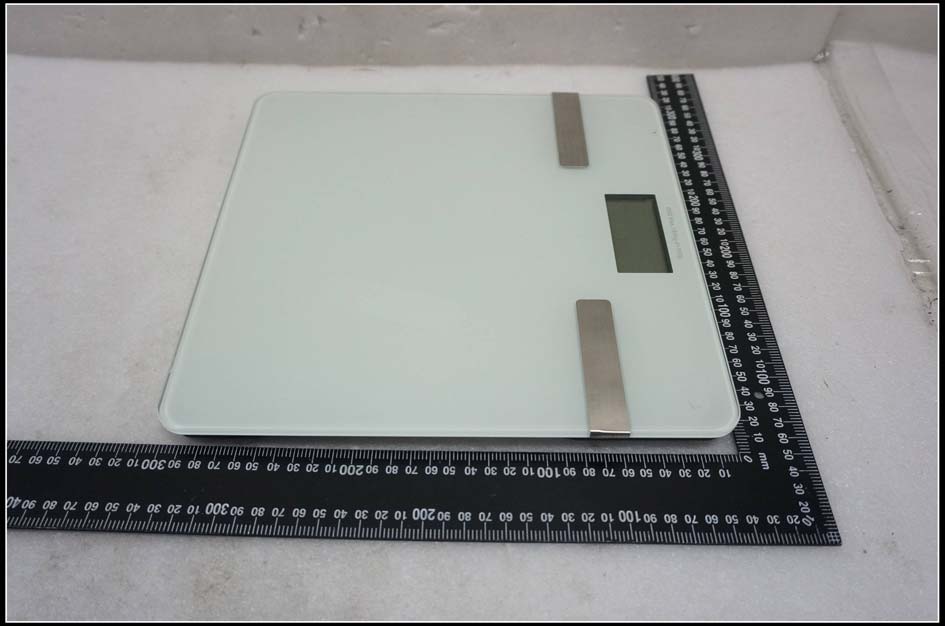

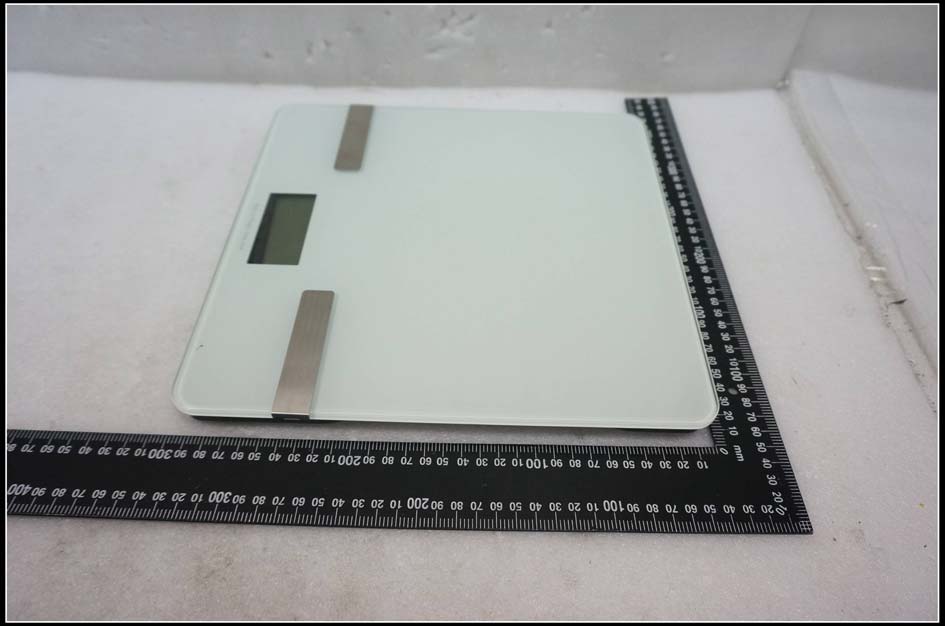

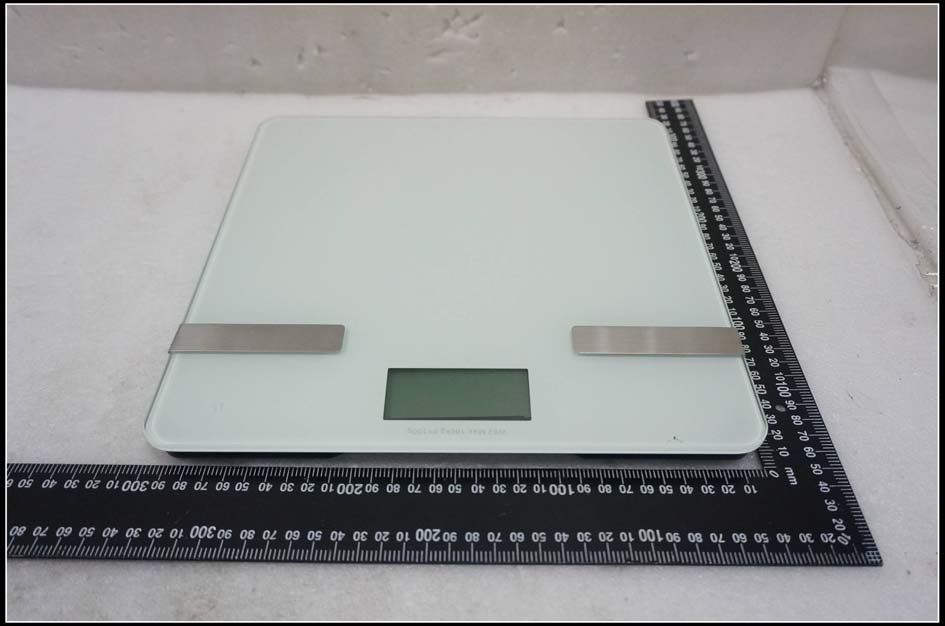

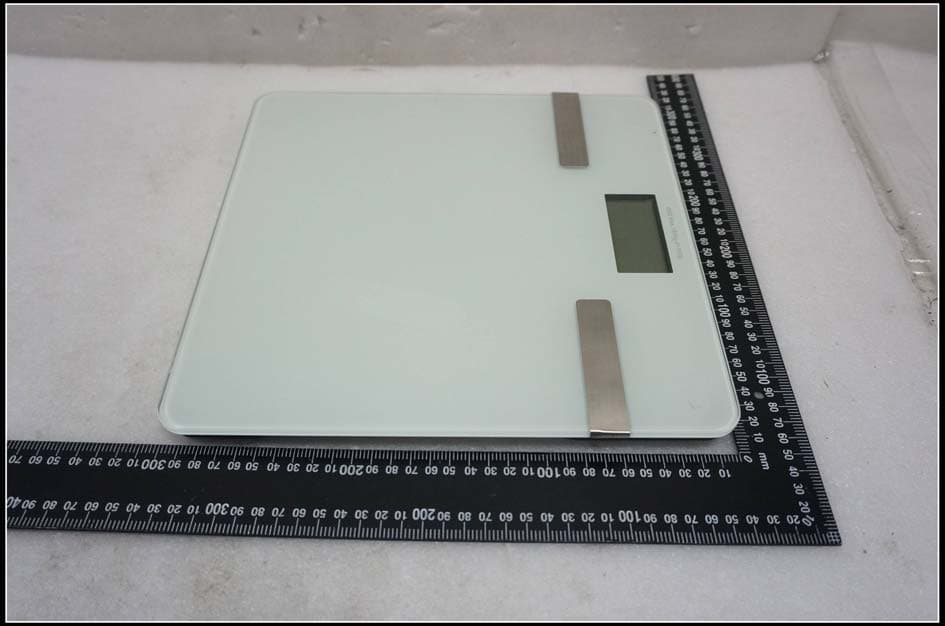

External Photo

Internal Photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM151100609001 Page: 1 of 42 FCC ID: 2AGR80001 Authorized Signature: Jerry Chan Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issue d by the Compa ny subject to its Genera l Conditions of Serv ice printed ov erleaf, av ailable on request or acces sible a t http:// www.sgs.com/en/Terms-an d-Cond it ions.aspxa nd,for electr onic for ma t doc uments, s ubjec t to Terms and Conditions for Elec tr onic Doc ume nts a t http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. An y unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 1 Cover Page TEST REPORT The following sample(s) was/were submitted and identified on behalf of the client as: Application No.: GZEM1511006090LM Applicant: Zhongshan Loease Electronic Technology Co., ltd Manufacturer: Same as applicant Factory: Same as applicant FCC ID: 2AGR80001 Product Description: Bluetooth scales Model No.: W08, W11, W18, W23, W50, W51, W52, W53, W54, W55, W56, W57, W58, W59, W60, W61, W62, W63, W64, W65, W66, W67, W68, W69, W70, W71, W72, W73, W74, W75, W76, W77, W78, W79, W80, W81, W82, W83, W84, W85, W86, W87, W88 ♣ ♣ Please refer to section 3 of this report for further details. Standards: CFR 47 FCC PART 15 Subpart C: 2014 section 15.247 Date of Receipt: 2015-11-30 Date of Test: 2015-12-09 Date of Issue: 2015-12-14 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM151100609001 Page: 2 of 42 FCC ID: 2AGR80001 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-12-14 Original Report Authorized for issue by: Tested By 2015-12-09 (Curry Wu) / Project Engineer Date Prepared By 2015-12-14 (Icy Chen) / Clerk Date Checked By 2015-12-14 (Ricky Liu) / Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM151100609001 Page: 3 of 42 FCC ID: 2AGR80001 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the…

Text truncated - open the document above for the full version.

Test Setup Photo 1.1 RADIATED SPURIOUS EMISSION TEST SETUP Below 1GHz: Above 1GHz: (full anechoic chamber)
