2AGRS-569DDual Band Digital Two-Way Radio

Quanzhou Risen Electronics Co., Ltd No.26, Zishan Road, Jiangnan High-tech Industrial Zone, Licheng District, Quanzhou, Fujian, China Extended Frequencies Justification Date: 2023-07-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, The Radio with FCC ID: 2AGRS-569D This transmitter was designed to operate in following frequency ranges: 136-174MHz, 400-470MHz To operate in the USA in the frequency range 136-174MHz,400MHz-406MHz, 406.1MHz-470MHz. the frequency ranges 406MHz-406.1MHz are disabled. Third party is not able to programming the transmit and receive channels. To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Quanzhou Risen Electronics Co., Ltd is requesting that the FCC lists the frequencies 136-174MHz, 400~406MHz,406.1~470MHz under FCC Rule Part 90 on the FCC Grant. Quanzhou Risen Electronics Co., Ltd attests that the Dual Band Digital Two-Way Radio will not be marketed to USA users with the frequency band which is not allowed by the rule part 90. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) FCC Rule Part 136-150 For Federal 150-150.05 For Federal 150.05-150.8 90 150.8-162.0125 90 162.0125-173.2 90 173.2-173.4 90 173.4-174 For Federal 400-406 For Federal Quanzhou Risen Electronics Co., Ltd No.26, Zishan Road, Jiangnan High-tech Industrial Zone, Licheng District, Quanzhou, Fujian, China 406.1-420 90 420-421 90 421-430 90 430-450 90 450-470 90 Sincerely Yours, Signature: Larry Yang

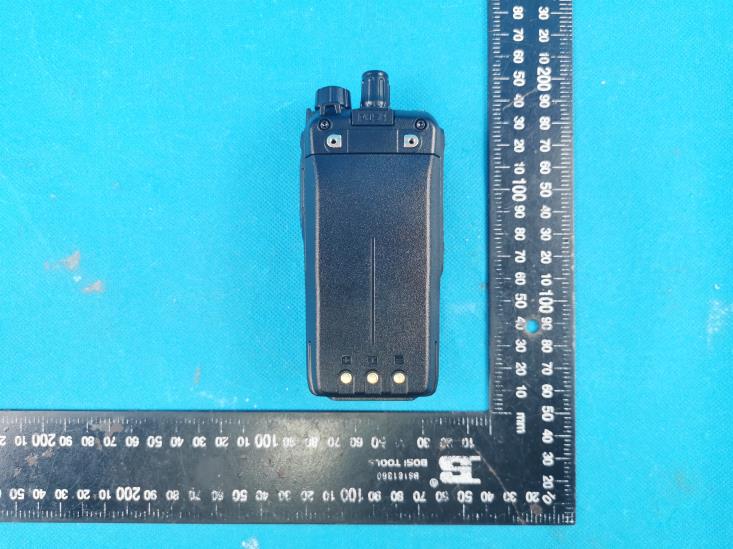

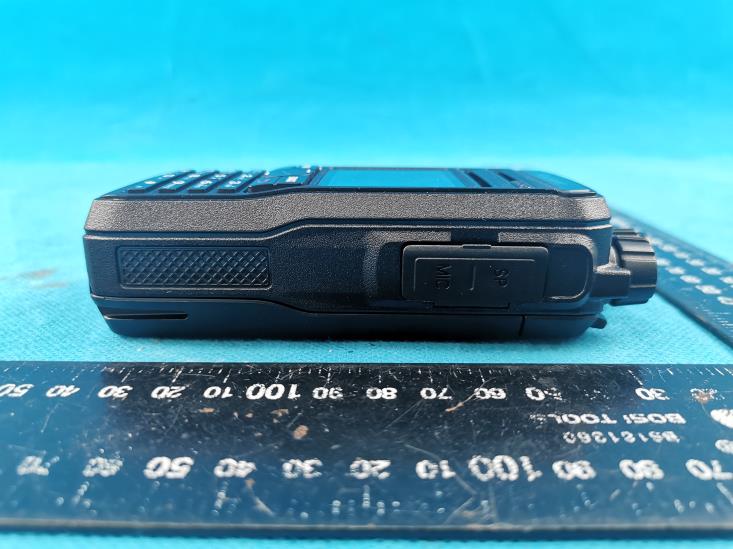

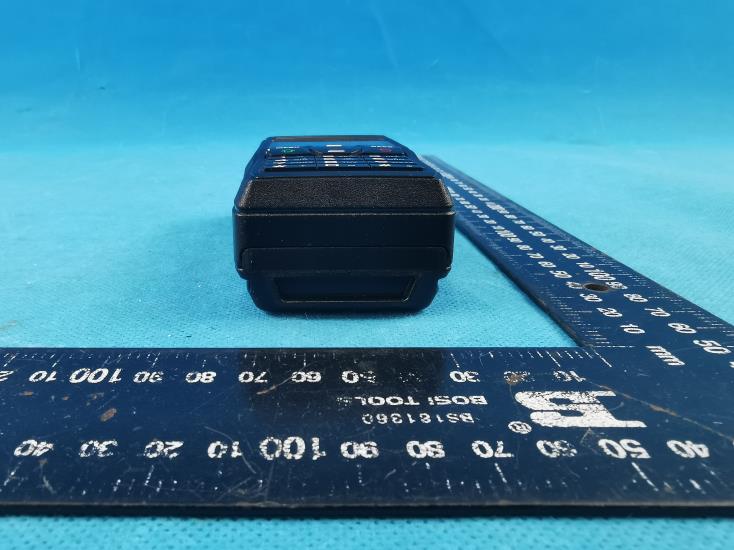

External photos

Internal photos

Page: 1 of 27 TEST REPORT Report No. ...................................... : CHTEW23050063 Report vertification: Project No. ...................................... : SHT2305026002EW FCC ID ............................................. : 2AGRS-569D Applicant’s name ........................... : Quanzhou Risen Electronics Co., Ltd Address ............................................. : No.26, Zishan Road, Jiangnan High-tech Industrial Zone, Licheng District, Quanzhou, Fujian, China Test item description .................... : Dual Band Digital Two-Way Radio Trade Mark ....................................... : - Model/Type reference ....................... : RS-569D Listed Model(s) ................................. : DSR-569D, TS-XR88 Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample.........: May 15, 2023 Date of testing.............................: May 15, 2023- May 25, 2023 Date of issue...............................: May 26, 2023 Result .................. ........................: PASS Compiled by ( position+printed name+signature) .. : File administrators: Fanghui Zhu Supervised by ( position+printed name+signature) .. : Test Engineer: Weiyang Xiang Approved by ( position+printed name+signature) .. : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW23050063 Page: 2 of 27 Issued: 2023-05-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) Contents 1. Statement of Compliance 3 2. Test Standards and Report version 4 2.1. Test Standards 4 2.2. Report version 4 3. Summary 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Test frequency list 6 3.5. Testing Laboratory Information 7 3.6. Environmental conditions 7 4. Equipments Used during the Test 8 5. Measurement Uncertainty 9 6. SAR Measurements System Configuration 10 6.1. SAR Measurement Set-up 10 6.2. DASY5 E-field Probe System 11 6.3. Phantoms 12 6.4. Device Holder 12 7. SAR Test Procedure 13 7.1. Scanning Procedure 13 7.2. Data Storage and Evaluation 15 8. Position of the wireless device in relation to the phantom 17 8.1. Front-of-face 17 8.2. Body Position 17 9. Dielectric Property Measurements & System Check 18 9.1. Tissue Dielectric Parameters 18 9.2. SAR System Validation 19 9.3. System Check 19 10. SAR Exposure Limits 23 11. Radiated Power Measurement Results and Tune-up 24 12. SAR Measurement Results 26 13. Test Setup Photos 27 14. External and Internal Photos of the EUT 27 Report No.: CHTEW23050063 Page: 3 of 27 Issued: 2023-05-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions TNF Head(Dist.= 25mm) 1.534 Body-worn(Dist.= 0mm) 2.963 Note: 1. This device is in compliance with Specific Absorption Rate (SAR) for occupational/controlled exposure limits (8 W/kg) specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992. 2. This device had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and FCC KDB publications. Report No.: CHTEW23050063 Page: 4 of 27 Issued: 2023-05-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency Radiation Exposure Evaluation:Portable Devices IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations KDB 447498 D04 Interim General RF Exposure Guidance v01: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 643646 D01:SAR Test for PTT Radios v01r03: SAR Test Reduction Considerations for Occupational PTT Radios TCB workshop: April, 2019; Page 19, Tissue Simulating Liquids (TSL) 2.2. Report version Revision No. Date of issue Description N/A 2023-05-26 Original Report No.: CHTEW23050063 Page: 5 of 27 Issued: 2023-05-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) 3. Summary 3.1. Client Information Applicant: Quanzhou Risen Electronics Co., Ltd Address: No.26, Zishan Road, Jiangnan High-tech Industrial Zone, Licheng District, Quanzhou, Fujian, China Manufacturer: Quanzhou Risen Electronics Co., Ltd Address: No.26, Zishan Road, Jiangnan High-tech Industrial Zone, Licheng District, Quanzhou, Fujian, China 3.2. Product Description Main unit Name of EUT: Dual Band Digital Two-Way Radio Trade Mark: - Model No.: RS-569D Listed Model(s): DSR-569D, …

Text truncated - open the document above for the full version.

Appendix Report Appendix:1 of 3 Appendix clause Result APASS BPASS Conducted Power Measurement Results SAR Measurement Results Test EngineerAuditor Test Item Start test date 2023/5/17 Finish date 2023/5/19 Temperature 22.5°C Humidity 42% Project No. SHT2305026002EW Test sample No. YPHT23050260003 Model No. RS-569D-DSR-569D Project No.:SHT2305026002EW Appendix: 2/3 Appendix A:Conducted Power Measurement Results ChannelMHz CH1400.012536.2036.50 CH2417.500036.3036.50 CH3435.000036.3036.50 CH4452.500036.2036.50 CH5469.987536.2036.50 CH1136.012536.5036.50 CH2145.500036.4036.50 CH3155.000036.6037.00 CH4164.500036.7037.00 CH5173.987536.5036.50 Power Frequency Mode Digtal 400-470 Digtal 136-174 Channel Separation 12.5kHz 12.5kHz Conducted Power (dBm) Tune up limit (dBm) Project No.:SHT2305026002EW Appendix: 3/3 Appendix B:SAR Measurement Results Measured SAR(1g) Report SAR(1g) 50% Duty SAR(1g) CHMHz(W/kg)(W/kg)(W/kg) CH1400.012536.2036.501.072----- CH2417.500036.3036.501.047----- CH3435.000036.3036.501.0470.072.9303.0681.5341 CH4452.500036.2036.501.072----- CH5469.987536.2036.501.072----- CH1136.012536.5036.501.000----- CH2145.500036.4036.501.023----- CH3155.000036.6037.001.096----- CH4164.500036.7037.001.072-0.170.2400.2570.1292 CH5173.987536.5036.501.000----- Measured SAR(1g) Report SAR(1g) 50% Duty SAR(1g) CHMHz(W/kg)(W/kg)(W/kg) CH1400.012536.2036.501.072----- CH2417.500036.3036.501.047 -- --- CH3435.000036.3036.501.047-0.195.6605.9272.9633 CH4452.500036.2036.501.072----- CH5469.987536.2036.501.072----- CH1136.012536.5036.501.000----- CH2145.500036.4036.501.023----- CH3155.000036.6037.001.096----- CH4164.500036.7037.001.072-0.160.4710.5050.2524 CH5173.987536.5036.501.000----- Plot No. Plot No. Digtal 400-470 Digtal 136-174 Channel Separation 12.5kHz 12.5kHz Channel Separation 12.5kHz 12.5kHz Head Frequency Body-worn Frequency Mode Digtal 400-470 Digtal 136-174 Mode Conducted Power (dBm) Conducted Power (dBm) Tune up limit (dBm) Tune up limit (dBm) Tune up scaling factor Tune up scaling factor Power Drift (dB) Power Drift (dB) Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 5/19/2023 U-Digital-CH3-12.5k-Head Communication System: UID 0, Digital (0); Frequency: 435 MHz;Duty Cycle: 1:2.03939 Medium parameters used: f = 435 MHz; σ = 0.834 S/m; ε r = 42.762; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.2°C;Liquid Temperature:22.0°C; DASY Configuration: lProbe: EX3DV4 -SN3748; ConvF(9.72, 9.72, 9.72); Calibrated: 8/3/2022; lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.0(1446); SEMCAD X 14.6.10(7417) Front of face/CH 3/Area Scan (61x201x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.94 W/kg Front of face/CH 3/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 66.57 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 4.46 W/kg SAR(1 g) = 2.93 W/kg; SAR(10 g) = 2.13 W/kg Maximum value of SAR (measured) = 3.86 W/kg 0 dB = 3.86 W/kg = 5.87 dBW/kg Appendix D Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 5/18 /2023 V-Digitai-CH4-12.5k-Head Communication System: UID 0, Digital (0); Frequency: 164.5 MHz;Duty Cycle: 1:2.01465 Medium parameters used (interpolated): f = 164.5 MHz; σ = 0.735 S/m; ε r = 50.636; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.6°C;Liquid Temperature:22.4°C; DASY Configuration: lProbe: EX3DV4 -SN3748; ConvF(11.72, 11.72, 11.72); Calibrated: 8/3/2022; lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.0(1446); SEMCAD X 14.6.10(7417) Front of face/CH 4/Area Scan (61x211x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.336 W/kg Front of face/CH 4/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.33 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 0.409 W/kg SAR(1 g) = 0.240 W/kg; SAR(10 g) = 0.181 W/kg Maximum value of SAR (measured) = 0.330 W/kg 0 dB = 0.330 W/kg = -4.81 dBW/kg Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 5/19/2023 U-Digital-CH3-12.5k-Body Communication System: UID 0, Digital (0); Frequency: 435 MHz;Duty Cycle: 1:2.03939 Medium parameters used: f = 435 MHz; σ = 0.834 S/m; ε r = 42.762; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.6°C;Liquid Temperature:22.4°C; DASY Configuration: lProbe: EX3DV4 -SN3748; ConvF(9.72, 9.72, 9.72); Calibrated: 8/3/2022; lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.0(1446); SEMCAD X 14.6.10(7417) Rear/CH 3/Area Scan (61x201x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 7.78 W/kg Rear/CH 3/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 93.57 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 8.47 W/kg SAR(1 g) = 5.66 W/kg; SAR(10 g) = 4.12 W/kg Maximum value of SAR (measured) = 7.40 W/kg 0 dB = 7.40 W/kg = 8.69 dBW/kg Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 5/18 /2023 V-Digitai-CH4-12.5k-Body Communication System: UID 0, Digital (0); Frequency: 164.5 MHz;Duty Cycle: 1:2.01465 Medium parameters used (interpolated): f = 164.5 MHz; σ = 0.735 S/m; ε r = 50.636; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.5°C;Liquid Temperature:22.3°C; DASY Configuration: lProbe: EX3DV4 -SN3748; ConvF(11.72, 11.72, 11.72); Calibrated: 8/3/2022; lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.0(1446); SEMCAD X 14.6.…

Text truncated - open the document above for the full version.

Page: 1 of 39 TEST REPORT Report No. ....................................... : CHTEW23050069 Report verification: Project No. ................................. : SHT2305026001EW FCC ID ............................................ : 2AGRS-569D Applicant’s name ........................... : Quanzhou Risen Electronics Co., Ltd Address.............................................: No.26, Zishan Road, Jiangnan High-tech Industrial Zone, Licheng District, Quanzhou, Fujian, China Product name ................................. : Dual Band Digital Two-Way Radio Trade Mark ....................................... : - Model No. ......................................... : RS-569D Listed Model(s) ................................. : DSR-569D, TS-XR88 Standard .......................................... : FCC CFR Title 47 Part 90 Date of receipt of test sample.........: May.15, 2023 Date of testing.............................: May.15, 2023-May.29, 2023 Date of issue...............................: May.29, 2023 Result ................. ........................: PASS Compiled by (Position-Printed name-Signature) : File administrators Fanghui Zhu Supervised by (Position-Printed name-Signature) : Project Engineer Caspar Chen Approved by (Position-Printed name-Signature) : RF Manager Hans Hu Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................ : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW23050069 Page: 2 of 39 Issued: 2023-05-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) Contents 1 T E S T S T A N D A R D S A N D RE P O R T V E R S I O N 3 1.1. Test standard 3 1.2. Report revised information 3 2 T E S T D E S C R I P T I O N 4 3 S U M M A R Y 5 3.1 Client information 5 3.2 Product description 5 3.3 Radio Specification Description *1 5 3.4 Testing laboratory information 6 4 T E S T C O N F I G U R A T I ON 7 4.1 Test frequency list 7 4.2 Operation mode 7 4.3 Support unit used in test configuration and system 8 4.4 Testing environmental condition 9 4.5 Measurement uncertainty 9 4.6 Equipment used during the testing 10 5 T E S T C O N D I T I O N S A N D R E S U L T S 11 5.1 Conducted carrier output power 11 5.2 99% occupied bandwidth & 26dB bandwidth 12 5.3 Emission mask 14 5.4 Modulation limit 16 5.5 Audio frequency response 17 5.6 Frequency stability VS temperature 19 5.7 Frequency stability VS voltage 20 5.8 Transmitter frequency behavior 21 5.9 Transmit conducted spurious emission 23 5.10 Transmitter radiated spurious emission 24 6 T E S T S E T U P P H O T O S 33 7 E X T E R N A L A N D I N T E R N AL P H O T O S 35 7.1 External photos 35 7.2 Internal photos 37 8 A P P E N D I X R E P O R T 39 Report No.: CHTEW23050069 Page: 3 of 39 Issued: 2023-05-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 1 TEST STANDARDS AND REPORT VERSION 1.1. Test standard The tests were performed according to following standards: FCC Rules Part 90: Private land mobile radio services. FCC Rules Part 2: Frequency allocations and radio treaty matters; General rules and regulations ANSI C63.26-2015: American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services ANSI/TIA-603-E-2016: Land Mobile FM or PM Communications Equipment and Performance Standards ANSI C63.4-2014: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 1.2. Report revised information Revised No. Date of issued Description N/A 2023-05-29 Original Report No.: CHTEW23050069 Page: 4 of 39 Issued: 2023-05-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 2 TEST DESCRIPTION Section Test Item Section Result Test Engineer 5.1 Conducted carrier output power Part 90.205 Part 2.1046(a) Pass Chunshui Gu 5.2 99% occupied bandwidth & 26dB bandwidth Part 90.209 & 210 Part 2.1049 Pass Chunshui Gu 5.3 Emission mask Part 90.209 & 210 Part 2.1049 Pass Chunshui Gu 5.4 Modulation limit Part 2.1047(b) N/A N/A 5.5 Audio frequency response Part 2.1047(a) N/A N/A 5.6 Frequency stability VS temperature Part 90.213 Part 2.1055 Pass Chunshui Gu 5.7 Frequency stability VS voltage Part 90.213 Part 2.1055 Pass Chunshui Gu 5.8 Transient frequency behavior Part 90.214 Pass Chunshui Gu 5.9 Transmit conducted spurious emission Part 90.210 Part 2.1051 Pass Chunshui Gu 5.10 Transmit radiated spurious emission Part 90.210 Part 2.1053 Pass Yifan Wang Note: The measurement uncertainty is not included in the test result. N/A: Not Applicable Report No.: CHTEW23050069 Page: 5 of 39 Issued: 2023-05-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 3 SUMMARY 3.1 Client information Applicant: Quanzhou Risen Electronics Co., Ltd Address: No.26, Zishan Road, Jiangnan High-tech Industrial Zone, Licheng District, Quanzhou, Fujian, China Manufacturer: Quanzhou Risen Electronics Co., Ltd Address: No.26, Zishan Road, Jiangnan High-tech Industrial Zone, Licheng District, Quanzhou, Fujian, China 3.2 Product description Main unit information: Product name: Dual Band Digital Two-Way Radio Trade mark: - Model No.: RS-569D Listed model(s): DSR-569D, TS-XR88 Power supp…

Text truncated - open the document above for the full version.

Appendix Report FCC PART 90 Test Form QRE315 V 3.1 (2019-11) Project No. SHT2305026001EW Test sample No. YPHT23050260001 Model No. RS-569D Start test date 2023/5/18 Finish date 2023/5/25 Temperature 24.5 °C Humidity 52% Test EngineerAuditor Appendix clause Test Item Test Result (PASS/FAIL) AMaximum Transmitter PowerPASS BOccupied BandwidthPASS CEmission MaskPASS DFrequency Stability Test & TemperaturePASS EFrequency Stability Test & VoltagePASS FTransmitter Frequency BehaviorPASS GSpurious Emission On Antenna PortPASS Appendix Page:1 of 19 Project No.:SHT2305026001EW Appendix A:Maximum Transmitter Power Operation Mode Modulation Type Test Channel Measured Power (dBm) Measured Power(W) Rated Power(W) Percentage (%) Limit (%) Result TX-DNH4FSK CH L1 36.6 4.57 5.00 -8.6 ±20PASS TX-DNH4FSK CH M1 36.6 4.57 5.00 -8.6 ±20PASS TX-DNH4FSK CH H1 36.3 4.27 5.00 -14.6 ±20PASS TX-DNH4FSK CH L2 36.5 4.47 5.00 -10.6 ±20PASS TX-DNH4FSK CH M2 36.3 4.27 5.00 -14.6 ±20PASS TX-DNH4FSK CH H2 36.2 4.17 5.00 -16.6 ±20PASS TX-DNL4FSK CH L1 29.3 0.85 1.00 -15.0 ±20PASS TX-DNL4FSK CH M1 29.2 0.83 1.00 -17.0 ±20PASS TX-DNL4FSK CH H1 29.6 0.91 1.00 -9.0 ±20PASS TX-DNL4FSK CH L2 29.3 0.85 1.00 -15.0 ±20PASS TX-DNL4FSK CH M2 29.5 0.89 1.00 -11.0 ±20PASS TX-DNL4FSK CH H2 29.3 0.85 1.00 -15.0 ±20PASS Appendix Page:2 of 19 Project No.:SHT2305026001EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel Occupied Bandwidth 99% Limit(kHz) Result 99%(kHz)26dB(kHz) TX-DNH4FSK CH L1 7.319 9.258 ≤11.25PASS TX-DNH4FSK CH M1 7.363 9.315 ≤11.25PASS TX-DNH4FSK CH H1 7.495 9.282 ≤11.25PASS TX-DNH4FSK CH L2 7.363 9.221 ≤11.25PASS TX-DNH4FSK CH M2 7.567 9.417 ≤11.25PASS TX-DNH4FSK CH H2 7.607 9.473 ≤11.25PASS TX-DNL4FSK CH L1 7.559 9.313 ≤11.25PASS TX-DNL4FSK CH M1 7.454 9.517 ≤11.25PASS TX-DNL4FSK CH H1 7.550 9.336 ≤11.25PASS TX-DNL4FSK CH L2 7.406 9.218 ≤11.25PASS TX-DNL4FSK CH M2 7.565 9.389 ≤11.25PASS TX-DNL4FSK CH H2 7.715 9.648 ≤11.25PASS Appendix Page:3 of 19 Project No.:SHT2305026001EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test ChannelTEST PLOT RESULT TX-DNH4FSKCH L1 TX-DNH4FSKCH M1 TX-DNH4FSKCH H1 Appendix Page:4 of 19 Project No.:SHT2305026001EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test ChannelTEST PLOT RESULT TX-DNH4FSKCH L2 TX-DNH4FSKCH M2 TX-DNH4FSKCH H2 Appendix Page:5 of 19 Project No.:SHT2305026001EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test ChannelTEST PLOT RESULT TX-DNL4FSKCH L1 TX-DNL4FSKCH M1 TX-DNL4FSKCH H1 Appendix Page:6 of 19 Project No.:SHT2305026001EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test ChannelTEST PLOT RESULT TX-DNL4FSKCH L2 TX-DNL4FSKCH M2 TX-DNL4FSKCH H2 Appendix Page:7 of 19 Project No.:SHT2305026001EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCH L1 TX-DNH4FSKCH M1 TX-DNH4FSKCH H1 Appendix Page:8 of 19 Project No.:SHT2305026001EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCH L2 TX-DNH4FSKCH M2 TX-DNH4FSKCH H2 Appendix Page:9 of 19 Project No.:SHT2305026001EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSKCH L1 TX-DNL4FSKCH M1 TX-DNL4FSKCH H1 Appendix Page:10 of 19 Project No.:SHT2305026001EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSKCH L2 TX-DNL4FSKCH M2 TX-DNL4FSKCH H2 Appendix Page:11 of 19 Project No.:SHT2305026001EW Appendix D:Frequency Stability Test & Temperature Operation Mode Modulation Type Test ConditionsFrequency error (ppm) Limit (ppm) Result VoltageTemperature CH L1 CH M1 CH H1 CH L2 CH M2 CH H2 TX-DNH 4FSK VN-30-0.839 -0.677 -0.812 -0.371 -0.347 -0.355 ±5.0PASS TX-DNH 4FSK VN-20-0.857 -0.687 -0.820 -0.361 -0.360 -0.329 ±5.0PASS TX-DNH 4FSK VN-10-0.850 -0.742 -0.888 -0.385 -0.353 -0.336 ±5.0PASS TX-DNH 4FSK VN0-0.839 -0.711 -0.850 -0.364 -0.361 -0.346 ±5.0PASS TX-DNH 4FSK VN10-0.815 -0.700 -0.850 -0.365 -0.341 -0.339 ±5.0PASS TX-DNH 4FSK VN20-0.794 -0.677 -0.811 -0.360 -0.334 -0.324 ±5.0PASS TX-DNH 4FSK VN30-0.850 -0.713 -0.854 -0.369 -0.344 -0.351 ±5.0PASS TX-DNH 4FSK VN40-0.795 -0.696 -0.855 -0.369 -0.351 -0.343 ±5.0PASS TX-DNH 4FSK VN50-0.819 -0.733 -0.818 -0.374 -0.348 -0.336 ±5.0PASS TX-DNL 4FSK VN-30-0.826 -0.719 -0.919 -0.362 -0.346 -0.332 ±5.0PASS TX-DNL 4FSK VN-20-0.796 -0.696 -0.873 -0.351 -0.353 -0.334 ±5.0PASS TX-DNL 4FSK VN-10-0.806 -0.695 -0.875 -0.377 -0.346 -0.350 ±5.0PASS TX-DNL 4FSK VN0-0.804 -0.736 -0.886 -0.373 -0.346 -0.327 ±5.0PASS TX-DNL 4FSK VN10-0.829 -0.680 -0.884 -0.346 -0.337 -0.357 ±5.0PASS TX-DNL 4FSK VN20-0.781 -0.675 -0.840 -0.343 -0.329 -0.326 ±5.0PASS TX-DNL 4FSK VN30-0.843 -0.676 -0.860 -0.349 -0.329 -0.355 ±5.0PASS TX-DNL 4FSK VN40-0.840 -0.703 -0.922 -0.361 -0.342 -0.345 ±5.0PASS TX-DNL 4FSK VN50-0.797 -0.717 -0.877 -0.374 -0.348 -0.347 ±5.0PASS Appendix Page:12 of 19 Project No.:SHT2305026001EW Appendix E:Frequency Stability Test & Voltage Operation Mode Modulation Type Test ConditionsFrequency error (ppm) Limit (ppm) Result VoltageTemperature CH L1 CH M1 CH H1 CH L2 CH M2 CH H2 TX-DNH4FSKVNTN-0.794 -0.677 -0.811 -0.360 -0.334 -0.324 ±5.0PASS TX-DNH4FSKVLTN-0.795 -0.684 -0.827 -0.360 -0.337 -0.326 ±5.0PASS TX-DNH4FSKVHTN-0.841 -0.694 -0.815 -0.366 -0.352 -0.334 ±5.0PASS TX-DNL4FSKVNTN-0.781 -0.675 -0.840 -0.343 -0.329 -0.326 ±5.0PASS TX-DNL4FSKVLTN-0.794 -0.686 -0.849 -0.349 -0.335 -0.330 ±5.0PASS TX-DNL4FSKVHTN-0.785 -0.708 -0.882 -0.356 -0.342 -0.343 ±5.0PASS Appendix Page:13 of 19 Project No.:SHT2305026001EW Appendix F:Transmitter Frequency Behavior Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCHM1 TX-DNH4FSKCHM1 TX-DNH4FSKCHM2 Appendix Page:14 of 19 Project No.:SHT2305026001EW Appendix F:Transmitter Frequency Behavior Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCHM2 Appendix Page:15 of 19 Project No.:SHT2305026001EW Appendix G:Spurious Emission On Antenna Port Operation Mo…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS
